2A89A-N8Smart Watch

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022/11/7 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A89A-N8 N8 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： XiaoXiong Lin / Project Manager Company: Shenzhen Wanshida Communication Equipment Co.,LTD Address: No.1-5 with H-P-B14, 6F West of Building 2, Saige Technology Park, No.120 Zhenxing Road, Licun Community, Huaqiang North Street, Futian District, Shenzhen,China Phone: +86 13723730781 Fax: / E-Mail: [email protected]

Shenzhen Wanshida Communication Equipment Co.,LTD No.1-5 with H-P-B14, 6F West of Building 2, Saige Technology Park, No.120 Zhenxing Road, Licun Community, Huaqiang North Street, Futian District, Shenzhen,China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022/11/7 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A89A-N8 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： XiaoXiong Lin / Project Manager Company: Shenzhen Wanshida Communication Equipment Co.,LTD Address: No.1-5 with H-P-B14, 6F West of Building 2, Saige Technology Park, No.120 Zhenxing Road, Licun Community, Huaqiang North Street, Futian District, Shenzhen,China Phone: +86 13723730781 Fax: / E-Mail: [email protected]

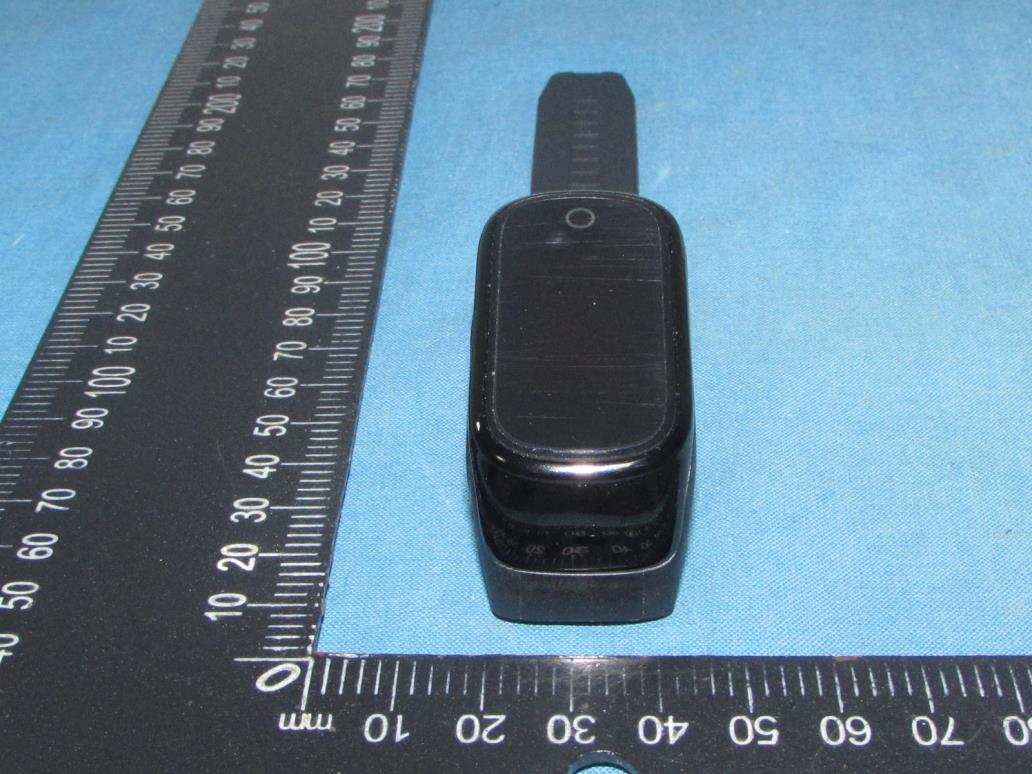

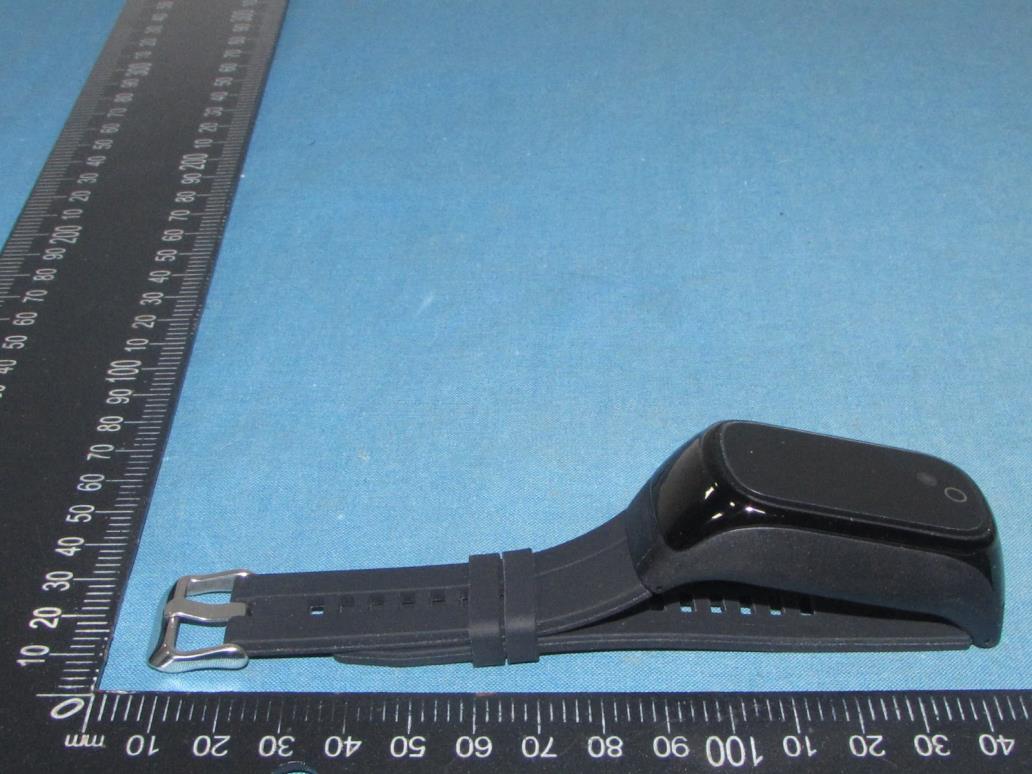

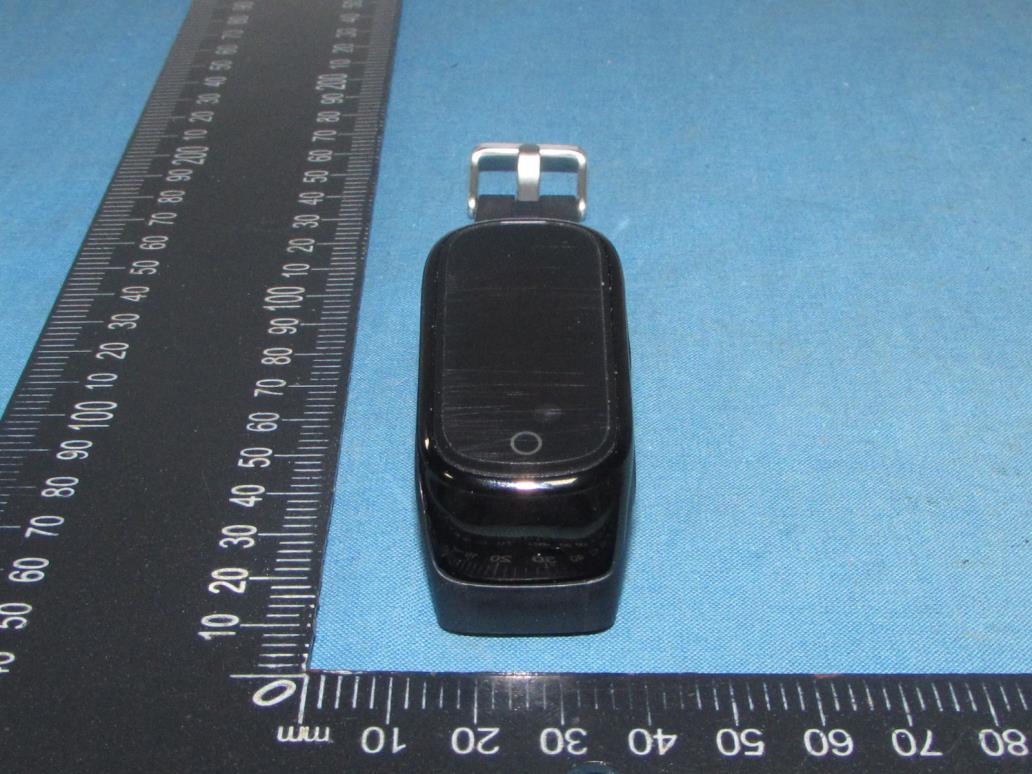

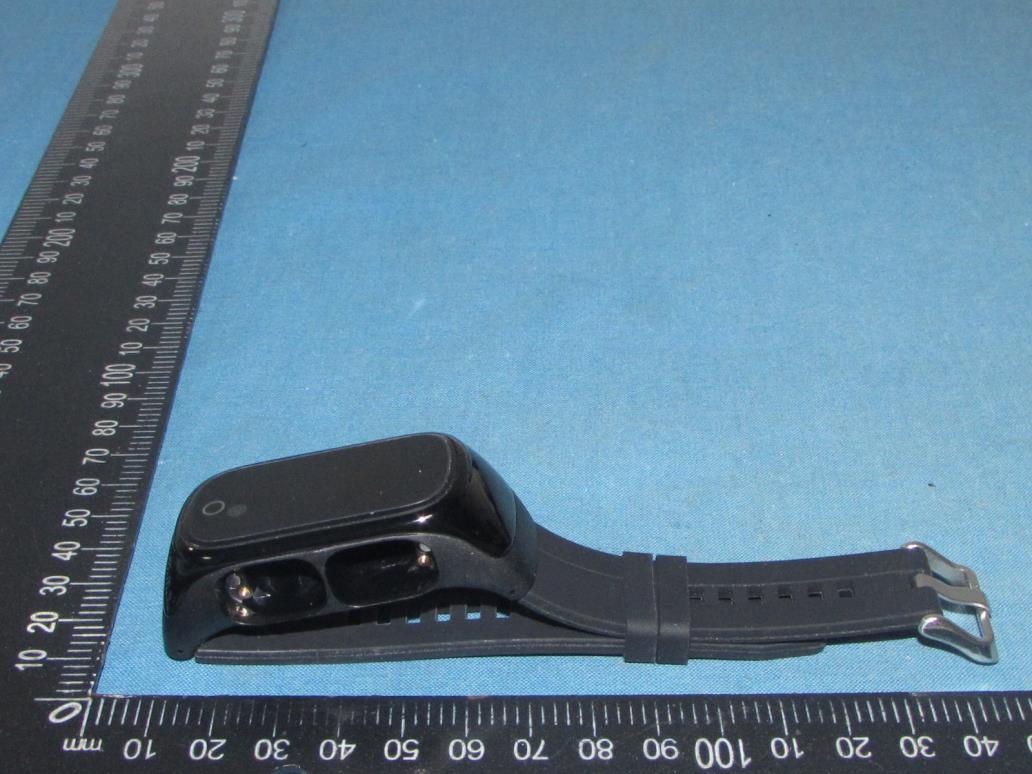

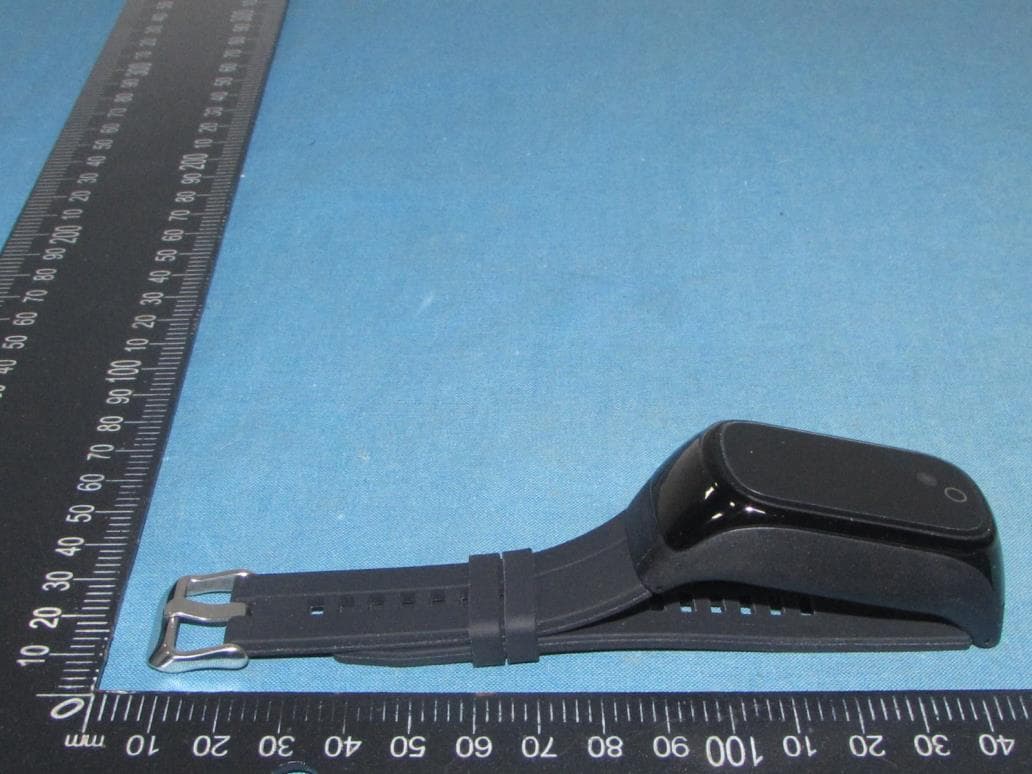

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label Location: FCC ID: 2A89A-N8

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5 Fig.6

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 0.36 19 2440 -0.4 39 2480 -1.62 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 0.0 -0.5 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 1.0 3.71 2.35 3 2440 0.5 3.21 2.09 3 2480 -1.0 1.71 1.48 3 The antenna gain of the EUT for BT is 2.71dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

ONEWAVE TECHNOLOGY CO., LTD. 2/11 3216 Chip antenna For Bluetooth / WLAN Applications Dimension (mm) L 3.23 ± 0.20 W 1.66 ± 0.20 T 1.23 ± 0.20 P/N: WAN3216F245W36 ONEWAVE TECHNOLOGY CO., LTD. 3/11 Part Number Information WAN 3216 F 245 W 36 A B C D E F A Product Series Antenna B Dimension L x W 3.2X1.6mm (+-0.2mm) C Material High K material D Working Frequency 2.4 ~ 2.5GHz E Feeding mode Monopole & Single Feeding F Antenna type Type=36 1. Electrical Specification Remark : Bandwidth & Peak Gain was measured under evaluation board of next page Specification Part Number WAN3216F245W36 Central Frequency 2450 MHz Bandwidth 100 (Min.) MHz Return Loss -6.5 (Max) dB Peak Gain 2.71 dBi Impedance 50 Ohm Operating Temperature -40～+85 °C Maximum Power 4 W Resistance to Soldering Heats 10 ( @ 260°C) sec. Polarization Linear Azimuth Beamwidth Omni-directional Termination Cu / Sn (Leadless) ONEWAVE TECHNOLOGY CO., LTD. 4/11 2. Recommended PCB Pattern 1.Evaluation Board Dimension 2.Evaluation Board Dimension (若淨空區夠大，建議使用此Layout，效能較佳) Unit : mm Suggested Matching Circuit 重要資訊 : 匹配元件建議使用精準度±1%以下的電感、電容、電阻 ONEWAVE TECHNOLOGY CO., LTD. 5/11 1.Layout Dimensions in Clearance area(Size=5.2*5.0mm) 50 ohm transmission Line Matching Circuit 2.Layout Dimensions in Clearance area(Size=8.2*5.0mm) (若淨空區夠大，建議使用此Layout，效能較佳) 50 ohm transmission Line Matching Circuit FootPrint (Unit : mm) ONEWAVE TECHNOLOGY CO., LTD. 6/11 3. Measurement Results Return Loss ONEWAVE TECHNOLOGY CO., LTD. 7/11 Radiation Pattern Efficiency Peak Gain Directivity 2400MHz 55.21 % 1.45 dBi 5.32 dBi 2450MHz 66.45 % 2.71 dBi 5.21 dBi 2500MHz 57.53 % 1.98 dBi 5.29 dBi Chamber Coordinate System Y Z X ONEWAVE TECHNOLOGY CO., LTD. 8/11 4.Reliability and Test Condictions ITEM REQUIREMENTS TEST CONDITION Solderability 1. Wetting shall exceed 90% coverage 2. No visible mechanical damage Pre-heating temperature:150°C/60sec. Solder temperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Solder heat Resistance 1. No visible mechanical damage 2. Central Freq. change :within ± 6% 10±0.5 sec. 60sec .. TEMP (°C) 150°C 260°C Pre-heating temperature:150°C/60sec. Solder temperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Flux for lead free: rosin Component Adhesion (Push test) 1. No visible mechanical damage The device should be reflow soldered(230±5°C for 10sec.) to a tinned copper substrate A dynometer force gauge should be applied the side of the component. The device must with-ST-F 0.5 Kg without failure of the termination attached to component. Component Adhesion (Pull test) 1. No visible mechanical damage Insert 10cm wire into the remaining open eye bend ,the ends of even wire lengths upward and wind together. Terminal shall not be remarkably damaged. Thermal shock 1. No visible mechanical damage 2. Central Freq. change :within ±6% Phase Temperature(°C) Time(min) 1 +85±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +85°C=>30±3min -40°C=>30±3min Test cycle:10 cycles The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to High Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 85±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Resistance to Low Temperature 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature:-40±5°C Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. Humidity 1. No visible mechanical damage 2. Central Freq. change :within ±6% 3. No disconnection or short circuit. Temperature: 40±2°C Humidity: 90% to 95% RH Duration: 1000±12hrs The chip shall be stabilized at normal condition for 2~3 hours before measuring. 4±1 sec. 60sec TEMP (°C) 150°C 230°C ONEWAVE TECHNOLOGY CO., LTD. 9/11 5.Soldering and Mounting Mildly activated rosin fluxes are preferred. The minimum amount of solder can lead to damage from the stresses caused by the difference in coefficients of expansion between solder, chip and substrate. The terminations are suitable for all wave and re-flow soldering systems. If hand soldering cannot be avoided, the preferred technique is the utilization of hot air soldering tools. Recommended temperature profiles for re-flow soldering in Figure 1. Products attachment with a soldering iron is discouraged due to the inherent process control limitations. In the event that a soldering iron must be employed the following precautions are recommended. ‧Preheat circuit and products to 150°C ‧Never contact the ceramic with the iron tip ‧Use a 20 watt soldering iron with tip diameter of 1.0mm ‧280°C tip temperature (max) ‧1.0mm tip diameter (max) ‧Limit soldering time to 3 sec. SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING TEMPERATURE(°C) within 3s Gradualcooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 ONEWAVE TECHNOLOGY CO., LTD. 10/11 6.Packaging Information  Tape Specification: W Ao Bo Ko P F E D D1 Po P2 t 8.0 ±0.30 1.80 ±0.05 3.51 ±0.10 1.59 ±0.10 4.00 ±0.05 3.50 ±0.05 1.75 ±0.10 1.50 ±0.10 0.00 ±0.10 4.00 ±0.10 2.00 ±0.05 0.25 ±0.05  Reel Specification: (7’’, Φ180 mm) Tape Width(mm) A(mm) B(mm) C(mm) D(mm) Chip/Reel(pcs) 8 9.0±0.5 60±2 13.5±0.5 178±2 3000 ONEWAVE TECHNOLOGY CO., LTD. 11/11 7.Storage and Transportation Information Storage Conditions To maintain the solderability of terminal electrodes: 1. Temperature and humidity conditions: -10~ 40°C and 30~70% RH. 2. Recommended products should be used within 6 months from the time of delivery. 3. The packaging material should be kept where no chlorine or sulfur exists in the air. Transportation Conditions 1. Products should be handled with care to avoid damage or contamination from perspiration and skin oils. 2. …

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: Smart Watch Trade Mark: W@nyou Test Model: N8 FCC ID: 2A89A-N8 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.652 2401.660 2402.312 0.5 PASS 2440 0.700 2439.640 2440.340 0.5 PASS 2480 0.624 2479.684 2480.308 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0245 2401.4905 2402.5150 --- --- 2440 1.0217 2439.4871 2440.5088 --- --- 2480 1.0287 2479.4870 2480.5157 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 0.36 ≤30 PASS 2440 -0.4 ≤30 PASS 2480 -1.62 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.26 ≤8.00 PASS 2440 -16.07 ≤8.00 PASS 2480 -17.28 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -0.11 -49.75 ≤-20.11 PASS High 2480 -2.11 -49.07 ≤-22.11 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.11 -0.11 --- PASS 30~1000 -0.11 -60.75 ≤-20.11 PASS 1000~26500 -0.11 -49.88 ≤-20.11 PASS 2440 Reference -0.93 -0.93 --- PASS 30~1000 -0.93 -60.71 ≤-20.93 PASS 1000~26500 -0.93 -50.16 ≤-20.93 PASS 2480 Reference -2.15 -2.15 --- PASS 30~1000 -2.15 -59.9 ≤-22.15 PASS 1000~26500 -2.15 -48.87 ≤-22.15 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.39 0.62 62.90 2.56 2440 0.40 0.63 63.49 2.50 2480 0.39 0.62 62.90 2.56 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 16 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -48.87 ≤-41.20 PASS AV 2363.000 -48.14 ≤-41.20 PASS AV 2390.000 -48.72 ≤-41.20 PASS Peak 2310.000 -41.98 ≤-21.20 PASS Peak 2373.710 -38.87 ≤-21.20 PASS Peak 2390.000 -39.8 ≤-21.20 PASS High 2480 AV 2483.500 -47.94 ≤-41.20 PASS AV 2494.400 -47.42 ≤-41.20 PASS AV 2500.000 -47.75 ≤-41.20 PASS Peak 2483.500 -40.29 ≤-21.20 PASS Peak 2496.320 -38.89 ≤-21.20 PASS Peak 2500.000 -40.84 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 18 of 19 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV BLE_1M_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Report No.: TZ221003757-E Page 19 of 19

Report No.: TZ221003757-E Page 1 of 34 FCC TEST REPORT Test report On Behalf of Shenzhen Wanshida Communication Equipment Co.,LTD For Smart Watch Model No.: N8 FCC ID: 2A89A-N8 Prepared for : Shenzhen Wanshida Communication Equipment Co.,LTD No.1-5 with H-P-B14, 6F West of Building 2, Saige Technology Park, No.120 Zhenxing Road, Licun Community, Huaqiang North Street, Futian District, Shenzhen,China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2022/10/27~2022/11/3 Date of Report: 2022/11/4 Report Number: TZ221003757-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ221003757-E Page 2 of 34 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Wanshida Communication Equipment Co.,LTD Address .................................. : No.1-5 with H-P-B14, 6F West of Building 2, Saige Technology Park, No.120 Zhenxing Road, Licun Community, Huaqiang North Street, Futian District, Shenzhen,China Manufacture's Name ............ : Shenzhen Wanshida Communication Equipment Co.,LTD Address .................................. : No.1-5 with H-P-B14, 6F West of Building 2, Saige Technology Park, No.120 Zhenxing Road, Licun Community, Huaqiang North Street, Futian District, Shenzhen,China Product description Trade Mark: W@nyou Product name ........................... : Smart Watch Model and/or type reference : N8 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2022/10/27~ 2022/11/3 Date of Issue .......................................... : 2022/11/4 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ221003757-E Page 3 of 34 Revision History Revision Issue Date Revisions Revised By 000 2022/11/4 Initial Issue Andy Zhang Report No.: TZ221003757-E Page 4 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP .............................................................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A89A-N8 Conducted Emission
