2A8ABMINI2Cellular 4G/LTE alarm panel

safe360 llc
Cellular 4G/LTE alarm panel - FCC ID 2A8ABMINI2 - safe360 llc
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Jul 02, 2023
Application Purpose
Original Equipment
Date of Application
Jul 02, 2023
Equipment Note
Cellular 4G/LTE alarm panel
Frequency Range
1710.10000000 - 1754.90000000
Company
safe360 llc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Introduction 1. R/T button: Disarm &Test 2. SOS button: Press it for 3s turning on siren & sending out emergency data 3. Speaker 4. Power adapter: 5V /1A 5. Battery switch Indicate light RUN AC SIGNAL RED GREEN BLUE Alarming: flash fast Standby: always on AC OK: always on AC failure :always off Low battery: flash Strong: always on Medium: on 2s ,off 1s Bad signal or no signal; always off Learning code mode: flash fast ◆Standby current: 40mA ◆Alarming:160-210mA ◆Battery voltage:3.7V,Standby current40-60mA,enter into sleep mode after 3 minute current 20-30mA, ◆Low battery ≤3V (3.2V Back to normal voltage) ◆Specification size: Long 127x wide 76x thick 36mm Quick& Easy start up guide 1. Starting up (power-on all the device): Mini panel: Plug Mini panel in the outlet and turn on back-up battery switch on rear of unit. Voice prompt “Starting up”( if you didn’t turn on back-up battery switch on rear of unit you will hear voice prompt “Please turn on battery switch”) .Built-in 4G module proceed to searching signal, Voice prompt “Access network successful” Detectors: Pull out the battery spacer of wireless detector in this kit, and install them properly (All the detector has already pairing with Mini panel) 2. Operation: a) R/T button: Hold on 3S for Disarm Short press for Test b) SOS button: Press it for 3s turning on siren & sending out emergency data c) Panic button 1&2&3:Press “SOS” button, voice prompt: “No.* panic button +emergency alarm +siren” User will receive a data notification on the same time. Advanced Menu 1. Learning code & deleting code: (1)Access pairing/ learning code: a) Power on Mini panel , Long press “R/T” + “SOS” from Mini panel on the same time for 3s within 3 min,Voice prompt: "Programming Mode, please press SOS button to continue" b) Press panic button 1 to program “No.1 keypad Press panic button 1 to program “No.2 keypad Press panic button 1 to program “No.3 keypad (2)Delete all of codes: Long press “SOS” button for 3s under learning code, Voice prompt “All devices have been deleted” System return to learning code condition. (3)Exit learning code: Short press ”R&T” button or waiting 3min to exit learning code mode, voice prompt:” Exit Programming Mode” 2. Report server IP:TCP protocol Primary :alerts.rxserver3.com port:7019 Back-up :alerts.rxserver13.com port:7019 3. Data /IMEI/E/102/01/010 (detector lost) /IMEI/R/102/01/001(detector lost reset) /IMEI/R/102/00/000 (Restart) /IMEI/E302/00/000 (Mini panel low battery, lower than 3V ) /IMEI/R302/00/000(Low battery reset,higher than 3.2V) /IMEI/E301/00/000 (AC fault, report within 1min) /IMEI/R301/00/000 (AC reset ,report within 1min) /IMEI/E531/01/“ZONE NUMBER”(Add panic button ) /IMEI/E532/01“ZONE NUMBER”(cancel panic button) /IMEI/E101/01“ZONE NUMBER ”(Panic button alarm) /IMEI/E406/01/ “ZONE NUMBER”(Disarm when alarm) /IMEI/R350/00/000(Connect with network) /IMEI/E601/00/000 (Test) /IMEI/E602/00/000 (Weekly report) /IMEI/E350/01/001(Mini panel can not connect with network over 10mins)

Attestation Statements

safe360 llc ADD: 8148 lefferts blvd, Kew gardens, New York, United States TEL: (516) 690-0199 FAX: 8885091812 E-mail: [email protected] Date: 2023-03-12 Attestation Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: The module BG95-M2 installed in our product Cellular 4G/LTE alarm panel (model name: Mini2, FCC ID:2A8ABMINI2 ), that only LTE B2/B4 were activated the other functions are disabled by using software and the end user can not activated them. The Bluetooth antenna on the board is only reserved. The actual product does not support the Bluetooth function. Please contact me if there is need for any additional clarification or information. Best Regards, Sincerely Yours, Signature: Printed Name: David tropper Title: managing member

Attestation Statements

safe360 llc ADD: 8148 lefferts blvd, Kew gardens, New York, United States TEL: (516) 690-0199 FAX: 8885091812 E-mail: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 03/12/2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: 2A8ABMINI2 safe360 llc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. safe360 llc (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: David tropper Title: managing member

Attestation Statements

CFR 47 §2.911(d)(7) U.S Agent U.S. AGENT LETTER OF ATTESTATION Date: 2023-03-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2A8ABMINI2 safe360 llc (“the Applicant”) certifies that, as of the date of the filing of the application, safe360 llc (U.S. agent). is our designated U.S. agent for service of process for the above referenced FCC ID. safe360 llc (“the Applicant”)accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. safe360 llc (U.S. agent) accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: safe360 llc Address: 8148 lefferts blvd, Kew gardens, New York, United States FRN: 0032743668 Tel.: (516) 690-0199 Email: [email protected] Signed by (printed name): David Tropper Signature: Applicant: Name: safe360 llc Address: 8148 lefferts blvd, Kew gardens, New York, United States FRN: 0032743668 Tel.: (516) 690-0199 Email: [email protected] Signed by (printed name): David Tropper Signature:

Cover Letter(s)

QA-FR-170-B safe360 llc ADD: 8148 lefferts blvd, Kew gardens, New York, United States TEL: (516) 690-0199 FAX: 8885091812 E-mail: [email protected] FCC Authorization Date: 2023-03-12 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , safe360 llc, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Contact Person: David tropper Title: managing member

Cover Letter(s)

QA-FR-171-A safe360 llc ADD: 8148 lefferts blvd, Kew gardens, New York, United States TEL: (516) 690-0199 FAX: 8885091812 E-mail: [email protected] FCC Confidential Authorization Date: 2023-03-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A8ABMINI2 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, safe360 llc hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  BOM  Tune Up Procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: David tropper Title: managing member

External Photos

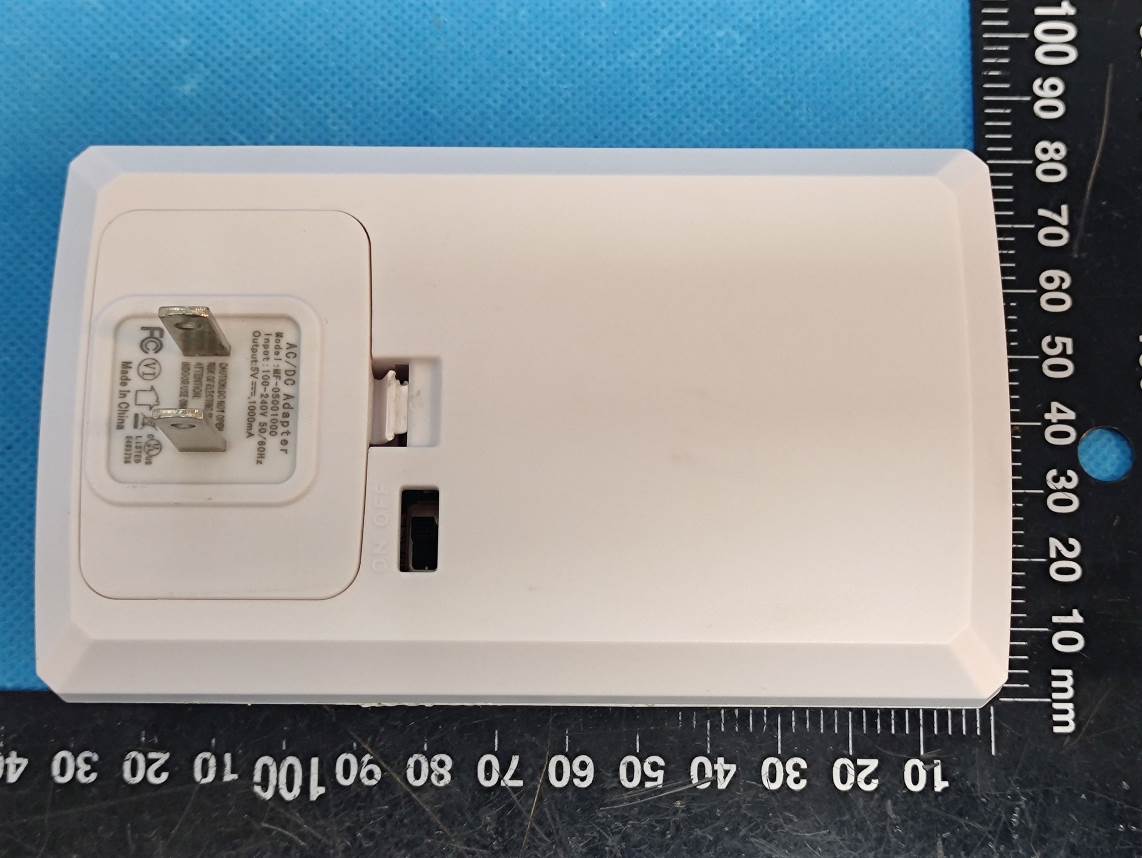

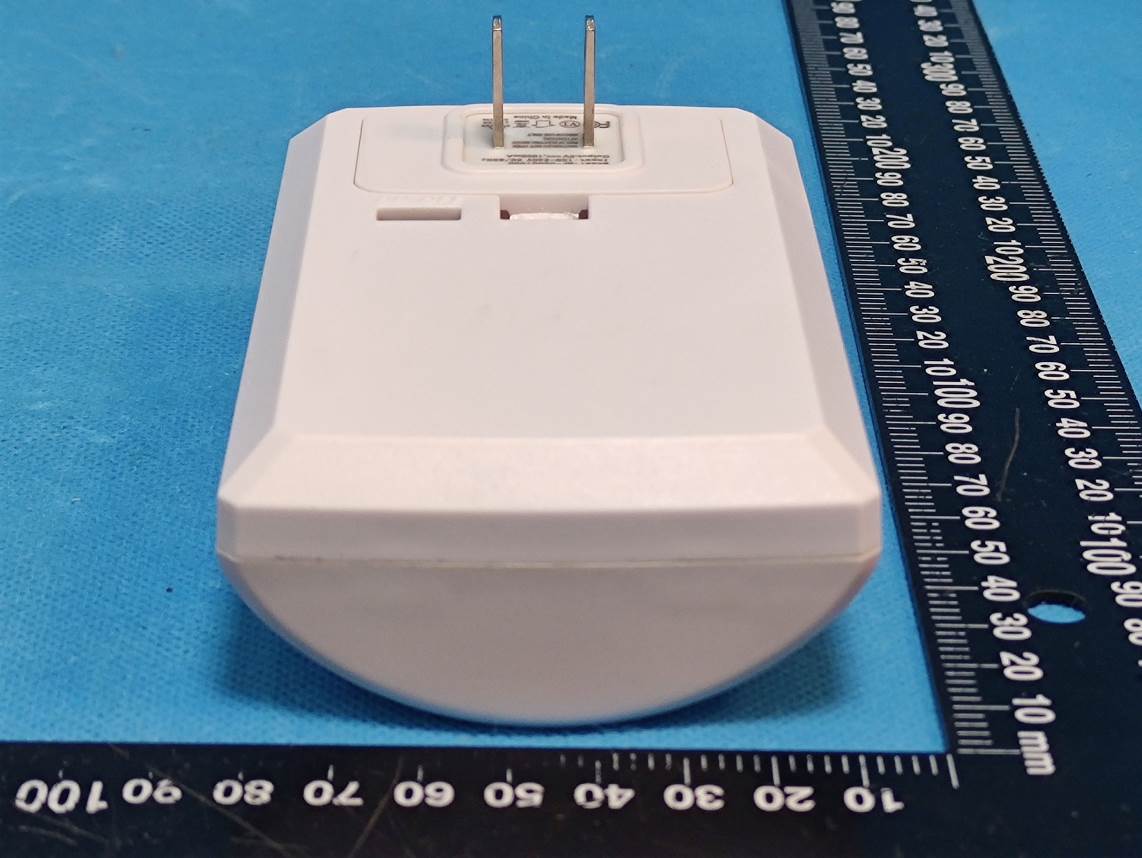

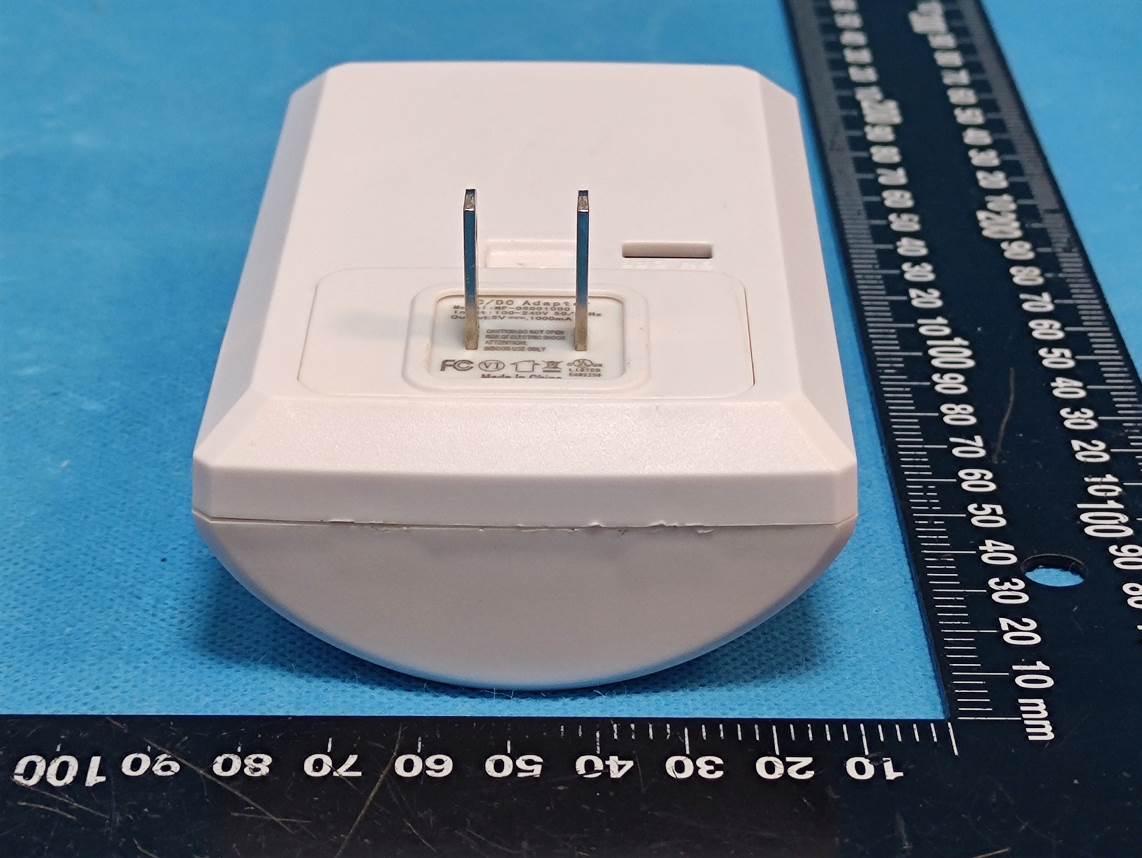

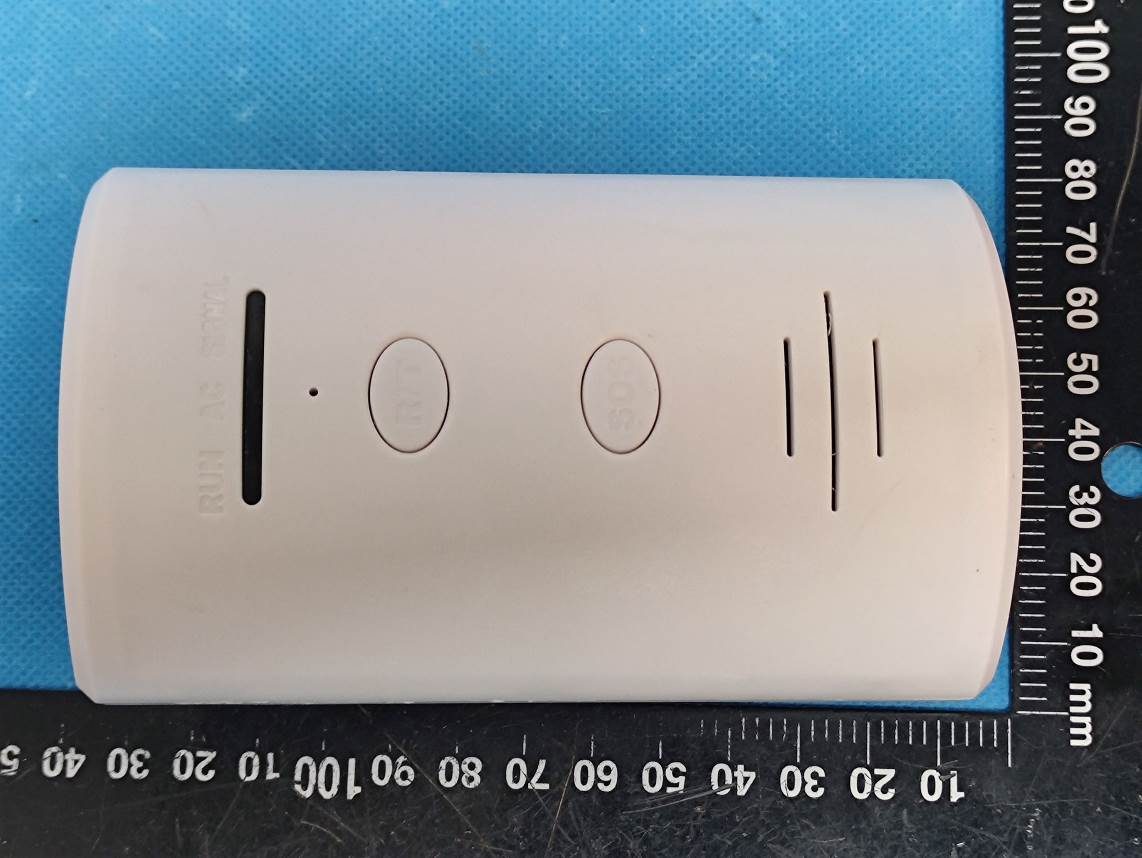

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

Internal Photos

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS No Used Antenna NB-IoT Antenna 433M Receiver Antenna

RF Exposure Info

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312071-00B Page 43 of 43 5. RF EXPOSURE EVALUATION 5.1 MPE-Based Exemption 5.1.1 Applicable Standard According to §1.1307(b)(3)(i) (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). Table 1 to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 . 1.34-30 3,450 R 2 /f 2 . 30-300 3.83 R 2 . 300-1,500 0.0128 R 2 f. 1,500-100,000 19.2R 2 . 5.1.2 Measurement Result Operation Modes Frequency (MHz) λ/2π (mm) Distance (mm) Exemption ERPMaximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (dBm) MPE- Based Exemption (mW)(dBm) Band 2 1850-1910 25.82 200 768 28.85 19 5.0 21.85 Compliant Band 4 1710-1755 27.94 200 768 28.85 19 5.0 21.85 Compliant Note: The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. Result: The device compliant the MPE-Based Exemption at 20cm distances. ==== END OF REPORT =====

Test Report

ItemSpecifications ਈۅিמ Antenna  ைࣤਸ֠ Frequency Range B2:1850-1910/1930-1990MHz B4:1710-1755/2110-2155MHz ञ׍ Gain 3-5dBi ࡁࡦ௞ V.S.W.R ≤2.0 ܐஊ Impendance 50Ω چি୸מ Antenna size 37*12*0.3MM  ڔސԗߢ Polarization Vertical  ਈۅࠑߑ Mechanical  ӄୂৈߣ Inner Material  Phosphor copper ڔސ੸؍ Mounting Method Welding ֺিঝמAntenna TYPE Internal antenna ਈۅ׋࣪ Environmental  چ࢓ҁٗ Operating Temperature -40ć~+80ć چ࢓ે؂ Storage Temperature  -40ć~+85ć מিӲଭ֌ Antenna Manufacture: Jinjiang Rixing Hardware Processing Factory No. 10, Zhujie Street, Shuimen Lane, Quanzhou, Fujian  Antenna Report Antenna model: ANT-153D   Antenna Picture

Test Report

TEST REPORT Applicant: safe360 llc Address: 8148 lefferts blvd, Kew gardens, New York, United States FCC ID: 2A8ABMINI2 Product Name: Cellular 4G/LTE alarm panel Standard(s): 47 CFR Part 2 47 CFR Part 24, Subpart E 47 CFR Part 27 ANSI C63.26-2015 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230312071-00B Date Of Issue: 2023/6/28 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312071-00B Page 2 of 43 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230312071-00B Page 3 of 43 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 4 1. GENERAL INFORMATION .................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 5 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 6 1.2.2 Support Equipment List and Details .............................................................................................................. 6 1.2.3 Support Cable List and Details ...................................................................................................................... 6 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 6 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 7 2. SUMMARY OF TEST RESULTS ............................................................................................ 8 3. REQUIREMENTS AND TEST PROCEDURES .................................................................... 9 3.1 Applicable Standard For Part 24 Subpart E: ..................................................................................................... 9 3.1.1 RF Output Power ........................................................................................................................................... 9 3.1.2 Spurious Emissions ........................................................................................................................................ 9 3.1.3 Frequency stability ......................................................................................................................................... 9 3.2 Applicable Standard For Part 27: .................................................................................................................... 10 3.2.1 RF Output Power ......................................................................................................................................... 10 3.2.2 Spurious Emissions ...................................................................................................................................... 10 3.2.3 Frequency stability ....................................................................................................................................... 12 3.3 Test Method: ................................................................................................................................................... 13 3.3.1 RF Output Power ......................................................................................................................................... 13 Test Setup Block: .................................................................................................................................................. 13 3.3.2 Occupied Bandwidth .................................................................................................................................... 14 Test Setup Block: .................................................................................................................................................. 14 3.3.3 Spurious emissions at antenna terminals ..................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View

Contact Information

Applicant

DAVID Tropper
[email protected](516) 690-0199Fax: 8885091812

Test Firm

CHINA CERTIFICATION ICT CO., LTD (DONGGUAN)Tanie Ou
[email protected]0086 0769 86858888

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
2271.71 GHz - 1.75 GHz242.00 mW185KG7D2.5 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is EIRP. This device supports LTE Bands 2/4 (NB IoT). The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except as evaluated in this filing or in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations.

Other Applications from safe360 llc

Panic button - FCC ID 2A8ABWG-01W-D - safe360 llc
2A8ABWG-01W-D

Panic button

Jul 02, 2023

Equipment Class

DSR - Part 15 Remote Control/Security Device Transceiver
