2A8C5-TNF2020053 IN 1 Magnetic Wireless Charger

3-IN-1 MagneticWireless Charger UserManual ProductIntroduction Theproductisa3-in-1wirelesschargingpad,preferredsmart chip,andsupportsmobilephones、smart watches,earphones,typecoutputisalsosupported.Achieve highefficiency,stableperformance,putitonandcharge, easilyenjoywirelesschargingtechnologylife.Itcanalso wirelesslychargemobilephonesorotherelectronicdevices thatsupportQistandard. Specification Input:5V2A9V2A12V1.5A Output:5W/7.5W/10W/15W(SmartPhone);5W(Earphone); 2.5W(SmartWatch);10W(Type-c) ConversionEfficiency:≤85% Workingfrequency:115-205khz/326.5kHz Materials:PC Size:125*65*25mm Weight:165g Color:Black/White TransmissionDistance:2-6mm Precautions 1.Ifusedforfastcharging,pleaseusequalified(fast charging)poweradapter(QC/PD18W)andfastchargingcable, ifusedforthestandardcharging,pleaseusedqualified5V/2A poweradapter,orthismaycauseinstabilityincharge. 2.Donotplacemetaldebrisormagneticstripecardtothe chargingpanel,thechargermaybedamaged. 3.Iftheoverheatingafterstopcharging,removethecharging devicetobecooled,andthentrytore-charge. SafetyTips 1.Donotdisassembletheproductorinfire,water,andavoid causingashortcircuit. 2.Donotplacetheproductinextremelyhot,humidorcorrosive environments,toavoiddamagetotheproduct. 3.Donotgivechildrentoplay,inordertoavoidunnecessary accidents. FAQandSolution 1.Mydeviceishotwhilecharging,isitnormal? --Ifyoudon'tchargeyourdeviceinagoodchargingarea,the heatdissipationmaynotgoodanditwillcauseyourphonehot duringcharging.producthasoverheatprotectionfunction. 2.Whyitchargesslowlythanmyorlginaladaptercamewiththe mobiledevice? --Thewirelesschargingcurrentsizeallowedbythephone itselforexternalreceivercoilisdifferent. --Whenthephoneischarging,thestandbypowerconsumptionis large,soitisrecommendedtoreducethephonestandbyprogram. 3.Isradiationfromwirelesschargingharmfultoone'sheath? --Theproductwirelesschargeremitsnon-ionizingradiation whichisnotharmfultohumans. Warranty Weprovideallourcustomers12monthswarrantyfromthedate ofpurchase. FCCWarning: Thisdevicecomplieswithpart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions:(1)Thisdevicemay notcauseharmfulinterference,and(2)thisdevicemustaccept anyinterferencereceived,includinginterferencethatmay causeundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythe partyresponsibleforcompliancecouldvoidtheuser's authoritytooperatetheequipment. Thisequipmenthasbeentestedandfoundtocomplywiththe limitsforaClassBdigitaldevice,pursuanttopart15ofthe FCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgeneratesusesandcanradiate radiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbe determinedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormore ofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferent fromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianfor help. FCCRFexposurestatement: TheequipmentcomplieswithFCCradiationexposurelimitsset forthforanuncontrolledenvironment.Thisequipmentshould beinstalledandoperatedwithminimumdistancebetween20cm theradiatoryourbody.

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: T&F Manufacturing CO., LTD Address: No.8 East 3rd Street, Xingfa South Road, Liwu, Wusha, ChangAn, Dongguan, China Product Name: 3 IN 1 Magnetic Wireless Charger Model Number: TNF-202-005 FCC Identifier: 2A8C5-TNF202005 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: aidy huang Date: 12/12/2022 Title: Deputy General Manager Signature of applicant:

C5266091_X10_Ed.1 1/1 T&F Manufacturing CO., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 12/12/2022 Subject: Request for Confidentiality FCC ID: 2A8C5-TNF202005 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: aidy huang Date: 12/12/2022 Title: Deputy General Manager

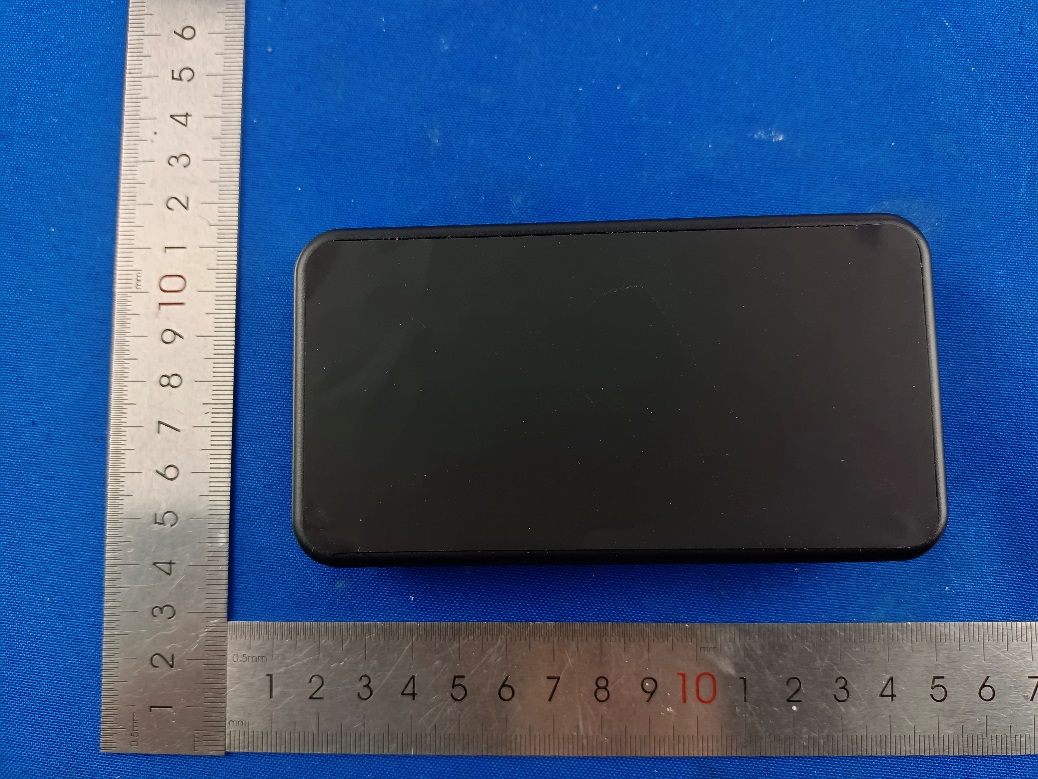

Page 1 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - EUT Photos Model: TNF-202-005 Photo 1 Photo 2 Transmitter 1 Page 2 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 3 Photo 4 Transmitter 3 Transmitter 2 Page 3 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 5 Photo 6 Page 4 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 7 ----End of Report----

Page 1 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Appendix - EUT Photos Model: TNF-202-005 Photo 1 Photo 2 transmitter 2: ANT Page 2 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 3 Photo 4 transmitter 1: ANT Page 3 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 5 Photo 6 Page 4 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 7 Photo 8 Page 5 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 9 Photo 10 transmitter 3: ANT Page 6 of 6 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Te l : (86-755)88850135 Fax: (86-755) 88850136 Web:www.mtitest.com E-mail: [email protected] Photo 11 ----End of Report----

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi221026005-04E2 Date of issue: 2022-11-28 Applicant: T&F Manufacturing CO., LTD Product: 3 IN 1 Magnetic Wireless Charger Model(s): TNF-202-005 FCC ID: 2A8C5-TNF202005 Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 14 Report No.: MTi221026005-04E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 14 Report No.: MTi221026005-04E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Contents 1 General Description ........................................................................................................................ 5 1.1 Description of the EUT ....................................................................................................................................... 5 1.2 Description of test modes ................................................................................................................................... 5 1.3 Description of support units ................................................................................................................................ 7 2 Measurement uncertainty ............................................................................................................... 7 3 Test facilities and accreditations .................................................................................................... 8 3.1 Test laboratory .................................................................................................................................................... 8 4 List of test equipment ..................................................................................................................... 9 5 Test result ...................................................................................................................................... 10 5.2 Test setup ......................................................................................................................................................... 11 5.3 Test Procedures ................................................................................................................................................ 11 5.4 Equipment Approval Considerations item 5 b) of KDB 680106 D01 v03r01 .................................................... 12 5.5 Test results ....................................................................................................................................................... 13 Photographs of the Test Setup ............................................................................................................ 14 Photographs of the EUT....................................................................................................................... 14 Page 4 of 14 Report No.: MTi221026005-04E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Result Certification Applicant: T&F Manufacturing CO., LTD Address: No.8 East 3rd Street, Xingfa South Road, Liwu, Wusha, ChangAn, Dongguan, China Manufacturer: T&F Manufacturing CO., LTD Address: No.8 East 3rd Street, Xingfa South Road, Liwu, Wusha, ChangAn, Dongguan, China Product description Product name: 3 IN 1 Magnetic Wireless Charger Trademark: TNF Model name: TNF-202-005 Series Model: N/A Standards: FCC CFR 47 PART 1, § 1.1310 Test method: KDB 680106 v03r01 Date of Test Date of test: 2022-11-04 ~ 2022-11-28 Test result: Pass Test Engineer : (Letter Lan) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) Page 5 of 14 Report No.: MTi221026005-04E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1 General Description 1.1 Description of the EUT Product name: 3 IN 1 Magnetic Wireless Charger Model name: TNF-202-005 Series Model: N/A Model difference: N/A Electrical rating: Input: DC 5V/2A, 9V/2A, 12V/1.5A Output: transmitter 1(Smart phone): 5W/7.5W/10W/15W transmitter 2(Airpods): 5W transmitter 3(Smart watch): 2.5W Type-C Output: DC 5V/2A 10W Accessories: N/A Hardware version: TF-V1.0 Software version: TF-V2.2 RF specification: Operation frequency: transmitter 1: 115 kHz – 205 kHz transmitter 2: 115 kHz – 205 kHz transmitter 3: 326.5kHz Modulation type: ASK Antenna type: Coil Antenna 1.2 Description of test modes All the test modes were carried out with the EUT in normal operation, the final test mode of the EUT was the worst test mode for emission test, which was shown in this report and defined as: No. Emission test modes Mode 1 Wireless Output(5W) Mode 2 Wireless Output(7.5W) Mode 3 Wireless Output(10W) Mode 4 Wireless Output(15W) Mode …

Text truncated - open the document above for the full version.

Address: 101, No.7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi221026005-04E1 Date of issue: 2022-11-28 Applicant: T&F Manufacturing CO., LTD Product: 3 IN 1 Magnetic Wireless Charger Model(s): TNF-202-005 FCC ID: 2A8C5-TNF202005 Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 24 Report No.: MTi221026005-04E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 24 Report No.: MTi221026005-04E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of contents 1. General Description ........................................................................................................................ 5 1.1 Description of the EUT ....................................................................................................................................... 5 1.2 Description of test modes ................................................................................................................................... 6 1.3 Description of support units ................................................................................................................................ 7 1.4 Environmental conditions ................................................................................................................................... 7 2. Measurement uncertainty ............................................................................................................... 8 3. Test laboratory ................................................................................................................................. 8 4. Summary of Test Result .................................................................................................................. 9 5. List of test equipment ................................................................................................................... 10 6. Test Results ................................................................................................................................... 11 5.1 Antenna requirement ........................................................................................................................................ 11 5.3 AC power line conducted emissions ........................................................................................................... 12 5.4 Radiated emissions..................................................................................................................................... 15 5.5 Occupied bandwidth test ............................................................................................................................ 22 Photographs of the test setup ............................................................................................................. 24 Photographs of the EUT....................................................................................................................... 24 Page 4 of 24 Report No.: MTi221026005-04E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Result Certification Applicant: T&F Manufacturing CO., LTD Address: No.8 East 3rd Street, Xingfa South Road, Liwu, Wusha, ChangAn, Dongguan, China Manufacturer: T&F Manufacturing CO., LTD Address: No.8 East 3rd Street, Xingfa South Road, Liwu, Wusha, ChangAn, Dongguan, China Product description Product name: 3 IN 1 Magnetic Wireless Charger Trademark: TNF Model name: TNF-202-005 Series Model: N/A Standards: FCC 47 CFR Part 15 Subpart C Test method: ANSI C63.10-2013 Date of Test Date of test: 2022-11-04 ~ 2022-11-28 Test result: Pass Test Engineer : (Letter Lan) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) Page 5 of 24 Report No.: MTi221026005-04E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1. General Description 1.1 Description of the EUT Product name: 3 IN 1 Magnetic Wireless Charger Model name: TNF-202-005 Series Model: N/A Model difference: N/A Electrical rating: Input: DC 5V/2A, 9V/2A, 12V/1.5A Output: transmitter 1(Smart phone): 5W/7.5W/10W/15W transmitter 2(Airpods): 5W transmitter 3(Smart watch): 2.5W Type-C Output: DC 5V/2A 10W Accessories: N/A Hardware version: TF-V1.0 Software version: TF-V2.2 Test sample(s) number: MTi221026005-04S1001 RF specification: Operation frequency: transmitter 1: 115 kHz – 205 kHz transmitter 2: 115 kHz – 205 kHz transmitter 3: 326.5 kHz Modulation type: ASK Antenna type: Coil Antenna Page 6 of 24 Report No.: MTi221026005-04E1 Address: 101, No. 7, Zone2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong…

Text truncated - open the document above for the full version.

FY-GZ001 Fine Page1 of4 客戶： CUSTOMER: 客戶料號： CUSTP/N: 淘软料號： BESOFTP/N: 産品型號： DESC: 日期： DATE: 版本： Version: SPECIFICATIONFORAPPROVAL 20.5x37-10Ts-0.08x24*2P-5mm-CLB 2022/12/09 A.0 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 冯伯群苏燕平钱立谋 工厂地址：深圳市光明区公明街道上村 社区五联队工业区B区第10栋701 TEL：13824883512 FY-GZ001 Fine Page2of4 VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ---- 2022/12/09 钱立谋 FY-GZ001 Fine Page3of4 産品型號： DESC 20.5x37-10Ts-0.08x24*2-5mm-CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 一、尺寸DIMENSION:(mm) A 37.0±1 B 20.5±0.5 C 0.6±0.05 D1 7±2 D2 5±2 E 3mm F 40±0.5 G 11.0ref H 1.5±0.2Max I 5.3ref 注： 1.线圈贴磁片，磁片尺寸 40±0.5mm,内孔5.3mm,厚 度为0.8±0.1mm,直槽 2.线圈出线位置缠宽度6mm ±0.5高温胶纸。 3.磁片背面贴带手撕位圆形 直径38mm(ref)，内孔7.0 mm（ref）普通双面胶。 二、原理图SCHEMATICDIAGRAM: 三、绕线参数WindingSpecification: 序号 NO 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1 S F 热风线0.08*24P*2 10Ts CCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 IND. S-F 3.8uH±20%单独线圈100KHz/1.0V LCZMETER1062B 2 IND. S-F 6.5uH±10%加磁片100KHz/1.0V LCZMETER1062B 3 Q值 S-F ≤60(ref)加磁片 100KHz/1.0V LCZMETER1062B 4 DCRS-F ≤70mΩ LCZMETER502B 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 冯伯群2022/12/09 苏燕平2022/12/09 FY-GZ001 Fine Page4of4 産品型號： DESC 20.5x37-10Ts-0.08x24*2P-5mm-CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 五、包装PACKONG: 5.1包装图片Packingpictures: 5.2包装数量及规格PackingQuantity: 项目Item数量Quantity材料规格Material 盒Box 350Pcs370*265*55mm 箱BigCarton 1400Pcs390*270*245mm 5.3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 Thepackagingshallbebasedontheexistingpackingplateandtheactualdeliverypackageshallprevail.If thereisanyrequirement,wecancustomizeit. 六、材料清单Materiallist: 序号 number MaterialnameDescriptionManufacturer 1 热风线0.08*24股2P热风漆包线0.08*24股2P 东莞市金杰源电子材料有限公司 2 无铅锡条无铅锡条 深圳市道勤锡业有限公司 3 磁片Φ40*5.3*0.8mm锰锌硬磁片 广州睿晶新型材料科技有限公司 4 胶水201胶水 东莞市飞泉电子材料有限公司 5 高温胶纸6mm宽高温胶纸 东莞市志兴胶带新材料有限公司 6 带孔双面胶 带手撕位圆形直径38mm(ref)背胶 深圳市鸿维达科技有限公司 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 冯伯群2022/12/09苏燕平2022/12/09

FY-GZ001 Fine Page1 of4 客戶： CUSTOMER: 客戶料號： CUSTP/N: 淘软料號： BESOFTP/N: 産品型號： DESC: 日期： DATE: 版本： Version: SPECIFICATIONFORAPPROVAL 20.5x39-10Ts-0.08x70-100mm-CLB 2022/12/09 A.0 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 冯伯群苏燕平钱立谋 工厂地址：深圳市光明区公明街道上村 社区五联队工业区B区第10栋701 TEL：13824883512 FY-GZ001 Fine Page2of4 VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ---- 2022/12/09 钱立谋 FY-GZ001 Fine Page3of4 産品型號： DESC 20.5x39-10Ts-0.08x70-100mm-CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 一、尺寸DIMENSION:(mm) A 39.0±1 B 20.5±0.5 C 1.0±0.05 D1 102±2 D2 100±2 E 3-5mm F 42.5±0.5 G 11.0ref H 1.8±0.2Max I 5.3ref 注： 1.线圈贴磁片，磁片尺寸 42.5±0.5mm,内孔5.3mm,厚 度为0.8±0.1mm,开L槽 2.线圈出线位置缠宽度8mm ±0.5高温胶纸。 3.磁片背面贴带手撕位圆形 直径42mm(ref)，内孔7.0 mm（ref）普通双面胶。 二、原理图SCHEMATICDIAGRAM: 三、绕线参数WindingSpecification: 序号 NO 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1 S F 丝包线0.08*70P 10Ts CCW 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 IND. S-F 3.8uH±20%单独线圈100KHz/1.0V LCZMETER1062B 2 IND. S-F 6.5uH±10%加磁片100KHz/1.0V LCZMETER1062B 3 Q值 S-F ≤70.0(ref)加磁片 100KHz/1.0V LCZMETER1062B 4 DCRS-F ≤80mΩ LCZMETER502B 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 冯伯群2022/12/09 苏燕平2022/12/09 FY-GZ001 Fine Page4of4 産品型號： DESC 20.5x39-10Ts-0.08x70-100mm-CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 五、包装PACKONG: 5.1包装图片Packingpictures: 5.2包装数量及规格PackingQuantity: 项目Item数量Quantity材料规格Material 盒Box 350Pcs370*265*55mm 箱BigCarton 1400Pcs390*270*245mm 5.3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 Thepackagingshallbebasedontheexistingpackingplateandtheactualdeliverypackageshallprevail.If thereisanyrequirement,wecancustomizeit. 六、材料清单Materiallist: 序号 number MaterialnameDescriptionManufacturer 1 丝包线0.08*105股丙酮丝包线0.08*70股 东莞市金杰源电子材料有限公司 2 无铅锡条无铅锡条 深圳市道勤锡业有限公司 3 磁片Φ42.5*5.3*0.8mm锰锌硬磁片 广州睿晶新型材料科技有限公司 4 胶水201胶水 东莞市飞泉电子材料有限公司 5 高温胶纸8mm宽高温胶纸 东莞市志兴胶带新材料有限公司 6 带孔双面胶 带手撕位圆形直径42mm(ref)背胶 深圳市鸿维达科技有限公司 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 冯伯群2022/12/09苏燕平2022/12/09

Fine Page1of4 FY-GZ001 客戶： CUSTOMER: 客戶料號： CUSTP/N: 淘软料號： BESOFTP/N: 産品型號： DESC: 日期： DATE: 版本： Version: SPECIFICATIONFORAPPROVAL -CLB A.0 擬制 PREPAREDBY 審核 CHECKEDBY 批准 APPROVEDBY 客戶承認 CUSTOMERAPPROVE 冯伯群苏燕平钱立谋 工厂地址：深圳市光明区公明街道上村社 区五联队工业区B区第10栋701 TEL：13824883512 Fine Page2of4 FY-GZ001 VersionChangeHistory 版本 Rev. 變更前 BeforeChange 變更後 AfterChange 更改日期 ChangeDate 批准 ApprovedBy A.0 新发行 ---- 2022/11/13 钱立谋 Fine Page3of4 FY-GZ001 産品型號： DESC -CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 一、尺寸DIMENSION:(mm) 二、原理图SCHEMATICDIAGRAM: 三、绕线参数WindingSpecification: A 25±0.5mm B 2.5±0.5mm C 23.7±0.25mm D 20.5±1mm E 13.8±0.3mm H 7.8±0.3mm I 3±1mm J 8±2mm K 7.8*2.0mm L 注： 1.线圈贴磁片，磁片尺寸 24mm,厚度为2.7mm带缺口 2.线圈出线位置缠宽度 6mm ±0.5高温胶纸。 3.磁片背面贴带手撕位圆形 直径23mm(ref) （ref）普通双面胶。 序号 NO 端子 TERMINAL 线径 WIRE 圈数 Turns 绕线方向 WindingDirection 1S F 丝包线0.08*24P 13TS 正常 四、电气特性ELECTRICALCHARACTERISTICS: 温度TEMPERATURE:25±10°C,湿度RELATIVEHUMIDITY:65±20% 序号 NO. 项目 ITEM 端子 TERMINAL 标准 SPECIFICATION 测试条件 TESTFREQUENCY 测试仪器 TESTEQUIPMENTS 1 IND. S-F 5.8u H±20%单独线圈 100KHz/1V LCZMETER1062B 2 IND. S-F 8.1u H±0.5% 100KHz/1V LCZMETER1062B 3 Q值 S-F ≥35 100KHz/1V LCZMETER1062B 4DCRS-F 擬制/日期PREPAREDBY/DATE審核/日期CHECKEDBY/DATE 冯伯群2022/12/13 苏燕平2022/12/13 Fine Page4of4 FY-GZ001 産品型號： DESC -CLB 版本 Rev：A0 客戶CUST: 淘软料号FineP/N： 客户料号CUSTP/N: 五、包装PACKONG: 5.1包装图片Packingpictures: 5.2包装数量及规格PackingQuantity: 项目Item数量Quantity材料规格Material 盒Box 240Pcs370*265*55mm 箱BigCarton 1680Pcs380*270*220mm 5.3包装以现有包装盘为参照标准，以实际出货包装为准,如有特需要求可以定制。 Thepackagingshallbebasedontheexistingpackingplateandtheactualdeliverypackageshallprevail.If thereisanyrequirement,wecancustomizeit. 六、材料清单Materiallist: 序号 numberMaterialnameDescriptionManufacturer 1 漆包线0.08*24股热风漆包线0.08*24股 2 无铅锡条无铅锡条 3 磁片Φ25*13.8*2.6mm锰锌软磁片 4 胶水201胶水 5 磁铁 78*2mm2900-3100高斯 6 带孔双面胶 圆形直径20mm(ref)背胶 7 擬制 / 日期 PREPAREDBY/DATE 審核 / 日期 CHECKEDBY/DATE 冯伯群2022/12/13 苏燕平2022/12/13

Page 1 of 2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix - Test Setup Photos Model: TNF-202-005 Radiated emissions – Below 30 MHz Radiated emissions –Below 1 GHz Page 2 of 2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Conducted emissions MPE ----End of Report----
