FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ÿeorient or relocate the receiving antenna. ÿncrease the separation between the equipment and receiver. ÿonnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ÿonsult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

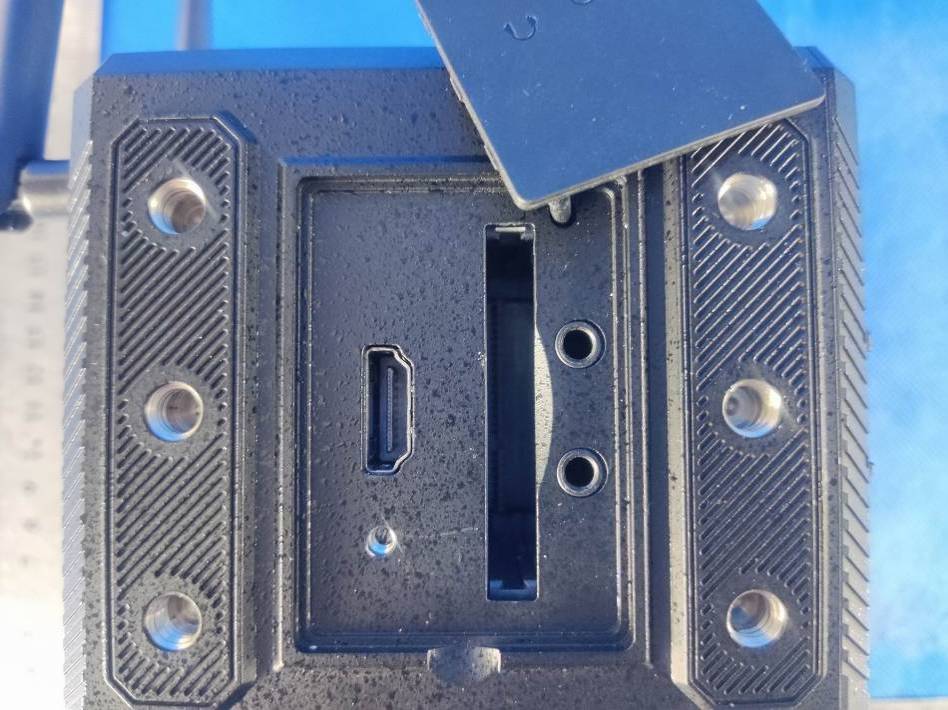

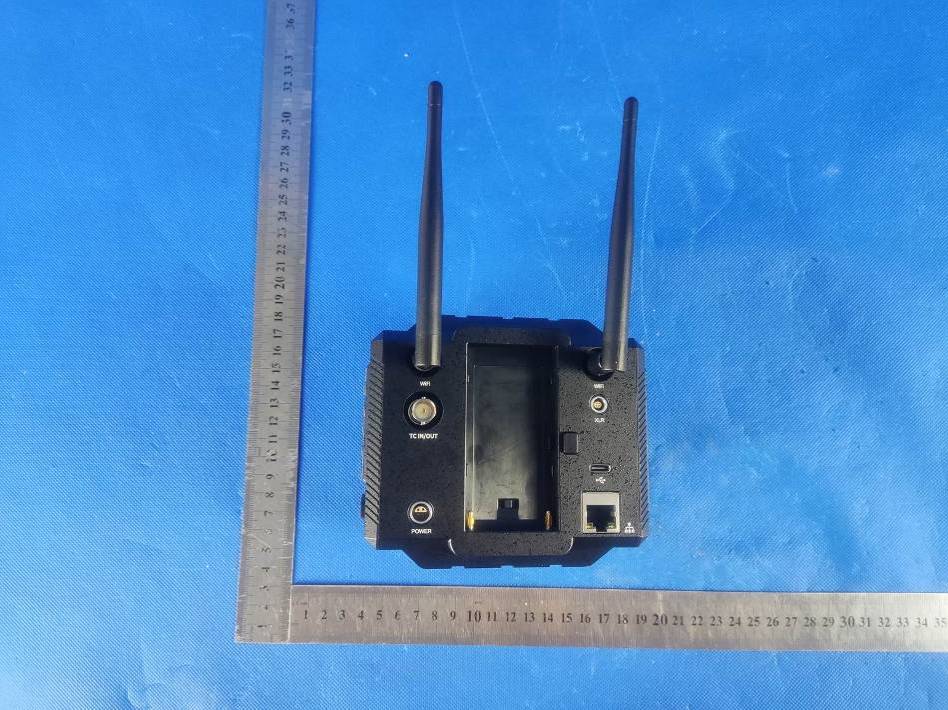

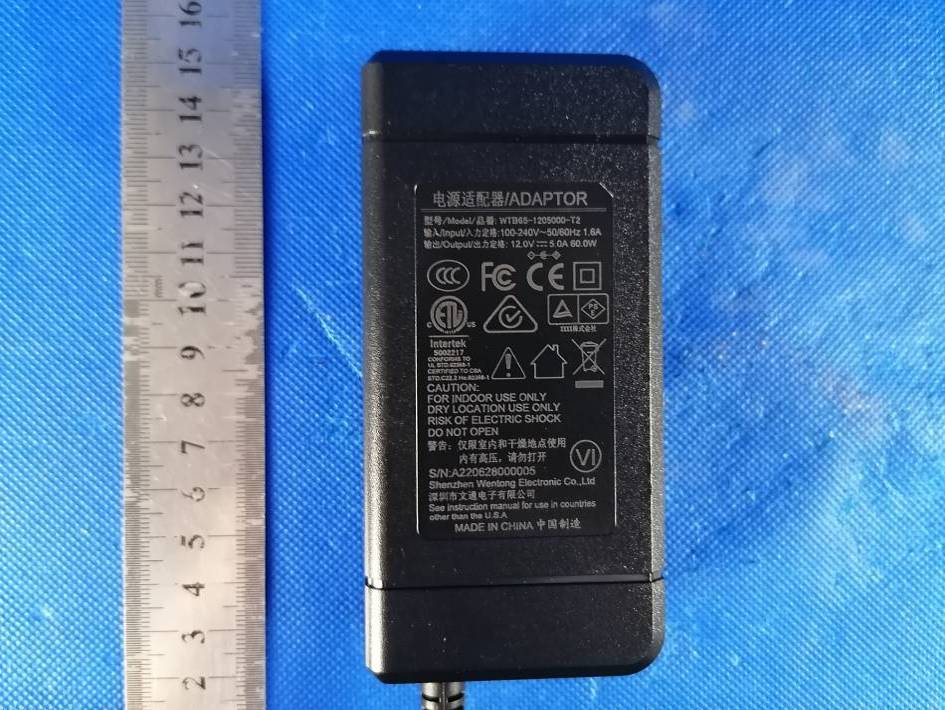

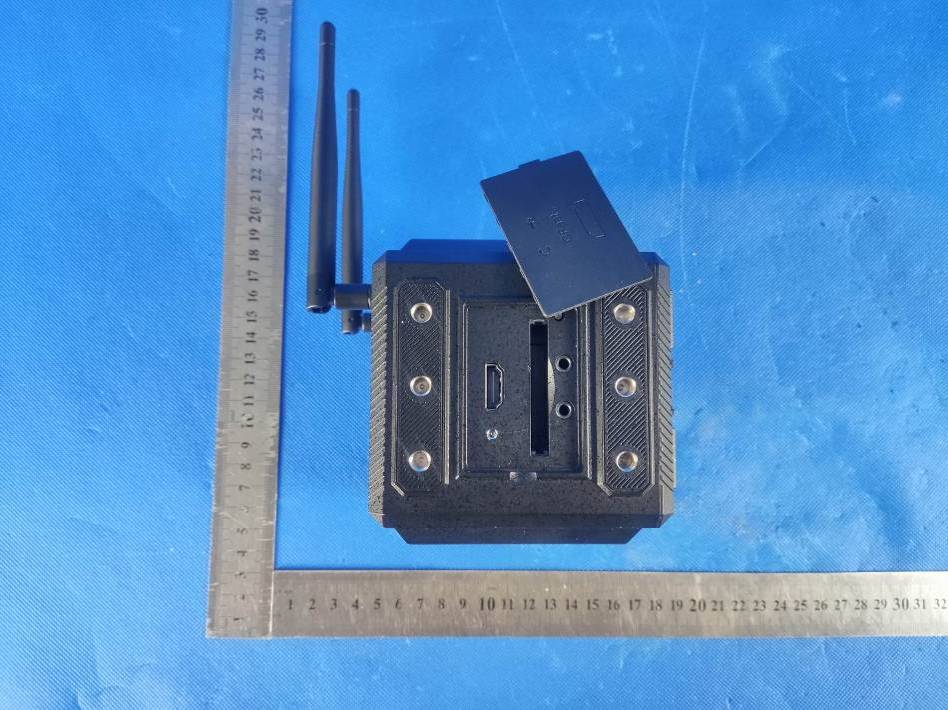

Page 1 of 7 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. External Photos Photo 1 Photo 2 Page 2 of 7 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 7 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 7 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Page 5 of 7 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 7 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 7 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 ------End------
PVC,DC0201,29.8*64.8mm,0.3mm Label
Page 1 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Internal Photos Photo 1 Photo 2 Page 2 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 3 Photo 4 Page 3 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 5 Photo 6 Page 4 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 7 Photo 8 Antenna 1 Antenna 2 Page 5 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 9 Photo 10 Page 6 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 11 Photo 12 Page 7 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 13 Photo 14 Page 8 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 15 Photo 16 Page 9 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 17 Photo 18 Page 10 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 19 Photo 20 Page 11 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 21 Photo 22 Page 12 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 23 Photo 24 Page 13 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 25 Photo 26 Page 14 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 27 Photo 28 Page 15 of 15 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Photo 29 Photo 30 ------End------
RF Exposure evaluation FCC ID: 2A8CD-DC0201 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. Manufacturing tolerance WIFI(Peak) IEEE 802.11b (PEAK) Frequency (MHz) Antenna 1 Antenna 2 2412 2437 2462 2412 2437 2462 Target (dBm) 8.0 8.0 8.0 6.0 6.0 5.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11g (PEAK) Frequency (MHz) Antenna 1 Antenna 2 2412 2437 2462 2412 2437 2462 Target (dBm) 8.0 8.0 8.0 6.0 6.0 5.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT20 (PEAK) Frequency (MHz) Antenna 1 Antenna 2 2412 2437 2462 2412 2437 2462 Target (dBm) 6.0 6.0 6.0 4.0 4.0 4.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT40 (PEAK) Frequency (MHz) Antenna 1 Antenna 2 2422 2437 2452 2422 2437 2452 Target (dBm) 6.0 6.0 6.0 4.0 4.0 4.0 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 WIFI 5G Band 1 IEEE 802.11a Frequency (MHz) Antenna 1 Antenna 2 5180 5200 5240 5180 5200 5240 Target (dBm) 3 3 4 3 3 4 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT20 Frequency (MHz) Antenna 1 Antenna 2 5180 5200 5240 5180 5200 5240 Target (dBm) 0 0 1 0 0 1 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11n HT40 Frequency (MHz) Antenna 1 Antenna 2 5190 5230 / 5190 5230 / Target (dBm) 1 1 / 0 0 / Tolerance ± (dB) 1.0 1.0 / 1.0 1.0 / IEEE 802.11ac HT20 Frequency (MHz) Antenna 1 5180 5200 5240 5180 5200 5240 Target (dBm) 0 1 1 0 0 1 Tolerance ± (dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11ac HT40 Frequency (MHz) Antenna 1 Antenna 2 5190 5230 / 5190 5230 / Target (dBm) 1 1 / 0 1 / Tolerance ± (dB) 1.0 1.0 / 1.0 1.0 / IEEE 802.11ac HT80 Frequency (MHz) Antenna 1 Antenna 2 5210 / / 5210 / / Target (dBm) 1 / / 1 / / Tolerance ± (dB) 1.0 / / 1.0 / / 2. E v a l u a t i o n R e s u l t Standalone Antenna 1 Band/Mode f (GHz) Antenna Distance (mm) RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated SAR dBm mW 2.4GWiFi 2.5 5 9 7.94 2.51< 3 Yes 0.3349 5GWiFi 5.25 5 5 3.16 1< 3 Yes 0.1333 Antenna 2 Band/Mode f (GHz) Antenna Distance (mm) RF output power including tune up SAR Test Exclusion Threshold SAR Test Exclusion Estimated SAR dBm mW 2.4GWiFi 2.5 5 7 5.01 1.58< 3 Yes 0.2113 5GWiFi 5.25 5 5 3.16 1< 3 Yes 0.1333 Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. Simultaneous Transmission for SAR Exclusion The sample support one WLAN modular, they supports difference antenna, need consider simultaneous transmission; ∑ of (the highest measured or estimated SAR ant1 +SAR ant2 )/1.6 = (0.3349+0.2113)/1.6 = 0.3 < 1.0; 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................
Page 1 of 41 Report No.: AIT22060104W3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. TEST REPORT Client Information: Applicant: Guangzhou BOSMA Technology Co.,Ltd. Applicant add.: FL.2 A5,NO.11 Kai-Yuan Ave,Science City, Guangzhou, China Manufacturer: Guangzhou BOSMA Technology Co.,Ltd. Manufacturer add.: FL.2 A5,NO.11 Kai-Yuan Ave,Science City, Guangzhou, China Product Information: Product Name: G1 Pro/G1 Model No.: DC0201, DC0200 Brand Name: BOSMA FCC ID: 2A8CD-DC0201 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: Jun. 01, 2022 Date of Test: Jun. 01~Aug. 03, 2022 Date of Issue: Aug. 04, 2022 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Simba Huang Seal.chen Page 2 of 41 Report No.: AIT22060104W3 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................................... 2 2 TEST SUMMARY .......................................................................................................................................................... 5 2.1 Statement of the Measurement Uncertainty .............................................................................. 5 2.2 Measurement Uncertainty ......................................................................................................... 5 3 TEST FACILITY ............................................................................................................................................................. 6 3.1 Deviation from standard ............................................................................................................ 6 3.2 Abnormalities from standard conditions .................................................................................... 6 3.3 Test Location ............................................................................................................................. 6 4 GENERAL INFORMATION ......................................................................................................................................... 7 4.1 Test frequencies ........................................................................................................................ 8 4.2 EUT Peripheral List ................................................................................................................... 8 4.3 Test Peripheral List ................................................................................................................... 8 4.4 TEST METHODOLOGY............................................................................................................ 9 4.5 Description of Test Modes ....................................................................................................... 10 5 EQUIPMENT USED DURING TEST ........................................................................................................................ 11 6 TEST RESULTS AND MEASUREMENT DATA .................................................................................................... 12 6.1 Antenna requirement .............................................................................................................. 12 6.1.1 Standard requirement: .................................................................................................... 12 6.1.2 EUT Antenna: ................................................................................................................. 12 6.2 On Time and Duty Cycle ......................................................................................................... 13 6.2.1 Standard requirement: .................................................................................................... 13 6.2.2 Measuring Instruments and Setting: ............................................................................... 13 6.2.3 Test Procedures .............................................................................................................. 13 6.2.4 Test Setup Layout ........................................................................................................... 13 6.2.5 EUT Operation during Test ............................................................................................. 13 6.2.6 Test result ....................................................................................................................... 13 6.3 Maximum Conducted Output Peak Power Measurement ....................................................... 14 6.3.1 Standard requirement: .................................................................................................... 14 6.3.2 Measuring Instruments: .................................................................................................. 14 6.3.3 Test Procedures: ............................................................................................................. 14 6.3.4 Test Setup Layout .…
Text truncated - open the document above for the full version.
Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 1 of 104 Appendix C RF Test Data for 2.4GWIFI(Conducted Measurement) Product Name: G1 Pro/G1 Trade Mark: BOSMA Test Model: DC0201 Environmental Conditions Temperature: 25.2 C Relative Humidity: 52.2% ATM Pressure: 100.0 kPa Test Engineer: Simba Huang Supervised by: Seal Chen Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 2 of 104 Contents Page COVER PAGE 1 Duty Cycle....................................................................................................................................................................................... 3 1.1 Test Result ........................................................................................................................................................................ 3 1.2 Test Graphs ....................................................................................................................................................................... 4 2 Maximum Conducted Output Power .............................................................................................................................................. 16 2.1 Test Result ...................................................................................................................................................................... 16 3 -6dB Bandwidth ............................................................................................................................................................................. 17 3.1 Test Result ...................................................................................................................................................................... 17 3.2 Test Graphs ..................................................................................................................................................................... 18 4 Maximum Power Spectral Density Level ....................................................................................................................................... 30 4.1 Test Result ...................................................................................................................................................................... 30 4.2 Test Graphs ..................................................................................................................................................................... 31 5 Band Edge .................................................................................................................................................................................... 43 5.1 Test Result ...................................................................................................................................................................... 43 5.2 Test Graphs ..................................................................................................................................................................... 44 6 Conducted RF Spurious Emission ................................................................................................................................................. 60 6.1 Test Result ...................................................................................................................................................................... 60 6.2 Test Graphs ..................................................................................................................................................................... 61 7 Restrict Band ................................................................................................................................................................................ 85 7.1 Test Result ...................................................................................................................................................................... 85 7.2 Test Graphs ..................................................................................................................................................................... 89 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 3 of 104 1 Duty Cycle 1.1 Test Result Mode Frequency (MHz) Antenna Duty Cycle (%) 1/T (kHz) b 2412 Ant1 96.81 0.08 b 2437 Ant1 96.81 0.08 b 2462 Ant1 94.73 0.08 g 2412 Ant1 96.81 0.08 g 2437 Ant1 96.81 0.08 g 2462 Ant1 94.73 0.08 n20 2412 Ant1 93.22 0.52 n20 2437 Ant1 92.55 0.52 n20 2462 Ant1 92.37 0.52 n40 2422 Ant1 85.98 1.05 n40 2437 Ant1 85.33 1.06 n40 2452 Ant1 85.18 1.05 b 2412 Ant2 96.49 0.08 b 2437 Ant2 96.74 0.08 b 2462 Ant2 96.7 0.08 g 2412 Ant2 96.49 0.08 g 2437 Ant2 96.74 0.08 g 2462 Ant2 96.7 0.08 n20 2412 Ant2 93.09 0.52 n20 2437 Ant2 92.51 0.52 n20 2462 Ant2 92.45 0.52 n40 2422 Ant2 85.87 1.06 n40 2437 Ant2 85.08 1.05 n40 2452 Ant2 84.82 1.05 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 4 of 104 1.2 Test Graphs Test Graphs Duty Cycleb 2412MHz Ant1 Duty Cycleb 2437MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 5 of 104 Duty Cycleb 2462MHz Ant1 Duty Cycleg 2412MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 6 of 104 Duty Cycleg 2437MHz Ant1 Duty Cycleg 2462MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 7 of 104 Duty Cyclen20 2412MHz Ant1 Duty Cyclen20 2437MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 8 of 104 Duty Cyclen20 2462MHz Ant1 Duty Cyclen40 2422MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 9 of 104 Duty Cyclen40 2437MHz Ant1 Duty Cyclen40 2452MHz Ant1 Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC02…
Text truncated - open the document above for the full version.
Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 56 of 104 n20 2412MHz Ant2 Ref n20 2412MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 57 of 104 n20 2462MHz Ant2 Ref n20 2462MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 58 of 104 n40 2422MHz Ant2 Ref n40 2422MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 59 of 104 n40 2452MHz Ant2 Ref n40 2452MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 60 of 104 6 Conducted RF Spurious Emission 6.1 Test Result Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict b 2412 Ant1 -41.5 -20 Pass b 2437 Ant1 -38.82 -20 Pass b 2462 Ant1 -40.53 -20 Pass g 2412 Ant1 -34.6 -20 Pass g 2437 Ant1 -33.74 -20 Pass g 2462 Ant1 -37.33 -20 Pass n20 2412 Ant1 -31.42 -20 Pass n20 2437 Ant1 -31.01 -20 Pass n20 2462 Ant1 -30.75 -20 Pass n40 2422 Ant1 -30.81 -20 Pass n40 2437 Ant1 -28.63 -20 Pass n40 2452 Ant1 -28.12 -20 Pass b 2412 Ant2 -38.75 -20 Pass b 2437 Ant2 -38.38 -20 Pass b 2462 Ant2 -37.52 -20 Pass g 2412 Ant2 -34.03 -20 Pass g 2437 Ant2 -33.09 -20 Pass g 2462 Ant2 -32.79 -20 Pass n20 2412 Ant2 -30.82 -20 Pass n20 2437 Ant2 -28.39 -20 Pass n20 2462 Ant2 -29.75 -20 Pass n40 2422 Ant2 -27.35 -20 Pass n40 2437 Ant2 -29.29 -20 Pass n40 2452 Ant2 -25.24 -20 Pass Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 61 of 104 6.2 Test Graphs Test Graphs b 2412MHz Ant1 Ref b 2412MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 62 of 104 b 2437MHz Ant1 Ref b 2437MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 63 of 104 b 2462MHz Ant1 Ref b 2462MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 64 of 104 g 2412MHz Ant1 Ref g 2412MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 65 of 104 g 2437MHz Ant1 Ref g 2437MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 66 of 104 g 2462MHz Ant1 Ref g 2462MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 67 of 104 n20 2412MHz Ant1 Ref n20 2412MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 68 of 104 n20 2437MHz Ant1 Ref n20 2437MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 69 of 104 n20 2462MHz Ant1 Ref n20 2462MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 70 of 104 n40 2422MHz Ant1 Ref n40 2422MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 71 of 104 n40 2437MHz Ant1 Ref n40 2437MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 72 of 104 n40 2452MHz Ant1 Ref n40 2452MHz Ant1 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 73 of 104 b 2412MHz Ant2 Ref b 2412MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 74 of 104 b 2437MHz Ant2 Ref b 2437MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 75 of 104 b 2462MHz Ant2 Ref b 2462MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 76 of 104 g 2412MHz Ant2 Ref g 2412MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 77 of 104 g 2437MHz Ant2 Ref g 2437MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 78 of 104 g 2462MHz Ant2 Ref g 2462MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 79 of 104 n20 2412MHz Ant2 Ref n20 2412MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 80 of 104 n20 2437MHz Ant2 Ref n20 2437MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 81 of 104 n20 2462MHz Ant2 Ref n20 2462MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 82 of 104 n40 2422MHz Ant2 Ref n40 2422MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 83 of 104 n40 2437MHz Ant2 Ref n40 2437MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 84 of 104 n40 2452MHz Ant2 Ref n40 2452MHz Ant2 Emission Dongguan Yaxu(AiT) Technology Limited Report No.: AIT22060104W3 FCC ID: 2A8CD-DC0201 Page 85 of 104 7 Restrict Band 7.1 Test Result Mod e Frequency (MHz) Antenn a Spur Freq (MHz) Power (dBm) Gain (dBi) E (dBuV/m) Detecto r Limit (dBuV/m) Verdic t b 2412 Ant1 2310 -46.03 3 52.23 Peak 74 Pass b 2412 Ant1 2310 -56.03 3 42.23 Average 54 Pass b 2412 Ant1 2339.016 -41.52 3 56.74 Peak 74 Pass b 2412 Ant1 2336.676 -54 3 44.26 Average 54 Pass b 2412 Ant1 2390 -48.2 3 50.06 Peak 74 Pass b 2412 Ant1 2390 -55.65 3 42.61 Average 54 Pass b 2462 Ant1 2483.5 -45.7 3 52.56 Peak 74 52.56 b 2462 Ant1 2483.5 -55.06 3 43.2 Average 54 Pass b 2462 Ant1 2493.481 -43.69 3 54.57 Peak 74 Pass b 2462 Ant1 2484.153 -54.96 3 43.3 Average 54 Pass b 2462 Ant1 2500 -46.82 3 51.44 Peak 74 Pass b 2462 Ant1 2500 -55.4 3 42.86 Average 54 Pass g 2412 Ant1 2310 -45.76 3 52.5 Peak 74 Pass g 2412 Ant1 2310 -56.03 3 42.23 Average 54 Pass g 2412 Ant1 2379.615 -42.81 3 55.45 Peak 74 Pass g 2412 Ant1 2336.91 -53.9 3 44.36 Ave…
Text truncated - open the document above for the full version.
Page 1 of 2 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Test Setup Photo Radiated Emission Page 2 of 2 FCC ID: 2A8CD-DC0201 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling 3rd Street, Jitigang, Huangjiang, Dongguan, Guangdong, China. Conducted Emission ------End------
