2A8CE-P-PG-032PGYTECH ProShot Grip Remote Controller

基本参数 产品名称：PGYTECH ProShot 手柄遥控器 产品型号：P-PG-032 主要材质：铝合金，ABS+PC 遥控器电池功率：3.7V/0.222Wh 遥控器电池额定能量：60mAh 遥控器输入电压范围:5V 遥控器充电电流:0-70mA 遥控器工作温度:0-35°C 蓝牙遥控器功能 自定义拨轮 状态指示灯 拍照/录制/对焦键 开关机/快启/模式切换/ 镜头翻转/蓝牙配对键 焦段调节键 冷靴接口 Type-C接口 适配机型 规格参数 电池能量（电压） 收发距离 充电接口 使用环境温度 60mAh ﹙0.222 Wh） 10m 0°C-35°C 状态指示灯 1.蓝牙遥控器关机状态下，状态指示灯黄灯常亮，代表充电状态，当状态指示灯变为 蓝灯常亮时，代表电量100%。 2.蓝牙遥控器开机状态下，状态指示灯红灯常亮，代表低电状态，电量0-25%。 3.蓝牙遥控器开机状态下，状态指示灯闪烁，代表充电状态下遥控器正在等待配对 4.蓝牙遥控器开机状态下，状态指示灯蓝灯常亮，代表未充电状态下遥控器与手机配 对成功；状态指示灯黄灯常亮，代表充电状态下遥控器与手机配对成功，当状态指示 灯变为蓝灯常亮时，代表电量100%。 充电状态/低电状态/遥控器等待配对状态/遥控器配对成功状态 操作指南 开机 长按“开/关机键”1秒，遥控器开机。 关机 长按“开/关机键”1秒，遥控器关机。 配对 苹果系统：iPhone 12系列iOS 17系统以上版本的手机。 苹果原生相机：遥控器开机状态下，打开手机蓝牙进入搜索页面，在设备列表选择 “PGYTECH-ProShot”配对。开机后3分钟无配对自动关机，状态指示灯熄灭。配对 后30分钟无操作自动关机。遥控器与手机首次配对成功后，在中途不切换遥控器连 接设备的情况下，再次开机可自动配对。 注：苹果原生相机在进行遥控器配对操作前，需要先设置以下功能： 打开手机“设置”，选择“辅助功能”，打开“缩放”，选择“缩放区域”，开启“全屏幕缩 放”。（打开“缩放”时，画面会放大，三指轻点两下恢复。其他设置不变。） 苹果用户摄影App：Apple Store内搜索“PGYTECH”下载应用，打开App，点击右上 角“设置”，在“基础设置”中选择“点击解锁专业版”，选择“连接新设备”，选择 “PGYTECH-ProShot”后点击“连接”。 自定义拨轮 苹果用户摄影App “PGYTECH”：在App内可选择自定义按键功能。 苹果原生相机：竖屏状态下左/右滚动“自定义拨轮”可选择切换拍照/摄像模式。 半按“拍照/录制/对焦键”，即可自动对焦。 蓝牙记忆删除 同时长按“拍照/录制/对焦键”和“开/关机键”5秒，与之前的手机切断连接后重新配对 即可。 焦段调节 左/右轻拨一下“焦段调节键”，可调节一格焦段，左拨缩小焦段，右拨放大焦段。长 拨不放，可持续匀速调节焦段，松开即可停止调焦。 镜头翻转 相机拍摄页面，双击“开关机/快启/模式切换/镜头翻转/蓝牙配对键”，即可切换到前 置/后置摄像头。 苹果用户摄影App：Apple Store内搜索“PGYTECH”下载应用，打开App，蓝牙已连 接“PGYTECH-ProShot”的状态下，在“硬件设置”中可自定义按键的单击/双击功能。 免责声明 请仔细阅读本声明，一旦使用本产品，即视为对本声明的全部认可和接受。使用本产 品，就意味着您认可并同意，您将对使用本产品的行为和可能产生的后果负全部责 任。 您承诺仅会出于正当合法的目的使用本产品。您理解并同意，对于直接或间接因使用 本产品而造成的滥用、不利影响、损害、伤害、惩罚或者其他法律后果，PGYTECH 将不承担任何责任。 用户应遵循包括但不限于本文提及的使用注意事项。每次使用前，请仔细检查配件， 若出现破损、变形，请勿使用。在国家法律法规范围内，本承诺解释权、修改权归 PGYTECH所有。 拍照/视频录制 全按“拍照/录制/对焦键”，即可拍照/视频录制。 快启 苹果原生相机：按三下“开关机/快启/模式切换/镜头翻转/蓝牙配对键”，熄屏状态下 快速开启相机。 1，点亮屏幕后，右下角功能是原生相机 2，APP退出 模式切换 相机拍摄页面，单击“开关机/快启/模式切换/镜头翻转/蓝牙配对键”，即可切换拍照 /摄像模式。 苹果用户摄影App：Apple Store内搜索“PGYTECH”下载应用，打开App，蓝牙已连 接“PGYTECH-ProShot”的状态下，在“硬件设置”中可自定义按键的单击/双击功能。 安全操作指引 1,严禁使产品接触任何液体，切勿将产品浸入水中或将其弄湿。切勿在雨中或者潮湿 的环境中使用产品。产品内部接触到水后可能会发生腐蚀反应，从而引发电池自燃， 甚至可能引发爆炸。 2,若产品发生起火，请立即使用水、水雾、沙、灭火毯、干粉、二氧化碳灭火器灭 火。请根据实际情况按以上推荐顺序选择灭火方式。 3,请在温度为0°C至35°C之间的环境中使用产品。 4,禁止以任何方式拆解产品。若拆解过程中刺破电池，将会导致电池内部电解液泄 露、甚至引发起火、爆炸。 5,禁止机械撞击、碾压或抛掷产品。请勿在产品上放置重物。切勿对产品进行加热。 请勿将产品放置于微波炉或压力锅中。 6,禁止将产品放在靠近热源 (火炉或加热器等) 的地方以及将产品置于热天的汽车内。 产品的存储环境温度为-20°C至45°C。 7,请勿将电池彻底放完电后长时间存储，以避免电池进入过放状态而造成电芯损坏， 将无法恢复使用。每隔1个月左右重新充放电一次以保存电池活性。 8,消费者若使用电源适配器供电，则应购买配套使用满足相应安全标准要求并获得 CCC认证的电源适配器。 产品中有害物质的名称及含量 有害物质 部件 名称 金属件 塑胶件 电池 PCB 及元器件 Type-C接口 铅 (Pb) 汞 (Hg) 镉 (Cd) 六价铬 (Cr (VI) ) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 本标识内数字表示产品在正常使用状态下的环保使用期限为10年。 本表格依据SJ/T 11364的规定编制。 O：表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要 求以下。 X：表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限 量要求。 注：该产品标有“X”的原因是：现阶段没有可供选择的替代技术或部件。 本标识表示本产品仅适用于非热带气候条件下安全使用。 Type-C CHS 对焦 Basic Specifications Product Name: PGYTECH ProShot Grip Remote Controller SKUP-PG-032 Main Materials: Aluminum Alloy, ABS+PC Remote Control Battery Power3.7V/0.222Wh Remote Control Battery Rated Energy60mAh Remote Control Input Voltage Range:5V Remote Control Charging Current:0-70mA Remote Control Operating Temperature:0-35 Bluetooth Remote Control Function Custom Dial Status Indicator Light Focus Range Adjustment Button Cold Shoe Port Type-C Port Power Button/Quick Launch/Mode Switch/Lens Flip/Bluetooth Pairing Button Photo/Video/ Focus Button EN Compatible Phone Models Specifications Battery Energy (Voltage) Transmission range Charging Port Operating Temperature 60mAh 0.222 Wh 10m 0-35 Status Indicator Light 1.When the Bluetooth remote is powered off, a steady yellow light on the status indicator indicates it is charging. When the light turns to a steady blue, it signifies the battery is fully charged (100%). 2.When the Bluetooth remote is powered on, a steady red light on the status indicator indicates a low battery state, denoting a battery level between 0% and 25%. 3.When the Bluetooth remote is powered on, a blinking status indicator means it is charging and waiting to pair. 4.When the Bluetooth remote is on and successfully paired with a phone, a steady blue light indicates it is not charging, while a steady yellow light indicates it is charging. Once fully charged (100%) during this state, the indicator will turn to a steady blue. Charging Status/Low Battery Status/Remote Control Pairing Standby Status/Remote Control Pairing Successful Status Apple Devices: iPhone 12 series running iOS 17 or later. Type-C Operating Guide Power on Press and hold the Power button for 1 second to turn on the remote. Power off Press and hold the Power button for 1 second to turn off the remote. Pairing For use with the Apple phone camera, ensure the remote is powered on, then activate Bluetooth on your phone, access the discovery or settings page, and select “PGYTECH-ProShot” from the device list to pair; the remote will automatically shut down with its indicator light turning off if no pairing is completed within 3 minutes of powering on, and it will also power off automatically after 30 minutes of inactivity once successfully paired. Following the initial successful pairing, the remote is designed to automatically reconnect to the last paired phone upon being powered on again, provided that no other device has been manually connected in the interim. Note: For Apple phone camera, the following settings must be configured prior to pairing the remote. On your iPhone, go to Settings > Accessibility > Zoom, and turn it on. Then, tap Zoom Region and select Full-Screen Zoom. (Note: Enabling Zoom will magnify the screen. You can double-tap with three fingers to zoom out. No other settings need to be changed.) For iPhone users: Search for “PGYTECH” in the Apple App Store and download the application. Open the app, tap the “Settings” icon in the upper right corner, select “Tap to Unlock Pro” within the “Basic Settings”, then choose “Connect New Device”. Finally, select “PGYTECH-ProShot” from the list and tap “Connect”. Custom Dial For iPhone users, customizable button functions available within the “PGYTECH”app. iphone: In portrait orientation, swiping left or ri…

Text truncated - open the document above for the full version.

(PGYTECH CO.,LTD.) (2026.01.06) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2A8CE-P-PG-032) [PGYTECH CO.,LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) James Yang (PGYTECH CO.,LTD.) (2026.01.06) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2A8CE-P-PG-032) [PGYTECH CO.,LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) James Yang

PGYTECH CO.,LTD. 2026.01.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: PGYTECH ProShot Grip Remote Controller Trademark: N/A MODEL : P-PG-032, P-PG-027, P-PG-028, P-PG-091 FCC ID : 2A8CE-P-PG-032 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : James Yang / Quality supervisor Contact information / address: No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China

PGYTECH CO.,LTD. 2026.01.06 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen STS Test Services Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : James Yang / Quality supervisor Contact information / address: No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China

PGYTECH CO.,LTD. Model Difference 2026-01-06 EUT NAME: PGYTECH ProShot Grip Remote Controller FCC ID: 2A8CE-P-PG-032 MODEL : P-PG-032, P-PG-027, P-PG-028, P-PG-091 All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : James Yang / Quality supervisor Contact information / address: No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China

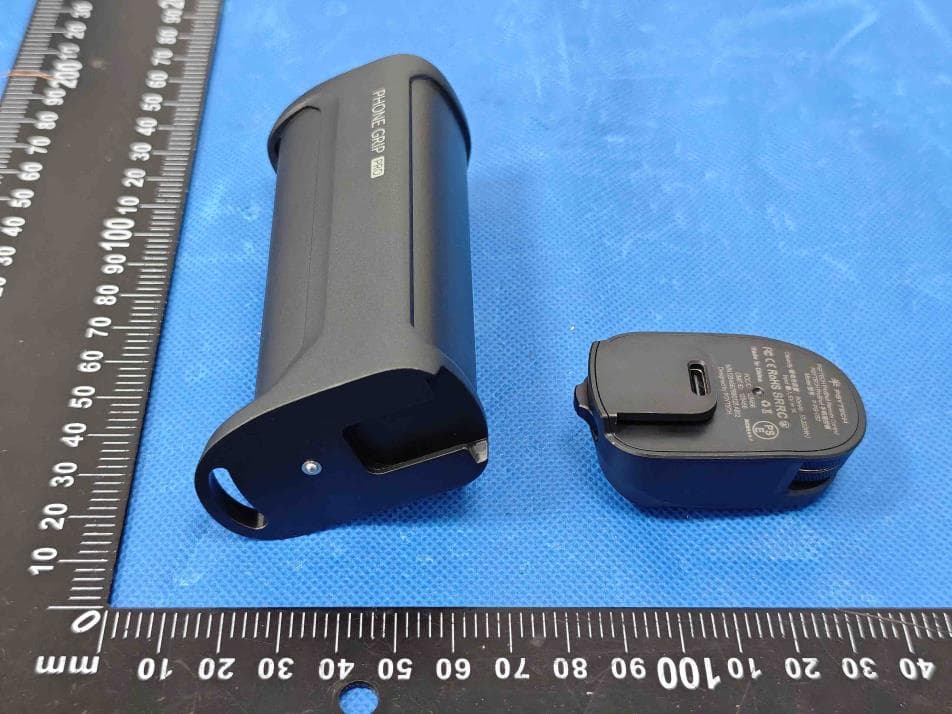

Page 1 of 10 Report No.: STS2512381 External Photos Page 2 of 10 Report No.: STS2512381 Page 3 of 10 Report No.: STS2512381 Page 4 of 10 Report No.: STS2512381

Size:30*30mm PGYTECH ProShot Grip Remote Controller FCC ID: 2A8CE-P-PG-032 Label location

Page 5 of 10 Report No.: STS2512381 Internal Photos Page 6 of 10 Report No.: STS2512381 Page 7 of 10 Report No.: STS2512381 Page 8 of 10 Report No.: STS2512381 Page 9 of 10 Report No.: STS2512381 Antenna Page 10 of 10 Report No.: STS2512381

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.: STS2512381H01 Issued for PGYTECH CO.,LTD. No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China Product Name: PGYTECH ProShot Grip Remote Controller Brand Name: N/A Model Name: P-PG-032 Series Model(s): P-PG-027, P-PG-028, P-PG-091 FCC ID: 2A8CE-P-PG-032 Test Standard: FCC 47CFR §2.1093 Page 2 of 9 Report No.:STS2512381H01 TEST REPORT Applicant’s Name ................. : PGYTECH CO.,LTD. Address ................................. : No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China Manufacturer's Name ........... : PGYTECH CO.,LTD. Address ................................. : No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China Product Description Product Name ........................ : PGYTECH ProShot Grip Remote Controller Brand Name .......................... : N/A Model Name .......................... : P-PG-032 Series Model(s) ...................... : P-PG-027, P-PG-028, P-PG-091 Test Standards ..................... : FCC 47CFR §2.1093 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 03 Dec. 2025 Date (s) of performance of tests ............. : 03 Dec. 2025 to 20 Dec. 2025 Date of Issue .......................................... : 20 Dec. 2025 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 9 Report No.:STS2512381H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1093 REQUIREMENT 7 2.1 TEST STANDARDS 7 2.2 LIMIT 7 2.3 TEST RESULT 9 Page 4 of 9 Report No.:STS2512381H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 20 Dec. 2025 STS2512381H01 ALL Initial Issue Page 5 of 9 Report No.:STS2512381H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name PGYTECH ProShot Grip Remote Controller Brand Name N/A Model Name P-PG-032 Series Model(s) P-PG-027, P-PG-028, P-PG-091 Model Difference All the model are the same circuit and RF module, except model names. Product Description The EUT is a PGYTECH ProShot Grip Remote Controller Operation Frequency: 2402~2480 MHz Modulation Type: GFSK (1Mbps, 2Mbps) Radio Technology: BLE Bluetooth Configuration: N/A Number Of Channel: 40 Antenna Type: PCB antenna Antenna Gain (dBi) -0.68 Power Rating DC 3.7V from battery, DC 5V from USB Adapter N/A Battery DC 3.7V Hardware Version N/A Software Version N/A Page 6 of 9 Report No.:STS2512381H01 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 7 of 9 Report No.:STS2512381H01 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Page 8 of 9 Report No.:STS2512381H01 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 9 of 9 Report No.:STS2512381H01 2.3 TEST RESULT Maximum measured transmitter power. Worst Case Mode frequency Maximum Output Power Tune up tolerance Max Tune up GHz dBm dBm dBm GFSK(BLE) 2.48 -0.4 0±1 1 Evaluation Result Mode Frequency Antenna Distance RF output power including tune up (dBm) SAR Test Exclusion Threshold SAR Test Exclusion Estimated SAR GHz mm dBm mw GFSK(BLE) 2.48 5 1 1.259 0.397 Yes / Note: 1. Remark: The worst case gain of the antenna is -0.68dBi. 2. Threshold at which no SAR required is 0.397≤ 3.0 for 1-g SAR, Separation distance ≤ 5mm. ※※※※※END OF THE REPORT※※※※※

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2 450MHz2500MHz2400MHz 2 450MHz 2500MHz Center Frequency -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68 PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.: STS2512381W01 Issued for PGYTECH CO.,LTD. No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China Product Name: PGYTECH ProShot Grip Remote Controller Brand Name: N/A Model Name: P-PG-032 Series Model(s): P-PG-027, P-PG-028, P-PG-091 FCC ID: 2A8CE-P-PG-032 Test Standards: FCC Part15.247 Page 2 of 70 Report No.: STS2512381W01 TEST REPORT Applicant’s Name ................. : PGYTECH CO.,LTD. Address ................................. : No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China Manufacturer's Name .......... : PGYTECH CO.,LTD. Address ................................. : No.2 15A01, No.505, Guangming Road, Huaqiao Town, Kunshan, China Product Description Product Name ....................... : PGYTECH ProShot Grip Remote Controller Brand Name .......................... : N/A Model Name .......................... : ... : P-PG-032 Series Model(s) .................... : P-PG-027, P-PG-028, P-PG-091 Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the IC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ..................... : 03 Dec. 2025 Date (s) of performance of tests ............. : 03 Dec. 2025 to 20 Dec. 2025 Date of Issue .......................................... : 20 Dec. 2025 Test Result.............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 70 Report No.: STS2512381W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 TEST SOFTWARE AND POWER LEVEL 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.6 EQUIPMENTS LIST 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.2 TEST PROCEDURE 14 3.3 TEST SETUP 14 3.4 EUT OPERATING CONDITIONS 14 3.5 TEST RESULTS 15 4. RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMITS 17 4.2 TEST PROCEDURE 19 4.3 TEST SETUP 20 4.4 EUT OPERATING CONDITIONS 20 4.5 FIELD STRENGTH CALCULATION 21 4.6 TEST RESULTS 22 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 37 5.1 LIMIT 37 5.2 TEST PROCEDURE 37 5.3 TEST SETUP 37 5.4 EUT OPERATION CONDITIONS 37 5.5 TEST RESULTS 37 6. POWER SPECTRAL DENSITY TEST 38 6.1 LIMIT 38 6.2 TEST PROCEDURE 38 6.3 TEST SETUP 38 Page 4 of 70 Report No.: STS2512381W01 Table of Contents Page 6.4 EUT OPERATION CONDITIONS 38 6.5 TEST RESULTS 38 7. BANDWIDTH TEST 39 7.1 LIMIT 39 7.2 TEST PROCEDURE 39 7.3 TEST SETUP 39 7.4 EUT OPERATION CONDITIONS 39 7.5 TEST RESULTS 39 8. PEAK OUTPUT POWER TEST 40 8.1 LIMIT 40 8.2 TEST PROCEDURE 40 8.3 TEST SETUP 40 8.4 EUT OPERATION CONDITIONS 40 8.5 TEST RESULTS 40 9. ANTENNA REQUIREMENT 41 9.1 STANDARD REQUIREMENT 41 9.2 EUT ANTENNA 41 APPENDIX 1-TEST DATA 42 APPENDIX 2- EUT TEST PHOTO 70 Page 5 of 70 Report No.: STS2512381W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 20 Dec. 2025 STS2512381W01 ALL Initial Issue Page 6 of 70 Report No.: STS2512381W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/ Part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- Note: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 70 Report No.: STS2512381W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.751dB 2 Unwanted Emissions, conducted ±2.888dB 3 All emissions, radiated 9K-30MHz ±2.48dB 4 All emissions, radiated 30M-1GHz ±2.52dB 5 All emissions, radiated 1G-18GHz ±3.48dB 6 All emissions, radiated>18GHz ±4.18dB 7 Conducted Emission (9KHz-150KHz) ±2.48dB 8 Conducted Emission (150KHz-30MHz) ±2.52dB 9 Occupied Channel Bandwidth ±3.6% 10 Power Spectral Density, conducted ±1.214dB 11 Duty Cycle ±3.2% Page 8 of 70 Report No.: STS2512381W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name PGYTECH ProShot Grip Remote Controller Brand Name N/A Model Name P-PG-032 Series Model(s) P-PG-027, P-PG-028, P-PG-091 Model Difference All the model are the same circuit and RF module, except model names. Product Description The EUT is a PGYTECH ProShot Grip Remote Controller Operation Frequency: 240…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2A8CE-P-PG-032 Conducted emissions 30MHz-1GHz Page 2 of 2 FCC ID: 2A8CE-P-PG-032 Spurious emissions
