2A8D2-DMP-A8-GEN-2High Fidelity Music Streamer

ShenZhen Eversolo Audio Technology Co.,Ltd

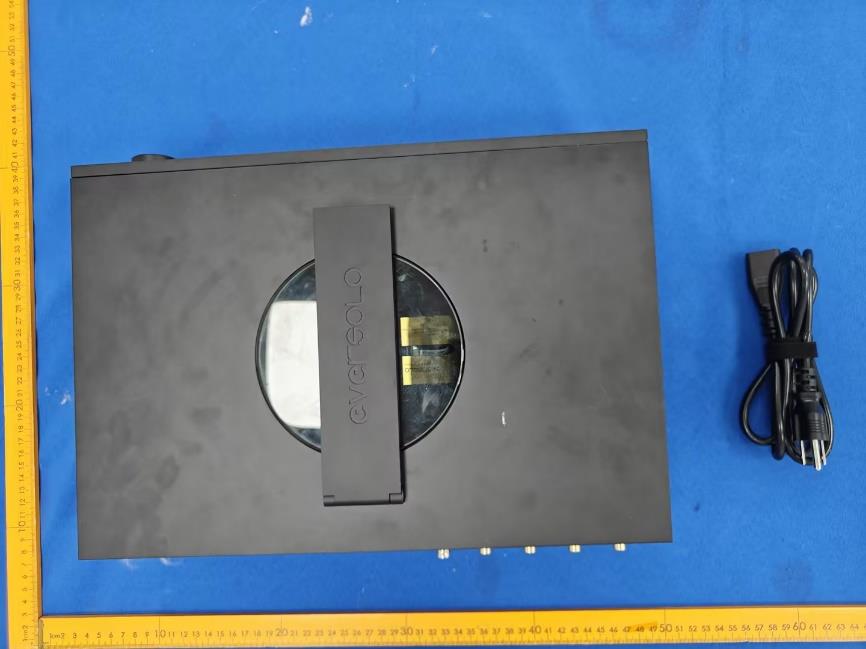

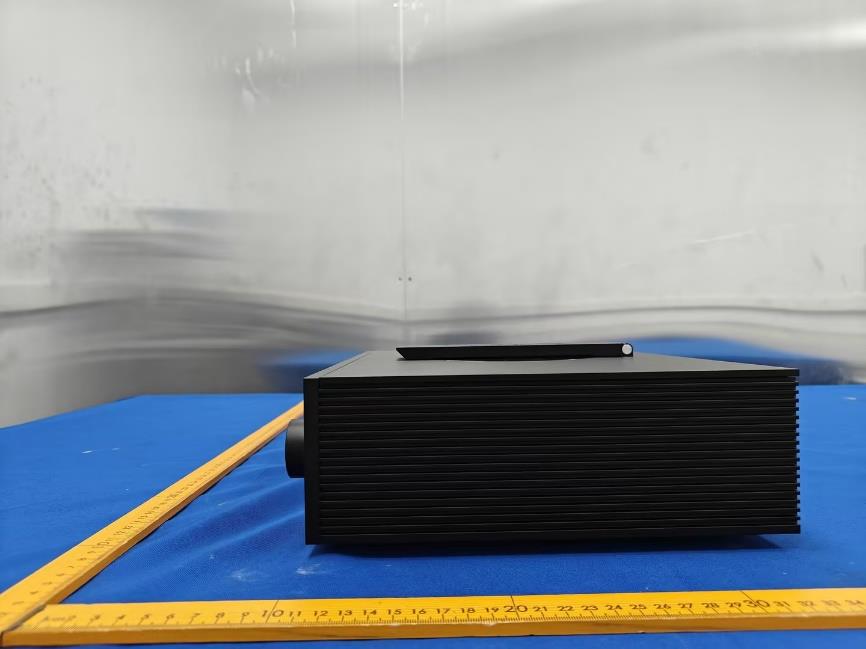

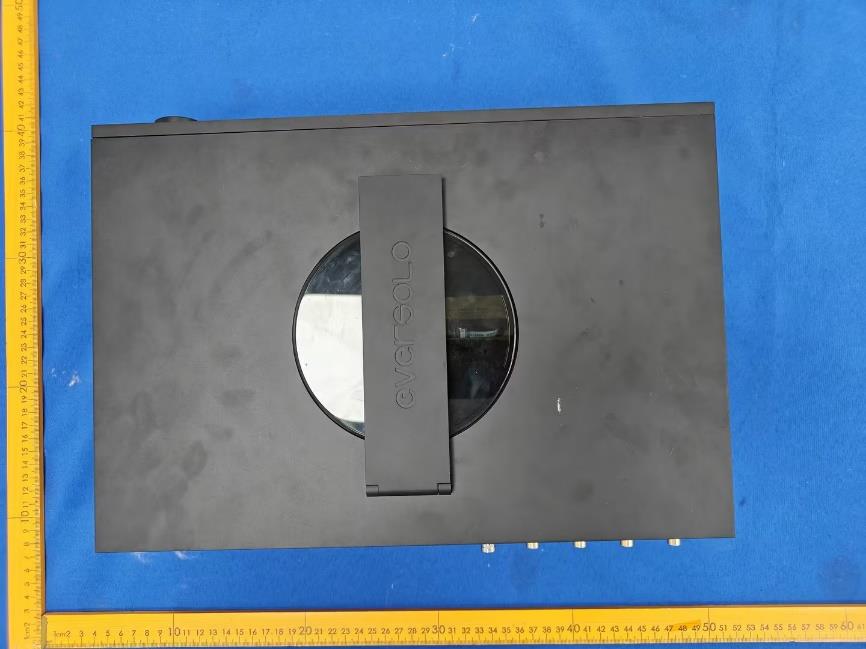

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Apr 30, 2026
Application Purpose: Original Equipment
Equipment Note: High Fidelity Music Streamer
Frequency Range: 5180.00000000 - 5240.00000000
Company: ShenZhen Eversolo Audio Technology Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

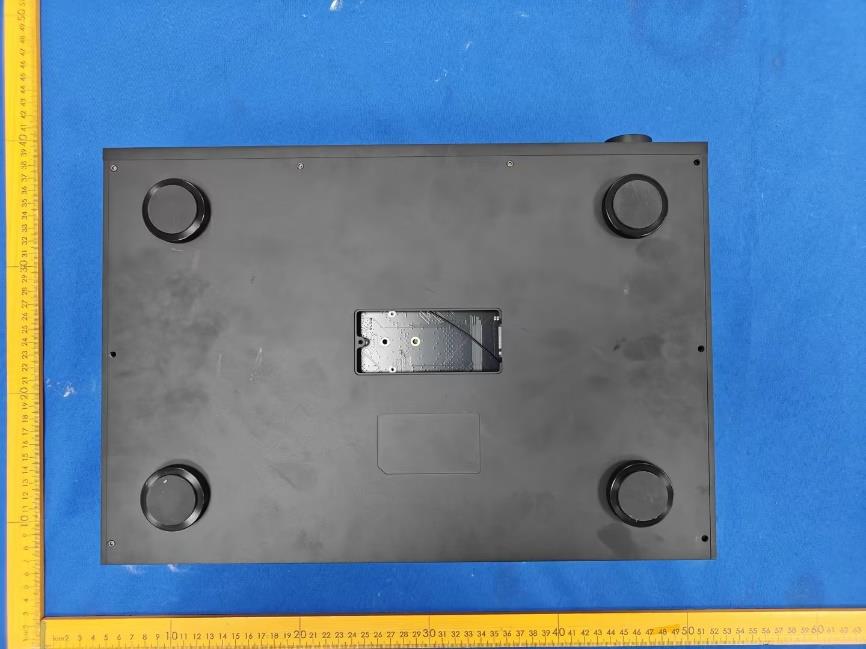

1. AC Power Switch/Power Socket 2. Antenna 3. AES/Optical/Coaxial Outputs 4. ARC/Optical/Coaxial Inputs 5. Analog Input 6. Analog Output 7. USB 3.0 *2 8. SFP Optical Network Port 9. Gigabit Ethernet Port 10.IIS Output 11. USB Audio Input 12.Subwoofer Output 13.Trigger Input/Output SSD Installation This unit does not include a hard drive by default.You mayinstallan SSD as needed.The supported drive specification is NVMe M.22280,witha maximum supported capacityof4TB. I nsta I lationSteps 1. Place the unit upside downonaflat surface.Use the screwdrivertoremove the screws securing the rear SSDcover, thenremove the cover. 2. Open the SSDretainingclip, insert the prepared SSD into the slot, press it down, lock it in place with the retaining clip, and then reinstall the drive cover and screws. Precautions • The installed SSD must meet the specifications supported by this unit. • Inserting or removing the SSD while the unit is powered on may damage the SSD or the device. Neverreplace the SSD while the power is on. • This unit supports SSDs formatted only in NTFS, exFAT, or FAT32. Technical terms and formatting have been normalized into standard English product-manual style while preserving the meaning of the original Chinese text. 5 Thi s device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interferenc (2)t his device must accept any interference received, including interference that may cause unde operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equip ment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, p ursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful int erference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device meets the FCC requirements for RF exposure.The device is designed for normal indoor use and c omplieswith applicable FCC exposure limits. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Test Report

Page 1 of 32 Report No.: AiTSZ-260417018FW4 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : High Fidelity Music Streamer Brand Name : Eversolo Model : DMP-A8 Master Edition Gen 2 Series Model : DMP-A8 Gen 2 FCC ID : 2A8D2-DMP-A8-GEN-2 Applicant : Shenzhen Eversolo Audio Technology Co., Ltd Address : Room C1402, Block BC, Huizhi R&D Center, Longteng Community, Xixiang Street, Bao'an District, Shenzhen Manufacturer : Shenzhen Eversolo Audio Technology Co., Ltd Address : Room C1402, Block BC, Huizhi R&D Center, Longteng Community, Xixiang Street, Bao'an District, Shenzhen Standard(s) : FCC CFR Title 47 Part 15 Subpart E Section 15.407 Date of Receipt : Apr. 17, 2026 Date of Test : Apr. 17, 2026~ Apr. 25, 2026 Issued Date : Apr. 28, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 32 Report No.: AiTSZ-260417018FW4 Report Revise Record Report Version Issued Date Notes M0 Apr. 28, 2026 Initial Release Page 3 of 32 Report No.: AiTSZ-260417018FW4 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION .......................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 7 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1 CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 12 3.3 MAXIMUM CONDUCTED AVERAGE OUTPUT POWER ......................................................................................................... 23 3.4 POWER SPECTRAL DENSITY .......................................................................................................................................... 25 3.5 EMISSION BANDWIDTH (26DBM BANDWIDTH) ................................................................................................................ 27 3.6 MINIMUM EMISSION BANDWIDTH (6DBM BANDWIDTH) .................................................................................................. 28 3.7 FREQUENCY STABILITY ................................................................................................................................................. 29 3.8 ANTENNA REQUIREMENT ............................................................................................................................................. 30 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 31 5 PHOTOS OF EUT ..................................................................................................................................................... 32 Page 4 of 32 Report No.: AiTSZ-260417018FW4 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15 Subpart E—Unlicensed National Information Infrastructure Devices. ANSI C63.10: 2020: American National Standard for Testing Unlicensed Wireless Devices KDB789033 D02…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 1 of 2 FCC ID: 2A8D2-DMP-A8-GEN-2 Page 2 of 2 FCC ID: 2A8D2-DMP-A8-GEN-2

Test Report

Page 154 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_HCH_5240MHz_SU_ / _MIMO_NTNV 802.11ax(HEW40)_LCH_5190MHz_SU_ / _Ant1_NTNV Page 155 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_LCH_5190MHz_SU_ / _Ant2_NTNV 802.11ax(HEW40)_LCH_5190MHz_SU_ / _MIMO_NTNV Page 156 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_HCH_5230MHz_SU_ / _Ant1_NTNV 802.11ax(HEW40)_HCH_5230MHz_SU_ / _Ant2_NTNV Page 157 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_HCH_5230MHz_SU_ / _MIMO_NTNV 802.11ax(HEW80)_MCH_5210MHz_SU_ / _Ant1_NTNV Page 158 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW80)_MCH_5210MHz_SU_ / _Ant2_NTNV 802.11ax(HEW80)_MCH_5210MHz_SU_ / _MIMO_NTNV Page 159 of 191 Report No.: AiTSZ-260417018FW4 4.2.2 PSD-Band3 802.11a_LCH_5745MHz_Ant1_NTNV 802.11a_LCH_5745MHz_Ant2_NTNV Page 160 of 191 Report No.: AiTSZ-260417018FW4 802.11a_LCH_5745MHz_MIMO_NTNV 802.11a_MCH_5785MHz_Ant1_NTNV Page 161 of 191 Report No.: AiTSZ-260417018FW4 802.11a_MCH_5785MHz_Ant2_NTNV 802.11a_MCH_5785MHz_MIMO_NTNV Page 162 of 191 Report No.: AiTSZ-260417018FW4 802.11a_HCH_5825MHz_Ant1_NTNV 802.11a_HCH_5825MHz_Ant2_NTNV Page 163 of 191 Report No.: AiTSZ-260417018FW4 802.11a_HCH_5825MHz_MIMO_NTNV 802.11n(HT20)_LCH_5745MHz_Ant1_NTNV Page 164 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_LCH_5745MHz_Ant2_NTNV 802.11n(HT20)_LCH_5745MHz_MIMO_NTNV Page 165 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_MCH_5785MHz_Ant2_NTNV Page 166 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_MCH_5785MHz_MIMO_NTNV 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV Page 167 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_HCH_5825MHz_Ant2_NTNV 802.11n(HT20)_HCH_5825MHz_MIMO_NTNV Page 168 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV 802.11n(HT40)_LCH_5755MHz_Ant2_NTNV Page 169 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_LCH_5755MHz_MIMO_NTNV 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV Page 170 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_HCH_5795MHz_Ant2_NTNV 802.11n(HT40)_HCH_5795MHz_MIMO_NTNV Page 171 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_LCH_5745MHz_Ant1_NTNV 802.11ac(VHT20)_LCH_5745MHz_Ant2_NTNV Page 172 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_LCH_5745MHz_MIMO_NTNV 802.11ac(VHT20)_MCH_5785MHz_Ant1_NTNV Page 173 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_MCH_5785MHz_Ant2_NTNV 802.11ac(VHT20)_MCH_5785MHz_MIMO_NTNV Page 174 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_HCH_5825MHz_Ant1_NTNV 802.11ac(VHT20)_HCH_5825MHz_Ant2_NTNV Page 175 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_HCH_5825MHz_MIMO_NTNV 802.11ac(VHT40)_LCH_5755MHz_Ant1_NTNV Page 176 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_LCH_5755MHz_Ant2_NTNV 802.11ac(VHT40)_LCH_5755MHz_MIMO_NTNV Page 177 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_HCH_5795MHz_Ant1_NTNV 802.11ac(VHT40)_HCH_5795MHz_Ant2_NTNV Page 178 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_HCH_5795MHz_MIMO_NTNV 802.11ac(VHT80)_MCH_5775MHz_Ant1_NTNV Page 179 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT80)_MCH_5775MHz_Ant2_NTNV 802.11ac(VHT80)_MCH_5775MHz_MIMO_NTNV Page 180 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_LCH_5745MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_LCH_5745MHz_SU_ / _Ant2_NTNV Page 181 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_LCH_5745MHz_SU_ / _MIMO_NTNV 802.11ax(HEW20)_MCH_5785MHz_SU_ / _Ant1_NTNV Page 182 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_MCH_5785MHz_SU_ / _Ant2_NTNV 802.11ax(HEW20)_MCH_5785MHz_SU_ / _MIMO_NTNV Page 183 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_HCH_5825MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_HCH_5825MHz_SU_ / _Ant2_NTNV Page 184 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_HCH_5825MHz_SU_ / _MIMO_NTNV 802.11ax(HEW40)_LCH_5755MHz_SU_ / _Ant1_NTNV Page 185 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_LCH_5755MHz_SU_ / _Ant2_NTNV 802.11ax(HEW40)_LCH_5755MHz_SU_ / _MIMO_NTNV Page 186 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_HCH_5795MHz_SU_ / _Ant1_NTNV 802.11ax(HEW40)_HCH_5795MHz_SU_ / _Ant2_NTNV Page 187 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_HCH_5795MHz_SU_ / _MIMO_NTNV 802.11ax(HEW80)_MCH_5775MHz_SU_ / _Ant1_NTNV Page 188 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW80)_MCH_5775MHz_SU_ / _Ant2_NTNV 802.11ax(HEW80)_MCH_5775MHz_SU_ / _MIMO_NTNV Page 189 of 191 Report No.: AiTSZ-260417018FW4 5. Frequency Stability 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Temperature (°C) Voltage Measured Frequency (MHz) Limit (MHz) Verdict Carrier Wave MIMO 5180 20 LV 5179.934 5150 to 5250 Pass NV 5179.934 5150 to 5250 Pass HV 5179.934 5150 to 5250 Pass -30 NV 5179.934 5150 to 5250 Pass -20 NV 5179.934 5150 to 5250 Pass -10 NV 5179.934 5150 to 5250 Pass 0 NV 5179.934 5150 to 5250 Pass 10 NV 5179.934 5150 to 5250 Pass 30 NV 5179.933 5150 to 5250 Pass 40 NV 5179.933 5150 to 5250 Pass 50 NV 5179.933 5150 to 5250 Pass 5200 20 LV 5199.933 5150 to 5250 Pass NV 5199.933 5150 to 5250 Pass HV 5199.933 5150 to 5250 Pass -30 NV 5199.932 5150 to 5250 Pass -20 NV 5199.932 5150 to 5250 Pass -10 NV 5199.932 5150 to 5250 Pass 0 NV 5199.931 5150 to 5250 Pass 10 NV 5199.931 5150 to 5250 Pass 30 NV 5199.931 5150 to 5250 Pass 40 NV 5199.930 5150 to 5250 Pass 50 NV 5199.930 5150 to 5250 Pass 5240 20 LV 5239.929 5150 to 5250 Pass NV 5239.929 5150 to 5250 Pass HV 5239.928 5150 to 5250 Pass -30 NV 5239.929 5150 to 5250 Pass -20 NV 5239.928 5150 to 5250 Pass -10 NV 5239.928 5150 to 5250 Pass 0 NV 5239.928 5150 to 5250 Pass 10 NV 5239.928 5150 to 5250 Pass 30 NV 5239.928 5150 to 5250 Pass 40 NV 5239.928 5150 to 5250 Pass 50 NV 5239.928 5150 to 5250 Pass 5190 20 LV 5189.927 5150 to 5250 Pass NV 5189.927 5150 to 5250 Pass HV 5189.927 5150 to 5250 Pass -30 NV 5189.927 5150 to 5250 Pass -20 NV 5189.927 5150 to 5250 Pass -10 NV 5189.927 5150 to 5250 Pass 0 NV 5189.927 5150 to 5250 Pass 10 NV 5189.927 5150 to 5250 Pass 30 NV 518…

Text truncated - open the document above for the full version.

Test Report

Page 116 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_MCH_5200MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_MCH_5200MHz_SU_ / _Ant2_NTNV Page 117 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_HCH_5240MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_HCH_5240MHz_SU_ / _Ant2_NTNV Page 118 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_LCH_5745MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_LCH_5745MHz_SU_ / _Ant2_NTNV Page 119 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_MCH_5785MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_MCH_5785MHz_SU_ / _Ant2_NTNV Page 120 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_HCH_5825MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_HCH_5825MHz_SU_ / _Ant2_NTNV Page 121 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_LCH_5190MHz_SU_ / _Ant1_NTNV 802.11ax(HEW40)_LCH_5190MHz_SU_ / _Ant2_NTNV Page 122 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_HCH_5230MHz_SU_ / _Ant1_NTNV 802.11ax(HEW40)_HCH_5230MHz_SU_ / _Ant2_NTNV Page 123 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_LCH_5755MHz_SU_ / _Ant1_NTNV 802.11ax(HEW40)_LCH_5755MHz_SU_ / _Ant2_NTNV Page 124 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_HCH_5795MHz_SU_ / _Ant1_NTNV 802.11ax(HEW40)_HCH_5795MHz_SU_ / _Ant2_NTNV Page 125 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW80)_MCH_5210MHz_SU_ / _Ant1_NTNV 802.11ax(HEW80)_MCH_5210MHz_SU_ / _Ant2_NTNV Page 126 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW80)_MCH_5775MHz_SU_ / _Ant1_NTNV 802.11ax(HEW80)_MCH_5775MHz_SU_ / _Ant2_NTNV Page 127 of 191 Report No.: AiTSZ-260417018FW4 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) RU RU Pos Maximum PSD (dBm/MHz) Verdict ANT1 ANT2 MIMO Limit 802.11a MIMO 5180 / / -5.36 -4.46 -2.13 <=10.78 Pass 5200 / / -1.31 -2.99 0.72 <=10.78 Pass 5240 / / -0.42 -2.01 1.59 <=10.78 Pass 802.11n (HT20) MIMO 5180 / / -1.65 -2.39 0.81 <=10.78 Pass 5200 / / -1.39 -1.59 1.26 <=10.78 Pass 5240 / / -0.33 -1.47 2.02 <=10.78 Pass 802.11n (HT40) MIMO 5190 / / -4.21 -4.93 -1.89 <=10.78 Pass 5230 / / -3.71 -4.13 -1.23 <=10.78 Pass 802.11ac (VHT20) MIMO 5180 / / -2.15 -2.15 0.64 <=10.78 Pass 5200 / / -1.72 -2.68 0.70 <=10.78 Pass 5240 / / -0.23 -2.88 1.56 <=10.78 Pass 802.11ac (VHT40) MIMO 5190 / / -5.78 -5.33 -2.72 <=10.78 Pass 5230 / / -5.64 -6.22 -3.33 <=10.78 Pass 802.11ac (VHT80) MIMO 5210 / / -7.89 -8.08 -5.18 <=10.78 Pass 802.11ax (HEW20) MIMO 5180 SU / -1.80 -3.47 0.13 <=10.78 Pass 5200 SU / -2.01 -2.22 0.77 <=10.78 Pass 5240 SU / -0.71 -1.22 1.89 <=10.78 Pass 802.11ax (HEW40) MIMO 5190 SU / -4.12 -6.40 -2.52 <=10.78 Pass 5230 SU / -5.92 -6.03 -3.23 <=10.78 Pass 802.11ax (HEW80) MIMO 5210 SU / -8.45 -9.56 -5.99 <=10.78 Pass Note1: Antenna Gain: Ant1: 3.11dBi; Ant2: 3.21dBi; Note2: Directional Gain: 6.17dBi 4.1.2 PSD-Band3 Mode TX Type Frequency (MHz) RU RU Pos Maximum PSD (dBm/500kHz) Verdict ANT1 ANT2 MIMO Limit 802.11a MIMO 5745 / / -7.78 -6.77 -4.46 <=29.78 Pass 5785 / / -7.95 -7.04 -4.67 <=29.78 Pass 5825 / / -6.16 -6.75 -3.68 <=29.78 Pass 802.11n (HT20) MIMO 5745 / / -7.75 -8.36 -5.12 <=29.78 Pass 5785 / / -8.28 -8.04 -5.31 <=29.78 Pass 5825 / / -10.42 -9.18 -6.86 <=29.78 Pass 802.11n (HT40) MIMO 5755 / / -9.35 -9.76 -6.87 <=29.78 Pass 5795 / / -9.88 -10.55 -7.54 <=29.78 Pass 802.11ac (VHT20) MIMO 5745 / / -7.55 -8.19 -5.04 <=29.78 Pass 5785 / / -7.74 -8.33 -5.02 <=29.78 Pass 5825 / / -8.51 -9.73 -6.24 <=29.78 Pass 802.11ac (VHT40) MIMO 5755 / / -9.69 -9.91 -6.95 <=29.78 Pass 5795 / / -10.51 -10.61 -7.83 <=29.78 Pass 802.11ac (VHT80) MIMO 5775 / / -13.56 -13.23 -10.54 <=29.78 Pass 802.11ax (HEW20) MIMO 5745 SU / -7.76 -7.64 -4.72 <=29.78 Pass 5785 SU / -7.71 -8.66 -5.30 <=29.78 Pass 5825 SU / -8.63 -9.74 -6.50 <=29.78 Pass 802.11ax MIMO 5755 SU / -10.79 -11.07 -8.21 <=29.78 Pass Page 128 of 191 Report No.: AiTSZ-260417018FW4 (HEW40) 5795 SU / -10.96 -11.31 -8.34 <=29.78 Pass 802.11ax (HEW80) MIMO 5775 SU / -12.80 -14.60 -10.92 <=29.78 Pass Note1: Antenna Gain: Ant1: 3.11dBi; Ant2: 3.21dBi; Note2: Directional Gain: 6.17dBi Page 129 of 191 Report No.: AiTSZ-260417018FW4 4.2 Test Graph 4.2.1 PSD 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_LCH_5180MHz_Ant2_NTNV Page 130 of 191 Report No.: AiTSZ-260417018FW4 802.11a_LCH_5180MHz_MIMO_NTNV 802.11a_MCH_5200MHz_Ant1_NTNV Page 131 of 191 Report No.: AiTSZ-260417018FW4 802.11a_MCH_5200MHz_Ant2_NTNV 802.11a_MCH_5200MHz_MIMO_NTNV Page 132 of 191 Report No.: AiTSZ-260417018FW4 802.11a_HCH_5240MHz_Ant1_NTNV 802.11a_HCH_5240MHz_Ant2_NTNV Page 133 of 191 Report No.: AiTSZ-260417018FW4 802.11a_HCH_5240MHz_MIMO_NTNV 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV Page 134 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_LCH_5180MHz_Ant2_NTNV 802.11n(HT20)_LCH_5180MHz_MIMO_NTNV Page 135 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_MCH_5200MHz_Ant2_NTNV Page 136 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_MCH_5200MHz_MIMO_NTNV 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV Page 137 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_HCH_5240MHz_Ant2_NTNV 802.11n(HT20)_HCH_5240MHz_MIMO_NTNV Page 138 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV 802.11n(HT40)_LCH_5190MHz_Ant2_NTNV Page 139 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_LCH_5190MHz_MIMO_NTNV 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV Page 140 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_HCH_5230MHz_Ant2_NTNV 802.11n(HT40)_HCH_5230MHz_MIMO_NTNV Page 141 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV 802.11ac(VHT20)_LCH_5180MHz_Ant2_NTNV Page 142 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_LCH_5180MHz_MIMO_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV Page 143 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_MCH_5200MHz_Ant2_NTNV 802.11ac(VHT20)_MCH_5200MHz_MIMO_NTNV Page 144 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV 802.11ac(VHT20)_HCH_5240MHz_Ant2_NTNV Page 145 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_HCH_5240MHz_MIMO_NTNV 802.11ac(VH…

Text truncated - open the document above for the full version.

Test Report

Page 78 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV Page 79 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV Page 80 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_LCH_5745MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5785MHz_Ant1_NTNV Page 81 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_HCH_5825MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5755MHz_Ant1_NTNV Page 82 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_HCH_5795MHz_Ant1_NTNV 802.11ac(VHT80)_MCH_5775MHz_Ant1_NTNV Page 83 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_LCH_5745MHz_SU_ / _Ant1_NTNV 802.11ax(HEW20)_MCH_5785MHz_SU_ / _Ant1_NTNV Page 84 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_HCH_5825MHz_SU_ / _Ant1_NTNV 802.11ax(HEW40)_LCH_5755MHz_SU_ / _Ant1_NTNV Page 85 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_HCH_5795MHz_SU_ / _Ant1_NTNV 802.11ax(HEW80)_MCH_5775MHz_SU_ / _Ant1_NTNV Page 86 of 191 Report No.: AiTSZ-260417018FW4 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) RU RU Pos Maximum Average Conducted Output Power (dBm) Verdict ANT1 ANT2 MIMO Limit 802.11a MIMO 5180 / / 7.64 6.66 10.19 <=23.98 Pass 5200 / / 6.09 7.65 9.95 <=23.98 Pass 5240 / / 9.54 7.41 11.61 <=23.98 Pass 5745 / / 4.18 5.62 7.97 <=30 Pass 5785 / / 5.15 4.44 7.82 <=30 Pass 5825 / / 5.46 4.56 8.04 <=30 Pass 802.11n (HT20) MIMO 5180 / / 8.14 7.31 10.76 <=23.98 Pass 5200 / / 8.28 7.96 11.13 <=23.98 Pass 5240 / / 8.86 8.90 11.89 <=23.98 Pass 5745 / / 4.78 4.44 7.62 <=30 Pass 5785 / / 5.42 4.71 8.09 <=30 Pass 5825 / / 3.44 3.04 6.25 <=30 Pass 802.11n (HT40) MIMO 5190 / / 8.06 8.39 11.24 <=23.98 Pass 5230 / / 9.15 8.44 11.82 <=23.98 Pass 5755 / / 5.54 5.68 8.62 <=30 Pass 5795 / / 4.86 4.90 7.89 <=30 Pass 802.11ac (VHT20) MIMO 5180 / / 5.95 6.37 9.18 <=23.98 Pass 5200 / / 8.21 6.07 10.28 <=23.98 Pass 5240 / / 9.77 8.81 12.33 <=23.98 Pass 5745 / / 5.26 4.91 8.10 <=30 Pass 5785 / / 5.01 4.60 7.82 <=30 Pass 5825 / / 4.59 3.32 7.01 <=30 Pass 802.11ac (VHT40) MIMO 5190 / / 7.13 6.82 9.99 <=23.98 Pass 5230 / / 7.80 7.25 10.54 <=23.98 Pass 5755 / / 6.18 5.64 8.93 <=30 Pass 5795 / / 5.80 5.46 8.64 <=30 Pass 802.11ac (VHT80) MIMO 5210 / / 5.83 6.49 9.18 <=23.98 Pass 5775 / / 5.64 6.22 8.95 <=30 Pass 802.11ax (HEW20) MIMO 5180 SU / 8.43 6.64 10.64 <=23.98 Pass 5200 SU / 8.23 7.41 10.85 <=23.98 Pass 5240 SU / 9.85 8.15 12.09 <=23.98 Pass 5745 SU / 5.16 4.78 7.98 <=30 Pass 5785 SU / 5.17 4.63 7.92 <=30 Pass 5825 SU / 4.35 3.18 6.81 <=30 Pass 802.11ax (HEW40) MIMO 5190 SU / 7.39 8.15 10.80 <=23.98 Pass 5230 SU / 8.33 7.86 11.11 <=23.98 Pass 5755 SU / 5.01 4.58 7.81 <=30 Pass 5795 SU / 4.43 4.37 7.41 <=30 Pass 802.11ax (HEW80) MIMO 5210 SU / 7.10 7.12 10.12 <=23.98 Pass 5775 SU / 4.18 4.86 7.54 <=30 Pass Note1: Antenna Gain: Ant1: 3.11dBi; Ant2: 3.21dBi; Note2: Directional Gain: 6.17dBi Page 87 of 191 Report No.: AiTSZ-260417018FW4 3.2 Test Graph 3.2.1 Power 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_LCH_5180MHz_Ant2_NTNV Page 88 of 191 Report No.: AiTSZ-260417018FW4 802.11a_MCH_5200MHz_Ant1_NTNV 802.11a_MCH_5200MHz_Ant2_NTNV Page 89 of 191 Report No.: AiTSZ-260417018FW4 802.11a_HCH_5240MHz_Ant1_NTNV 802.11a_HCH_5240MHz_Ant2_NTNV Page 90 of 191 Report No.: AiTSZ-260417018FW4 802.11a_LCH_5745MHz_Ant1_NTNV 802.11a_LCH_5745MHz_Ant2_NTNV Page 91 of 191 Report No.: AiTSZ-260417018FW4 802.11a_MCH_5785MHz_Ant1_NTNV 802.11a_MCH_5785MHz_Ant2_NTNV Page 92 of 191 Report No.: AiTSZ-260417018FW4 802.11a_HCH_5825MHz_Ant1_NTNV 802.11a_HCH_5825MHz_Ant2_NTNV Page 93 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV 802.11n(HT20)_LCH_5180MHz_Ant2_NTNV Page 94 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_MCH_5200MHz_Ant2_NTNV Page 95 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant2_NTNV Page 96 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_LCH_5745MHz_Ant1_NTNV 802.11n(HT20)_LCH_5745MHz_Ant2_NTNV Page 97 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_MCH_5785MHz_Ant2_NTNV Page 98 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV 802.11n(HT20)_HCH_5825MHz_Ant2_NTNV Page 99 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV 802.11n(HT40)_LCH_5190MHz_Ant2_NTNV Page 100 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV 802.11n(HT40)_HCH_5230MHz_Ant2_NTNV Page 101 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV 802.11n(HT40)_LCH_5755MHz_Ant2_NTNV Page 102 of 191 Report No.: AiTSZ-260417018FW4 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV 802.11n(HT40)_HCH_5795MHz_Ant2_NTNV Page 103 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV 802.11ac(VHT20)_LCH_5180MHz_Ant2_NTNV Page 104 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant2_NTNV Page 105 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV 802.11ac(VHT20)_HCH_5240MHz_Ant2_NTNV Page 106 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_LCH_5745MHz_Ant1_NTNV 802.11ac(VHT20)_LCH_5745MHz_Ant2_NTNV Page 107 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_MCH_5785MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5785MHz_Ant2_NTNV Page 108 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT20)_HCH_5825MHz_Ant1_NTNV 802.11ac(VHT20)_HCH_5825MHz_Ant2_NTNV Page 109 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_LCH_5190MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5190MHz_Ant2_NTNV Page 110 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_HCH_5230MHz_Ant1_NTNV 802.11ac(VHT40)_HCH_5230MHz_Ant2_NTNV Page 111 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_LCH_5755MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5755MHz_Ant2_NTNV Page 112 of 191 Report No.: AiTSZ-260417018FW4 802.11ac(VHT40)_HCH_5795MHz_Ant1_NTNV 802.11ac(VHT40…

Text truncated - open the document above for the full version.

Test Report

Page 40 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW20)_MCH_5785MHz_SU_ / _Ant2_NTNV 802.11ax(HEW20)_HCH_5825MHz_SU_ / _Ant2_NTNV Page 41 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_LCH_5190MHz_SU_ / _Ant2_NTNV 802.11ax(HEW40)_HCH_5230MHz_SU_ / _Ant2_NTNV Page 42 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW40)_LCH_5755MHz_SU_ / _Ant2_NTNV 802.11ax(HEW40)_HCH_5795MHz_SU_ / _Ant2_NTNV Page 43 of 191 Report No.: AiTSZ-260417018FW4 802.11ax(HEW80)_MCH_5210MHz_SU_ / _Ant2_NTNV 802.11ax(HEW80)_MCH_5775MHz_SU_ / _Ant2_NTNV Page 44 of 191 Report No.: AiTSZ-260417018FW4 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) RU RU Pos ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11a MIMO 5180 / / 1 16.356 / Pass 5200 / / 1 16.394 / Pass 5240 / / 1 16.414 / Pass 5745 / / 1 16.354 / Pass 5785 / / 1 16.393 / Pass 5825 / / 1 16.400 / Pass 802.11n (HT20) MIMO 5180 / / 1 17.574 / Pass 5200 / / 1 17.577 / Pass 5240 / / 1 17.580 / Pass 5745 / / 1 17.568 / Pass 5785 / / 1 17.576 / Pass 5825 / / 1 17.602 / Pass 802.11n (HT40) MIMO 5190 / / 1 36.314 / Pass 5230 / / 1 36.201 / Pass 5755 / / 1 36.220 / Pass 5795 / / 1 36.091 / Pass 802.11ac (VHT20) MIMO 5180 / / 1 17.610 / Pass 5200 / / 1 17.579 / Pass 5240 / / 1 17.570 / Pass 5745 / / 1 17.554 / Pass 5785 / / 1 17.585 / Pass 5825 / / 1 17.585 / Pass 802.11ac (VHT40) MIMO 5190 / / 1 36.176 / Pass 5230 / / 1 36.186 / Pass 5755 / / 1 36.154 / Pass 5795 / / 1 36.220 / Pass 802.11ac (VHT80) MIMO 5210 / / 1 75.227 / Pass 5775 / / 1 75.112 / Pass 802.11ax (HEW20) MIMO 5180 SU / 1 18.834 / Pass 5200 SU / 1 18.802 / Pass 5240 SU / 1 18.855 / Pass 5745 SU / 1 18.791 / Pass 5785 SU / 1 18.856 / Pass 5825 SU / 1 18.900 / Pass 802.11ax (HEW40) MIMO 5190 SU / 1 37.674 / Pass 5230 SU / 1 37.679 / Pass 5755 SU / 1 37.721 / Pass 5795 SU / 1 37.671 / Pass 802.11ax (HEW80) MIMO 5210 SU / 1 76.783 / Pass 5775 SU / 1 76.516 / Pass 2.1.2 26dB BW Mode TX Type Frequency (MHz) RU RU Pos ANT 26dB Bandwidth (MHz) Verdict Result Limit 802.11a MIMO 5180 / / 1 19.994 / Pass Page 45 of 191 Report No.: AiTSZ-260417018FW4 5200 / / 1 20.610 / Pass 5240 / / 1 21.158 / Pass 802.11n (HT20) MIMO 5180 / / 1 21.912 / Pass 5200 / / 1 21.298 / Pass 5240 / / 1 21.319 / Pass 802.11n (HT40) MIMO 5190 / / 1 41.111 / Pass 5230 / / 1 42.237 / Pass 802.11ac (VHT20) MIMO 5180 / / 1 21.572 / Pass 5200 / / 1 21.300 / Pass 5240 / / 1 21.136 / Pass 802.11ac (VHT40) MIMO 5190 / / 1 40.934 / Pass 5230 / / 1 41.248 / Pass 802.11ac (VHT80) MIMO 5210 / / 1 82.400 / Pass 802.11ax (HEW20) MIMO 5180 SU / 1 21.436 / Pass 5200 SU / 1 21.340 / Pass 5240 SU / 1 21.448 / Pass 802.11ax (HEW40) MIMO 5190 SU / 1 45.050 / Pass 5230 SU / 1 44.654 / Pass 802.11ax (HEW80) MIMO 5210 SU / 1 83.284 / Pass 2.1.3 6dB BW Mode TX Type Frequency (MHz) RU RU Pos ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11a MIMO 5745 / / 1 16.342 >=0.5 Pass 5…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jeffrey Wang(Supply Chain Director)

[email protected]Fax: +86 755 23500292

Technical Contact

GLOCERTS TECHNOLOGY INCHuiying Fan

[email protected]

19784 SUNKISSED RIDGE DR · United States

Test Firm

Guangdong Asia Hongke Test Technology LimitedCoin Tang

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15E	5.18 GHz - 5.24 GHz	17.10 mW
2	15E	5.75 GHz - 5.83 GHz	7.90 mW

Confidentiality

Long Term

Grant Notes

Output power listed is average conducted. This device supports 2*2 MIMO and supports 802.11a, 802.11n, 802.11ac and 802.11ax with a 20 MHz, 40 MHz and 80 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
