2A8D3-X5Desk lamp wireless charger

台灯无线充 使用说明书 产品特点 1、本产品是一款集无线充、台灯、大容量笔筒，手机支架为一体的多功能产 品，既可给手机无线充电，还可给耳机充电，自带可伸缩台灯，具有收纳 美观、护眼矫姿的特点； 2、台灯底部使用pogo pin磁吸连接，可以很方便取下来单独作为移动照明使用； 3、多重安全保障：产品内置MCU和充电管理IC芯片，具备过流、过压、过温、短 路异物检测等多重保护，达到快速充电效果。 包装清单：无线充底座*1、折叠台灯*1、笔筒*1、Type-c电源线*1、说明书*1 1.请将适配器连接电源线插入Type-C输入端口（为实现产品最佳性能，建议使 用9V/3A及以上适配器）； 2.请将您的手机/耳机放至指定充电区域即可开始充电； 3.按键功能： ①台灯开关键：短按开启/关闭台灯； ②模式切换健：短按切换灯光模式（白光、黄光、白黄光）； 4.台灯指示灯： ①充电时，第一颗白灯闪烁，电量达到25%，第二颗闪，依次类推，充满电 后四颗灯常亮； ②低电压报警，底部第一颗灯闪烁5秒后台灯灭； 5.工作指示灯： ①左边为电源接通指示灯，淡白色指示灯常亮； ②右边为手机/耳机充电指示灯，淡蓝色指示灯常亮； ③FOD异物检测：右边淡蓝色指示灯闪烁。 2、智能耳机： 苹果：Airpods3(Pro)、Airpods2(无线充电版)、GalaxyBuds/Buds+、 FreeBuds2/3和其他支持无线充电的耳机； 注:(表中只举例常见机型，请自行查询您的设备是否支持无线充电，以上所有 设备必须符合Qi标准) 请妥善保管此卡,本公司将以此卡作为保修凭证 感谢您购买本产品，本产品的保修期为购买期之日起12个月，请务必妥善保存， 并填写详细相关信息。以备保修使用。 保修条件 需要保修服务时，请出示本卡井请详组填写相关内容,本公司向用户提供自产品 购买日起12个月保用期 1、请保持充电器远离水或其它液体，如不小心粘上液体马上用干纸巾或干布 擦干净； 2、请勿将无线充电器暴露在高温处或发热设备的周围，如日照、取暖、微波 炉、烤箱或热水器等； 3、请勿使用不匹配的电源适配器或电源线给无线充电器供电； 4、避免金属异物长期放置在无线充器表面，以免引起设备故障或发热； 5、请勿私自拆卸零件，以免导致机器故障或损坏； 6、展开台灯时，一定要先向上拉伸完全后展开台灯，否则有可能损坏台灯； 7、使用环境温度需在0～45°C范围内。 无线充电器不充电的常见原因 1、检查无线充底座上的指示灯有没有亮起，如果没有亮起，请检查电源线是 否连接好或移动一下手机充电的位置； 2、检查适配器是否至少有9V/2A输出，最好是有9V/3A输出的； 3、手机官网查询所用手机是否支持无线充功能，如不支持可加装一个无线充 电接收背夹来实现； 4、检查所充耳机是不是在上述“适用设备”范围内，否则不支持。 产品描述 1、智能手机 苹果：iphone8-13全系列 华为：P50Pro、 Mate40系列、Mate30系列、 Mate20系列、P40Pro、 P40Pro+、P30Pro 三星：Galaxynote20系列、Galaxynote10系列、 Galaxynote9系列 、 Galaxynote8系列、Galaxynotes20系列、Galaxynotes10系列 、 Galaxynotes9系列、Galaxynotes8系列 、Galaxy7edge、 Galaxy7 、 Galaxy6edge、 Galaxy6 小米：小米12全系、小米11全系、小米10全系、小米9全系、小米9至尊透明、 小米9Pro、小米mix4 、小米mix3 、小米mix2S OPPO：OPPOAce2、OPPO Findx3、OPPO Find X3Pro、OPPO Find X5 Pro VIVO： VIVO X70Pro+、VIVO X80 Pro、VIVO X Note 一加： 一加10Pro、一加9Pro、一加8Pro HONOR： HONOR Magic3、HONOR Magic4 、HONOR Magic4Pro 适用设备 使用步骤 功能展示 注意事项 保修卡 产品规格 产品名称 台灯无线充 产品型号 X5 材质 ABS+电子元件 净重 458g 手机充电功率 5W/7.5W/15W 耳机充电功率 5W 台灯工作功率 3.5W 输入接口 Type-C 输入电流 9V/3A(max) 台灯电池容量 1000mAh聚合物 台灯续航时间 1H(独立使用) 充电充满时长 手机2.5H，耳机2.1H，台灯1.2H 产品尺寸 200mm*130mm*390mm(展开状态） 200mm*130mm*225mm(折叠状态） 台灯壳体 台灯开关键 工作指示灯 左边:电源灯 右边:充电灯 模式切换键 台灯指示灯 伸缩杆 LED灯罩 台灯壳体 笔筒 手机/耳机 充电处 底座壳体 Type-C输入 USB输出 5V/2A（可支持其 它USB设备充电） 温馨提示 1.使用前请先向上拉升，再打开折叠台灯 2.根据需要，自由调节照明角度 平放充电 横放充电 竖放充电 pogo pin磁吸连 接轻松拿取 大容量笔筒 可分离式 多角度支架 随心调整 32 1 1456 产品型号: 经销商名称: 购买日期: 用户姓名: 退货理由:退货 地址: 联系电话: 保修范围 在正常使用状态下出现的质量问题，并非外力破坏造成的损坏，产品保修期间, 因无法使用该产品而造成的不便或损坏，本公司均承担任何责任，原则.上产品 属于保修期间的用户不需支付费用，但着人力损坏则需酌情收取检测或零配件 费用，产品超出保修期的一律收费。 以下情况不能享受保修 人力损坏:如因使用不当，错误适成破坏，外观不正常磨损、摔损，电路销毁、 挤压变形、异物进入、受潮、产品上的密封标签被涂改或撕毁、以及其他任何 可见人为损坏，其他情况如用户自身身原因(擅自拆装修改、使用不惧、操作不 当进水等人为情况)所造成的损环，因不可抗力造成的损坏，如地震，水灾、火 灾、台风或战争等。 换货保障 折叠模式 展开模式 Desk lamp wireless charger Instructions Product Characteristics 1.It is a multi-functional product integrating wireless charging, desk lamp, large-capacity pen holder, cell phone stand, both wireless charging for cell phones, can also charge headsets. It has a retractable desk lamp, with features of beautiful storage, eye protection and posture correction. 2.Bottom of the lamp is connected by pogo pin magnetic, which can be easily taken down alone as mobile lighting. 3.Multiple security: this product has built-in MCU and charging management IC chip, with multiple protection such as over-current, over-voltage, over-temperature, short-circuit foreign body detection, to achieve fast charging effect. Packing list: Wireless charging base *1, Folding desk lamp *1, Pen holder *1, Type-c power cord *1, Manual *1 1. Please plug the adapter into Type-C input port by connecting the power cable (for best performance of the product, it is recommended to use 9V/3A and above adapter). 2. Please put your phone/headset to the designated charging area to start charging. 3. Key functions ① desk lamp on/off key: short press to turn on/off the lamp. ② mode switch key: short press to switch the light mode (white, yellow, white yellow light). 4. Desk lamp indicator ① When charging, the first white light flashes, the power reaches 25%; the second one flashes, and so on; four lights are always on after a full charge. ② Low voltage alarm, the first light at the bottom flashes for 5 seconds after the desk light goes out. 5. Working indicators ① The left for power-on indicator, light white indicator is always on. ② The right for phone/headset charging indicator, light blue indicator is always on. ③ FOD foreign object detection: the right light blue indicator flashes. 2. Smart headsets. Apple:Airpods3 (Pro), Airpods2 (wireless charging version), GalaxyBuds/Buds+, FreeBuds2/3 and other headphones that support wireless charging. Note: (The table only gives examples of common models, please check whether your device supports wireless charging. All the above devices must comply with the Oi standard.) Please keep this card properly. The company will take this card as the warranty certificate Thank you for purchasing this product. The warranty period of this product is 12 months from the date of purchase. Please keep it properly and fill in detailed relevant information for warranty use. Warranty conditions When warranty service is required, please show this card and fill in the relevant contents in detail. The company provides users with a 1 2-month warranty period from the date of purchase 1.Please keep the charger away from water or other liquids, if it is accidentally stuck with liquid, please use dry tissue or dry cloth to wipe it clean immediately; 2.Do not expose the wireless charger to high temperatures or heat generating devices such as sunlight, heating, microwave ovens, ovens or water heaters; 3.Do not use a mismatched power adapter or power cord to power the wireless charger. 4.Avoid placing metal foreign objects on the surface of wireless charger for a long time, so as to avoid causing equipment failure or heating. 5.Do not disassemble the parts privately to avoid machine failure or damage; 6.When unfolding the lamp, please fully stretched upward first after unfolding it, otherwise there is a risk of damage to the lamp. 7.The ambient temperature should be within the range of 0 ~ 45 °C. Common reasons for wireless charger out of s…

Text truncated - open the document above for the full version.

ShenZhen XunYiming Technology Co., Ltd Model Difference Product Name: Desk lamp wireless charger Model Number: X5, X6, X7, X8, X9, X10, X11, X12, X13, X14, X15, X16, X17 FCC Identifier: 2A8D3-X5 All the models are the same circuit and RF module, except the mode names and appearance color. Regards Sincerely Client’s signature Client’s name / title: Jade Yang / Manager Contact information: 701, floor 7, building 1, first industrial zone, Nanchang community, Xixiang street, Bao'an District, Shenzhen, Guangdong

ShenZhen XunYiming Technology Co., Ltd 1/1 Letter of Authorization Company: ShenZhen XunYiming Technology Co., Ltd Address: 701, floor 7, building 1, first industrial zone, Nanchang community, Xixiang street, Bao’an District, Shenzhen, Guangdong Product Name: Desk lamp wireless charger Model Number: X5, X6, X7, X8, X9, X10, X11, X12, X13, X14, X15, X16, X17 FCC Identifier: 2A8D3-X5 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jade Yang Date: 2022-08-18 Title: Manager Signature of applicant:

ShenZhen XunYiming Technology Co., Ltd 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-08-18 Subject: Request for Confidentiality FCC ID: 2A8D3-X5 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up No ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jade Yang Title: Manager

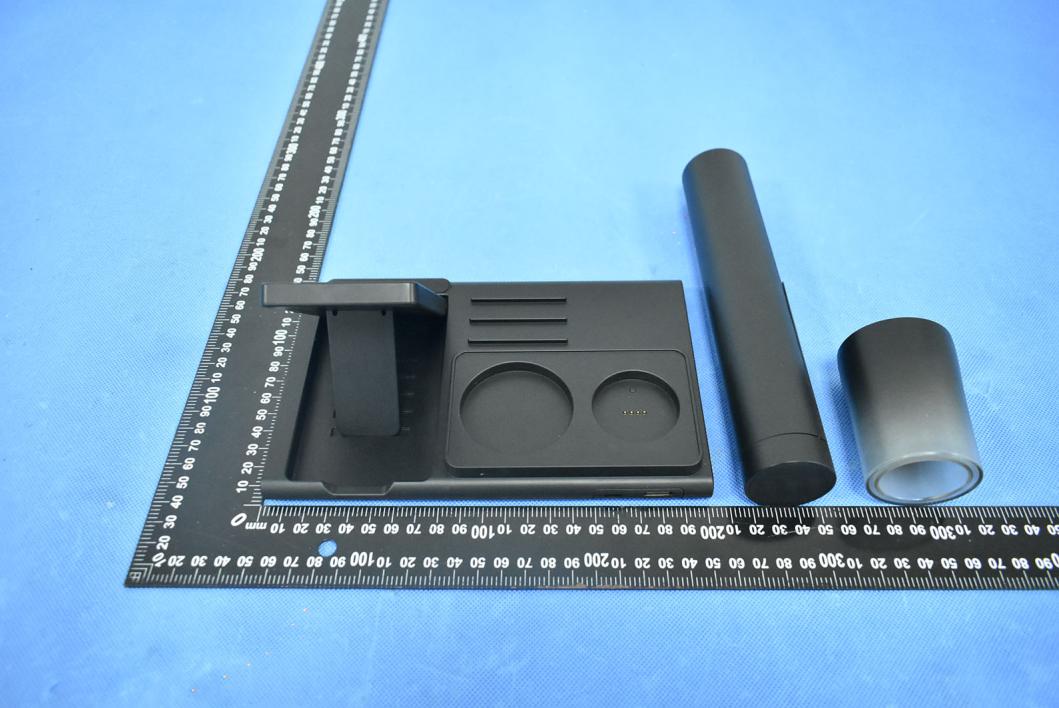

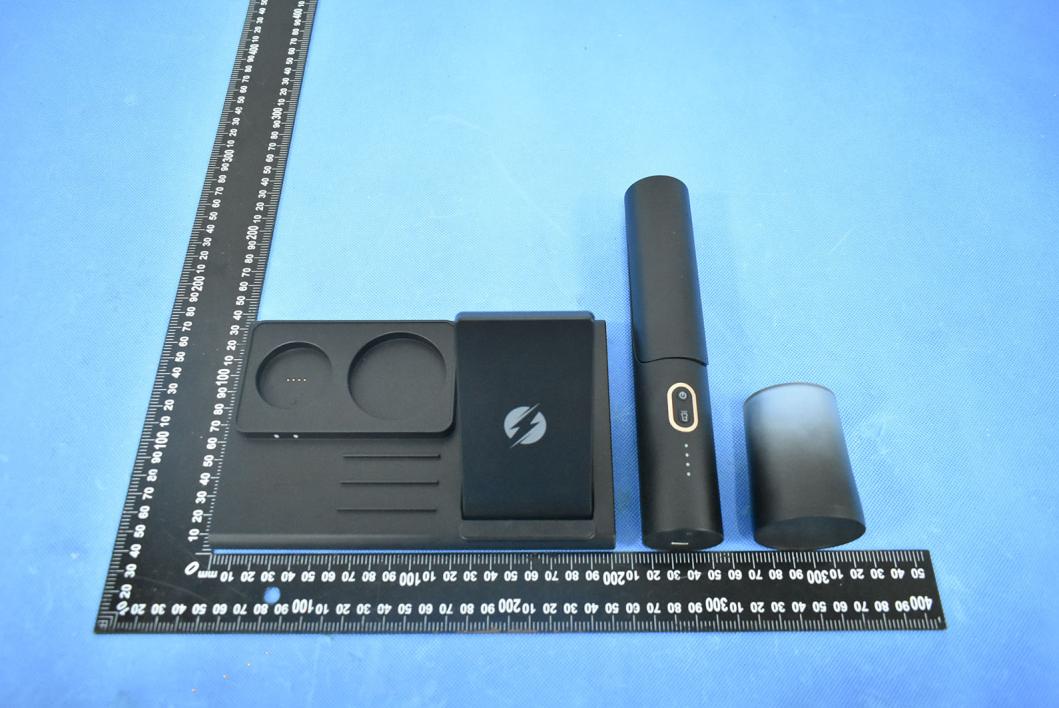

EUT PHOTO(External Photos) ※※※※※ END OF REPORT ※※※※※

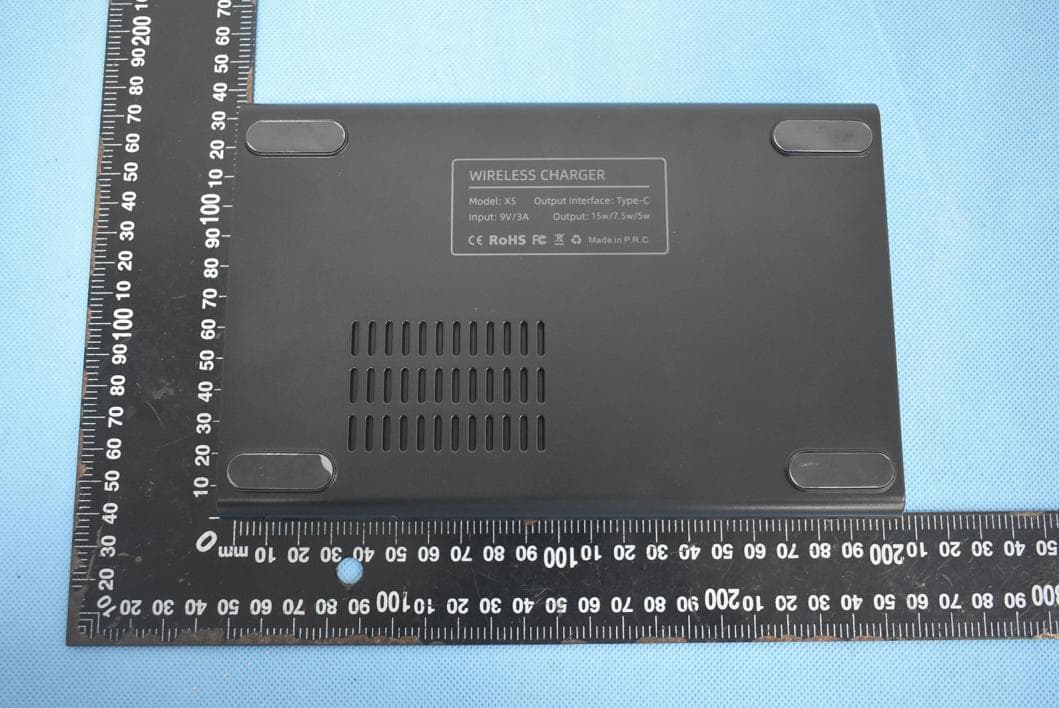

Size:15*10mm Model : X5 FCC ID: 2A8D3-X5 Label location

EUT PHOTO(Internal Photos) ANT ※※※※※ END OF REPORT ※※※※※

FCC ID: 2A8D3-X5 Product Name: Desk lamp wireless charger Product Model No.: X5, X6, X7, X8, X9, X10, X11, X12, X13, X14, X15, X16, X17 Transmitting mode Keep the EUT in continuously wireless charging mode Power supply: Input: 9V3A Output: 5V0.5A Wireless charging:5W/7.5W/15W Test Modes: Mode1. On Mode(I/P: 9V, Wireless charging) Mode2. On Mode(I/P: 9V, O/P: 5V+Wireless charging+ Light) Note: We pretest all mode, and evaluated 1%, 50% and 99% battery charging mode, the worst mode 1(99% battery charging mode)are included in the report. Description of Support Units Mobile phone (Provide by test lab): Manufacturer: Apple Model: iPhone 13 Adapter(Provide by test lab): Manufacturer: XIAOMI Model: AD652G RF Exposure Evaluation 1 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. Yes; the device operate in the frequency range from 105 KHz to 205 KHz (2) Output power from each primary coil is less than or equal to 15 watts. Yes; the maximum output power of the primary coil is 15W. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. Yes; the transfer system includes only single primary coils. (4) Client device is placed directly in contact with the transmitter. Yes; Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only. (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away Yes, see test result in item 6. from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 v03r01. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June. 26 2022 June. 25 2023 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June. 26 2022 June. 25 2023 Field Probe ETS HI-6105 / June. 24 2022 June. 23 2023 Laser Data Interface ETS HI-6113 / June. 24 2022 June. 23 2023 6 Test Result E-Filed Strength at 15 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.105-0.205 0.63 0.63 0.63 0.62 614 E-Filed Strength at 20 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.105-0.205 0.63 614 H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (A/m) 0.105-0.205 0.16 0.13 0.15 0.15 1.63 H-Filed Strength at 20 cm from the top of the EUT (A/m) Frequency Range (MHz) Test Position E Limits (A/m) 0.105-0.205 0.14 1.63 7 Test Set-up Photo Please see annex test setup photos.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220811009E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 17 TEST REPORT FCC ID: 2A8D3-X5 Applicant: ShenZhen XunYiming Technology Co., Ltd Address: 701, floor 7, building 1, first industrial zone, Nanchang community, Xixiang street, Bao’an District, Shenzhen, Guangdong Manufacturer: ShenZhen XunYiming Technology Co., Ltd Address: 701, floor 7, building 1, first industrial zone, Nanchang community, Xixiang street, Bao’an District, Shenzhen, Guangdong EUT: Desk lamp wireless charger Trade Mark: N/A Model Number: X5, X6, X7, X8, X9, X10, X11, X12, X13, X14, X15, X16, X17 Date of Receipt: Aug. 02, 2022 Test Date: Aug. 02, 2022 - Aug. 23, 2022 Date of Report: Aug. 23, 2022 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 Subpart C ANSI C63.10:2013 Test Result: Pass Report Number: DL-20220811009E Prepared (Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220811009E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 17 TABLE OF CONTENT Test Report Declaration Page 1. VERSION ................................................................................................................................................. 3 2. TEST SUMMARY ..................................................................................................................................... 3 3. GENERAL INFORMATION ..................................................................................................................... 4 4. TEST INSTRUMENT USED ..................................................................................................................... 6 5. CONDUCTED EMISSION TEST .............................................................................................................. 7 6. RADIATION EMISSION TEST ............................................................................................................... 11 7. BANDWIDTH TEST ............................................................................................................................... 16 8. SETUP PHOTOGRAPHS ...................................................................................................................... 17 9. EUT PHOTOGRAPHS ........................................................................................................................... 17 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220811009E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 17 1. VERSION Version No. Date Description 00 Aug. 23, 2022 Original 2. TEST SUMMARY EMC Emission Test Item Section in CFR 47 Result Remark AC Power Line Conducted Emission 15.207 PASS Spurious Emission 15.209(a)(f) PASS 20dB Bandwidth 15.215 PASS Antenna requirement 15.203 PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) Test Facility: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220811009E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 17 3. GENERAL INFORMATION 3.1 Description of Device (EUT) Product Name: Desk lamp wireless charger Trade Mark: N/A Model No.: X5, X6, X7, X8, X9, X10, X11, X12, X13, X14, X15, X16, X17 Model Difference: All samples are the same except the model name and appearance color, so we prepare " X5" for test only. Serial No.: N/A Hardware version: H1.0 Software version: S1.0 Operation Frequency: 105kHz-205KHz Modulation type: MSK Antenna Type: Inductive loop coil Antenna Antenna gain: 0dBi Power supply: Input: 9V3A Output: 5V0.5A Wireless charging:5W/7.5W/15W 3.2 Tested System Details None. 3.3 Block Diagram of Test Set-up 3.4 Test Mode Description Mode1. On Mode(I/P: 9V, Wireless charging) Mode2. On Mode(I/P: 9V, O/P: 5V+Wireless charging+ Light) Note: We pretest all mode, and evaluated 1%, 50% and 99% battery charging mode, the worst mode 1(99% battery charging mode)are included in the report. AC Mains E-2 Adapter E-1 EUT E-3 Phone Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220811009E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 17 3.5 Test Auxiliary Equipment Item Equipment Model/Type No. Series No. Note E-1 Desk lamp wireless charger X5 N/A EUT E-2 Adapter AD652G N/A Provide by test lab E-3 Phone iPhone 13 N/A Provide by test lab Item Shielded Type Ferrite Core Length Note N/A N/A N/A N/A N/A 3.6 Test Uncertainty Conducted Emission Uncertainty (150KHz-30MHz) : ±2.56dB Radiated Emission Uncertainty (9KHz-1GHz) : ±3.24dB Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20220811009E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 6 of 17 4. TEST INSTRUMENT USED For Conducted Emission Test (843 Shielded Room) Equipment Manufacturer Model Serial Last Cal. Next Cal. 843 Shielded Room ChengYu 843 Room 843 Nov. 25, 2019 Nov. 24, 2022 EMI Receiver R&S ESR 101421 Nov. 06, 2021 Nov. 05, 2022 LISN R&S ENV216 102417 Nov. 06, 2021 Nov. 05, 2022 Clamp COM-POWER CLA-050 431071 Nov. 06, 2021 Nov. 05, 2022 3-Loop Antenna DAZE ZN30401 13021 Nov. 06, 2021 Nov. 05, 2022 ISN T8 Schwarzbeck NTFM 8158 101135 Nov. 06, 2021 Nov. 05, 2022 ISN T5 Schwarzbeck NTFM 8158 101136 Nov. 06, 2021 Nov. 05, 2022 843 Cable 1#…

Text truncated - open the document above for the full version.

拟制Made 审核 Check 批准 Approve 何雪松 Xuesong He 陈金凤 Jinfeng Chen 茹威 Wei Ru 开发/工 程审核 R&D 审核 Check 批准 Approve 客 户 名 称 Customer 深圳市星科微数码科技集团有限公司 ShenZhen Xingkehui 物 料 描 述 Material Description 双线圈 Two coil 承制方型号 Manufacturer Model 19.5x27.5x0.08x105Px9TS引线150mm 双线圈 19.5x27.5x0.08x105Px9TS lead cord 150mm twin coil 承认书编号 Manufacturer No. 客 户 代 码 Customer Code W16543 天线增益 Antenna Gain 0 dBi 日 期 Date 2022.08.01 生 产 料 号 P/N 版 本/页 码 Version/Page A0 承制方确认Manufacturer 使用方确认Customer 客户在收到产品后十天内需验收完毕，并将验收结果书面通知供货方，否则视为已验收合格。 The customer needs complete the acceptance inspection within 10 days after receiving the product, and inform the supplier of the acceptance result in writing, otherwise it is deemed to have passed the acceptance inspection. 承制方：广东金晟智能有限公司 地 址：东莞市东城街道温周路289号B栋2楼 电 话：0769-22252827 邮 箱:[email protected] 广东金晟智能有限公司 Guangdong Jinsheng intelligent Co., Ltd 承 认 书 SPECIFICATION FOR APPROVAL 序 号 No. 版 次 Version 日 期 Date 更 改 内 容 Revise content 更改人 Reviser 1 A0 2022.08.01 新规格承认 New specification confirmation 何雪松 Xuesong He 广东金晟智能有限公司 Guangdong Jinsheng intelligent Co., Ltd 变更记录 1.外形尺寸 Dimension: （单位Unit：mm） 150±5 3±1.5 1.25±0.15 5.0MAX （不含离型纸） N1 N2 1.25±0.15 1±0.2 84±1.5 3.5REF 19.5±0.5 42±1.5 48±1.5 93±1 52±1 27.5±1.5 3 5 2.电气性能 Electrical Specification（L）： 项目 Item 标准 Standard 测式条件Test Conditon 测试仪器Test Equipment 备注Remark 电感Inductance （uH） 4.0±5% 100KHZ,1V TH2817B+ 线圈测式Coil Test 电感1 Inductance1 （uH） 7.3±10% 100KHZ,1V TH2817B+ 带磁片测式Magnetic Chip test 电感2 Inductance2 （uH） 7.4±10% 100KHZ,1V TH2817B+ 带磁片测式Magnetic Chip test 3.外观要求Appearance Requirement： 1)产品形状尺寸要严格控制。 Strictly control on the product appearance dimension. 2)产品表面无油污，杂质，毛刺等。 Product appearance without oil,impurity defect and buff. 3)不经客户确认，材料不能随意更改 Meterial can’t be changed without the agreement from customer. 4)产品必须符合ROSH要求 Product must meet ROHS requirement. 广东金晟智能有限公司 Guangdong Jinsheng intelligent Co., Ltd 结构尺寸 Structure Dimension Bill of materials（材料清单表） 序号 number 材料名称 Material name 品名描述 Description 物料代码 Material Code 1 丝包线 Silk covered cord 0.08x105P丝包线 0.08x105p Silk covered cord 2 胶水 Glue 强力粘合胶 Super Glue 3 隔磁片Double coil disk 51.5x46.5x1.0 双拼PC95 硬磁片 2pcs 51.5x46.5x1.0 coils stick on 1pcs PC95 hard disk 4 背胶 Back glue 91.5x50，带手撕位 91.5x50，with tear label 5 高温胶带 High temperature adhesive tape PF301，宽度8/5mm PF301，width 8/5mm 5 高温锡 High Temperature Tin 环保高温锡条 Environmental high temperature tin strip 广东金晟智能有限公司 Guangdong Jinsheng intelligent Co., Ltd 材料清单

Radiated Measurement Photos Conducted Measurement Photos EMF
