2A8DV-BT2222Bluetooth Battery Monitor

Chrome Battery Now Module Integration Guide General The Chrome Bluetooth Module is designed to comply with the FCC statement. The Chrome Bluetooth Module FCC ID is 2A8DV-BT2222. List of application FCC rules The module complies with FCC Part 15 Subpart B and FCC Part 15.247. Summarize the specific operational use conditions The radio module is restricted for use Chrome Battery Now products produced by J-J.A.D.E. Enterprises LLC. The installation and repair of the communication module may only be performed by technical personal associated with J-J.A.D.E. Enterprises LLC. The radio module must not be installed in a manner in which it is co-located and operating simultaneously with other radios in the host system. If the module is installed in a host system that includes other radios, additional testing and equipment authorization will be required. Limited Module Procedures The radio module is restricted for use Chrome Battery Now products produced by J-J.A.D.E. Enterprises LLC. The module has no RF shielding. The installation and repair of the communication module may only be performed by technical personal associated with J-J.A.D.E. Enterprises LLC. Trace antenna designs The module does not have a trace antenna. RF exposure considerations This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body Antennas: The device is designed to use the antennas listed below. Do not modify the antenna or any other part of the module. Any modifications will invalidate the modular certifications and require new approvals for the host system. Part No: Yageo ANT3216LL00R2400A Type: Chip Antenna Peak Gain: 5.05dBi Label and compliance information The host system using the module should have a label indicating the modular FCC ID: 2A8DV-BT2222. Information on test modes and additional testing requirements Test modes for the host device should take into consideration different operational conditions for a stand-alone modular transmitter in a host. The host manufacturer may operate their product during the measurements. The host product manufacturer should coordinate with the module manufacturer for instructions to put the device into test modes. Additional testing, Part 15 Subpart B disclaimer The modular transmitter is only FCC authorized for the specific rule parts (FCC Part 15.247) list on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed when contains digital circuitry. Note EMI Considerations We recommend to use "best practice" RF design engineering testing and evaluation in case non-linear interactions generate additional non-compliant limits due to module placement to host components or properties. The host manufacturer is responsible for ensuring compliance with the applicable FCC rules for the transmitters operating individually and simultaneously. This includes compliance for the summation of all emissions from all outputs occupying the same or overlapping frequency ranges, as defined by the applicable rules. How to make changes Only Grantees are permitted to make permissive changes. Module Integration Instructions The procedure for installing this module on the host device is described below. Supply Voltage: The module contains a voltage regulator and can be supplied with any DC voltage that does not exceed 15V. In order to function properly, the supply voltage must be at least 3.3V. Power should be supplied to the pads labeled “VBAT+” and a ground connection should be made on the pad labeled “GND-“. Physical installation: The module should be housed in a manner in which it is not exposed to the environment and limits movement of the module within the housing. The housing must cover the entire module and be made of a material (e.g. plastic) that prevents any part of the module, component on the module, or its wiring, from making any contact (electrical or otherwise) with anything outside of the housing. Restrictions: The radio module is restricted for use Chrome Battery Now products produced by J-J.A.D.E. Enterprises LLC. The installation and repair of the communication module may only be performed by technical personal associated with J-J.A.D.E. Enterprises LLC. The radio module must not be installed in a manner in which it is co-located and operating simultaneously with other radios in the host system. If the module is installed in a host system that includes other radios, additional testing and equipment authorization will be required.

CFR 47 §2.911 (d)(S) Attestation Date: 02-07-2023 FCC ID: 2A8DV-BT2222 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA 1. J-J.A.D.E ENTERPRISE LLC ("the applicant") certifies that the equipment for whi, h authorization is sought is not "covered" equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Applicant name ("the applicant") certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing "covered" equipment and is not an affiliate or subsidiary of an entity identified dn the Covered List. Sincerely yours, ff#vlu_� Deanna Pebworth VP J-J.A.D.E ENTERPRISE LLC

J-ICI AMEFIIC:A FCC Modular Approval Declaration Letter Hyundai C-Tech, Inc. dba HCl America, Inc. 1726 Ringwood Avenue San Jose, CA 9S131. TEL: +l.510.933.8848 11 Fax: + 1.510.933.8849 Page 1 of 1 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. 1his document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HlT America LLC FCC Modular Approval Declaration Letter Product Information Applicant J-J.A.D ENTERPRISE LLC FRN 0032777229 BT-MOOOll, BT-M00010, BT- FCC Product ID BT2222 M00002, BT-M00006, Bl-MOOOOS, Model Name BT-M00007, BT-M00009, BT- M00003, BT-M00029, BT-M00034, FCC Module ID BT-M00013, BT-M00008, BT- M00032, BT-M00004 Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please mark ( C8:I) if the module complies with the stated requirement. □The modular transmitter must have its own shielding. D The modular transmitter must have buffered modulation/data inputs. □The modular transmitter must have its own power supply regulation. □The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). □The modular transmitter must be tested in a stand-alone configuration. □The modular transmitter must be labeled with its own FCC ID number. □ The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements. D The modular transmitter must comply with any applicable RF exposure requirements. If a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA}. For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant/ manufacturer, such that full compliance of the end product is always ensured: Contact Name: Applicant Authorized Agent Applicant Title & Company Name Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL.: +l.510.933.8848 11 Fax: +l.510.933.8849 Page 1of2 Signatu,e Date I . ,,J d Z1.. Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +l.510.933.8848 11 Fax: +l.510.933.8849 Page 2of2

Ch rome B attery Now Declaration Letter Model Numbers This declaration letter applies to the following Chrome Battery Now model numbers: BT-M00011, BT-M00010, BT-M00002, BT-M00006, BT-M00005, BT-M00007, BT-M00009, BT-M00003, BT-M00029, BT-M00034, BT-M00013, BT-M00008, BT-M00032, BT-M00004 Model Similarities All Chrome Battery Now models include the same Bluetooth module and are running the same firmware. Model Differences Each Chrome Battery Now model varies in physical dimensions and battery capacity, as specified below: Battery Model Number Capacity (Ah) Height (in) Length (in) Width (in) Weight (lbs) BT-M00011 3 3.35 4.45 2.76 2.98 BT-M00010 4 4.21 4.45 2.6 4.05 BT-M00002 6 5.12 4.45 2.76 4.73 BT-M00006 6 3.66 5.91 3.43 5.37 BT-M00005 8 4.13 5.91 3.43 6.67 BT-M00007 10 5.12 5.91 3.43 8.46 BT-M00009 12 5.71 5.8 3.26 10.38 BT-M00003 14 5.91 3.39 5.71 10.32 BT-M00029 14 5.94 3.43 6.34 9.82 BT-M00034 14 5.91 3.43 6.34 9.82 BT-M00013 18 6.89 3.43 6.1 13.02 BT-M00008 18 6.89 3.43 6.1 13.22 BT-M00032 18 6.89 3.43 6.1 15 BT-M00004 18 6.89 3.43 6.1 13.52

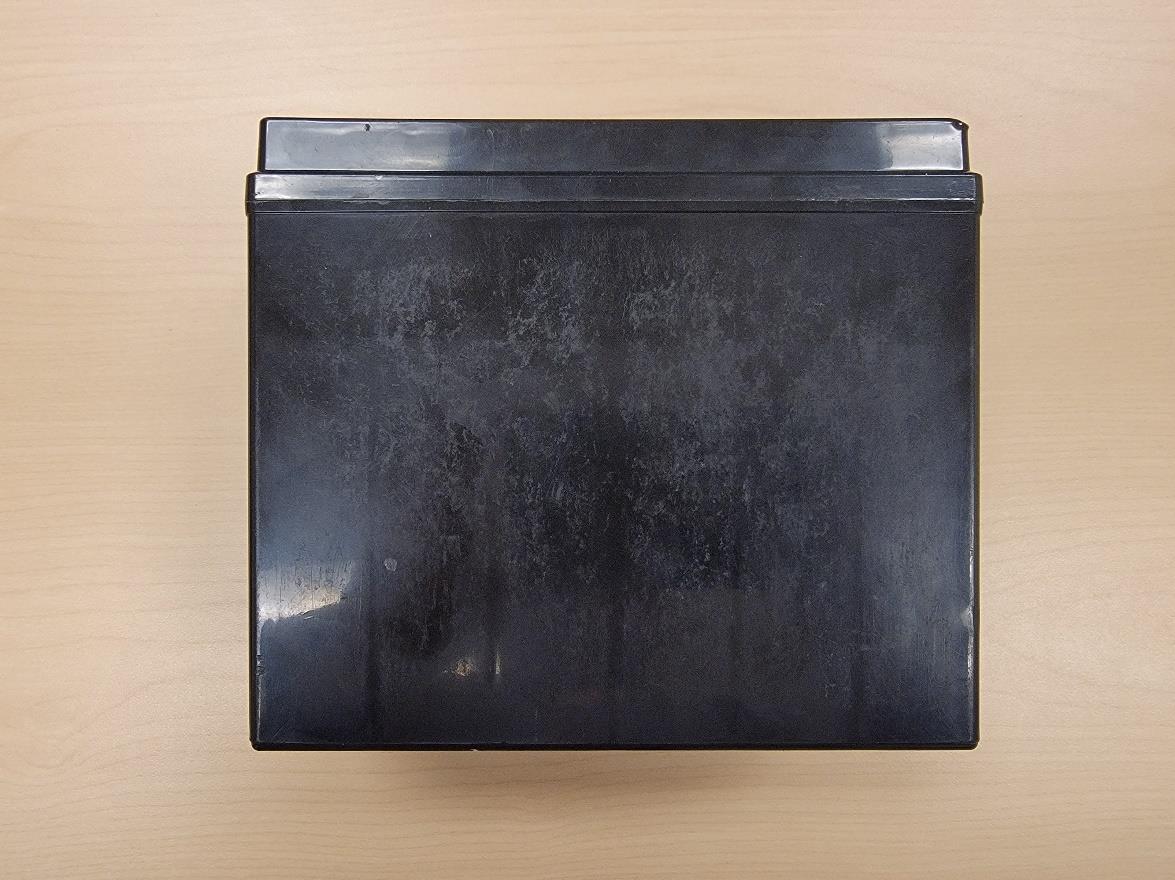

1 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.1 PHOTOGRAPHS OF EUT EXTERNAL PHOTOS Applicant J-J.A.D.E Enterprise LLC Model Name BT-M00013 FCC ID 2A8DV-BT2222 2 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Front view Rear view 3 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Left side view Right side view 4 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top view Bottom view

1 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.2 PHOTOGRAPHS OF EUT INTERNAL PHOTOS Applicant J-J.A.D.E Enterprise LLC Model Name BT-M00013 FCC ID 2A8DV-BT2222 2 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Open chassis 3 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top view Bottom view

RF EXPOSURE REPORT FCC APPLICANT J-J.A.D.E Enterprise LLC MODEL NAME BT-M00013 FCC ID 2A8DV-BT2222 REPORT NUMBER HA220803-GGC-008-R02 Report No.: HA220803-GGC-008-R02 1 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TEST REPORT Date of Issue August 7, 2022 Te s t S i t e Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant J-J.A.D.E Enterprise LLC Applicant Address 17823 Commerce Dr Westfield, IN, 46074-9089 United States FCC ID 2A8DV-BT2222 Model Name BT-M00013 EUT Type Bluetooth Battery Monitor Modulation Type GFSK FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 1 (§1.1310 / §1.1307), Part 2 (§2.1091) Test Procedure KDB 447498 D01 v06 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was in accordance with the procedures specified in §2.947. The results in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Yongsoo Park Sunwoo Kim Test Engineer Technical Manager Report No.: HA220803-GGC-008-R02 2 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA220803-GGC-008-R02 August 7, 2022 Initial Issue Report No.: HA220803-GGC-008-R02 3 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. EUT DESCRIPTION ............................................................................................................................................ 4 2. INTRODUCTION ................................................................................................................................................ 5 2.1. RF Exposure Exemptions for Single Source ............................................................................................... 5 2.2. RF Exposure Exemptions for Simultaneous Transmission .......................................................................... 6 3. R ES U LT ............................................................................................................................................................ 7 3.1. SAR-Based Exemptions Calculation ......................................................................................................... 7 3.2. SUMMARY OF RESULTS .......................................................................................................................... 7 Report No.: HA220803-GGC-008-R02 4 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. EUT DESCRIPTION Model BT-M00013 Series Model(s) BT-M00002, BT-M00003, BT-M00004, BT-M00005, BT-M00006, BT-M00007, BT-M00008, BT-M00009, BT-M00010, BT-M00011, BT-M00029, BT-M00032, BT-M00034 EUT Type Blu etooth Battery Monit or Power Supply 12 V d.c. RF Specification Bluetooth LE (1 Mbps / 2 Mbps) Transmitter Chain 1 Exemption Analysis 1-mW Test Exemptions SAR-Based Test Exemptions MPE-Based Test Exemptions Antenna Specification 1) Antenna Type : Chip Antenna Peak Gain : 5.05 dBi Operating Environment Indoor and outdoor Operating Temperature -15 °C ~ 50 °C Report No.: HA220803-GGC-008-R02 5 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 2. INTRODUCTION 2.1. RF Exposure Exemptions for Single Source (A) 1-mW Blanket Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz - 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. (B ) SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz - 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged …

Text truncated - open the document above for the full version.

DATA SHEET WIRELESS COMPONENTS Ceramic Chip Antenna ANT3216LL00R2400A 2.4 - 2.5 GHZ 3216 Serie s Product Specification – March 27, 2013 V.0 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 2 6 Product specification Ceramic Chip Antenna FEATURES z Compact size z Omni-directional radiation z Tape & reel automatic mounting z Reflow process compatible z RoHS compliant APPLICATIONS z 2.4 GHz WiFi device z Bluetooth gadget z Zigbee device z ISM band equipment ORDERING INFORMATION All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. PART NUMBER ANT 3216 L L00 R 2400A (1) (2) (3) (4) (5) (6) ( 1 ) PRODUCT ANT = Antenna ( 2 ) SIZE 3216 = 3.2 × 1.6 mm ( 3 ) ANTENNA TYPE L,F,A = Chip Antenna ( 4 ) SERIAL NO. L00 ( 5 ) PACKING TYPE R = Tape and Reel ( 6 ) WORKING FREQUENCY 2400 = 2.4GHz PHYCOMP CTC CAN4311712002453K 12NC 431171200245 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 3 6 Product specification Ceramic Chip Antenna SPECIFICATION DESCRIPTION VALUE Working Frequency 2.4 - 2.5 GHz Bandwidth 160 MHz Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 5.05 dBi (Typ.) Impedance 50Ω Operating Temperature -40 ~105°C Maximum Power 1W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260°C , 10sec. NOTE 1. The specification is defined on Yageo evaluation board Ta b l e 1 O O U U T T L L I I N N E E S S YNH0010 Side ViewTop View Bot t om View T W L C S1S2 Fig. 1 Antenna outlines DIMENSIONS DIMENSION L (mm) 3.20 ±0.15 W (mm) 1.60 ±0.15 T (mm) 1.20 ±0.15 C (mm) 0.40 ±0.20 Table 2 Machinical Dimension TERMINAL NAME FUNCTION S1 Feeding Point S2 Soldering Point Table 3 Termination configuration www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 4 6 Product specification Ceramic Chip Antenna YNH0011 Bottom Layer Top Layer 2.5 2.0 3.5 0.4 Matching Circuit 1.8 Unit : mm Unit : mm 1030 18 Fig. 2 Outlook and dimension of evaluation board REFERENCE DESIGN OF EVALUATION BOARD Fig. 3 Details of soldering Pad www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 5 6 Product specification Ceramic Chip Antenna 2.0 2.13.0 f (GHz) Return loss (dB) −50 −30 −10 10 30 50 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 YNH0012 1 2 3 Fig. 4 Return loss ELECTRICAL PERFORMANCES YNH0013 Y X Z Z axle X axleY axle Gain (dBi) 5.00 − 0.00 − − 5.00 − − 10.00 − − 15.00 − − 20.00 − − 25.00 − − 30.00 − − 35.00 − Fig. 5 Radiation pattern Max gain = 5.05 dBi, at (180, 60) MEG (mean effective gain)= 0.45dBi Directivity (dB) = 7.15 Efficiency = -1.50dB, 70.74% Evaluation board and XYZ direction Marker data 1. 2.37GHz, -10dB 2. 2.45GHz, -27.3dB 3. 2.53GHz, -10dB www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 6 6 Product specification Ceramic Chip Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 Mar. 27, 2013 - - New datasheet for Ceramic Chip Antenna, 2.4-2.5 GHz application, size 3216 series

RF TEST REPORT FCC APPLICANT J-J.A.D.E Enterprise LLC MODEL NAME BT-M00013 FCC ID 2A8DV-BT2222 REPORT NUMBER HA220803-GGC-008-R01 Report No.: HA220803-GGC-008-R01 1 / 50 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TEST REPORT Date of Issue August 7, 2022 Te s t S i te Hyundai C-Te c h , I nc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant J-J.A.D.E Enterprise LLC Applicant Address 17823 Commerce Dr Westfield, IN, 46074-9089 United States FCC ID 2A8DV-BT2222 Model Name BT-M00013 EUT Type Bluetooth Battery Monitor Modulation Type GFSK FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 15.247 Test Procedure ANSI C63.10-2013, KDB 558074 D01 v05r02 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I a ttest to the accuracy of data. All measurements reported herein were p erformed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, I nc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Te sted By Reviewed By Yongsoo Park Sunwoo Kim Test Engineer Technical Manager Report No.: HA220803-GGC-008-R01 2 / 50 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HI STORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA220803-GGC-008- R01 August 7, 2022 Initial Issue Report No.: HA220803-GGC-008-R01 3 / 50 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 4 2. METHODOLOGY ............................................................................................................................................... 6 3. INSTRUMENT CALIBRATION .............................................................................................................................. 6 4. FACILITIES AND ACCREDITATIONS ...................................................................................................................... 7 5. ANTENNA REQUIREMENTS ............................................................................................................................... 8 6. MEASUREMENT UNCERTAINTY ......................................................................................................................... 9 7. DESCRIPTION OF TESTS ................................................................................................................................... 10 8. SUMMARY OF TEST RES ULTS ........................................................................................................................... 22 9. TEST RESULT ................................................................................................................................................... 26 9.1. DUTY CYCLE ......................................................................................................................................... 26 9.2. 6 dB BANDWIDTH ................................................................................................................................ 27 9.3. OUTPUT POWER .................................................................................................................................. 29 9.4. POWER SPECTRAL DENSITY ................................................................................................................... 32 9.5. CONDUCTED BAND EDGE & SPURIOUS EMISSIONS ................................................................................ 34 9.6. RADIATED SPURIOUS EMISSIONS .......................................................................................................... 38 9.7. RADIATED RESTRICTED BAND EDGES ..................................................................................................... 44 10. LIST OF TEST EQUIPMENT ............................................................................................................................. 46 APPENDIX A. TEST SETUP PHOTOS ...................................................................................................................... 47 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................................. 48 APPENDIX C. REFERENCE .................................................................................................................................... 49 Report No.: HA220803-GGC-008-R01 4 / 50 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood…

Text truncated - open the document above for the full version.

APPENDIX A 1 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX A TEST SETUP PHOTOS Applicant J-J.A.D.E Enterprise LLC Model Name BT-M00013 FCC ID 2A8DV-BT2222 Reference Report HA220803-GGC-008-R01 APPENDIX A 2 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Radiated Emission Test Setup : Below 1 GHz 9 kHz – 30 MHz 30 MHz – 1 GHz APPENDIX A 3 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Radiated Emission Test Setup : Above 1 GHz Above 1 GHz APPENDIX A 4 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 RF Conducted Test Setup RF Conducted Test
