2A8GR-TA5000Bluetooth and 2.4G Dual wireless headset

Email:yiteng0307@163 Tel:+8613717182931 USB C A/M to 3.5mm cable 3.5mm audio cable port Xbox one S/X Tablet/Phone Game Controller Microphone not working Possible Cause Solution Mic Button Check the mic one-key mute button on the headset is off. Chat Volume Press the Chat Button on the ChaUCame Mix of the Ear Force Headset Audio Controller Loose Connector Confirm that each plug is inserted firmly and fully. Voice interrupted Possible cause Solution Setting Check the default (input and output) sound device is selected for this headset. Weak Signal Check the network. • Any further question, please feel free to contact us though Amazon or email us via. [email protected], and we are here to serve you all the time 匡咀竺沮郢国也出回正渭 ry 。 lij Carefully read the information in this instruction manual and on the package before using this product Safety ·Observe all warnings, precautions and instructions CHOKING HA互RD-Containssmall parts. Keep out of the reach of small children. Stop using the system immediately if you begin to feel tired or if you experience discomfort or pain in your head while operating the wireless stereo headset. If the condition persists, consulta doctor. ·Avoid prolonged use of the wireless stereo headset. Take a break at about 15-minute intervals ·Permanent hearing loss may occur if the headset is used at high volume. Set the volume to a safe level. Overtime, increasingly loud audio may start to sound normal but can actually be damaged to your heanng. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the sooner your hearing could be affected. To protect your hearing: -Limit the amount of time you use the headset at high volume. Avoid raising the volume to block out noisy surroundings -Lower the volume if you can'the ar people speaking near you. If you feel that the headset is irritating your skin, stop using it immediately. Do not disassemble or insert anything into the headset because this may cause damage to the internal components or cause injury to you. Observe all signs and instructions that require an electrical device or radio product to be switched off in designated areas, such as gas/refuelling stations, hospitals, blasting areas, potentially explosive atmospheres or aircraft. The battery used in this device may present a risk offire or chemical burn if mistreated. Do not disassemble, heat above 60'C, or incinerate. 。 8 FCC warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Dongguan Yiteng Intelligent Technology Co., Ltd Agent Authorization Company: Dongguan Yiteng Intelligent Technology Co., Ltd Address: Room 301, Building 5, No. 581, Baoshi Road, Qishi Town, Dongguan City, China Product Name: Bluetooth+2.4G Dual wireless headset Model Number(s): TA5000, TA2000,TA6000,TA9000, TA8000.TA-1 Product Description: Bluetooth+2.4G Dual wireless headset We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-08-24 Name: David Ou Title: Sales Manager Company: Dongguan Yiteng Intelligent Technology Co., Ltd

Dongguan Yiteng Intelligent Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/08/24 Subject; Request for Confidentiality FCC ID: 2A8GR-TA5000 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: David Ou Title: Sales Manager

Dongguan Yiteng Intelligent Technology Co., Ltd Model Difference Data：2022.08.24 Product description: Bluetooth+2.4G Dual wireless headset Model name: TA5000, TA2000,TA6000,TA9000, TA8000.TA-1 Trade Name: OCG FCC ID: 2A8GR-TA5000 All the model are the same circuit and RF module, except model names . Regards Sincerely Client’s signature : Client’s name / title : David Ou（Sales Manager） Contact information / address：Room 301, Building 5, No. 581, Baoshi Road, Qishi Town, Dongguan City, China

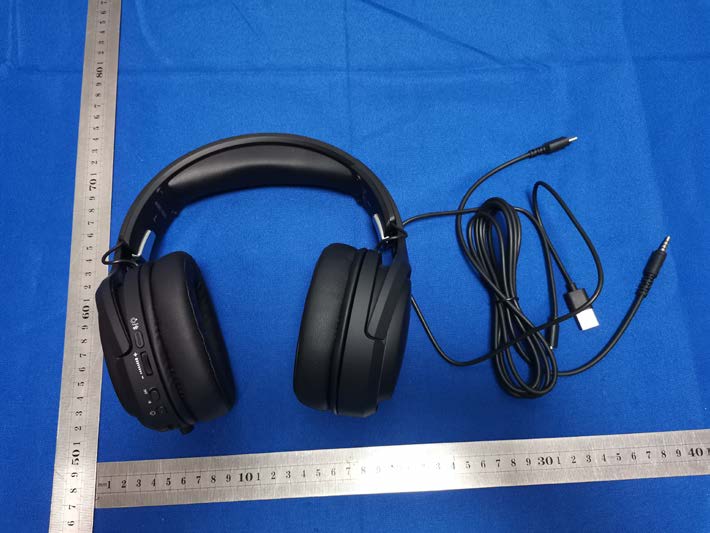

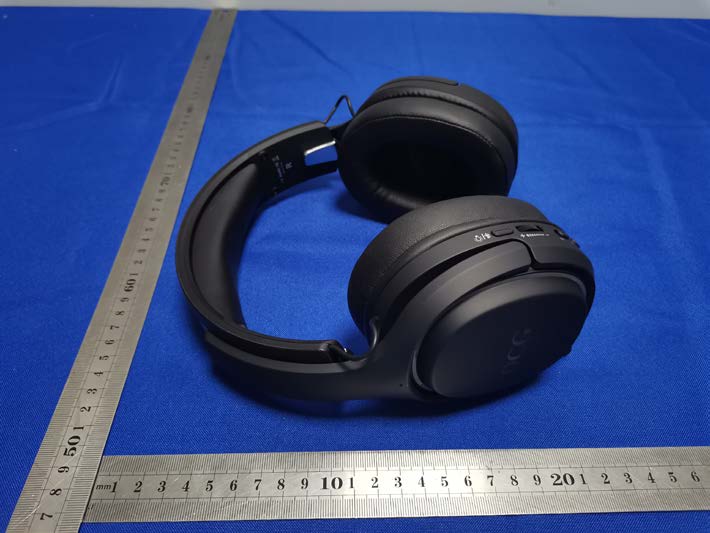

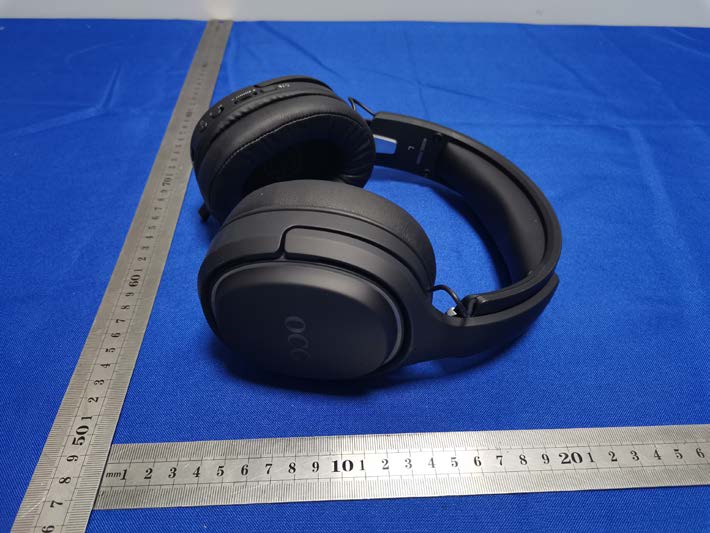

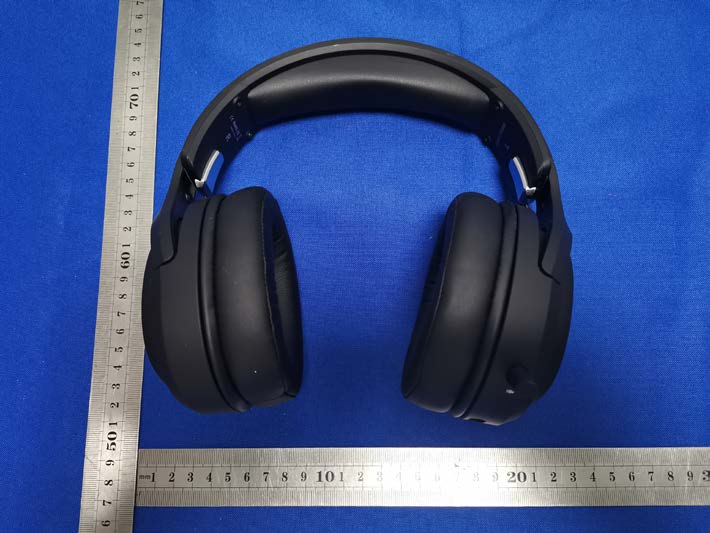

External Photos

Model: TA5000 FCC ID: 2A8GR-TA5000 Label Location

Internal Photos ANT

Shenzhen CTB Testing Co., Ltd. FCC ID: 2A8GR-TA5000 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. EDR: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 2.616 1.832±13.002.00<50.618473.00YES 2.441 -0.436 0.900±11.001.26<50.393383.00YES 2.480 0.952 1.250±11.001.26<50.396513.00YES 2.402 2.271 1.692±13.002.00<50.618473.00YES 2.441 -0.536 0.880±11.001.26<50.393383.00YES 2.480 0.738 1.190±11.001.26<50.396513.00YES 2.402 2.389 1.732±13.002.00<50.618473.00YES 2.441 -0.59 0.870±11.001.26<50.393383.00YES 2.480 0.81 1.210±11.001.26<50.396513.00YES GFSK π /4DQPSK 8DQPSK BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.402 5.991 3.975±16.003.98<51.234003.00YES 2.44 6.055 4.036±17.005.01<51.565763.00YES 2.480 5.389 3.465±16.003.98<51.25388 3.00YES GFSK Conclusion: For the max result : 1.56576≤ FCC Limit 3.0 for 1g SAR.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220819007RFX Report Tel: 4008-707-283Web: http://www.ctb-lab.net Page 1 of 34 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Bluetooth+2.4G Dual wireless headset FCC ID: 2A8GR-TA5000 Trademark: OCG Model Number: TA5000, TA2000, TA6000, TA9000, TA8000, TA-1 Prepared For: Dongguan Yiteng Intelligent Technology Co., Ltd Address: Room 301, Building 5, No. 581, Baoshi Road, Qishi Town, Dongguan City Manufacturer: Dongguan Yiteng Intelligent Technology Co., Ltd Address: Room 301, Building 5, No. 581, Baoshi Road, Qishi Town, Dongguan City Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, China. Sample Received Date: Aug. 9, 2022 Sample tested Date: Aug. 9, 2022 to Aug. 19, 2022 Issue Date: Aug. 19, 2022 Report No.: CTB220819007RFX Te s t Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is Bluetooth radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB220819007RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 34 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 3 2. TEST SUMMARY ................................................................... 4 3. MEASUREMENT UNCERTAINTY ..................................................... 5 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 6 4.1 Product Information .................................................................... 6 4.2 Test Setup Configuration ............................................................... 6 4.3 Support Equipment .................................................................... 6 4.4 Channel List .......................................................................... 7 4.5 Test Mode ............................................................................ 7 4.6 Test Environment ...................................................................... 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 8 5.1 Test Facility ........................................................................... 8 5.2 Test Instrument Used .................................................................. 8 6. AC POWER LINE CONDUCTED EMISSION ............................................. 10 6.1 Block Diagram Of Test Setup .......................................................... 10 6.2 Limit ................................................................................ 10 6.3 Test procedure ....................................................................... 10 6.4 Test Result .......................................................................... 12 7.1 Block Diagram Of Test Setup .......................................................... 14 7.2 Limit ................................................................................ 14 7.3 Test procedure ....................................................................... 15 7.4 Test Result .......................................................................... 16 7. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 23 8.1 Block Diagram Of Test Setup .......................................................... 23 8.2 Limit ................................................................................ 23 8.3 Test procedure ....................................................................... 23 8.4 Test Result .......................................................................... 24 8. COUDUCTED OUTPUT POWER ..................................................... 26 9.1 Block Diagram Of Test Setup .......................................................... 26 9.2 Limit ................................................................................ 26 9.3 Test procedure ....................................................................... 26 9.4 Test Result .......................................................................... 27 9. 6DB OCCUPIED BANDWIDTH ....................................................... 29 10.1 Block Diagram Of Test Setup ......................................................... 29 10.2 Limit ............................................................................... 29 10.3 Test procedure ...................................................................... 29 10.4 Test Result ......................................................................... 29 10. POWER SPECTRAL DENSITY ...................................................... 31 11.1 Block Diagram Of Test Setup ......................................................... 31 11.2 Limit ............................................................................... 31 11.3 Test procedure ...................................................................... 31 11.4 Test Result ......................................................................... 31 11. ANTENNA REQUIREMENT ......................................................... 33 12. EUT TEST SETUP PHOTOGRAPHS .................................................. 34 (Note: N/A means not applicable) Shenzhen CTB Testing Te…

Text truncated - open the document above for the full version.

天线规格 Antenna Specification Electrical Properties F2425GHFrequency2.4-2.5GHz Impedance50 Ohm Nominal V.S.W.R2.0 Max Gain 1.0dBi RadiationOmni-directional PolarizationLinear Physical Properties Connector 1代IPEX Cable TypeO.D.1.13mm Cable Length45mm Cable ColorBlack add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Operating Temp.-40 ~ +85 ̊C Storage Temp.-40~ +85 ̊C AgilentAgilent E5071B SS Parameter Test // BT2 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Antenna Passive Test Z轴 Antenna Passive Te s t Z轴 Y轴 X轴X轴 Z轴 Y轴 X轴 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 Passive Test For BT2 FreqEffiEffiGain (MHz)(%)(dB)(dBi) 2400 50.4-3.0 - 1.9 2410 52.3-2.8 - 1.9 2420 54.6-2.6 - 1.9 2430 58.4-2.3 - 1.9 2440 59.6-2.2 - 2.0 2450 59.4-2.3 - 2.1 2460 58.6-2.3 1.0 2470 57.5-2.4 - 1.7 2480 56.3-2.5 - 1.7 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086 2490 54.5-2.6 - 1.6 2500 52.6-2.8 - 1.4 Radiation Pattern For BT2 add：东莞市长安镇沙头社区木鱼路59号元富工业区Tel:0769-82586086 Fax:0769-82586086

Radiated Emission Below 1G Above 1GHz Conducted Emission
