2A8GW-IW100iWear Glasses

Outside Inside Thank You! It is our pleasure to provi de you with our Percept Beta Frame, crafted expertly and built using our cutting-edge tech nology to ensure top-quality performance and satisfaction. Should any qu estions arise, know that we're always here with our friendly and experienced support team just an e mail or phone call away. Your trust means so much to us; thank you again ! w ww.Perceptcorp.com | 702-940-2358 Thank You FCC ID 2A8GW-IW100 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Let’s get started! Please scan the QR code below to downloadthe Percept app for instructions how to get started Fold line Fold line Back of card Beta Thank You card FCC ID 2A8GW-IW100 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. (Back of card)

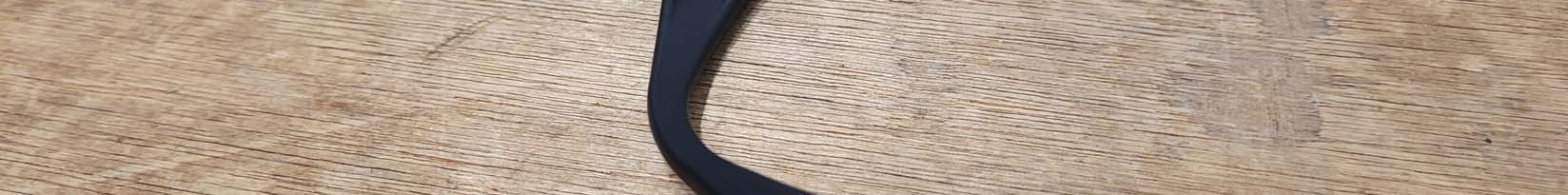

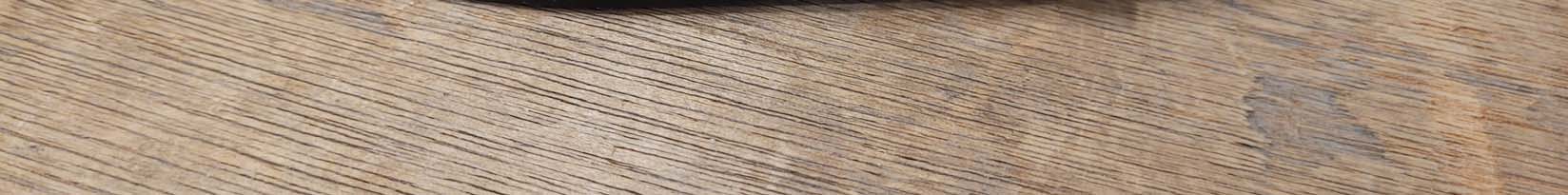

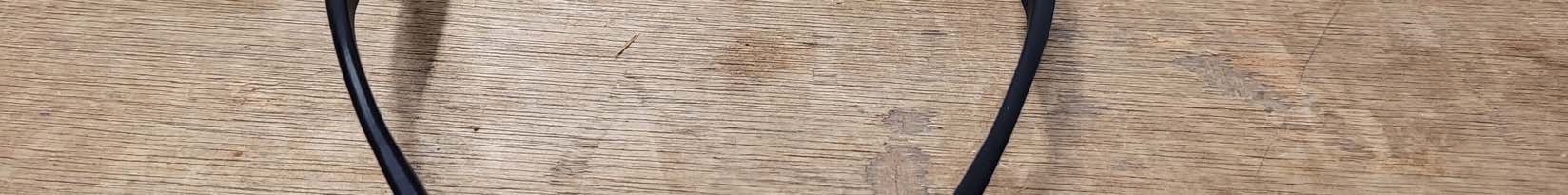

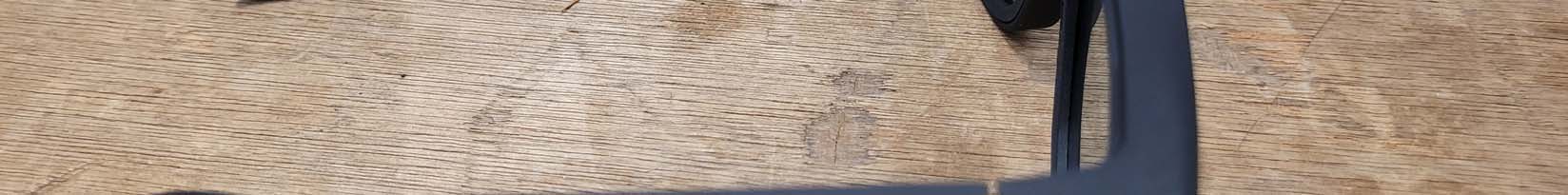

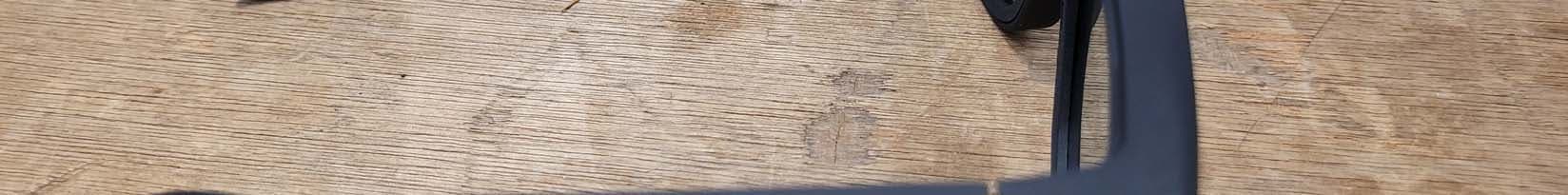

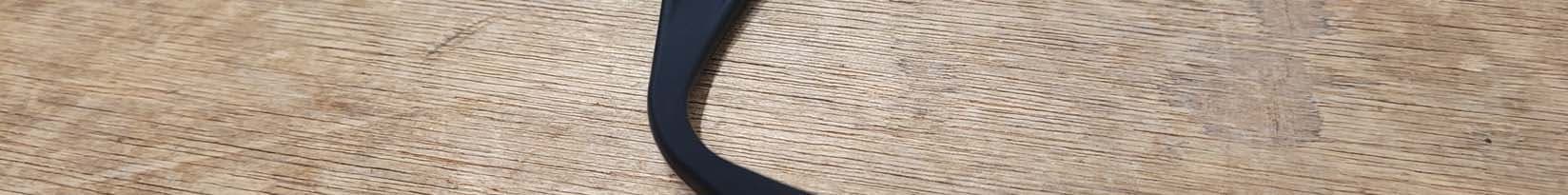

Top View of the EUT Bottom View of the EUT Side View #1 of the EUT Side View #2 of the EUT Side View #3 of the EUT Side View #4 of the EUT Top View of Battery Side Bottom View of Battery Side Side View of the Battery Side - View #1 Side View of the Battery Side - View #2 Side View of the Battery Side - View #3 Side View of the Battery Side - View #4 EUT Glasses - View #1 EUT Glasses - View #2 EUT Glasses - View #3 EUT Glasses - View #4 EUT Glasses - View #5 EUT Glasses - View #6 EUT Glasses - View #7 EUT Glasses - View #8

Inside View of the EUT - RF Side Top View of the PCB - RF Side Bottom View of the PCB - RF Side Inside View of the EUT - Battery Side Inside View of the EUT - Battery Side, showing PCB Inside View of the EUT - Front Frames showing lens wiring

Compatible Electronics, Inc.https://celectronics.com 114 Olinda Drive Brea, CA 92823 This device FCC ID: Prepared By: Date: The maximum power that the transmitter is capable of is 0.06 mW Applied duty cycle? no Using the following formula from section 4.3.1 of KDB 447498 at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [ √ f(GHz)] Duty Cycle 50.00% Value 1-g (mW) 10-g (mW) 0.02 (354) -210 "Value" shall be ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR 1-g power limit 10-g power limit 96 240 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission of a 2A8GW-IW100 Max Peak Power (dBm) Min Separation distance (mm) * Frequency (Ghz) < 50mm power limits for above frequency and distance When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.44 5 -12.36 Kyle FujimotoDecember 15, 2022 SAREXJUST-B-0-43 D 02/27/2020

Report Number: B21122D1 FCC Part 15 Subpart B and C; and FCC 15.247 Test Report iWear Glasses Model: IW100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 22 FCC PART 15, SUBPART B and C; and FCC 15.247 TEST REPORT For iWEAR GLASSES Model: IW100 Prepared for PERCEPT CORPORATION 10080 W. ALTA DRIVE LAS VEGAS, NEVADA 89145 Prepared by: ____________________ JAMES ROSS Approved by: ____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 12, 2022 REPORT APPENDICES TOTAL BODY A B C D E PAGES 22 2 2 2 19 122 169 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B21122D1 FCC Part 15 Subpart B and C; and FCC 15.247 Test Report iWear Glasses Model: IW100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 22 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 1.1 Decision Rule & Risk 7 2. ADMINISTRATIVE DATA 8 2.1 Location of Testing 8 2.2 Traceability Statement 8 2.3 Cognizant Personnel 8 2.4 Date Test Sample was Received 8 2.5 Disposition of the Test Sample 8 2.6 Abbreviations and Acronyms 8 3. APPLICABLE DOCUMENTS 9 4. Description of Test Configuration 10 4.1 Description of Test Configuration – Emissions 10 4.1.1 Cable Construction and Termination 11 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 12 5.1 EUT and Accessory List 12 5.2 Emissions Test Equipment 13 6. TEST SITE DESCRIPTION 14 6.1 Test Facility Description 14 6.2 EUT Mounting, Bonding and Grounding 14 6.3 Measurement Uncertainty 14 7. CHARACTERISTICS OF THE TRANSMITTER 15 7.1 Channel Description and Frequencies 15 7.2 Antenna Gain 15 8. Test Procedures 16 8.1 RF Emissions 16 8.1.1 Conducted Emissions Test 16 8.1.2 Radiated Emissions Test 17 8.1.3 RF Emissions Test Results 18 8.1.4 Sample Calculations 19 8.2 DTS Bandwidth 20 8.3 Maximum Peak Conducted Output Power 20 8.4 Emissions in Non-restricted Frequency Bands 21 8.5 RF Band Edges 21 8.6 Spectral Density Test 22 8.7 Variation of the Input Power 22 9. CONCLUSIONS 22 Report Number: B21122D1 FCC Part 15 Subpart B and C; and FCC 15.247 Test Report iWear Glasses Model: IW100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 22 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Models Covered Under This Report D Diagrams and Charts  Test Setup Diagrams  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Layout of the Semi-Anechoic Test Chamber LIST OF TABLES TABLE TITLE 1 Conducted Emission Results 2 Radiated Emission Results Report Number: B21122D1 FCC Part 15 Subpart B and C; and FCC 15.247 Test Report iWear Glasses Model: IW100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 22 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. The client must not use this report to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the U.S. government. Device Tested: iWear Glasses Models: IW100 S/N: N/A Product Description: The equipment under test is a BLE device that attaches directly to a pair of wearable glasses and communicates with a user’s smartphone. The glasses can be controlled via the smartphone to change the optical opacity from dark to light by the user . The IW100 contained a 32 MHz crystal for the MCU. The highest frequency generated is: 2.4 GHz. The IW100 dimensions in millimeters are: 165 (L) x 147 (W) x 48 (H). Modifications: The EUT was not modified to meet the specifications. Customer: Percept Corporation 10080 W. Alta Drive Las Vegas, Nevada 89145 Test Dates: November 21 and 22, 2022 Test Specifications covered by accreditation: Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedures: ANSI C63.4 and ANSI C63.10 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B21122D1 FCC Part 15 Subpart B and C; and FCC 15.247 Test Report iWear Glasses Model: IW100 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 22 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B See section 6.3 for Measurement Uncertainty 2 Radiated RF Emissions, 9 kHz –25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and the limits of CFR Title 47, and Part 15 Subpart C See section 6.3 for Measure…

Text truncated - open the document above for the full version.

DATASHEET PartNo.1001312 Product: Wi-Fi/Bluetooth orUWBCeramicAntenna PartNo.1001312 Wi-Fi / BT/ Zigbeeor UWB CeramicAntenna 2.4GHzor6.0– 8.5GHz Supports:Wi-Fiapplications,Agriculture,Automotive,Bluetooth,Zigbee,WLAN,SmartHome,Healthcare,DigitalSignage,UWB 9/27/2021Proprietary www.KYOCERA-AVX.com Layouts: 1001312-01:SingleBand2.4GHzlayout 1001312-04:UWB6.0- 8.5GHzlayout(Appendix1) Electrical Specifications Typicalperformanceon55x 25mmPCB MechanicalSpecifications& OrderingPartNumber *UWBlayoutofferedin Appendix1 CeramicWi-FiorUWB CeramicAntenna 2400– 2485MHz; 6.0– 8.5GHz •Embedded design •Cellular, Headsets, Tablets •Gateway, Access Point •Handheld •Telematics •Tracking •Healthcare •M2M, Industrial devices •SmartGrid •OBD-II •UWB KEYBENEFITS Stay-in-Tune IMD antenna technology provides superior RF field containment, resulting in less interaction with surrounding components. Quicker Time-to-Market Byoptimizingantennasize, performance and emissions, customer and regulatoryspecifications aremoreeasilymet. Reliability Products are the latest RoHSversioncompliant. APPLICATIONS OrderingPartNumber1001312 Size(mm)2.00x 1.20x 0.55 MountingSMT Weight(grams)0.003 Packaging Tape& Reel, 1001312– 1,000piecesper reel DemoBoard 1001312-01(2.400- 2.485GHz) 1001312-04(UWB6.000- 8.500GHz) KYOCERA AVXseries of ceramic Isolated Magnetic Dipole™(IMD) antennas deliver on the key needs of device designers for higher functionality and performancein smaller/thinnerdesigns. Real-WorldPerformanceandImplementation Ceramic antennas may look alike on the outside, but the important differenceis inside.Otherantennasmaycontainsimple PIFAor monopole designsthatinteractwiththeirsurroundings,complicatinglayout orchanging performancewithuseposition.KYOCERA AVXantennas utilize patented IMD technology to deliver a unique size and performance combination. Frequency2400– 2485MHz6.0– 8.5GHz PeakGain1.88dBi AverageEfficiency62% VSWR Match1.8:1max FeedPointImpedance50ohmsunbalanced PolarizationLinear PowerHandling0.5WattCW TopView BottomView Pin#1 PinDescription 1 Feed 2 Ground PartNumberA (mm)B (mm)C (mm) 10013122.0± 0.31.2± 0.30.55± 0.2 Height DATASHEET|PartNo. 1001312 C Pin#2 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaDimensions Typicalantennadimensions(mm) A B *Pin #1 and Pin #2 are interchangeable. © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] VSWR Efficiency AntennaRadiationPatterns Typicalperformanceon55x 25mmPCB Measured@2440MHz Frequency(MHz)Frequency(MHz) Effi ciency (%) VSW R Y X Y Z X Z DATASHEET|PartNo. 1001312 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. VSWR,EfficiencyPlots Typicalperformanceon55x 25mmPCB © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Antenna Outline DATASHEET|PartNo. 1001312 Pin#1 Pin#2 Pin#Description 1 Feed 2 Ground MatchingPiNetwork(DemoBoard) ComponentValueTolerance P1 4.7nH±0.1nH P2 DNIN/A S1 0ΩN/A R1 0ΩN/A R2– R8 DNIN/A 50Ω Transmission line S1 Antenna Outline P1 P2 Pin#2 *Actualmatchingvalues dependon customerdesign *0Ωmaybeaddedto shift frequencyhigher Pin#1 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaLayout(1001312-01) Typicallayoutdimensions(mm) R1 R2 50ohm P1 S1 P2 R3 R4 R5 R6 R7 R8 •AdditionalVIAS: Diam.0.2mmto beplacedaroundantenna, (novias ontransmissionlines). •Viaholesmustbecoveredbysolder mask PinDescriptions R1 R2R3R4R5R6 R7 R8 © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] DATASHEET|PartNo. 1001312 ShortingpinFeedpin Antennatuningloop: Figure1 Typicalantennalayout Figure 2 KYOCERA AVXantenna layout (required) •Theantennatuningloopis formedbythe PCBlayout. •The feed pin and shorting pin are combinedbecauseit requiresveryclose proximitytoachievemoreband-width. Shortingpinandfeedpinaresharedin KYOCERA AVXceramic antennas 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaLayoutTips(Generalreference) Important layout guidelines for correct operation of KYOCERA AVXCeramic Antennas. Please read guidelines below beforelayingouttheantennain a device.Figure1 showsthetypicalantennalayout.Figure2 shows KYOCERA AVXantenna layout. OtherKYOCERA AVX © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] PartNumberA (mm)B (mm)C (mm) 1001312-0155.025.026.0 DATASHEET|PartNo. 1001312 A B C 2.4GHz KYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. AntennaDemoBoard Typicallayoutdimensions(mm) © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] DATASHEET|PartNo. 1001312 Appendix1 UWBCeramicKYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproducesa widevarietyofstandardandcustomantennastomeetuserneeds. Frequency(GHz)6.0– 8.5 PeakGain4.8dBi AverageEfficiency84% VSWR Match2.0:1max FeedPointImpedance50ohmsunbalanced PolarizationLinear PowerHandling2 WattCW Appendix1 Appendix 1 gives instructions on how to achieve UWB performances through layout and impedance matchingnetwork. (6.0– 8.5GHz) *Datashownabovehas Appendix1 matchingappliedon 26.0 x25.0mm PCB, UsingUWB1001312-04layout © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] VSWR Efficiency AntennaRadiationPatterns Typicalperformanceon26.0x 25.0mmPCB Measured@6500,7000,8000 MHz Y X Y Z X Z DATASHEET|PartNo. 1001312 Appendix1 UWBCeramicKYOCERA AVXEmbeddedAntennaSpecifications KYOCERA AVXproduces a widevarietyofstandardandcustomantennastomeetuserneeds. VSWR,EfficiencyPlots Typicalperformanceon26.0x 25.0mmPCB © 2021KYOCERA AVX tel+(1)858.550.3820 email: [email protected] Antenna Outline DATASHEET|PartNo. 1001312 Antenna Outline S1 P1 Pin#1 Pin#2 Pin#Description 1 Feed 2 Ground MatchingPiNetwork(DemoBoard) ComponentValueTolerance P1 DNIN…

Text truncated - open the document above for the full version.

FRONT VIEW TRANSMIT MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B AND C– RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW TRANSMIT MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B AND C – RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FRONT VIEW AC CHARGING MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B – RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW AC CHARGING MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B – RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FRONT VIEW TRANSMIT MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B AND C – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW TRANSMIT MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B AND C – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FRONT VIEW AC CHARGING MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW AC CHARGING MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FRONT VIEW AC CHARGING MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B – CONDUCTED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW AC CHARGING MODE PERCEPT CORPORATION iWEAR GLASSES MODEL: IW100 FCC SUBPART B – CONDUCTED EMISSIONS PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS
