2A8I7DG10CBRS USB Dongle

Welcome to the Horizon DG10 Horizon DG10 dongle provides LTE service in a small form factor. With diversified self-developed LTE embedded mini-PCIE modules integrated, Horizon DG10 dongle supports multi-band for most operator’s bands and Private LTE, even support special bands. Horizon DG10 Quick Start Guide Device Architecture 2 3 1 1 LTE antenna USB interface 23 LED Working Environment Power Consumption Operating System 2.5W Windows (Win7/Win8/Win10) Mac (Mac OS 10.10 or above) Linux Chrome OS Operating Temperature Storage Temperature Humidity -10°C ~ 45°C -40°C ~ 70°C 5% ~ 95% (Non-condensing) Hardware Configuration Remove the cover of the dongle. Insert the SIM card into the SIM slot on the side and put it in the right position. Re-attach the cover. Step1 Step2 Step3 Install SIM Card Connect and Turn on the USB Dongle 1. Make sure the dongle is connected to a USB port. 2. Unfold the antenna Connect to the Network It takes several seconds to connect to the LTE network. The sequence of different LED status is as follows. 1. LED indicator starts with a red light. 2. Then LED indicator becomes blinking green. 3. When connected successfully, LED shows static green. Login to the Web Management Page Launch the web browser, enter http://192.168.0.1 in the address bar, and press Enter. Software Configuration Step1 Enter the username and password, and click Login. Step2 Step3 After the password is verified, you can login to the web management page. The default username and password are both admin. If you want to view or configure the dongle, you should use the super account to log in to the web management page. The default super username is superadmin, and the password is admin. LTE Settings Choose Network > LTE Settings. On LTE Settings page, you can set the configuration of the LTE network. In the Status list, you can view the LTE status, such as Frequency, RSSI, RSRP, RSRQ, CINR, SINR, Cell ID and etc. Step1 Step2 Step3 The POWER indicator does not turn on. Make sure the dongle is connected properly to a USB port. Make sure the output power of the USB port is compatible with the dongle. Try to unplug, then plug the dongle into the USB port again or into a different USB port. If the problem persists, please contact the authorized local service suppliers. Fails to Login the web management page. Make sure that the dongle is powered on. If the problem persists, please contact the authorized local service suppliers. The dongle fails to search for the wireless network. FAQs Check if the antenna is open and not folded. Check if the indicator light is static green. Check if the dongle is placed in an open area If the problem persists, please contact the authorized local service suppliers. The parameters are restored to default values. If the dongle is powered off unexpectedly while being configured, the parameters may be restored to the default settings. After configuring the parameters, down- load the configuration file and restore the desi- red settings quickly. The dongle does not support SIM card hot-plug, please confirm that the device is powered off when the SIM card is inserted or removed. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 5mm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has been tested and comply with FCC SAR limits. The device has been tested and comply with FCC SAR limits. This equipment must be

Teleworld FZCO Address: C16 Warehouse Dubai Airport Free Zone Tel: (852) 9333 4183 Email: [email protected] Date: 2022-09-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, The RF chip, model: GDM7243QT, installed in our product CBRS USB Dongle, model: DG10, FCC ID: 2A8I7DG10, this chip supports LTE function, but for marketing purpose, this chip only supports LTE B41/B48, not supports other LTE bands. The other LTE bands were disabled to use by manufacture in the software, the end user has no capability to activate it. Sincerely Yours, Signature: Print Name: Regina Wong Title: Administrator

Teleworld FZCO Address: C16 Warehouse Dubai Airport Free Zone Tel: (852) 9333 4183 Email: [email protected] QA-FR-170-B 7/29/2014 FCC Authorization Date: 2022-9- 14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Teleworld FZCO, the undersigned, hereby authorizes Shenzhen Accurate Technology Co., Ltd. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Regina Wong Title: Administrator

Teleworld FZCO Address: C16 Warehouse Dubai Airport Free Zone Tel: (852) 9333 4183 Email: [email protected] FCC Confidential Authorization Date: 2022-09-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2A8I7DG10 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Teleworld FZCO hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Regina Wong Title: Administrator • Parts List/Tune up procedure (for licensed devices)

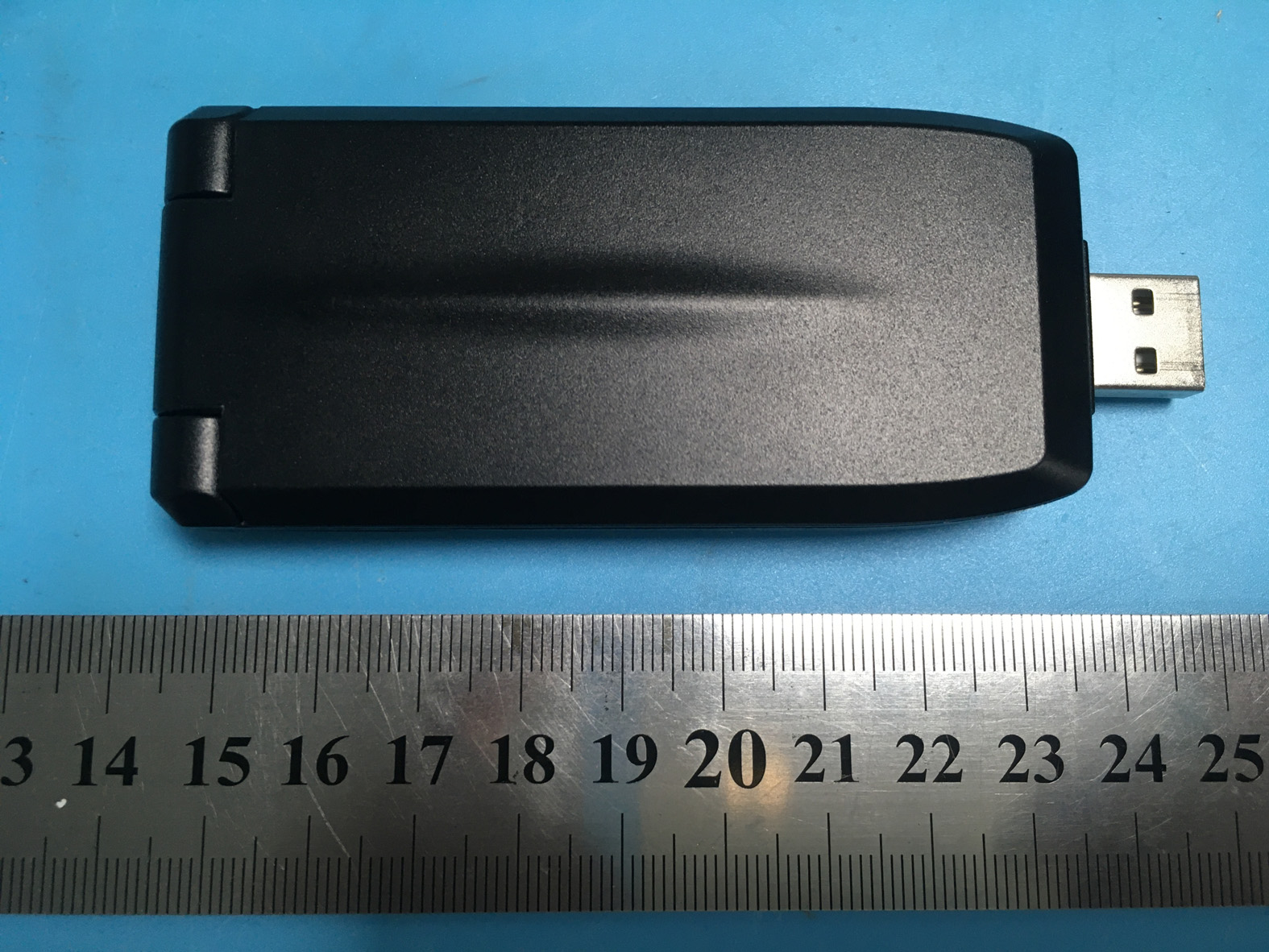

Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: SZNS220908-40742E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 1 of 8 Internal photos Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 2 of 8 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 3 of 8 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 4 of 8 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 5 of 8 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 6 of 8 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 7 of 8 Shenzhen Accurate Technology Co., Ltd. FCC ID:2A8I7DG10 Internal Photos Page 8 of 8

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★ ”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 801: 2021-11-09 Page 1 of 42 FCC SAR TEST REPORT Applicant Name : Teleworld FZCO Address : C16 Warehouse Dubai Airport Free Zone Report Number : SZNS220908-40742E-SA FCC ID: 2A8I7DG10 Test Standard (s) FCC 47 CFR part 2.1093 Sample Description Product Type: CBRS USB Dongle Model No.: DG10 Multiple Model(s) No.: N/A Trade Mark: Horizon Date Received: 2022/09/10 Date of Test: 2022/10/08~2022/10/09 Report Date: 2022/10/18 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Lance Li Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Version 801: 2021-11-09 Page 2 of 42 FCC SAR Attestation of Test Results EUT Information EUT Description CBRS USB Dongle Tested Model DG10 Multiple Model(s) No.: N/A Trade Mark Horizon FCC ID: 2A8I7DG10 Serial Number SZNS220908-40742E-SA-S1 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) LTE Band 41 1g Body SAR 0.56 1.6 LTE Band 48 1g Body SAR 0.69 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D04 Interim General RF Exposure Guidance v01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 447498 D02 SAR Procedures for Dongle Xmtr v02r01. Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Version 801: 2021-11-09 Page 3 of 42 FCC SAR TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION ................................................................................................................................................... 5 TECHNICAL SPECIFICATION ............................................................................................................................................. 5 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 6 SAR LIMITS ..................................................................................................................................................................... 7 FACILITIES ................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 14 EQUIPMENTS LIST & CALIBRATION INFORMATION ........................................................................................................ 14 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 15 LIQUID VERIFICATION ................................................................................................................................................... 15 SYSTEM ACCURACY VERIFICATION ............................................................................................................................... 16 SAR SYSTEM VALIDATION DATA ......................................................................................................................... 17 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 21 SIMPLE DONGLE PROCEDURES ............................................................................................................................ 21 TEST DISTANCE FOR SAR EVALUATION ........................................................................................................................ 21 SAR EVALUATION PROCEDURE ......................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 1 of 45 APPENDIX C PROBE CALIBRATION CERTIFICATES Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 2 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 3 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 4 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 5 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 6 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 7 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 8 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 9 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 10 of 45 APPENDIX D DIPOLE CALIBRATION CERTIFICATES Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 11 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 12 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 13 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 14 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 15 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 16 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 17 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 18 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 19 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 20 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 21 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 22 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 23 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 24 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 25 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 26 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 27 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 28 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 29 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 30 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 31 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 32 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 33 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 34 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 35 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 36 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 37 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 38 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 39 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 40 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 41 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 42 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 43 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 44 of 45 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 45 of 45

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 1 of 44 Plot 1# DUT: DG10; Type: CBRS USB Dongle; Serial: SZNS220908-40742E-SA-S1 Communication System: UID 0, Generic TDD-LTE (0); Frequency: 2593 MHz;Duty Cycle: 1:1.58125 Medium parameters used (interpolated): f = 2593 MHz; σ = 1.979 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(7.3, 7.3, 7.3) @ 2593 MHz; Calibrated: 2022/05/16 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1211; Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Horizontal-UP/LTE Band 41 1RB Mid/Area Scan (11x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.194 W/kg Horizontal-UP/LTE Band 41 1RB Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.879 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.333 W/kg SAR(1 g) = 0.185 W/kg; SAR(10 g) = 0.096 W/kg Maximum value of SAR (measured) = 0.205 W/kg 0 dB = 0.205 W/kg = -6.88 dBW/kg Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 2 of 44 Plot 2# DUT: DG10; Type: CBRS USB Dongle; Serial: SZNS220908-40742E-SA-S1 Communication System: UID 0, Generic TDD-LTE (0); Frequency: 2593 MHz;Duty Cycle: 1:1.58125 Medium parameters used (interpolated): f = 2593 MHz; σ = 1.979 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(7.3, 7.3, 7.3) @ 2593 MHz; Calibrated: 2022/05/16 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1211; Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Horizontal-UP/LTE Band 41 50%RB Mid/Area Scan (11x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.177 W/kg Horizontal-UP/LTE Band 41 50%RB Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.238 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.319 W/kg SAR(1 g) = 0.175 W/kg; SAR(10 g) = 0.090 W/kg Maximum value of SAR (measured) = 0.190 W/kg 0 dB = 0.190 W/kg = -7.21 dBW/kg Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 3 of 44 Plot 3# DUT: DG10; Type: CBRS USB Dongle; Serial: SZNS220908-40742E-SA-S1 Communication System: UID 0, Generic TDD-LTE (0); Frequency: 2593 MHz;Duty Cycle: 1:1.58125 Medium parameters used (interpolated): f = 2593 MHz; σ = 1.979 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(7.3, 7.3, 7.3) @ 2593 MHz; Calibrated: 2022/05/16 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1211; Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Horizontal-Down/LTE Band 41 1RB Mid/Area Scan (11x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.181 W/kg Horizontal-Down/LTE Band 41 1RB Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.139 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.319 W/kg SAR(1 g) = 0.179 W/kg; SAR(10 g) = 0.094 W/kg Maximum value of SAR (measured) = 0.194 W/kg 0 dB = 0.194 W/kg = -7.12 dBW/kg Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 4 of 44 Plot 4# DUT: DG10; Type: CBRS USB Dongle; Serial: SZNS220908-40742E-SA-S1 Communication System: UID 0, Generic TDD-LTE (0); Frequency: 2593 MHz;Duty Cycle: 1:1.58125 Medium parameters used (interpolated): f = 2593 MHz; σ = 1.979 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(7.3, 7.3, 7.3) @ 2593 MHz; Calibrated: 2022/05/16 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1211; Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Horizontal-Down/LTE Band 41 50%RB Mid/Area Scan (11x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.178 W/kg Horizontal-Down/LTE Band 41 50%RB Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.269 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.300 W/kg SAR(1 g) = 0.164 W/kg; SAR(10 g) = 0.086 W/kg Maximum value of SAR (measured) = 0.183 W/kg 0 dB = 0.183 W/kg = -7.38 dBW/kg Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 5 of 44 Plot 5# DUT: DG10; Type: CBRS USB Dongle; Serial: SZNS220908-40742E-SA-S1 Communication System: UID 0, Generic TDD-LTE (0); Frequency: 2593 MHz;Duty Cycle: 1:1.58125 Medium parameters used (interpolated): f = 2593 MHz; σ = 1.979 S/m; ε r = 39.583; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7441; ConvF(7.3, 7.3, 7.3) @ 2593 MHz; Calibrated: 2022/05/16 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1211; Calibrated: 2022/03/01 • Phantom: Twin SAM; Type: QD000P40CD; Serial: 1744 • Measurement SW: DASY52, Version 52.10 (4); SEMCAD X Version 14.6.14 (7501) Vertical-Front/LTE Band 41 1RB Mid/Area Scan (9x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.448 W/kg Vertical-Front/LTE Band 41 1RB Mid/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.418 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.804 W/kg SAR(1 g) = 0.386 W/kg; SAR(10 g) = 0.168 W/kg Maximum value of SAR (measured) = 0.447 W/kg 0 dB = 0.447 W/kg = -3.50 dBW/kg Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 6 of 44 Plot 6# DUT: DG10; Type: CBRS USB Dongle; Serial: SZNS220908-40742E-SA-S1 Communi…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 1 of 7 +APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: Twin SAM Phantom ; Type: QD000 P40 CD; Serial: 1744 Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 2 of 7 Antenna Closed Mode: Horizontal-UP (5mm) Horizontal-Down (5mm) 5 mm 5 mm Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 3 of 7 Vertical-Front (5mm) Vertical-Back (5mm) 5 mm 5 mm Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 4 of 7 Tip (5mm) Port (5mm) 5 mm 5 mm Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 5 of 7 Antenna Open Mode: Horizontal-UP (5mm) Horizontal-Down (5mm) 5 mm 5 mm Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 6 of 7 Vertical-Front (5mm) Vertical-Back (5mm) 5 mm 5 mm Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-SA Page 7 of 7 Tip (5mm) 5 mm

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Shenzhen Accurate Technology Co., Ltd. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 77: 2021-11-09 Page 1 of 29 FCC - LTE TESTREPORT Applicant Name : Teleworld FZCO Address : C16 Warehouse Dubai Airport Free Zone Report Number : SZNS220908-40742E-RF-00A FCC ID: 2A8I7DG10 Test Standard (s) FCC PART 27 Sample Description Product Type: CBRS USB Dongle Model No.: DG10 Multiple Model(s) No.: N/A Trade Mark: Horizon Date Received: 2022/09/08 Report Date: 2022/11/10 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Andy Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: SZNS220908-40742E-RF-00A Version 77: 2021-11-09 Page 2 of 29 FCC -LTE TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 SUPPORT CABLE DESCRIPTION .................................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST .............................................................................................................…

Text truncated - open the document above for the full version.
