2A8J4-TH03Magnetic 4 in 1 Wireless Fast Charger Dock

PRODUCT SPECIFICATION Customer Name: Product Model No.: TH03 Product Type: Magnetic 4 in 1 Wireless Fast Charger Dock Content Item 1. Product Function 2. Basic Operation 3. Basic Parameter 4. Electric Character 5. Charging Range Test 6.Sensitivity Test 7. Reliability Test 8. Automatic Protection Function 9. Product Outline 10. Disclaimer 1. Product Function 1.Wireless charging function introduction This product realizes short distance radio transmission through magnetic induction mode, and adapts to PD protocol QC2.0 protocol double 9V 1.5A digital product charging and communication, furniture, fire, waterproof and other digital products. The product conforms to the Qi wireless charging standard. Mobile phones compatible with the Qi standard can use this product to charge, supporting the quick wireless charging function. This product has unique appearance and wide working voltage (DC9V-12V). It is suitable for adapters that comply with PD protocol and QC protocol (PD protocol is preferred, 9V is the default value of this product when using PD adapter). Features: maximum 15 watt output for two mobile phones (or 1 mobile phone +1 earphone) and a watch with an output of 5V 1A USB-A interface for digital products. It is perfectly compatible with apple 12 and 13. The shield position magnetic automatic absorption, no need to align position. The charging process does not slide when using mobile phones. The platform can be used for earphones, mobile phones with wireless charging function without magnetic absorption function or other digital products. Compatible with Apple Watch 1-7 generation, power adaptive (that is, the adapter automatically adjusts the output power when the power is insufficient, but the charging effect will be affected. The USB-A power is not included in the wireless charging power. That is, the maximum power of wireless charging is about 30 watts, and USB-A is 5 watts. When the adapter power is insufficient, protection disconnection charging will be carried out.) When the device is fully charged, if the phone is not removed for a long time, the phone will keep the power at 100% (supplementary charging). 2. Basic Operation Tips: The larger the deviation distance, the lower the charging efficiency. It is recommended to use QC protocol 9V 3A or PD protocol adapter and data line with current 3A or above, PD protocol adapter is preferred. Usage: Connect the transmitter USB cable, the product works in fast wireless charging mode, supporting double 15W load. If the object is iPhone 12/13 or with magnetic phone cases, there is no need to align the device with automatic adsorption and pop-up charging. If the platform position is placed at the center of the receiving coil on the mobile phone end (anti-skid ring), the center of the transmitting coil is offset from the allowable distance (±3mm). If the deviation is too large, the transmitter will not work, and the phone needs to be correctly placed again, and the device will re-enter the charging state. The watch can be placed directly in the charging position. Indicator Light Description: The power standby indicator (spaceman's eyes) is on, another color is on when wireless charging is working, indicator lamp will not off when power on. FOD foreign body detection: there is a metal foreign body light flashing, and protect until the metal foreign body leaves the charging range. Spaceman shape: The head can be rotated from side to side at an Angle of about 30 degrees. Disassembly method: 1.) Assembly: Aim at the base gap and press down the spaceman, and hear a click sound. 2.) Disassembly: Hold one leg of the spaceman and push it up against the base with your thumb (transportation needs) 3. Basic Parameter 3.1 Performance Parameter 3.1.1 TX Input voltage/currency：DC 9V/2.2A 3.1.2 TX Input current (no load)：≤0-150mA （scanning runout mode） 3.1.3 TX Output current：Single 15W Charging DC9V /1.67A Dual 15W Charging 9V/3.5A 3.1.4 Max Output for Watch：500mA 3.1.5 Max Output for USB-A interface：5V 1.1A 3.1.6 Efficiency (full load)：≤80% 3.1.7 15W Working Frequency：Variable frequency 110KHz -205 KHz 3.1.8 7.5W Working Frequency：Fixed frequency 127.7KHz 3.1.9 Ripple & Noise：≤200mVp_p 3.2.0 Working temperature：0-40°C 3.2.1 Relative humidity：10%~80% 3.2 Apparent Parameter 3.2.1 Size：(base)168*110*155mm（spaceman）156*148*45mm 3.2.2 Color：Black+White, Light Grey+White, Dark Grey+White, Red+White 3.2.3 Materials：PC、ABS 3.2.4 What is in the box：1M length 3A TYPE-C cable，Bilingual manual, color box 3.2.5 Input interface：TYPE-C（PD QC dual agreement） Output interface：USB-A 3.2.6 Usage：desktop 4. Electric Character 4.1 Average working trouble-free time: 20,000 working hours, average failure rate less than 0.5% at 25°C. 4.2 Aging test: normal temperature, full load aging time 24H. 4.3 No load test: output end no load, standby time 24H, electrical normal, no abnormal structure. 4.4 Load aging: DC9V, load current I=1500mA, aging for 24H, normal electrical properties, no abnormal structure. 4.5 Mobile phone test: the electrical property is normal, if the temperature rises, the charging current will be reduced. 4.6 Overvoltage protection：15V 4.7 Overcurrent protection: when the receiving output is short-circuited, the transmission is switched to intermittent detection mode. 4.8 FOD foreign body detection: Stop power supply when metal foreign body is detected. 4.9 5V output current limit Max 1.2a overcurrent protection, load short circuit protection. Short circuit red, green and blue light flashing disconnect output until short circuit is removed 5. Charging range test Automatic positioning adsorption of mobile phones, accurate docking and quick charging. The charging position of the platform is ±3MM, and the watch is magnetically charged without alignment. 6. Sensitivity Test The first power on needs to wait for the light flashing, the host program start about 3 seconds. Automatic adsorption mobile phone, accurate docking and quick charging, response time is about…

Text truncated - open the document above for the full version.

Letter of Authorization Company: Shenzhen Tianhui Xingye Technology Co., Ltd. Address: Building D, Baosanhe, Tongfuyu Industrial Zone, Kukeng, Guanlan, LongHua, Shenzhen, China Product Name: Magnetic 4 in 1 Wireless Fast Charger Dock Model Number: TH03 FCC Identifier: 2A8J4-TH03 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Fu Xiaodong Date: 2022-09-14 Title: General manager

Shenzhen Tianhui Xingye Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2022-09-14 Subject; Request for Long Term Confidentiality FCC ID: 2A8J4-TH03 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Fu Xiaodong Title: General manager

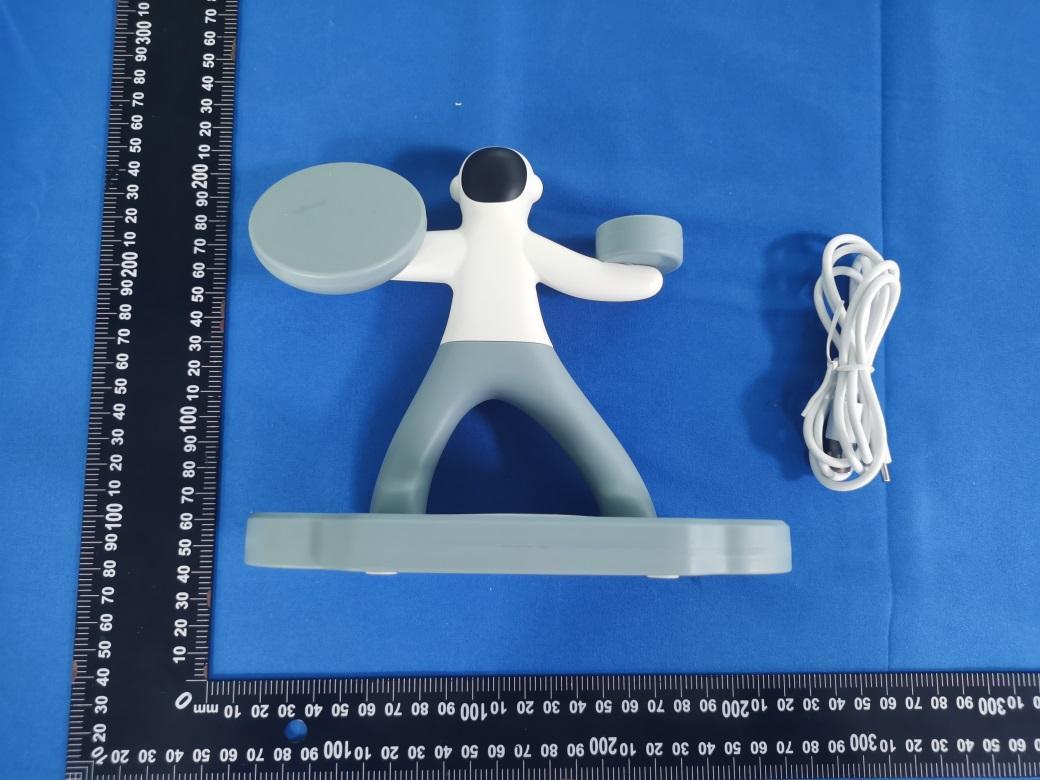

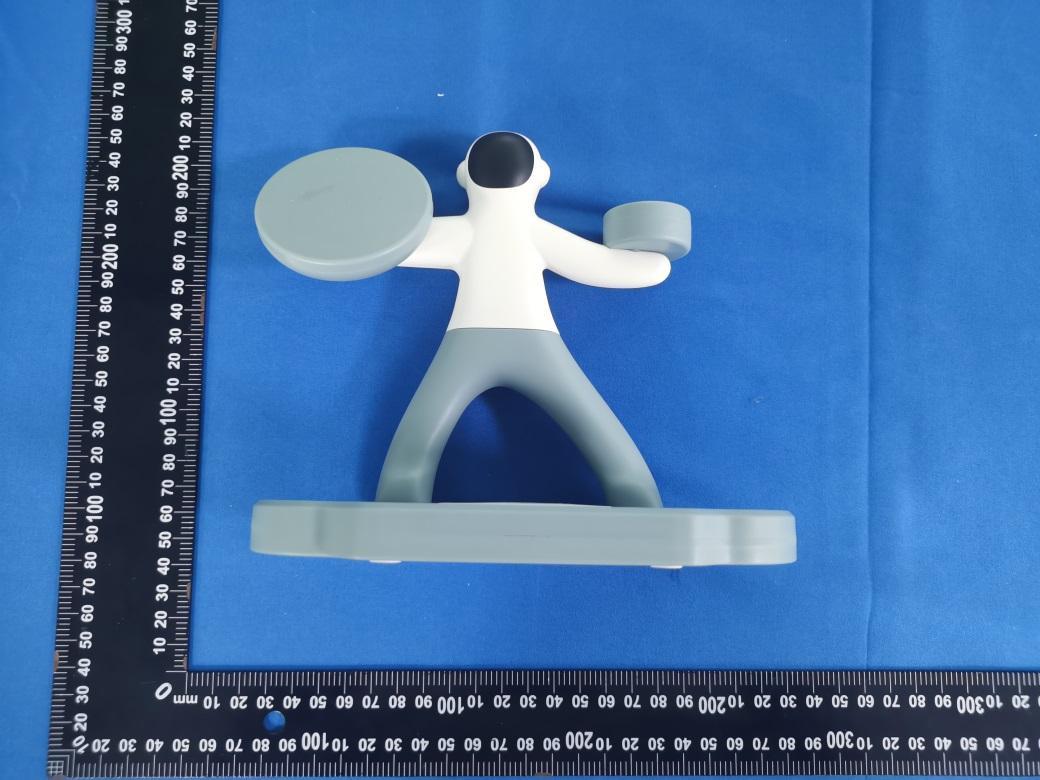

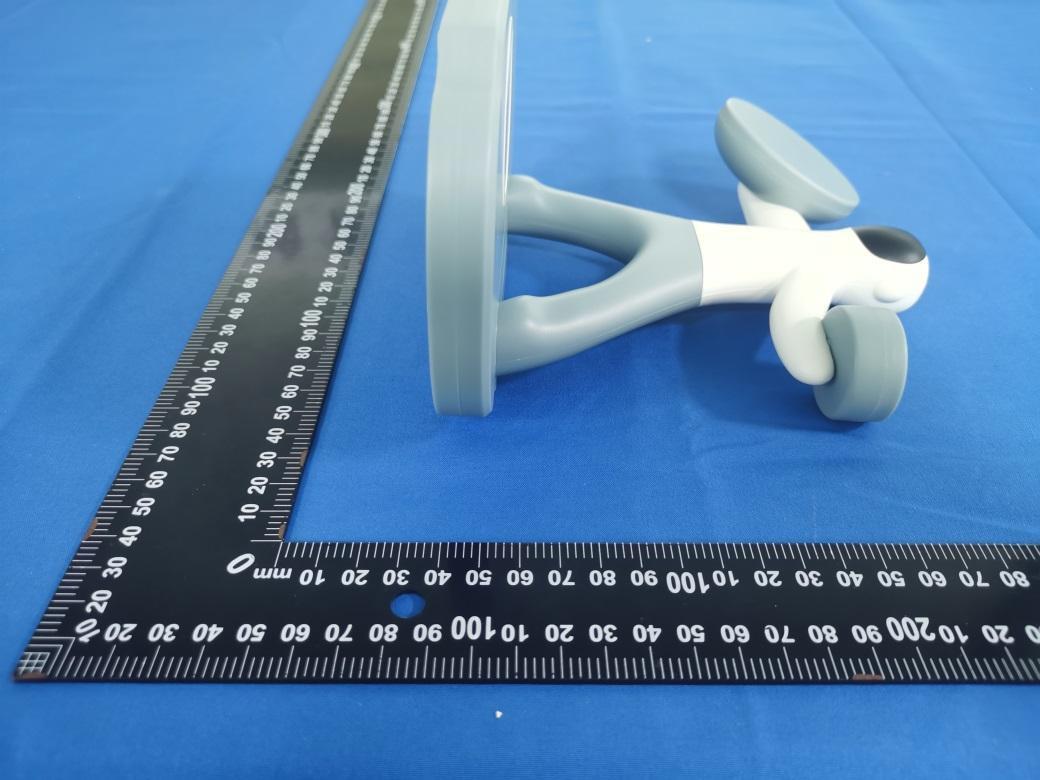

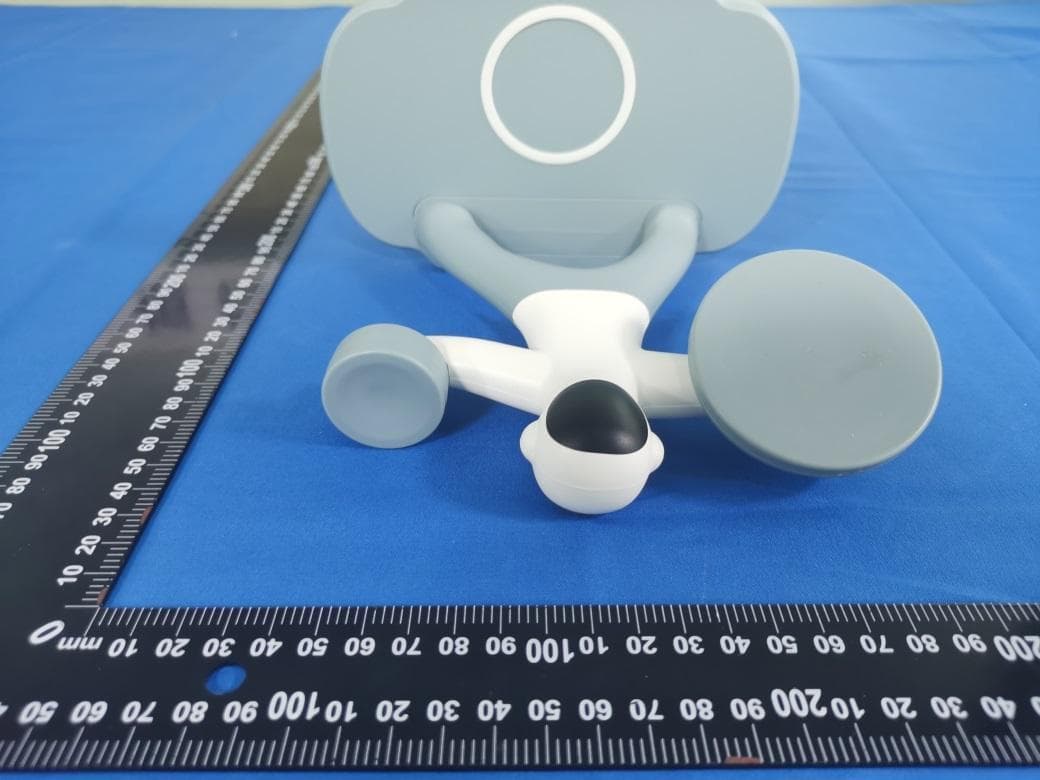

Page 1 of 4 Appendix B: Photographs of EUT Product: Magnetic 4 in 1 Wireless Fast Charger Dock Model: TH03 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label&Location FCC ID: 2A8J4-TH03 Magnetic 4 in 1 Wireless Fast Charger Dock Model: TH03 Input: DC 9V/2.2A Output: 15W/10W/7.5W/5W Output Current Single 15W Charging: DC9V/1.67A Dual 15W Charging: DC9V/3.5A Max Output for TYPE-C Interface: 5V-1.1A Magnetic Attraction Force: 4200GS

Page 1 of 9 Appendix B: Photographs of EUT Product: Magnetic 4 in 1 Wireless Fast Charger Dock Model: TH03 Internal Photos Page 2 of 9 Page 3 of 9 ANT Page 4 of 9 ANT Page 5 of 9 Page 6 of 9 Page 7 of 9 Page 8 of 9 Page 9 of 9

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2A8J4-TH03 Test Report No................ : TCT220913E062 Date of issue................... : Sep. 15, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name............ : Shenzhen Tianhui Xingye Technology Co., Ltd. Address........................... : Building D, Baosanhe, Tongfuyu Industrial Zone, Kukeng, Guanlan, LongHua, Shenzhen, China Manufacturer's name ... : Shenzhen Tianhui Xingye Technology Co., Ltd. Address........................... : Building D, Baosanhe, Tongfuyu Industrial Zone, Kukeng, Guanlan, LongHua, Shenzhen, China Standard(s) ..................... : FCC CFR Title 47 Part 1.1310 KDB 680106 D01 RF Exposure Wireless Charging App v03r01 Product Name................. : Magnetic 4 in 1 Wireless Fast Charger Dock Trade Mark ...................... : N/A Model/Type reference..... : TH03 Rating(s).......................... : Input(USB-C): DC 9V, 3A Output(USB): DC 5V, 1.1A MAX Wireless Output 1: 15W MAX Wireless Output 2: 15W MAX Wireless Output 3: 5W(For Watch) Date of receipt of test item ......................................... : Sep. 13, 2022 Date (s) of performance of test................................... : Sep. 01, 2022 ~ Sep. 15, 2022 Tested by (+signature) ... : Aaron MO Check by (+signature).... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT220913E062 Page 2 of 9 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ................................................................................................... 3 1.2. Model(s) list .......................................................................................................... 3 2. Facilities and Accreditations .................................................................. 4 2.1. Facilities ............................................................................................................... 4 2.2. Location ................................................................................................................ 4 3. Technical Requirements Specification .................................................. 5 3.1. Requirements ....................................................................................................... 5 3.2. Test Setup ............................................................................................................ 6 3.3. Test Procedure ..................................................................................................... 6 3.4. Test Equipment List ............................................................................................. 6 3.5. Test Result ........................................................................................................... 7 4. Test Set-up Photo .................................................................................... 9 Report No.: TCT220913E062 Page 3 of 9 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1.General Product Information 1.1. EUT description Product Name.......................: Magnetic Wirelss Charger And Battery Model/Type reference...........: TH03 Sample Number....................: TCT220913E061-0101 Operation Frequency ...........: For 7.5W: 127.7KHz For 15W: 110KHz -205 KHz Modulation Technology .......: FSK Antenna Type........................: Inductive loop coil Antenna Rating(s)................................: Input(USB-C): DC 9V, 3A Output(USB): DC 5V, 1.1A MAX Wireless Output 1: 15W MAX Wireless Output 2: 15W MAX Wireless Output 3: 5W(For Watch) Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Page 4 of 9 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220913E062 2.Facilities and Accreditations 2.1. Facilities The test facility is recognized, certified, or accredited by the following organizations: ●FCC - Registration No.: 645098 SHENZHEN TONGCE TESTING LAB Designation Number: CN1205 The testing lab has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. ●IC - Registration No.: 10668A-1 SHENZHEN TONGCE TESTING LAB CAB identifier: CN0031 The testing lab has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing. 2.2. Location SHENZHEN TONGCE TESTING LAB Address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China TEL: +86-755-27673339 Report No.: TCT220913E062 Page 5 of 9 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3.Technical Requirements Specification 3.1. Requirements According to the item 5.b of KDB 680106 D01v03: Inductive wireless power transfer applications with supporting field strength results and meeting all of the following requirements are not required to submit a KDB inquiry for devices approved using SDoC or a PAG for equipment approved using certification to address RF exposure compliance. However, …

Text truncated - open the document above for the full version.

深圳市华鑫拓展科技有限公司 Shenzhen City Huaxin science and technology development limited company Address: 116, Building P07, Pinghu South China City, Longgang District, Shenzhen TEL：0755-89635486 FAX：0755-29805909 EMAIL：[email protected] ROHS 危害物质限用 PREPARED BY CHECKED BY APPROVED BY Deng Zhiyong Wan Honggang Gong Xiangming 客 户 名 称 Customer Name 天晖兴业 Tianhui Xingye 客 户 料 号 CUSTOMER P/N 44*5 *0.8 with slots/10T 产 品 名 称 Product Name 发射线圈 Transmitter coil 华 鑫 料 号 Huaxin P/N 修 订 记 录 Amendment Record 版 本 Version 修 订 内 容 Revised Content 修 订 日 期 Revision Date 0 首次发行 First release 2022-8-11 样 品 承 认 书 SPECIFICATION FOR APPROVAL CUSTOMER（客户名称）： 天晖兴业 Tianhui Xingye DESCRIPTION(品名) : 44*5*0.8 with slots/10T CUSTOMER P/N（客户料号）： TONSUN P/N（料号）: 一．产品尺寸图：(mm) 二． 电性原理图： Dimension(mm) Schematic Notes: 1.Products need to set UL casing outside. A B C D 44±0.5MM 44±0.5MM 5±0.5MM 20±3MM 三． 绕组结构 WINDING 四． 产品电气特性 Electrical Characteristics 序号 (NO) 项目 (Item) 单位 (Uint) 电性要求 (Power requirements) 测试条件 (Test Condition) 环境温度湿度 Temp/Humidty 1 L0A（1-2） uH 6.5UH ±10% 1KHZ 0.3V 25°C/70％ 2 25°C/70％ 3 DCR（1-2） Ω 1.0 MAX 25°C/70％ 五．产品物料 Material 序号 (NO) 项目 (Item) 规格型号 Standard number 耐温 Temperature resistance 供应商代码 Supplier P/N 备注 Notes 1 2 铜线 2-UEW Yellow F Grade:155°C C18 WINDING START FINISH WIRE(φ) COLORE TURNS REMARK N1 1 2 φ0.08X24 double line 24 turns copper wire 3 锡条tin rod 601 high temperature lead-free tin rod(Sn:99.5) A017 4 助焊剂 flux XD-982D 20L/Bucket A006 5 A012 深圳市华鑫拓展科技有限公司 Huaxin science and technology development limited company APPROVALS DATE DRAWN BY 龚向明 Gong Xiangming REV A 0 CHECKED BY DATE 2022-08-11 APPROVED BY PAGE 2 / 3 CUSTOMER（客户名称）： 天晖兴业 Tianhui Xingye DESCRIPTION(品名) : CUSTOMER P/N（客户料号）： TONSUN P/N（料号）: 样品检测数据 Sample test data 电性特性 TRICAL CHARACTERISTIC 产品尺寸 NSION (unit:mm) ITEM L（1-2） (H) DCR （1-2） (Ω) A B C SPEC 6.5UH± 10% 1.0Max 44±0.5MM 44±0.5 5±0.5 1 6.56 0.75 2 6.54 0.76 3 6.55 0.74 4 6.54 0.77 5 6.57 0.73 6 6.55 0.75 7 6.54 0.76 8 6.52 0.74 9 6.57 0.77 10 6.52 0.73 X R 深圳市华鑫拓展科技有限公司 Huaxin science and technology development limited company APPROVALS DATE DRAWN BY 龚向明 Gong xiangming REV A0 CHECKED BY DATE 2012-08-11 APPROVED BY PAGE 3/3

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2A8J4-TH03 Test Report No. ............... : TCT220913E061 Date of issue ................... : Sep. 15, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shenzhen Tianhui Xingye Technology Co., Ltd. Address ........................... : Building D, Baosanhe, Tongfuyu Industrial Zone, Kukeng, Guanlan, LongHua, Shenzhen, China Manufacturer's name ... : Shenzhen Tianhui Xingye Technology Co., Ltd. Address ........................... : Building D, Baosanhe, Tongfuyu Industrial Zone, Kukeng, Guanlan, LongHua, Shenzhen, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Product Name ................. : Magnetic 4 in 1 Wireless Fast Charger Dock Trade Mark ...................... : N/A Model/Type reference..... : TH03 Rating(s).......................... : Input(USB-C): DC 9V, 3A Output(USB): DC 5V, 1.1A MAX Wireless Output 1: 15W MAX Wireless Output 2: 15W MAX Wireless Output 3: 5W(For Watch) Date of receipt of test item ......................................... : Sep. 13, 2022 Date (s) of performance of test ................................... : Sep. 01, 2022 ~ Sep. 15, 2022 Tested by (+signature) ... : Aaron MO Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT220913E061 Page 2 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test environment and mode ................................................................................. 5 3.2. Description of Support Units ................................................................................ 5 4. Facilities and Accreditations .................................................................. 6 4.1. Facilities ................................................................................................................. 6 4.2. Location ................................................................................................................. 6 4.3. Measurement Uncertainty ..................................................................................... 6 5. Test Results and Measurement Data ..................................................... 7 5.1. Antenna requirement ............................................................................................ 7 5.2. Conducted Emission ............................................................................................. 8 5.3. Radiated Spurious Emission Measurement ...................................................... 12 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT220913E061 Page 3 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Magnetic 4 in 1 Wireless Fast Charger Dock Model/Type reference........... : TH03 Sample Number....................: TCT220913E061-0101 Operation Frequency ........... : For 7.5W: 127.7KHz For 15W: 110KHz -205 KHz Modulation Technology ....... : FSK Antenna Type ........................ : Inductive loop coil Antenna Rating(s)................................ : Input(USB-C): DC 9V, 3A Output(USB): DC 5V, 1.1A MAX Wireless Output 1: 15W MAX Wireless Output 2: 15W MAX Wireless Output 3: 5W(For Watch) Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT220913E061 Page 4 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Spurious Emission §15.209(a)(f) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT220913E061 Page 5 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. General Information 3.1. Test environment and mode Operating Environment: Condition Conducted Emission Radiated Emission Temperature: 25.0 C 25.0 C Humidity: 56 % RH 56 % RH Atmospheric Pressure: 1010 mbar 1010 mbar Test Mode: Mode Mode1 AC mode Wireless charging Mode Remark Keep the EUT in continuous transmitting The sample was placed 0.8m for the measurement below above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3…

Text truncated - open the document above for the full version.

Report No.: TCT220913E061 Page 24 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220913E061 Page 25 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Internal Photos Report No.: TCT220913E061 Page 26 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220913E061 Page 27 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com ANT Report No.: TCT220913E061 Page 28 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com ANT Report No.: TCT220913E061 Page 29 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220913E061 Page 30 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220913E061 Page 31 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220913E061 Page 32 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220913E061 Page 33 of 33 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Magnetic 4 in 1 Wireless Fast Charger Dock Model: TH03 Radiated Emission Page 2 of 2 Conducted Emission
