2A8J9-ADS1M1Electronic bracelet

Freecell
Electronic bracelet - FCC ID 2A8J9-ADS1M1 - Freecell
Click to zoom

Application Details

Equipment Class
PCT - PCS Licensed Transmitter worn on body
Date of Grant
Sep 18, 2022
Application Purpose
Original Equipment
Date of Application
Sep 18, 2022
Equipment Note
Electronic bracelet
Frequency Range
814.10000000 - 823.90000000
Company
Freecell
Country
Israel

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 © Freecell 2022 35 Efal st., Petach Tikva, Israel 2 © Freecell 2022 35 Efal st., Petach Tikva, Israel Contents 1. Introduction ................................................................................................................................. 3 Sanitization and Re-Use ................................................................................................................... 7 Collection ..................................................................................................................................... 7 Inspection .................................................................................................................................... 7 Cleaning ....................................................................................................................................... 7 Enrollment ....................................................................................................................................... 8 Users Log In ................................................................................................................................. 8 Dashboard Screen ......................................................................................................................... 10 Device Screen ................................................................................................................................ 10 Device Screen ............................................................................................................................ 11 Device Id ................................................................................................................................ 11 Serial ID .................................................................................................................................. 11 Enable .................................................................................................................................... 11 IMEI ........................................................................................................................................ 11 IMSI ........................................................................................................................................ 11 Target..................................................................................................................................... 11 Target Screen ................................................................................................................................. 12 Target Screen Fields .................................................................................................................. 12 New Target Screen Fields ...................................................................................................... 14 Quick Disabling and Deleting an Exist Target ............................................................................ 16 Configuring A Target .................................................................................................................. 17 Editing Geofencing Zones ...................................................................................................... 18 Alert Screen ................................................................................................................................... 22 Violation Alert Icons .................................................................................................................. 22 Top Alert View ........................................................................................................................... 23 Full Alert View ........................................................................................................................... 23 Alert Windows ....................................................................................................................... 23 Map Window in The Alert Section......................................................................................... 24 Events Screen ................................................................................................................................ 25 Audit Screen .................................................................................................................................. 26 User Management Screen ............................................................................................................. 27 3 © Freecell 2022 35 Efal st., Petach Tikva, Israel Victim Application ......................................................................................................................... 28 Closing the Alarm ...................................................................................................................... 29 Proximity Alert ........................................................................................................................... 31 1. Introduction This document is intended to be the source reference material for using the version TL01R, with the exception of electronic configuration (including set-up and interaction with the on-line monitoring portal). The emphasis here is upon describing the physical features, charging, correct fitting and removal and the use of the user portal etc. 4 © Freecell 2022 35 Efal st., Petach Tikva, Israel 2.Equipment Description A. The rechargeable monitoring device – the main transmitting unit B. The strap - to be attached to the ankle of the offender. C. The Key to open the device D. Top cover - attaches the strap to the main unit 3.Device Fitting and Attaching 1. Insert the dedicated key into the place designated for it A B C D 5 © Freecell 2022 35 Efal st., Petach Tikva, Israel 2. Turn the key in the direction as shown 3. open the case 4. Disassemble the strap from the shell 6 © Freecell 2022 35 Efal st., Petach Tikva, Israel 5. Attach the strap in the direction as indicated on the device 6. Adju…

Text truncated - open the document above for the full version.

Cover Letter(s)

Freecell Agent Authorization Company: Freecell Address: Efal 35, petah Tikvah, Israel Product Name: Electronic bracelet Model Number(s): Bracelet Product Description: Electronic bracelet FCC ID: 2A8J9-ADS1M1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.09.02 Name: Yishai Rahamim Title: CEO Company: Freecell

Cover Letter(s)

Freecell Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.09.02 Subject; Request for Confidentiality FCC ID: 2A8J9-ADS1M1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES Part List In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yishai Rahamim Title: CEO

External Photos

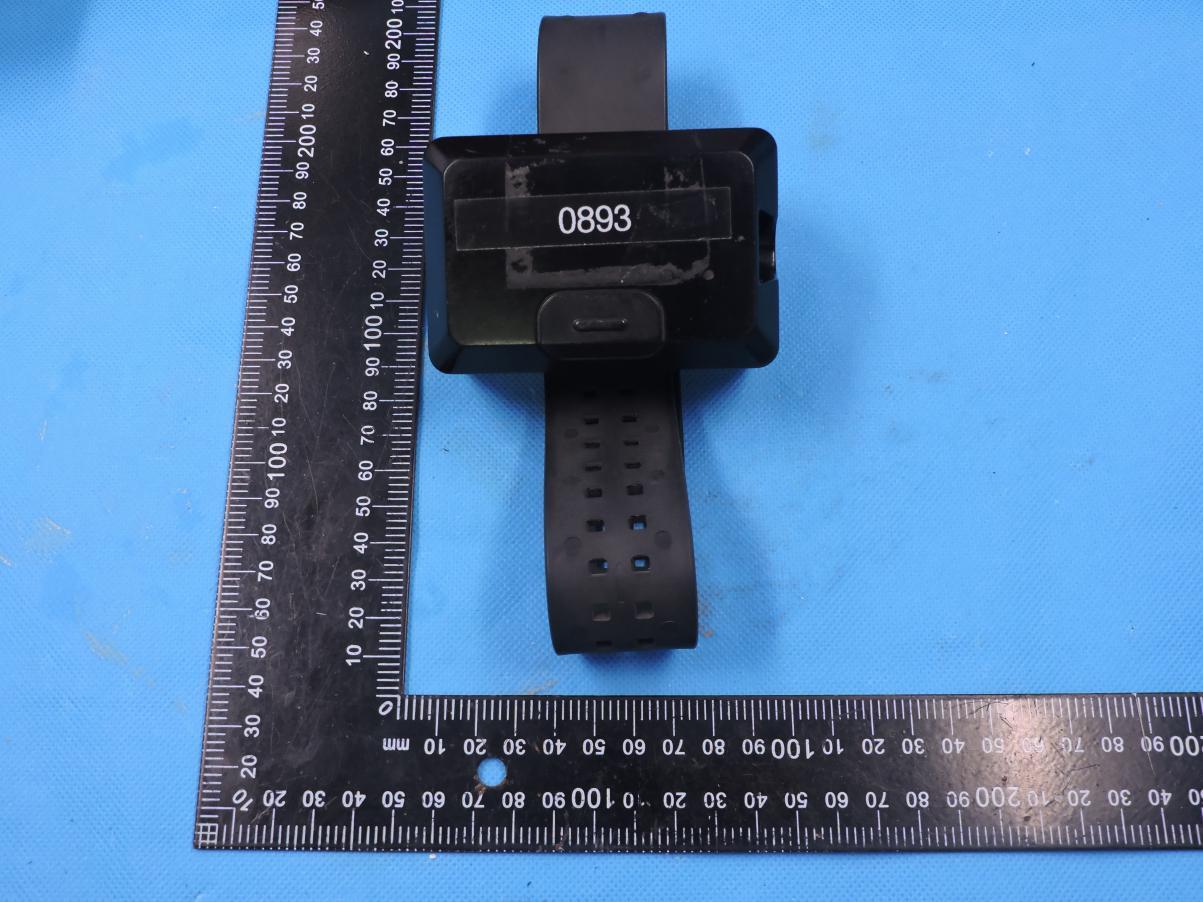

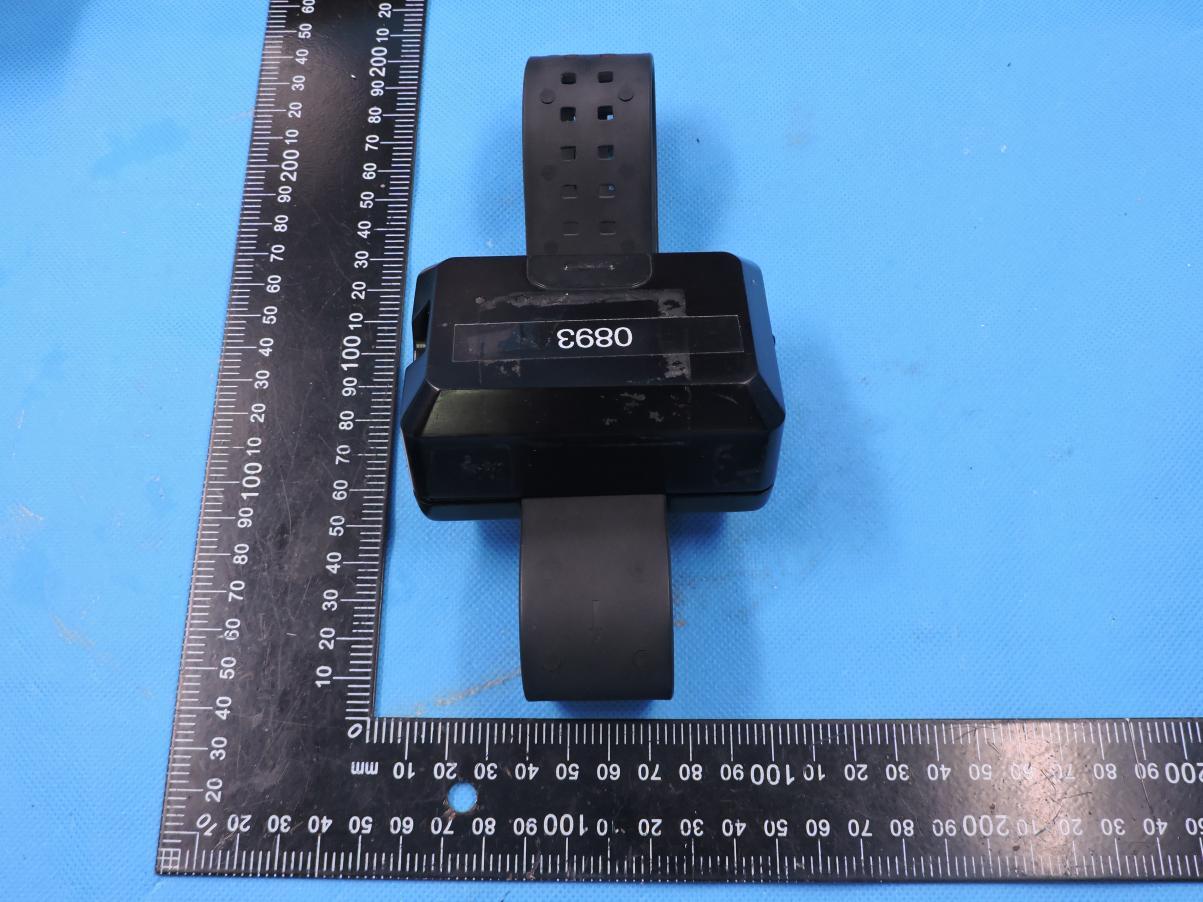

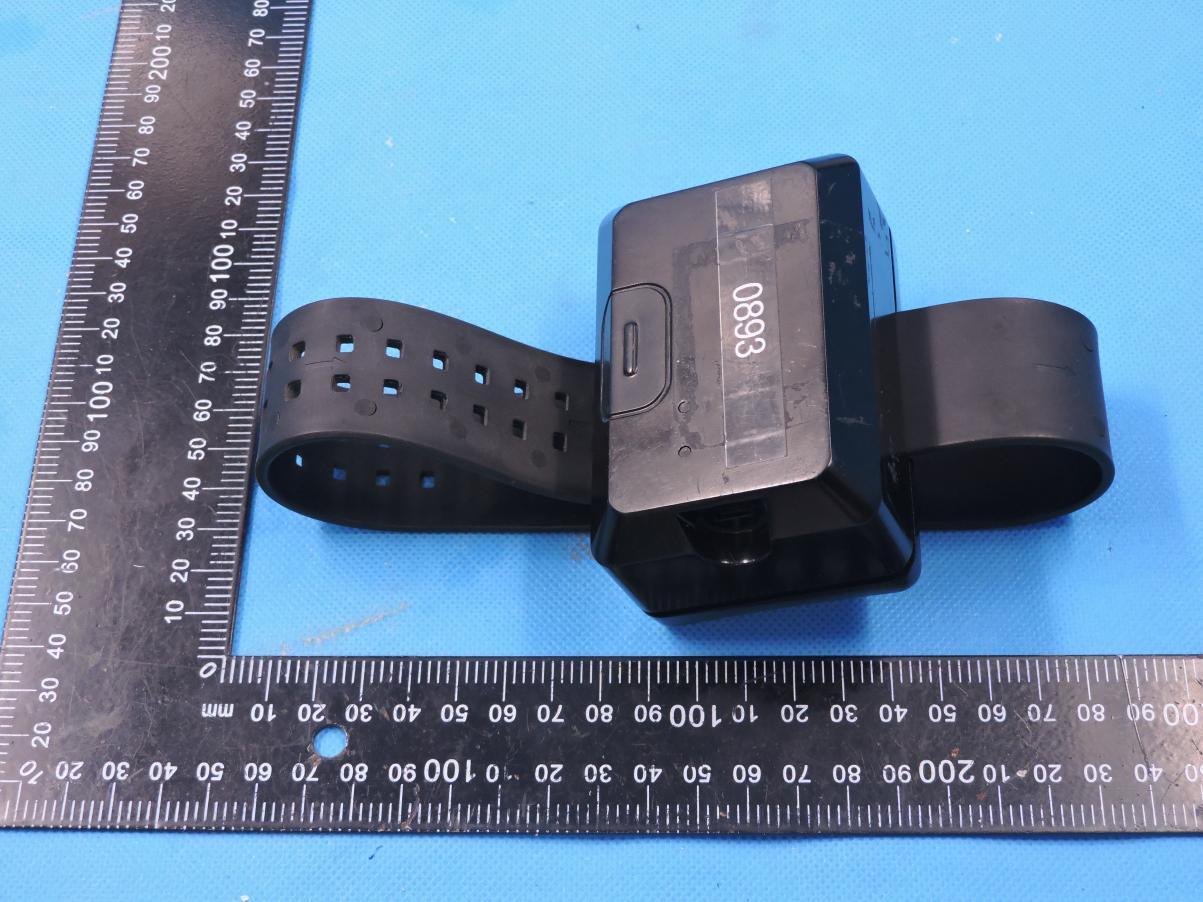

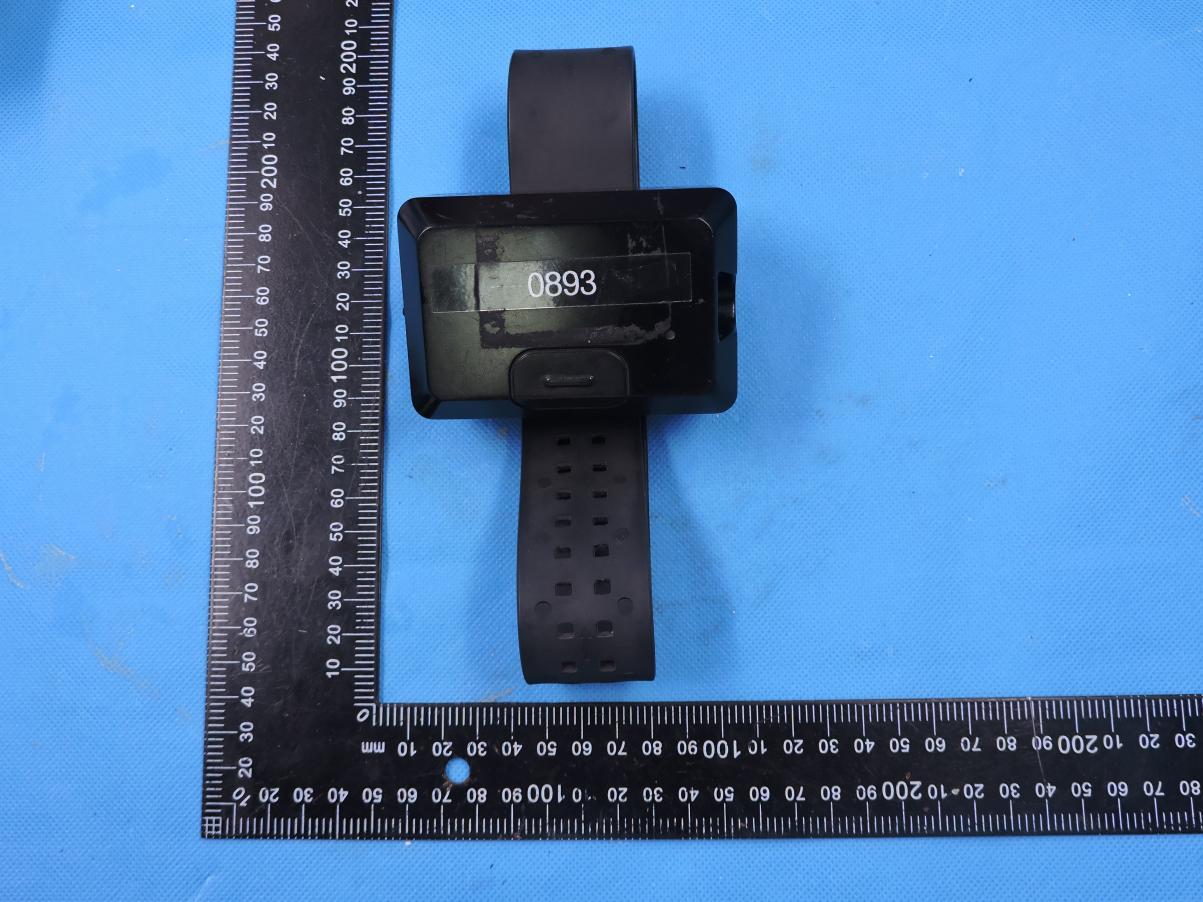

Page 1 of 3 Report No.: STS2207076 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Bracelet Photo 1 Photo 2 Page 2 of 3 Report No.: STS2207076 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2207076 Photo 5 Photo 6

ID Label/Location Info

Label Size:10*30mm The label is printed on the shell FCC ID: 2A8J9-ADS1M1

Internal Photos

Page 1 of 4 Report No.: STS2207076 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: Bracelet Photo 1 Photo 2 GSM/LTE ANT Page 2 of 4 Report No.: STS2207076 Photo 3 Photo 4 BT/WIFi RX ANT GPS RX ANT Page 3 of 4 Report No.: STS2207076 Photo 5 Photo 6 Page 4 of 4 Report No.: STS2207076 Photo 7

RF Exposure Info

Ref : ACR.262.4.20.MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING 2, ZHUOKE SCIENCE PARK,No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA MVG COMOSAR REFERENCE DIPOLE FREQUENCY: 750 MHZ SERIAL NO.: SN 30/14 DIP0G750-331 SAR Reference Dipole Calibration Report Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 07/14/2020 Summary: This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG. using the CALIPROBE test bench. for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units(SI). Page: 1/11 SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4.20.MVGB.A Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Name Function Date Signature Prepared by : Jérôme LUC Technical Manager 7/28/2020 Checked by : Jérôme LUC Technical Manager 7/28/2020 Approved by : Yann Toutain Laboratory Director 7/28/2020 Issue Date Modifications A 7/28/2020Initial release Name Jérôme LUC Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4. TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 5 4.1 Return Loss Requirements __________________________________________________ 5 4.2 Mechanical Requirements ___________________________________________________ 5 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 6 6.1 Return Loss and Impedance In Head Liquid ____________________________________ 6 6.2 Return Loss and Impedance In Body Liquid ____________________________________ 6 6.3 Mechanical Dimensions ____________________________________________________ 6 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 7 7.2 SAR Measurement Result With Head Liquid ____________________________________ 8 7.3 Body Liquid Measurement __________________________________________________ 9 7.4 SAR Measurement Result With Body Liquid __________________________________ 10 8 List of Equipment .................................................................................................... 11 Page: 3/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. MVGB.A 20. Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4.20.MVGB.A 1 INTRODUCTION This document contains a summary of the requirements set forth by the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards for reference dipoles used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. 2 DEVICE UNDER TEST Device Under Test Device Type COMOSAR 750 MHz REFERENCE DIPOLE Manufacturer MVG Model SID750 Serial Number SN 30/14 DIP0G750-331 Product Condition (new / used) Used A yearly calibration interval is recommended. 3 PRODUCT DESCRIPTION 3.1 GENERAL INFORMATION MVG’s COMOSAR Validation Dipoles are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. The product is designed for use with the COMOSAR test bench only. Figure 1 – MVG COMOSAR Validation Dipole Page: 4/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262.4.20.MVGB.A 4 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards provide requirements for reference dipoles used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. 4.1 RETURN LOSS REQUIREMENTS The dipole used for SAR system validation measurements and checks must have a return loss of -20 dB or better. The return loss measurement shall be performed against a liquid filled flat phantom, with the phantom constucted as outlined in the fore mentioned standards. 4.2 MECHANICAL REQUIREMENTS The IEEE Std. 1528 and CEI/IEC 62209 standards specify the mechanical components and dimensions of the validation dipoles, with the dimensions frequency an…

Text truncated - open the document above for the full version.

Test Report

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2207076H01 Issued for Freecell Efal 35, petah Tikvah, Israel Product Name: Electronic bracelet Brand Name: Freecell Model Name: Bracelet Series Model: N/A FCC ID: 2A8J9-ADS1M1 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR: Wrist: 0.217 W/kg S T L A B S Page 2 of 56 Report No.: STS2207076H01 Test Report Certification Applicant’s name ................. : Freecell Address ................................. : Efal 35, petah Tikvah, Israel Manufacture's Name ............ : Freecell Address ................................. : Efal 35, petah Tikvah, Israel Product description Product name ........................ : Electronic bracelet Brand name ........................... : Freecell Model name ........................... : Bracelet Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ............................................ : Date (s) of performance of tests ............. : 12 Aug. 2022~ 18 Aug. 2022 Date of Issue ........................................... : 19 Aug. 2022 Test Result ............................................... : Pass Testing Engineer : ((Shifan. Long) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 56 Report No.: STS2207076H01 Table of Contents 1. General Information 5 1.1 EUT Description 5 1.2 Test Environment 6 1.3 Test Factory 6 2. Test Standards And Limits 7 3. SAR Measurement System 8 3.1 Definition Of Specific Absorption Rate (SAR) 8 3.2 SAR System 8 4. Tissue Simulating Liquids 11 4.1 Simulating Liquids Parameter Check 11 5. SAR System Validation 13 5.1 Validation System 13 5.2 Validation Result 14 6. SAR Evaluation Procedures 15 7. EUT Test Position 16 8. Measurement Uncertainty 17 9. Conducted Power Measurement 18 9.1 Test Result 18 10. EUT And Test Setup Photo 30 10.1 EUT Photo 30 10.2 Setup Photo 33 11. SAR Result Summary 34 11.1 Wrist SAR 34 12. Equipment List 36 Appendix A. System Validation Plots 37 Appendix B. SAR Test Plots 45 Appendix C. Probe Calibration And Dipole Calibration Report 56 Page 4 of 56 Report No.: STS2207076H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 19 Aug. 2022 STS2207076H01 ALL Initial Issue Page 5 of 56 Report No.: STS2207076H01 1. General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name Electronic bracelet Brand Name Freecell Model Name Bracelet Series Model N/A Model Difference N/A Battery Rated Voltage: 3.6 Charge Limit Voltage: 4.2 Capacity: 4400mAh Device Category Portable Product stage Production unit Exposure Environment General Population / Uncontrolled Hardware Version 1.0 Software Version 1.0 Frequency Range GSM 850: 824 MHz ~ 849 MHz PCS1900: 1850 MHz ~ 1910 MHz CAT-M FDD Band 2: 1850MHz ~ 1910 MHz CAT-M FDD Band 4: 1710 MHz ~ 1755 MHz CAT-M FDD Band 12: 699MHz ~ 716 MHz CAT-M FDD Band 13: 775 MHz ~ 785 MHz CAT-M FDD Band 26: 814 MHz ~ 824 MHz NB-IOT FDD Band 2: 1850MHz ~ 1910 MHz NB-IOT FDD Band 12: 699MHz ~ 716 MHz NB-IOT FDD Band 13: 775 MHz ~ 785 MHz NB-IOT FDD Band 26: 814 MHz ~ 824 MHz Max. Reported SAR Band Mode Wrist-10g (W/kg) PCT GSM850 0.133 PCT GSM1900 0.159 PCT NB-IOT FDD Band 2 0.049 PCT NB-IOT FDD Band 12 0.096 PCT NB-IOT FDD Band 13 0.099 PCT NB-IOT FDD Band 26 0.071 PCT CAT-M FDD Band 2 0.050 PCT CAT-M FDD Band 4 0.107 PCT CAT-M FDD Band 12 0.217 PCT CAT-M FDD Band 13 0.178 PCT CAT-M FDD Band 26 0.133 Limit(W/kg) 4 W/Kg FCC Equipment Class PCS Licensed Transmitter worn on body (PCT) Operating Mode GSM: GPRS/EGPRS Class 12 LTE: QPSK,16QAM Antenna Specification GSM/LTE: Ceramic Antenna SIM Card Support single card Note: 1、The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power Page 6 of 56 Report No.: STS2207076H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Temperature (°C) 18-25 Humidity (%RH) 30-70 1.3 Test Factory SHENZHEN STS TEST SERVICES CO.,LTD. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration No.: 625569 IC Registration No.: 12108A A2LA Certificate No.: 4338.01 Page 7 of 56 Report No.: STS2207076H01 2. Test Standards And Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D04 v01 RF Exposure Procedures …

Text truncated - open the document above for the full version.

Test Report

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No:STS22067076W03 Issued for Freecell Efal 35, petah Tikvah, Israel Product Name: Electronic bracelet Brand Name: Freecell Model Name: Bracelet Series Model: N/A FCC ID: 2A8J9-ADS1M1 Test Standard: 47 CFR Part 2, 22H, 24(E), 27, 90 S T L A B S Page 2 of 42 Report No.: STS2207076W03 TEST RESULT CERTIFICATION Applicant’s Name................: Freecell Address .................................. : Efal 35, petah Tikvah, Israel Manufacture's Name ............ : Freecell Address .................................. : Efal 35, petah Tikvah, Israel Product Description Product Name ........................ : Electronic bracelet Brand Name ......................... : Freecell Model Name ........................... : Bracelet Series Model .......................... : N/A Test Standards ...................... : 47 CFR Part 2, 22H, 24(E), 27, 90 Test Procedure ....................... : KDB 971168 D01 v03r01, ANSI C63.26 2015 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ................................ : Date of receipt of test item ........ : 22 July 2022 Date (s) of performance of tests . : 22 July 2022 ~ 29 July 2022 Date of Issue .......................................... : 29 July 2022 Test Result .................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 42 Report No.: STS2207076W03 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 2. GENERAL INFORMATION 6 3. RADIATED POWER AND EFFECTIVE ISOTROPIC RADIATED POWER 13 4. RADIATED SPURIOUS EMISSION 20 APPENDIX-PHOTOS OF TEST SETUP 42 Page 4 of 42 Report No.: STS2207076W03 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 29 July 2022 STS2207076W03 ALL Initial Issue Page 5 of 42 Report No.: STS2207076W03 1. SUMMARY OF TEST RESULTS 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.87dB 2 Unwanted Emissions, conducted ±2.895dB 3 All emissions, radiated 9K-30MHz ±3.80dB 4 All emissions, radiated 30M-1GHz ±4.09dB 5 All emissions, radiated 1G-6GHz ±4.92dB 6 All emissions, radiated>6G ±5.49dB 7 Conducted Emission (9KHz-30MHz) ±2.73dB Page 6 of 42 Report No.: STS2207076W03 2. GENERAL INFORMATION 2.1 TECHNICAL SPECIFICATIONS AND REGULATIONS 2.1.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Name: Electronic bracelet Trade Name Freecell Model Name Bracelet Series Model N/A Model Difference N/A Frequency Bands: U.S. Bands: NB-IOT FDD Band 2 NB-IOT FDD Band 12 NB-IOT FDD Band 13 NB-IOT FDD Band 26 SIM CARD: Only support single SIM Card. Antenna: PIFA Antenna Antenna gain: NB-IOT B2: 0.4dBi, NB-IOT B12: 0.6dBi, NB-IOT B13: -3.3dBi, NB-IOT B26: -3.2dBi Rating: Input: DC 5V Battery: Rated Voltage: 3.6V Charge Limit Voltage: 4.2V Capacity: 4400mAh Extreme Vol. Limits: DC 3.3 V to 4.2 V (Nominal DC 3.6V ) Extreme Temp. Tolerance: -30°C to +50°C Hardware version number: 1.0 Software version number: 1.0 Page 7 of 42 Report No.: STS2207076W03 2.1.2 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD Product Specification Subjective To This Standard Tx Frequency NB-IOT Band 2:1850~1910MHz NB-IOT Band 12:699~716MHz NB-IOT Band 13:777~787MHz NB-IOT Band 26:814~849MHz Rx Frequency NB-IOT Band 2:1930 ~1990MHz NB-IOT Band 12:729~746MHz NB-IOT Band 13:746~756MHz NB-IOT Band 26:859~894MHz Deployment Stand-alone Ntones Single, multi-tone Sub-carrier spacing 3.75KHz, 15KHz Maximum Output Power Limit NB-IOT Band 2: 23.74 dBm NB-IOT Band 12: 23.48 dBm NB-IOT Band 13: 23.47 dBm NB-IOT Band 26: 23.17 dBm Type of Modulation BPSK /QPSK Page 8 of 42 Report No.: STS2207076W03 2.1.3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST Antenna port conducted and radiated test items listed below are performed according to KDB 971168 D01 v03r01 and ANSI C63.26 2015 Power Meas. License Digital Systems with maximum output power. Radiated measurements are performed by rotating the EUT in three different orthogonal test planes tofind the maximum emission. Remark: 1. The mark ‘v’means that this configuration is chosen for testing 2. The mark ‘-’means that this bandwidth is not supported. 3. The device is investigated from 30MHz to 10 times of fundamental signal for radiated The module has been certified, The module FCC ID is N7NWP77B. In this report, this certified module is same as the original filling. We have tested the new Radiated Power and Spurious Radiation. ITEMS Band Bandwidth (MHz) Modulation RB # Test Channel 1.4 3 5 10 15 20 BPSK QPSK 1 Half Full L M H Max. Output Power 2 v v v v v v v v v v v v v v 12 v v v v v v v v v v v v 1…

Text truncated - open the document above for the full version.

Test Report

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No: STS2207076W01 Issued for Freecell Efal 35, petah Tikvah, Israel Product Name: Electronic bracelet Brand Name: Freecell Model Name: Bracelet Series Model: N/A FCC ID: 2A8J9-ADS1M1 Test Standard: FCC Part 22H and 24E S T L A B S Page 2 of 19 Report No.: STS2207076W01 TEST RESULT CERTIFICATION Applicant’s Name ................... : Freecell Address .................................. : Efal 35, petah Tikvah, Israel Manufacture's Name .............. : Freecell Address .................................. : Efal 35, petah Tikvah, Israel Product Description Product Name ........................ : Electronic bracelet Brand Name ......................... : Freecell Model Name ........................... : Bracelet Series Model .......................... : N/A Test Standards ....................... : FCC Part 22H and 24E Test Procedure ....................... : KDB 971168 D01 v03r01,ANSI C63.26( 2015) This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test .............................. : Date of receipt of test item ........ : 22 July 2022 Date (s) of performance of tests : 22 July 2022 ~ 29 July 2022 Date of Issue ......................................... : 29 July 2022 Test Result ................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Bovey Yang) Page 3 of 19 Report No.: STS2207076W01 Table of Contents Page 1 INTRODUCTION 6 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 PRODUCT INFORMATION 7 3 TEST CONFIGURATION OF EQUIPMENT UNDER TEST 8 4 MEASUREMENT INSTRUMENTS 9 5 TEST ITEMS 10 5.1 TRANSMITTER RADIATED POWER (EIRP/ERP) 10 5.2 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT 13 APPENDIX-PHOTOS OF TEST SETUP 19 Page 4 of 19 Report No.: STS2207076W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 29 July 2022 STS2207076W01 ALL Initial Issue Page 5 of 19 Report No.: STS2207076W01 SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The radiated emission testing …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Yishai Rahamim
[email protected]972502547501Fax: +86075536886277

Technical Contact

Freecell
[email protected]

Israel

Test Firm

SHENZHEN STS TEST SERVICES CO.,LTD.Bovey Yang
[email protected]+86 755-36886288

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
219814.1 MHz - 823.9 MHz207.50 mW188KG7D2.5 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is ERP for frequencies below 1GHz and EIRP for frequencies above 1GHz. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 0 cm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for extremity (wrist) is 0.22W/kg.
