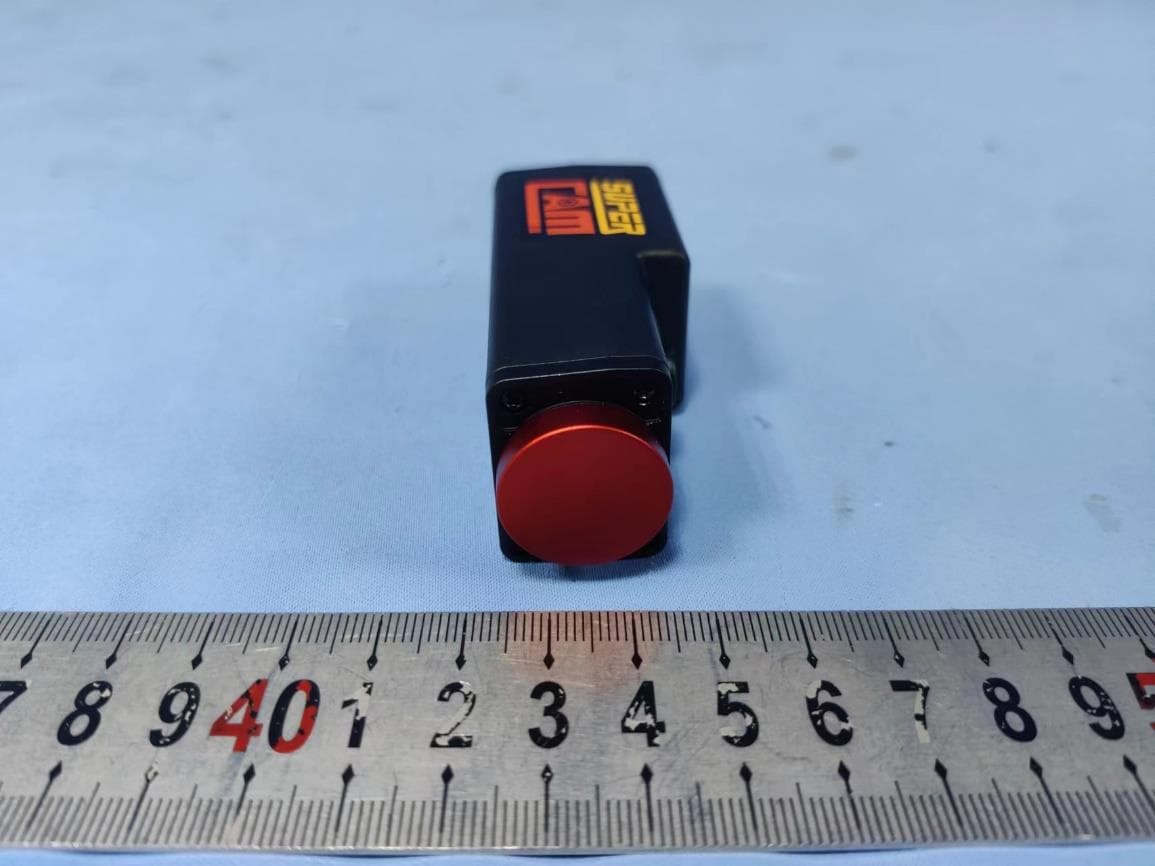

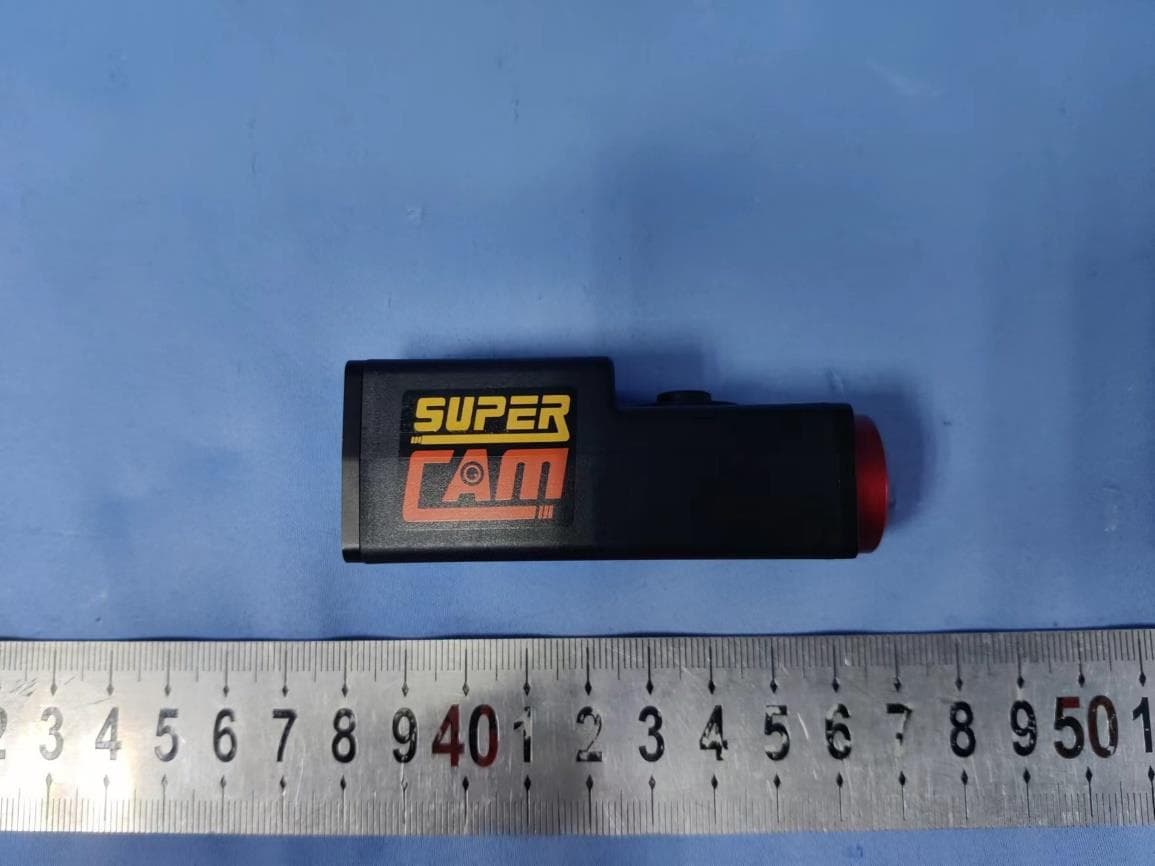

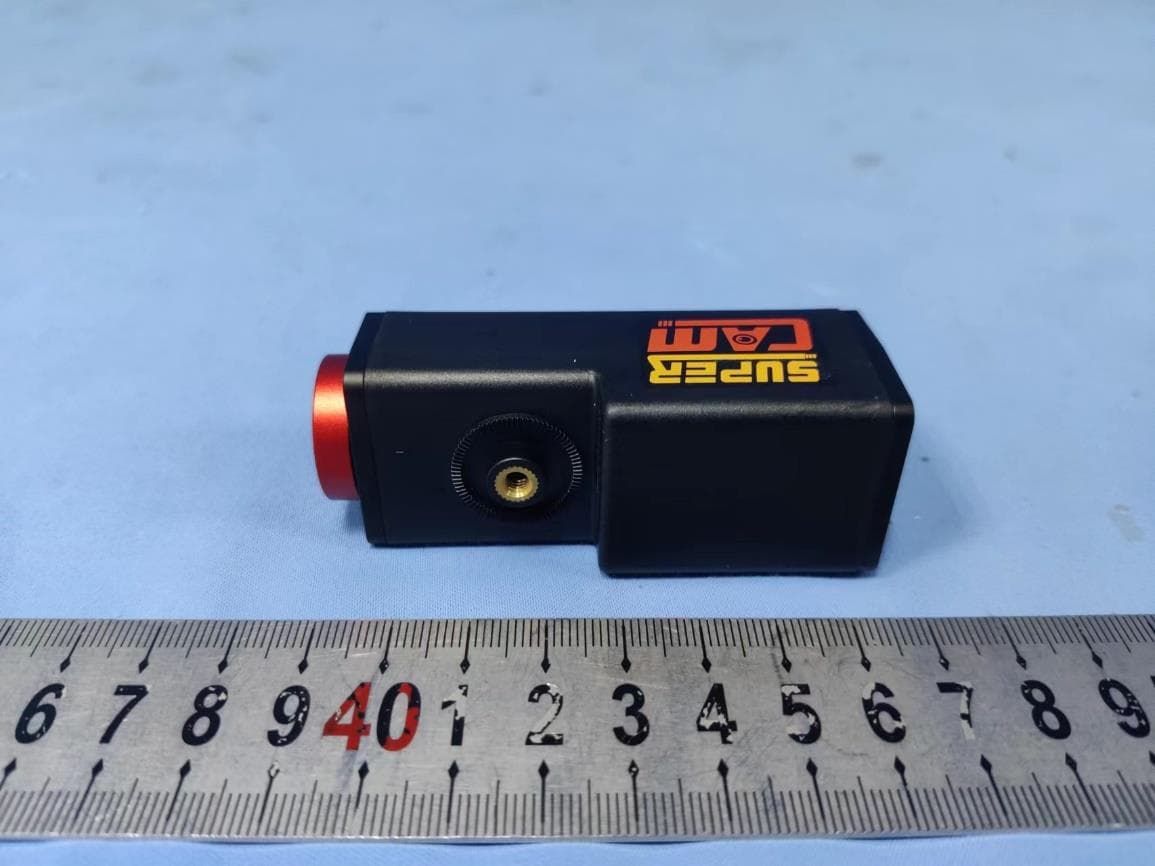

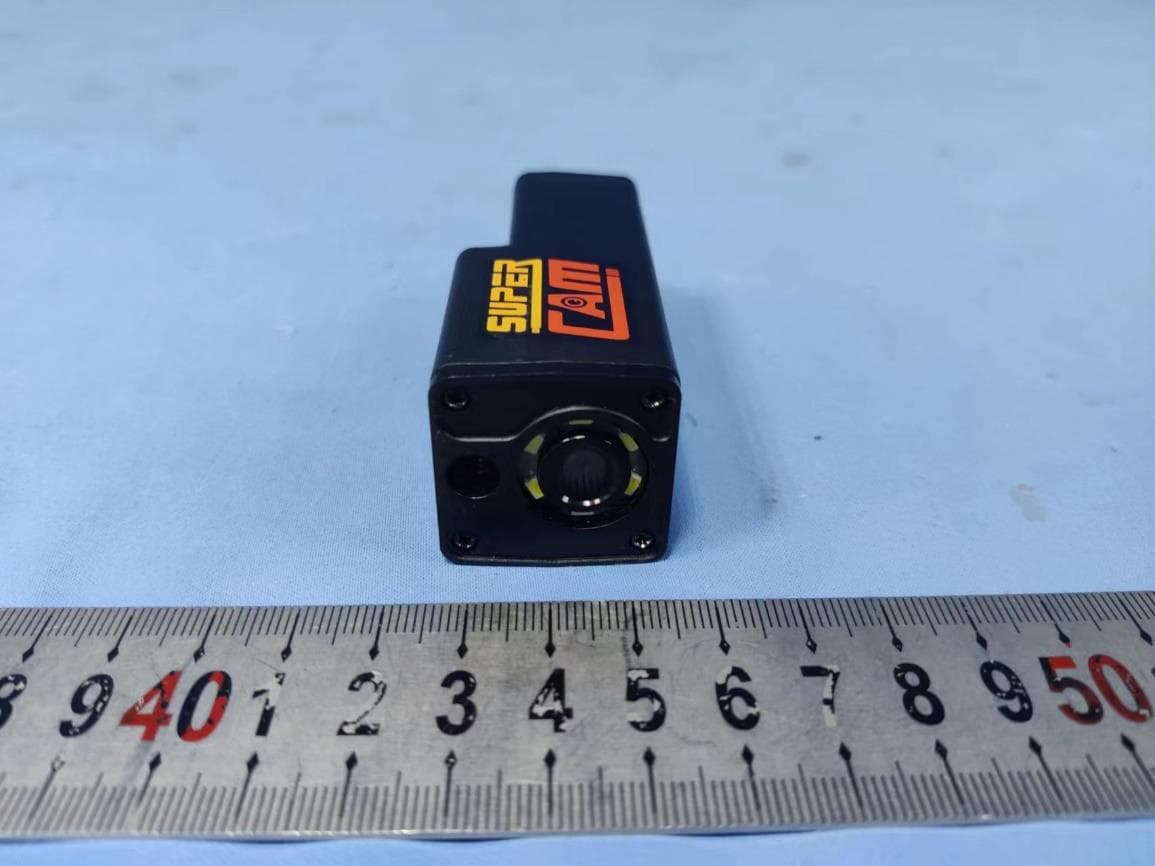

2A8JF-SRCAMV65SUPER CAM

USER INSTRUCTIONS & FAQS SRCAMV6.5 Super Cam 20 M Wireless Inspection Camera THE SMARTER WAY TO INSPECT TABLE OF CONTENTS Contents .................................................................................... Start-up guide ............................................................................ Super Cam features .................................................................. Super Cam App ......................................................................... - Buttons Configuration .............................................................. - Manual/Auto Focus .................................................................. - Brightness ................................................................................ - Pinch Zoom .............................................................................. - Saving Pictures/Videos ............................................................ - Settings .................................................................................... - Icon Options ............................................................................. Charging the Super Cam ......................................................... Connecting the Super Cam to multiple devices .................... Specifications ........................................................................... Warranty .................................................................................... FAQs .......................................................................................... 3 4 5 6 6 6 6 6 7 8 9 10 11 12 13 14 For more information visit www.super-rod.co.uk/supercam 1 2 3 4 5 6 7 8 9 1 0 CONTENTS: 1 2 3 4 5 Carry Case Type C Charging Cable Super Cam Wireless Inspection Camera Super Rod Flexi Super Rod Gooseneck 3 For more information visit www.super-rod.co.uk/supercam 6 7 8 9 1 0 Super Rod Tuff Hook Adaptors Male Gender Changer Super Magnet 1m Telescopic Stick START-UP GUIDE 4 For more information visit www.super-rod.co.uk/supercam Requires Android V6.0 or later Requires IOS V11.2 or later Apple, the App Store and the Apple Logo are are trademarks of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC DOWNLOAD THE SUPER CAM APP: Scan the QR Code to get the App or search for Super Rod On first use you need to give the App access to the gallery of photos and videos on your device to be able to allow you to save photos and videos. CONNECT TO YOUR SUPER CAM CAMERA: First unscrew the red cap at the back of the camera. Turn the power switch on. Once on, the dot should be green. Ensure the camera is charged, the on button has been pushed to the right and that the green light is on. Turn on WiFi connection in your Settings on Apple devices or Connections on your Android devices Click on WiFi and search for “Super Cam xxxxxx” on the WiFi list (no other WiFi network is needed) SUPER CAM FEATURES Connect the Super Cam to any smart device and capture data. Work safer and smarter by streaming high resolution video to your smart device in real time. • INSPECT • ROUTE • CAPTURE DATA • WORK SAFE • Speed up visual inspections • Accurate inspection reports/quotations • Easier fault finding 180-Degree angle adaptor 6 Adjustable bright white LEDs 5 For more information visit www.super-rod.co.uk/supercam • Safe working in hard-to-reach places • Time-saving cable installation Compact and light design CONNECT TO YOUR SMART PHONE OR TABLET Digital pinch zoom - Increases visibility and precision on inspections Built-in WiFi hotspot - Provides a high resolution live stream up to a 20m range Record video with sound - Accurate inspection reports for your customers IP67 dustproof and waterproof - Only when back cap is securely fastened Non-contact voltage detector - Audio & visual alert, 50V-1000V AC Always up viewing mode - When the camera rotates, the image stays the right way up (when selected in settings) 60 min fast charge - Fully charged in 1h with Type-C USB quick charge Wireless range up to 20m - In line of sight Auto/manual focus - Long press icon for manual adjustments AF MF Includes 1m telescopic stick 6 For more information visit www.super-rod.co.uk/supercam SUPER CAM APP AF MF Capture Photos Capture Videos Content Gallery Battery Level Indicator Adjust Brightness Manual/Auto Focus Help Settings Icon Layout Settings BUTTON CONFIGURATION AF MF Tap the AF/MF icon on your Super Cam app to adjust the focus. Alternatively, long press on the AF/MF icon and adjust the focus with a slider for detailed close-up viewing. AUTO/MANUAL FOCUS Tap the Brightness icon on your Super Cam app to adjust the lighting. Alternatively, long press on the icon and adjust the brightness up or down with a slider. BRIGHTNESS Pinch Zoom Use 2 fingers to use the digital zoom to bring your image closer. PINCH ZOOM + - Once you have taken a picture you can either save it or delete it and start again if you decide you want to take a different one. If saved, the picture will be stored in both your Super Cam app photo gallery and the camera roll from the device you are using. The video will be saved in your Super Cam app video gallery automatically as well as the camera roll from the device you are using. Tap on the Photo Gallery icon to access all images taken with your Super Cam. Photo Gallery To view an image, tap on it. To delete and image press ‘select’ and tap on the image(s) you want to select then press delete. SAVING PICTURES/VIDEOS Video Gallery To view a video, tap on it. To delete and image press ‘select’ and tap on the video(s) you want to select then press delete. WIN! For a chance to receive a gift send us your best footage and images captured using the Super Cam. If your content is shared then we will send you a gift. Any content you sent us can be used for marketing purposes. Send your content to [email protected] 7 For more information visit www.super-rod.co.uk/supercam Tap the Camera icon to take a pictu…

Text truncated - open the document above for the full version.

1(2) SUPER ROD LIMITED Attention: Certification reviewer RE: Request for Confidentiality FCC ID: 2A8JF-SRCAMV65 To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Block Diagrams Operational Description Tune-up Procedure Parts List Internal Photos (see note) Users Manual (see note) Note 1: Internal Photos may be held confidential 1) if the circuit board or internal components are not accessible to users. For example, it is acceptable if the circuit board is enclosed in epoxy. 2) Also, it is acceptable if the device is not accessible to the public, for example, a device mounted on the top of a large tower (or in a fenced enclosure) such that it is only serviceable by professional designated technicians under a Non-Disclosure Agreement (NDA). All sales for these devices must be under a NDA restricting the disclosure of the propriety information, including internal photos. Users Manual may be held confidential only when the manual contains proprietary technical information intended for professional technicians obligated under a NDA. All sales and distribution of the user’s manual must be under a NDA that restricts the disclosure of the information. In the application cover letter requesting permanent confidentiality the following additional description and the NDA exhibit is required: 1. Describe in detail how internal photos and/or users manual information are controlled to prevent them from becoming public or disclosed to unauthorized persons. 2. Describe how public access is restricted for products serviceable by professional designated technicians. 3. A statement that all sales of the non-consumer device will be under a NDA to include third party sales and that the final user of the device is subject to the NDA. 4. Provide an example of the NDA between the grantee and a purchaser. The request for confidentiality must Note 2: For scanning receiver, the schematics, block diagrams, operational description, tune-up procedure, parts list and internal photos are always held permanently confidential. Short-term Confidentiality [Complete this section if short-term confidentiality is requested] Request to withhold from public review for a period of [please enter 1 to 180] days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept short-term confidential for a period above from the date of the grant [Select one or more of items below that are not selected in the list above, as appropriate] Schematics Block diagrams Operational Description Tune-up Procedure Parts List 2(2) Test Setup Photos External Photos Internal Photos Users Manual Rationale for request for confidentiality: We have invested considerable time and materials in research and development to produce the referenced product. Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Short-term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development. If you have questions or need further information, please contact the undersigned. Sincerely, Ken Senior Manager

SUPER ROD LIMITED August 25, 2022 Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement SUPER ROD LIMITED FCC ID: 2A8JF-SRCAMV65 To Whom It May Concern: We, SUPER ROD LIMITED, hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2A8JF-SRCAMV65 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is August 25, 2022. The Limited Agency Agreement expires on August 25, 2023, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Ken Senior Manager

TEST REPORT TEST REPORT TEST REPORT TEST REPORT

61.54mm 16.05mm

TEST REPORT TEST REPORT WIFI Antenna TEST REPORT TEST REPORT TEST REPORT

INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a SUPER CAM with Wi-Fi function operating at 2412-2462MHz. The EUT is powered by DC 3.7V rechargeable battery or DC 5V by adapter. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral Antenna Antenna Gain: 2.41dBi Modulation Type: CCK, BPSK, QPSK, 16QAM, 64QAM, DQPSK, DBPSK The normal radiated output power (e.i.r.p) is: 23.41dBm (tolerance: +/-4dB). The normal conducted output power is 21.0dBm (tolerance: +/-4dB). The maximum conducted output power for the EUT is 24.95dBm in the frequency 2.412GHz 802.11g mode which is within the production variation. The minimum conducted output power for the EUT is 17.06dBm in the frequency 2.437GHz 802.11b mode which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting device is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, according to the KDB 447498 and OET 65, the simple calculation as below: The source-based time averaged maximum radiated power = 23.41dBm+4dB= 27.41dBm = 550.81mW At the distance (R) of 20cm to 40cm and in 0.3 GHz to 6 GHz, MPE Exclusion Threshold Level: The MPE limit is 3060mW for general population and uncontrolled exposure in the 2.4GHz frequency range according to FCC Part 1.1307. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Note: EIRP is higher than ERP, thus EIRP is compared with the Exclusion Threshold. FCC ID: 2A8JF-SRCAMV65

SUPER ROD LIMITED TEST REPORT SCOPE OF WORK FCC TESTING–SRCAMV6.5 REPORT NUMBER 220824026SZN-001 ISSUE DATE [REVISED DATE] 17 November 2022 [---------------------] PAGES 73 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: 220824026SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 73 FCC ID 247_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com SUPER ROD LIMITED Application For Certification FCC ID: 2A8JF-SRCAMV65 SUPER CAM Model: SRCAMV6.5 2.4GHz Wi-Fi Transceiver Report No.: 220824026SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-21] Prepared and Checked by: Approved by: Draven Li Peter Kang Project Engineer Sr. Technical Supervisor Date: 17 November 2022 Intertek Report No.: 220824026SZN-001 Version: 01-November-2017 Page: 2 of 73 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-21] Edition] provision. Report prepared by: Draven Li Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen, P.R. China. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6661 Intertek Report No.: 220824026SZN-001 Version: 01-November-2017 Page: 3 of 73 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test results ............................................................................................... 4 2.0 General Description ...................................................................................................... 5 2.1 Product Description ........................................................................................................... 5 2.2 Related Submittal(s) Grants ............................................................................................... 5 2.3 Test Methodology .............................................................................................................. 5 2.4 Test Facility ........................................................................................................................ 5 3.0 System Test Configuration ............................................................................................ 6 3.1 Justification ........................................................................................................................ 6 3.2 EUT Exercising Software ..................................................................................................... 6 3.3 Special Accessories ............................................................................................................ 6 3.5 Equipment Modification .................................................................................................... 7 3.4 Measurement Uncertainty ................................................................................................. 7 3.6 Support Equipment List and Description .......................................................................... 7 4.0 Measurement Results ................................................................................................... 8 4.1 Maximum Conducted Output Power at Antenna Terminals ................................................. 8 4.2 Minimum 6 dB RF Bandwidth .......................................................................................... 10 4.3 Maximum Power Density Reading ................................................................................... 17 4.4 Out of Band Conducted Emissions ................................................................................... 24 4.5 Out of Band Radiated Emissions ...................................................................................... 49 4.6 Transmitter Radiated Emissions in Restricted Bands ........................................................ 50 4.7 Field Strength Calculation ................................................................................................ 51 4.8 Radiated Spurious Emission ............................................................................................. 52 4.9 Conducted Emission…

Text truncated - open the document above for the full version.

ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 版本：A1 客户 : 品名规格 DESCRIPTION: 料号 PARTNO.： 客户料号 CUSPARTNO.： 日期 DATE： 呈样签章: 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 业务 SALESDEPARTMENT 田宏亮田青聂玉龙 客户承认签章: 工程 ENGINEERINGDEPARTMENT 品保 QCDEPARTMENT 采购 PURCHASINGDEPARTMENT ж客户确认样品附意栏： 承认书 APPROVAL 2.4G 2.4G 2.4G 2.4G内置PCB PCB PCB PCB天线45mm 45mm 45mm 45mm YS030-0101 2021-8-6 ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 电器技术参数 电性能指标 ElectricalSpecifications 频率范围 2400-2500MHZFrequencyRange2400-2500MHZ 电压驻波比 ≤2.0 VSWR ≤2.0 增益 2DBIGAIN2DBI 输入阻抗 50ΩInputImpedance50Ω 机械指标 MechanicalSpecifications 天线颜色黑色 AntennaColorBLACK 接口形式 IPEXInputconnectorIPEX 工作温度 -40°C~+85°C WorkingTemperature -40°C~+85°C 工作湿度 20~80%WorkingHumidity20~80% 产品图片: ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 规格图： 包装图： 100PCS1袋 ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 环境性能测试: : : : 项目测试条件规格 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1.温度为-30°C～+80°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与40°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应 满足满足 于机械、电气性能 耐恒定湿热 试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应 满足满足 于机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常 样品测试： ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司 增益测试： ShenzhenYuShengCommunicationsElectronicsco.,LTD TEL：+860755-28640107FAX：+8675528694967 工厂地址：深圳市龙岗区横岗镇坳背一村坳西路102号3-4楼 深圳市 深圳市 雨盛通讯电子 雨盛通讯电子 有限公司 有限公司

Page 1 of 1 TEST REPORT CONDUCTED EMISSION TEST SET-UP Front View Slide View

Page 1 of 2 TEST REPORT RADIATED EMISSION TEST SET-UP Front View (Below 1GHz) Back View (Below 1GHz) The EUT is placed at the center of turntable Page 2 of 2 TEST REPORT Front View (Above 1GHz) Back View (Above 1GHz) The EUT is placed at the center of turntable
