2A8KD-LVD01Dual-Cam Video doorbell

Dual-Cam Video Doorbell - LVD01 User Manual Dual-Cam Video Doorbell (Model : LVD01) Mounting Bracket Extension Wires and Wire Nuts (Optional) Screw Packs Doorbell Detaching Pin USB-C Charging CableUser Manual 15° Mounting Wedge (Optional) Screw Hole Positioning Card Doorbell Chime (Model : LDC01) 1. WHAT'S INCLUDED For Video Doorbell Installation 2.PRODUCT OVERVIEW Dual-Cam Video Doorbell Front View: 1. PIR Motion Sensor (inside) 2. Camera Lens 3. Microphone 4. Radar Motion Sensor (inside) 5. Doorbell LED Ring 6. Doorbell Button 7. Doorbell Speaker 8. Camera Lens 9. USB C Charging Port Dual-Cam Video Doorbell Rear View: 1. Power/Reset Button 2. Power Terminals for Existing Doorbell Wire (Optional) 3. Detaching Mechanism The video doorbell system includes 2 parts. One is the video doorbell at your door. The other is the Chime in your house. The video doorbell detects motion at your porch and allows you to answer the door anytime and anywhere. When someone rings the doorbell, people in the house will be notified by the Chime. 3. HOW THE SYSTEM WORKS How the System Works Dual-Cam Video Doorbell Doorbell Chime 4. SET UP THE SYSTEM Download the App and Set up the System Download the app from the App Store (iOS devices) or Google Play (Android devices). Sign up for a account, then follow the onscreen instructions to complete the setup. 5. DETERME THE POWER OPTION Option 1 - Battery Powered 1. If you don’t have existing doorbell wiring at the front door, use the built-in battery.You are free to determine the doorbell position and the mounting is easy and quick. 2. When the doorbell battery level is low, you need to detach and charge it. 3. If you choose this option, please jump to 7.FIND A MOUNTING SPOT. Note: The battery life varies depending on usage. In most common cases, a doorbell may have up to 10 events per day and each recording lasts 20 seconds on average. Under this scenario, the doorbell battery life can last up to 6 months. 6 months Option 2 - Doorbell Wire Powered 1. If you have existing and working doorbell wiring at the front door, the doorbell will be powered by the wires constantly. So you don’t need to detach and charge it after installation. 2. Since the doorbell is connected to the wires, the mounting position is limited. 3. If you choose this option, please jump to 10.POWER THE DOORBELL WITH EXISTING WIRES. 8 - 24V AC Doorbell Wiring 6. FIND A MOUNTING SPOT Doorbell installation position Take the video doorbell to your front door and check the live view on the app at the same time. Find a location where you can see the desired field of view. Consider the following factors: 1. Check if you can reuse the existing holes and anchors on the wall or door frame. 2. If you want to place the doorbell close to a side wall, make sure the wall doesn’t show up in the field of view. Otherwise IR light will be reflected and night vision will become blurry. 3. If you are drilling the mounting holes for the first time, the recommended mounting height is 48" / 1.2 m from the ground. 4. To adjust the angel, use the 15° mounting wedge as a supplementary mounting bracket. 160° 160° 15° Doorbell Without 15° Mounting WedgeWith 15° Mounting Wedge Doorbell 1.4m(55") 1.78m(70") 0.2m(8")1m(40") Doorbell installation position Place the screw hole positioning card against the wall to mark the position. 7. MOUNT THE BRACKET Mount the Doorbell on a Wooden Surface If you’re mounting the doorbell on a wooden surface, you don’t need to pre-drill pilot holes. Use the provided screws to secure the mounting bracket on the wall, the screw hole positioning card indicates the position of the screw holes. Phillips-Head Screwdriver (not provided) Mounting Bracket15° Mounting Wedge (Optional) Screw Packs What you need: Screwdriver, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs Without 15° Mounting WedgeWith 15° Mounting Wedge WallMounting Bracket WallMounting BracketMounting Wedge Mount the Doorbell on Surfaces Made Out of Hard Materials 1. If you’re mounting the doorbell on a surface made out of hard materials, like brick, concrete, stucco, drill 2 holes through the screw hold positioning card with a 15/64”(6mm) drill bit. 2. Insert the provided anchors, and then use the provided long screws to secure the mounting bracket on the wall. Screw Packs Mounting BracketPower Drill (not provided) 15/64”(6 mm) Drill Bit 15° Mounting Wedge (Optional) What you need: Power Drill, 15/64” (6 mm) Drill Bit, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs Without 15° Mounting WedgeWith 15° Mounting Wedge WallMounting Bracket WallMounting BracketMounting Wedge 8. MOUNTING THE DOORBELL Mount the Doorbell You’re all set! If you want to detach the doorbell or recharge it, please refer to the following sections. Align the doorbell with the top of the mounting bracket and then snap the bottom into the place. It is strongly recommended that the doorbell should be fully charged before you start to set up. 9. RECHARGE THE DOORBELL Recharge the Doorbell Charging: White light keeps on Fully charged: White light turns off 6 hours from 0% to 100% 10. POWER THE DOORBELL WITH EXISTING WIRES 10.1 Verify whether the doorbell wires are working 1. Ring the existing doorbell to check if it is working. If the doorbell doesn’t ring, your doorbell wires may be defective. Power the doorbell on its own battery or consult an electrician to fix the wires. 2. Shut off power at the breaker.Turn the lights on / off in your home to make sure the electricity in your house is properly shut off. Always be careful when handling wires. If you’re not comfortable installing it yourself, have a qualified electrician do it. ON Doorbell OFF 10.2 Detach the Existing Doorbell Button If you already have existing doorbell wiring: 1. Remove the existing doorbell button with a Phillips-head screwdriver (not provided). 2. Pull the two wires out carefully when removing the existing doorbell. Straighten the wire ends if necessary. What you need: Philip…

Text truncated - open the document above for the full version.

ShenzhenLindoTechnologyCo.,Ltd AgentAuthorizationLetter (2022-09-21) RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,authorizeMicomLabsInc.,575BoulderCourt,Pleasanton,California94566, USAtoactonourbehalfinallmattersrelatingtoapplicationforequipment authorization,includingthesigningofalldocumentsrelatingtothesematters. Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, ShaoboHuang/HardwareManager CompanyName:ShenzhenLindoTechnologyCo.,Ltd Address:Room203,Building1,1970ScienceandTechnologyPark,Minzhi Community,MinzhiStreet,LonghuaDistrict,Shenzhen,518000,China

ShenzhenLindoTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2022-09-21 Subject;RequestforConfidentiality FCCID:2A8KD-LVD01 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription SWSECURITYDESCRIPTION PartsList Tuneup Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:ShaoboHuang Title:HardwareManager

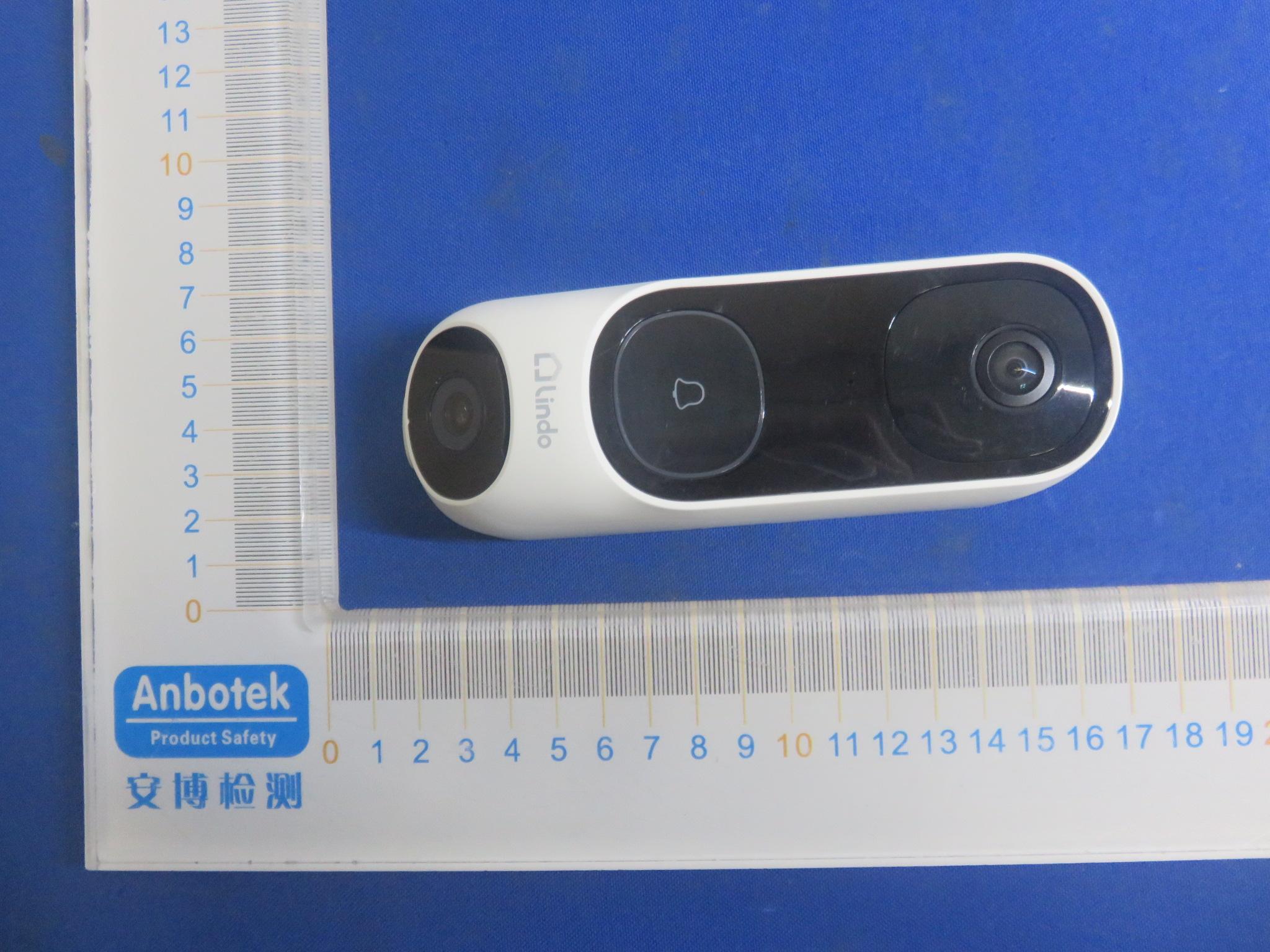

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

140 4.14.1 5.7 21.9 48.3 3.9 8 8 85.86 39.5 42 50 φ10.3 5.7 LD-LVD01-镭雕文件-主机 居中线 杨嘉浩 LVD01 产品型号 制图 公差 审核 批准 比例 制表日期 版本号 单位 ±0.2mm V8 mm 20220916 1：1 名称 产品SN码规则 深圳市霖度科技有限公司 Shenzhen Lindo Technology Co.,Ltd 颜色/工艺 1. 5位产品编码，需要注意的是针对的是部件的编码， 比如双摄门铃产品编码为LS101，他由LVD01和LDC01组成 那么在主机部分的SN码前5位为LVD01， 在叮咚部分的SN码前5位为LDC01； 2. 1位代工厂编码，A-凯木金； 3. 2位生产年份； 4. 2位生产月份； 5. 6位生产线流水码； 例子： 凯木金在2022年8月份生产的第一台LVD01产品， SN码为LVD01A2208000001。 备注 Coolgray 5C 仿CD纹的油墨色 标识符号 副摄装饰 参数信息 标识符号 副摄装饰 参数信息 镜片CD纹饰 （CD纹） Coolgray 5C/镭雕 二维码 SN码 二维码 SN码 2A8KD-LVD01 2A8KD-LVD01 210- 197963 210- 197963

Code:AB-RF-05-b InternalPhotograph Code:AB-RF-05-b 5.8ANT BT&WiFiANT Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiation asspecifiedin§1.1307(b) FCCID:2A8KD-LVD01 EUTSpecification EUTWifiDigitalPhotoFrame Frequencyband(Operating)WLAN:2.412GHz~2.462GHz WLAN:5.18GHz~5.24GHz WLAN:5.745GHz~5.825GHz Others:Bluetooth:2402-2480MHz SRD:5730~5870MHz DevicecategoryPortable(<20cmseparation) Mobile(>20cmseparation) Others___ ExposureclassificationOccupational/Controlledexposure(S=5mW/cm2) GeneralPopulation/Uncontrolledexposure(S=1mW/cm2) AntennadiversitySingleantenna Multipleantennas Txdiversity Rxdiversity Tx/Rxdiversity Antennagain(Max) BLE/WiFi2.4G:2.13dBi SRD:2.83dBi EvaluationappliedMPEEvaluation SAREvaluation LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 Friistransmissionformula:Pd=(Pout*G)\(4*pi*R2) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainMw G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaand totalpowerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. MaxMeasurementResult Operating Mode Measured Power Tuneup tolerance Max.Tune upPower Antenna Gain Power densityat 20cm Power densityLimits (mW/cm2) (dBm)(dBm)(dBm)(dBi)(mW/cm2) BLE2.022.02±13.022.130.00071 2.4GWIFI18.0618.06±119.062.130.02621 Result:NoStandaloneSARtestisrequired.

Page1of23 AppendixTestData ReportNo.:18220WC20186701TestSampleNo.:1-2-2 StartTestDate:2022.8.15FinishTestDate:2022.8.25 TestEngineer:Auditor: Temperature:26.3 °C RelativeHumidity:47% Pressure:1012hPa AppendixA:DTSBandwidth TestResult TestModeAntennaFrequency[MHz]DTSBW[MHz]FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.6962401.6442402.3400.5PASS 24400.6802439.6642440.3440.5PASS 24800.6762479.6562480.3320.5PASS Page2of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page3of23 Page4of23 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaFrequency[MHz]OCB[MHz]FL[MHz]FH[MHz] BLE_1MAnt1 24021.03072401.49292402.5236 24401.03312439.49202440.5251 24801.02822479.49432480.5225 Page5of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page6of23 Page7of23 AppendixC:Maximumconductedoutputpower TestResultPeak TestModeAntennaFrequency[MHz] ConductedPeak Power[dBm] Conducted Limit[dBm] Verdict BLE_1MAnt1 24022.02≤30PASS 24401.69≤30PASS 24801.07≤30PASS Page8of23 TestGraphsPeak BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page9of23 Page10of23 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaFrequency[MHz]Result[dBm/3kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-13.2≤8.00PASS 2440-13.5≤8.00PASS 2480-14.13≤8.00PASS Page11of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page12of23 Page13of23 AppendixE:Bandedgemeasurements TestResult TestModeAntennaChNameFrequency[MHz]RefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low24021.18-56.06≤-18.82PASS High24800.01-57.49≤-19.99PASS Page14of23 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Page15of23 AppendixF:ConductedSpuriousEmission TestResult TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference0.600.60---PASS 30~10000.60-69.29≤-29.4PASS 1000~265000.60-53.99≤-29.4PASS 2440 Reference0.770.77---PASS 30~10000.77-70.16≤-29.23PASS 1000~265000.77-53.19≤-29.23PASS 2480 Reference-0.45-0.45---PASS 30~1000-0.45-70.46≤-30.45PASS 1000~26500-0.45-53.5≤-30.45PASS Page16of23 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 Page17of23 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Page18of23 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Page19of23 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Page20of23 Page21of23 AppendixG:DutyCycle TestResult TestModeAntennaFrequency[MHz]ONTime[ms] Period [ms] DutyCycle [%] DutyCycle Factor[dB] BLE_1MAnt1 24020.380.6360.322.20 24400.380.6360.322.20 24800.380.6360.322.20 Page22of23 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Page23of23 ---End---

ReportNo.:18220WC20186701FCCID:2A8KD-LVD01Page1of30 Code:AB-RF-05-b FCCTestReport ClientName:ShenzhenLindoTechnologyCo.,Ltd ClientAddress: Room203,Building1,1970Scienceand TechnologyPark,MinzhiCommunity,Minzhi Street,LonghuaDistrict,Shenzhen,518000, China ProductName:Dual-CamVideodoorbell ReportDate:Sept.21,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20186701FCCID:2A8KD-LVD01Page2of30 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................7 1.4.DescriptionofTestConfiguration..........................................................................................................7 1.5.DescriptionOfTestSetup......................................................................................................................8 1.6.TestEquipmentList.................................................................................................................................9 1.7.MeasurementUncertainty....................................................................................................................10 1.8.DescriptionofTestFacility...................................................................................................................10 2.SummaryofTestResults.................................................................................................................................11 3.ConductedEmissionTest................................................................................................................................12 3.1.TestStandardandLimit........................................................................................................................12 3.2.TestSetup...............................................................................................................................................12 3.3.TestProcedure.......................................................................................................................................12 3.4.TestData.................................................................................................................................................12 4.RadiationSpuriousEmissionandBandEdge.............................................................................................15 4.1.TestStandardandLimit........................................................................................................................15 4.2.TestSetup...............................................................................................................................................15 4.3.TestProcedure.......................................................................................................................................16 4.4.TestData.................................................................................................................................................17 5.MaximumPeakOutputPowerTest...............................................................................................................25 5.1.TestStandardandLimit........................................................................................................................25 5.2.TestSetup...............................................................................................................................................25 5.3.TestProcedure.......................................................................................................................................25 5.4.TestData.................................................................................................................................................25 6.6DBOccupyBandwidthTest..........................................................................................................................26 6.1.TestStandardandLimit........................................................................................................................26 6.2.TestSetup...............................................................................................................................................26 6.3.TestProcedure.......................................................................................................................................26 6.4.TestData.................................................................................................................................................26 7.PowerSpectralDensityTest...........................................................................................................................27 7.1.TestStandardandLimit........................................................................................................................27 7.2.TestSetup...............................................................................................................................................27 7.3.TestProcedure.......................................................................................................................................27 7.4.TestData.................................................................................................................................................27 8.100kHzBandwidthofFrequencyBandEdgeRequirement......................................................................28 8.1.TestStandardandLimit........................................................................................................…
