2A8LW-AK001Automatic Cat Litter Box

choueer.com ChouBoxAutomaticCatLitterBox InstructionManual PleaseReadThisInstructionManualBeforeUse TableofContents ImportantSafetyInstructions ChouBoxComponents Dimension SettingUpYourChouBox  Placement  Litter  PowerSupplyAndFirstUse ControlPanel  Buttonoperation  Settingoperations AppConnection Self-Cleaning SafetySensors  IRsensor+Hallsensors  Gravitysensors Deodorisationsystems  Odourremoval  Germicidal Dismantlingandroutinemaintenance  Recommendationoncleaningfrequency  Replacingtrashbags  Cleaning  Componentsthatcanberemovedandwashed ImportantSafetyInstructions  PleasereadthisguidethoroughlybeforeusingtheChouBox.  AlwaysplacetheChouBoxonafirm,levelsurface.Avoidsoft,unevenorunstable flooringasitmayaffectthesensorswhichinstalledinunittodetectyourcat.  Ifusingwithanetwork,pleaseusea2.4GWiFinetwork.Thedevicedoesnot support5GWiFinetwork.  ChouBoxissuitableforanyclumpingcatlitter.  AlwaysbesureanycatinyourhouseholdthatmightusetheChouBoxweighsat least2.5pounds.Catsmustweigh2.5poundsormoretosafelyusetheChouBoxin AutomaticMode.  NeverpushtheChouBoxagainstawallorintoacorner(mustnotbetouchingany walls).  NeverforceyourcatintotheChouBox.  NeversitonorplaceanythingontopoftheChouBox.  NeverallowchildrenorotherstoplaywiththeChouBox.  Iftheexternalpowersupplyisdamaged,pleasecontactusforareplacement. Warning: ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing twoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto protectreasonablyagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,uses,andradiatesradiofrequencyenergy,ifnotinstalledand usedinaccordancewiththeinstructions,itmaycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation. Supposethisequipmentdoescauseharmfulinterferencetoradioortelevision receptionwhichcanbedeterminedbyturningtheequipmentoffandon.Inthatcase, theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: -Reorientorrelocatethereceivingantenna -Increasetheseparationbetweentheequipmentandreceiver -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected -Consultthedealeroranexperiencedradio/TVtechnicianforhelp NOTE:Thisdeviceanditsantenna(s)mustnotbeco-locatedoroperatedinconjunction withanyotherantennaortransmitter. RFExposureStatement TomaintaincompliancewithFCC'sRFExposureguidelines,thisequipmentshouldbe installedandoperatedwithaminimumdistanceof20cmfromtheradiatorofyour body.Thisdeviceanditsantenna(s)mustnotbeco-locatedoroperatedinconjunction withanyotherantennaortransmitter. ChouBoxComponents UserManual AdaptorwithtypeCcable 1TrashBagRoll Dimensions SettingUpYourChouBox YourChouBoxcomesfullyassembledandreadytouse.Getstartedbyfollowingthe stepsbelow. Placement PlacethenewChouBoxinthesamespotasyourpreviouslitterbox. MakesuretheChouBoxisplacedonadry,firmandhardsurfacethatisleveled. Avoidingheatandhumidity. Locatetheunitnearapoweroutlet.Ensuretheunitisn'tpushedagainstawallor intoacorner(mustnotbetouchinganywalls). IfyouwanttocontrolyourChouBoxbyusingAPP,youhavetoplacetheChouBoxin aWi-Ficoveredarea. AllSize23×22×20.5inch FloorArea 449.5in2（20.4x22inch） EntrywayHeight9.8inch EntrywayArea188in2 Weight22pounds InsideballDiameter17.2×18.7inch InsideballWeight6pounds InsideballCapability3114in³(51L) WasteDrawerCapacity610in³(10L) OperatorNoise<35dB Litter Suitableforallclumpingcatlitteronthemarket.Werecommendchoosing clumpingbiodegradablecatlitterwhichislow-dust,unscentedandaparticlesize within20mm. PourthelitterintotheChouBox.Werecommendflatteningthelitterwithyour handafteraddingit,makingsureitisbelowthemaxline.(Volumeapprox.366in³ or6L)Otherwisesomeofthelittermayspillonthesealeddooroftheunopened litterbinwhenthemachineisinoperation. PowerSupplyAndFirstUse PlugtheType-CcableintothepowerinputatthebackoftheChouBoxbaseandthe machinewillstartoperating.Pleasefollowtheinstructionsonthepanel. PowerInput Maximumlitterlevelshouldnotbe higherthantheMaxline 1.5MAnti-biteType-CCable Input ： 110-240V Output：DC12V1A Warning:DONOTusethe Type-Ccablethatcamewith tochargeyourphone,it'sonly forChouBox. ControlPanel Buttonoperation Select:Turntheknob OK:Presstheknobonce Return:presstheknobtwice Topauseanactioninprogress:presstheknobonce Endinganactioninprogress:presstheknobtwice Forcedexit:longpressontheknob Settingoperations 1.Cleaningsettings Intelligentcleaning:setthetriggertimetoswitchtoautomaticcleaningmodeafter thecathaslefttheBall(default5minutes) Timedcleaning:setthefrequencyofcleaningatcertainintervals(default2hours) Manualcleaning:Executecleaningbyknob,orbyAPPterminal.(Kittenmode,for catsbelow2.5poundscannotberecognised) 2.Networkingsettings Rotatetheknobonthecontrolpanelandchoose"setting"—"Connect",thenopen the"Tuya"/"Smartlife"app. Whenthepanelshows"Connecting...",findyourdeviceonalistofproductsviathe appandaddyourstothelist. Ifthepairingissuccessful,ChouBoxwillbeepforonesecondandthemainpanel willshow"ChouBox",thentheWiFiiconwillbedisplayedonthetopleftcornerof thepanel.Ifthepairingisnotsuccessful,itwillautomaticallyexittothemain interface. 3.Languages: English(default),Chinese Knob AppConnection 1.Search"Tuya"or"Smartlife"onAppStoreorGooglePlaytodownload.(Both"Tuya" and"Smartlife"isavailableforChouBox,choosewhichiscompatiblewithyourmobile phone.) 2.OpentheTuya/SmartlifeAppandfollowtheinstructionswithintheapptoregister anaccount.(OruseyourexistingTuya/Smartlifeaccounttosignin). 3.Rotatetheknobonthecontrolpanelandchoose"setting"—"Connect",waitforthe screen(panel)shows"Connecting...". 4.Beforefindingyourdeviceonalistofp…

Text truncated - open the document above for the full version.

Co m Ad d Lon Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Sh dress: Roo nggang Dis oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: Shenzh enzhen Qin om 3708, 37 strict, Shen e: Automat er(s): AK00 ription: A u MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Jintian Li CTO Shenzhen hen Qing Agen ngyang Te 7th Floor, B nzhen, Gua tic Cat Litte 1 utomatic Ca bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect n Qingyang gyang T nt Auth chnology C Building 2A angdong, C er Box at Litter Bo Boulder Co erning the c allowed to f regulatory a cation. Any t as acts of g Technolo Technol horizat Co., Ltd. A, COFCO S China ox ourt, Pleasa certification forward all i agencies as and all acts our own. ogy Co., Ltd logy Co tion Shine City, anton, Califo of above na information s required a s carried ou Date: d. o., Ltd. , Ruyi Midd ornia 94566 amed equip related to t nd to discu ut by MiCOM Sept. 07, 2 dle Road, 6, USA, to pment. the approva ss any M Labs on 2022 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b In addi t in Title busine s authoriz For 4 O For 1 It is ou r corresp docume authoriz Sincer e Signatu Name: Title: C T of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2A8LW-A om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schemat Block Di Parts Lis Operatio Tune-up tional to abo 47 CFR §2 ss sensitive zed devices External Test Set Internal P User Ma 45 days, pu OR 180 days pu r understand pondence du ents and thi zation is iss ely, ure: Jintian Li TO She ing Techno cations Com s Road 046 for Confiden AK001 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp tic Diagram agram st onal Descrip Procedure ove mention .803 and th informatio n s, we reque Photos tup Photos Photos anual rsuant to P u ursuantto KD ding that all uring the ce s informatio sued. enzhen Qin logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption ned docume e importatio n remains c st Short Te ublic Notice DB 726920 l measurem ertification re on will be av ngyang Tec ssion’s rule old the follow nitely. m and equi e equipmen ould give co ents, in orde on rules in T confidential rm Confide e DA 04-170 0 D01. ment test rep eview proce vailable for chnology C s Title 47 S wing attach pment desc nt. The publ ompetitors a er to comply Title 47 CFR until the act ntiality of th 05. ports, FCC ess cannot public revi e Co., Ltd. Sections §0. hment(s) as criptions an ic disclosu r an unfair ad y with the m R §2.1204, tual market he following ID label for be granted ew once the Date: Sept. 457 and §0 confidentia d are consi re of these d vantage in marketing re while ensu ting of newly attachmen mat and as confide n e grant of eq . 07, 2022 0.459, we al dered as documents the market . egulations ring that y t(s); ntial quipment .

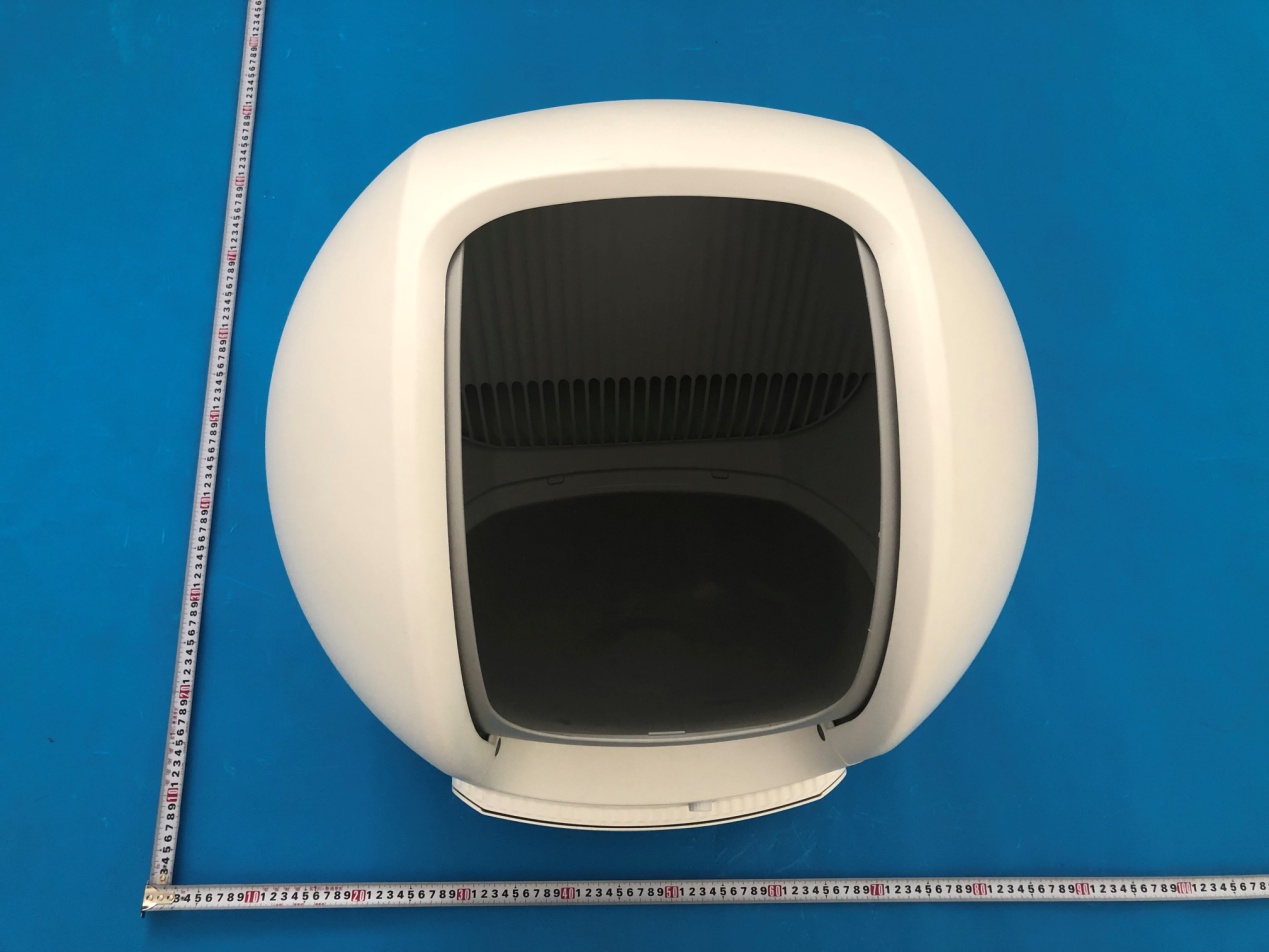

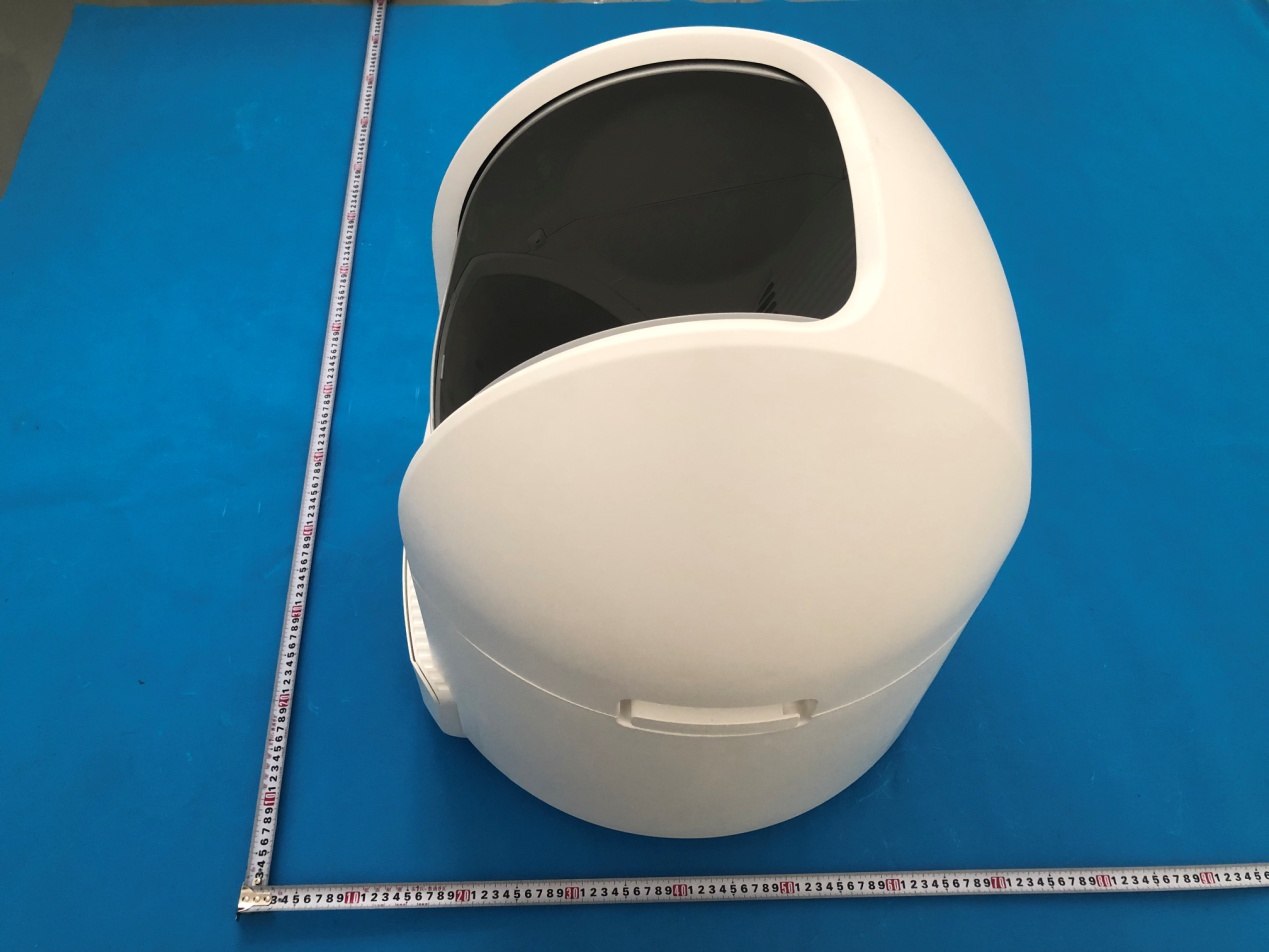

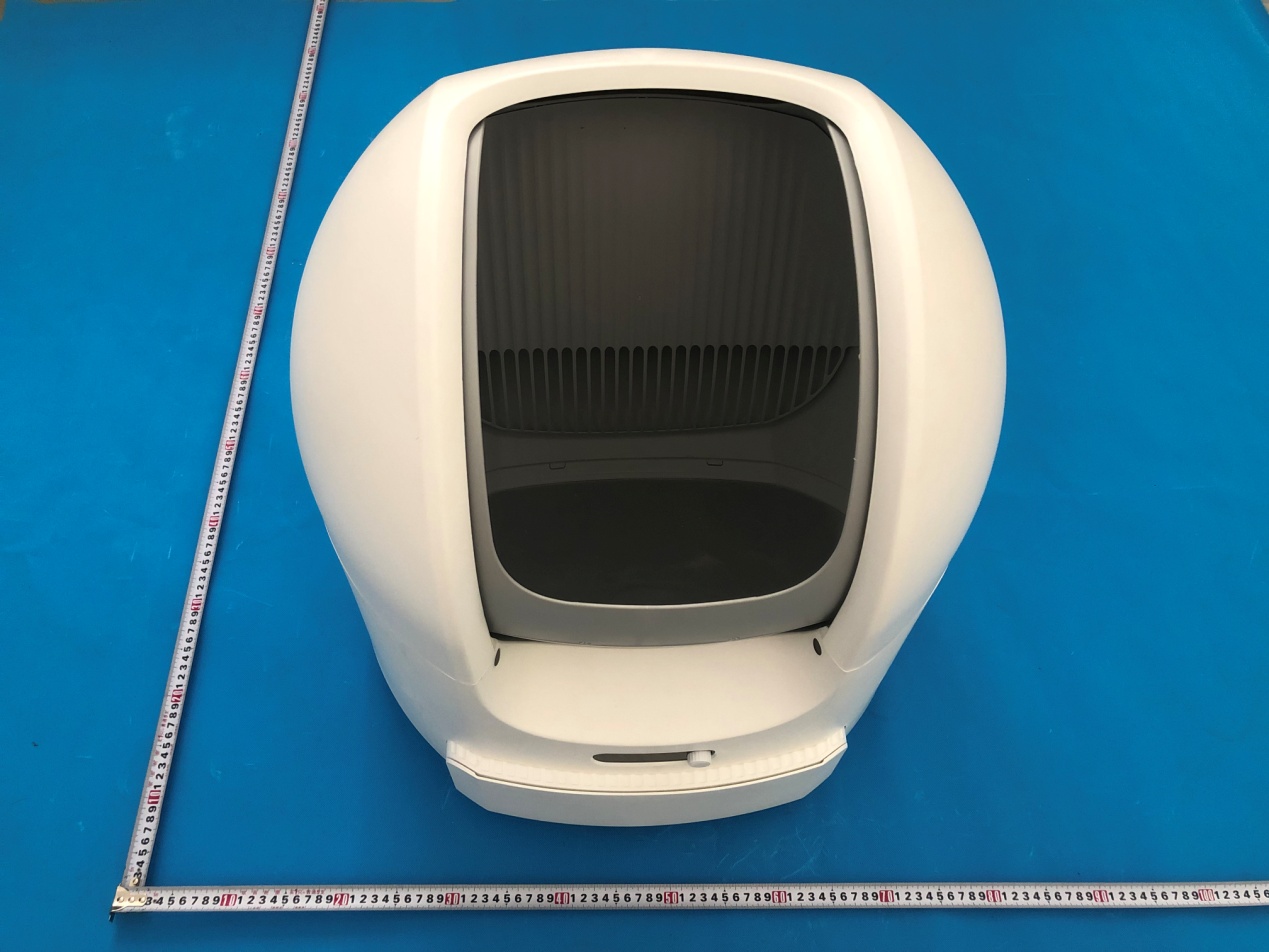

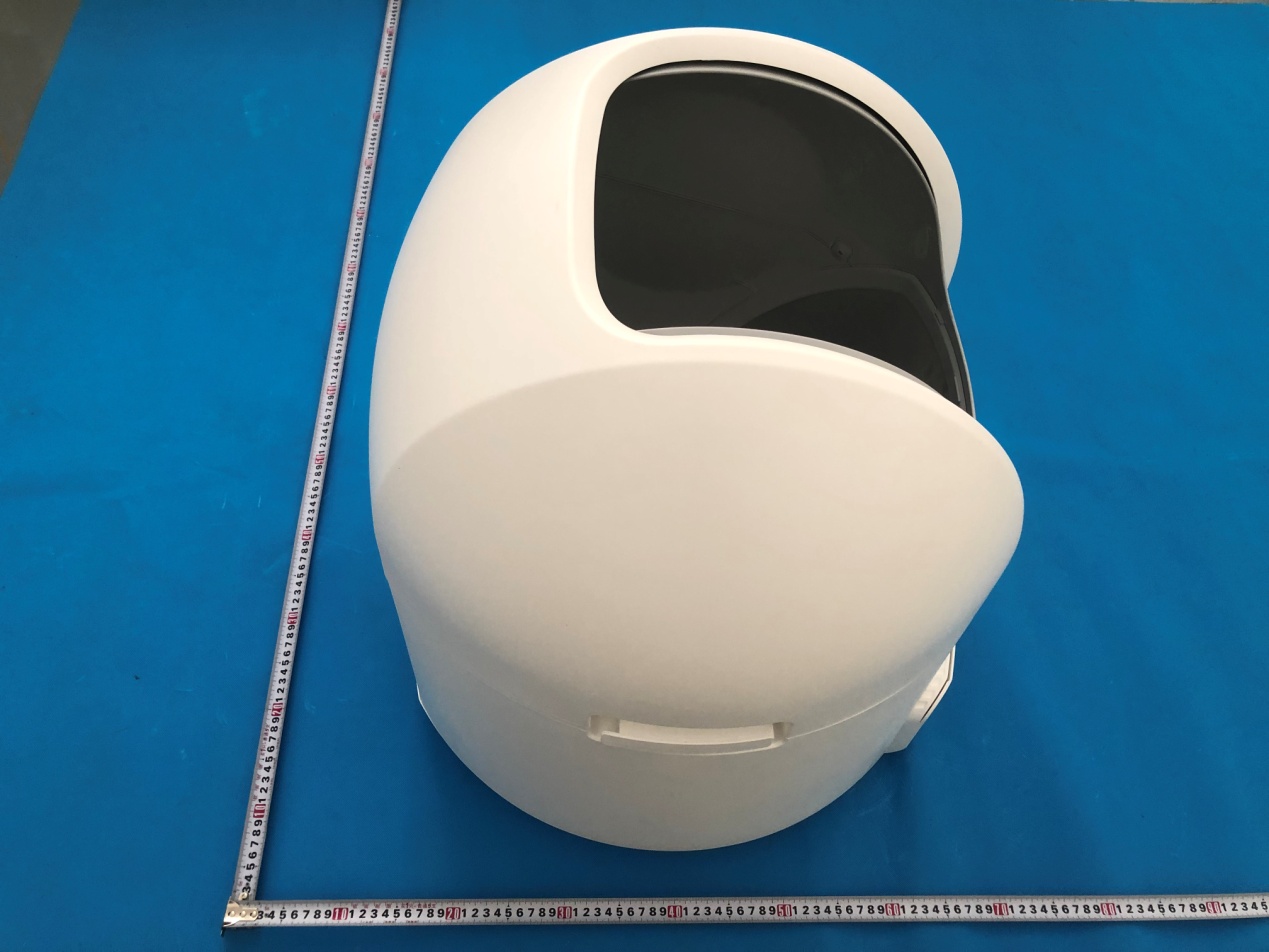

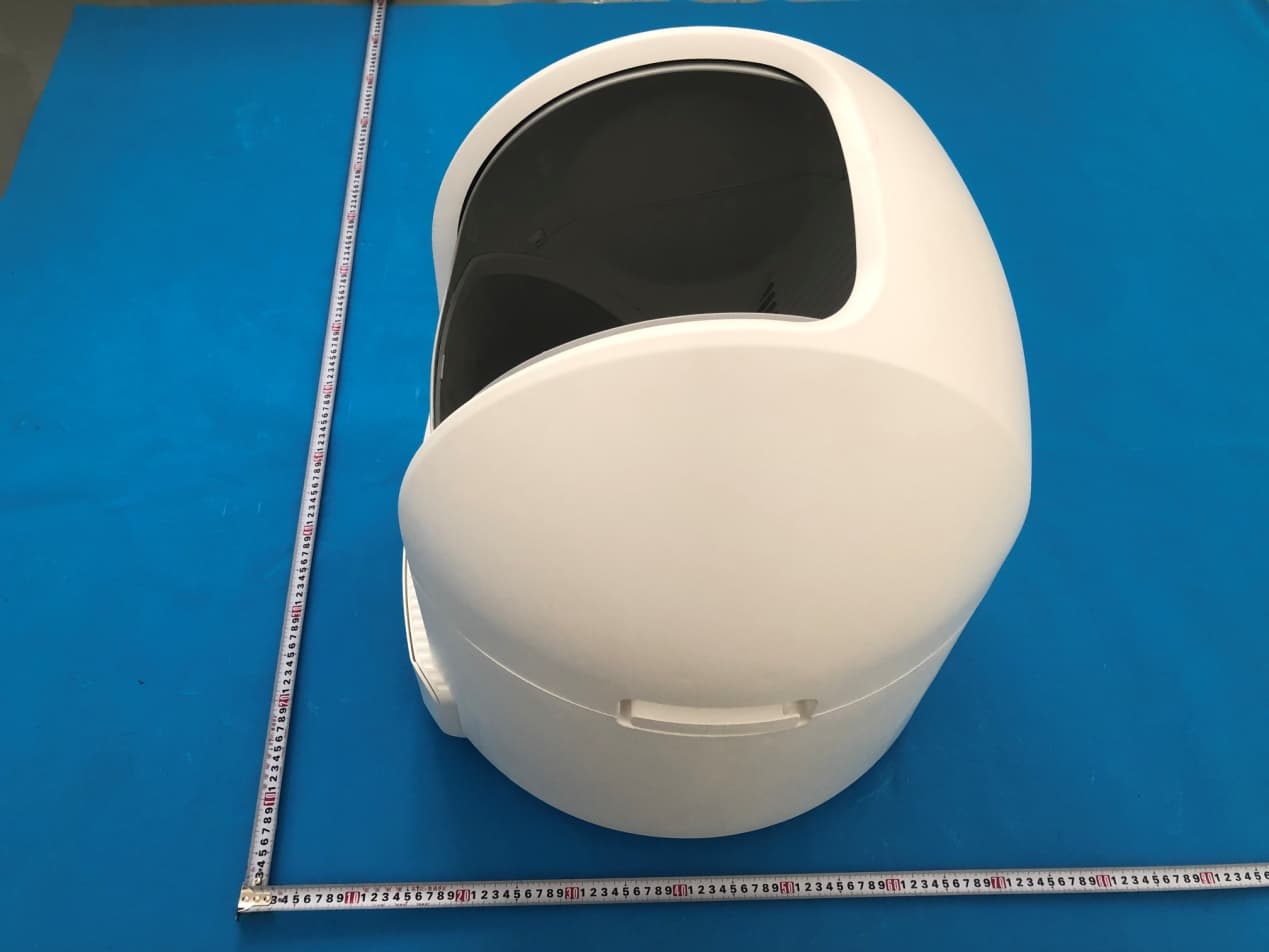

Annex A External Photos Model No.: AK001 Page 1 of 4 Model No.: AK001 Page 2 of 4 Model No.: AK001 Page 3 of 4 Model No.: AK001 Page 4 of 4

FCC ID LABEL: Label Location Width: 2cm Long: 4cm FCC ID: 2A8LW-AK001 Product name: Automatic Cat Litter Box Model No.: AK001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Annex B Internal Photo Model No.: AK001 Page 1 of 3 Model No.: AK001 Page 2 of 3 Antenna Model No.: AK001 Page 3 of 3

MPE ESTIMATION FCC ID: 2A8LW-AK001 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) BT 0.23 0±1(1) 1.26 2.54 1.79 0.00045 2.4GWIFI 20.37 20±1(21) 125.89 2.54 1.79 0.04485 Note: Note: The estimation distance is 20cm The device could not transmit simultaneously in 2.4G and BT. Note: PK Output power= conducted power. Conducted power see the test report HK2207143067-1E/2E. Gantenna gain=2.54dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.04485mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 43 Report No.: HK2207143067-2E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Shenzhen Qingyang Technology Co., Ltd. For Automatic Cat Litter Box Model No.: AK001 FCC ID: 2A8LW-AK001 Prepared For : Shenzhen Qingyang Technology Co., Ltd. Room 3708, 37th Floor, Building 2A, COFCO Shine City, Ruyi Middle Road, Longgang District, Shenzhen, Guangdong, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jul. 14, 2022 ~ Aug. 16, 2022 Date of Report: Aug. 16, 2022 Report Number: HK2207143067-2E Page 2 of 43 Report No.: HK2207143067-2E TEST RESULT CERTIFICATION Applicant’s name ................... : Shenzhen Qingyang Technology Co., Ltd. Address .................................... : Room 3708, 37th Floor, Building 2A, COFCO Shine City, Ruyi Middle Road, Longgang District, Shenzhen, Guangdong, China Manufacture's Name .............. : Shenzhen Qingyang Technology Co., Ltd. Address .................................... : Room 3708, 37th Floor, Building 2A, COFCO Shine City, Ruyi Middle Road, Longgang District, Shenzhen, Guangdong, China Product description Trade Mark: IXIPET Product name ............................. : Automatic Cat Litter Box Model and/or type reference .. : AK001 Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Jul. 14, 2022 ~ Aug. 16, 2022 Date of Issue ............................................. : Aug. 16, 2022 Test Result ................................................. : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 43 Report No.: HK2207143067-2E Contents Page 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ................................................................................................................................ 6 1.2 MEASUREMENT UNCERTAINTY ............................................................................................................ 7 1.3 INFORMATION OF THE TEST LABORATORY ....................................................................................... 7 2 GENERAL INFORMATION ............................................................................................................................. 8 2.1 GENERAL DESCRIPTION OF EUT .......................................................................................................... 8 2.2 DESCRIPTION OF TEST CONDITIONS ................................................................................................... 9 2.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 3 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 4 TEST RESULT .............................................................................................................................................. 13 4.1 ANTENNA REQUIREMENT .................................................................................................................... 13 4.1.1 Standard requirement ...................................................................................................................... 13 4.1.2 EUT Antenna ................................................................................................................................... 13 4.2 CONDUCTION EMISSIONS MEASUREMENT ...................................................................................... 14 4.2.1 Applied procedures / Limit ............................................................................................................... 14 4.2.2 Test procedure ................................................................................................................................. 14 4.2.3 Test setup ........................................................................................................................................ 15 4.2.4 Test results ...................................................................................................................................... 16 4.3 RADIATED EMISSIONS MEASUREMENT............................................................................................. 18 4.3.1 Applied procedures / Limit ............................................................................................................... 18 4.3.2 Test setup ........................................................................................................................................ 18 4.3.3 Test Result ....................................................................................................................................... 20 4.4 MAXIMUM OUTPUT POWER MEASUREMENT .................................................................................... 27 4.4.1 Limit ................................................................................................................................................. 27 4.4.2 Test procedure ................................................................................................................................. 27 4.4.3 Deviation from s…

Text truncated - open the document above for the full version.

Page 1 of 60 Report No.: HK2207143067-1E FCC TEST REPORT Test report On Behalf of Shenzhen Qingyang Technology Co., Ltd. For Automatic Cat Litter Box Model No.: AK001 FCC ID: 2A8LW-AK001 Prepared For : Shenzhen Qingyang Technology Co., Ltd. Room 3708, 37th Floor, Building 2A, COFCO Shine City, Ruyi Middle Road, Longgang District, Shenzhen, Guangdong, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jul. 14, 2022 ~ Aug. 16, 2022 Date of Report: Aug. 16, 2022 Report Number: HK2207143067-1E Applican Address Manufa c Address Product Trade M a Product n Model an Standard This publ the Shen source o f and will n reproduc Date of T Date (s) o Date of Is Te s t R e su nt’s name .. .................. cture's Nam .................. descriptio ark: name ........... nd/or type re ds .............. lication may zhen HUAK f the materi not assume ed material Test ............ of performan ssue ........... ult ............... Te s Te c Aut TES ................: ................: me .............: ................: n .................. : eference .: ................: y be reprod K Testing Te al. Shenzhe liability for due to its p .................. nce of tests .................. .................. sting Engine chnical Man thorized Sig ST RESU Shenzhen Room 370 Middle Ro Shenzhen Room 370 Middle Ro IXIPET Automatic AK001 FCC Rule ANSI C63 uced in who echnology C en HUAK Te damages re placement a .............. : s ............. : .............. : .............. : eer : nager : gnatory : Page 2 of ULT CER n Qingyang 08, 37th Flo oad, Longga n Qingyang 08, 37th Flo oad, Longga c Cat Litter es and Regu 3.10: 2013 ole or in par Co., Ltd. is a esting Tech esulting from and context Jul. 14, 202 Aug. 16, 20 Pass 60 RTIFICAT Technology oor, Building ang District Technolog y oor, Building ang District Box ulations Part rt for non-co acknowledg nology Co., m the reade t. 22 ~ Aug. 16 022 (Gary Qi a (Eden H u (Jason Zho Report N TION y Co., Ltd. g 2A, COFC , Shenzhen y Co., Ltd. g 2A, COFC , Shenzhen t 15 Subpar ommercial p ged as copy , Ltd. takes er's interpre 6, 2022 an) u) ou) No.: HK2207 CO Shine C n, Guangdon CO Shine C n, Guangdon rt C Section purposes as yright owner no respons etation of the 143067-1E ity, Ruyi ng, China ity, Ruyi ng, China 15.247 s long as r and sibility for e Page 3 of 60 Report No.: HK2207143067-1E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS .......................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. TEST RESULT .................................................................................................................................. 14 4.3. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.4. EMISSION BANDWIDTH .................................................................................................................. 18 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 23 4.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ................................. 28 4.7. RADIATED SPURIOUS EMISSION MEASUREMENT .................................................................... 36 5. ANTENNA REQUIREMENT ..................................................................... 57 6. PHOTOGRAPH OF TEST ........................................................................ 58 7. PHOTOS OF THE EUT ............................................................................ 60 Page 4 of 60 Report No.: HK2207143067-1E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Aug. 16, 2022 Jason Zhou Page 5 of 60 Report No.: HK2207143067-1E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247(b)(4) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247(b)(3) PASS 6dB Emission Bandwidth §15.247(a)(2) PASS Power Spectral Density §15.247(e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to th…

Text truncated - open the document above for the full version.

SHANGHAI DEMAN INFORMATION TECHNOLOGY CO.,LTD. CUSTOMER NAME: PRODUCT NAME: Ren Feng P/N: Page 1 Ren Feng P/N: WRITED: 20200120 DATE: AVERSIONS: Hangzhou TUYA Wang Long WBR3 WBR3 PCB ANTENNA Measurement data Page 2 Frequency (MHz) 240024502500 Return Loss-8.73-11.76-11.21 VSWR 2.161.711.77 Radiation pattern Z Y Page 3 X Directivity Diagram Z Y X XY XZ Page 4 YZ Freq.（MHz）Effi(%)Gain (dBi) 2400 52.29 1.62 2410 52.17 1.71 2420 53.14 1.93 2430 54.16 1.98 Efficiency&Gain Page 5 2440 57.62 2.00 2450 59.64 2.17 2460 61.55 2.45 2470 60.64 2.38 2480 62.86 2.54 2490 59.85 2.30 2500 60.41 2.49
