2A8ME-S5T12 Remote Controller

Shenzhen Telesin Digital Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: AOCE Corporation Inc. FRN: 0033401381 Contact Name: Johnson.wang Address: 6547 N Academy Bivd #2266, Colorado Springs, CO,80918 United States Telephone No: +1-346-582-5234 Email: [email protected] This letter is to confirm that we (AOCE Corporation Inc.) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024-04-11 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Telesin Digital Ltd FRN: 0032855728 FCC ID: 2A8ME-S5 Contact Name: Hai Liang Xie Address: Room 526, 5/F, Block B, Bairuida Building, Vanke City Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China. 518000 Telephone No: 13450116503 Email: [email protected] Applicant Signature: Date: 2024-04-11 Signed by (Printed Name/Title): Hai Liang Xie / Manager

Shenzhen Telesin Digital Ltd 2024.04.25 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2A8ME-S5 [Shenzhen Telesin Digital Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Hai Liang Xie Shenzhen Telesin Digital Ltd 2024.04.25 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2A8ME-S5 [Shenzhen Telesin Digital Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Hai Liang Xie

Shenzhen Telesin Digital Ltd 2024.04.25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Hai Liang Xie / Manager Contact information / address: Room 526, 5/F, Block B, Bairuida Building, Vanke City Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China. 518000

Shenzhen Telesin Digital Ltd 2024.04.25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: T12 Remote Controller Trademark: TELESIN MODEL : S5-RMT-01-TGP FCC ID : 2A8ME-S5 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Hai Liang Xie / Manager Contact information / address: Room 526, 5/F, Block B, Bairuida Building, Vanke City Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China. 518000

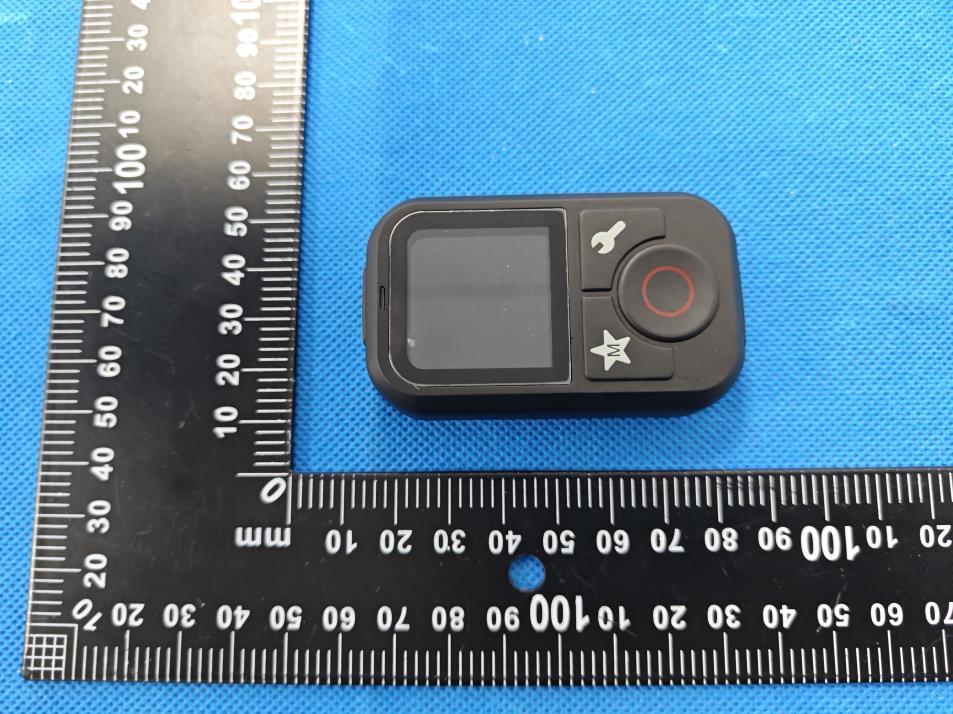

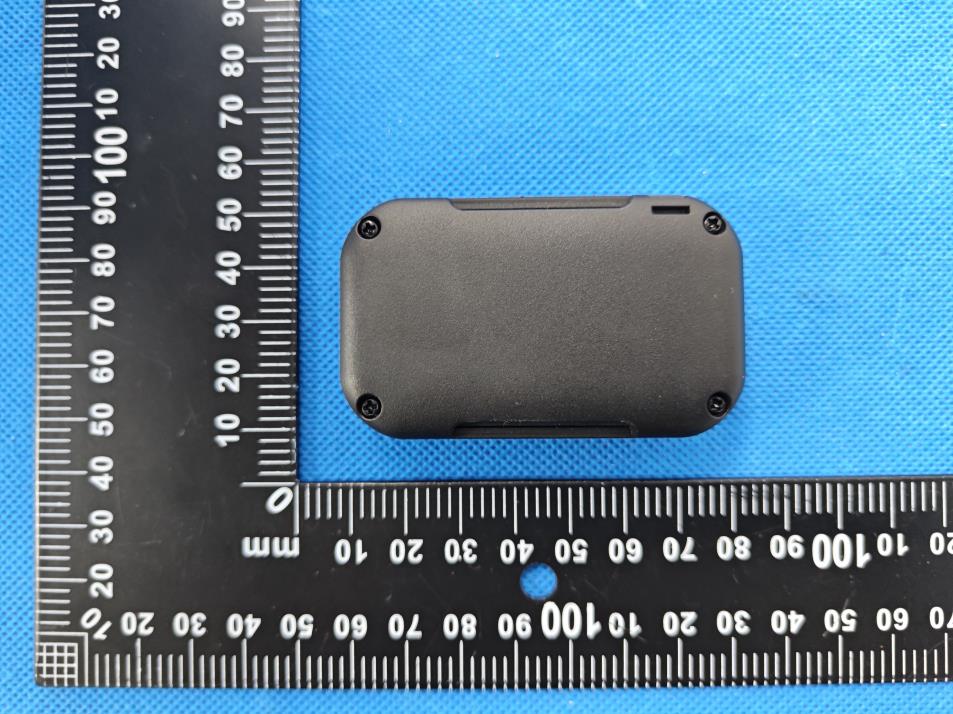

Report No.: BCTC2403425958E External Photos Report No.: BCTC2403425958E Report No.: BCTC2403425958E Report No.: BCTC2403425958E Report No.: BCTC2403425958E

Size:20*10mm T12 Remote Controller FCC ID: 2A8ME-S5 Label location

Report No.: BCTC2403425958E Internal Photos Report No.: BCTC2403425958E Antenna Report No.: BCTC2403425958E Report No.: BCTC2403425958E

RF EXPOSURE EVALUATION METHOD FCC ID: 2A8ME-S5 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402 -0.58 30 Pass NVNT BLE 1M 2440 -0.08 30 Pass NVNT BLE 1M 2480 0.49 30 Pass NVNT BLE 2M 2402 -0.61 30 Pass NVNT BLE 2M 2440 -0.08 30 Pass NVNT BLE 2M 2480 0.48 30 Pass max possible output power (PK,conducted)：0±1dBm -4.78dBi logarithmic terms convert to numeric result is nearly 0.33 1dBm=1.26mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.402=0.391≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.44=0.394≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.26/5*√2.48=0.397≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

深圳市大泽无线技术有限公司 Shenzhen Daze Wireless Technology Co., Ltd 产品规格书 specification 客户名称 (Custome) 客户产品编码（Customer product coding） 产品名称（product name） 产品型号（product model） T-12 产品编码（product code） 10023022 产品规格 （product standard） 1.13 Double tin wire，black，58±0.5mm， IPEX， 0-30-0， ROHS2.0 拟制日期（date） 2024-03-20 版 本（edition） V1.0 ADD: 3rd Floor, Building 2, Fenda Science Park, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen 1 / 13 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 2/13 变更履历 changeresume 版本 edition 日期 edition 变更描述 Designchangedescription 备注 remark V1.02024-03-20 初版 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 3/13 目录 catalogue 1.封面cover...................................1 2.变更履历changeresume.......................2 3.目录catalogue...............................3 4.产品图片productpicture.....................4 5.产品规格ProductSpecifications.............5 6.测试环境Testenvironment..................6 7.环境可靠性测试EnvironmentalPerformance...7 8.测试数据Testdata.........................8 9.工程图Engineeringdrawings................13 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 4/13 4·产品图片productpicture 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 5/13 5·产品规格ProductSpecifications 材质/material直径/Diameter(mm) 内导体 InnerConductor 镀银铜/镀锡铜线SC/TCWire0.15±0.02 绝缘层 Insulation 聚全氟乙丙烯FEP/全氟烷氧基 树脂PFA 0.41±0.02 外导体 OuterConductor 镀银铜/镀锡铜线SC/TCWire0.60±0.05 护套 Jacket 聚全氟乙丙烯FEP/全氟烷氧基 树脂PFA 0.81±0.05 MechanicalSpecifications 数值/Value单位/Unit 特性阻抗/Impedance50±2Ω 线材规格&线长CableType&Length1.13双锡黑色线，L=58±1mm 连接器型号ConnectType 一代国产IPEX / 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 6/13 6·测试环境Testenvironment 网络分析仪：安捷伦5071B NetworkAnalyzer:Agilent5071B 综合测试仪：R&SCMW500(2/3/4G/NB-IoT/W/BT)；AnritsuMT80000A Comprehensivetester:R&SCMW500(2/3/4G/NB-IoT/WIFI/BT);Anritsu 80000A 新益SY-24L ：5GSISO/MIMO,400MHz–8.5GHz XinYiSY-24LChamber5G(FR1)SISO/MIMO,400MHz–8.5GHz 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 7/13 7·环境可靠性测试/EnvironmentalPerformance /EnvironmentalPerformance 测试项目 TestDescription 测试程序和条件 TestProcedures&Condition 测试要求 Requirements 盐雾测试 SaltSprayTest 测试条件(DecayTestConditions)： 35°C±2°C的密闭环境中，湿度＞85%，PH值在 6.5-7.2范围内，用5%±1%的Nacl溶液 持续时间(Ina35°C±2°Cairtight environment,humidity>85%,PHinthe range6.5-7.2,with5%±1%Nacl solutionDuration) :48小时Duration:48hours 1.外观良好(Noevidenceof damage) 2.电气性能符合产品规格要求 (Electricalperformanceinline withproductspecifications) 高温试验 Hightemperature test 测试条件(DecayTestConditions)： 温度:80°C(Temperature:80°C) 持续时间:24小时 Duration:24hours 1.外观良好(Noevidenceof damage) 2.电气性能符合产品规 格要求( Electricalperformanceinline withproductspecifications ) 低温试验 LowTemperature test 测试条件(DecayTestConditions)： 温度:-20±2°C(Temperature:-20±2°C) 持续时间:24小时Duration:24 hours 1.外观良好(Noevidence ofdamage) 2.电气性能符合产品规格要求 ( Electricalperformanceinlinewith productspecifications) 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 8/13 8·测试数据Testdata 8.1效率Efficiency Frequency(MHz) 240024502500 Efficiency(%) 8.29.439.63 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 9/13 8.2增益Gain Frequency(MHz) 240024502500 Gain -5.62-4.98-4.78 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 10/13 8.3方向辐射图RadiationPatterns 2400MHz 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 11/13 2450MHz 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 12/13 2500MHz 深圳市大泽无线技术有限公司 ShenzhenDazeWirelessTechnologyCo.,Ltd 13/13 9·工程图Engineeringdrawings

No.：BCTC/RF-EMC-005 Page: 1 of 53 Edition：B.1 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2403425958E Applicant: Shenzhen Telesin Digital Ltd Product Name: T12 Remote Controller Test Model: S5-RMT-01-TGP Tested Date: 2024-03-26 to 2024-04-09 Issued Date: 2024-04-09 Report No.: BCTC2403425958E No.：BCTC/RF-EMC-005 Page: 2 of 53 Edition：B.1 FCC ID: 2A8ME-S5 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: T12 Remote Controller Trademark: TELESIN Model/Type reference: S5-RMT-01-TGP Prepared For: Shenzhen Telesin Digital Ltd Address: Room 526, 5/F, Block B, Bairuida Building, Vanke City Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China. 518000 Manufacturer: Dongguan Thaisam Industrial Co.,Ltd. Address: Room 601, Building 1, No. 29 Dalangshuixin Road, Dalang Town, Dongguan City, Guangdong Province, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-03-26 Sample tested Date: 2024-03-26 to 2024-04-09 Issue Date: 2024-04-09 Report No.: BCTC2403425958E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2403425958E No.：BCTC/RF-EMC-005 Page: 3 of 53 Edition：B.1 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT operating Conditions ................................................................................... 25 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test Procedure ................................................................................................... 27 9.4 EUT Operating Conditions .................................................................................. 27 9.5 Test Result .............................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2403425958E No.：BCTC/RF-EMC-005 Page: 51 of 53 Edition：B.1 15. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.: BCTC2403425958E No.：BCTC/RF-EMC-005 Page: 52 of 53 Edition：B.1
