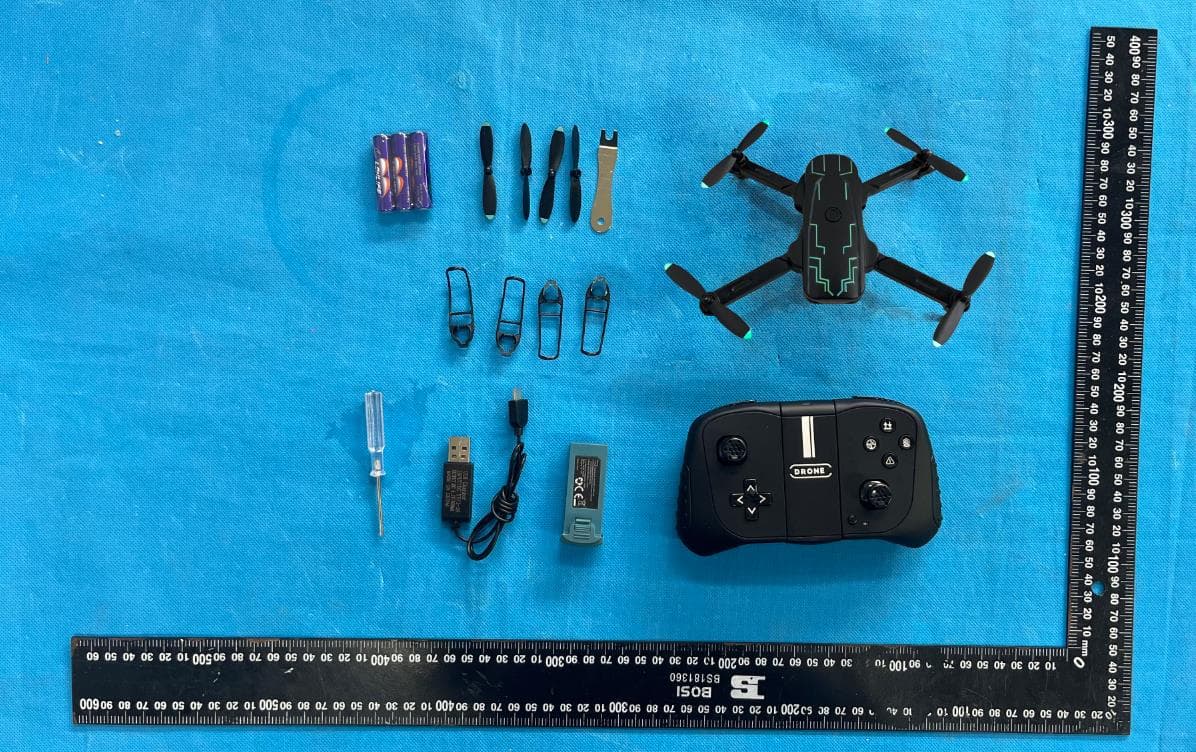

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9 Fig.10

Label Location FCC ID: 2A8MFBJS17

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 Fig.3 Fig.4 SRD Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Fig.5

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results TestMode Antenna Frequency[MHz] Result[dBm] SRD Ant1 2420 -5.28 SRD Ant1 2445 -5.35 SRD Ant1 2475 -6.12 Manufacturing tolerance SRD (Peak) Channel Channel 0 Channel 30 Channel 55 Target (dBm) -6 -6 -6.5 Tolerance ±(dB) 1 1 1 Results Test Mode Max Conducted Tune Up Power(dBm) Max of ERP and Conducted Power including Tune Up (dBm) Max of ERP and Conducted Power including Tune Up (mW) Exemption Limit(mW) SRD -5.0 -5.0 0.32 3 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The antenna gain of the EUT for BT is 0.17dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

东莞市利信威电子有限公司 天线规格承认书 Antenna Specification for Approval 客户名称 Customer Name： 海迪电子 产品名称 ： Product Name： 2.4G天线 全长65MM 客户型号 ： Product Name: 产品料号 ： Part NO.: 65 MM天线 制 表： Write By： 周 敏 日 期： Issued Date: 201 8-11 -08 客 户: 工程R&D Dept 采购Business Dept 承认 Approved By 利 信 辉 研发R&D Dept 工程 Engineer Dept 审核 Approval 第 蹋 ㄩ MATERIAL 机瞄 ㄩ CHECKING 錨璃晤瘍 ㄩ PART NO. 錨璃靡備 ㄩ PART TITLE DATE   ㄩ 掀瞰 ㄩ DRWING 秶芞 ㄩ 等弇 ㄩ SCALE UNIT IN VER. 唳棒 ㄩ 鼎茼妀  靡 ㄩ SUPPLIER CFM    趼 揭杅 載蜊囀  梓暮 Product Specification A.Electrical Characteristics Frequency 2400MHz ~2500MHz VSWR <3.0 Efficiency >30% Impedance 50 Ohm Polarization Line Gain 0.17dBi B.Material & Mechanical Characteristics Material of Radiator Cu Cable Type 1.0 灰色 Connector Type : NO Dimension C.Environmental Operation Temperature - 30 °C ~ + 80 °C Storage Temperature - 30 °C ~ + 85 °C Test Equipment & Conditions 1． Network Analyzers : Agilent 8753D 5071B 2． Communications Test Set: Agilent E5515C 3． 3D Chamber Test System Effiency &Gain 2.40 -0.01 2.440 0.12 2.48 0.17 Radiation Pattern:

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 1 of 19 Appendix Test Data for SRD (Conducted Measurement) Product Name: Mini Foldable DRONE Trade Mark: N/A Test Model: S17 FCC ID: 2A8MFBJS17 Environmental Conditions Temperature: 22.8 C Relative Humidity: 56% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD Ant1 2420 0.868 2419.604 2420.472 0.5 PASS SRD Ant1 2445 0.868 2444.612 2445.480 0.5 PASS SRD Ant1 2475 0.972 2474.616 2475.588 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 2 of 19 Test Graphs BLE_1M-Ant1-2420-PASS BLE_1M-Ant1-2445-PASS BLE_1M-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant1 2420 1.6300 2418.9663 2420.5963 --- --- SRD Ant1 2445 1.7061 2444.2344 2445.9405 --- --- SRD Ant1 2475 1.8458 2473.9184 2475.7642 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 4 of 19 Test Graphs BLE_1M-Ant1-2420 BLE_1M-Ant1-2445 BLE_1M-Ant1-2475 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 5 of 19 Appendix C: Maximum peak conducted output power Test Result Peak TestMode Antenna Frequency [MHz] Conducted Peak Power[dBm] Conducted Limit[dBm] Verdict SRD Ant1 2420 -5.28 ≤30 PASS SRD Ant1 2445 -5.35 ≤30 PASS SRD Ant1 2475 -6.12 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 6 of 19 Test Graphs Peak BLE_1M-Ant1-2420-PASS BLE_1M-Ant1-2445-PASS BLE_1M-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 7 of 19 Appendix D: Maximum peak power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict SRD Ant1 2420 -10.99 ≤8.00 PASS SRD Ant1 2445 -10.03 ≤8.00 PASS SRD Ant1 2475 -11.56 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 8 of 19 Test Graphs BLE_1M-Ant1-2420-PASS BLE_1M-Ant1-2445-PASS BLE_1M-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 Low 2420 -5.52 -49.8 ≤-25.52 PASS SRD Ant1 High 2475 -6.38 -49.3 ≤-26.38 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 10 of 19 Test Graphs BLE_1M-Ant1-2420-PASS BLE_1M-Ant1-2475-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency [MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 2420 0~Reference -5.65 -5.65 --- PASS SRD Ant1 2420 30~1000 -5.65 -62.6 ≤-25.65 PASS SRD Ant1 2420 1000~26500 -5.65 -49.45 ≤-25.65 PASS SRD Ant1 2445 0~Reference -6.98 -6.98 --- PASS SRD Ant1 2445 30~1000 -6.98 -62.97 ≤-26.98 PASS SRD Ant1 2445 1000~26500 -6.98 -49.02 ≤-26.98 PASS SRD Ant1 2475 0~Reference -5.88 -5.88 --- PASS SRD Ant1 2475 30~1000 -5.88 -62.72 ≤-25.88 PASS SRD Ant1 2475 1000~26500 -8.11 -49.86 ≤-28.11 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 12 of 19 Test Graphs BLE_1M-Ant1-2420-0~Reference-PASS BLE_1M-Ant1-2420-30~1000-PASS BLE_1M-Ant1-2420-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 13 of 19 BLE_1M-Ant1-2445-0~Reference-PASS BLE_1M-Ant1-2445-30~1000-PASS BLE_1M-Ant1-2445-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 14 of 19 BLE_1M-Ant1-2475-0~Reference-PASS BLE_1M-Ant1-2475-30~1000-PASS BLE_1M-Ant1-2475-1000~26500-PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] SRD Ant1 2420 0.41 16.07 2.55 15.93 SRD Ant1 2445 0.44 16.09 2.73 15.64 SRD Ant1 2475 0.42 16.08 2.61 15.83 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 16 of 19 Test Graphs NTNV-BLE_1M-Ant1-2420 NTNV-BLE_1M-Ant1-2445 NTNV-BLE_1M-Ant1-2475 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Frequency [MHz] Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict SRD Ant1 Low 2420 Peak 2390.000 -50.17 ≤-21.20 45.03 ≤74 PASS SRD Ant1 Low 2420 Peak 2310.000 -50.75 ≤-21.20 44.45 ≤74 PASS SRD Ant1 Low 2420 Peak 2389.175 -45.09 ≤-21.20 50.11 ≤74 PASS SRD Ant1 Low 2420 AV 2390.000 -44.52 ≤-41.20 50.68 ≤54 PASS SRD Ant1 Low 2420 AV 2310.000 -44.54 ≤-41.20 50.66 ≤54 PASS SRD Ant1 Low 2420 AV 2351.906 -43.54 ≤-41.20 51.66 ≤54 PASS SRD Ant1 High 2475 Peak 2483.500 -40.85 ≤-21.20 54.35 ≤74 PASS SRD Ant1 High 2475 Peak 2500.000 -48.14 ≤-21.20 47.06 ≤74 PASS SRD Ant1 High 2475 Peak 2484.080 -36.54 ≤-21.20 58.66 ≤74 PASS SRD Ant1 High 2475 AV 2483.500 -43.7 ≤-41.20 51.50 ≤54 PASS SRD Ant1 High 2475 AV 2500.000 -43.94 ≤-41.20 51.26 ≤54 PASS SRD Ant1 High 2475 AV 2483.600 -42.17 ≤-41.20 53.03 ≤54 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A8MFBJS17 Report No.: TZ240505757-SRD Page 18 of 19 Test Graphs BLE_1M-Ant1-2420-PASS BLE_1M-Ant1-2420-PASS BLE_1M-Ant1-2…
