2A8MI-AMP06GEEK ONE

Geek One Mic Quick Start Guide Manual v1.0 www.geekone.co TX Interface www.geekone.co RX Interface www.geekone.co www.geekone.co www.geekone.co TX www.geekone.co www.geekone.co www.geekone.co www.geekone.co www.geekone.co QUICK GUIDE WITH ANALOG OUTPUT I. Attached Rx to record device with 3.5mm TRS or TRRS cable II. Power on Rx & Tx III. Adjust Rx gain level for suitable level IV. Adjust Rx output mode as Mono or Stereo V. Start your recording QUICK GUIDE WITH USB OUTPUT II. Attached Rx to record device with 3.5mm TRS or TRRS cable II. Power on Rx & Tx III. Adjust Rx gain level for suitable level IV. Adjust Rx output mode as Mono or Stereo V. Start your recording WARRANTY SERVICE Scan the QR code then input the required information to confirm your One-Year- Warranty service. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: -Reorient the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

C5266091_X23_Ed.1 1/1 US AGENT LETTER OF ATTESTATION US Agent: Company Name: UGK-LVM UNITED INC Contact Name:Jimmy chen Address:6547 N Academy Blvd #2266,Colorado Springs, CO 80918 Telephone No:001-323-5104660 Fax No:001-323-5104660 Email:[email protected] FRN:0033476375 TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 This letter is to confirm that we have accepted the responsibility to act asUS agent representative on behalf of the (Shenzhen Soundsoul Information Technology Co.,Ltd.) noted below for all future FCC certification/registrations obtained during the period of this agreement, which ends at the specified date below. As per US agent, we are aware of the requirements involved as outlined in FCCEquipment Authorization Program in their Report and Order FCC 22-84 and the clause § 2.911 Application requirements. Applicant Company name: Grantee code: FCC ID: Nanjing Yixin Electronic Technology Co., LTD 2A8MI 2A8MI-AMP06 Contact Name: Xiangxu Zhu Address: Ro om 2292, Fuying Building, No.99,Tuanjie Road,Nanjing, Jiangsu pilot free trade zone. Telephone No: +86 13760257887 Fax No: Email: [email protected] The Applicant acknowledge the acceptance of its obligation to maintain anagent for service of process in the United States for no less than one year after eitherthe grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Date: 2023-03-016 Applicant’s Name: Xiangxu Zhu US Agent’s Name:Jimmy chen Title: / Title: Signature ： Signature

ProductName:GEEKONE ModelNo.:AMP06 FCCID:2A8MI-AMP06 Thedevicehave2kindproduct,TXversionandRX version,the2versionhavesameRFcircuitand componentbutAntennaisdifferent,forotherelectrical part,theyaremostlysame,exceptminorlayout differenceandminorcircuitdifference,theyhaveminor differentappearance. <Signature> Name:XiangxuZhu Applicant:NanjingYixinElectronicTechnologyCo.,LTD

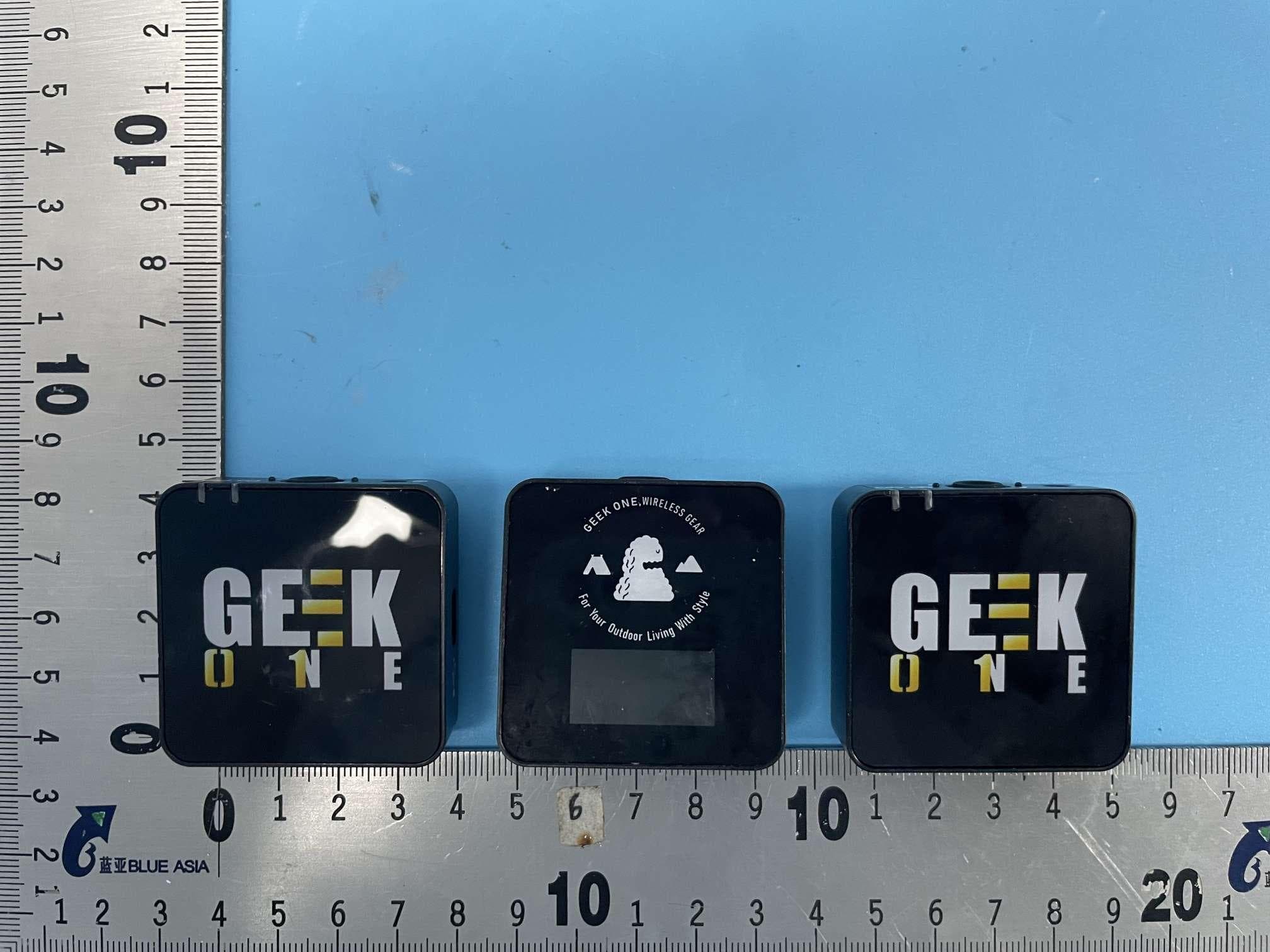

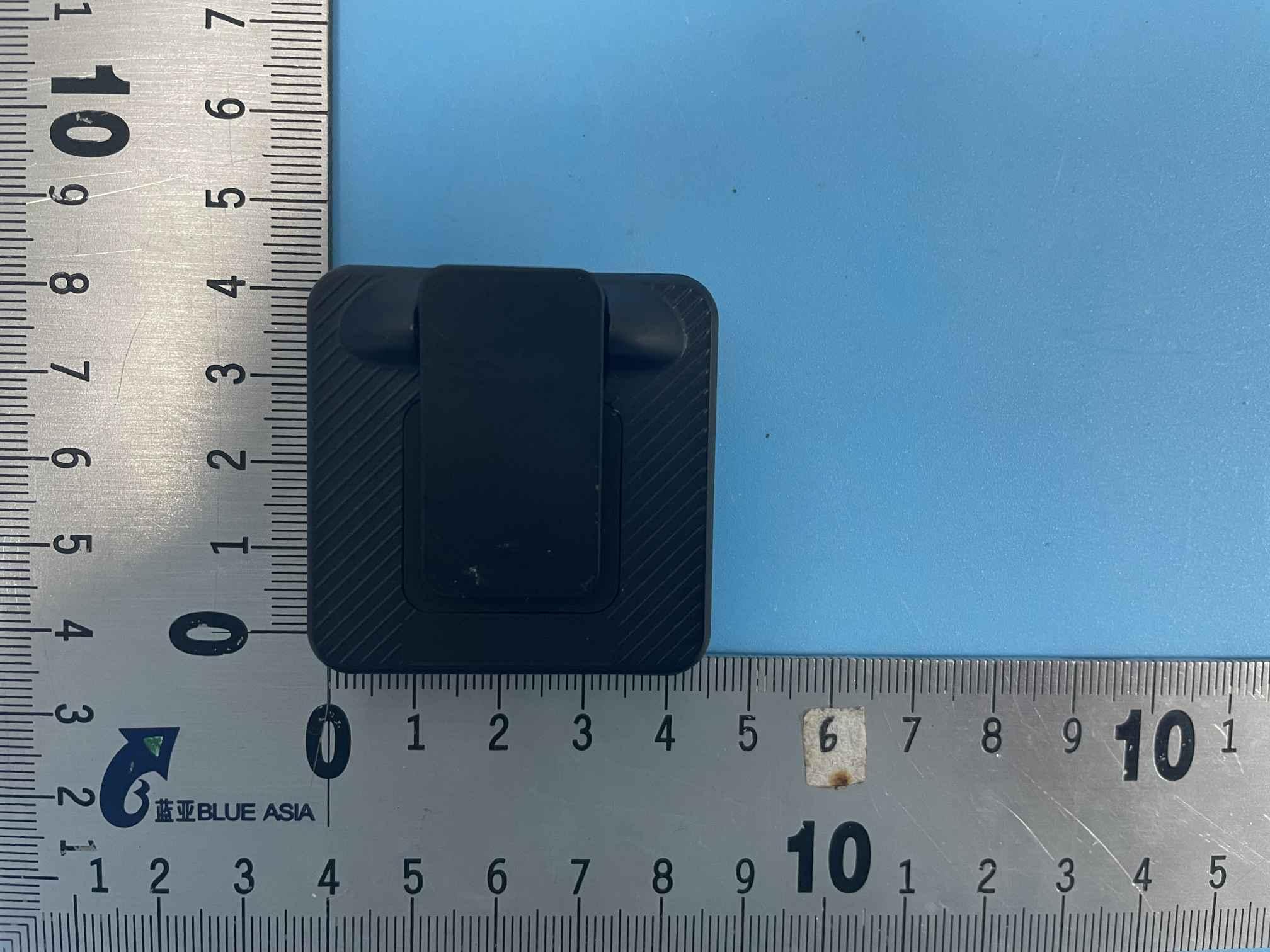

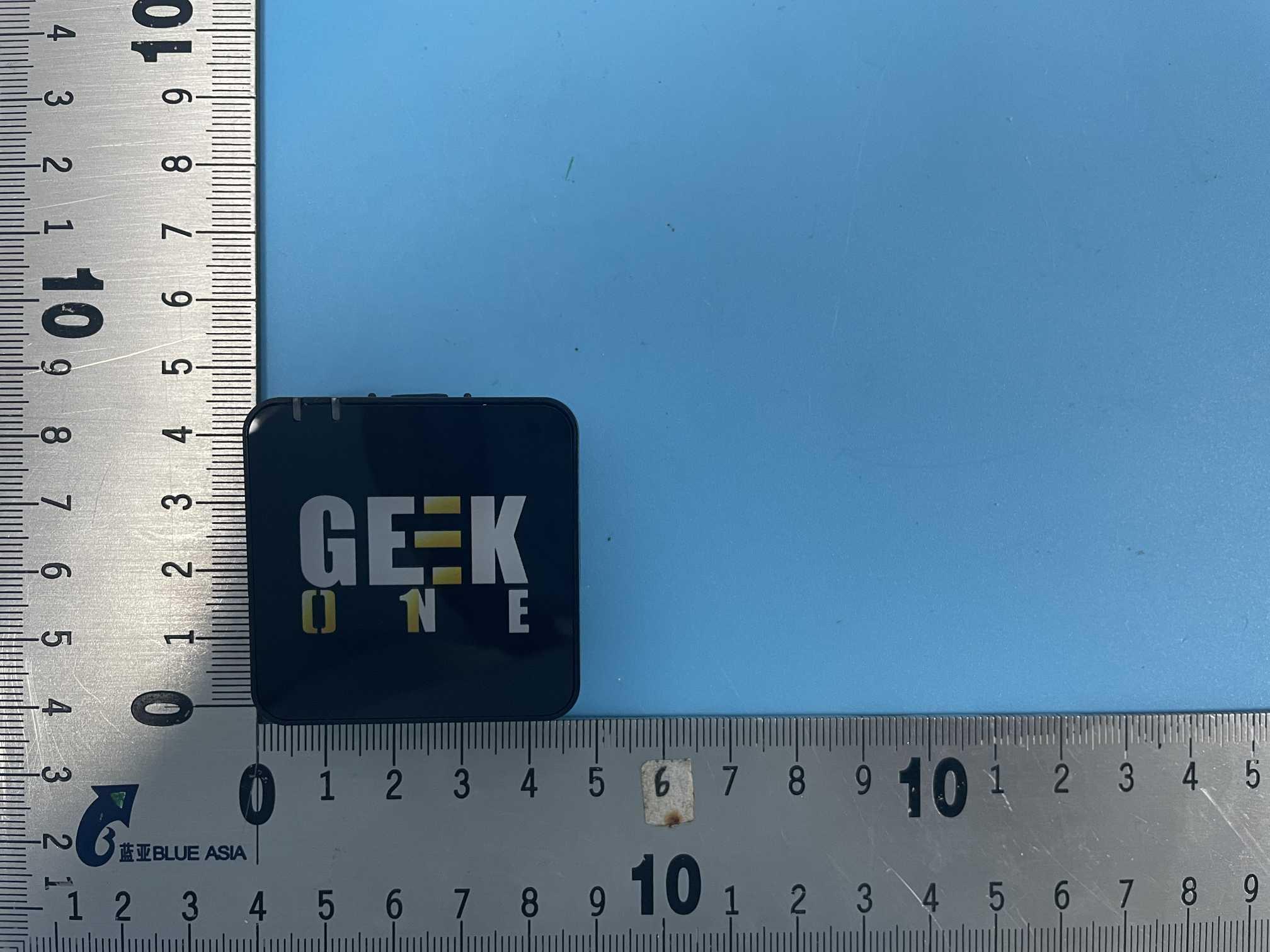

ProductName: GEEKONE engineersampleno:TX engineersampleno:RX

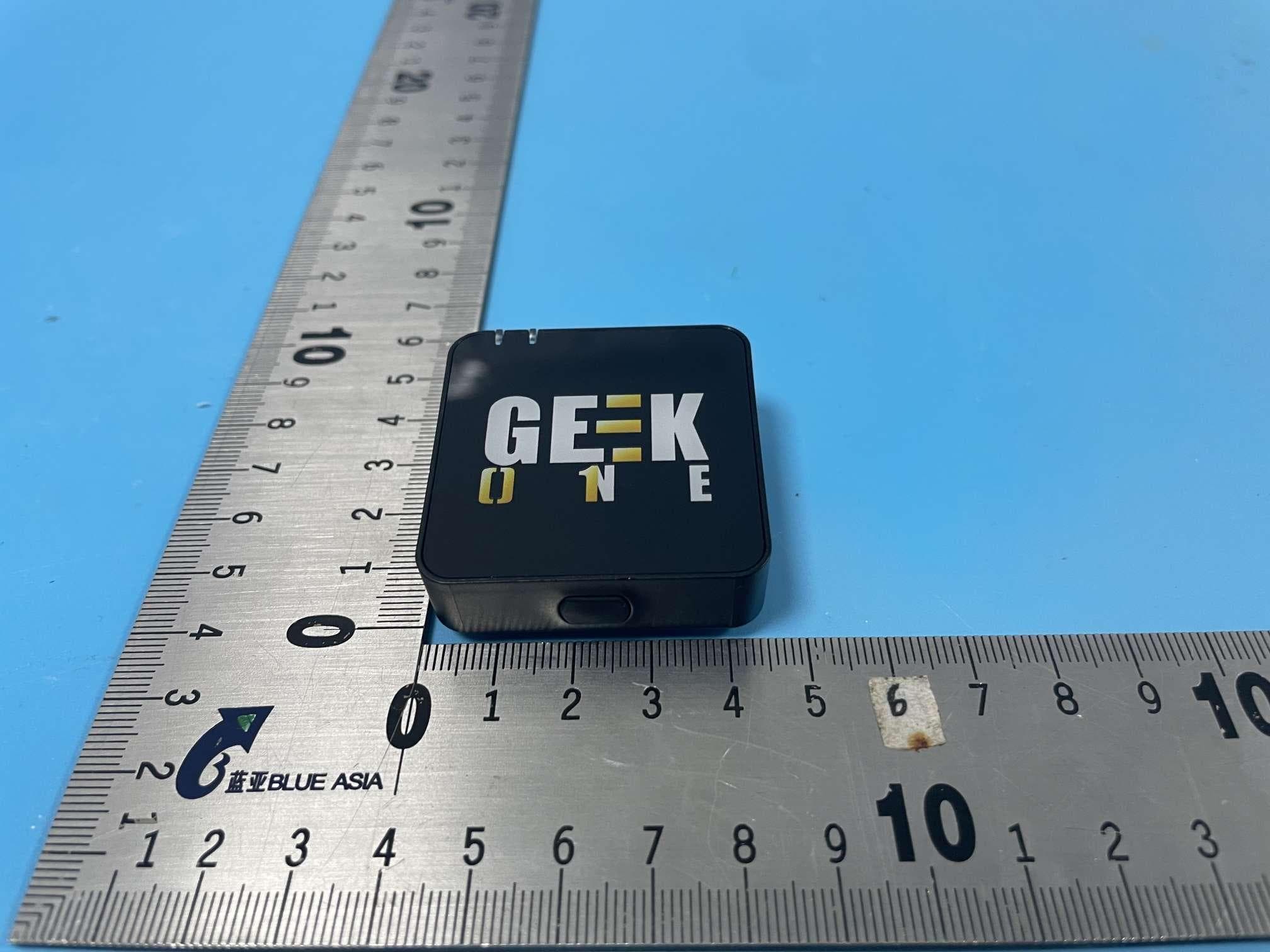

ProductName: GEEKONE engineersampleno:TX engineersampleno:RX

RFExposureevaluation ProductName: GEEKONE FCCID: 2A8MI-AMP06 TestStandard: KDB447498D04GeneralRFExposureGuidance v01 Accordingto447498D04InterimGeneralRFExposureGuidancev01 BT: TX: Ant gain = 1.9 dBi MAX output power ：3.041dBm@2480MHz ERP=3.041+1.9-2.15=2.791dBm WORSE CASE: 10^0.3041=2.014mW < 2.715 mW Then SAR evaluation is not required RX: Ant gain = 1.7 dBi MAX output power ：2.851dBm@2402MHz ERP=2.851+1.7-2.15=2.401dBm WORSE CASE: 10^0.2851=1.93mW < 2.715 mW Then SAR evaluation is not required BLE: TX: Ant gain = 1.9 dBi MAX output power ：0.49dBm@2402MHz ERP=0.49+1.9-2.15=0.24dBm WORSE CASE: 10^0.049=1.12mW < 2.715 mW Then SAR evaluation is not required RX: Ant gain = 1.7 dBi MAX output power ：0.486dBm@2402MHz ERP=0.486+1.7-2.15=0.036dBm WORSE CASE: 10^0.0486=1.12mW < 2.715 mW Then SAR evaluation is not required

Page 1 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: GEEKONE BrandMark: N/A ModelNo.: AMP06 ReportNumber: BLA-EMC-202302-A5903 FCCID: 2A8MI-AMP06 DateofSampleReceipt: 2023/2/28 DateofTest: 2023/2/28to2023/3/15 DateofIssue: 2023/3/15 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: NanjingYixinElectronicTechnologyCo.,LTD Room2292,FuyingBuilding,No.99,TuanjieRoad,Nanjing,Jiangsupilot freetradezone. Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2023/3/15 ReportNo.:BLA-EMC-202302-A5903 Page 2 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002023/3/15Original ReportNo.:BLA-EMC-202302-A5903 Page 3 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................7 5TESTMODE................................................................................................................................................7 6MEASUREMENTUNCERTAINTY..............................................................................................................7 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................8 8LABORATORYLOCATION.........................................................................................................................8 9TESTINSTRUMENTSLIST........................................................................................................................9 10RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................11 10.1LIMITS................................................................................................................................................................11 10.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................12 10.3PROCEDURE.......................................................................................................................................................12 10.4TESTDATA...........................................................................................................................................................14 11RADIATEDSPURIOUSEMISSIONS........................................................................................................23 11.1LIMITS................................................................................................................................................................23 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................24 11.3PROCEDURE.......................................................................................................................................................24 11.4TESTDATA...........................................................................................................................................................26 12CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ).....................................................43 12.1LIMITS................................................................................................................................................................43 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................43 12.3PROCEDURE.......................................................................................................................................................43 12.4TESTDATA...........................................................................................................................................................45 13CONDUCTEDBANDEDGESMEASUREMENT.....................................................................................48 13.1LIMITS................................................................................................................................................................48 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................48 13.3TESTDATA...........................................................................................................................................................49 14CONDUCTEDSPURIOUSEMISSIONS...................................................................................................50 14.1LIMITS................................................................................................................................................................50 ReportNo.:BLA-EMC-202302-A5903 Page 4 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 14.2BLOCKDIAGRAMOFTESTSETUP.................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202302-A5903 Page 61 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTBLE2402Ant11.030200798 NVNTBLE2442Ant11.03135192 NVNTBLE2480Ant11.030080681 OBWNVNTBLE2402MHzAnt1 OBWNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 62 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OBWNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 63 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] MaximumPowerSpectralDensityLevel ConditionModeFrequency(MHz)AntennaMaxPSD(dBm)Limit(dBm)Verdict NVNTBLE2402Ant1-14.9358Pass NVNTBLE2442Ant1-15.0088Pass NVNTBLE2480Ant1-15.158Pass PSDNVNTBLE2402MHzAnt1 PSDNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 64 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PSDNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 65 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE2402Ant1-53.97-30Pass NVNTBLE2480Ant1-55.57-30Pass BandEdgeNVNTBLE2402MHzAnt1Ref BandEdgeNVNTBLE2402MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 66 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNTBLE2480MHzAnt1Ref BandEdgeNVNTBLE2480MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 67 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202302-A5903 Page 68 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE2402Ant1-45.33-30Pass NVNTBLE2442Ant1-44.74-30Pass NVNTBLE2480Ant1-45.61-30Pass Tx.SpuriousNVNTBLE2402MHzAnt1Ref Tx.SpuriousNVNTBLE2402MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 69 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE2442MHzAnt1Ref Tx.SpuriousNVNTBLE2442MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 70 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE2480MHzAnt1Ref Tx.SpuriousNVNTBLE2480MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 71 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202302-A5903 Page 72 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 19.1TESTENGINEERSAMPLENO:RX-1 MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower(dBm)Limit(dBm)Verdict NVNTBLE2402Ant10.48630Pass NVNTBLE2442Ant10.30530Pass NVNTBLE2480Ant10.40230Pass PowerNVNTBLE2402MHzAnt1 PowerNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 73 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 74 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -6dBBandwidth ConditionModeFrequency (MHz) Antenna-6dBBandwidth (MHz) Limit-6dB Bandwidth(MHz) Verdict NVNTBLE2402Ant10.6550.5Pass NVNTBLE2442Ant10.6620.5Pass NVNTBLE2480Ant10.660.5Pass -6dBBandwidthNVNTBLE2402MHzAnt1 -6dBBandwidthNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 75 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -6dBBandwidthNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 76 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTBLE2402Ant11.028660978 NVNTBLE2442Ant11.028961211 NVNTBLE2480Ant11.029259009 OBWNVNTBLE2402MHzAnt1 OBWNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 77 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OBWNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 78 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] MaximumPowerSpectralDensityLevel ConditionModeFrequency(MHz)AntennaMaxPSD(dBm)Limit(dBm)Verdict NVNTBLE2402Ant1-15.098Pass NVNTBLE2442Ant1-15.2468Pass NVNTBLE2480Ant1-14.9178Pass PSDNVNTBLE2402MHzAnt1 PSDNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 79 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PSDNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202302-A5903 Page 80 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE2402Ant1-54.69-30Pass NVNTBLE2480Ant1-55.86-30Pass BandEdgeNVNTBLE2402MHzAnt1Ref BandEdgeNVNTBLE2402MHzAnt1Emission

深圳宏为通信有限公司 文件编号: 样品承认书 SpecificationForApproval 客户名称: Customer: 供应商名称: Supplier: 深圳宏为通信技术有限公司 SHENZHENHOOGWELLCOMM-TECH 客户料号:供应商料号:AMP06-RX-03 产品描述:AMP06-RX-03-2.4g天线配用机型:AMP06 客户承认(盖章):供应商承认(盖章): 日期/Date:日期/Date: 2022-02-17 联系人/Name:联系人/Name: 刘生 邮件/E-mail:邮件/E-mail: [email protected] 电话/TEL:电话/TEL: 18576402166 传真/FAX:传真/FAX: 0755-23729022 深圳宏为通信有限公司 AMP06-2.4G是我公司为2.4GBTWIFI无线终端推出天线产品。适合粘附于非金属物品上 使用。 一．天线指标如下： 频带Frequency2400-2500MHz 天线方向性类偶极子 增益MAX（dBi）1.7(41cm线缆测试) 效率Efficiency(%)≥25，≤60(10cm线缆测试) 驻波比S.W.R.2400-2500MHz≤3 标准阻抗（Ohm）50Ohm 接头类型ConnectortypeI-PEX4代OrOther 极化方式Polarization线极化 Linear 最大输入功率Maxinputpower20W 天线颜色Antennacolor黑色 电缆线类型Cabletype低损耗0.81线 S11&驻波比（图1） 深圳宏为通信有限公司 二．天线图片 三．工作条件 温度Temperature：-40°C～+85°C 湿度Humidity：95﹪～100﹪ 四．储藏条件 温度Temperature：-45°C～+85°C 湿度Humidity：≦75﹪ 五、电缆头及电缆线 深圳宏为通信有限公司 六．天线增益，效率测试 1、增益效率测试：（采用10cm线缆连接测试） 2、(1)测试设备：微波暗室，矢量网络分析仪，放大器，馈电器，控制器，电脑，转台控制器等。 (2)测试示意图： 3、结果如下：无源数据 frequency 频率 (MHz) gain 增益 (dBi) efficiency 效率(dB) efficiency 效率(%) 24001.62-4.5734.89 24101.78-4.4535.89 24201.76-4.2437.71 24301.68-4.0639.22 24401.63-4.2237.86 24501.33-4.2437.7 24601.01-4.2137.97 24700.84-4.4236.15 24800.42-4.7033.86 24900.04-4.9532.02 2500-0.07-4.9531.98 4.OTA数据 FreespaceTX Channel03978 TRP(dBm) -1.66-1.48-1.49 TIS(dBm) -89.37-89.61-89.47 通讯天线 发射天线 控制设备 放大器 深圳宏为通信有限公司 5、方向图：

ReportNo.:BLA-EMC-202302-A5903 Page 31 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmidchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 32 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 33 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 34 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Testengineersampleno:RX-1 [TestMode:TXmode(SE)below1G];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 35 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmode(SE)below1G];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 36 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXlowchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 37 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXlowchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 38 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmidchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 39 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXmidchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 40 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighchannel];[Polarity:Horizontal] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 41 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 42 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Remark: 1.FinalLevel=ReceiverReadlevel+Correctfactor 2.Correctfactor=AntennaFactor+CableLoss–PreamplifierFactor 3.Theemissionlevelsofotherfrequenciesareverylowerthanthelimitandnotshowintestreport. ReportNo.:BLA-EMC-202302-A5903 Page 43 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 12CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ) TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section6.2 TestMode(Pre-Scan)TX TestMode(FinalTest)TX engineersampleno:TX-1 TesterJozu Temperature25°C Humidity60% 12.1LIMITS Frequencyof emission(MHz) Conductedlimit(dBμV) Quasi-peakAverage 0.15-0.566to56*56to46* 0.5-55646 5-306050 *Decreaseswiththelogarithmofthefrequency. 12.2BLOCKDIAGRAMOFTESTSETUP 12.3PROCEDURE 1)Themainsterminaldisturbancevoltagetestwasconductedinashieldedroom. 2)TheEUTwasconnectedtoACpowersourcethroughaLISN1(LineImpedanceStabilizationNetwork) whichprovidesa50ohm/50H+5ohmlinearimpedance.ThepowercablesofallotherunitsoftheEUT wereconnectedtoasecondLISN2,whichwasbondedtothegroundreferenceplaneinthesamewayas ReportNo.:BLA-EMC-202302-A5903 Page 44 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] theLISN1fortheunitbeingmeasured.Amultiplesocketoutletstripwasusedtoconnectmultiplepower cablestoasingleLISNprovidedtheratingoftheLISNwasnotexceeded. 3)ThetabletopEUTwasplaceduponanon-metallictable0.8mabovethegroundreferenceplane.And forfloor-standingarrangement,theEUTwasplacedonthehorizontalgroundreferenceplane, 4)Thetestwasperformedwithaverticalgroundreferenceplane.TherearoftheEUTshallbe0.4mfrom theverticalgroundreferenceplane.Theverticalgroundreferenceplanewasbondedtothehorizontal groundreferenceplane.TheLISN1wasplaced0.8mfromtheboundaryoftheunitundertestand bondedtoagroundreferenceplaneforLISNsmountedontopofthegroundreferenceplane.This distancewasbetweentheclosestpointsoftheLISN1andtheEUT.AllotherunitsoftheEUTand associatedequipmentwasatleast0.8mfromtheLISN2. 5)Inordertofindthemaximumemission,therelativepositionsofequipmentandalloftheinterface cablesmustbechangedaccordingtoANSIC63.10onconductedmeasurement. Remark:LISN=ReadLevel+CableLoss+LISNFactor ReportNo.:BLA-EMC-202302-A5903 Page 45 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 12.4TESTDATA [TestMode:TX];[Line:Line];[Power:AC120V/60Hz] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 46 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TX];[Line:Nutral];[Power:AC120V/60Hz] TestResult:Pass ReportNo.:BLA-EMC-202302-A5903 Page 47 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Notes: 1.Aninitialpre-scanwasperformedonthelineandneutrallineswithpeakdetector. 2.Quasi-PeakandAveragemeasurementwereperformedatthefrequencieswithmaximizedpeak emission. 3.FinalLevel=ReceiverReadlevel+LISNFactor+CableLoss. ReportNo.:BLA-EMC-202302-A5903 Page 48 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13CONDUCTEDBANDEDGESMEASUREMENT TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section7.8.8&Section11.13.3.2 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature…

Text truncated - open the document above for the full version.

深圳宏为通信有限公司 文件编号: 样品承认书 SpecificationForApproval 客户名称: Customer: 供应商名称: Supplier: 深圳宏为通信技术有限公司 SHENZHENHOOGWELLCOMM-TECH 客户料号:供应商料号:AMP06-TX-04 产品描述:AMP06-TX-04-2.4g天线配用机型:AMP06 客户承认(盖章):供应商承认(盖章): 日期/Date:日期/Date: 2022-02-17 联系人/Name:联系人/Name: 刘生 邮件/E-mail:邮件/E-mail: [email protected] 电话/TEL:电话/TEL: 18576402166 传真/FAX:传真/FAX: 0755-23729022 深圳宏为通信有限公司 AMP06-2.4G是我公司为2.4GBTWIFI无线终端推出天线产品。适合粘附于非金属物品上 使用。 一．天线指标如下： 频带Frequency2400-2500MHz 天线方向性类偶极子 增益MAX（dBi）1.9(50cm线缆测试) 效率Efficiency(%)≥25，≤60(10cm线缆测试) 驻波比S.W.R.2400-2500MHz≤3 标准阻抗（Ohm）50Ohm 接头类型ConnectortypeI-PEX4代OrOther 极化方式Polarization线极化 Linear 最大输入功率Maxinputpower20W 天线颜色Antennacolor黑色 电缆线类型Cabletype低损耗0.81线 S11&驻波比（图1） 深圳宏为通信有限公司 二．天线图片 三．工作条件 温度Temperature：-40°C～+85°C 湿度Humidity：95﹪～100﹪ 四．储藏条件 温度Temperature：-45°C～+85°C 湿度Humidity：≦75﹪ 五、电缆头及电缆线 深圳宏为通信有限公司 六．天线增益，效率测试 1、增益效率测试：（采用10cm线缆连接测试） 2、(1)测试设备：微波暗室，矢量网络分析仪，放大器，馈电器，控制器，电脑，转台控制器等。 (2)测试示意图： 3、结果如下：无源数据 frequency 频率 (MHz) gain 增益 (dBi) efficiency 效率(dB) efficiency 效率(%) 24001.1-5.1730.38 24101.39-4.9731.84 24201.56-4.6434.34 24301.77-4.3236.96 24401.93-4.3436.79 24501.68-4.3436.79 24601.4-4.2737.37 24701.34-4.4036.34 24801.02-4.6034.65 24900.45-5.0331.41 25000.28-5.0831.08 4.OTA数据 FreespaceTX Channel03978 TRP(dBm) -0.85-0.79-1.84 TIS(dBm) -90.21-90.13-90.23 通讯天线 发射天线 控制设备 放大器 深圳宏为通信有限公司 5、方向图：

ReportNo.:BLA-EMC-202302-A5903 Page 81 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] BandEdgeNVNTBLE2480MHzAnt1Ref BandEdgeNVNTBLE2480MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 82 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202302-A5903 Page 83 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE2402Ant1-45.1-30Pass NVNTBLE2442Ant1-45.29-30Pass NVNTBLE2480Ant1-45.66-30Pass Tx.SpuriousNVNTBLE2402MHzAnt1Ref Tx.SpuriousNVNTBLE2402MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 84 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE2442MHzAnt1Ref Tx.SpuriousNVNTBLE2442MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 85 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Tx.SpuriousNVNTBLE2480MHzAnt1Ref Tx.SpuriousNVNTBLE2480MHzAnt1Emission ReportNo.:BLA-EMC-202302-A5903 Page 86 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ReportNo.:BLA-EMC-202302-A5903 Page 87 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] APPENDIXA:PHOTOGRAPHSOFTESTSETUP Testengineersampleno:TX-1 RadiatedSpuriousEmissions ReportNo.:BLA-EMC-202302-A5903 Page 88 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] Testengineersampleno:RX-1 RadiatedSpuriousEmissions ReportNo.:BLA-EMC-202302-A5903 Page 89 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] ConductedEmissionsatACPowerLine(150kHz-30MHz) ReportNo.:BLA-EMC-202302-A5903 Page 90 of 90 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] APPENDIXB:PHOTOGRAPHSOFEUT ReferencetothetestreportNo.BLA-EMC-202302-A5901 ----ENDOFREPORT---- Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofBlueAsia,thisreportcan’tbe reproducedexceptinfull.

ProductName: GEEKONE RadiatedSpuriousEmissions Testengineersampleno:RX-1 RadiatedSpuriousEmissions ConductedEmissionsatACPowerLine(150kHz-30MHz)
