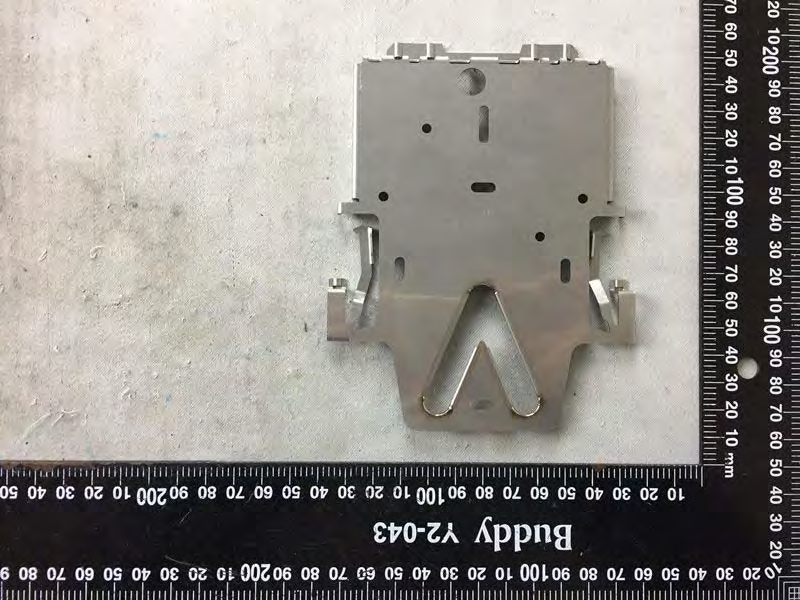

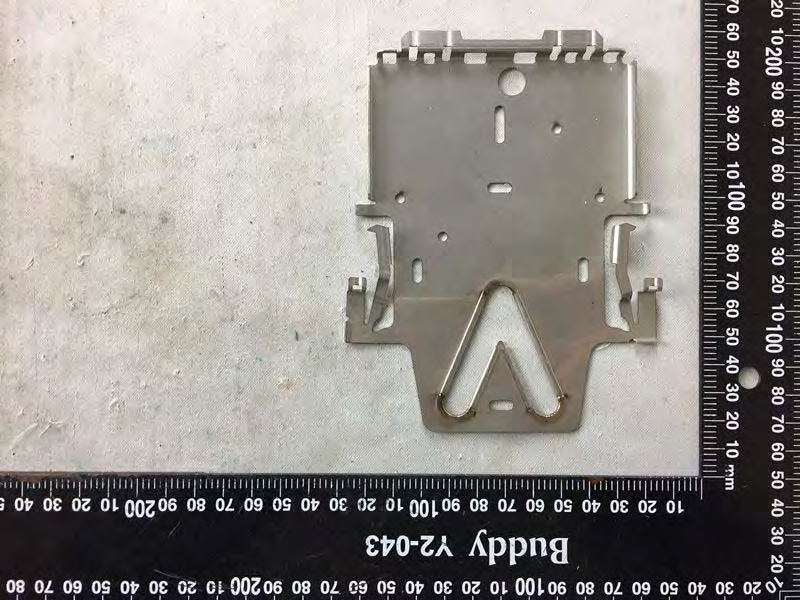

2A8MT-AP7PROTri-Band WiFi 7 Enterprise Access Point

QUICK START GUIDE 1 Before You Begin Create your f ree Alta account to manage your Alta devices. Visit manage.alta.inc or download the Alta Networks app f rom the Apple App store. (Note: Android app will be available soon) 50.5 kb/s 1.97 Mb/s 38.1 Mb/s 0 b/s 391 kb/s 119 kb/s 5.74 kb/s 249 kb/s 0 b/s 108 kb/s 7.08 kb/s 290 kb/s 0 b/s 121 kb/s 0 b/s 119 kb/s 500 b/s 704 kb/s 203 kb/s 410 kb/s 936 kb/s 391 kb/s 700 kb/s 540 kb/s 391 kb/s 21.6 Mb/s 6.24 Mb/s 600 b/s 725 kb/s 22.3 Mb/s 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 bcb923123426 bcb923774886 bcb923361965 bcb927895241 bcb923218939 bcb923196785 bcb923745432 bcb923828698 bcb92300080c bcb923800898 44 2 10 165 11 36 5 36 1 36 17 40 11 44 11 149 1 157 36 1 192.168.1.22 192.168.1.17 192.168.1.28 192.168.1.30 192.168.1.34 192.168.1.45 192.168.1.48 192.168.1.61 192.168.1.56 192.168.1.87 AP6-main AP6-lobby AP6-pro-shipping AP6-pro-sales AP6-floor2 AP6-pro-studio AP6-breakroom AP6-floor3 AP6-Opsfloor2 AP6-floor5 Devices 9 5 12 7 4 15 25 12 8 3 Columns 2 Corp Office AP6-main 20MHz 2 Colors (Groups) Gray Black (all) Corp Top Active Network Devices 1H 2D2MLive Download Upload 0 B/s 0 B/s C - Sales Floor B - Warehouse C - 8 Port Switch C - Break Room B - Closet Switch C - Support Show Peak Show Peak Show Peak Show Peak Show Peak Show Peak Show Peak 2 Package Contents AP7-ProMounting PlateCeiling Mount Anchors (Qty. 2) Wall-Mount Screws (Qty. 2) Ceiling Tile Screws (Qty. 2) T-Bar ScrewsNutsRubber Feet Note: Be sure to use the included mounting hardware for installation. Installation Requirements • Ethernet cabling (CAT 6 or above) • 48V PoE+ switch or PoE injector • Router • Phillips screwdriver • Drill and drill bit for wall or ceiling mounting 3 Hardware Overview Front LED LED Illuminates white by default when AP is online and functional. Can be changed to blue, white, or off in the Alta app or management interface. Flashes when booting. 4 Back Reset ButtonEthernet Port Ethernet Port Connects to an Ethernet cable f rom your PoE+ Switch. An optional 48V, 0.5A adapter can be purchased and used to power the AP. Reset Button Press down for 10 seconds until the LED begins flashing to reset the AP to factory defaults. 5 Hardware Installation Ceiling Tile Mount 1. Remove the appropriate ceiling tile. 2. Align the Mounting Plate in the desired location flat on the tile (typically centered). Mark the areas indicated below for the screws and the Ethernet cable. 6 3. Secure the Mounting Plate to the Ceiling Mount with the ceiling tile between using the two Ceiling Tile Screws and the two Nuts. Assembled Top ViewAssembled Bottom View Proceed to “Connecting The AP” on page 13 7 Wall Mount 1. Position the Mounting Plate in the desired location and use a pencil to mark the holes. 2. If running cabling along the wall, remove the notch on the AP. 8 3. Secure the Mounting Plate to the wall using the Wall-Mount Screws and a Phillips screwdriver. Be sure to use the screws included with the product. If mounting on drywall, use the anchors to ensure secure mounting. Use a 6 mm drill bit to drill the holes for the anchors and insert them in the wall. Note: Ensure the included Wall-Mount Screws are flush with Mounting Plate. Proceed to “Connecting The AP” on page 13 9 T-Bar Ceiling TIle Mount 1. Use a small Phillips head screwdriver to loosen the two pre-installed screws on the Ceiling Mount to allow enough clearance for the T-Bar. 10 2. Rotate the Ceiling Mount around the T-Bar. 11 3. Tighten both screws using a Phillips screwdriver. 12 4. Connect the Mounting Plate to the Ceiling Mount with the T-Bar Screws. Proceed to “Connecting The AP” on page 13 13 Connecting The AP The AP is powered over Ethernet, it can be powered by a PoE+ Switch or using an optional 48V, 0.5A PoE Injector. 1. Connect an Ethernet cable f rom your PoE+ Switch (or optional PoE Injector). 2. Connect the other end to the Ethernet Port on the AP. If mounting on the wall, the Ethernet cable can be fed through the removable notch area. 14 3. Align the AP with the Mounting Plate. 4. Slightly tilt the AP right and then left as you slide the AP down the Mounting Plate to lock it into place. 11 15 Set Up Your Device 1. Follow the instructions in the Alta app or management interface to set up your AP. 1.0 bcb923123426 New AP Home Base Set Up Disconnecting the AP If you need to remove the AP f rom the mount, use a flat blade screwdriver to disengage the Mounting Plate at the logo indicator. 16 Specifications Model: AP7-Pro Dimensions 230 x 151.3 x 36.9 mm (9.06 x 5.96 x 1.45") Weight1.04 kg (2.3 lbs) Enclosure Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum Mount Hardware Ceiling/Wall/Drop Ceiling: Steel WeatherproofingNone Network InterfaceEthernet, WiFi, Bluetooth Management Interface(1) 10 Gbps RJ45 Button(s)Reset/Factory Reset LEDBlue, White, Off Power Method PoE+ for up to 2.5 Gbps, PoE++ for up to 10 Gbps Power Supply PoE+ or PoE++ Enabled Network Switch, or 48V, 1.25A PoE Adapter (Optional) Supported Voltage Range42.5-57V DC Max. Power Consumption Max: 30 W for POE+, 35 W for POE++, 12 W Typical MIMO 6 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA 5 GHz: 4x4, DL/UL MU-MIMO, DL/UL MU-OFDMA 2.4 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA Explicit TX Beam-Forming Throughput Rate 2.4 GHz: Up to 649 Mbps, 5 GHz: Up to 8.6 Gbps, 6 GHz: Up to 5.8 Gbps Antenna Gain 2.4 GHz: 4 dBi, 5 GHz: 5.09 dBi, 6 GHz: 4.5 dBi 17 Model: AP7-Pro Mounting Wall, ceiling, drop-ceiling, table top Operating Temperature-30 to 50° C (-22 to 122° F) Operating Humidity5 to 95% Noncondensing CertificationsCE, UK, FCC, IC Software WiFi Standards 802.11a/b/g/n/ac/ax/be (WiFi 4/WiFi 5/WiFi 6/WiFi 7) Roaming802.11r/k/v Wireless Security 2.4 GHz, 5 GHz: WPA2- Personal (PSK), WPA3- Personal (SAE), WPA- Enterprise (WPA2/WPA3) 6 GHZ: WPA3 - Personal (SAE), WPA3-Enterprise (192 bit) SSID 48 (16 per Radio), Unlimited per Site Ability to Limit Clients per SSID Yes VLAN802.1Q Advanced QoS802.11e Guest Traffic IsolationSupported Max Concurrent User500+ Zero Wa…

Text truncated - open the document above for the full version.

)תירבע( תויצו תוחיטבל עגונב עדימ דעוימ שומיש .1 EU/2014/53 וידרה דויצ תייחנה לש תוינויחה תושירדב דמוע אוה .םינפ תוביבסב )Wi-Fi( תיטוחלא תשר תוירושיק קפסל דעוימ הז רישכמ דעוימ רישכמה ,תרחא שרופמב ןיוצ ןכ םא אלא .יפוריאה דוחיאה לש תורחא תויטנוולר תויחנהו דבלב תיבה ךותב שומישל . תוחיטב תוארוה .2 .םישנאל רישכמה ןיב מ"ס 29 לש ילמינימ קחרמ לע רומשל שי • .רורוואה יחתפ תא תוסכל ןיא • .םוח תורוקמ וא םימ דיל ליעפהל ןיא • .תוציפנ תוביבסב שמתשהל ןיא • .וכותב תוריש םיכירצמה םיביכר םימייק אל – אתה תא חותפל ןיא • .למשחה ןמ דימ קתנל שי ,הלקת וא קזנ לש הרקמב למשח תקפסא .3 .גורידה תיוותב ןיוצמש יפכ םיאתמ PoE למשח רוקמב וא ףרוצמה למשחה םאתמב קר שמתשהל שי • .םימוגפ םילבכב שמתשהל ןיא • .םירשואמ םירזיבא וא תונטנאב קר שמתשהל שי • הלעפה .4 .יפוריאה דוחיאה ידי לע ורשואש רודישה קפסה תולבגמו םירדתה ימוחת ךותב קר ליעפהל שי • .ןיוצש תורוטרפמטה חווטב קר ליעפהל שי • .הרשוא אלש הרמוח ןיקתהל וא רישכמה תא תונשל ןיא • )MHz( ץורע רדת יברמ RF טלפ למשח 2412 - 2472 20 (dBm (EIRP 2402 - 2480 (Bluetooth) 7.40 (dBm (EIRP 5180 - 5240 23 (dBm (EIRP 5260 - 5320 23 (dBm (EIRP 5500 - 5700 30 (dBm (EIRP 5955 - 6415 23 (dBm (EIRP ןויקינ .5 .ןויקינה ינפל למשחה ןמ קתנל שי • .תצקמב החל וא השבי תילטמ קר םע תוקנל שי • .םייביסרגא יוקינ ירמוחב שמתשהל ןיא • הכלשה .6 EU/2012/19 הנקתל ףופכ הז רצומ • ‏(WEEE). .תיתיב תלוספ םע דחיב ךילשהל ןיא • .ינורטקלאו ילמשח דויצ לש תימשר ףוסיא תדוקנל ריזחהל שי • CE ןומיס .7 .ורובע תולחה תויטנוולרה תויחנהה לכב דמוע רצומהש ןייצמ הז רצומ לע CE ןומיס תונידמ תמישר AT BE BG CY CZ DE DK EE EL (UK(NI ES FI FR HR HU IE IT LV LT LU MT NL PL PT RO SE SI SK תדחואמה הכלממ/יפוריאה דוחיאב תומיאת תרהצה .8 ,EU/2014/53 תויחנהה לש תוינויחה תוארוהלו תושירדל םאות הז רישכמ יכ תאזב הריהצמ ,Alta Labs תבותכב ןייעל שי ,יפוריאה דוחיאב האלמה תומיאתה תרהצה עדימל .EU/2014/35 ןכו EU/2014/30 www.alta.inc/regulatory תומיאתה תרהצה לש אלמה טסקטה .2017 וידרה דויצ תונקתב דמוע AP7-Pro גוסמ וידרה דויצ יכ תאזב הריהצמ Alta Networks, LLC :האבה טנרטניאה תבותכב ןימז תדחואמה הכלממב www.alta.inc/regulatory Biztonsági és Megfelelőségi Információk (magyar)1. Rendeltetésszerű használatEz az eszköz vezeték nélküli hálózati (WI-FI) kapcsolat biztosítására szolgál beltéri környezetben. Ezen eszköz megfelel a rádió berendezésekről szóló 2014/53/EU irányelvnek és az egyéb vonatkozó EU irányelvek alapvető követelményeinek. Hacsak azt kifejezetten máshogy nem jeleztük, a készülék csak beltéri használatra készült. 2. Biztonsági utasítások • Tartson legalább 29 cm-nyi távolságot a készülék és a személyek között.• Ne takarja el a szellőzőnyílásokat.• Ne üzemeltesse víz vagy hőfoorrások közelében.• Ne használja robbanás-veszélyes környezetben.• Ne nyissa ki a házat - nincsenek benne a felhasználó által szervizelhető alkatrészek. Sérülés vagy meghibásodás esetén azonnal húzza ki a tápellátást. 3. Tápellátás • Kizárólag a mellékelt hálózati adaptert vagy pedig a típustáblán feltüntetett megfelelő PoE tápellátást használja. • Ne használjon sérült kábeleket.• Kizárólag jóváhagyott antennákat és tartozékokat használjon. 4. Működés • Csak az EU által jóváhagyott frekvenciasávokon és átviteli teljesítménykorlátokon belül üzemeltesse.• Csak a megadott hőmérsékleti tartományon belül üzemeltesse.• Ne módosítsa a készüléket, és ne telepítsen nem engedélyezett firmware-t. Csatornafrekvencia (MHz) Max. Rf kimeneti teljesítmény 2412 - 2472 20 dBm (EIRP) 2402 - 2480 (Bluetooth) 7.40 dBm (EIRP) 5180 - 5240 23 dBm (EIRP) 5260 - 5320 23 dBm (EIRP) 5500 - 5700 30 dBm (EIRP) 5955 - 6415 23 dBm (EIRP) 5. Tisztítás • Még a tisztítás elvégzése előtt húzza ki a konnektorból.• Kizárólag száraz, vagy enyhén nedves ruhával tisztítsa meg.• Ne használjon maró hatású tisztítószereket. 6. Ártalmatlanítás • Erre a termékre a 2012/19/EU (WEEE) irányelv vonatkozik.• Ne dobja ki a háztartási hulladék közé.• Vigye vissza az elektromos és elektronikus berendezések hivatalos gyűjtőhelyére. 7. CE-jelölésA terméken lévő Ce-jelölés azt jelenti, hogy a termék megfelel az összes rá vonatkozó irányelvnek. Ország lista AT BE BG CY CZ DE DK EE EL UK(NI) ES FI FR HR HU IE IT LV LT LU MT NL PL PT RO SE SI SK 8. EU/UK Megfelelőségi nyilatkozatAz Alta Labs ezúton kijelenti, hogy a jelen készülék megfelel a 2014/53/EU, a 2014/30/EU és a 2014/35/EU irányelvek alapvető követelményeinek és rendelkezéseinek. A teljes EU megfelelőségi nyilatkozat megtkeintéséhez kérjük, hogy látogasson el az www.alta.inc/regulatory weboldalra. Az Alta Networks, LLC ezennel kijelenti, hogy az AP7-Pro típusú rádióberendezés megfelel a 2017. Évi rédióberendeézsekre vonatkozó előírésoknak. Az Egyesült Királyság megfelelőségi nyilatkozatának teljes szövege a következő internet címen érhető el: www.alta.inc/regulatory Informācija par drošību un atbilstību (latviski)1. Paredzētais lietojumsŠī ierīce ir paredzēta bezvadu tīkla (Wi-Fi) savienojamības nodrošināšanai telpās (piem., mājās, birojā). Tā atbilst būtiskajām Radioiekārtu direktīvas 2014/53/ES un citu piemērojamo ES direktīvu prasībām. Ja vien skaidri un nepārprotami nav norādīts citādi, ierīce ir paredzēta tikai lietojumam telpās . 2. Norādījumi par drošību • Uzturiet minimālu 29 cm atstatumu starp ierīci un cilvēkiem.• Neaizsedziet ventilācijas atvērumus.• Nedarbiniet ierīci ūdens vai siltuma avotu tuvumā.• Nelietojiet sprādzienbīstamā atmosfērā.• Neveriet vaļā korpusu – iekšpusē nav lietotājam apkalpojamu detaļu. Bojājuma vai darbības traucējumu gadījumā nekavējoties atvienojiet no barošanas. 3. Barošanas avots • Lietojiet tikai piegādāto elektroenerģijas adapteri vai piemērotu PoE barošanas avotu, kā norādīts nomināldatu uzlīmē. • Nelietojiet bojātus kabeļus.• Lietojiet tikai apstiprinātas antenas un piederumus. 4. Darbība • Darbiniet tikai ES apstiprinātu frekvenču joslu un raidīšanas jaudas ierobežojumu ietvaros.• Darbiniet tikai norādītā temperatūras diapazona ietvaros.• Nemodificējiet ierīci vai neinstalējiet neatļautu aparātprogrammatūru. Kanālu frekvence (MHz) Maks. RF izvades jauda 2412–2472 20 dBm (EIRP) 2402–2480 (Bluetooth) 7,40 dBm (EIRP) 5180–5240 23 dBm (EIRP) 5260–5320 23 dB…

Text truncated - open the document above for the full version.

Community Forum forum.alta.inc Technical Support help.alta.inc Информация за безопасност и съответствие (български език)1. ПредназначениеТова устройство е предназначено за осигуряване на безжична мрежова връзка (Wi-Fi) в закрити помещения. То отговаря на основните изисквания на Директива 2014/53/ЕС за радиооборудването и на другите приложими директиви на ЕС. Освен ако изрично не е посочено друго, устройството е предназначено само за използване на закрито . 2. Инструкции за безопасност • Поддържайте минимално разстояние от 29 cm между устройството и хората.• Не покривайте отворите за охлаждане.• Не използвайте устройството в близост до вода или източници на топлина.• Не използвайте устройството във взривоопасни среди.• Не отваряйте корпуса – вътре няма части, които могат да бъдат ремонтирани от потребителя. При повреда или неизправност незабавно изключете устройството от електрическата мрежа. 3. Захранване • Използвайте само предоставения захранващ адапт ер или подходящ източник на PoE захранване, както е посочено на етикета с техническите характеристики. • Не използвайте повредени кабели.• Използвайте само одобрените антени и аксесоари. 4. Експлоатация • Използвайте устройството само в рамките на одобрените от ЕС честотни ленти и ограничения на предавателната мощност. • Използвайте устройството само в рамките на посочения температурен диапазон.• Не правете модификации на устройството и не инсталирайте неразрешен фърмуер. Честота на каналите (MHz) Макс. изходна мощност (честотен диапазон) 2412 – 2472 20 dBm (EIRP) 2402 – 2480 (Bluetooth) 7,40 dBm (EIRP) 5180 – 5240 23 dBm (EIRP) 5260 – 5320 23 dBm (EIRP) 5500 – 5700 30 dBm (EIRP) 5955 – 6415 23 dBm (EIRP) 5. Почистване • Преди почистване изключете устройството от електрическата мрежа.• Почиствайте само със суха или леко влажна кърпа.• Не използвайте агресивни почистващи препарати. 6. Депониране • За този продукт се прилага Директива 2012/19/ЕС (ОЕЕО).• Не изхвърляйте заедно с битовите отпадъци.• Върнете устройството в официален пункт за събиране на електрическо и електронно оборудване. 7. Маркировка CEМаркировката CE върху този продукт означава, че той отговаря на всички директиви, приложими за него. Списък на държавите AT BE BG CY CZ DE DK EE EL UK(NI) ES FI FR HR HU IE IT LV LT LU MT NL PL PT RO SE SI SK 8. Декларация за съответствие (ЕС/Обединено кралство)С настоящото Alta Labs декларира, че това устройство отговаря на съществените изисквания и разпоредби на Директиви 2014/53/ЕС, 2014/30/ЕС и 2014/35/ЕС. Пълната декларация за съответствие с изискванията на ЕС можете да видите на адрес: www.alta.inc/regulatory С настоящото Alta Networks LLC декларира, че радиооборудването от тип AP7-Pro отговаря на изискванията на Наредбата за радиооборудването от 2017 г. Пълната декларацията за съответствие в Обединеното кралство е достъпна на следния интернет адрес: www.alta.inc/regulatory Safety & Compliance Information (English)1. Intended UseThis device is intended to provide wireless network (Wi-Fi) connectivity in indoor environments. It complies with the essential requirements of the Radio Equipment Directive 2014/53/EU and other applicable EU directives. Unless explicitly stated otherwise, the device is intended for indoor use only . 2. Safety Instructions • Maintain a minimum distance of 29 cm between the device and persons.• Do not cover ventilation openings.• Do not operate near water or heat sources.• Do not use in explosive atmospheres.• Do not open the housing – no user-serviceable parts inside. In case of damage or malfunction, disconnect from power immediately. 3. Power Supply • Use only the supplied power adapter or a suitable PoE power source as specified on the rating label.• Do not use damaged cables.• Use only approved antennas and accessories. 4. Operation • Operate only within EU-approved frequency bands and transmission power limits.• Operate only within the specified temperature range.• Do not modify the device or install unauthorized firmware. Channel Frequency (MHz) Max. RF Output Power 2412 - 2472 20 dBm (EIRP) 2402 - 2480 (Bluetooth) 7.40 dBm (EIRP) 5180 - 5240 23 dBm (EIRP) 5260 - 5320 23 dBm (EIRP) 5500 - 5700 30 dBm (EIRP) 5955 - 6415 23 dBm (EIRP) 5. Cleaning • Disconnect from power before cleaning.• Clean with a dry or slightly damp cloth only.• Do not use aggressive cleaning agents. 6. Disposal • This product is subject to Directive 2012/19/EU (WEEE).• Do not dispose of with household waste.• Return to an official collection point for electrical and electronic equipment. 7. CE MarkingThe CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List AT BE BG CY CZ DE DK EE EL UK(NI) ES FI FR HR HU IE IT LV LT LU MT NL PL PT RO SE SI SK 8. EU/UK Declaration of ConformityHereby, Alta Labs, declares that this device conforms with the essential requirements and provisions of Directives 2014/53/EU, 2014/30/EU and 2014/35/EU. To see the full EU declaration Conformity information, please see www.alta.inc/regulatoryHereby, Alta Networks, LLC declares that the radio equipment type AP7-Pro is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: www.alta.inc/regulatory Informacije o sigurnosti i usklađenosti (hrvatski)1. NamjenaUređaj je namijenjen pružanju povezivanja bežičnom mrežom (Wi-Fi) u zatvorenim prostorima. U skladu je s bitnim zahtjevima Direktive br. 2014/53/EU o radijskoj opremi i drugih mjerodavnih direktiva EU-a. Osim ako nije izričito navedeno drukčije, uređaj je namijenjen samo upotrebi u zatvorenim prostorima . 2. Sigurnosne upute • Zadržite minimalnu udaljenost od 29 cm između uređaja i ljudi.• Ne prekrivajte otvore za ventilaciju.• Uređaj ne smije raditi blizu vode ili izvora topline.• Ne upotrebljavajte u eksplozivnim atmosferama.• Ne otvarajte kućište – unutra nema dijelova koje može servisirati korisnik. U slučaju oštećenja ili kvara potpuno isklj…

Text truncated - open the document above for the full version.

RADIO EXPOSURE TEST REPORT Report No. : FA5D3013 TEL : 886-3-656-9065 Page Number : 2 of 11 FAX : 886-3-656-9085 Issued Date : Jun. 22, 2026 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Table for EUT Support Function............................................................................................................. 8 1.4 Accessories ............................................................................................................................................ 8 1.5 Testing Location ..................................................................................................................................... 8 2 Maximum Permissible Exposure ........................................................................................................ 9 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 9 2.2 MPE Calculation Method ........................................................................................................................ 9 2.3 Calculated Result and Limit .................................................................................................................. 11 Appendix A. Test Photos Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA5D3013 TEL : 886-3-656-9065 Page Number : 3 of 11 FAX : 886-3-656-9085 Issued Date : Jun. 22, 2026 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA5D3013 01 Initial issue of report Jun. 22, 2026 RADIO EXPOSURE TEST REPORT Report No. : FA5D3013 TEL : 886-3-656-9065 Page Number : 4 of 11 FAX : 886-3-656-9085 Issued Date : Jun. 22, 2026 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Wendy Pan RADIO EXPOSURE TEST REPORT Report No. : FA5D3013 TEL : 886-3-656-9065 Page Number : 5 of 11 FAX : 886-3-656-9085 Issued Date : Jun. 22, 2026 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5250 5250-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be/EHT240: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM,4096QAM) 6GHz WLAN 5925-7125 5955-7095 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM) Bluetooth 2400-2483.5 2402-2480 LE: GFSK RADIO EXPOSURE TEST REPORT Report No. : FA5D3013 TEL : 886-3-656-9065 Page Number : 6 of 11 FAX : 886-3-656-9085 Issued Date : Jun. 22, 2026 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) WLAN 2.4GHz WLAN 5GHz WLAN 6GHz Bluetooth 1 2 1 - - AOT ANT-M2458- CBT04 METAL PIFA I-PEX Note 1 2 1 2 - - AOT ANT-M2458- CBT02 METAL PIFA I-PEX 3 - 3 - - AOT ANT-M5158- CBT05 METAL PIFA I-PEX 4 - 4 - 1 AOT ANT-M2458- CBT03 METAL PIFA I-PEX 5 - - 1 - AOT ANT-M5172- CBT06 METAL PIFA I-PEX 6 - - 2 - AOT ANT-M5172- CBT07 METAL PIFA I-PEX Note 1: Ant. Antenna Gain (dBi) WLAN 2.4GHz WLAN 5GHz WLAN 6GHz Bluetooth UNII 1 UNII 2A UNII 2C UNII 3 UNII 5 UNII 6 UNII 7 UNII 8 1 4.00 3.48 3.77 3.72 3.38 - - - - - 2 3.20 5.09 4.99 4.83 3.60 - - - - - 3 - 3.36 3.37 4.71 4.49 - - - - - 4 - 3.82 3.59 4.42 3.20 - - - - 3.5 5 - - - - - 4.50 4.50 4.30 4.10 - 6 - - - - - 4.30 4.50 4.50 4.50 - Item Directional Gain (dBi) WLAN 5GHz UNII 1 UNII 2A UNII 2C UNII 3 4T1S 6.75 6.90 6.96 6.24 Note 2: The above information was declared by the manufacturer, with the exception of the WLAN 5GHz antenna gain and directional gain. Note 3: WLAN 5GHz Maximum Directional Gain following KDB662911 D03. RADIO EXPOSURE TEST REPORT Report No. : FA5D3013 TEL : 886-3-656-9065 Page Number : 7 of 11 FAX : 886-3-656-9085 Issued Date : Jun. 22, 2026 Repo…

Text truncated - open the document above for the full version.

Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 4 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No. : FR5D3013AC Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 2 of 4 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No. : FR5D3013AC Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 3 of 4 Test Configuration: Above 1GHz For Bandedge FRONT VIEW REAR VIEW Report No. : FR5D3013AC Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 4 of 4 For Harmonic FRONT VIEW REAR VIEW ─────THE END───── Report No. : FR5D3013AC

Want to see the latest information? Please contact us via [email protected] ANTENNA DATASHEET AOT PN: ANT-M5172-CBT07 └ AOT Wireless Technology Co., Limited ┐ MANUFACTURER NAME: HONGKONG AOT WIRELESS TECHNOLOGY CO.LIMITED ADDRESS: 720 ROOM, 7TH FLOOR, STAR HOUSE, 3 SALISBURY ROAD, TSIM SHA TSUI, KOWLOON, HONG KONG AOT N2420DSS Engineering Data Sheet Page 1 └AOT Wireless Technology Co., Limited ┐ ANTENNA DATASHEET Assembly Drawing AOT N2420DSS Engineering Data Sheet Page 2 └AOT Wireless Technology Co., Limited ┐ ANTENNA DATASHEET Return Loss AOT N2420DSS Engineering Data Sheet Page 3 └AOT Wireless Technology Co., Limited ┐ ANTENNA DATASHEET Radiation Patterns Model ANT-M5172-CBT07 Antenna Radiation Paterns at 6G AOT N2420DSS Engineering Data Sheet Page 4 └AOT Wireless Technology Co., Limited ┐ ANTENNA DATASHEET Peak Realized Gain (MHz) 6G 5925 4.3 6500 4.5 7125 4.5

RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 135 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 136 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 137 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 138 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 139 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 140 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 141 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 142 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 143 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 144 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 145 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 146 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 147 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 148 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 149 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 150 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 151 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 152 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 153 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 154 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 155 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 156 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 157 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 158 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 159 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 160 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 161 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 162 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 163 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 164 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 165 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 166 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 167 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 168 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Laboratory Page No. : 169 of 171 Report No. : FR5D3013AC RSE TX above 1GHz Appendix E.2 Sporton International Inc. Hsinchu Labora…
