1 WirelessPrintServerUserManual CheecentModel:CR202 (2Eth+2USB+Wi-Fi) 1.PackageContents BeforeinstallingyourCR202PrintServer,pleaseverifythekitcontentsas following. 1xCR202PrintServer 1xpoweradapter(12VDC/1A) 1xUserManual 1xEthernetCable 1xSMAWi-Fiantenna *Ifanyoftheaboveitemsaremissingordamaged,pleasegetintouchwithus. *Ifthisusermanualisnotclearenoughforyou,pleasedownloadamoreclearelectronicusermanual/videoonourwebsite:www.cheecent.com *PleaserefertoourPrinterCompatibilityListsinformationonthewebsitebeforeinstallation. 2.EnvironmentalRequirements Inputvoltage:7.5V-32V(standardDC12V/1A) Operatingtemperature:-30to+70°C Storagetemperature:-40to85°C Relativehumidity:<95%(nocondensation) 2 3.HardwareIntroduction 3.1Overview ①LEDIndicators:PWR,WIFI,WAN,LAN,LINK. ②RST:ResetButton. ③USB1:ConnectUSBcablewithPrinterA. ④USB2:ConnectUSBcablewithPrinterB. ⑤LAN:EthernetRJ45PortLAN. ⑥WAN/LAN:EthernetRJ45PortWAN. ⑦POWER:Powersupplyconnector,input7.5V-32VDC. ⑧WIFI:ConnectorthatconnectwithWi-Fiantenna. 3 3.2LEDIndicators NameColorStatusDescription PWRGreenOnDeviceispoweredon OffDeviceispoweredoff WANGreenOn,blinkingLinkconnectionisworking OffLinkconnectionisnotworking LANGreenOn,blinkingLinkconnectionisworking OffLinkconnectionisnotworking WiFiGreenOn,blinkingWiFiconnectionisworking OffWiFiconnectionisnotworking LINKGreenOn,blinkingLinkispoweredon OffLinkispoweredoff 3.3ResetButton Afterpowereduptheprintserver,pressandholdtheRSTbuttonfor10seconds,andreleasethebuttontoreturntheprintservertofactorydefaults. 4.PrintServerConfiguration 4.1HardwareInstallation MountthePrintServer:Theprintservercanbeplacedonadesktopormountedtoawall.Use2piecesofdrywallscrewstomounttheprintserver withthewallmountingkitonthewall. ConnectthePrintServertoaPrinter:ConnectaUSBcabletotheUSBportoftheserver,andconnecttheotherendofthecabletoyourprinter. ConnecttheLANporttoacomputer:ConnectanEthernetcabletotheLANportoftheserver,andconnecttheotherendofthecabletoyour computer.(onlywhendoprintserverconfiguration) 4 ConnecttheWANporttothelocalnetworkrouter:ConnectanEthernetcabletotheWANportoftheserver,andconnecttheotherendofthecableto theLANportofyourhome/office’srouter.(IfyouuseWi-Fimode,thisstepcanbeignored) AttachincludedWi-Fiantennatotheserver’santennaconnectorandtwisttightly.(IfyouuseWiredmode,thisstepcanbeignored) Connectwithincludedpoweradaptertopowerontheserver. 4.2LoginthePrintServer Tologintothemanagementpageandviewtheconfigurationstatusofyourserver,pleasefollowthestepsbelow. 4.2.1MakesureconnectanEthernetcablebetweenserver’sLANportandyourcomputer,andconnectaUSBcablebetweentheserverandyourprinter. 5 4.2.2Makeyourcomputerhasalreadyinstalledtheprinterdriversoftware,youcandirectlyconnectthecomputerandprintertoinstalldriversoftware automatically,ordownloaddriversoftwarefromtheprinter’swebsitetomanuallyinstall. 4.2.3ConfigurePCtoobtainanIPaddressautomaticallyfrom“LocalAreaConnection”,takeWin10forexample,Macsystemissimilarmethod: A)ClickStart>Settings(Controlpanel),clickNetworks&Internet,clickChangeadapteroptions,thendouble-clickLocalAreaConnection(Ethernet). ab 6 cd B)ClickPropertiesinthewindowofLocalAreaConnection(Ethernet)Status. 7 C)ChooseInternetProtocolVersion4(TCP/IPv4)andclickProperties. D)ObtainanIPaddressautomatically,thenClickOK. 8 4.2.4LoginPrintServerSystem OnyourPC,openawebbrowsersuchasSafari,GoogleorFirefoxetc.TypetheIPaddressoftheserverintotheaddressbarandpressenter.Thedefault IPaddressoftheserveris192.168.6.1,thoughtheactualaddressmayvaryafteryoursetting. Ontheloginpage,entertheusernameandpassword,thenclickLogin.Thedefaultusernameandpasswordare“admin”. Afterlogin,thehomepageoftheCR202printserver’ssysteminterfaceisdisplayed,forexample. 9 4.3ConfigurePrintServer’sWiredorWi-FiNetworkConnection TherearetwomethodstoconnectwiththelocalnetworkforthePrintServer.OneisWiredWANconnection,anotherisWi-Ficonnection.Pleasekeepin mindyoushouldonlyuseonewaytoconnect,ifyousetbothWiredWanandWi-Ficonnection,itmaycauseanIPconflict. 4.3.1WiredWANConnection(IfyouuseWi-Fimode,thisstepcanbeignored,goto4.3.2) ConnectanEthernetcabletotheLANportoftheofficerouter,andconnecttheotherendofthecabletoyourWANportoftheprintserver. Afterwiredconnectiontotheofficerouter,printserverwillusedefaultDHCPClientmodetoautoobtainanIPaddressasxxx.xxx.xxx.248,thisIP addresswillbeusedinnetworkingPC“addprinter”,youcancheckitintheSystemStatus>Overview>Network>WiredWANStatus. 10 IftheDHCPobtainIPaddressisnotasofxxx.xxx.xx.248,Orthisaddressisalreadyoccupiedbyanotherdevice.YouhavetomanuallysetastaticIP addressforPrintServer’sWANportasfollows: Note:ThispreventstheprintserverfromgettingadifferentIPaddresseveryrestart,otherwiseitwillcausethecomputercannotcontinuetobeused withtheoriginalIPaddressadded. A)ClickBasicNetwork>WiredNetwork>WAN>GeneralSetup>Protocolselect“Staticaddress”,clickSWITCHPROTOCOLbutton. 11 B)SettheIPaddressinthesamenetworksegmentwithhome/officerouterandthelastIPnumberis248,andsetasubnet,gateway,DNSaddress,click SAVE&APPLYbutton. C)NowyoucandoublecheckitintheSystemStatus>Overview>Network>WiredWANStatus. 12 D)RecordthePrinterlinkofAdvancedNetwork>PrintService>Link/TCPListenerport TheprinterlinkshouldbeWAN:http://ipaddress/printers/printname.Portwillbe9100or9101. Note:Ifyourcomputerhasnotinstallprinter’sdriveryet,itcannotidentifytheseaddressprintlinkanddevicetype.SomakesureyourPChasalready installedtheprinterdriversoftware. 4.3.2Wi-FiConnection(IfyouuseWiredWanmode,thisstepcanbeignored,goto4.3.1) ConnectincludedWi-Fiantennatotheprintserver,makesuretheprintserverplaceinaplacewithinyourhome/officeWi-Ficoverage. A)Loginprintsever,BasicNetwork>WirelessNetwork,clickSCANbutton,thenselectyourWiFitoJoinnetwork. 13 B)SelectyourofficeWiFinetwork,clickJOINNETWORKbutton. 14 C)FillinyourWi-FipasswordinWPApassphase,clickSUBMIT. Note:DONOTchangethedefault“Nameofthenewnetwork”,donotchangeanyotherparameters. D)ClickSAVE&APPLYbutton. 15 E)DoublecheckitintheSystemStatus>Overview>Network>Wireless(notthesameplaceofWiredWanstatus) SystemwillusedefaultDHCPClientm…

Text truncated - open the document above for the full version.

Model Difference Declaration To Whom It May Concern, We, Guangzhou QiXiang Technology Co.,Ltd (Print Server) Trademark: N/A; Model Number: CR202, CR201, CR102, CR101, QX210, QX510, QX310, QX620, QX520, SDS100, SDS200; All model’s the function, software and electric circuit are the same, only with a product model named different. Test sample model: CR202. Please contact me if you have any question. Name: ZhiHai Wu Date: Sept. 29, 2022 Title: General manager Signature of applicant:

Guangzhou QiXiang Technology Co.,Ltd Agent Authorization Company: Guangzhou QiXiang Technology Co.,Ltd Address: (Location: 06) Pu 107, No. 5, Qiaoyuan Second Street, Tianhe District Guangzhou, China Product Name: Print Server Model Number(s): CR202, CR201, CR102, CR101, QX210, QX510, QX310, QX620, QX520, SDS100, SDS200 Product Description: Print Server We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sept. 29, 2022 Name: ZhiHai Wu Title: General manager Company: Guangzhou QiXiang Technology Co.,Ltd

Guangzhou QiXiang Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Sept. 29, 2022 Subject; Request for Confidentiality FCC ID: 2A8N3-CR202 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: ZhiHai Wu Title: General manager

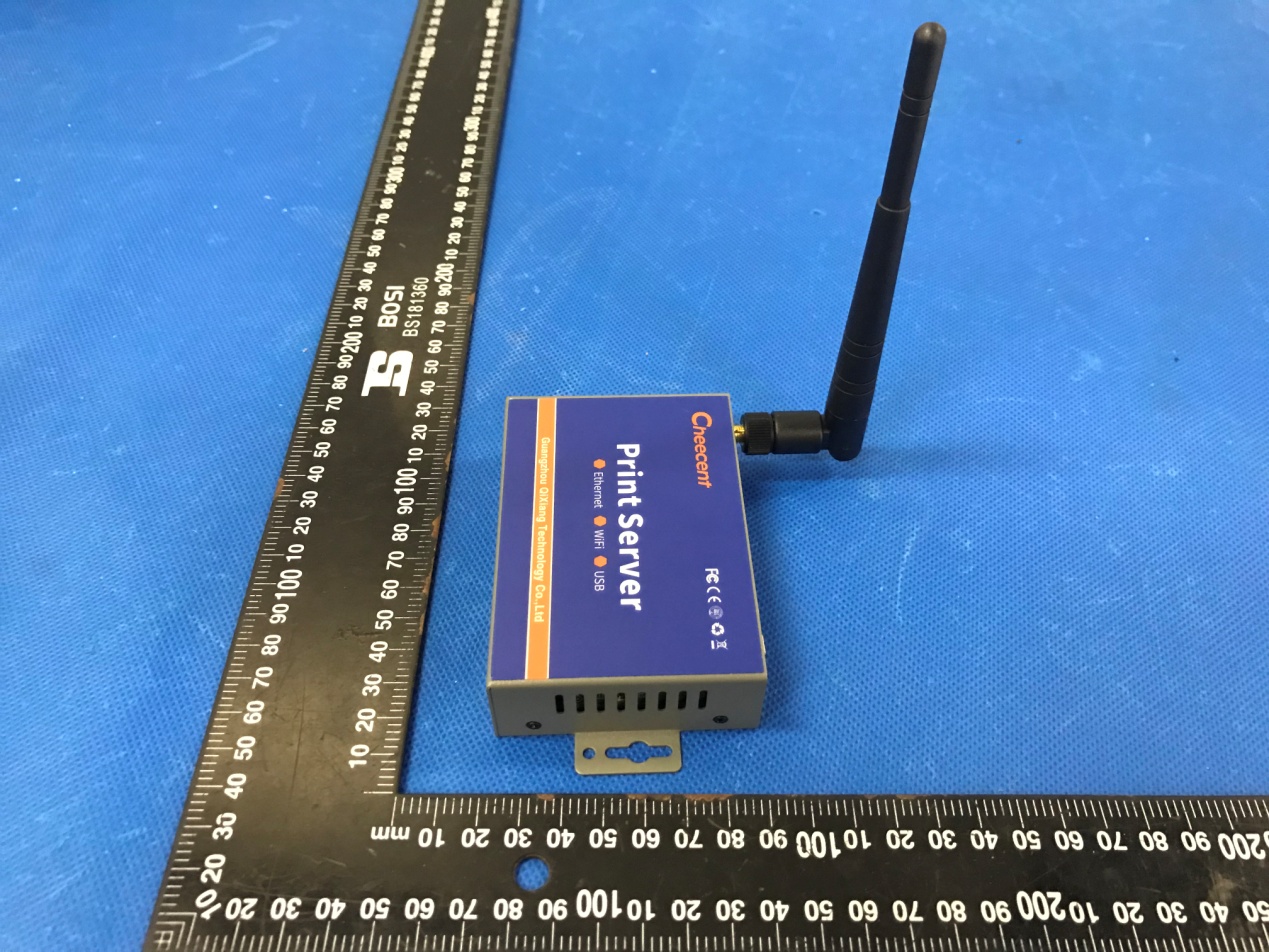

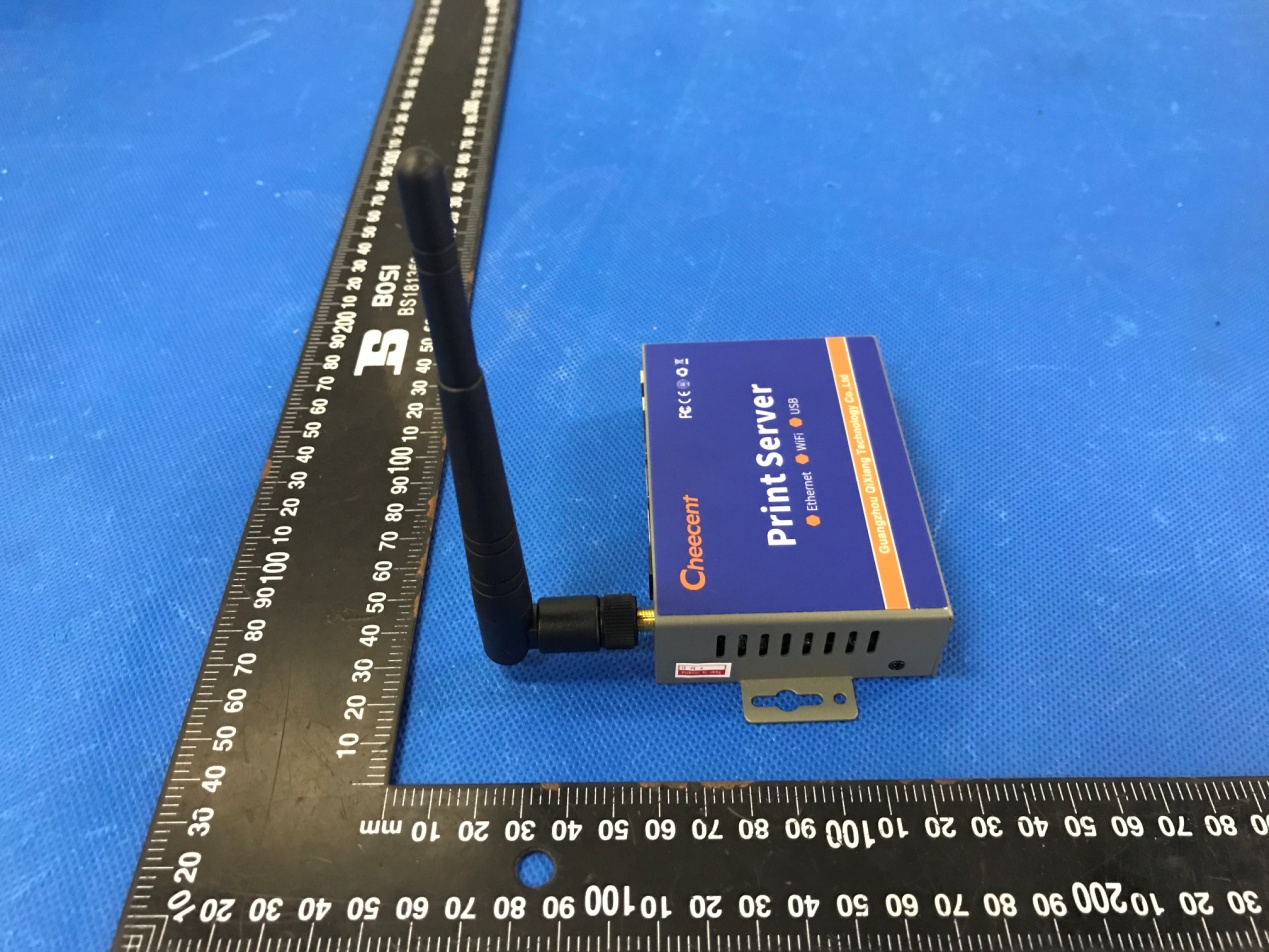

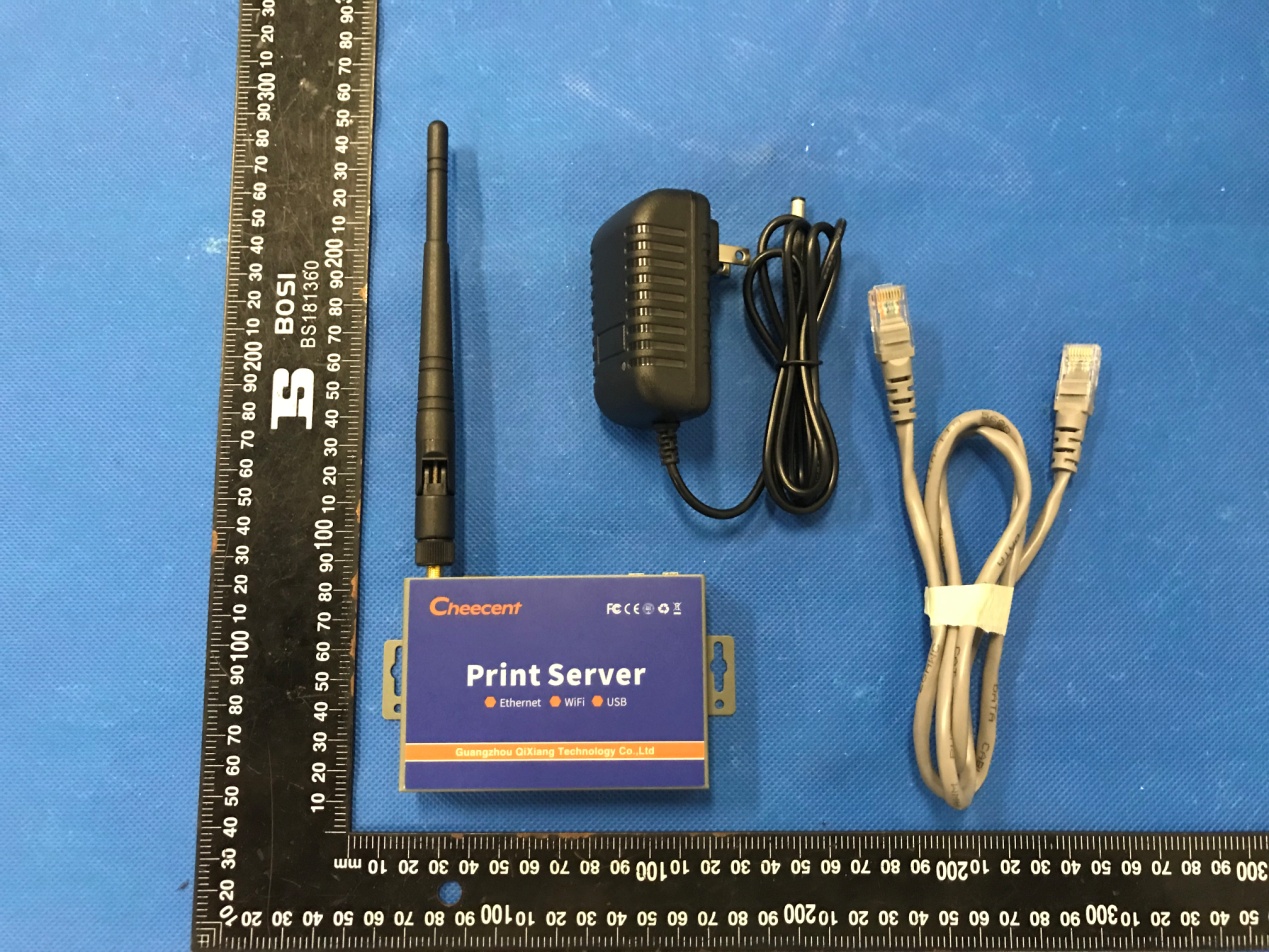

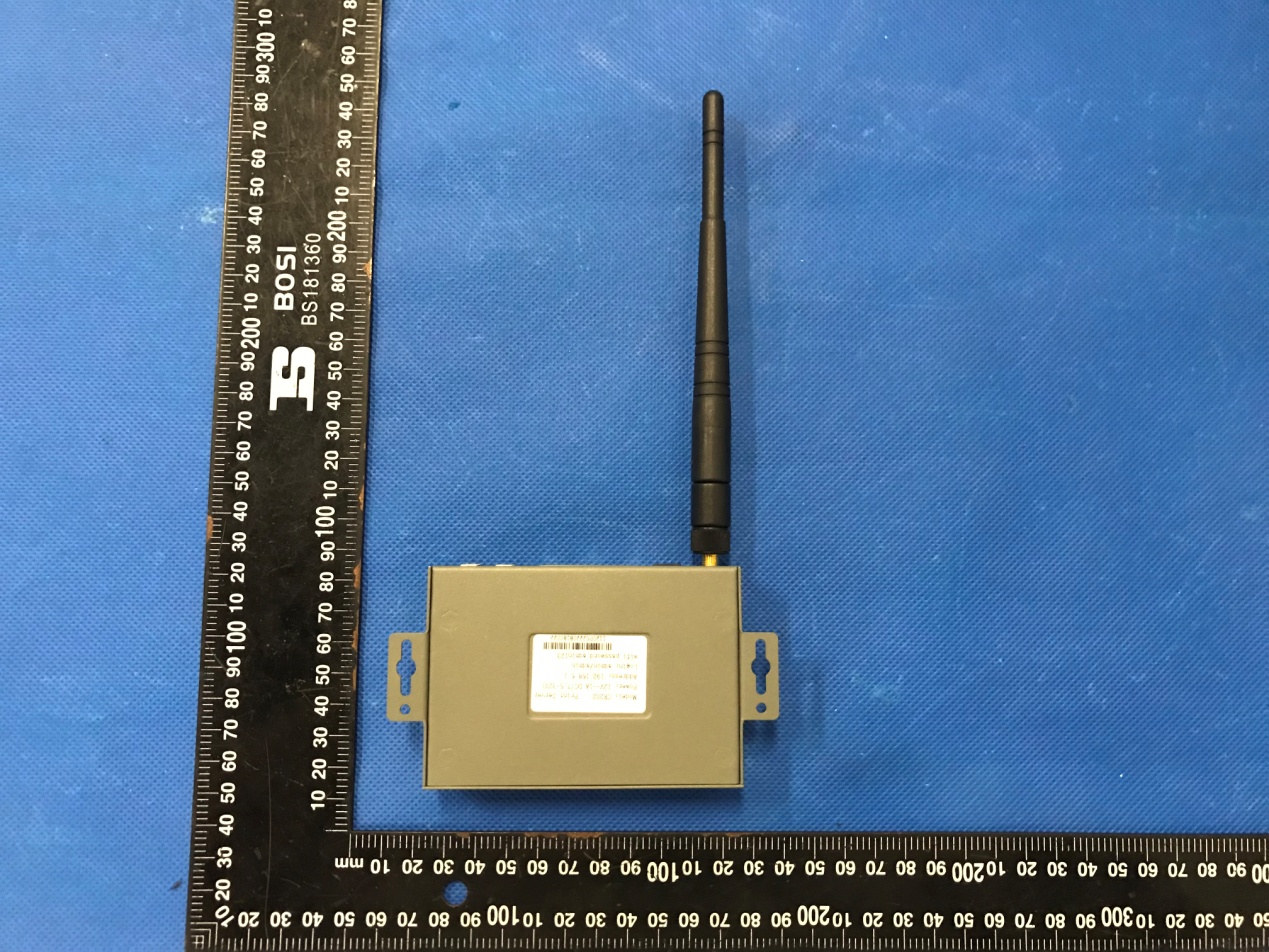

Annex A External Photos Report No.: HK2209094066-E/HK2209094062-E Page 1 of 4 Antenna Report No.: HK2209094066-E/HK2209094062-E Page 2 of 4 Report No.: HK2209094066-E/HK2209094062-E Page 3 of 4 Report No.: HK2209094066-E/HK2209094062-E Page 4 of 4

FCC ID LABEL: Ca. 20mm x 30mm Label Location FCC ID: 2A8N3-CR202

Annex B Internal Photo Report No.: HK2209094066-E/HK2209094062-E Page 1 of 2 Report No.: HK2209094066-E/HK2209094062-E Page 2 of 2

MPE ESTIMATION FCC ID: 2A8N3-CR202 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 2.4G WIFI 18.18 18±1(19) 79.43 3 2 0.03162 Note: Note: The estimation distance is 20cm The device could not transmit simultaneously in 2.4G WIFI Note: PK Output power= conducted power. Conducted power see the test report HK2209094066-E. Gantenna gain=3dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.03162mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------
