GTSK8-2 Instruction Manual: To customers: better use this productTo give fullplay to the performance of this product, itis recommended that you read this manual before use in order to master the productionThe connection method and use points of the product. please keep this manual properly so that you can refer toit when necessaryl EN TROLLEY SPEAKER www.geyguy.com GEYGUY Youtube FACEBOOK Twitter Instagram Tiktok EN TROLLEY SPEAKER To Customers Welcome to purchase and use GEYGUY Digital Multimedia Trolley Speaker. To ensure that this speaker could bring you desired effects when using it, please read this instruction carefully. This product can be connected to sound equipment such as PC, TV, CD, VCD, DVD, TUNER,TAPE, , etc. With outstanding sound quality, this trolley speaker is portable,multifunctional and perfectly-designed. We are confident that it will give you a completely new feeling. Safety Instructions To ensure safe use, please read this instruction carefully before using this product and use it in a right way according to the instruction. Please keep this instruction properly for future reference. EN TROLLEY SPEAKER 1.Portable speaker system High-powered PA speaker style Wireless music media function Red LED digital display Built-in rechargeable battery FM radio with digital display screen Aux(3.5mm) input 1/4'' /6.35mm microphone input Battery energy LED indicator light Solid and durable mold pressing cabinet design Convenient rolling wheels and retractable handle Suitable for indoor and outdoor party, crowd people,Karaoke 2.Wireless Streaming Media Wireless streaming media Simple and relaxing matching Suitable for present newest devices like mobile phone,tablet,laptop and computer,etc. Wireless control use distance Barrier-free 26-32ft/8-10meters 3.Package includes: 1x 1xRemote control 1xpower adapter 1xmanual 4.Specifications: Sound System:8-inch Speaker,3.5" Tweeters Impedance:4 Ohms Frequency Response:58-10kHz±4dB S/N Ratio:76db±3db Input sensitivity: ≥400mV±50mV Line distortion: <15%@1Khz -10dB Bluetooth distortion: <0.2%@1Khz -10dB T.H.D.:<1.5% ( 1W) Battery:Approximate use time 3 hours(charging time:about 8 hours) Remote control battery:3V battery Rechargeable Battery:7.4V/2200mAh lithium battery Power:AC100-240V,50-60Hz,9V/2A adapter Product dimensions(L*W*H):270*230*425mm /10.6*9.0*16.7inch Wireless control name: GEYGUY GTSK8-2 GTSK8-2 2xwireless microphone RMS:20W Instructions for Function&Operation FM RADIO ECHO MIC IN POW/VOL DC 9V IN REC B UHF EN TROLLEY SPEAKER 1:MIC IN:Wire microphone input 2:ECHO:Adjust microphone echo Effect 3:MIC VOL:Adjust microphone Volume 4:LINE IN:Aux audio input(Use it when the type is “LINE”) 5:POWER/VOLUME:Power switch: turn left to the left to turn off the power,turn right to turn on the power,Adjust speaker Volume 6:DC 9V IN: Charging socket 7:Display window 8:MODE:Mode conversion button:（）three-mode conversion 9:Next song for music playing mode(Next channel at FM mode) 10:Play/Pause the music(Automatic searching channel at FM mode; When music is playing:Hold down for 3 seconds to switch between indoor and outdoor modes) 11:Previous:Previous song at music playing mode (Previous channel at FM mode) 12: Shortcuts 13:POWER:Main power switch ON/OFF 14:MODE:Mode conversion button:wireless connection, FM,line,three-mode conversion 15:FM channel quick selection channels in the FM state (Please complete the automatic seek operation first) * The role of the number keys In FM state: After automatically searching for stations by the player, the screen will display the order of stations from 01 to 50 at most. Press the number key 1 or 50 to quickly select. After pressing the player to automatically search for the station, the screen displays the station frequency, such as 93.6, press the number key 936 to quickly select. 16:Mute 17:When music is playing: indoor and outdoor mode switch 18:single cycle ,all cycle,cancel cycle(This model, this button does not work) 19:FM channel search 20:Previous:Previous song at music playing mode(Previous Wireless control,FM,line Wireless control channel at FM mode) 21:Decrease volume 22:Next song for music playing mode(Next channel at FM mode) 23:Play/Pause the music 24:Increase volume 25:UHF wireless microphone/Frequency:910-920MHz POW/VOL 1 23 4 5 FMFMFM 5 EN TROLLEY SPEAKER *:Power switch and volume adjustment compound knob 3: Press the " " button in the FM playback state to select the next channel. REC B REC B POW/VOL POW/VOL POW/VOLPOW/VOL ECHO POW/VOL DC 9V IN ECHO POW/VOL DC 9V IN REC B REC B REC B REC B FM REC B FM REC B REC B REC B REC B REC B 1: Power on: Turn the knob to the right. When you hear a slight "click" sound, the power is turned on and the digital display is lit (as shown in Figure 1). 2: Power off: Turn the knob to the left. When you hear a slight "click" sound, the power is off and the digital display goes out (Figure 2). 3: Volume increase: After the power is turned on, while playing music, turn the knob to the right to increase the volume, and the display will display the current volume value in real time (Figure 3; 5). 4: Music volume reduction adjustment: After the power switch is turned on, while playing music, turn the knob to the left to reduce the volume, and the display shows the current volume value in real time (Figure 4; 5) *: After the power switch is turned on, the machine defaults to the "LINE IN" input state, and the audio source is connected through the 3.5MM audio cable (audio cable not included) in the "LINE IN" state *: Key function operation 1: After the power is turned on, press the "MODE" button to switch to the "Line", Wireless control" and "FM" states in turn. 2：Press the " " key to select the previous channel in the FM playback state. FM FM 6 EN TROLLEY SPEAKER 4: LINE IN status: Wireless control playback status; press the " " button to pause the music, press the " " button again to resume music playback. In FM state: Press "Play button": automatically search for …

Text truncated - open the document above for the full version.

Co m Ad d Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Gu dress: Roo oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: uangzhoush om 334, NO e: Micropho er(s): UM-B ription: Mic MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Zehong Z Manager Guangzho Guangzh Agen higaigukeji O.136 Ying one B, UM-C, U crophone bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect Zhong oushigaigu oushigaigu nt Auth youxiango bin Road, UM-A, UM- Boulder Co erning the c allowed to f regulatory a cation. Any t as acts of ukejiyouxia kejiyouxian horizat ongsi Huadu, Gu D, UM-E, U ourt, Pleasa certification forward all i agencies as and all acts our own. angongsi gongsi tion uangzhou, UM-F anton, Califo of above na information s required a s carried ou Date: China ornia 94566 amed equip related to t nd to discu ut by MiCOM Sept. 20, 20 6, USA, to pment. the approva ss any M Labs on 022 al

Model Difference Declaration To Whom It May Concern, We, Guangzhoushigaigukejiyouxiangongsi (Microphone) Trademark:N/A; Model Number:UM-B, UM-C, UM-A, UM-D, UM-E, UM-F; All model’s the function, software and electric circuit are the same, only with a product color and model named different for commercial purpose. Test sample model:UM- B, UM-C. Please contact me if you have any question. Name:Zehong Zhong Date: Sept. 20, 2022 Title:Manager Signature of applicant:

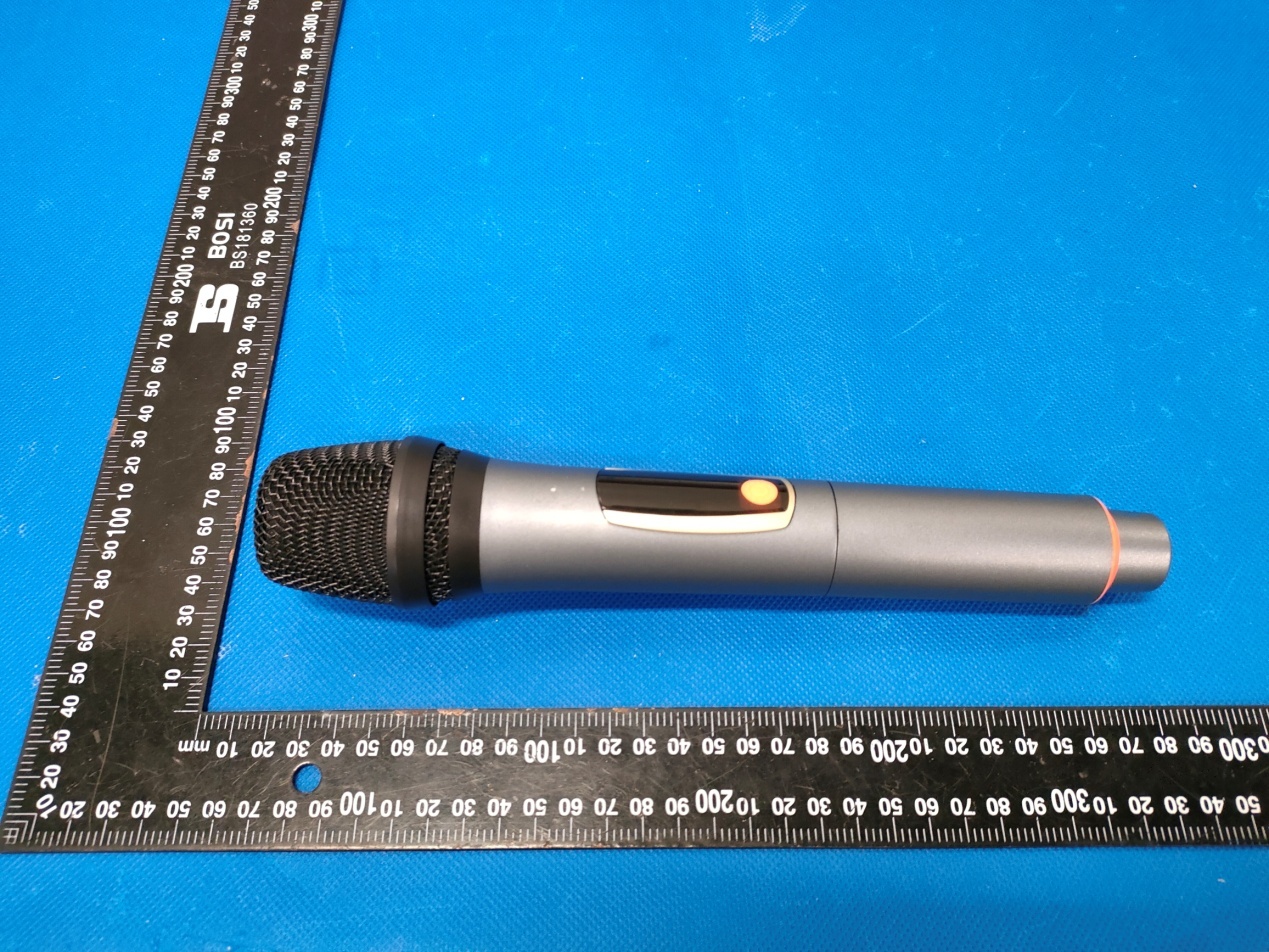

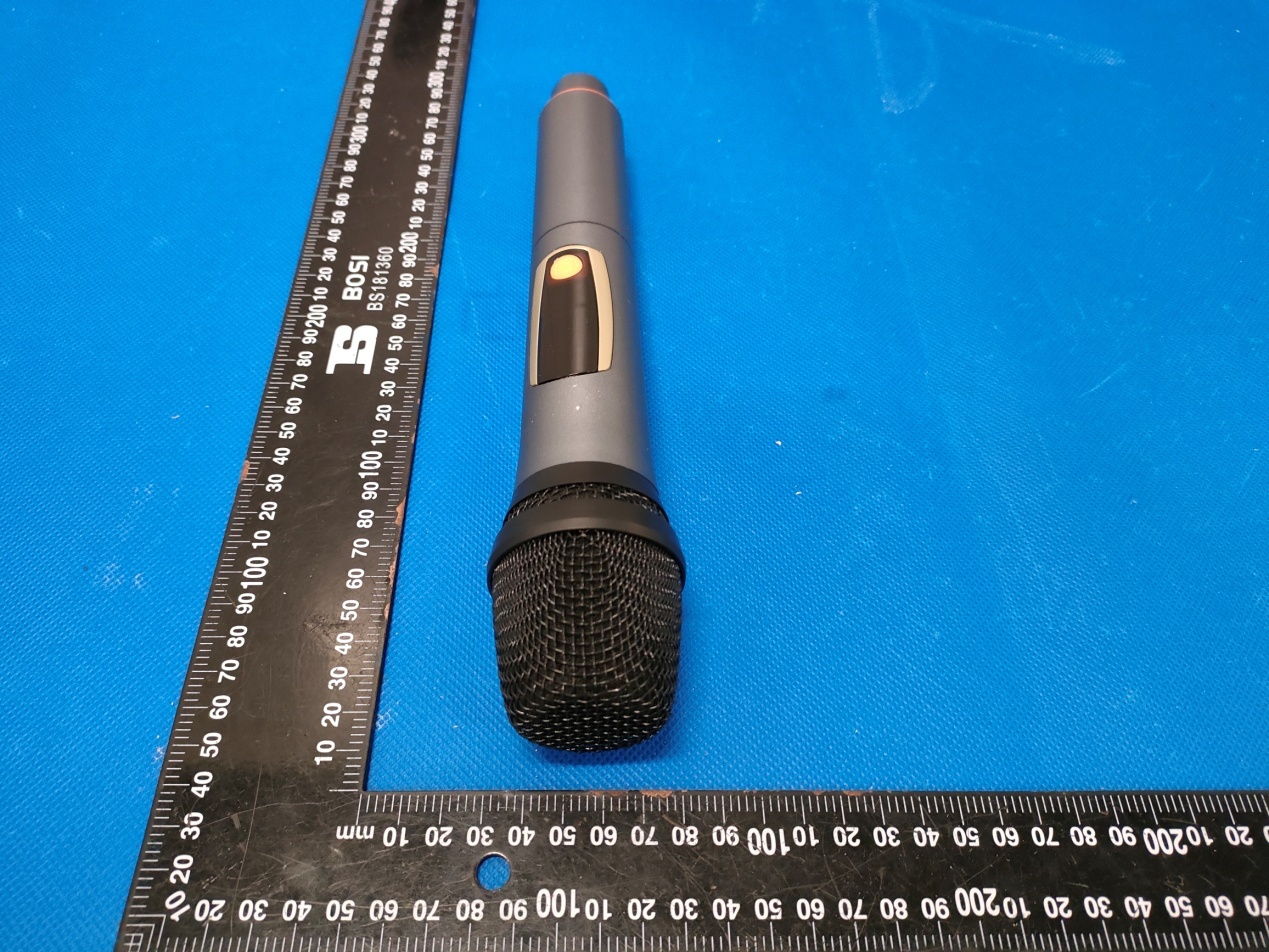

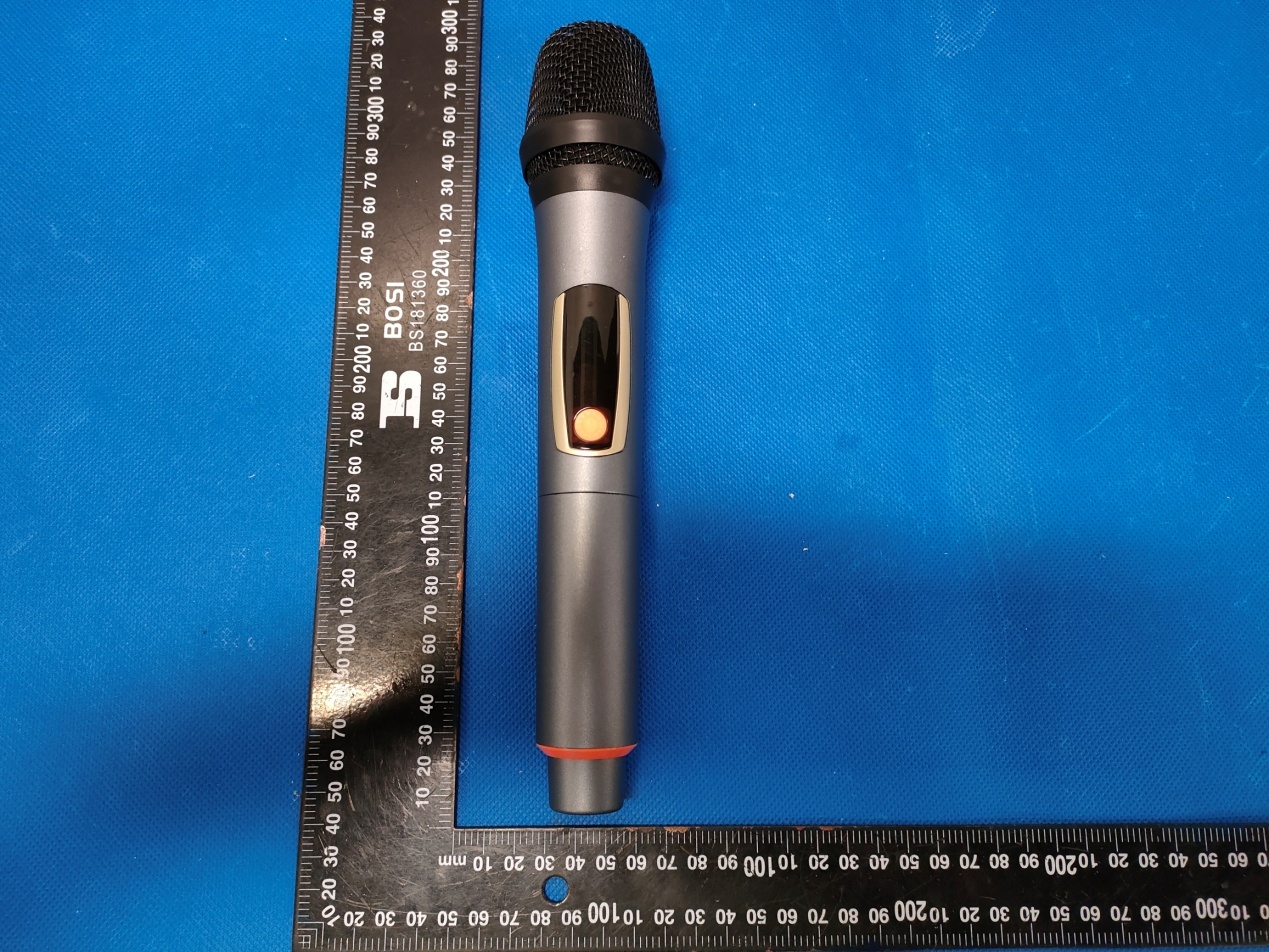

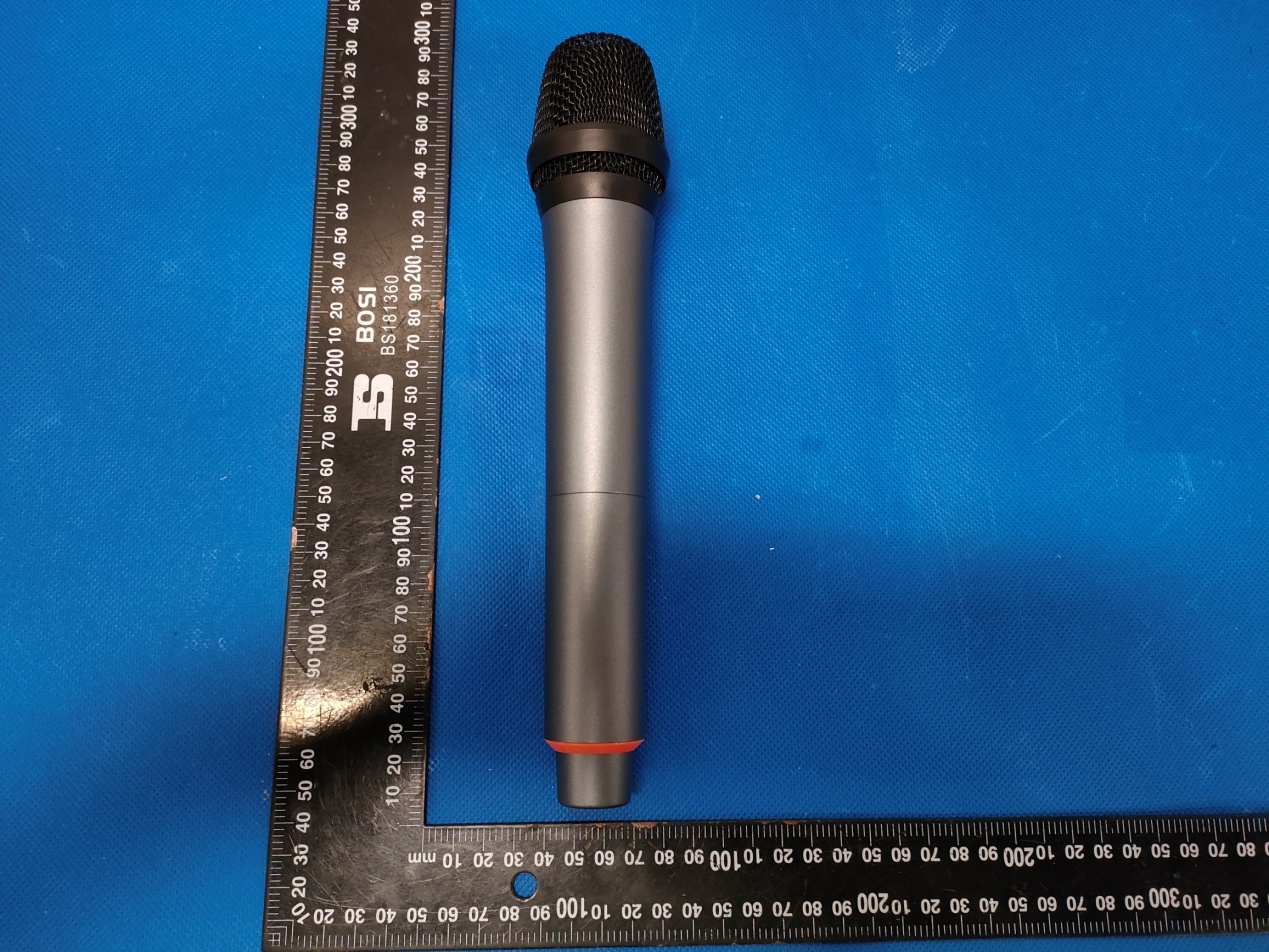

Annex A External Photos Report No.:HK2208183675-E Page 1 of 4 Report No.:HK2208183675-E Page 2 of 4 Report No.:HK2208183675-E Page 3 of 4 Report No.:HK2208183675-E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 20mm Label Location： FCC ID: 2A8NW-UM

Annex B Internal Photo Report No.:HK2208183675-E Page 1 of 3 Report No.:HK2208183675-E Page 2 of 3 Antenna Report No.:HK2208183675-E Page 3 of 3

Page 1 of 27 Report No.: HK2208183675-E FCC TEST REPORT Test report On Behalf of Guangzhoushigaigukejiyouxiangongsi For Microphone Model No.: UM-B, UM-C, UM-A, UM-D, UM-E, UM-F FCC ID: 2A8NW-UM Prepared For : Guangzhoushigaigukejiyouxiangongsi Room 334, NO.136 Yingbin Road, Huadu, Guangzhou, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Aug. 18, 2022~Sept. 08, 2022 Date of Report: Sept. 08, 2022 Report Number: HK2208183675-E Page 2 of 27 Report No.: HK2208183675-E TEST RESULT CERTIFICATION Applicant’s name ................. : Guangzhoushigaigukejiyouxiangongsi Address ................................. : Room 334, NO.136 Yingbin Road, Huadu, Guangzhou, China Manufacture's Name ............ : Guangzhoushigaigukejiyouxiangongsi Address ................................. : Room 334, NO.136 Yingbin Road, Huadu, Guangzhou, China Product description Trade Mark: N/A Product name ........................... : Microphone Model and/or type reference : UM-B, UM-C, UM-A, UM-D, UM-E, UM-F Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Aug. 18, 2022~Sept. 08, 2022 Date of Issue ........................................... : Sept. 08, 2022 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 27 Report No.: HK2208183675-E Table of Contents Page 1 . TEST SUMMARY 6 1.1 . Test Procedures and Results 6 1.2 . Information of the Test Laboratory 6 1.3 . Measurement Uncertainty 6 2 . GENERAL INFORMATION 7 2.1 . General Description of EUT 7 2.2. Carrier Frequency of Channels 8 2.3. Operation of EUT During Testing 8 2.4. Description of Test Setup 8 2.5. Measurement Instruments List 9 3 . CONDUCTED EMISSIONS TEST 10 3.1. Conducted Power Line Emission Limit 10 3.2. Test Setup 10 3.3. Test Procedure 10 3.4. Test Result 11 4 FIELD STRENGTH OF FUNDAMENTAL 12 4.1. Limit 12 4.2. Test Procedure 12 4.3. Test Result 13 5. RADIATED EMISSION TEST 14 5.1. Radiation Limit 14 5.2. Test Setup 14 5.3. Test Procedure 15 5.4. Test Result 15 6. BAND EDGE 20 6.1. Limits 20 6.2. Test Procedure 20 6.3. Test Result 21 7. OCCUPIED BANDWIDTH MEASUREMENT 23 7.1. Test Setup 23 7.2. Test Procedure 23 7.3. Measurement Equipment Used 23 7.4. Test Result 23 8. ANTENNA REQUIREMENT 25 9. PHOTOGRAPH OF TEST 26 Page 4 of 27 Report No.: HK2208183675-E Table of Contents Page 10. PHOTOS OF THE EUT 27 Page 5 of 27 Report No.: HK2208183675-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Sept. 08, 2022 Jason Zhou Page 6 of 27 Report No.: HK2208183675-E 1. TEST SUMMARY 1.1. Test Procedures and Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 15.207 N/A RADIATED EMISSION TEST 15.249(a)/15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT FIELD STRENGTH OF FUNDAMENTAL 15.249(a) COMPLIANT 1.2. Information of the Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Testing Laboratory Authorization： A2LA Accreditation Code is 4781.01. FCC Designation Number is CN1229. Canada IC CAB identifier is CN0045. CNAS Registration Number is L9589. 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.90dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 7 of 27 Report No.: HK2208183675-E 2. GENERAL INFORMATION 2.1. General Description of EUT Equipment: Microphone Model Name: UM-B, UM-C Series Model: UM-A, UM-D, UM-E, UM-F Model Difference: All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: UM-B, UM-C. FCC ID: 2A8NW-UM Antenna Type: PCB Antenna Antenna Gain: 3dBi Operation frequency: 910-920MHz Number of Channels: 2CH Modulation Type: GFSK Power Source: DC 3V from battery Power Rating: DC 3V from battery Page 8 of 27 Report No.: HK2208183675-E 2.2. Carrier Frequency of Channels Description of Channel: Channel Frequency (MHz) Channel Frequency (MHz) 1 910 2 920 2.3. Operation of EUT During Testing Operating Mode The mode is used: Transmitting mode Low Channel: 910MHz High Channel: 920MHz 2.4. Description of Test Setup Operation of EUT during testing: The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position. EUT Page 9 of 27 Report No.: HK2208183675-…

Text truncated - open the document above for the full version.

Radiated Emission
