2A8NZ-Q88Laser page turning pen

WirelessPresenter UserManual (Ver.1.0) Besuretocarefullyreadthisusermanualfirst fortheproperuseandkeepitforfuture reference. 1 ProductView 2 Function KeyFunctionDescription Indicator Light ①WorkingIndicator ②LowBatteryIndicator: Pressanykey,ifLEDblinks quickly,pleasereplacethe 3 battery. Presstoemitlaser;releasethe button,thelaserdisappears. Singleclickto“PageUp” Longpressto“Play/Esc” (forPowerPointonly) Singleclickto“PageDown” Longpressto“BlankScreen” (forPowerPoint/Keynotefull slideshowonly) Singleclickto“SelectHyperlink” (forPowerPointfullslideshow only) Doubleclickto“Open Hyperlink”(forPowerPointfull slideshowonly) Longpressto“SwitchWindows” 4 SingleclicktoMediaPlayer “Play/Pause” Longpressto“VolumeUp” Singleclickto“CloseWindow” Longpressto“VolumeDown” Power Switch PushupwardstoPowerOn; PushdownwardstoPowerOff. Note ①InMacsystemKeynotesoftware,onlysupport PageUp,PageDown,BlankScreenandvolume controlfunctions. ②NonsupportHyperlinkfunctionforWPSoffice. OperatingHints 1.PulltheMiniUSBreceiveroutofpresenter, andpluginUSBPortthatavailableon computer,andpoweronthenitworks. 5 2.UponthefirstinstallationonMac, KeyboardSetAssistantmayappearand promptthatthekeyboardcannotbe identified.Justclick“Continue”tofinishthe installation,andthenthepresenterwill workaccordingly. 3.ThereceivingdistanceofMiniUSBreceiver willbedecreasedbydisturbofelectronic devicesaround. 4.Ifnooperationforthepresenter,itwill enterintothesleepmodeautomatically, pressanykeytoawaken. BatteryInstallation 1.Theproductispoweredby1xAAA battery; 2.Pushandremovethebatterycover; 6 3.Insert1xAAAbatteryintothebattery holder; 4.Putthebatterycoverbackintoposition. Note Ensurebatterypolarity(+)(-)iscorrect. Donotleavebadorexhaustedbattery inthedevice. Pleaseremovebatteryifdeviceisnot usedforalongperiod. Ifthedevicedoesnotfunctioncorrectly oriftheoperatingrangebecomes reduced,trytoreplacethebatterywith newone. 7 ProductParameter Transmitter RFFrequency:2.4GRF ControlDistance:30m LaserDistance:Upto200m LaserPower:<1mW LaserColor:Red Battery:1*AAA WorkingVoltage:1.5V SleepCurrent:100uA Dimension:138.0*20.3*16.5mm Weight:42g Receiver OperationSystem:Windows，Mac Interface:USB2.0,Compatible withUSB1.1,USB3.0 WorkingVoltage:USBelectricitysupply (4.5-5.5V) 8 SafetyTips 1.Toavoidpossibleeyedamage,neverpoint thedeviceatpeopleespeciallytheirfaces, orlookdirectlyintothedevice'slaserbeam. 2.Avoidpointingthedevice'slaserbeamata mirrororotherhighlyreflectivesurface. 3.Keepthedeviceawayfromchildren playing. 4.Neverviewthedevice'slaserbeamusing telescopicdevices,suchasamicroscopeor binoculars. 5.Anyattempttodisassemble,adjustor repairthedevicemayresultinexposureto laserlightorothersafetyhazards. 9 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

SHENZHENQUROELECTRONICTECHNOLOGYCO.,LTD ModelDifference Productdescription:Laserpageturningpen Modelname:Q88 RLP301,RLP801,RLP400,Q211,Q86,RLP165,RLP157N,RLP900, Q221 TradeName:N/A FCCID:2A8NZ-Q88 AllthemodelarethesamecircuitandRFmodule,onlyformodelname. Regards Sincerely Client’ssignature: Client’sname/title:ALLENZHU(N/A) Contactinformation/address:NO.4Building,ShiFengTechnologyPark,SongYuRD,SonggangTown ShenzhenCity,China.

C5266091_X8_Ed.1 1/1 LetterofAuthorization <SHENZHENQUROELECTRONICTECHNOLOGYCO.,LTD> Company:SHENZHENQUROELECTRONICTECHNOLOGYCO.,LTD Address:NO.4Building,ShiFengTechnologyPark,SongYuRD,SonggangTown ShenzhenCity,China. ProductName:Laserpageturningpen ModelNumber:Q88 RLP301,RLP801,RLP400,Q211,Q86,RLP165,RLP157N,RLP900, Q221 FCCIdentifier:2A8NZ-Q88 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:ALLENZHUDate:2022-09-20 Title:N/A Signatureofapplicant:

C5266091_X10_Ed.1 1/1 <SHENZHENQUROELECTRONICTECHNOLOGYCO.,LTD> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2022-09-20 Subject:RequestforConfidentiality FCCID:2A8NZ-Q88 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:ALLENZHU Title:N/A

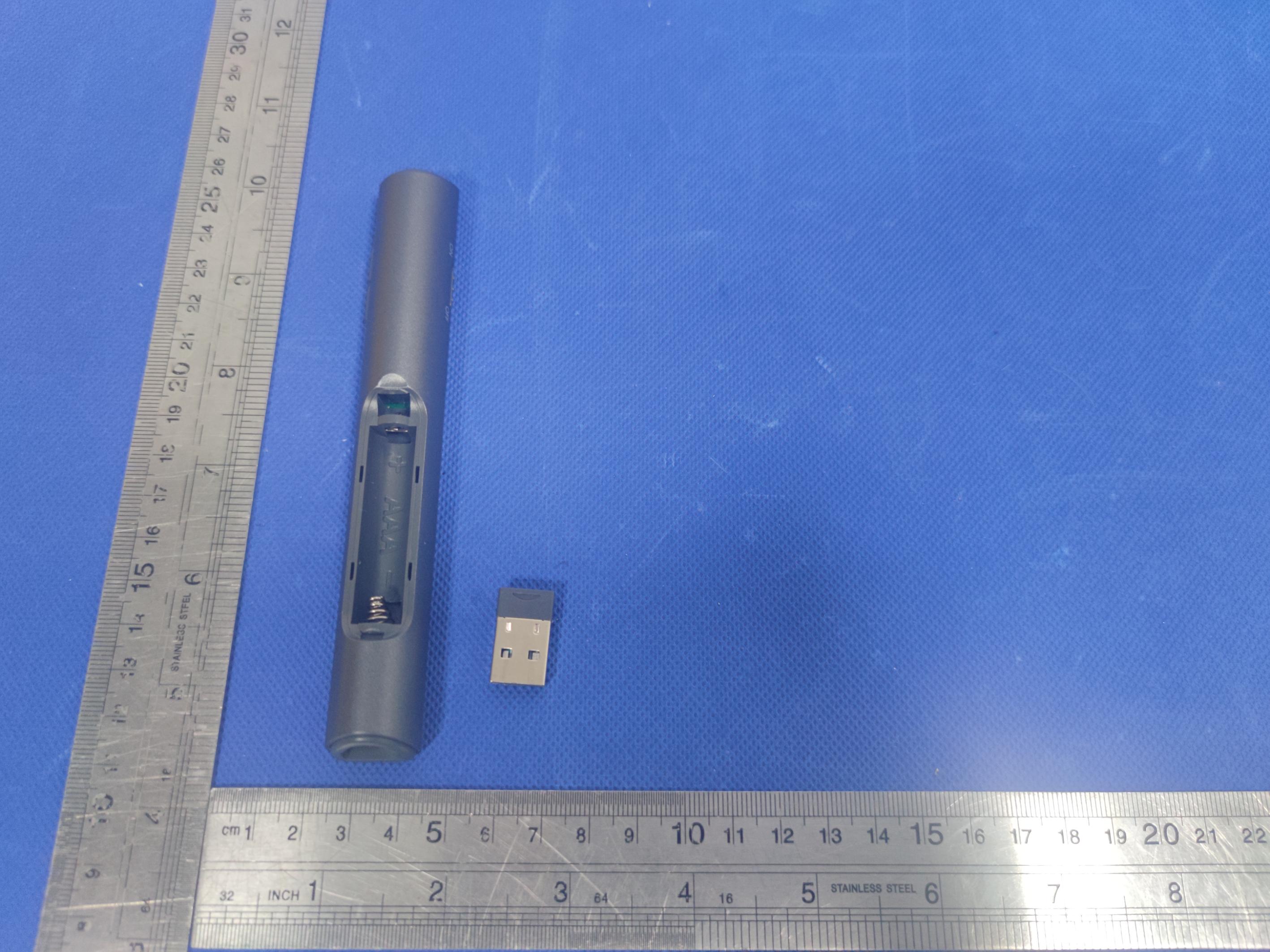

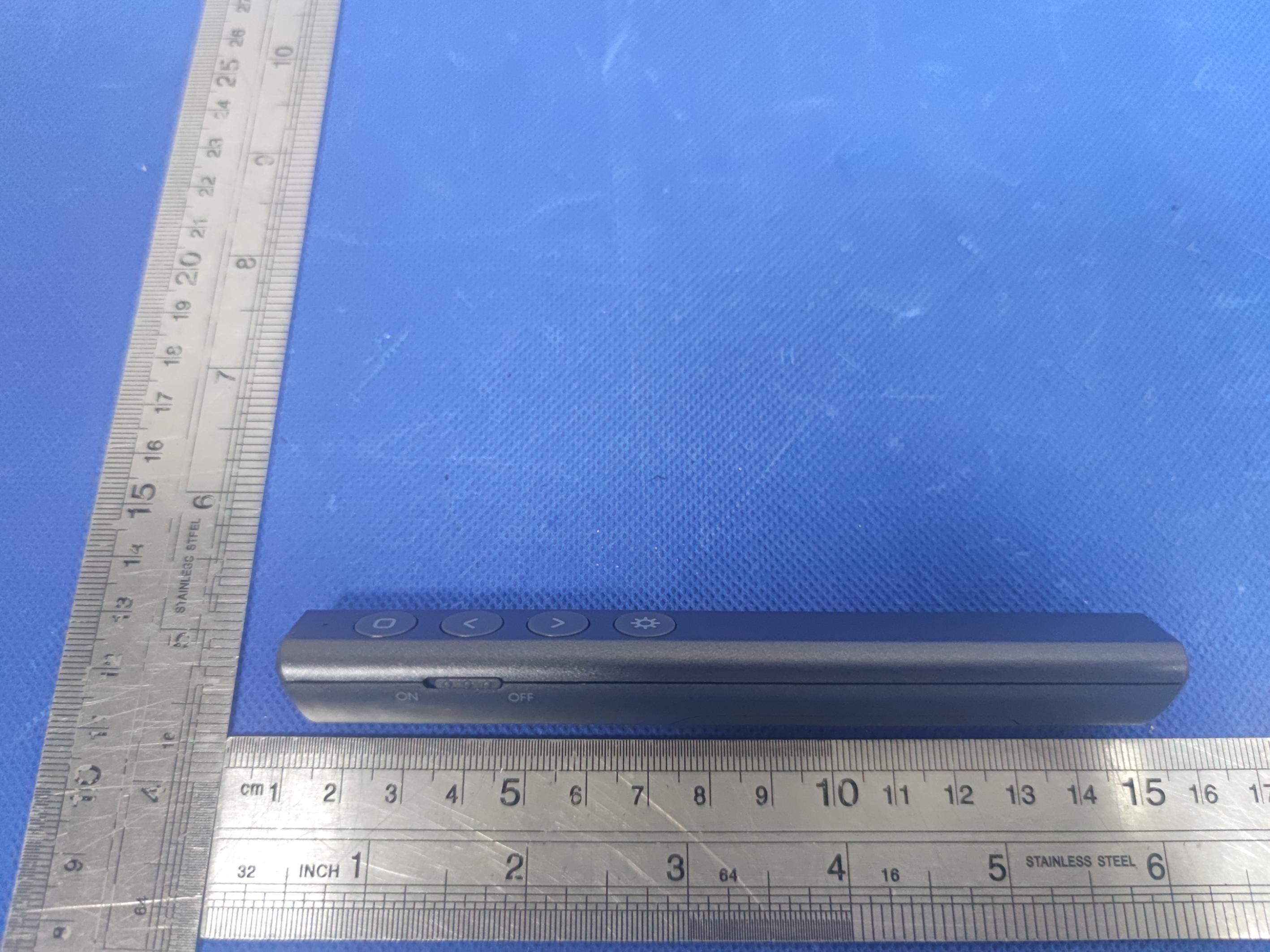

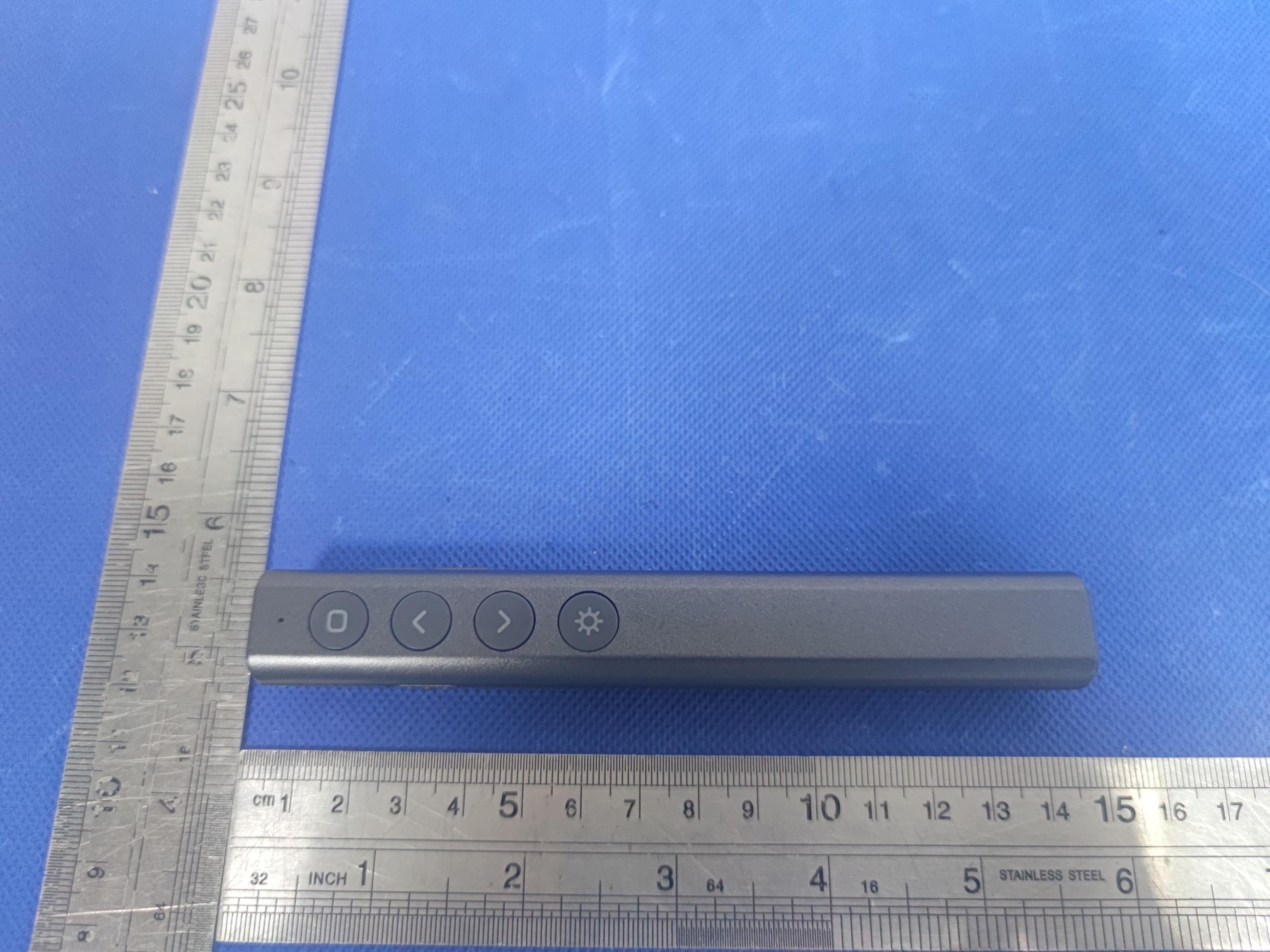

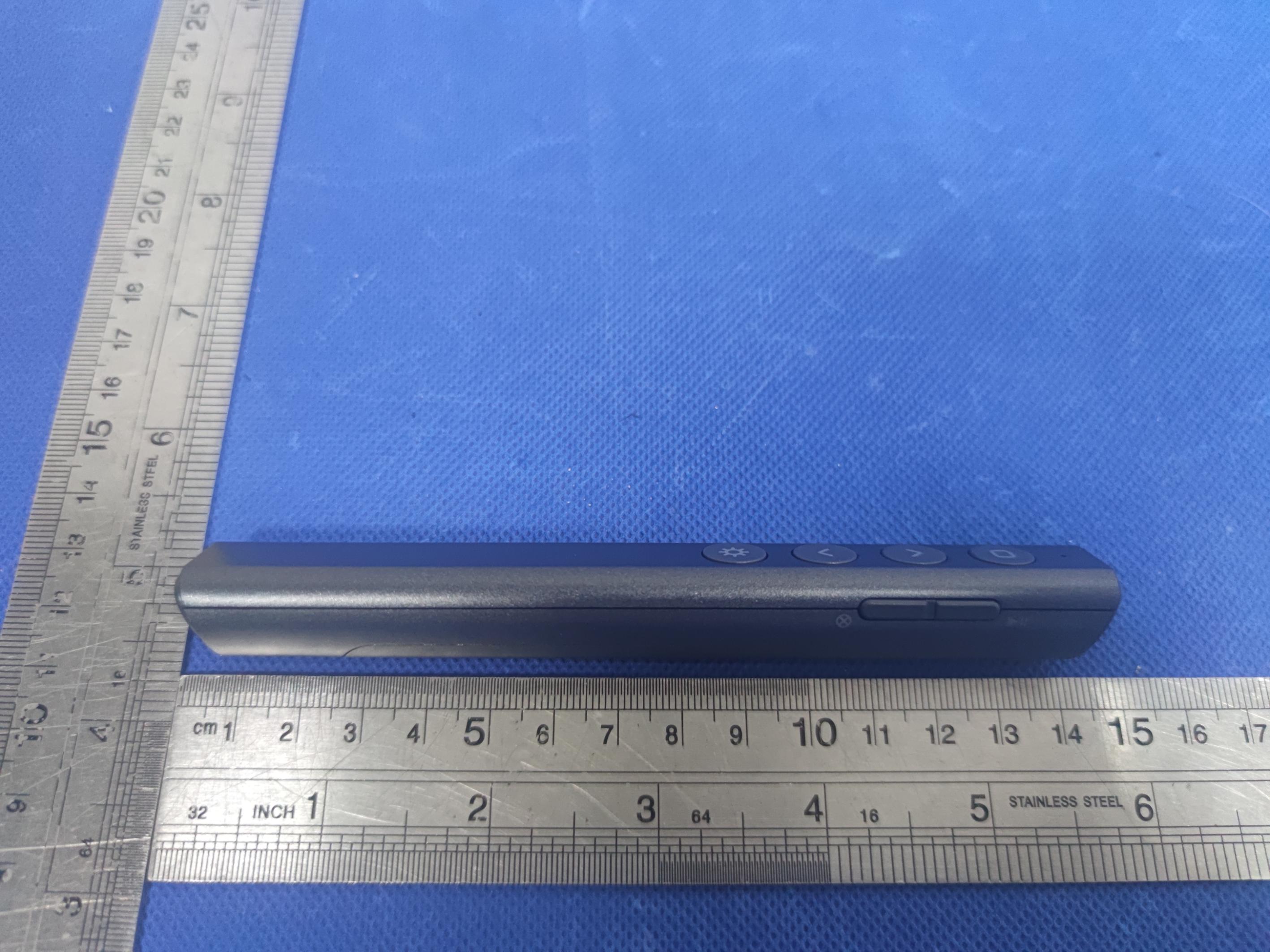

EUTPHOTO(ExternalPhotos)

Label and label location Laser page turning pen FCC ID:2A8NZ-Q88

EUTPHOTO(InternalPhotos) ※※※※※ENDOFREPORT※※※※※ ANT

FCCID:2A8NZ-Q88 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093 ， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, For2.4G ModeMax Power(dBm) Max Power(mW) Frequency(MHz)Min. distance(mm) Calc. thresholds limit GFSK1.4611.40240550.433933.0 SoaSARtestisnotrequired

ProjectNo.:ZKT-2206083845E Page 1 of 36 FCCTESTREPORT FCCID:2A8NZ-Q88 ReportNumber. .................................... : ZKT-2206083845E DateofTest ....................................................... : Jun.07,2022toSept.26,2022 Dateofissue ......................................... : Sept.26,2022 Totalnumberofpages..........................38 TestResult..........................................: PASS TestingLaboratory............................: ShenzhenZKTTechnologyCo.,Ltd. Address...............................................: 1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname.............................: SHENZHENQUROELECTRONICTECHNOLOGYCO.,LTD Address...............................................: NO.4Building,ShiFengTechnologyPark,SongYuRD,Songgang TownShenzhenCity,China. Manufacturer'sname......................: SHENZHENQUROELECTRONICTECHNOLOGYCO.,LTD Address ............................................... : NO.4Building,ShiFengTechnologyPark,SongYuRD,Songgang TownShenzhenCity,China. Testspecification: Standard................................................: FCCCFRTitle47Part15SubpartCSection15.247 ANSIC63.10:2013 Testprocedure.....................................: / Non-standardtestmethod ................ :N/A TestReportFormNo........................: TRF-EL-111_V0 TestReportForm(s)Originator.....: ZKTTesting MasterTRF........................................: Dated:2020-01-06 ThisdevicedescribedabovehasbeentestedbyZKT,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofZKT,thisdocumentmay bealteredorrevisedbyZKT,personalonly,andshallbenotedintherevisionofthedocument. Productname.....................................:Laserpageturningpen Trademark...........................................: N/A Model/Typereference......................:Q88 RLP301,RLP801,RLP400,Q211,Q86,RLP165,RLP157N,RLP900, Q221 Ratings .................................................. : Input:DC1.5VBattery ProjectNo.:ZKT-2206083845E Page 2 of 36 Testingprocedureandtestinglocation: TestingLaboratory.......................................:ShenzhenZKTTechnologyCo.,Ltd. Address............................................................:1/F,No.101,BuildingB,No.6,TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China JimLiu Testedby(name+signature).......................: TomZou Reviewer(name+signature).......................: LakeXie Approved(name+signature).......................: ProjectNo.:ZKT-2206083845E Page 3 of 36 TableofContents Page 1.VERSION5 2.SUMMARYOFTESTRESULTS6 2.1TESTFACILITY7 2.2MEASUREMENTUNCERTAINTY7 3.GENERALINFORMATION8 3.1GENERALDESCRIPTIONOFEUT8 3.2DESCRIPTIONOFTESTMODES9 3.3BLOCKDIGRAMSHOWINGTHECONFIGURATIONOFSYSTEMTESTED9 3.4DESCRIPTIONOFSUPPORTUNITS(CONDUCTEDMODE)10 3.5EQUIPMENTSLISTFORALLTESTITEMS11 4.EMCEMISSIONTEST12 4.1CONDUCTEDEMISSIONMEASUREMENT12 4.1.11POWERLINECONDUCTEDEMISSIONLIMITS12 4.1.2TESTPROCEDURE12 4.1.3DEVIATIONFROMTESTSTANDARD13 4.1.4TESTSETUP13 4.1.5EUTOPERATINGCONDITIONS13 4.1.6TESTRESULTS13 4.2RADIATEDEMISSIONMEASUREMENT13 4.2.1RADIATEDEMISSIONLIMITS14 4.2.2TESTPROCEDURE15 4.2.3DEVIATIONFROMTESTSTANDARD15 4.2.4TESTSETUP15 4.2.5EUTOPERATINGCONDITIONS16 5.RADIATEDBANDEMISSIONMEASUREMENT21 5.1TESTREQUIREMENT:21 5.2TESTPROCEDURE21 5.3DEVIATIONFROMTESTSTANDARD21 5.4TESTSETUP22 5.5EUTOPERATINGCONDITIONS22 5.6TESTRESULT23 6.POWERSPECTRALDENSITYTEST24 6.1APPLIEDPROCEDURES/LIMIT24 6.2TESTPROCEDURE24 6.3DEVIATIONFROMSTANDARD24 6.4TESTSETUP24 ProjectNo.:ZKT-2206083845E Page 4 of 36 TableofContentsPage 6.5EUTOPERATIONCONDITIONS24 6.6TESTRESULTS25 7.CHANNELBANDWIDTH27 7.1APPLIEDPROCEDURES/LIMIT27 7.2TESTPROCEDURE27 7.3DEVIATIONFROMSTANDARD27 7.4TESTSETUP27 7.5EUTOPERATIONCONDITIONS27 7.6TESTRESULTS28 8.PEAKOUTPUTPOWERTEST30 8.1APPLIEDPROCEDURES/LIMIT30 8.2TESTPROCEDURE30 8.3DEVIATIONFROMSTANDARD30 8.4TESTSETUP30 8.5EUTOPERATIONCONDITIONS30 8.6TESTRESULTS31 9.CONDUCTEDBANDEDGEANDSPURIOUSEMISSION32 9.1APPLICABLESTANDARD32 9.2TESTPROCEDURE32 9.3DEVIATIONFROMSTANDARD32 9.4TESTSETUP32 9.5EUTOPERATIONCONDITIONS32 10.ANTENNAREQUIREMENT35 11.TESTSETUPPHOTO36 12.EUTCONSTRUCTIONALDETAILS36 ProjectNo.:ZKT-2206083845E Page 5 of 36 1.VERSION ReportNo.VersionDescriptionApproved ZKT-2206083845ERev.01InitialissueofreportSept.26,2022 ProjectNo.:ZKT-2206083845E Page 6 of 36 2.SUMMARYOFTESTRESULTS Testproceduresaccordingtothetechnicalstandards: FCCPart15(15.247),SubpartC Standard Section TestItemJudgmentRemark FCCpart15.203/15.247 (c) AntennarequirementPASS FCCpart15.207ACPowerLineConductedEmissionN/A FCCpart15.247(b)(3)ConductedPeakOutputPowerPASS FCCpart15.247(a)(2)ChannelBandwidth&99%OCBPASS FCCpart15.247(e)PowerSpectralDensityPASS FCCpart15.247(d)BandEdgePASS FCCpart15.205/15.209SpuriousEmissionPASS NOTE: (1)“N/A”denotestestisnotapplicableinthisTestReport ProjectNo.:ZKT-2206083845E Page 7 of 36 2.1TESTFACILITY ShenzhenZKTTechnologyCo.,Ltd. Add.:1/F,No.101,BuildingB,No.6,TangweiCommunityIndustrialAvenue,FuhaiStreet,Bao'an District,Shenzhen,China FCCTestFirmRegistrationNumber:692225 DesignationNumber:CN1299 ICRegisteredNo.:27033 2.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U ， whereexpendeduncertaintyUisbasedonastandard uncertaintymultipliedbyacoveragefactorofk=2 ， providingalevelofconfidenceofapproximately95 % 。 No.ItemUncertainty 1 3mcamberRadiatedspurious emission(9KHz-30MHz) U=4.5dB 2 3mcamberRadiatedspurious emission(30MHz-1GHz) U=4.8dB 3 3mchamberRadiatedspurious emission(1GHz-6GHz) U=4.9dB 4 3mchamberRadiatedspurious emission(6GHz-40GHz) U=5.0dB 5ConducteddisturbanceU=3.2dB 6RFBandEdgeU=1.68dB 7RFpowerconductedU=1.86dB 8RFconductedSpuriousEmissionU=2.2dB 9RFOccupiedBandwidthU=1.8dB 10RFPowerSpectralDensityU=1.75dB 11humidityuncertaintyU=5.3% 12Temperatureuncertainty U=0.59 °C ProjectNo.:ZKT-2206083845E Page 8 of 36…

Text truncated - open the document above for the full version.

承 认 书 SPECIFICATION FOR APPROVAL 客 户 名 称: CUSTOMER NAME: 产 品 名 称: PRODUCT NAME: 2.4GHZ PCB ANTA 客 户 料 号: CUSTOMER P /N: _____________________________________ 电子料号 P/N: REV: A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKED BY: AUDITOR BY: APPROVED BY: DATE: 2022-04-19 Contents 一、规格表: ........................................................ 3 二、成品图： ..................................................... 4 三、测试报告 ..................................................... 4 一、规格表: 产品主要技术参数 主要技术指标 Main technical specifications 频率范围 （GHZ） 2.4-2.5 Frequency Range (gHZ) 2.4-2.5 特性阻抗(Ω) 10 Impedance(Ω) 10 增益(dBi) 2.51 Gain(dBi) 2.51 输出电压 驻波比 ≦1.82 VSWR ≦1.82 最大功率 10W Admitted Power 10W 极化方式 垂直极化 Polarization Linear,Vertical 方向性 全向性 Radiation Omni-directional 连接方式 PCB Connector Type PCB 物理性能 Physical Properties 工作温度 -20°C~+70°C Operating Temp -20°C~+70°C 保存温度 -20°C~+70°C Storage Temp -20°C~+70°C 二、成品图： 三、测试报告 3.1 ：网络分析仪测试报告 3.2 ：暗室 2D、3DRaditation Pattern 2.400 GHz Gain2.42 dBi Efficiency:75.6 1% 2.450 GHz Gain: 2.51dBi Efficiency: 78.45% 2.500 GHz Gain: 2.47dBi Efficiency: 79.32%

EUTTESTPHOTO
