2A8PW-T5PLUSVehicle smart dashboard

FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOT E: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help.

ShenZhen YongBo Auto Parts Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-10-17 Subject; Request for Confidentiality FCC ID: 2A8PW-T5PLUS To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Shuang Shuang Mao / Principal Company: ShenZhen YongBo Auto Parts Co., Ltd. Address: 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Phone: +86-15889795243 Fax: +86-0755-83014150 E-Mail: [email protected]

ShenZhen YongBo Auto Parts Co., Ltd. Responsibility Declaration Letter v1.0 Responsibility Declaration Letter Company name: ShenZhen YongBo Auto Parts Co., Ltd. Address: 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Product Name: Vehicle smart dashboard FCC ID: 2A8PW-T5PLUS Model(s): T5 PLUS Model(s) Difference Description: N/A We, [ShenZhen YongBo Auto Parts Co., Ltd.], hereby acknowledge that all the product information (including all original, drafted, or modified documents) provided to the TCB either by us or our agent or representative(s) for the purposes of FCC certification will meet FCC regulations and requirements; and that any modifications or changes made as a result of TCB review of the documents will be formally implemented into the manufacturing process and product documentation shipped with equipment. We also confirm that all information provided is legitimate and does not contain any false content such as forgery, fabrication, alteration, tampering and concealment. We assume all economic and legal responsibilities in matters that may arise as a result of disclosure on sample products and associated product documentation provided for product certification that may subsequently be found to be a mis-representation of the final product and accompanying documentation when produced, marketed, or sold in the United States, Canada, or anywhere in the world. Sincerely, Signature: Name / Title: Shuang Shuang Mao / Principal Company: ShenZhen YongBo Auto Parts Co., Ltd. Address: 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Phone: +86-15889795243 Fax: +86-0755-83014150 E-Mail: [email protected]

FCC Software Configuration Control Declaration Rev1.1 ShenZhen YongBo Auto Parts Co., Ltd. FCC Software Configuration Control Declaration Date: October 17, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Vehicle smart dashboard / T5 PLUS Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Shuang Shuang Mao Date: 2022/10/17 Title: Principal Signature of applicant

ShenZhen YongBo Auto Parts Co., Ltd. Agent Authorization Company: ShenZhen YongBo Auto Parts Co., Ltd. Address: 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Product Name: Vehicle smart dashboard Trade Mark: TALESCAR Model Number(s): T5 PLUS FCC ID: 2A8PW-T5PLUS We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-10-17 Name: Shuang Shuang Mao Title: Principal Company: ShenZhen YongBo Auto Parts Co., Ltd.

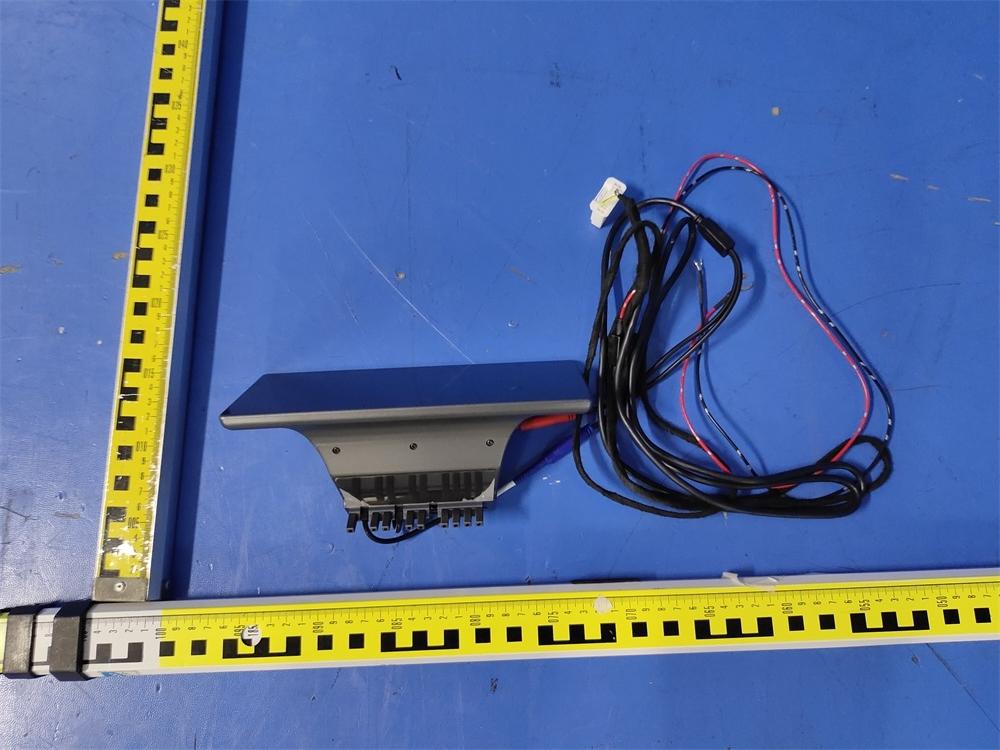

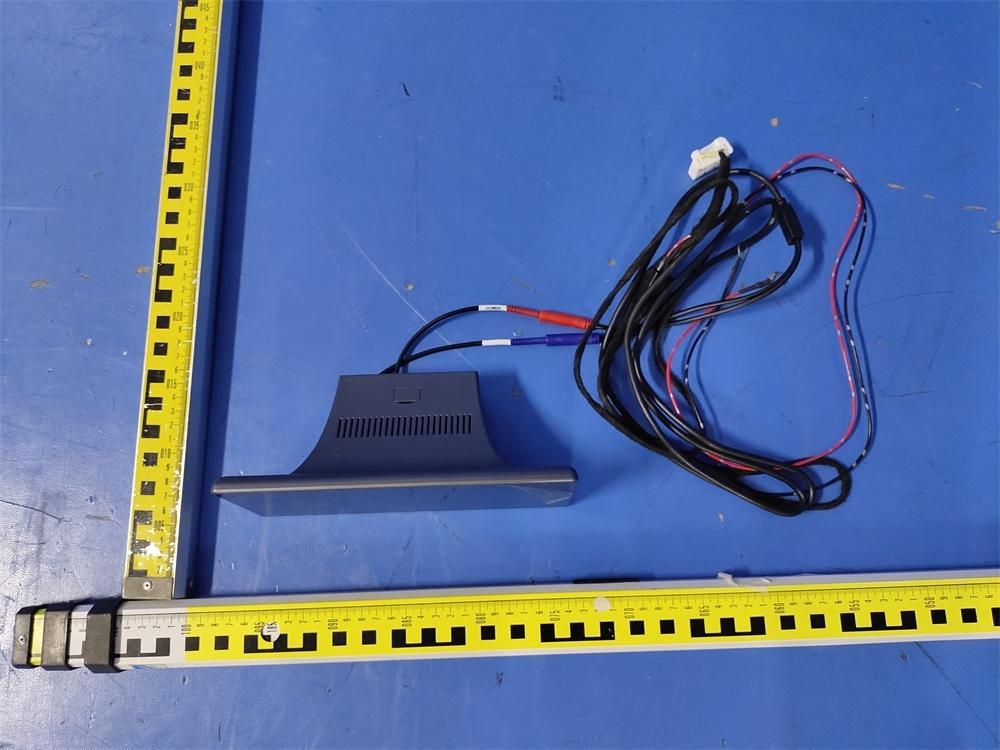

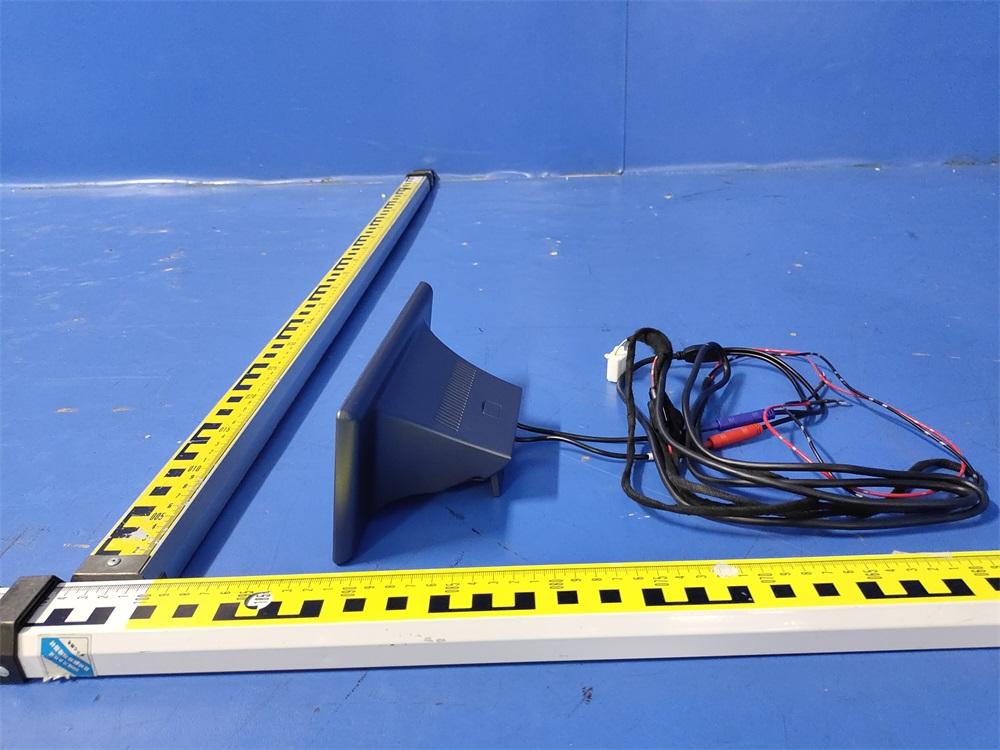

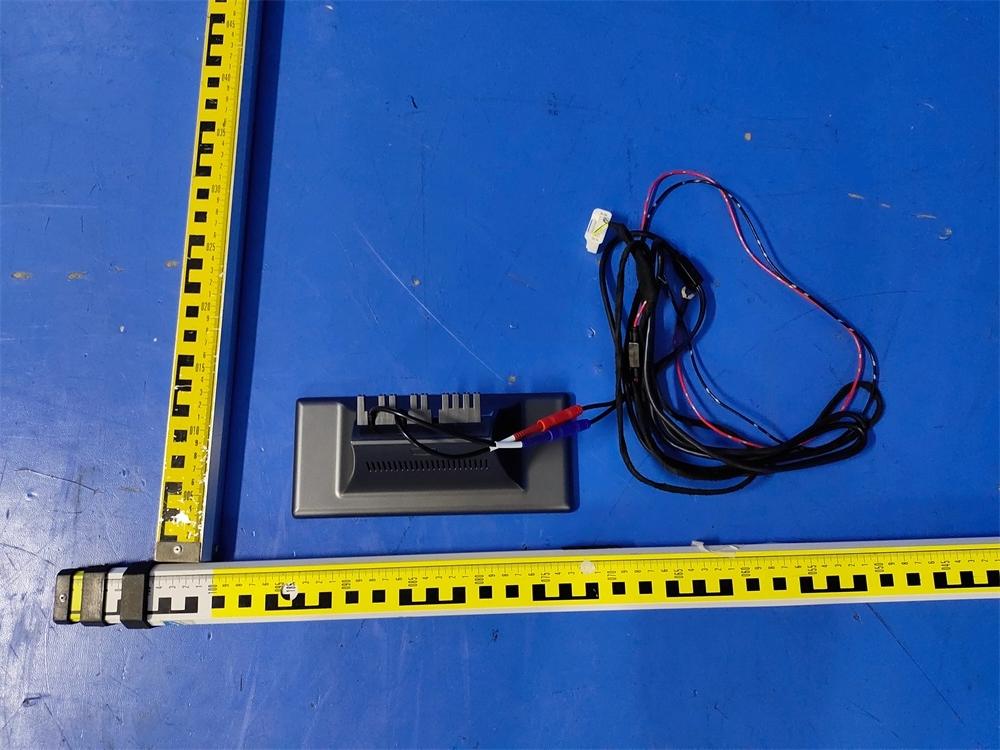

FCC ID: 2A8PW-T5PLUS Fig. 1 Fig. 2 FCC ID: 2A8PW-T5PLUS Fig. 3 Fig. 4 FCC ID: 2A8PW-T5PLUS Fig. 5 Fig. 6

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L4.0cm x 2.5cm) Label Location

FCC ID: 2A8PW-T5PLUS Fig. 1 Fig. 2 FCC ID: 2A8PW-T5PLUS Fig. 3 Fig. 4 BT&WLAN Antenna FCC ID: 2A8PW-T5PLUS Fig. 5 Fig. 6 FCC ID: 2A8PW-T5PLUS Fig. 7 Fig. 8 BT Antenna FCC ID: 2A8PW-T5PLUS Fig. 9 Fig. 10 FCC ID: 2A8PW-T5PLUS Fig. 11 Fig. 12 FCC ID: 2A8PW-T5PLUS Fig. 13

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20220704019-1-5 2A8PW-T5PLUS Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Sep.22, 2022 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : ShenZhen YongBo Auto Parts Co., Ltd. Address ............................................ : 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Vehicle smart dashboard Trade Mark ....................................... : TALESCAR Manufacturer .................................... : ShenZhen YongBo Auto Parts Co., Ltd. Model/Type reference ...................... : T5 PLUS Listed Models .................................. : N/A Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 12.0V Result ............................................... : PASS Report No.: GTS20220704019-1-5 Page 2 of 14 T E S T R E P O R T Test Report No. : GTS20220704019-1-5 Sep.22, 2022 ______________________________________________________________________________________________ Date of issue Equipment under Test : Vehicle smart dashboard Model /Type : T5 PLUS Listed model : N/A Applicant : ShenZhen YongBo Auto Parts Co., Ltd. Address : 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Manufacturer : ShenZhen YongBo Auto Parts Co., Ltd. Address : 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20220704019-1-5 Page 3 of 14 Contents 1. SUMMARY ................................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT ................................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT .................................................................................................................................... 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ................................................................................................................................................... 7 4. CONDUCTED POWER RESULTS ...................................................…

Text truncated - open the document above for the full version.

深圳市飞易通科技有限公司 www.feasycom.com Bluetooth antenna of PCB on-board specification 1，Index Item Content Page Remark 1 Index 1 2 Spec Drawing 2 3 Specification 2 4 Antenna On Test Board 3 5 Return Loss 3 6 Radiation Pattern 3 Document Type: 2.4GHZ coil antenna Document Version: V1.0 Release Date: Aug. 23，2017 Feasycom Technology Co.,Ltd. Telephone: 86-755-27924639 www.feasycom.com 深圳市飞易通科技有限公司 www.feasycom.com 2，Spec Drawing 3，Specification Product Number: 2.4GHZ coil antenna Sample Photo: A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <=2.0 Gain 2.0 dBi Efficiency ~ 50% Polarization Linear Impedance 50 Ohm B. Material & Mechanical Characteristics Material of Radiator Gold-plated copper C. Environmental Operation Temperature - 40°C ~ + 85°C Storage Temperature - 40°C ~ + 105°C 1mm+/-0.05 x4 1mm+/-0.05 x4 0.45mm+/-0.05 2mm+/-0.1 2mm+/-0.05 2.8mm+/-0.05 1.5mm+/-0.5 Ground copper 深圳市飞易通科技有限公司 www.feasycom.com 4，Antenna On Test Board 5, Return Loss 6，Radiation Pattern Radiation Pattern and Gain were dependent on measurement board design. The specification of coil antenna was measur ed based on the PCB size and installation position as shown in the below figure Test Board. FR4 Thickness 0.8mm 深圳市飞易通科技有限公司 www.feasycom.com Vertical Horizontal Y - Z Plane Average Gain=1.19 dBi Peak Gain = 2 dBi Average Gain = 0.75 dBi Peak Gain= -1.33 dBi Average Gain=-8.7 dBi X - Z Plane Average Gain=-2.91d Bi Peak Gain= -3.71 dBi Average Gain= -8.76dBi Peak Gain= -0.29 dBi Average Gain= -4.19dBi 深圳市飞易通科技有限公司 www.feasycom.com X - Y Plane Average Gain=-0.95 dBi Peak Gain= 0.77 dBi Average Gain= -5.86dBi Peak Gain= 1.35 dBi Average Gain= -2.62 dBi

Case No. : GTS20220704019-1-4 Ambient Condition: 25 °C, 50 %RH, Test Date: 2022.8.10 Test Engineer: Jenny zeng Appendix E.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 20.840 5169.640 5190.480 --- --- 5200 20.560 5189.760 5210.320 --- --- 5240 21.120 5229.560 5250.680 --- --- 11N20SISO Ant1 5180 22.040 5169.200 5191.240 --- --- 5200 21.240 5189.160 5210.400 --- --- 5240 21.440 5229.200 5250.640 --- --- 11N40SISO Ant1 5190 42.080 5169.200 5211.280 --- --- 5230 41.840 5209.200 5251.040 --- --- 11AC20SISO Ant1 5180 21.840 5169.080 5190.920 --- --- 5200 21.280 5189.360 5210.640 --- --- 5240 21.320 5229.280 5250.600 --- --- 11AC40SISO Ant1 5190 42.640 5169.120 5211.760 --- --- 5230 44.160 5208.320 5252.480 --- --- 11AC80SISO Ant1 5210 81.920 5169.680 5251.600 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix E.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 17.132 5171.470 5188.602 --- --- 5200 17.189 5191.431 5208.620 --- --- 5240 17.156 5231.412 5248.568 --- --- 11N20SISO Ant1 5180 18.164 5170.956 5189.120 --- --- 5200 17.992 5191.009 5209.001 --- --- 5240 18.092 5230.978 5249.070 --- --- 11N40SISO Ant1 5190 36.659 5171.783 5208.442 --- --- 5230 36.626 5211.651 5248.277 --- --- 11AC20SISO Ant1 5180 18.040 5170.993 5189.033 --- --- 5200 18.084 5190.961 5209.045 --- --- 5240 17.990 5230.972 5248.962 --- --- 11AC40SISO Ant1 5190 36.684 5171.777 5208.461 --- --- 5230 36.824 5211.643 5248.467 --- --- 11AC80SISO Ant1 5210 75.851 5172.189 5248.040 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix E.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 2.07 2.24 92.41 5200 2.06 2.19 94.06 5240 2.06 2.22 92.79 11N20SISO Ant1 5180 1.92 2.00 96.00 5200 1.92 2.09 91.87 5240 1.92 2.02 95.05 11N40SISO Ant1 5190 0.95 1.11 85.59 5230 0.95 1.12 84.82 11AC20SISO Ant1 5180 1.93 2.09 92.34 5200 1.93 2.08 92.79 5240 1.93 2.10 91.90 11AC40SISO Ant1 5190 0.95 1.09 87.16 5230 0.95 1.12 84.82 11AC80SISO Ant1 5210 0.46 0.63 73.02 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix E.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[ MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 10.18 92.41 0.34 10.52 ≤23.98 PASS 5200 10.50 94.06 0.27 10.77 ≤23.98 PASS 5240 10.80 92.79 0.32 11.12 ≤23.98 PASS 11N20SISO Ant1 5180 10.31 96.00 0.18 10.49 ≤23.98 PASS 5200 10.39 91.87 0.37 10.76 ≤23.98 PASS 5240 10.66 95.05 0.22 10.88 ≤23.98 PASS 11N40SISO Ant1 5190 10.23 85.59 0.68 10.91 ≤23.98 PASS 5230 10.74 84.82 0.72 11.46 ≤23.98 PASS 11AC20SIS O Ant1 5180 10.35 92.34 0.35 10.70 ≤23.98 PASS 5200 10.39 92.79 0.32 10.71 ≤23.98 PASS 5240 10.84 91.90 0.37 11.21 ≤23.98 PASS 11AC40SIS O Ant1 5190 10.45 87.16 0.60 11.05 ≤23.98 PASS 5230 10.72 84.82 0.72 11.44 ≤23.98 PASS 11AC80SIS O Ant1 5210 5.94 73.02 1.37 7.31 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix E.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 5.00 ≤11.00 PASS 5200 5.08 ≤11.00 PASS 5240 6.16 ≤11.00 PASS 11N20SISO Ant1 5180 5.02 ≤11.00 PASS 5200 5.54 ≤11.00 PASS 5240 5.96 ≤11.00 PASS 11N40SISO Ant1 5190 2.42 ≤11.00 PASS 5230 2.95 ≤11.00 PASS 11AC20SISO Ant1 5180 5.09 ≤11.00 PASS 5200 5.10 ≤11.00 PASS 5240 5.13 ≤11.00 PASS 11AC40SISO Ant1 5190 2.34 ≤11.00 PASS 5230 3.76 ≤11.00 PASS 11AC80SISO Ant1 5210 -2.58 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix E.6: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -36.81 ≤-27 PASS High 5240 -36.99 ≤-27 PASS 11N20SISO Ant1 Low 5180 -34.37 ≤-27 PASS High 5240 -37.04 ≤-27 PASS 11N40SISO Ant1 Low 5190 -28.76 ≤-27 PASS High 5230 -37.72 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -35.72 ≤-27 PASS High 5240 -38.00 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -29.75 ≤-27 PASS High 5230 -37.36 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -36.27 ≤-27 PASS High 5210 -38.04 ≤-27 PASS Test Graphs B1 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 11AC80SISO_Ant1_Low_5210 11AC80SISO_Ant1_High_5210 Appendix E.7: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 4931.51 -46.92 ≤-27 PASS 5360~40000 24266.15 -38.27 ≤-27 PASS 5200 30~5140 3158 -47.04 ≤-27 PASS 5360~40000 26831.93 -38.25 ≤-27 PASS 5240 30~5140 3062.61 -46.89 ≤-27 PASS 5360~40000 26056…

Text truncated - open the document above for the full version.

Case No. : GTS20220704019-1-4 Ambient Condition: 24 °C, 52 %RH, Test Date: 2022.8.10 Test Engineer: Jenny zeng Appendix F.1: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 17.303 5736.342 5753.645 --- --- 5785 17.199 5776.434 5793.633 --- --- 5825 17.204 5816.361 5833.565 --- --- 11N20SISO Ant1 5745 18.142 5735.953 5754.095 --- --- 5785 18.090 5775.983 5794.073 --- --- 5825 18.009 5815.982 5833.991 --- --- 11N40SISO Ant1 5755 49.156 5731.080 5780.236 --- --- 5795 36.772 5776.697 5813.469 --- --- 11AC20SISO Ant1 5745 18.113 5735.953 5754.066 --- --- 5785 18.082 5775.959 5794.041 --- --- 5825 18.101 5815.900 5834.001 --- --- 11AC40SISO Ant1 5755 40.918 5736.594 5777.512 --- --- 5795 41.536 5776.550 5818.086 --- --- 11AC80SISO Ant1 5775 76.402 5737.202 5813.604 --- --- Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5775 Appendix F.2: Min emission bandwidth Test Result B4 TestMode Antenna Frequency[MHz] 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 5785 16.320 5776.840 5793.160 0.5 PASS 5825 16.360 5816.800 5833.160 0.5 PASS 11N20SISO Ant1 5745 17.320 5736.440 5753.760 0.5 PASS 5785 17.280 5776.480 5793.760 0.5 PASS 5825 17.160 5816.240 5833.400 0.5 PASS 11N40SISO Ant1 5755 37.280 5736.520 5773.800 0.5 PASS 5795 35.440 5777.400 5812.840 0.5 PASS 11AC20SISO Ant1 5745 17.600 5736.200 5753.800 0.5 PASS 5785 17.320 5776.440 5793.760 0.5 PASS 5825 17.560 5816.200 5833.760 0.5 PASS 11AC40SISO Ant1 5755 35.360 5737.400 5772.760 0.5 PASS 5795 35.520 5777.400 5812.920 0.5 PASS 11AC80SISO Ant1 5775 75.200 5737.400 5812.600 0.5 PASS Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5775 Appendix F.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5745 2.07 2.24 92.41 5785 2.07 2.20 94.09 5825 2.07 2.20 94.09 11N20SISO Ant1 5745 1.92 2.08 92.31 5785 1.92 2.09 91.87 5825 1.92 2.09 91.87 11N40SISO Ant1 5755 0.46 0.64 71.88 5795 0.94 1.12 83.93 11AC20SISO Ant1 5745 1.93 2.09 92.34 5785 1.93 2.09 92.34 5825 1.94 2.09 92.82 11AC40SISO Ant1 5755 0.95 1.12 84.82 5795 0.96 1.13 84.96 11AC80SISO Ant1 5775 0.46 0.64 71.88 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5775 Appendix F.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[ MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 7.80 92.41 0.34 8.14 ≤30.00 PASS 5785 7.25 94.09 0.26 7.51 ≤30.00 PASS 5825 8.77 94.09 0.26 9.03 ≤30.00 PASS 11N20SIS O Ant1 5745 7.51 92.31 0.35 7.86 ≤30.00 PASS 5785 7.19 91.87 0.37 7.56 ≤30.00 PASS 5825 8.28 91.87 0.37 8.65 ≤30.00 PASS 11N40SIS O Ant1 5755 6.45 85.59 0.68 7.13 ≤30.00 PASS 5795 7.94 83.93 0.76 8.70 ≤30.00 PASS 11AC20SIS O Ant1 5745 5.58 92.34 0.35 5.93 ≤30.00 PASS 5785 7.22 92.34 0.35 7.57 ≤30.00 PASS 5825 8.43 92.82 0.32 8.75 ≤30.00 PASS 11AC40SIS O Ant1 5755 10.32 84.82 0.72 11.04 ≤30.00 PASS 5795 12.00 84.96 0.71 12.71 ≤30.00 PASS 11AC80SIS O Ant1 5775 7.10 71.88 1.43 8.53 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix F.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5745 -0.38 ≤30.00 PASS 5785 1.06 ≤30.00 PASS 5825 1.12 ≤30.00 PASS 11N20SISO Ant1 5745 -1.04 ≤30.00 PASS 5785 -0.20 ≤30.00 PASS 5825 1.97 ≤30.00 PASS 11N40SISO Ant1 5755 -3.48 ≤30.00 PASS 5795 -1.67 ≤30.00 PASS 11AC20SISO Ant1 5745 -1.29 ≤30.00 PASS 5785 0.56 ≤30.00 PASS 5825 1.14 ≤30.00 PASS 11AC40SISO Ant1 5755 0.88 ≤30.00 PASS 5795 3.51 ≤30.00 PASS 11AC80SISO Ant1 5775 -2.79 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 11AC80SISO_Ant1_5775 Appendix F.6: Band edge measurements Test Result B4 TestMode Antenna ChName Frequency[ MHz] FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -39.12 ≤3.51 PASS 5700~5720 -35.06 ≤15.40 PASS 5720~5725 -32.85 ≤20.80 PASS 5760~5650 -39.91 ≤-27 PASS High 5825 5850~5855 -34.54 ≤18.56 PASS 5855~5875 -37.93 ≤11.50 PASS 5875~5925 -38.23 ≤-8.97 PASS 5925~5935 -38.98 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5650~5700 -38.34 ≤-12.66 PASS 5700~5720 -37.03 ≤14.34 PASS 5720~5725 -34.65 ≤19.75 PASS 5760~5650 -40.19 ≤-27 PASS High 5825 5850~5855 -33.98 ≤17.33 PASS 5855~5875 -37.38 ≤10.48 PASS 5875~5925 -38.49 ≤-2.68 PASS 5925~5935 -38.88 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5650~5700 -38.86 ≤6.26 PASS 5700~5720 -28.96 ≤15.58 PASS 5720~5725 -26.12 ≤26.82 PASS 5780~5650 -39.48 ≤-27 PASS High 5795 5850~5855 -34.12 ≤17.91 PASS 5855~5875 -37.61 ≤10.73 PASS 5875~5925 -38.13 ≤-12.51 PASS 5925~5935 -38.85 ≤-27 PASS 11AC20S ISO Ant1 Low 5745 5650~5700 -39.15 ≤-13.00 PASS 5700~5720 -34.49 ≤15.50 PASS 5720~5725 -30.23 ≤26.30 PASS 5760~5650 -40.16 ≤-27 PASS High 5825 5850~5855 -34.38 ≤18.26 PASS 5855~5875 -37.48 ≤10.32 PASS 5875~5925 -38.34 ≤-20.16 PASS 5925~5935 -38.81 ≤-27 P…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20220704019-1-4 2A8PW-T5PLUS Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Sep.22, 2022 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : ShenZhen YongBo Auto Parts Co., Ltd. Address ............................................ : 2608, Qianhai HOP International, No. 19 Xinhua 1nd Road, Baoan District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Vehicle smart dashboard Trade Mark ....................................... : TALESCAR Manufacturer .................................... : ShenZhen YongBo Auto Parts Co., Ltd. Model/Type reference ...................... : T5 PLUS Listed Models .................................. : N/A Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version .......................…
