2A8QHMEVA0088Radio V_Meter with bluetooth function

1 Operation Instructions To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference. MEVA0088 Radio V_Meter 23 WARNING: Built-in component, suitable enclosure and type of supply connection should be provided by the final system. When installing this equipment, all requirements of the standards IEC/EN 62368-1 must be fulfilled. - Project Specification Version Specification of the Bluetooth System (BR+EDR) Frequency Range 2402 MHz 2480 MHz GFSK, π/4-DQPSK, 8DPSKModulation Supported Capacity40 Channels: Channel N=2402+N*2 (N=0.1.2.3...39)(Number of Supported Channels) < -0.94 dbm RF Output Power Antenna Gain Antenna Type Application Environment Project Operation Temperature Range Voltage Software Version Wireless Technical Indicators -0.58dBi Max. Integrated Antenna Index 0 40 12V/24VDC V1.0 Index Hardware VersionV1.0 Technical Specifications Bluetooth Range FM Frequency Range Supported Audio Format Up to 10 Meters (Free Space) 87.5 ~ 108 MHz MP3 files 92 x 41 x 20 mmDimensions Weight30 grams 1 ATTN: Without the audio connection with TF (MicroSD) Card/USB/AUX, the system mode automatically switches to FM radio mode and the speaker continues to play the station that previously stayed on. 1 2 3 7 8 1 6 5 4 Overview and Control Specification 2 USB Port - Insert U disk to play music or other audio sources. (Supported audio format: MP3 files) 3 SD Card Slot - When a TF (MicroSD) card is inserted in place, music or other audio sources on the card will be automatically played. (Supported audio format: MP3 files) 4 AUX Input - When you connect an audio cable (not supplied) via the AUX input, the speaker plays the audio signal from the connected device. In this case, the control operation is carried out exclusively through the connected device and not via the speaker. -VOL/OFF - Decrease the volume level (Control Range: 30 ~ 10). Press to pause/OFF the play when the volume is at level 10. [Short Press]: Reduce the volume level one by one. 5 Display Screen - Indicate the working status in different modes. Notes: The volume meter bars at the both sides of display screen will be flashing along with the play under different modes and will go out when the speaker is in standby mode or pausing. 23 1 When the speaker is powered ON, the default mode is FM Radio. It will automatically boardcast the first station starting from 87.5 MHz or the radio station that previously stayed on. Control Specification ON/VOL+ - Increase the volume level (Control Range: 10 ~ 30). Press to resume/ON the play if the speaker is pausing. [Short Press]: Increase the volume level one by one. [Long Press]: The volume will be up until releasing the button or to the highest level. 6 [Long Press]: The volume will be down until releasing the button or to the lowest level. MODE SELECTION : FM Radio and Bluetooth Connection. [Step 1]: Press button & together and hold them for 2 seconds to switch to Bluetooth mode and it will come out a sound signal as well as blinking characters “ ” display on the screen for notification. [Step 2]: On your smart phone or other Bluetooth devices, enable Bluetooth function and search for nearby Bluetooth device to pair with. Select “JQ-BT ” from the list of available devices on the screen of your Bluetooth device. It may take a moment before your device detects the speaker and is available in the list. When successfully paired, a short prompt will be heard and the characters “ ” on the screen will change from blinking to always on. [Step 3]: Music or audio streams from the connected device will now be played through the speaker. ATTN: • Make sure the devices are within Bluetooth range (within 10 Meters). • The speaker can remember multiple Bluetooth devices and will always try to reconnect to the last device it was paired with. • To reconnect to a different device, turn off Bluetooth on unwanted devices, then access the Bluetooth Settings on the device you wish to use and select “JQ-BT ” to reconnect to the speaker. • Multiple Bluetooth devices cannot be played back at the same time. 6 5 23 1 7 - Decrease the FM frequency or Skip to previous track/song. [Short Press]: Tune the frequency down by each 0.1 MHz under FM radio mode. Skip to previous song when the speaker is in the audio connection with TF (MicroSD) Card/USB/Bluetooth. [Long Press]: Automatic search previous radio station with strong receiption. 8 - Increase the FM frequency or Skip to next track/song. [Short Press]: Tune the frequency up by each 0.1 MHz under FM radio mode. Skip to next song when the speaker is in the audio connection with TF (MicroSD) Card/USB/Bluetooth. [Long Press]: Automatic search next radio station with strong receiption. Control Specification & FCC Statement FCC STATEMENT This device complies with Part 15 of the FCC Rules. Caution: If any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television 23 123 reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separatio…

Text truncated - open the document above for the full version.

Raider Collections Company Limited Date: 02-13-2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing FCC ID: 2A8QHMEVA0088 Dear Sir or Madam, [Raider Collections Company Limited] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the applicant [is / is not] identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please contact us. Sincerely, Contact name: Robert Tau Company name: Raider Collections Co., Limited Address: Room 1003, 10/F, Tower1, Lippo Centre, 89 Queensway, Admiralty, HONG KONG E-mail: [email protected] Tel: 852-3588 8733

Raider Collections Company Limited Date: 02-13-2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) and Part 2.911(d)(5)(ii) Filing FCC ID: 2A8QHMEVA0088 Dear Sir or Madam, [Raider Collections Company Limited] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please contact us. Sincerely, Contact name: Robert Tau Company name: Raider Collections Co., Limited Address: Room 1003, 10/F, Tower1, Lippo Centre, 89 Queensway, Admiralty, HONG KONG E-mail: [email protected] Tel: 852-3588 8733

COMPANY LETTERHEAD Date (13/02/2023) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2A8QHMEVA0088 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Raider Collections Co., Limited hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation] Raider Collections Co., Limited also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180) days: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Robert Tau Telephone Number: 852-3588 8733 Email: [email protected]

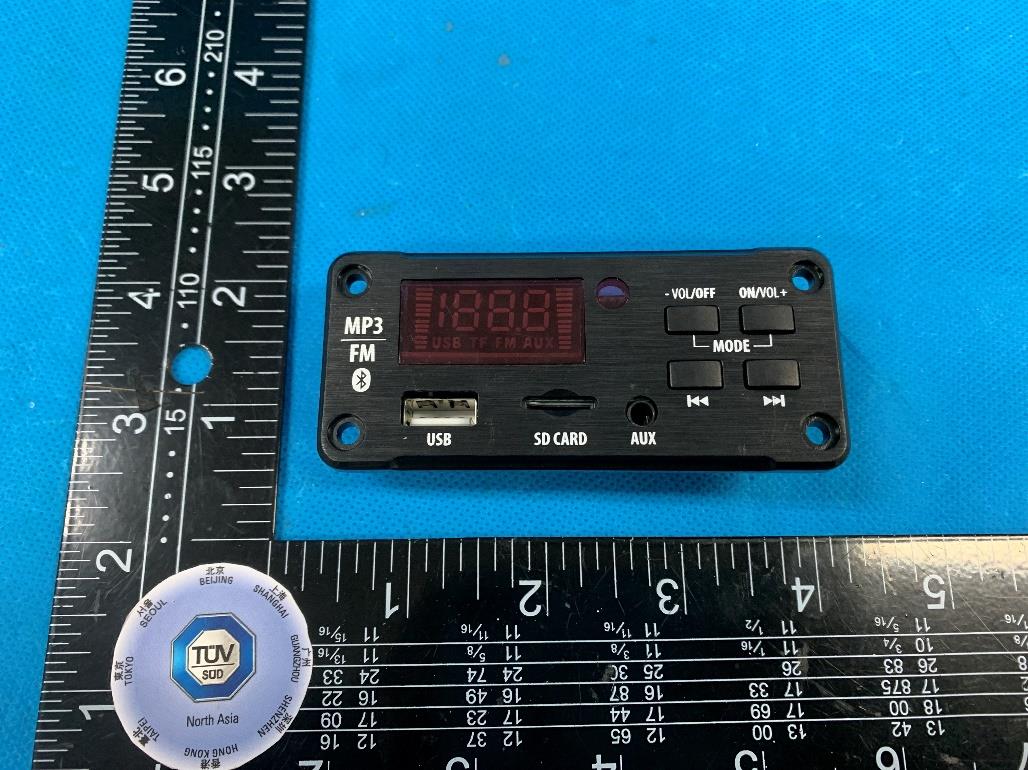

External Photos Details of: Overall view 1 Details of: Overall view 2

As the product will work inside a host,the label have to be put in user manual. -

Internal Photos Details of: Internal view 1 Details of: PCB view 1 Antenna Details of: PCB view 2

Report Number: 68.950.22.0951.01 EMC_SZ_FR_23.01 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Guankou Erlu, Nantou, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 57 FCC/IC - TEST REPORT Report Number : 68.950.22.0951.01 Date of Issue: February 10, 2023 Model / HVIN : MEVA0088 Product Type : RADIO V_METER Applicant : Raider Collections Company Limited Address : Room 1003, 10/F, Tower1, Lippo Centre, 89 Queensway, Admiralty, HONG KONG Manufacturer : Raider Collections Company Limited Address : Room 1003, 10/F, Tower1, Lippo Centre, 89 Queensway, Admiralty, HONG KONG Factory : Raider Collections Company Limited Address : Room 1003, 10/F, Tower1, Lippo Centre, 89 Queensway, Admiralty, HONG KONG Test Result : ◼ Positive  Negative Total pages including Appendices : 57 Any use for advertising purposes must be granted in writing. This technical report may only be quoted in full. This report is the result of a single examination of the object in question and is not generally applicable evaluation of the quality of other products in regular production. For further details, please see testing and certification regulation, chapter A-3.4. Report Number: 68.950.22.0951.01 EMC_SZ_FR_23.01 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Guankou Erlu, Nantou, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 57 1 Table of Contents 1 Table of Contents ................................................................................................................................................................ 2 2 Details about the Test Laboratory ..................................................................................................................................... 3 3 Description of the Equipment Under Test........................................................................................................................ 4 4 Summary of Test Standards .............................................................................................................................................. 5 5 Summary of Test Results ................................................................................................................................................... 6 6 General Remarks ................................................................................................................................................................ 7 7 Test Setups .......................................................................................................................................................................... 8 8 Systems Test Configuration............................................................................................................................................... 9 9 Technical Requirement .................................................................................................................................................... 10 9.1 Conducted Emission ................................................................................................................................................ 10 9.2 Conducted Peak Output Power & EIRP ................................................................................................................ 13 9.3 20 dB Bandwidth and 99% Occupied Bandwidth ................................................................................................ 15 9.4 Carrier Frequency Separation ................................................................................................................................ 25 9.5 Number of Hopping Frequencies ........................................................................................................................... 28 9.6 Dwell Time ................................................................................................................................................................. 31 9.7 Spurious RF Conducted Emissions ....................................................................................................................... 35 9.8 Band Edge Testing ................................................................................................................................................... 46 9.9 Spurious Radiated Emissions for Transmitter ...................................................................................................... 52 10 Test Equipment List ...................................................................................................................................................... 55 11 System Measurement Uncertainty ............................................................................................................................. 57 Report Number: 68.950.22.0951.01 EMC_SZ_FR_23.01 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Guankou Erlu, Nantou, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 57 2 Details about the Test Laboratory Details about the Test Laboratory Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12 & 13, Zhiheng Wisdomland Business Park, Guankou Erlu, Nantou, Nanshan District, Shenzhen 518052, P.R. China Telephone: 86 755 8828 6998 Fax: 86 755 828 5299 FCC Registration No.: 514049 FCC Designation Number: CA5009 IC Registration No.: 10320A Report Number: 68.950.22.0951.01 EMC_SZ_FR_23.01 FCC Release 2017-06-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Guankou Erlu, Nantou, Nanshan Distr…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address：7th Floor, Fuhua Technology Building, Beihuan Avenue, Xili Street, Nanshan District, Shenzhen Telep：13928078624 E-mail：[email protected] Web：www.zh-jieli.com Horizontal:2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical:2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs˖Attestation of Global Compliance Co., Ltd.

Report Number: 68.950.22.0951.01A TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation 1. Introduction Product RADIO V_METER Model no MEVA0088 FCC ID: 2A8QHMEVA0088 Ratings Rated Input: 12V/24VDC RF Transmission Frequency (MHz) 2402MHz-2480 MHz Modulation GFSK Antenna Type Integrated antenna Max Antenna Gain -0.58dBi Description of the EUT The Equipment is a RADIO V_METER, which contains BLE function inside Reference report 68.950.22.0951.01 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance v06, Mobile Portable RF Exposure, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 For 8DPSK Modulation 2480MHz Radiated Power + tune up tolerance = 0.70 mW Distance = 5 mm f = 2.48 GHz [0.70/5] * SQRT(2.48) =0.22 0.22≤ 3.0 Report Number: 68.950.22.0951.01A TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Therefore, excluded from SAR testing. TUV SUD China, Shenzhen Branch Reviewed by: Prepared By: John Zhi/ EMC Project Manager Grace Gao/EMC Project Engineer Date: 2023-02-13 Date: 2023-02-13

Test Setup Photos Details of: Radiated Emission test (below 1GHz) Details of: Radiated Emission test (above 1GHz)
