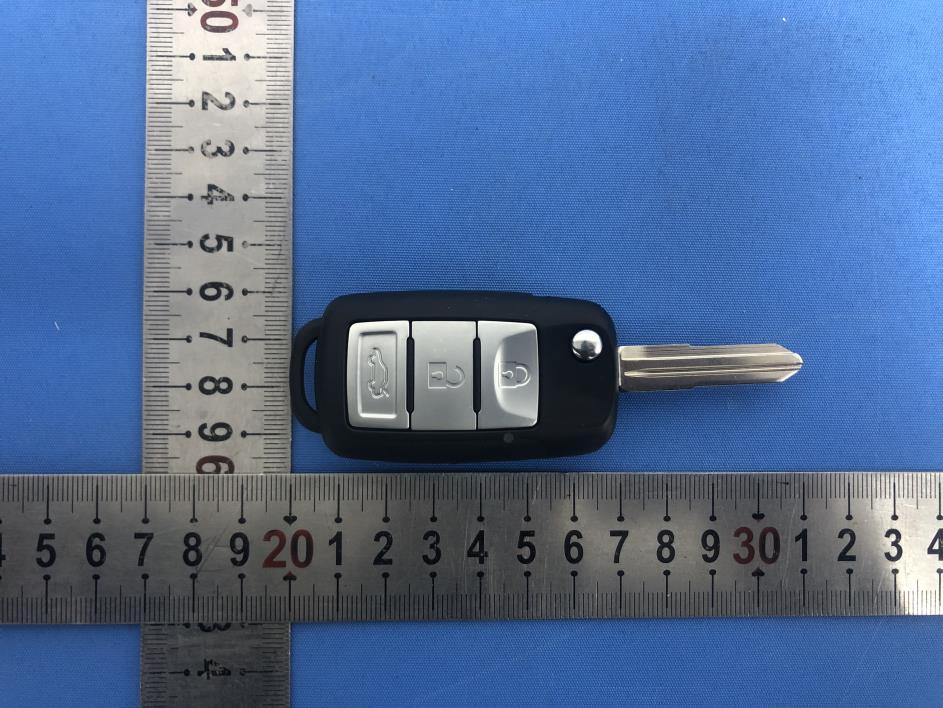

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 External Photos for KSCR2209001732AT Test Model No: 84102-W227-000001 Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4

Label & Location 1、to confirm status after FCC ID is successfully applied; 2、The letter font should be no less than 4 and no more than 14 characters(including dashes); 3、Label size (L×W)15mm×6mm; 4、The label position is shown in the figure below. Remark:It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC s tatement will be placed in the user manual which the device is marketed.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 Internal Photos for KSCR2209001732AT Test Model No: 84102-W227-000001 Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Compliance Certification Services (Kunshan) Inc. Page: 4 of 4 Antenna

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220900173201 Page: 1 of 23 Eric Lin Laboratory Manager TEST REPORT Application No.: KSCR2209001732AT FCC ID: 2A8S9-84102 Applicant: Chongqing Zongshen Automobile Industry Co.,Ltd. Address of Applicant: Zongshen industrial zone, Banan district, Chongqing, Factory: Zhejiang Wanchao Electric Co.,Ltd Address of Factory: No.2898,Ouhai avenue,Quxi,Ouhai,Wenzhou,Zhejiang,China, Equipment Under Test (EUT): EUT Name: Remote control folding key Model No.: 84102-W227-000001 Standard(s) : 47 CFR Part 15, Subpart C 15.231 Date of Receipt: 2022-09-09 Date of Test: 2022-12-06 to 2022-12-06 Date of Issue: 2022-12-07 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220900173201 Page: 2 of 23 Revision Record Version Description Date Remark 00 Original 2022-12-07 / Authorized for issue by: Micheal_Niu/Project Engineer Eric Lin /Reviewer Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220900173201 Page: 3 of 23 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.231 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.231(c) Pass Radiated Emissions below 1GHz ANSI C63.10 (2013) Section 6.4&6.5 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Dwell Time (15.231(a)) ANSI C63.10 (2013) Section 7.5 47 CFR Part 15, Subpart C 15.231(a) Pass Field Strength of the Fundamental Signal (15.231(b)) ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.231(b) Pass Radiated Emissions above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220900173201 Page: 4 of 23 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 4.4 TEST LOCATION ............................................................................................................................. 7 4.5 TEST FACILITY ............................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 7 5 EQUIPMENT LIST ............................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................. 9 6.1 ANTENNA REQUIREMENT ................................................................................................................. 9 6.1.1 Test Requirement: ................................................................................................................... 9 6.1.2 Conclusion ............................................................................................................................... 9 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................10 7.1 20DB BANDWIDTH .........................................................................................................................10 7.1.1 E.U.T. Operation .....................................................................................................................10 7.1.2 Test Mode Description ............................................................................................................10 7.1.3 Test Setup Diagram ................................................................................................................10 7.1.4 Measurement Procedure and Data .........................................................................................10 7.2 RADIATED EMISSIONS BELOW 1GHZ ................................................................................................11 7.2.1 E.U.T. Operation .....................................................................................................................11 7.2.2 Test Mode Description ............................................................................................................11 7.2.3 Test Setup Diagram ................................................................................................................12 7.2.4 Measurement Procedure and Data .........................................................................................12 7.3 DWELL TIME (15.231(A)) ...............................................................................................................13 7.3.1 E.U.T. Operation ..............................................…

Text truncated - open the document above for the full version.

Justification statement for Antenna To: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2A8S9-84102 Dear Sir/Madam, Only radiated measurements are used for EUT with FCC ID: 2A8S9-84102 to show compliance with FCC limits for fundamental and spurious emissions. All measurements were performed radiated and therefore additional antenna gain documentation is not required. The detailed information for antenna as below shows: Design Specifications Typical Antenna Type Loop Antenna Working Frequency 433.90MHz Overall Dimensions 32.2mm*17.8mm Unit：mm
