2A8SR-COCI202211AirBox with Bluetooth

1. Power On /Off: Getting Started 3. Check For Updates: To use the Apple Find My app to locate your AirBox Locator, the latest version of iOS, iPadOS, or macOS is recommended. To power off, hold the same button for at least 3 seconds. You will hear 2 beeps indicating your AirBox Locator is powered off Press your AirBox Locator's function button once to turn on -it should beep once indicating it is powered on 1. Start The App Open Find My TM app on your supported iPhone or iPad. Allow notifications from the app Function Button Locate Your AirBox Find AirBox When Out Of Range When Your AirBox Is Lost Resetting Your AirBox Locator But Wait... There's More The Fine Print The Fine Print The Fine Print Add Your AirBox Locator 1. Find AirBox Locator when it is Nearby 1. Enabling "Notify When Left Behind" 2. Enabling "Notify When Found" 1. Enabling "Lost Mode" 1. Remove the AirBox Locator from Find My™ app 1. Replace The Battery 2. Find AirBox Locator's Last Known Location Open Find My TM app and select the "AirBoxs" tab Tap on your AirBox Locator from the list Tap "Play Sound" to make your AirBox Locator beep Tap "Stop Sound" to stop the beeps once you find your AirBox Open Find My™ app and select the "AirBoxs" tab Tap on your AirBox Locator from the list Your AirBox Locator's last known location will appear on the map as the emoji you chose during set up To navigate to that last known location, tap"Directions" to open the Maps™ app Open Find My™ app and select the "AirBoxs" tab Tap on your AirBox Locator from the list Under "Notifications", enable the "Notify When Left Behind" toggle You will receive a notification when you leave your AirBox Locator behind and it's no longer in range of your device Under "Notifications", enable the "Notify When Found" toggle When your AirBox Locator is seen by another Find My™ enabled device, you will receive a notifcation of its updated location Note: "Notify When Found" can only be activated when your AirBox Locator is out of range 2. Connect Your AirBox Locator Turn on mobile phone Bluetooth Power on your AirBox Locator In Find My™ app, select the "AirBox" tab Tap "Add AirBox" then tap "Other Supported AirBoxs" Once your AirBox Locator is located, tap"Connect" Choose a recognizable name and emoji for your AirBox Locator and tap "Continue" Find MyTM will ask for confirmation to add your AirBox Locator to your Apple RID - tap "Continue" Tap "Finish" and your AirBox Locator will be set up and ready to be connected to whatever AirBox you wish to locate e.g. your keys Open Find My™ app and select the "AirBoxs" tab Tap on your AirBox Locator from the list Under "Lost Mode", tap "Enable" A screen detailing Lost Mode will pop up, tap"Continue" Enter your phone number or email address and tap "Next" You may enter a message that will be shared with the person that finds your AirBox Tap "Activate" to enable "Lost Mode" Open Find My™ app and select the "AirBoxs" tab Tap on your AirBox Locator from the list Please ensure"Lost Mode" is disabled Scroll to the bottom of the screen and tap"Remove AirBox" A summary will open, tap "Remove" to confirm After successfully removing the AirBox Locator from Find My™ app, press the AirBox Locator'sfunction button four times rapidly, you will heara beep each time you press it and then hold it a fifth time until you hear a ringing chime The AirBox Locator is now reset and ready to be paired to a new device Use your fingernails at the small gap on the side of your AirBox Locator to carefully open the case Replace the battery with a new CR2032 battery placing it positive side up (text facing up) Carefully close the AirBox Locator by aligning the top hole on both sides 2. Unwanted Tracking Detection: If your iPhone detects that an unknown AirBox Locator is traveling with you, it will send you a notification. A sound will start playing so you will be able to find it. These alerts are only activated when an AirBox Locator is not connected to its owner's phone, so your partner's AirBox Locator will not trigger a sound if they are with you. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes not expressly approved by the party responsible for compliance could void the user's authority to operate this device. The device has been evaluated to meet general RF exposure requirement, The device can be used in portable exposure condition without restriction. Federal Communication Commission (FCC) Radiation Exposure Statement Power is so low that no RF exposure calculation is needed. Note: When "Lost Mode" is enabled, "Notify When Found" is automatically enabled Note: When "Lost Mode" is enabled, your AirBox Locator is locked and cannot be paired to a new device Use of the Works with Apple badge means that a product has been designed. To work specifically with the technology identified in the badge and has been certified by the product manufacturer to meet Apple Find My network product specifications and requirements. Apple is not responsible for the operation of this device or use of this product or its compliance with safety and regulatory standards. © Apple, Apple Watch, iPad, iPadOS, iPod touch, Mac, and macOS are trademarks of Apple Inc., registered in the U.S. and other countries. lOS is a trade mark or registered trademark of Cisco in the U.S. and other countries and is used under license. This equipment has been tested and found tocomply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment g…

Text truncated - open the document above for the full version.

MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page10of15 REPORTNo.：SZ22080333E10 AnnexCEUTPhotos 1.Testenvironment 2.EUT MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page11of15 REPORTNo.：SZ22080333E10 MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page12of15 REPORTNo.：SZ22080333E10 MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page13of15 REPORTNo.：SZ22080333E10 MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page14of15 REPORTNo.：SZ22080333E10

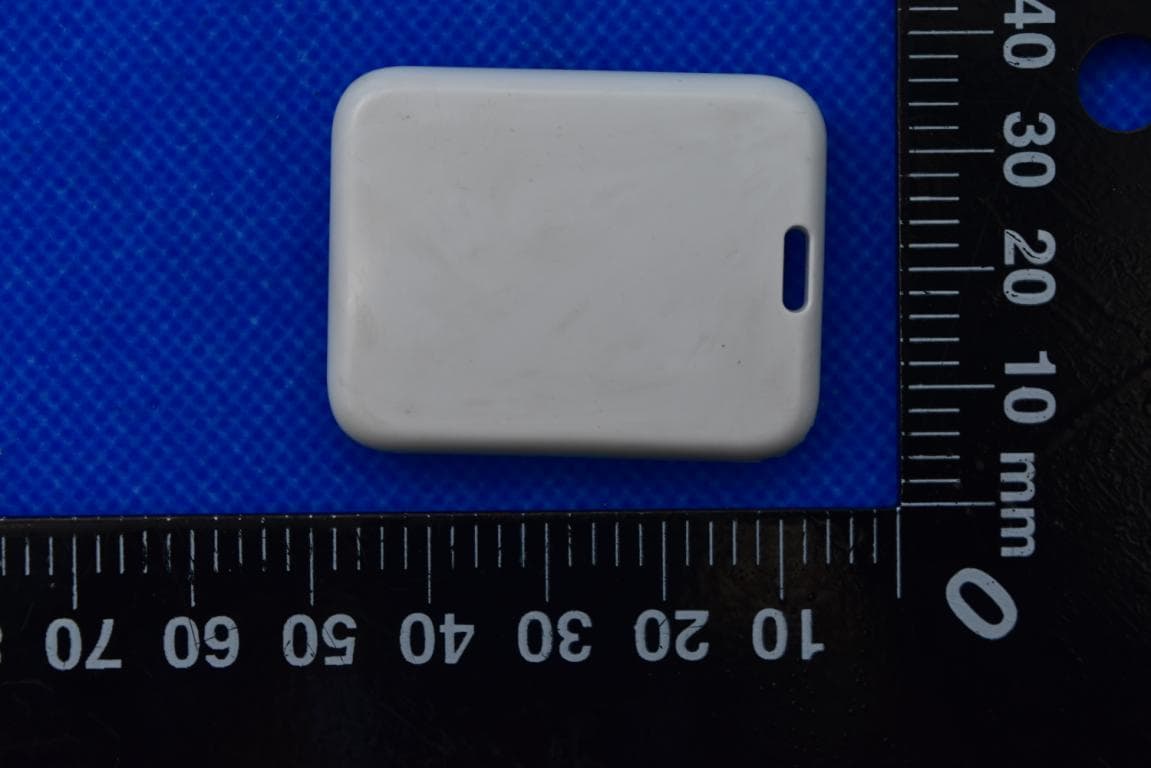

FCC ID: 2A8SR-COCI202211 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

1. Label 2. Label Location（Battery cover inside）

FCC ID: 2A8SR-COCI202211 Internal Photos 1. EUT uncover view 2. Antenna view Bluetooth Antenna

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 9 REPORT No.：SZ22080333S01 RF EXPOSURE EXEMPT REPORT APPLICANT : Shenzhen Cocicoho Technology Co.,Ltd PRODUCT NAME : AirBox MODEL NAME :SDT1 BRAND NAME : Cocicoho FCC ID : 2A8SR-COCI202211 STANDARD(S) : 47 CFR Part 2(2.1093) RECEIPT DATE : 2022-08-30 TEST DATE :2022-09-01 to 2022-11-16 ISSUE DATE :2022-12-02 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 9 REPORT No.：SZ22080333S01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 Change History Version Date Reason for change 1.0 2022-12-02 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 9 REPORT No.：SZ22080333S01 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Shenzhen Cocicoho Technology Co.,Ltd Applicant Address: Room 503, Mingzhu Building, No. 4004, Wuhe Avenue, Bantian Street, Longgang District, Shenzhen, Guangdong, China Manufacturer: Dongguan Uke Smart Electronics Co., LTD Manufacturer Address: Room 401, Building 3, No.25 Junpeng Road, Tangxia Town, Dongguan City, Guangdong Province, China 1.2 Equipment Under Test (EUT) Description Product Name: AirBox Sample No.: 3#, 9# Hardware Version: V3 Software Version: 1.7.11 Equipment Type: Bluetooth LE Bluetooth Version: 5.2 Operating Frequency Range: 2402MHz-2480MHz Modulation Type: GFSK(1Mbps) Antenna Type: PCB Antenna Antenna Gain: -3.18dBi MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 9 REPORT No.：SZ22080333S01 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark 47 CFR Part 2(2.1093) Radio Frequency Radiation Exposure Assessment: Portable devices No deviation KDB 447498 D04v01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 9 REPORT No.：SZ22080333S01 2. Device Category and RF Exposure Limit Per user manual, based on 47 CFR 2.1093, this device belongs to portable device category with General Population/Uncontrolled exposure. Portable Devices: 47 CFR 2.1093(b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. General Population/Uncontrolled Exposure: 47 CFR 2.1093(d) (2) Limits for General Population/Uncontrolled exposure: 0.08 W/kg as averaged over the whole-body and spatial peak SAR not exceeding 1.6 W/kg as averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the hands, wrists, feet and ankles where the spatial peak SAR shall not exceed 4 W/kg, as averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). General Population/Uncontrolled limits apply when the general public may be exposed, or when persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or do not exercise control over their expos…

Text truncated - open the document above for the full version.

NOTE:ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,thetestreportshallnotbereproducedexceptin fullwithoutpriorwrittenpermissionofthecompany.Thetestresultsapplyonlytotheparticularsample(s)testedandtothespecifictestscarried outwhichisavailableonrequestforvalidationandinformationconfirmedatourwebsite. MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page1of 15 REPORTNo.：SZ22080333E10 TESTREPORT APPLICANT:ShenzhenCocicohoTechnologyCo.,Ltd PRODUCTNAME:AirBox MODELNAME:SDT1 TRADENAME:Cocicoho BRANDNAME:Cocicoho STANDARD(S):IEEEStd149-2021 RECEIPTDATE:2022-09-09 TESTDATE:2022-09-13 ISSUEDATE:2022-12-02 Editedby: : FangJinshan(Rapporteur) Approvedby: : ChiShide(Supervisor) Testedby MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page2of15 REPORTNo.：SZ22080333E10 DIRECTORY 1.TechnicalInformation ........................................................................................................3 1.1.ApplicantandManufacturerInformation ....................................................................3 1.2.EquipmentUnderTest(EUT)Description...................................................................3 2.TestResults........................................................................................................................4 2.1.AppliedReferenceDocuments.....................................................................................4 2.2.TestConditions...............................................................................................................4 2.3.MeasurementUncertainty.............................................................................................4 2.4.TestResult.......................................................................................................................5 AnnexATestSetupPhotos..................................................................................................6 AnnexBFigures .....................................................................................................................7 1 ． 2DRadiationPattern ......................................................................................................7 2 ． 3DRadiationPattern ......................................................................................................8 AnnexCEUTPhotos ...........................................................................................................10 AnnexDGeneralInformation ..........................................................................................15 1.1IdentificationoftheResponsibleTestingLaboratory..............................................15 1.2IdentificationoftheResponsibleTestingLocation..................................................15 1.3TestEquipmentsUtilized..............................................................................................15 ChangeHistory VersionDateReasonforchange 1.02022-12-02Firstedition MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page3of15 REPORTNo.：SZ22080333E10 1.TechnicalInformation Note:Providebymanufacturer. 1.1.ApplicantandManufacturerInformation Applicant:ShenzhenCocicohoTechnologyCo.,Ltd ApplicantAddress:Room503,MingzhuBuilding,No.4004,WuheAvenue, BantianStreet,LonggangDistrict,Shenzhen,Guangdong, China Manufacturer:DongguanUkeSmartElectronicsCo.,LTD ManufacturerAddress:Room401,Building3,No.25JunpengRoad,TangxiaTown, DongguanCity,GuangdongProvince,China 1.2.EquipmentUnderTest(EUT)Description WirelessTypeBluetooth Frequency2402MHz-2480MHz IMEIN/A SampleNo.8# ProductHWVersionV3 ProductSWVersion1.7.11 Note:ThesamplephotosshallbeprovidedseparatelyinAppendixCaccordingto customerrequirements. MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page4of15 REPORTNo.：SZ22080333E10 2.TestResults 2.1.AppliedReferenceDocuments Leadingreferencedocumentsfortesting: No.IdentityDocumentTitle 1IEEEStd149-2021 IEEERecommendedPracticeforAntenna Measurements 2.2.TestConditions TestEnvironmentConditions ： RelativeHumidity:25...75% Temperature:+10°Cto+30°C 2.3.MeasurementUncertainty Theuncertaintyiscalculatedusingthemethodssuggestedinthe"GuidetotheExpressionof UncertaintyinMeasurement"(GUM)publishedbyISO.Whenthetestresultisacriticalvalue,we willusethemeasurementuncertaintygivethejudgmentresultbasedonthe95%Confidence intervals. ItemMeasurementUncertainty(dB) Gain±0.5 VSWR±0.2 MeasurementUncertainty(95%ConfidenceInterval)K=2 MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page5of15 REPORTNo.：SZ22080333E10 2.4.TestResult 2.4.1. Gain Frequency(MHz)Gain(dBi) 2400-3.18 2410-3.35 2420-3.70 2430-3.94 2440-3.87 2450-3.82 2460-3.86 2470-4.04 2480-4.20 2490-4.29 2500-4.41 MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,BuildingA,FeiYangSciencePark,No.8LongChangRoad, Block67,BaoAnDistrict,ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page6of15 REPORTNo.：SZ22080333E10 AnnexATestSetupPhotos MORLAB SHENZHENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. FL1-3,Buil…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. NOTE: T company validation MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 39 REPORT No.：SZ22080333W01 TEST REPORT APPLICANT : Shenzhen Cocicoho Technology Co.,Ltd PRODUCT NAME : AirBox MODEL NAME :SDT1 BRAND NAME : Cocicoho FCC ID :2A8SR-COCI202211 STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2022-08-30 TEST DATE :2022-09-01 to 2022-11-16 ISSUE DATE :2022-12-02 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 39 REPORT No.：SZ22080333W01 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ························································ 3 1.2. Equipment Under Test (EUT) Description ······················································· 3 1.3. The Channel Number and Frequency ····························································· 4 1.4. Test Standards and Results ·········································································· 5 1.5. Environmental Conditions ············································································ 6 2. 47 CFR Part 15C Requirements ······································································ 7 2.1. Antenna Requirement ·················································································· 7 2.2. Duty Cycle of Test Signal ············································································· 8 2.3. Maximum Peak Conducted Output Power ······················································ 9 2.4. Maximum Average Conducted Output Power ················································· 12 2.5. 6 dB Bandwidth ························································································· 13 2.6. Conducted Spurious Emissions and Band Edge ············································ 16 2.7. Power Spectral Density ··············································································· 20 2.8. Conducted Emission ·················································································· 23 2.9. Restricted Frequency Bands ······································································· 25 2.10. Radiated Emission ··················································································· 29 Annex A Test Uncertainty ················································································ 36 Annex B Testing Laboratory Information ··························································· 37 Change History Version Date Reason for change 1.0 2022-12-02 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 39 REPORT No.：SZ22080333W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Shenzhen Cocicoho Technology Co.,Ltd Applicant Address: Room 503, Mingzhu Building, No. 4004, Wuhe Avenue, Bantian Street, Longgang District, Shenzhen, Guangdong, China Manufacturer: Dongguan Uke Smart Electronics Co., LTD Manufacturer Address: Room 401, Building 3, No.25 Junpeng Road, Tangxia Town, Dongguan City, Guangdong Province, China 1.2. Equipment Under Test (EUT) Description Product Name: AirBox Sample No.: 3#, 9# Hardware Version: V3 Software Version: 1.7.11 Equipment Type: Bluetooth LE Bluetooth Version: 5.2 Modulation Type: GFSK Data Rate: 1Mbps Operating Frequency Range: 2402MHz-2480MHz Antenna Type: PCB Antenna Antenna Gain: -3.18dBi Note 1: We use the dedicated software to control the EUT continuous transmission. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 39 REPORT No.：SZ22080333W01 1.3. The Channel Number and Frequency Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 10 2422 20 2442 30 2462 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2410 14 2430 24 2450 34 2470 5 2412 15 2432 25 2452 35 2472 6 2414 16 2434 26 2454 36 2474 7 2416 17 2436 27 2456 37 2476 8 2418 18 2438 28 2458 38 2478 9 2420 19 2440 29 2460 39 2480 Note 1: The black bold channels were selected for test. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 39 REPORT No.：SZ22080333W01 1.4. Test Standards and Results The objective of the report is to perform testing according …

Text truncated - open the document above for the full version.

FCC ID: 2A8SR-COCI202211 Test Setup Photos 1. Radiated emission (9KHz-30MHz) 2. Radiated emission (30MHz-1GHz) 3. Radiated emission (above 1GHz) 4. RF measurement setup (Bluetooth LE)
