2A8ST-SCOUTPLUSVacuum Cleaner

SCOUTPLUS Scout Plus Owner’s Manual 1 Getting Started Important Safety Instructions 2 Polarization Instructions 4 Vacuum Cleaner with Powerhead 4 Parts Identification 5 Assembly Flexible Hose 6 Handle 6 Accessories Powerhead 7 Combination Floor Tool 7 3-in-1 Cleaning Tool 7 Upholstery Tool 8 Crevice Tool 8 Dusting Brush 8 Controls Controls 9 Instructions Using the Cord Rewind Button and Standby On/Off Button 10 Wireless Control Handle 11 Synchronizing the Wireless Control Handle 12 Maintenance Vacuum Cleaner Storage 13 Replacing the Dust Bag 13 Pre-Motor Filter Replacement 14 Exhaust HEPA Filter Replacement 15 Cleaning the Motorized Powerhead 15 Replacing the Powerhead Agitator Brush & Drive Belt 16 Changing the Remote Control Battery 17 Troubleshooting Troubleshooting 18 For Best Performance 18 Warranty Information Register Online 19 CONTENTS 2 IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT. This vacuum must be operated in accordance with these instructions and used only for domestic household cleaning to remove DRY dirt and dust from household carpets, flooring, walls, and fabrics. This cleaner is not fit to be used as an industrial cleaner and will void the manufacturer’s warranty if used inappropriately. Please read these instructions thoroughly. This will ensure you obtain full benefit from your new vacuum. Keep this Owner’s Manual in a convenient and safe place for future reference. IMPORTANT: The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended. WARNING: To reduce the risk of fire, electric shock, damage or injury: • Empty the bag when the full bag indicator turns red. Over-filling the bag may cause dirt and debris to clog the vacuum and cause loss of suction. • Always unplug the vacuum from the electrical outlet before replacing the bag or filters. • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. • WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES. • Do not allow to be used as a toy. Close attention is necessary when used by or near children. • Use only as described in this manual. Use only manufacturer’s recommended attachments. • Do not use with damaged cord or plug. Or if appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your Authorized Simplicity Retailer for service. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. • Do not handle plug or appliance with wet hands. • Do not pull or carry by cord, use cord as a handle, close a door on the cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces. • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow. • Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts. • Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes. • Do not use without bag or filters in place. • Turn off all controls before unplugging. • Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present. • Do not attempt to service the unit while appliance is plugged in. • Do not use vacuum to pick up water or any wet materials. • Use extra care when cleaning on stairs • The Scout Plus hose contains electrical wires. Do not use when damaged, cut, or punctured. Replace if cut or worn. Do not pick up sharp objects. • Always turn off and unplug vacuum cleaner before connecting or disconnecting either hose, wand or motorized nozzle. • Hold plug when rewinding cord reel. Do not allow plug to whip when rewinding. SAVE THESE INSTRUCTIONS 3 For Both FCC & IC application: This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 4 Power Cord, 2-Wire Polarized Cord To reduce the risk of electric shock, the vacuum is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of t…

Text truncated - open the document above for the full version.

Suzhou EUP Electric Co., Ltd. 022423-17 rev 6 Certification Application Attestation Statements Date: March 7, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______Suzhou EUP Electric Co., Ltd_____ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______Suzhou EUP Electric Co., Ltd______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ■ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: __________ _____Xu Shuo__________ (Signature 2 ) (Print name) Title: ________Engineer_____________ Company: ___ Suzhou EUP Electric Co., Ltd __ Telephone: __+86-512-68313759___ _ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

Suzhou EUP Electric Co., Ltd. 041521-14 Authority to Act as Agent Date: 03-07-2023 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ____ Suzhou EUP Electric Co., Ltd. _____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: ____03-06-2024______ By: __________ ________________ ______Xu Shuo________ (Signature 1 ) (Print name) Title: _______Engineer___________________ On behalf of: ___ Suzhou EUP Electric Co., Ltd ____ (Company Name) Telephone: __+86-512-68313759___ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Suzhou EUP Electric Co., Ltd 041521-14 Request for Confidentiality Date: 2023.03.07 Subject: Confidentiality Request for: ____2A8ST-SCOUTPLUS ___ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐Permanent * 1 Internal Photos ☐ Short Term ☒Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐Permanent * 3 User’s Manual ___ Suzhou EUP Electric Co., Ltd ____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ ____Xu Shuo________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Suzhou EUP Electric Co., Ltd. Model Difference Declaration We, Suzhou EUP Electric Co., Ltd. declare: Vacuum Cleaner: VC659D, SCOUTPLUS The products above are same except the model name for marketing purpose. XuShuo Suzhou EUP Electric Co., Ltd. Date: April 20, 2023

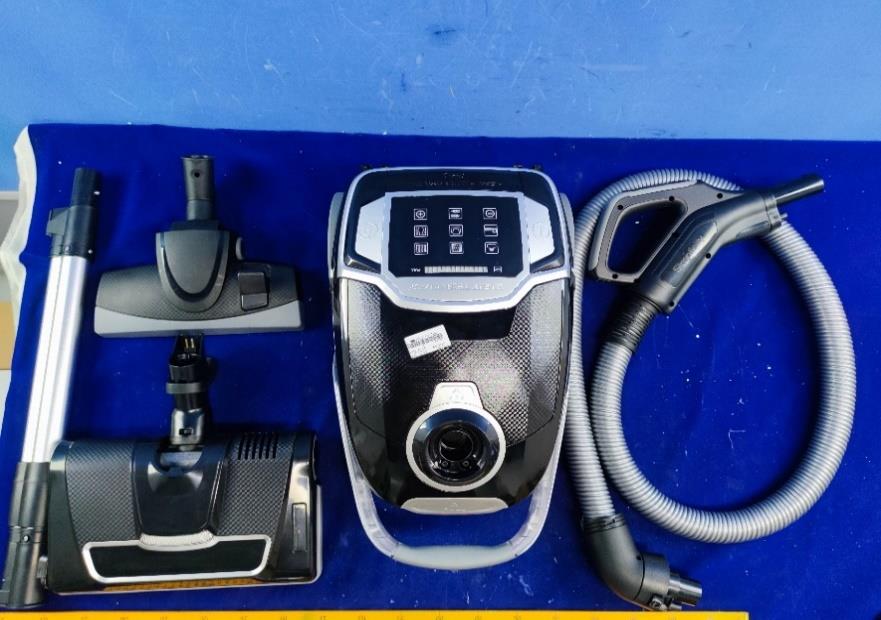

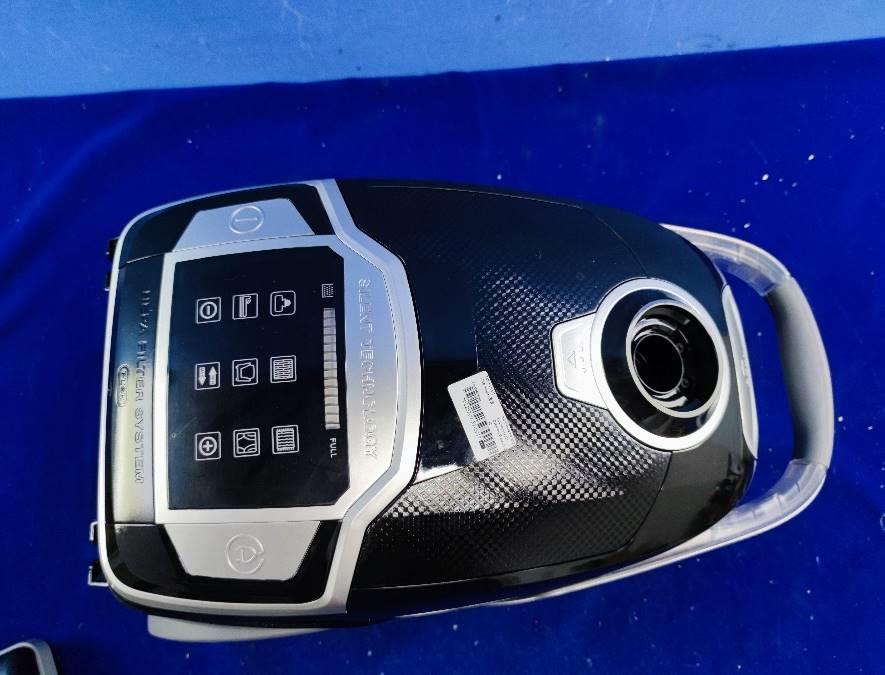

External Photo SCOUTPLUS VC659D

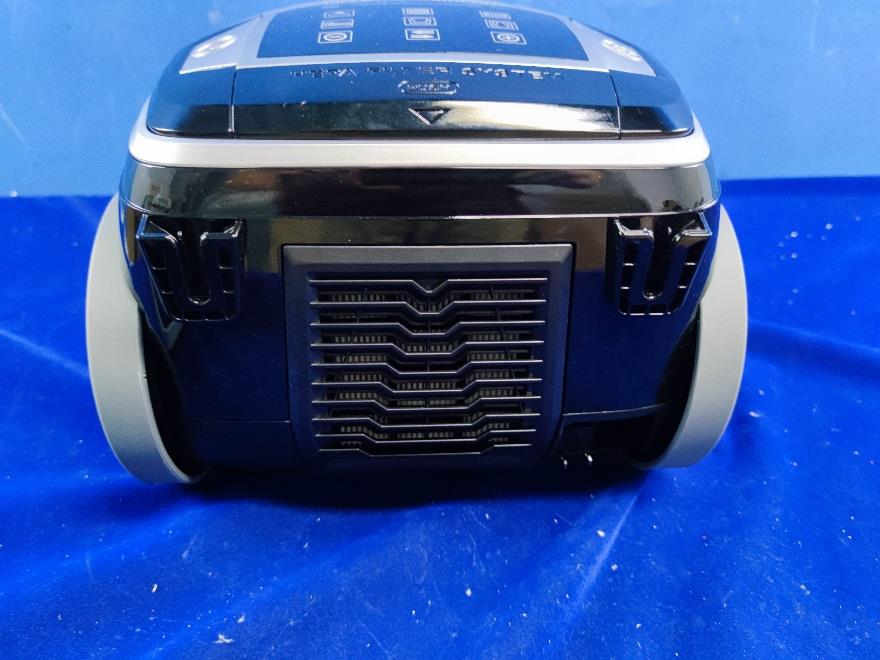

Label Location

Internal Photo SCOUTPLUS Antenna VC659D Antenna

Suzhou EUP Electric Co., Ltd. SAR COMPLIANCE REPORT Report Type: FCC SAR assessment report Model: VC659D may be followed by one to five characters SCOUTPLUS may be followed by one to five characters REPORT NUMBER: 220801610SHA-002 ISSUE DATE: April 20, 2023 DOCUMENT CONTROL NUMBER: TTRFFCCSAR-01_V2 © 2022 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRFFCCSAR-01_V2© 2022 Intertek Page 2 of 6 Report no.: 220801610SHA-002 Applicant: Suzhou EUP Electric Co., Ltd. No.90, Jin Shan Road, He Xi New District, Suzhou, 215011, China Manufacturer: Suzhou EUP Electric Co., Ltd. No.90, Jin Shan Road, He Xi New District, Suzhou, 215011, China Factory: Suzhou EUP Electric Co., Ltd. No.90, Jin Shan Road, He Xi New District, Suzhou, 215011, China FCC ID: 2A8ST-SCOUTPLUS SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 447498 D04 Interim General RF Exposure Guidance v01 FCC Part2.1091, FCC Part2.1093 FCC Part1.1307(b) PREPARED BY: REVIEWED BY: Project Engineer Sky Yang Reviewer Eric Li Report No.: 220801610SHA-002 TEST REPORT TTRFFCCSAR-01_V2© 2022 Intertek Page 3 of 6 Revision History Report No. Version Description Issued Date 22081610SHA-002 Rev. 01 Initial issue of report April 20, 2023 Report No.: 220801610SHA-002 TEST REPORT TTRFFCCSAR-01_V2© 2022 Intertek Page 4 of 6 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test (EUT) Product name: Vacuum cleaner Model: VC659D may be followed by one to five characters SCOUTPLUS may be followed by one to five characters Description of EUT: The product covered in this report is a vacuum cleaners intended for household indoor use only. The vacuum cleaner can be use with power nozzle connected with current carrying hose and extended steel. All models are same except the appearance. Rating: 120V, 60Hz, 12A Category of EUT: Class B EUT type: Table top Floor standing Software Version: / Hardware Version: / Sample number: 0220812-01 Sample received date: August 18, 2022 Date of test: August 22, 2022 ~ October 28, 2022 1.2 Technical Specification Operation Frequency: 433.9MHz Type of Modulation: ASK Product Type: Mobile Portable Fix Location Channel Number: 1 Antenna Designation: PCB antenna Report No.: 220801610SHA-002 TEST REPORT TTRFFCCSAR-01_V2© 2022 Intertek Page 5 of 6 1.3 Description of Test Facility Name: Intertek Testing Services Shanghai Address: Building 86, No. 1198 Qinzhou Road(North), Shanghai 200233, P.R. China Telephone: 86 21 61278200 Telefax: 86 21 54262353 The test facility is recognized, certified, or accredited by these organizations: CNAS Accreditation Lab Registration No. CNAS L0139 FCC Accredited Lab Designation Number: CN0175 IC Registration Lab CAB identifier.: CN0014 VCCI Registration Lab Member No.: 3598 (Registration No.: R-14243, G-10845, C-14723, T-12252) A2LA Accreditation Lab Certificate Number: 3309.02 Report No.: 220801610SHA-002 TEST REPORT TTRFFCCSAR-01_V2© 2022 Intertek Page 6 of 6 2 SAR Assessment Test result: Pass 2.1 SAR Test Exclusion Limit This method shall only be used at separation distances up to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by Formula below: f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula above. The example values shown in below are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 2.2 Assessment Results As we can see from the test report 220801610SHA-001: The highest EIRP adjusted with tune-up tolerance is: 51.3-95.3 = -44dBm=0.04uW 0.04uW < 22mW (Test Exclusion Thresholds of 450MHz at 5mm). Therefore, the SAR requirement is deemed to be satisfied without test. ******************************************* END ************************************

Declaration Letter Related FCC ID: 2A8ST-SCOUTPLUS IC: 29403-SCOUTPLUS Justification statement stating that all measurements for 433.9MHz remote control part were performed radiated and therefore additional antenna gain documentation is not required for this part. See internal photo for details of the antenna for 433.9MHz remote control. By: ______________ ________Sky Yang______ (Signature) (Print name) Title: ____Certification Engineer________ Company: ____Intertek Testing Services Shanghai________

Suzhou EUP Electric Co., Ltd. RF TEST REPORT Report Type: FCC Part 15.231 RF report Model: VC659D may be followed by one to five characters SCOUTPLUS may be followed by one to five characters REPORT NUMBER: 220801610SHA-001 ISSUE DATE: April 20, 2023 DOCUMENT CONTROL NUMBER: TTRF15.231_V1 © 2018 Intertek Intertek Testing Services Shanghai Building No.86, 1198 Qinzhou Road (North) Caohejing Development Zone Shanghai 200233, China Telephone: 86 21 6127 8200 www.intertek.com TEST REPORT This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. TTRF15.231_V1 © 2018 Intertek Page 2 of 27 Report no.: 220801610SHA-001 Applicant: Suzhou EUP Electric Co., Ltd. No.90, Jin Shan Road, He Xi New District, Suzhou, 215011, China Manufacturer: Suzhou EUP Electric Co., Ltd. No.90, Jin Shan Road, He Xi New District, Suzhou, 215011, China Factory: Suzhou EUP Electric Co., Ltd. No.90, Jin Shan Road, He Xi New District, Suzhou, 215011, China FCC ID: 2A8ST-SCOUTPLUS SUMMARY: The equipment complies with the requirements according to the following standard(s) or Specification: 47CFR Part 15 (2020): Radio Frequency Devices (Subpart C) ANSI C63.10 (2013): American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices PREPARED BY: REVIEWED BY: Project Engineer Sky Yang Reviewer Eric Li Report No.: 220801610SHA-001 TEST REPORT TTRF15.231_V1 © 2018 Intertek Page 3 of 27 Content REVISION HISTORY................................................................................................................................................ 4 MEASUREMENT RESULT SUMMARY ..................................................................................................................... 5 1 GENERAL INFORMATION ............................................................................................................................. 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ..................................................................................................... 6 1.2 TECHNICAL SPECIFICATION .................................................................................................................................... 6 1.3 DESCRIPTION OF TEST FACILITY .............................................................................................................................. 7 2 TEST SPECIFICATIONS ................................................................................................................................... 8 2.1 STANDARDS OR SPECIFICATION ............................................................................................................................... 8 2.2 MODE OF OPERATION DURING THE TEST ................................................................................................................... 8 2.3 TEST SOFTWARE LIST ............................................................................................................................................ 8 2.4 TEST PERIPHERALS LIST ......................................................................................................................................... 8 2.5 TEST ENVIRONMENT CONDITION: ............................................................................................................................ 8 2.6 INSTRUMENT LIST ................................................................................................................................................ 9 2.7 MEASUREMENT UNCERTAINTY ............................................................................................................................. 10 3 FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ...................................... 11 3.1 LIMIT .............................................................................................................................................................. 11 3.2 MEASUREMENT PROCEDURE ............................................................................................................................... 12 3.3 TEST CONFIGURATION ........................................................................................................................................ 13 3.4 TEST RESULTS OF RADIATED EMISSIONS ................................................................................................................. 15 4 POWER LINE CONDUCTED EMISSION ......................................................................................................... 19 4.1 LIMIT .............................................................................................................................................................. 19 4.2 TEST CONFIGURATION ........................................................................................................................................ 19 4.3 MEASUREMENT PROCEDURE ............................................................................................................................... 20 4.4 TEST RESULTS OF POWER LINE CONDUCTED EMISSION..................................................................................…
