2A8T2-C980WiFi Hitch Camera

PAGE 1 OF 13 1. CAMERA SPECIFICATIONS Voltage +5V Charging Current 800MA@5V Charging Time 5h Use Time / (IR lights on) 7h / (5h) Transmission Distance (open area) 50m / 164ft Operating Temperature -20°C~+60°C Storage Temperature -30°C~+60°C Working Humidity 85%RH Pixel 1M Lens Size 1/4 Resolution 1280H*720V Size 125mm*60mm*80mm PAGE 2 OF 13 Fig-1 ①. USB Charging Port ②. ON/OFF Power Button ③. Power & Charging Indicator ④. Power ON Indicator ⑤. “Up” Sign ⑥. Fixed Knob PAGE 3 OF 13 2. BEFORE YOU USE YOUR CAMERA FOR THE FIRST TIME ⚫ Please connect the Micro-USB cable included with your Hitch Camera to the USB charging port on the back of the Hitch Camera (Fig-1, ①). Charge the battery for around 5 hours otherwise the camera may not function properly. ⚫ The Power & Charging Indicator (blue) Light (Fig-1, ③) blinking blue when charging, and all 4 lights stay solid blue when fully charged. ⚫ If the Power & Charging Indicator (blue) Light on the front of the Hitch Camera (Fig-1, ③) has only one blue bar left, this means the battery will discharge soon and needs to be charged. ⚫ Please always keep the hitch camera "UP" sign (Fig-1, ⑤) facing up when installing. ⚫ The Hitch Camera is tested and proven compatible with Android 7.0 or above systems and all IOS systems. This system is not compatible with Motorola or Google Pixel phones. *However, if you have any issues pairing the Hitch Camera with any device, please contact [email protected] and provide the model and system of your device so we can try to resolve the issue. PAGE 4 OF 13 3. HOW TO USE THE HITCH CAMERA 3-1. APP ICON DETAIS （see Fig-2）: Fig-2 ① Click here to turned on/off Reverse reference line, HD preview, Auto open WIFI when open APP. ② Click here to choose the "W-Car_xxxxx" network. ③ Click here to flip the mirror image. ④ Click here to access your screenshot images and videos. ⑤ Click here to screenshot the image on your device. ⑥ Click here to record the video on your device. 3-2. PAIRING YOUR HITCH CAMERA WITH YOUR DEVICE 1). Download and Install - ANDROID SYSTEM: Search for "W-Car" in the Google APP store, download and install. PAGE 5 OF 13 - IOS SYSTEM: Search for "W-Car" in the Apple Store, download and install. 2). On the back of the camera (see Fig-1, ②), short press the ON/OFF Power Button to check the power. If the Power & Charging Indicator (see Fig-1, ③) is only one blue bar left, please charge it. 3). Press and hold the ON/OFF Power Button (see Fig-1, ②) for 3 to 5 seconds until the Power ON Indicator light (see Fig-1, ④) on the front of the camera turns solid red, this means the Hitch Camera is powered on and now broadcasting it's own Wi-Fi network signal. 4). Open the W-Car APP, click the WiFi icon "", turn on your device's "WLAN", search for the Hitch Camera's network: "W-Car_xxxxx" and connect to the " W- Car_xxxxx " network, Connection Password: 12345678 (see Fig-3). PAGE 6 OF 13 Fig-3 5). From the Hitch Camera should appear on your device display (see Fig-4). Fig-4 *Notice: If your device's Wi-Fi is not on, you will find the " " sign is red (see Fig-2). Therefore, please confirm your device's Wi-Fi is ON and also make sure your device's GPS is on and try to connect again. PAGE 7 OF 13 6). To turn off the Hitch Camera, just press and hold the ON/OFF Power Button for 3-5 seconds and wait until the Power ON Indicator red light goes out. (Tips: The Power & Charging Indicator blue lights will go out after turn off 3- 5 seconds.) 4. CONNECTION ISSUES If you have trouble: 1) Verify your W-Car APP is updated to the latest. 2) Verify the red indicator light on the front of the camera is solid red (powered ON). 3) Verify the blue Power & Charging Indicator light is greater than 1 bar. 4) For ANDROID, verify the device's Wi-Fi and GPS are both "ON". 5) For IOS, verify the device's Wi-Fi is on. 6) Verify your device's Wi-Fi is connected to the "W- Car_xxxxx" network. 7) The hitch camera doesn't work while charging. 8) If the steps above do not help, restart the Hitch Camera and try to connect the camera to another device. PAGE 8 OF 13 * Notice: ❶ When you reassemble the camera after separating it from the bracket, please make sure the circular clip is aligned with the bayonet, and then use the Fixed Knob to fasten the camera. ❷ Most of the installation angles DO NOT need to separate the camera and the bracket, just loosen the 2 Fixed Knob, adjust the camera to a suitable angle, and then tighten them. PAGE 9 OF 13 5. MOUNTING YOUR CAMERA Magnetically attach your hitch camera to any position you need, loosen the knob, adjust the angle of the lens, tighten the knob, and the installation is complete. The Hitch Camera has a magnetic base which works best when placed on a flat metal surface. *Notice: 1) Please avoid placing the camera on curved areas or shaped bumpers or the camera may fall and become damaged which is not covered by warranty. 2) If you have 2 Wireless Hitch Cameras (or more), each camera will continue to broadcast it's own individual Wi- Fi address without interfering with the other. In your device's available networks section, you will see separate Wi-Fi addresses for each Hitch Camera (see Fig-3), but you can only connect to one Hitch Camera Wi-Fi address at a time. For example, if you have 2 Hitch Cameras, you can not display the images of all 2 cameras at the same time on 1 device display. PAGE 10 OF 13 6. MORE HELPFUL NOTES - In cold weather, the batteries lose power quickly. - If the Hitch Camera image becomes unstable, most likely the battery is low. - For longer battery life and stable power, please do not store your camera in a cold environment for long periods of time. - After connecting to the device, please wait for about 5- 10 seconds before using it to allow the device to read network transmission data. - It is not recommended to use the camera while your vehicle is moving at high speed, it may fall off. - The camera is not a backup camera, but it is great for hooking up trailer / fifth wheels /…

Text truncated - open the document above for the full version.

Co m Ad d gua Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com don mpany: do dress: huan angdongsh oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: ngguans ngguanshi ngjinlu1ha heng 52351 e: WiFi Hitc er(s): C980 ription: Wi MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Jiandong Manager dongguan shiouna Agen iounadianz o1dong1da 5, China ch Camera Fi Hitch C a bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect Yan nshiounad adianzis nt Auth zishangwuy anyuan513 amera Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of ianzishang shangw horizat youxiango 3shi03, nan ourt, Pleasa certification forward all i agencies as and all acts our own. gwuyouxian wuyouxia tion ngsi nchengjieda anton, Califo of above na information s required a s carried ou Date: ngongsi angong ao, donggu ornia 94566 amed equip related to t nd to discu ut by MiCOM Sept. 28, 2 gsi uanshi, 6, USA, to pment. the approva ss any M Labs on 2022 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b In addi t in Title busine s authoriz For 4 O For 1 It is ou r corresp docume authoriz Sincer e Signatu Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2A8T2-C om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio Tune-up tional to abo 47 CFR §2 ss sensitive zed devices External Test Set Internal P User Ma 45 days, pu OR 180 days pu r understand pondence du ents and thi zation is iss ely, ure: Jiandong Y anager donggu ing Techno cations Com s Road 046 for Confiden C980 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri Procedure ove mention .803 and th informatio n s, we reque Photos tup Photos Photos anual rsuant to P u ursuantto KD ding that all uring the ce s informatio sued. Yan uanshioun logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption ned docume e importatio n remains c st Short Te ublic Notice DB 726920 l measurem ertification re on will be av adianzisha ssion’s rule old the follow nitely. m and equi e equipmen ould give co ents, in orde on rules in T confidential rm Confide e DA 04-170 0 D01. ment test rep eview proce vailable for angwuyoux s Title 47 S wing attach pment desc nt. The publ ompetitors a er to comply Title 47 CFR until the act ntiality of th 05. ports, FCC ess cannot public revi e xiangongsi Sections §0. hment(s) as criptions an ic disclosu r an unfair ad y with the m R §2.1204, tual market he following ID label for be granted ew once the i Date: Sept. 457 and §0 confidentia d are consi re of these d vantage in marketing re while ensu ting of newly attachmen mat and as confide n e grant of eq . 28, 2022 0.459, we al dered as documents the market . egulations ring that y t(s); ntial quipment .

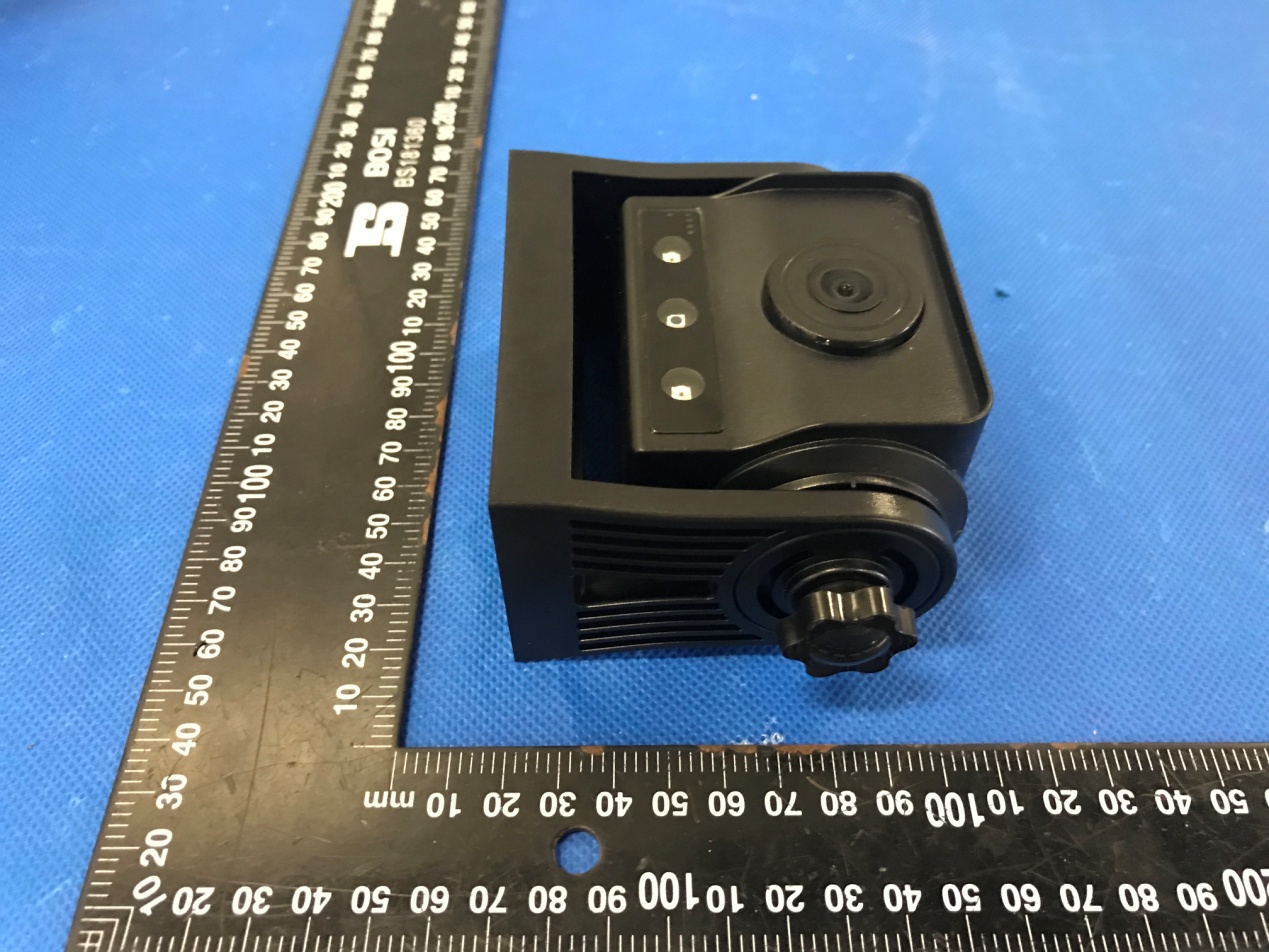

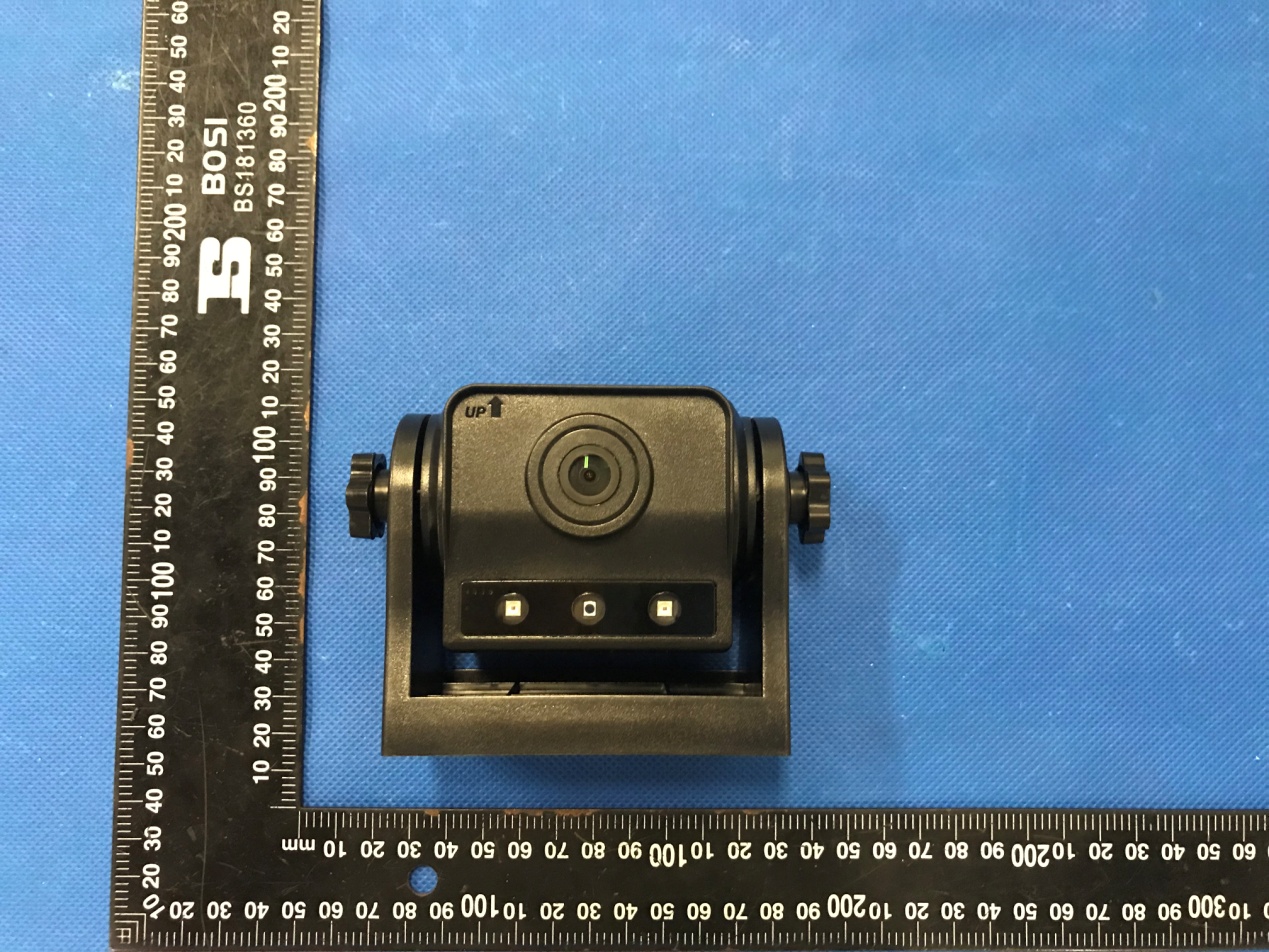

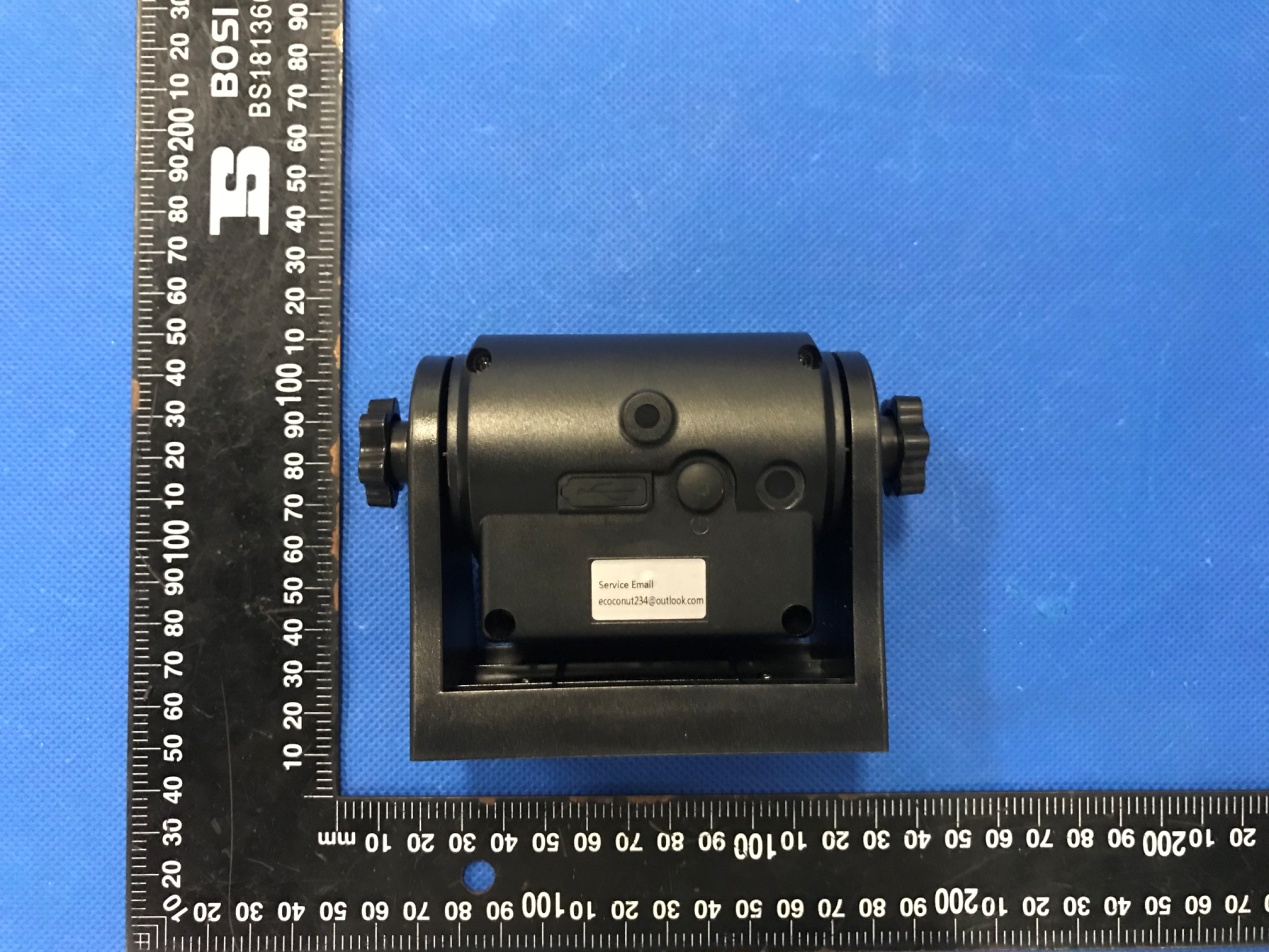

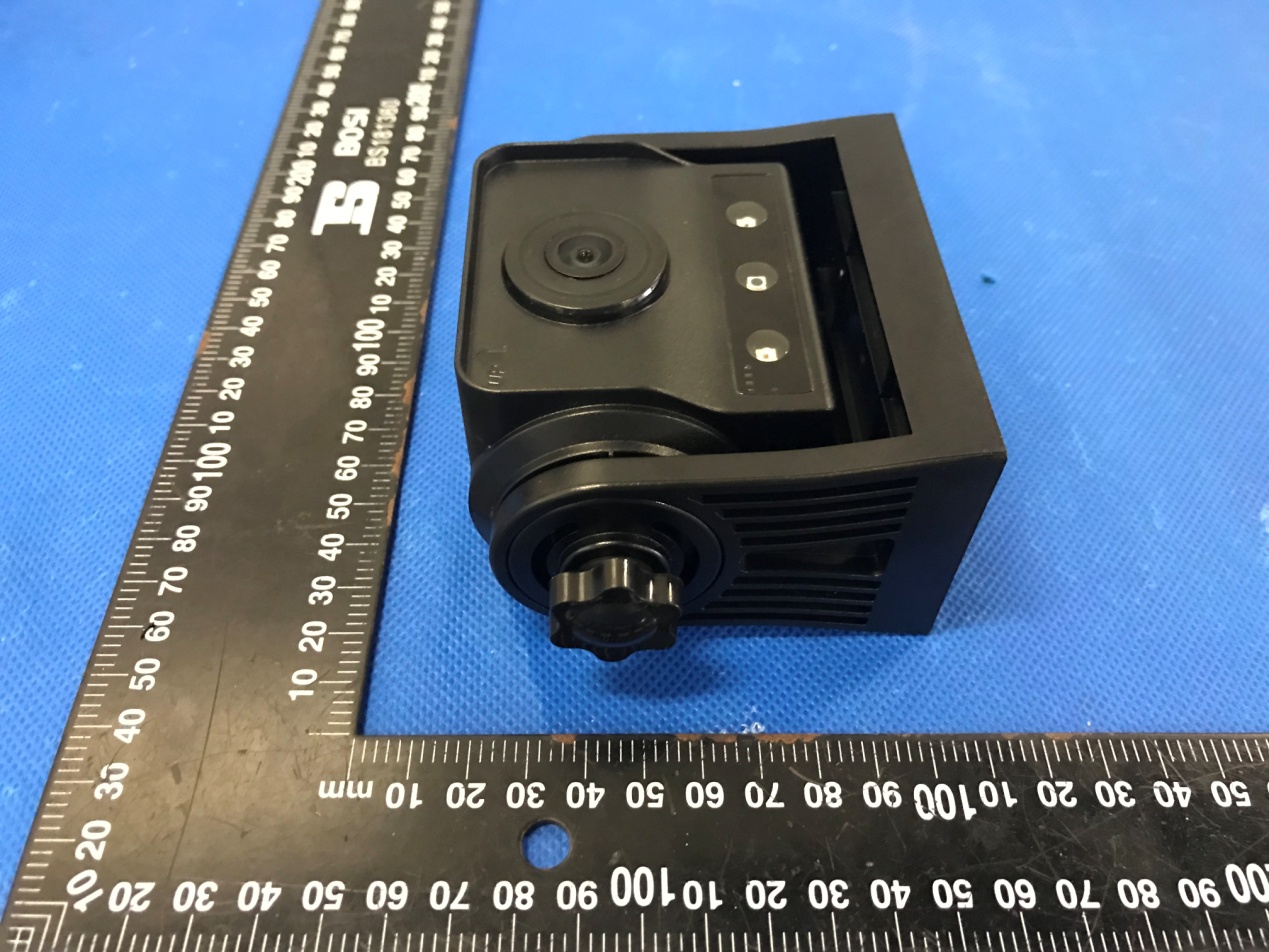

Annex A External Photos Report No.: HK2209013929-E Page 1 of 4 Report No.: HK2209013929-E Page 2 of 4 Report No.: HK2209013929-E Page 3 of 4 Report No.: HK2209013929-E Page 4 of 4

FCC ID LABEL: Ca. 10mm x 20mm Label Location FCC ID: 2A8T2-C980

Annex B Internal Photo Report No.: HK2209013929-E Page 1 of 6 Report No.: HK2209013929-E Page 2 of 6 Antenna Report No.: HK2209013929-E Page 3 of 6 Report No.: HK2209013929-E Page 4 of 6 Report No.: HK2209013929-E Page 5 of 6 Report No.: HK2209013929-E Page 6 of 6

MPE ESTIMATION FCC ID: 2A8T2-C980 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 2.4GWIFI 23.19 23±1(24) 251.19 2.5 1.78 0.089 Note: Note: The estimation distance is 20cm The device could not transmit simultaneously in 2.4GWIFI Note: PK Output power= conducted power. Conducted power see the test report HK2209013929-E. Gantenna gain=2.5dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.089mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Shenzhen SKYLink Technology Co.,Ltd Antenna Specification NO.：SLSOA2021030801 Client's Name: Project Name: Product Description: FPC welding 1.13mm black coaxial cable, cable length 80mm, 1st generation terminal Part Number: WF03A.C113.80B.1 Version: V1.0 Date: 2021-3-8 Client: Project Purchasing Admit R&D Project Examine NO MODIFICATION dongguanshiounadianzishangwuyouxiangongsi WiFi Hitch Camera ⚫ Specification Electrical Characteristics Frequency 2400MHz ~2500MHz Return Loss <-10 Efficiency >45% Gain 2.5db Impedance 50 Ω Polarization Mode Linear polarization Materials and Mechanical Properties Material FPC Wire Type Wire diameter 1.13mm Terminal Type Generation Terminal Drawing Size See drawing Silk Screen Method White lettering on a black background Environmental Characteristics Storage Temperature - 30 ̊C ~ + 85 ̊C Soldering Temperature 280±5°C Immersion time: 10 seconds RF Wire Soldering Temperature 320±5°C 2-3 seconds ⚫ Test equipment and conditions 1． Network Analyzer : Agilent 8753D Agilent 5071B Communication Test Equipment: Agilent E5515C R&S CMW500 2． 3D Test System 2400MHZ: 2450MHZ: 2500MHZ: ⚫Matching Circuit ⚫ Passive Test Report Return Loss Graph The original motherboard matching circuit remains unchanged. module Antenna ◆ Efficiency ◆ Gain ⚫ Antenna Assembly Method (full picture of the whole machine, detailed picture)
