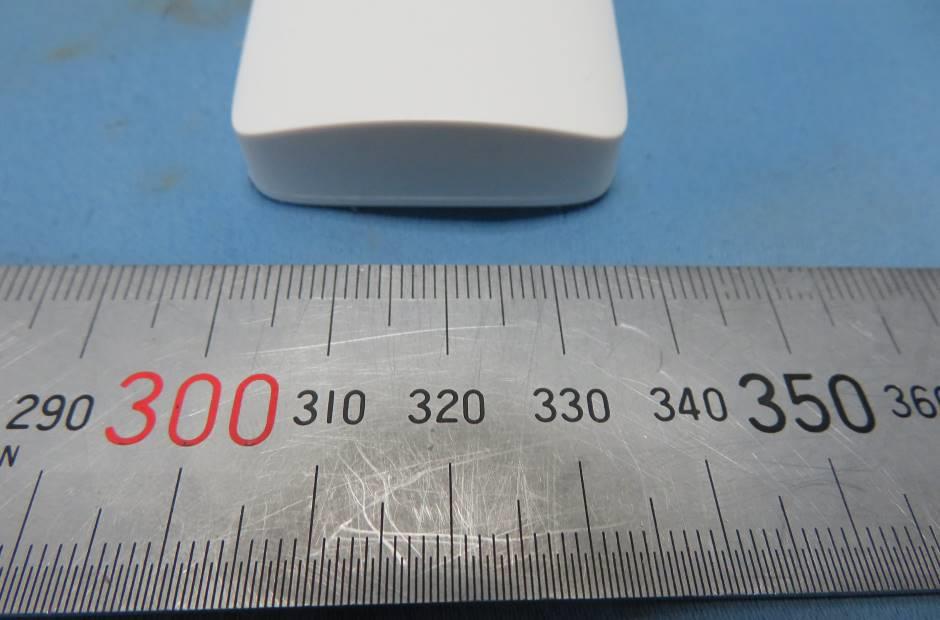

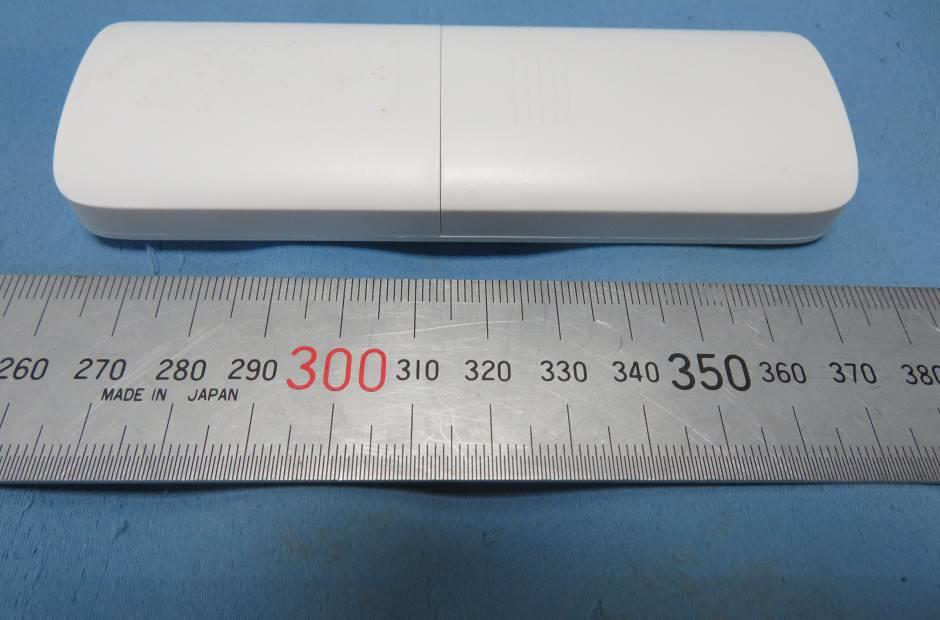

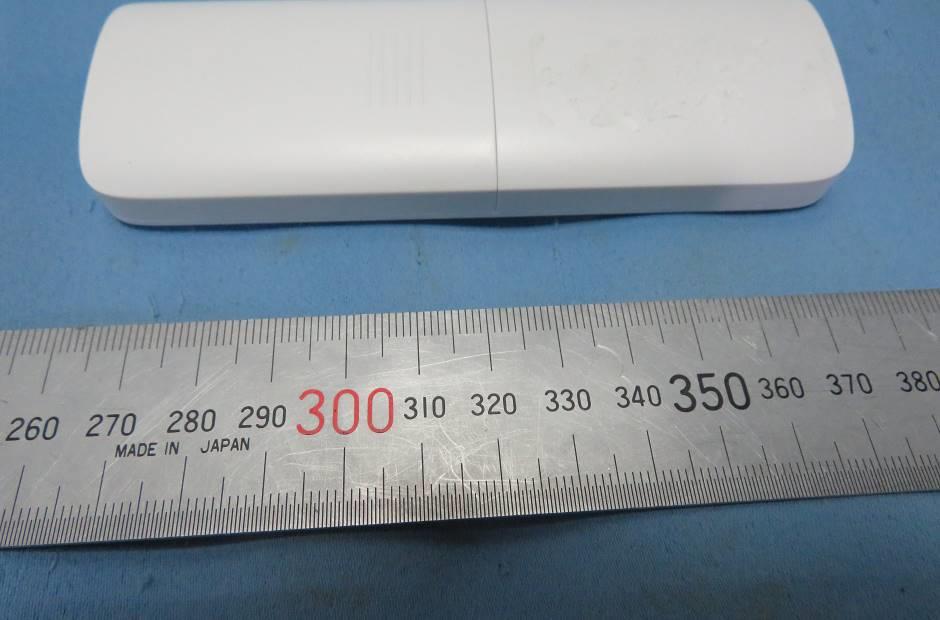

2A8U6-KKYR3202Smart Roller Shade Remote Control

Pair your remote with your smart shade ② ③ ④ ⑥ ⑤ ⑦ ⑧ ⑨ ① Remote Control Part ① Description LED Light ② ③ Left Channel Select Up/Open ④Up tilt/75%position ⑨ Channel setting ⑤Down/Close ⑥ ⑦ Right Channel Select Down tilt/25% position ⑧Stop/Horizontal 50% position This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: ● This device may not cause harmful interference. ● This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. HOMEDEPOT.COM/HUBSPACE Please contact 1-877-592-5233 for further assistance. Whilst shade is in pairing mode (or if upper and lower limits have not yet been set), short press the [down] button to have shade close continuously. Long press the [down] button (for up to 15 seconds) for the shade to move down continuously. Shade will stop when the button is let go of. ③④ ③ Hold the [Channel setting] button for 4 seconds to complete defining the lower limit. Note that action must be completed within 3 minutes or the setting will time out.setting will time out. Long press the [Channel setting]+[Up] buttons together for 4 seconds to enter setting mode for the upper limit. The motor will jig and the LED will light up. ① 4s ② Long press the [Channel setting]+[Up] buttons together for 4 seconds to enter setting mode for the upper limit. The motor will jig and the LED will light up. 4s Setting upper shade limits ③ Hold the [Channel setting] button for 4 seconds to complete defining the lower limit. Note that action must be completed within 3 minutes or the setting will time out Long press [Channel setting]+[Down] buttons together for 4 seconds to enter setting mode for the lower limit. The motor will jig and the LED will light up. ① 4s ② Inch the blind by long pressing or short pressing the [Up] or [Down] button to the desired lower limit position. 4s Setting lower shade limits ① ② ① ② ① Whilst shade is in pairing mode (or if upper and lower limits have not yet been set), short press the [up] button to have shade open continuously. Long press the [up] button (for up to 15 seconds) for the shade to move up continuously. Shade will stop when the button is let go of. ② Inching Shade Up or Down for setting upper and lower limits Long press the motor [Up] [Down] key for 3 seconds, motor will jitter and LED indicator will long light. Press the channel setting button on back of the remote control, shade will jig and motor LED will flash 4 times, indicating the pairing is completed. The motor LED will go out. 10s Long press the motor [up] [Down] key for 3 seconds to enter the learning / pairing state. Motor will jitter and the LED will be long lit. Long press motor [up] & [down] button togeth- er for 10 seconds. Motor will jitter, motor LED will go out, all existing remote control pairings will be wiped on motor. Hold the [channel left selection]+[Stop] button simultaneously. After the signal has been received, the motor will shake once and the motor LED will blink 3 times. 3s Only applicable for remote control that is already successfully paired with existing shades. Useful for adjusting the top and bottom shade limits. On the remote control that has paired successfully, long press the [channel setting] button of the remote control for 4 seconds. The motor of the shade will jig, and the shade LED will begin flashing and shade will be sent into pairing mode. 4s Entering Pairing / Setting Mode Entering Setting Mode For shades already paired Removing Existing Pairing Reversing Roll Direction only needed for over-the-roll direction shade install 3s NOTE: 1.Before using remote control, each remote must be paired with motor 2.Each motor can record up to 16 remote control channels.

Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Job No.: 220610072GZU FCC ID: 2A8U6-KKYR3202 RF Exposure Compliance Requirement Calculation formula： E (V/m) = (30*P*G) 0.5/d E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between EUT and antenna (m) Remark: E(V/m)=10 X (dBUV/m) /20 ×10 -6 P=(E*d) 2 /30G in the formula above, d=3m, field strength= 81.9dBuV/m (max described by client), so EIRP=PG=0.047mW The worst case test separation distance is 5mm. The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. In KDB 447498 D01 v06: 4.3.1 Standalone SAR test exclusion considerations: The SAR Test Exclusion Threshold is calculated from: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation 17 ⚫ The result is rounded to one decimal place for comparison The Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit Frequency (MHz) Output power (mW) SAR Test Exclusion Threshold (mW) 433.92 0.047 22.77 According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v06, the SAR report is not required. Test Location: Intertek Testing Services Shenzhen Ltd. Guangzhou Branch All tests were performed at: Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China

Golden Champion Industrial Ltd TEST REPORT SCOPE OF WORK EMC TESTING–KKYR3202 REPORT NUMBER 220610072GZU-001 ISSUE DATE [REVISED DATE] 17-November-2022 [--------------------] PAGES 21 DOCUMENT CONTROL NUMBER FCC part 15.231-e © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 03 September 2021 Page 2 of 21 FCC Part 15.231-e Applicant Name & Address : Golden Champion Industrial Ltd No.56, Lane 2, Yong Le Street, Kang, Kaohsiung, Taiwan Manufacturing Site : Same as applicant Intertek Report No: FCC ID: 220610072GZU-001 2A8U6-KKYR3202 Test standards CFR 47, FCC PART 15 Subpart C: 2020 section 15.231 Sample Description Product : Remote Control Model No. : KKYR3202 Electrical Rating : 1.5VDC*2 Serial No. : Not Labeled Date Received : 10 June 2022 Date Test Conducted : 26 October 2022 to 31 October 2022 Prepared and Checked By Elena Lei Engineer Approved By: Dean Liu Project Engineer TEST REPORT Intertek Report No.: 220610072GZU-001 Version: 03 September 2021 Page 3 of 21 FCC Part 15.231-e CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION .............................................................................................. 5 2.1 PRODUCT DESCRIPTION ........................................................................................................ 5 2.2 RELATED SUBMITTAL(S) GRANTS ............................................................................................ 5 2.3 TEST METHODOLOGY ........................................................................................................... 5 2.4 TEST FACILITY ...................................................................................................................... 5 3.0 SYSTEM TEST CONFIGURATION .................................................................................. 6 3.1 JUSTIFICATION ..................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE.................................................................................................. 7 3.3 SPECIAL ACCESSORIES ........................................................................................................... 7 3.4 MEASUREMENT UNCERTAINTY ............................................................................................... 7 3.5 EQUIPMENT MODIFICATION .................................................................................................. 8 3.6 SUPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 8 4.0 MEASUREMENT RESULTS ........................................................................................... 9 4.1 ANTENNA REQUIREMENT ...................................................................................................... 9 4.2 RADIATED EMISSIONS ......................................................................................................... 10 4.3 OCCUPIED BANDWIDTH ...................................................................................................... 18 4.4 DWELL TIME ..................................................................................................................... 19 4.5 CONDUCTED EMISSION TEST ................................................................................................ 20 5.0 TEST EQUIPMENT LIST ............................................................................................. 21 TEST REPORT Intertek Report No.: 220610072GZU-001 Version: 03 September 2021 Page 4 of 21 FCC Part 15.231-e 1.0 TEST RESULT SUMMARY Test Item Test Requirement Test Method Result Radiated Emission FCC PART 15 section 15.231(b) ANSI C 63.10: Clause 6.4, 6.5 and 6.6 PASS Occupied Bandwidth FCC PART 15 section 15.231(c) ANSI C 63.10: Clause 6.9 PASS Dwell Time FCC PART 15 section 15.231(a) FCC PART 15: Section 15.231(a) PASS Remark: N/A: not applicable. Refer to the relative section for the details. EUT: In this whole report EUT means Equipment Under Test. Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radio Frequency. ANSI C63.10: the detail version is ANSI C63.10:2013 in the whole report. TEST REPORT Intertek Report No.: 220610072GZU-001 Version: 03 Septembe…

Text truncated - open the document above for the full version.

Note:EUT is positioned at the center of the turntable to keep 3 m between the measurement antenna and EUT for the radiated emissions measurements Radiated Emission (30MHz-1000MHz) Radiated Emission (Above 1000MHz)
