2A8UX-2892Digital Media Receiver

FCC User Manual & Quick Start Guide_G6A87E Product Specifications - Model Number: G6A87E - Power: 9.0 Vdc 1.4 A output power adapter (in-box) - Operating temperature: 0°C to 35°C - Connectivity: Dual Band Wi-Fi (2.4/5 GHz), 802.11 a/b/g/n/ac; BT BDR/EDR, BLE, 902-928MHz, Zigbee Quick Start Guide Included in the Box: - Device - Power Adapter - Power Adapter USB cable - Wall mount bracket and its template - 2 screws - 2 screw anchors Set up your device 1. Connect the device to the wall outlet using the usb cable and the power adapter. 2. In the start screens, connect to the home Wifi by selecting the SSID from the login screen and inputting a password, if required. 3. Follow instructions on the screen to complete set up. Mounting your device on your wall 1. LEVEL AND TAPE TEMPLATE TO THE WALL: Use the mounting tips and the included mounting template to identify where to mount your device. Place the template on the wall. Make sure the triangle is at the top. Use a level or a level app on your phone to level the template. Tape the template in place. 2. DRILL HOLES AND INSTALL ANCHORS: Using an electric drill, drill through the designated holes in the template. Remove template after drilling holes. Slowly hammer each of the 2 anchors into the holes until they are flat against the wall 3. INSTALL WALL MOUNT: Place the wall mount against the wall with the triangle cutout on top, and line up the 2 holes with the installed anchors. With the Phillips driver bit, drive the screws through the wall mount holes until they are flat against the wall mount. 4. PLUG SUPPLIED POWER CORD INTO DEVICE AND SLIDE DEVICE ONTO MOUNT: Once the device is mounted on the wall, you won’t be able to access its power port. DO NOT plug it into an electrical socket yet. Place the device flat over the top of the wall mount and slide it down, ensuring that all 4 hooks in the wall mount are engaged with the device. Make sure the device is placed with the buttons on the right Product Information Safety and Compliance Information Using Your Device Around Other Electronic Devices The Device, uses, and can radiate radio frequency (RF) energy and, if not used in accordance with its instructions, may cause interference to radio communications and electronic equipment. External RF signals may affect improperly installed or inadequately shielded electronic operating systems, entertainment systems, and personal medical devices. While most modern electronic equipment is shielded from external RF signals, if in doubt, check with the manufacturer. For personal medical devices (such as pacemakers and hearing aids), consult with your physician or the manufacturer to determine if they are adequately shielded from external RF signals. There are some places where RF signals could constitute a hazard, such as health care facilities, and construction sites. If you are not sure, look around for signs indicating that two-way radios or mobile phones should be turned off. FCC Compliance Information Radio Frequency Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications that are not expressly approved by the party responsible for compliance could make the device no longer comply with the FCC Rules. Information on your device is on file with the FCC and can be found by inputting your device’s FCC ID, which can be found on the back of Device, into the FCC ID Search form available at transition.fcc.gov/oet/ea/fccid. Information Regarding Exposure to Radio Frequency Energy This equipment complies with RF exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.

Persimmon Kaki LLC 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047, United States Tel: 1-302-691-6290 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Persimmon Kaki LLC, Grantee Code: 2A8UX Attestation Statement FRN: 0032946469 Reference: a) FCC CFR section 2.911(d)(5)(i) b) FCC Section 2.911(d)(5)(ii) c) FCC Section 2.911(d)(7) a) Persimmon Kaki LLC certifies that the equipment FCC ID: 2A8UX-2892 for which authorization is sought is not “Covered “equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of CFR title 47; b) Persimmon Kaki LLC certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List pursuant to § 1.50002 of CFR title 47, as an entity producing “covered” equipment and is not a subsidiary or affiliated of such entity; c) Persimmon Kaki LLC hereby designates itself for the purpose of accepting service of process. Persimmon Kaki LLC acknowledges its consent and obligation to accept service of process in the United States for matters related to the applicable equipment at the physical U.S. address and email address indicated below, and accepts the obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the following agent information changes. Persimmon Kaki LLC 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047, United States Kristine Eppes, TEL: 1-302-691-6290, [email protected] Applicant’s Authorized Signature Kristine Eppes Date: June 8, 2023

Persimmon Kaki LLC 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047, United States Tel: 1-302-691-6290 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Persimmon Kaki LLC, Grantee Code: 2A8UX Attestation Statement FRN: 0032946469 Reference: a) FCC CFR section 2.911(d)(5)(i) b) FCC Section 2.911(d)(5)(ii) c) FCC Section 2.911(d)(7) a) Persimmon Kaki LLC certifies that the equipment FCC ID: 2A8UX-2892 for which authorization is sought is not “Covered “equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of CFR title 47; b) Persimmon Kaki LLC certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List pursuant to § 1.50002 of CFR title 47, as an entity producing “covered” equipment and is not a subsidiary or affiliated of such entity; c) Persimmon Kaki LLC hereby designates itself for the purpose of accepting service of process. Persimmon Kaki LLC acknowledges its consent and obligation to accept service of process in the United States for matters related to the applicable equipment at the physical U.S. address and email address indicated below, and accepts the obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the following agent information changes. Persimmon Kaki LLC 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047, United States Kristine Eppes, TEL: 1-302-691-6290, [email protected] Applicant’s Authorized Signature Kristine Eppes Date: June 8, 2023

Persimmon Kaki LLC 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047, United States Tel: 1-302-691-6290 Date: June 8, 2023 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: 2A8UX-2892 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. ⚫ Schematic Diagram ⚫ Block Diagram ⚫ Part List ⚫ Operational Description ⚫ Tune up procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. ⚫ External Photos ⚫ Internal Photos ⚫ Test Setup Photos ⚫ User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________________ Kristine Eppes [email protected]

Persimmon Kaki LLC 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047, United States Tel: 1-302-691-6290 Date: June 8, 2023 To the Certification Body, Persimmon Kaki LLC hereby authorizes Sporton International Inc., located at No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan, R.O.C., to provide and prepare all documentation relating to our product certification, including the signing of application forms for Model Name G6A87E (“Product”), FCC ID 2A8UX-2892 directly to the Certification Body on our behalf. Sporton International Inc. is also authorized under this letter to respond on our behalf directly to the Certification Body’s questions about the Product and reports as necessary to assist the Certification Body in the FCC certification. We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from Persimmon Kaki LLC. Sincerely, Persimmon Kaki LLC By: Kristine Eppes Title: President Address: 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047, United States Email: [email protected]

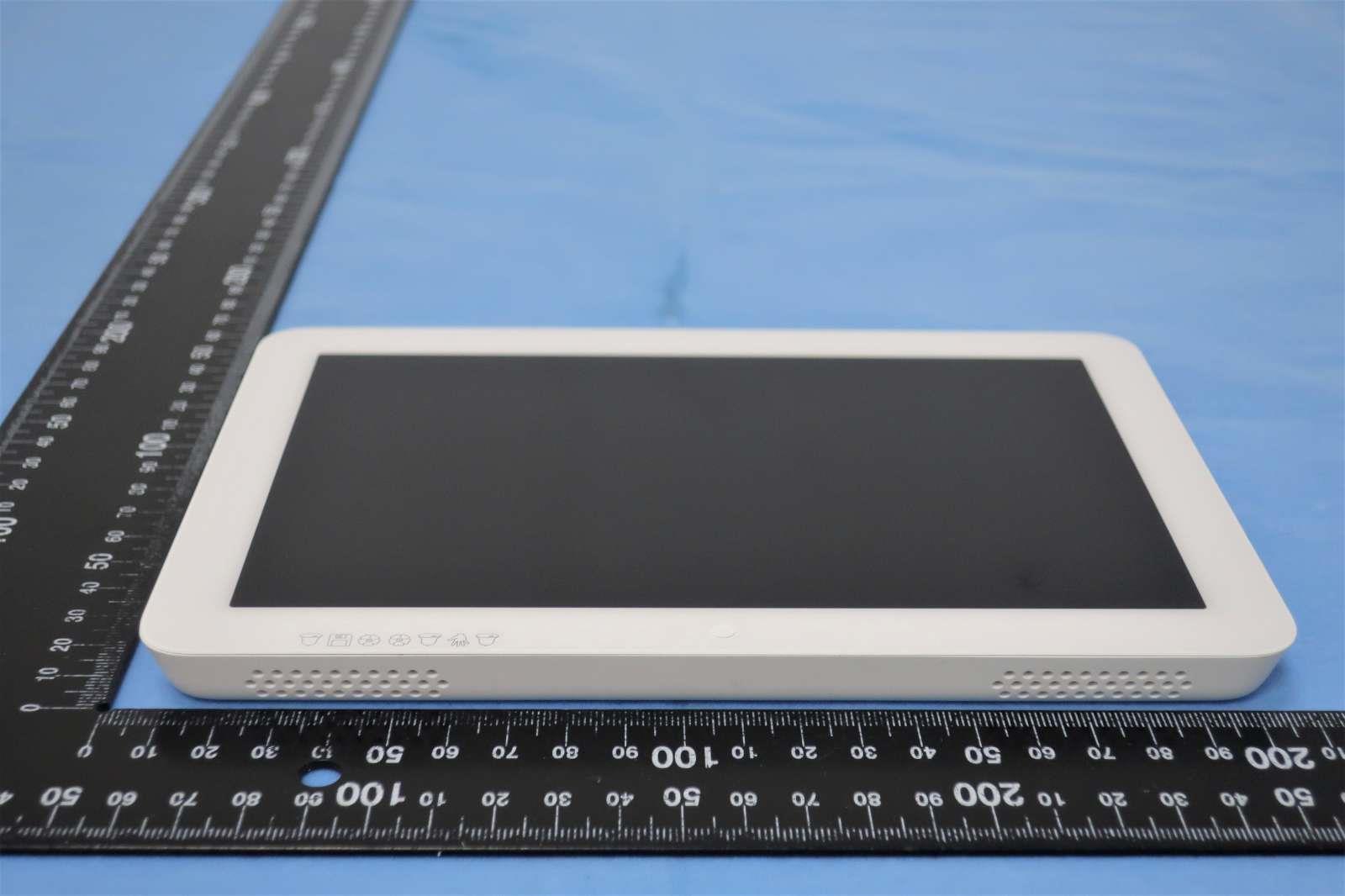

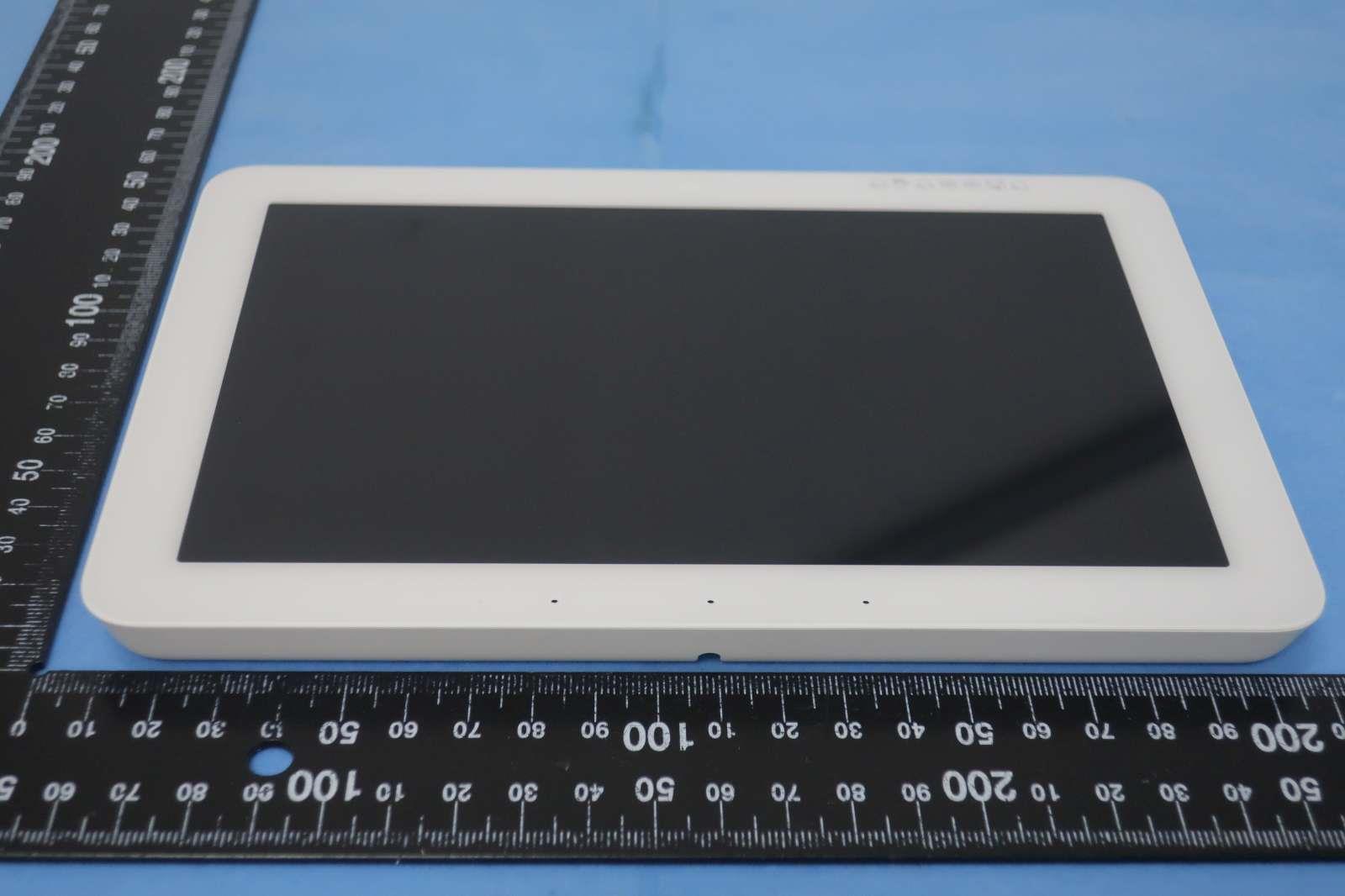

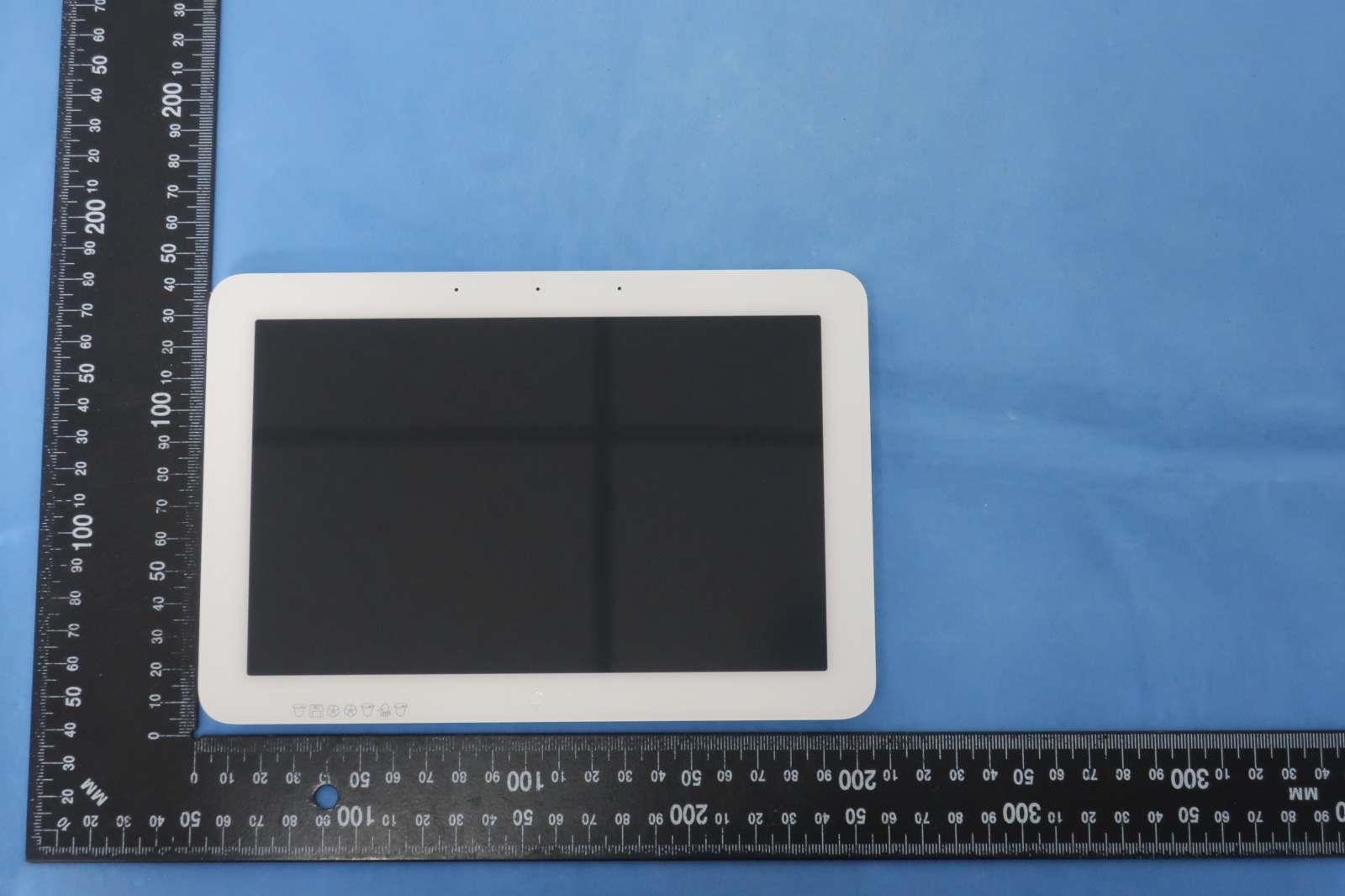

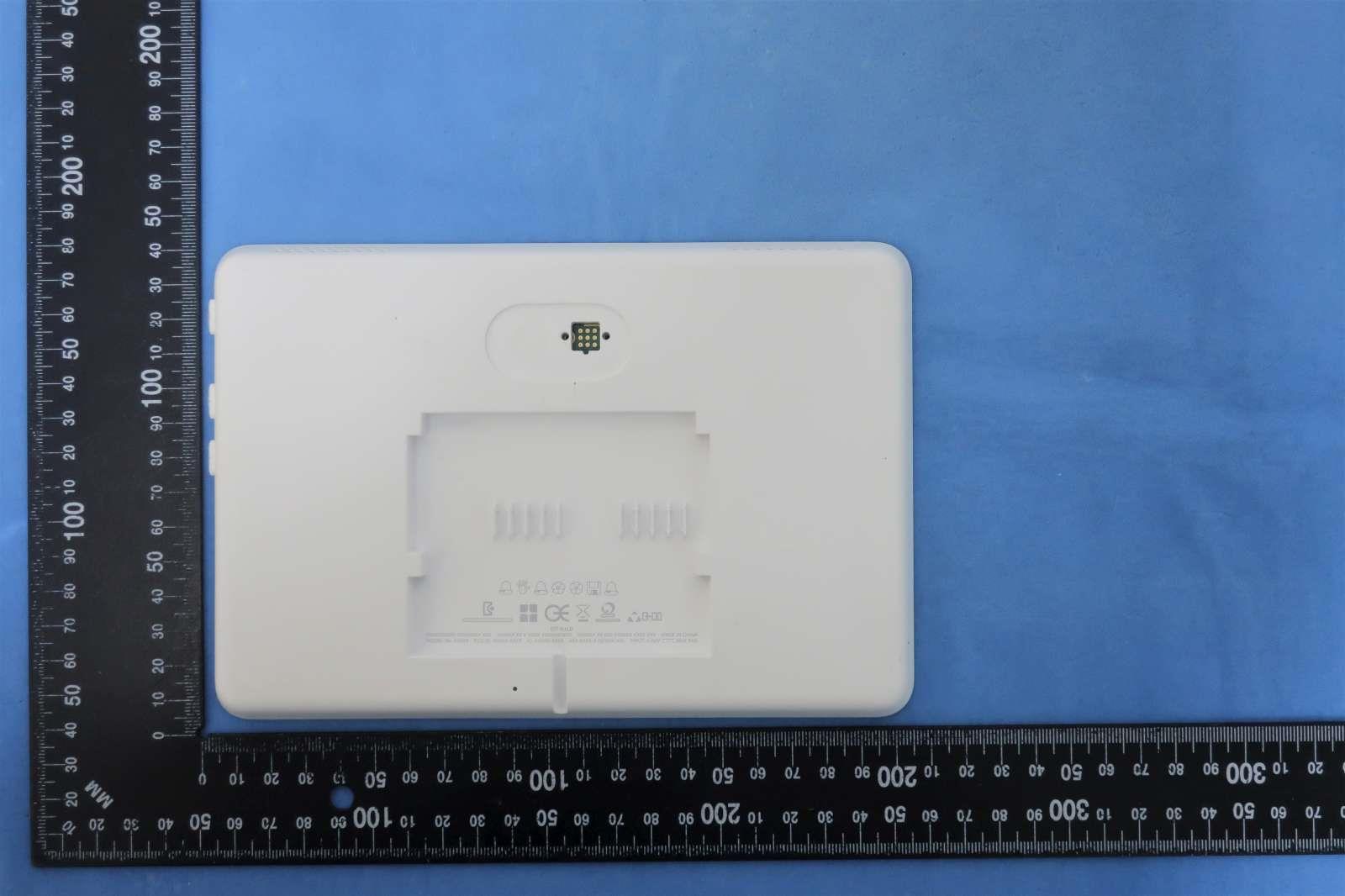

Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 1 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 2 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 3 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 4 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 5 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 6 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 7 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 List of Accessory: Specification of Accessory AC Adapter EU Manufacturer AcBel Model Name PA32EU AC Adapter UK Manufacturer AcBel Model Name PA32UK AC Adapter US Manufacturer AcBel Model Name PA32NA USB Cable Manufacturer Foxlink Model Name NA Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 8 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 720510

Model No: G6A87E FCC ID: 2A8UX -2892 IC: 29429-2892 A laser itching label at the base of the product. FCC 2-part statement on product package and user manual. Model No: G6A87E FCC ID: 2A8UX -2892 IC: 29429-2892

Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 9 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 10 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 11 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 12 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 13 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 14 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 15 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 16 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 17 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 18 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 19 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 20 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 21 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 22 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 23 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Bluetooth Antenna WIFI Antenna ZigBee Antenna Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 24 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 25 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 26 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 27 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 28 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 29 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 30 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 31 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 32 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-75…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 49 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 50 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 51 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 52 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 53 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 Bluetooth Antenna Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 54 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 ZigBee Antenna Photographs of EUT Report No.: EP2N0202-01A Model Name: G6A87E Sporton International Inc. (Shenzhen) Page Number : 55 of 55 TEL :86-755-8637-9589 Report Issued Date : Jun. 21, 2023 FAX :86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2A8UX -2892 WIFI Antenna

Sporton International Inc. (Shenzhen) Page Number : 1 of 8 TEL : 86-755-86379589 / FAX : 86-755-86379595 Report Issued Date : Aug. 03, 2023 FCC ID : 2A8UX-2892 Report Version : Rev. 02 RF Exposure Evaluation Report Report No. : FA2N0202-01 RF Exposure Evaluation Report APPLICANT : Persimmon Kaki LLC EQUIPMENT : Digital Media Receiver MODEL NAME : G6A87E FCC ID : 2A8UX-2892 STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 V06 The product evaluation date was started from Apr. 27, 2023 and completed on May 12, 2023. We, Sporton International Inc. (Shenzhen), would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International Inc. (Shenzhen), the test report shall not be reproduced except in full. Approved by: Si Zhang Sporton International Inc. (Shenzhen) 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China Sporton International Inc. (Shenzhen) Page Number : 2 of 8 TEL : 86-755-86379589 / FAX : 86-755-86379595 Report Issued Date : Aug. 03, 2023 FCC ID : 2A8UX-2892 Report Version : Rev. 02 RF Exposure Evaluation Report Report No. : FA2N0202-01 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT TUNE UP POWER AMONG PRODUCTION UNITS ....................... 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 5.2. Collocated Power Density Calculation ............................................................................................... 8 Sporton International Inc. (Shenzhen) Page Number : 3 of 8 TEL : 86-755-86379589 / FAX : 86-755-86379595 Report Issued Date : Aug. 03, 2023 FCC ID : 2A8UX-2892 Report Version : Rev. 02 RF Exposure Evaluation Report Report No. : FA2N0202-01 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA2N0202-01 Rev. 01 Initial issue of report. Jun. 13, 2023 FA2N0202-01 Rev. 02 Added remark on page 6. Aug. 03, 2023 Sporton International Inc. (Shenzhen) Page Number : 4 of 8 TEL : 86-755-86379589 / FAX : 86-755-86379595 Report Issued Date : Aug. 03, 2023 FCC ID : 2A8UX-2892 Report Version : Rev. 02 RF Exposure Evaluation Report Report No. : FA2N0202-01 1. Administration Data 1.1. Testing Laboratory Sporton International Inc. (Shenzhen) is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.01. Testing Laboratory Test Firm Sporton International Inc. (Shenzhen) Test Site Location 1/F, 2/F, Bldg 5, Shiling Industrial Zone, Xinwei Village, Xili, Nanshan, Shenzhen, 518055 People’s Republic of China TEL: +86-755-86379589 FAX: +86-755-86379595 Test Site No. Sporton Site No. FCC Designation No. FCC Test Firm Registration No. SAR01-SZ CN1256 421272 Applicant Company Name Persimmon Kaki LLC Address 6975 Union Park Avenue, Suite 600, Cottonwood Heights, Utah 84047 Sporton International Inc. (Shenzhen) Page Number : 5 of 8 TEL : 86-755-86379589 / FAX : 86-755-86379595 Report Issued Date : Aug. 03, 2023 FCC ID : 2A8UX-2892 Report Version : Rev. 02 RF Exposure Evaluation Report Report No. : FA2N0202-01 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type Digital Media Receiver Model Name G6A87E FCC ID 2A8UX-2892 Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2412 MHz ~ 2472 MHz WLAN 5.2GHz Band: 5180 MHz ~ 5240 MHz WLAN 5.3GHz Band: 5260 MHz ~ 5320 MHz WLAN 5.5GHz Band: 5500 MHz ~ 5720 MHz WLAN 5.8GHz Band: 5745 MHz ~ 5825 MHz Bluetooth: 2402 MHz ~ 2480 MHz LoRa DTS: 902.5 MHz ~ 926.5 MHz LoRa OFDM: 903.3 MHz ~ 926.5 MHz LoRa FHSS: 902.4 MHz ~ 927.6 MHz FSK FHSS: 902.2 MHz ~ 927.8 MHz ZigBee: 2405 MHz ~ 2480 MHz Mode WLAN 2.4GHz 802.11b/g/n HT20 WLAN 5GHz 802.11a/n HT20/HT40 WLAN 5GHz 802.11ac VHT20/VHT40/VHT80 Bluetooth BR/EDR/LE ZigBee: O-QPSK LoRa: FHSS / OFDM / FSK Antenna Gain WLAN2.4GHz/Bluetooth: 4.0 dBi WLAN5.2GHz: 4.0 dBi WLAN5.3GHz: 4.0 dBi WLAN5.5GHz: 4.0 dBi WLAN5.8GHz: 4.0 dBi ZigBee: 3.8 dBi LoRa: 4.0 dBi Antenna Type Bluetooth: PCB IFA Antenna WLAN: PCB IFA Antenna ZigBee: FPC IFA Antenna LoRa: FPC IFA Antenna Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. Comments and Explanations: 1. The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2. The maximum RF output tune up power, antenna gain also the safe distance used for evaluate RF exposure were declared by manufacturer. Sporton International Inc. (Shenzhen) Page Number : 6 of 8 TEL : 86-755-86379589 / FAX : 86-755-86379595 Report Issued Date : Aug. 03, 2023 FCC ID : 2A8UX-2892 Report Version : Rev. 02 RF Exposure Evaluation Report Report No. : FA2N0202-01 3. Maximum RF average output tune up power among production units <Bluetooth> Mode Maximum Average power(dBm) Bluetooth BR/EDR 10.0 LE 5.5 <ZigBee> Mode Maximum Average power(dBm) 2.4GHz ZigBee 14.7 <LoRa> Mode Maximum Average Power (dBm) LoRa 25.5 Remark: Manufacturer declares this device can operate from 11dBm-25.5dBm. <2.4GHz WLAN > Mode Maximum Average Power (dBm) 2.4G…

Text truncated - open the document above for the full version.

G6A87E Antenna Report Table of Contents G6A87E Antenna Report .......................................................................................................................... 1 General Information ............................................................................................................................................. 2 Frequency range of operation: ................................................................................................................................ 2 Antenna Types: .................................................................................................................................................. 2 Antenna Gain: .................................................................................................................................................... 2 Measurement Test Method: ................................................................................................................................. 2 General Information This is the antenna report for device with model number G6A87E. Frequency range of operation: Wi-Fi Antenna: • Wi-Fi: 2.4 to 2.482 GHz and 5.15 to 5.85 GHz BT BT Antenna: • Bluetooth: 2.4 to 2.48 GHz Zigbee&LoRa Antenna: • Zigbee: 2.4 to 2.48GHz • Lora: 863Mhz ~930Mhz Antenna Types: Wi-Fi: PCB IFA antenna, BT antenna: PCB IFA antenna, Zigbee&LoRa antenna: FPC IFA antenna Antenna Gain: Measurement Test Method: Solder pigtails on feeding point of antenna and measure passive antenna performance by …

Text truncated - open the document above for the full version.
