DockingStation Usermanual2024.06 Contents Instructions...................................................................................................................................................................1 Warning......................................................................................................................................................................1 Disclaimer..................................................................................................................................................................1 ProductIntroduction...................................................................................................................................................2 Highlights...................................................................................................................................................................2 DockingStation............................................................................................................................................................3 List of items ...............................................................................................................................................................3 Debugbox ..................................................................................................................................................................4 Emergencystop ..........................................................................................................................................................4 Hatch cover ................................................................................................................................................................5 DockingstationLED indicator..................................................................................................................................5 Dockingstationenvironmentperception...................................................................................................................5 Monitoringcameraand fill light ................................................................................................................................6 Anemometer...............................................................................................................................................................6 Rain gauge ..................................................................................................................................................................6 Temperatureand humiditysensor .............................................................................................................................7 Water immersionsensor ............................................................................................................................................7 Light sensor ................................................................................................................................................................7 Landingplatform........................................................................................................................................................8 Air conditioningsystem.............................................................................................................................................8 DockingstationRTK .................................................................................................................................................9 Dockingstationprotectionlevel ................................................................................................................................9 AutomaticDroneDockingStationManagementSystem......................................................................................12 Systemlogin .............................................................................................................................................................12 Dockingstationcontrol............................................................................................................................................12 Dockingstationlist ..............................................................................................................................................13 Aircraftlist ...........................................................................................................................................................13 Task list ................................................................................................................................................................14 Aircraftcontrol....................................................................................................................................................14 Route management...................................................................................................................................................15 Add a new route ...................................................................................................................................................15 View route ............................................................................................................................................................16 Delete route ..........................................................................................................................................................16 Task management....................................................................................................................................................17 Create a new task .................................................................................................................................................17 View tasks ..............................................................................................…
Text truncated - open the document above for the full version.
Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2A8WC-K02 GDU-K02 We, Applicant Company Name: GDU-Tech Co., Ltd. Address: Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Phone: +86-18379713590 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc.. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-05 Signature Date Name / Title: Renyi Chen / Manager Company: GDU-Tech Co., Ltd. Address: Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Phone: +86-18379713590 Fax: +86-27-81298796 E-Mail: [email protected]
GDU-Tech Co., Ltd. Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, Chin Professional Installation Attestation Letter Date: September 05, 2024 FCC ID: 2A8WC-K02 Model Number: GDU-K02 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, GDU-Tech Co., Ltd. hereby declare that our product (DOCKING STATION) Model Number: GDU-K02 herby declares that requirements of KDB 353082 D01 Antennas Part 15 Transmitters v01 have been met and shown on the following questions. Further we declare that the information listed below are correct and represent the product in consideration under this filing. 1. Professional installation must be justified in the filing, and grant condition must state “This device must be professionally installed.” Description: Device is DOCKING STATION and must need special trained professional in configurating and installing the product. More details please refer to user manual exhibits. 2. Professional installation does not permit use of any antenna with the transmitter; the permitted types of antenna must be specified. Description: Below listed of Antennas has been compliance FCC Rules Part 15 requirement, more details please refer to test reports. Antenna Type Connector Antenna Gain (dBi) 2400-2500MHz 5700-5850MHz Dipole R-N Type 2.68 3.14 3. The applicant should address the following items when justifying professional installation. i) To qualify for professional installation, the applicant must explain why the hardware Description: Due to this product will not be sold directly to the general public through retail store therefore the hardware is not readily available to average customer. ii) Marketing—Device cannot be sold via retail to the general public or by mail order; it must be sold to authorized dealers or installers only Description: Due to this product will not be sold directly to the general public GDU-Tech Co., Ltd. Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, Chin through retail store. It will be sold to authorized declarers or install only. iii) Filing must show that intended use is not for consumers and general public; rather device is generally for industrial/commercial use. Description: Device is for industrial/commercial use. iv) Explain what is unique, sophisticated, complex, or specialized about the equipment that REQUIRES it to be installed by a professional installer? Description: Please be advised that due to the unique Market and function targeted by this product. this product will need special trained professional in selecting the proper location, adjusting the antenna anele on the outside pole or on the wall to satisfy the relevant rule requirements, We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. 4. Other professional installation requirements (1) Installation must be controlled. Description: The product will be distributed through controlled distribution channel which has special trained professional to install this product. (2) Installed by licensed professionals (e.g., device sold to dealer who hire installers). Description: Device sold to dealer who hires installers and need special trained professional in configuring and installing the product. (3) Installation requires special training (e.g., special programming, access to keypad, field strength measurements made). Description: The product needs special programming. access to keypad. field strength measurements made, so must need special trained professional in configuring and installing the product. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Renyi Chen / Manager Company: GDU-Tech Co., Ltd. Address: Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Phone: +86-18379713590 Fax: +86-27-81298796 E-Mail: [email protected]
Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2A8WC-K02 GDU-K02 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2024-09-05 Signature Date Name / Title: Renyi Chen / Manager Company: GDU-Tech Co., Ltd. Address: Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Phone: +86-18379713590 Fax: +86-27-81298796 E-Mail: [email protected]

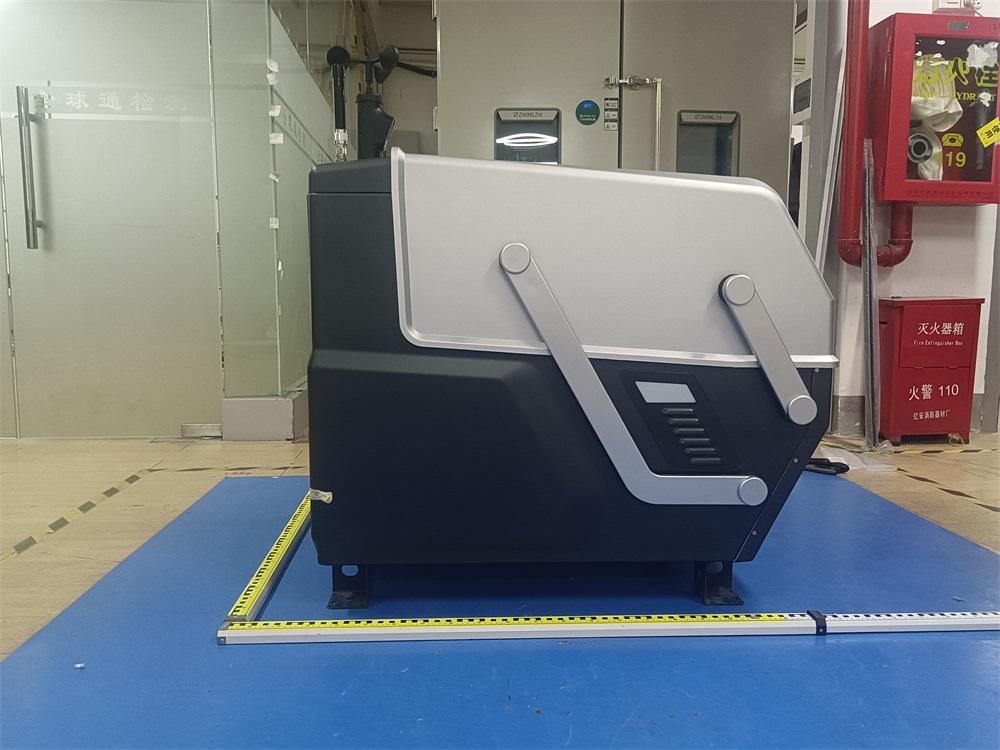

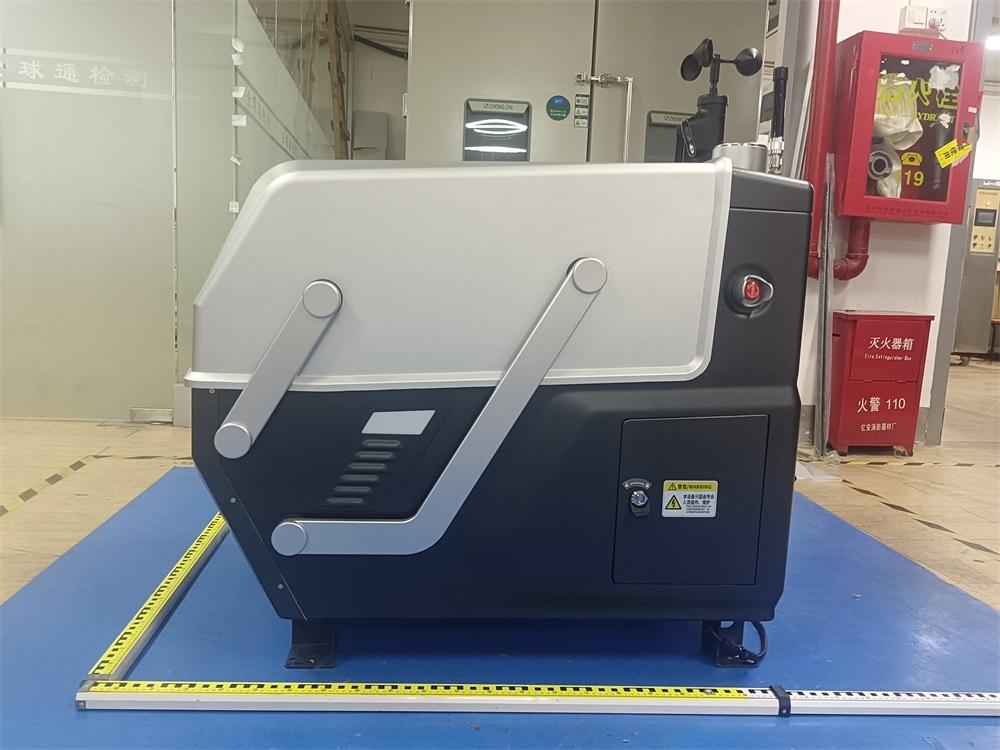

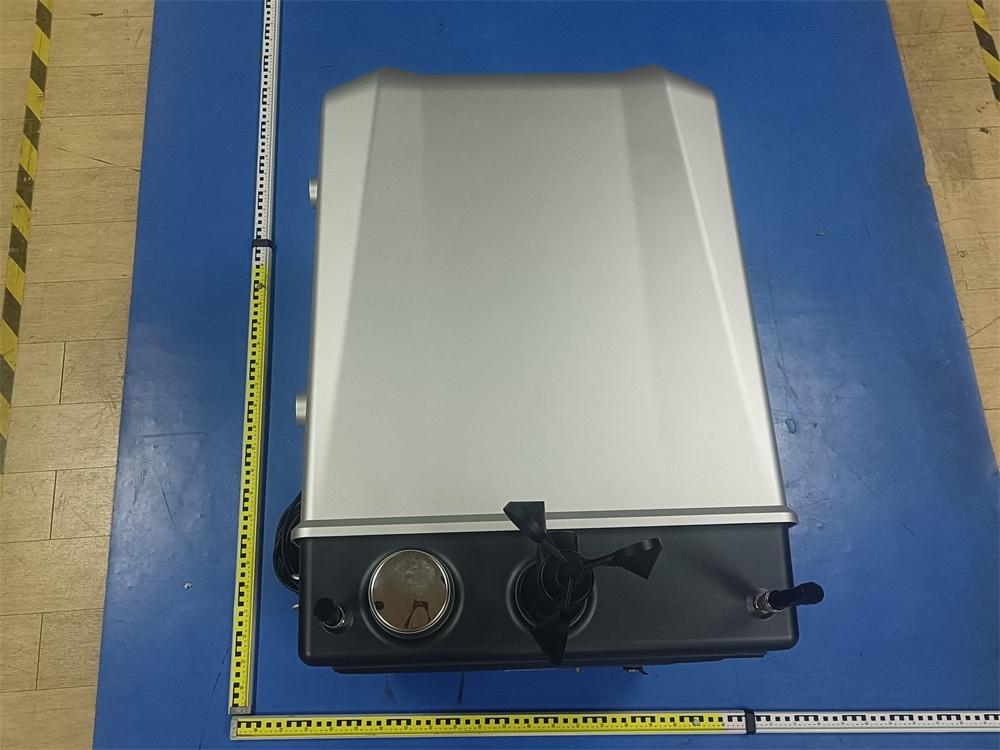

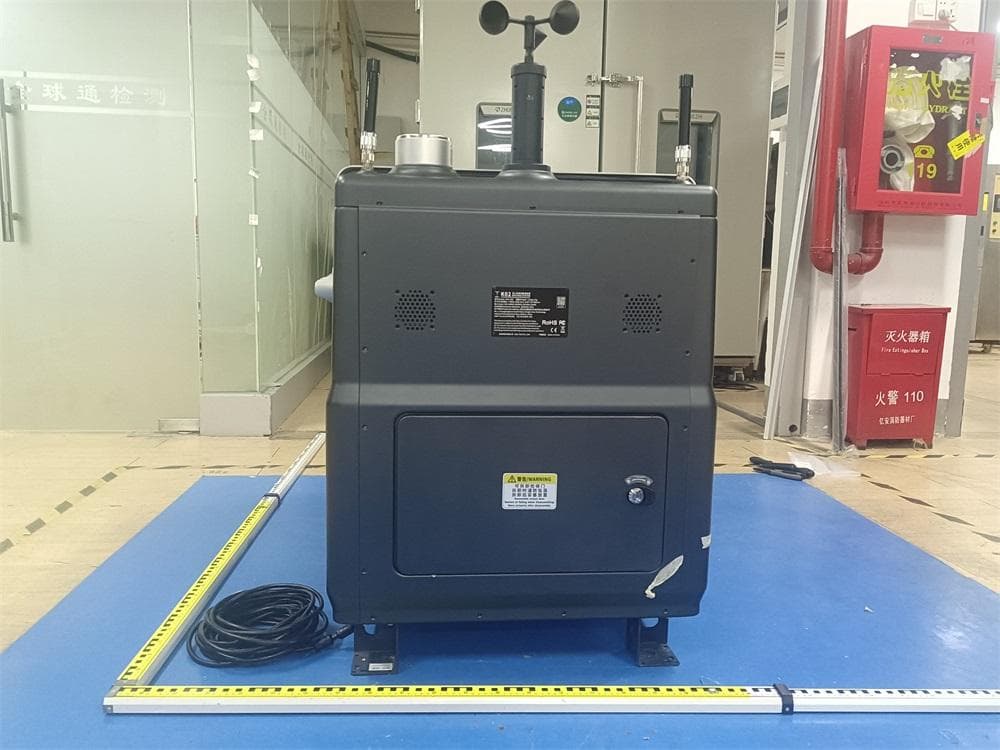

FCC ID: 2A8WC-K02 Fig. 1 Fig. 2 FCC ID: 2A8WC-K02 Fig. 3 Fig. 4 FCC ID: 2A8WC-K02 Fig. 5 Fig. 6
_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L15cm x 10cm) Label Location
FCC ID: 2A8WC-K02 Fig. 1 Fig. 2 SRD TX Antenna 2 SRD TX Antenna 1 SRD RX Antenna 4 SRD RX Antenna 3 FCC ID: 2A8WC-K02 Fig. 3 Fig. 4 WLAN(RX) Antenna 1 WLAN(RX) Antenna 2 FCC ID: 2A8WC-K02 Fig. 5 Fig. 6 FCC ID: 2A8WC-K02 Fig. 7 Fig. 8 FCC ID: 2A8WC-K02 Fig. 9 Fig. 10 FCC ID: 2A8WC-K02 Fig. 11 Fig. 12 FCC ID: 2A8WC-K02 Fig. 13 Fig. 14 FCC ID: 2A8WC-K02 Fig. 15 Fig. 16 FCC ID: 2A8WC-K02 Fig. 17
Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‟an District, Shenzhen, China RF Exposure evaluation Report Reference No. ................. : FCC ID. ......................................... : CTA24071601003 2A8WC-K02 Compiled by ( position+printed name+signature): File administrators Jinghua Xiao Supervised by ( position+printed name+signature): Test Engineer Lushan Kong Approved by ( position+printed name+signature) . : Manager Eric Wang Date of issue .................................... : Jul.30, 2024 Representative Laboratory Name ....................................................... : Shenzhen CTA Testing Technology Co., Ltd. Address ......................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao„an District, Shenzhen, China Applicant’s name ............................ : GDU-Tech Co., Ltd. Address ............................................ : Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Test specification ........................ : Standard ........................................ : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices TRF Originator .............................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ................................... : Dated 2014-12 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................. : DOCKING STATION Trade Mark .................................... : N/A Manufacturer ................................. : GDU-Tech Co., Ltd. Model/Type reference ................... : GDU-K02 Listed Models .............................. : N/A Hardware Version ........................ : N/A Software Version ........................... : N/A Rating ............................................ : Input: AC 100-240V, 50/60Hz, 15A, MAX 1500W Result ............................................ : PASS Report No.: CTA24071601003 Page 2 of 12 T E S T R E P O R T Test Report No. : CTA24071601003 Jun. 28, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : DOCKING STATION Model /Type : GDU-K02 Listed model : N/A Applicant : GDU-Tech Co., Ltd. Address : Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Manufacturer : GDU-Tech Co., Ltd. Address : Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24071601003 Page 3 of 12 Contents 1. SUMMARY ............................................................................................................................................................. 4 1.1 EUT CONFIGURATION ........................................................................................................................................................ 4 1.2 PRODUCT DESCRIPTION ..................................................................................................................................................... 4 2. TEST ENVIRONMENT .............................................................................................................................................. 5 2.1 ADDRESS OF THE TEST LABORATORY ..................................................................................................................................... 5 2.2 TEST FACILITY .................................................................................................................................................................. 5 2.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .................................................................................................................. 5 3. METHOD OF MEASUREMENT ................................................................................................................................. 6 3.1 APPLICABLE STANDARD ...................................................................................................................................................... 6 3.2 REQUIREMENT ................................................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ............................................................................................................................................. 7 3.5 ANTENNA INFORMATION ................................................................................................................................................... 7 4. CONDUCTED POWER RESULTS ............................................................................................................................... 8 5. MANUFACTURING TOLERANCE ...................................................................................…
Text truncated - open the document above for the full version.
Manufacturer Shenzhen ANT Communication Technology Co., LTD Add: 701, Building A, TongFuhan Haida Industrial Park, No. 10, Jiangfu Road, Xinzhuang Community, Ma Tian Street, Guangming New District, Shenzhen Model: SK2458D3B01A Antenna type fibre-glass epoxy antenna Antenna Gain 2.68dBi for 2.4G, 3.14dBi for 5G 1.Test equipment and conditions: 1.1.Network Analyzer 1.2.Communication test equipment 1.3.Test system 1.4.Matching circuit 2.Test Data: 2.1. Standing wave ratio 2.2.Efficiency 2.3.Directivity diagram 3.Antenna drawing:
FCC ID: 2A8WC-K02 1 Case No. : CTA24071601002 Ambient Condition: 22 °C, 52 %RH According Standard: ■Part15C Test Date: 2024.7.19 Test Engineer: Lushan Kong Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant1 5744 18.600 5734.680 5753.280 0.5 PASS 5777 18.240 5767.920 5786.160 0.5 PASS 5810 18.680 5800.600 5819.280 0.5 PASS FCC ID: 2A8WC-K02 2 Test Graphs SRD_Ant1_5744 SRD_Ant1_5777 SRD_Ant1_5810 FCC ID: 2A8WC-K02 3 FCC ID: 2A8WC-K02 4 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant1 5744 18.509 5734.7224 5753.2314 --- --- 5777 18.499 5767.7579 5786.2569 --- --- 5810 18.468 5800.7555 5819.2235 --- --- FCC ID: 2A8WC-K02 5 Test Graphs SRD_Ant1_5744 SRD_Ant1_5777 SRD_Ant1_5810 FCC ID: 2A8WC-K02 6 FCC ID: 2A8WC-K02 7 Appendix B.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict SRD Ant1 5744 5.84 ≤30 PASS 5777 7.44 ≤30 PASS 5810 7.60 ≤30 PASS FCC ID: 2A8WC-K02 8 Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict SRD Ant1 5744 -20.39 ≤8.00 PASS 5777 -18.25 ≤8.00 PASS 5810 -18.40 ≤8.00 PASS Note: 1. The Duty Cycle Factor and RBW Factor is compensated in the graph. FCC ID: 2A8WC-K02 9 Test Graphs SRD_Ant1_5744 SRD_Ant1_5777 SRD_Ant1_5810 FCC ID: 2A8WC-K02 10 FCC ID: 2A8WC-K02 11 Appendix B.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict SRD Ant1 Low 5744.0 -7.426 -48.72 ≤-27.43 PASS High 5810.0 -6.328 -49.49 ≤-26.33 PASS FCC ID: 2A8WC-K02 12 Test Graphs SRD_Ant1_Low_5744.0 SRD_Ant1_High_5810.0 FCC ID: 2A8WC-K02 13 Appendix B.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 5744.0 Reference -12.24 -12.24 --- PASS 30~1000 -12.24 -41.79 ≤-32.24 PASS 1000~26500 -12.24 -55.41 ≤-32.24 PASS 5777.0 Reference -9.24 -9.24 --- PASS 30~1000 -9.24 -41.91 ≤-29.24 PASS 1000~26500 -9.24 -44.75 ≤-29.24 PASS 5810.0 Reference -7.29 -7.29 --- PASS 30~1000 -7.29 -52.95 ≤-27.29 PASS 1000~26500 -7.29 -45.37 ≤-27.29 PASS FCC ID: 2A8WC-K02 14 Test Graphs SRD_Ant1_5744_0~Reference SRD_Ant1_5744_30~1000 SRD_Ant1_5744_1000~26500 FCC ID: 2A8WC-K02 15 SRD_Ant1_5777_0~Reference SRD_Ant1_5777_30~1000 SRD_Ant1_5777_1000~26500 FCC ID: 2A8WC-K02 16 SRD_Ant1_5810_0~Reference SRD_Ant1_5810_30~1000 SRD_Ant1_5810_1000~26500 FCC ID: 2A8WC-K02 17
FCC ID: 2A8WC-K02 1 Case No. : CTA24071601002 Ambient Condition: 23 °C, 51 %RH According Standard: ■Part15C Test Date: 2024.7.19 Test Engineer: Evan ouyang Appendix B.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant2 5744 18.680 5734.640 5753.320 0.5 PASS 5777 18.600 5767.640 5786.240 0.5 PASS 5810 18.440 5800.880 5819.320 0.5 PASS FCC ID: 2A8WC-K02 2 Test Graphs SRD_Ant2_5744 SRD_Ant2_5777 SRD_Ant2_5810 FCC ID: 2A8WC-K02 3 FCC ID: 2A8WC-K02 4 Appendix B.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict SRD Ant2 5744 18.518 5734.7277 5753.2457 --- --- 5777 18.519 5767.7339 5786.2529 --- --- 5810 18.541 5800.6991 5819.2401 --- --- FCC ID: 2A8WC-K02 5 Test Graphs SRD_Ant2_5744 SRD_Ant2_5777 SRD_Ant2_5810 FCC ID: 2A8WC-K02 6 FCC ID: 2A8WC-K02 7 Appendix B.3: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict SRD Ant2 5744 7.47 ≤30 PASS 5777 7.45 ≤30 PASS 5810 6.84 ≤30 PASS FCC ID: 2A8WC-K02 8 Appendix B.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict SRD Ant2 5744 -20.37 ≤8.00 PASS 5777 -18.66 ≤8.00 PASS 5810 -19.48 ≤8.00 PASS Note: 1. The Duty Cycle Factor and RBW Factor is compensated in the graph. FCC ID: 2A8WC-K02 9 Test Graphs SRD_Ant2_5744 SRD_Ant2_5777 SRD_Ant2_5810 FCC ID: 2A8WC-K02 10 FCC ID: 2A8WC-K02 11 Appendix B.5: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict SRD Ant2 Low 5744.0 -7.959 -50.098 ≤-27.96 PASS High 5810.0 -5.553 -49.194 ≤-25.55 PASS FCC ID: 2A8WC-K02 12 Test Graphs SRD_Ant2_Low_5744.0 SRD_Ant2_High_5810.0 FCC ID: 2A8WC-K02 13 Appendix B.6: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant2 5744.0 Reference -7.07 -7.07 --- PASS 30~1000 -7.07 -51.83 ≤-27.07 PASS 1000~26500 -7.07 -45.17 ≤-27.07 PASS 5777.0 Reference -6.69 -6.69 --- PASS 30~1000 -6.69 -41.18 ≤-26.69 PASS 1000~26500 -6.69 -44.49 ≤-26.69 PASS 5810.0 Reference -7.01 -7.01 --- PASS 30~1000 -7.01 -52.09 ≤-27.01 PASS 1000~26500 -7.01 -45.06 ≤-27.01 PASS FCC ID: 2A8WC-K02 14 Test Graphs SRD_Ant2_5744_0~Reference SRD_Ant2_5744_30~1000 SRD_Ant2_5744_1000~26500 FCC ID: 2A8WC-K02 15 SRD_Ant2_5777_0~Reference SRD_Ant2_5777_30~1000 SRD_Ant2_5777_1000~26500 FCC ID: 2A8WC-K02 16 SRD_Ant2_5810_0~Reference SRD_Ant2_5810_30~1000 SRD_Ant2_5810_1000~26500 FCC ID: 2A8WC-K02 17
Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‟an District, Shenzhen, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24071601002 2A8WC-K02 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Test Engineer Lushan Kong Approved by ( position+printed name+signature) . : Manager Eric Wang Date of issue .................................... : Jul.30, 2024 Representative Laboratory Name . : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao„an District, Shenzhen, China Applicant’s name ............................ : GDU-Tech Co., Ltd. Address ............................................ : Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : DOCKING STATION Trade Mark ....................................... : N/A Manufacturer .................................... : GDU-Tech Co., Ltd. Model/Type reference ...................... : GDU-K02 Listed Models .................................. : N/A Modulation Type ............................... : BPSK/QPSK/16QAM/64QAM Operation Frequency ........................ : From 5744-5810MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : Input: AC 100-240V, 50/60Hz, 15A, MAX 1500W Result ............................................... : PASS Report No.: CTA24071601002 Page 2 of 27 T E S T R E P O R T Test Report No. : CTA24071601002 Jul.30, 2024 ______________________________________________________________________________________________ Date of issue Equipment under Test : DOCKING STATION Model /Type : GDU-K02 Listed model : N/A Applicant : GDU-Tech Co., Ltd. Address : Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Manufacturer : GDU-Tech Co., Ltd. Address : Building 2, No.5, Huanglongshan South Road, Donghu New Technology Development Zone, Wuhan 430074, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24071601002 Page 3 of 27 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 5 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 6 2.5. EUT operation mode .............................................................................................................................. 6 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. EUT Exercise Software .......................................................................................................................... 7 2.8. Special Accesso…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.74 GHz - 5.81 GHz | 11.10 mW |

DOCKING STATION
Equipment Class
NII - Unlicensed National Information Infrastructure TX
Remote controller
Equipment Class
PCB - PCS Licensed TransmitterLight Quadcopter UAV
Equipment Class
DTS - Digital Transmission SystemUAV Automatic Docking Station
Equipment Class
DTS - Digital Transmission System
TD-LTE/LTE FDD UE with LTE
Equipment Class
PCB - PCS Licensed Transmitter
