2A8WY-SC-AI19Ognee Magic Box

PaperCompartment Release Bu tt on Enter your email address and create a password to set up your account. Using the AppSTEP1— Accessories List O ff icial Stickers Type-C Charging Cable User Manual Manual Magic Box Ognee Product Overview Type-C Port Charging Indicator Power Bu tt on Latch Latch Speaker Intercom Bu tt on Microphone Screen Paper Compartment Release Bu tt on PaperCompartment Release Bu tt on Reset Bu tt on Charging IndicatorReset Bu tt on To reset Red : Charging / Green : Fully Charged Press and hold the Reset Bu tt on for 10 seconds Product Information Product Name: Ognee Magic BoxModel Number: SC-AI19Resolution: 300dpiFCC ID: 2A8WY-SC-AI19Port: Type-CBa tt ery Capacity: 1500mAh Weight: 0.84 poundDimensions: 3.9*3.5*3.5inchNetwork Support: 2.4 GHz Wi-FiPower 5V 1A STEP2—STEP1— Installing the Paper Roll Slide the release bu tt on backward to unlock the paper compartment cover. Hold the small protrusions on both sides of the paper compartment with two fi ngers and pull fi rmly upwards to open the cover. 1 2 Note: Do not lift upward with excessive force. Downloading the App Method 1 Method 2 Search for the app Ognee on the App Store or Google Play to download and install.Scan the QR code using your phone’s camera, your browser’s built-in QR scanner, or a dedicated QR scanning app. Ognee Tap "Add Device" and make sure Bluetooth is ena-bled on your phone. STEP4— Enter the veri fi cation code to verify your account. STEP2— Verfy Account Return to the home screen, enter your email add-ress and password, then tap Log In. STEP3— Tap "Connect Device" and allow Ognee to access your Wi-Fi name, password, and location. Enter your Wi-Fi name and password, then tap Next. Tip : If you are using the Magic Box in a place without Wi-Fi, such as outdoors, you will need two phones: one to turn on a hotspot and another to connect to that hotspot. If the connection fails, go to "Se tt ings" > "Personal Hotspot" and turn on "Maximize Compatibility" . This helps the device connect to the required 2.4 GHz band instead of the 5 GHz band.) STEP5— STEP3— Place the sticker roll into the compartment with the sticker side facing forward, pull out a small portion of the paper, close the cover, and ensure both sides are securely latched. This completes the installation of the sticker roll. Note: Make sure the white thermal printing side faces up when loading the paper (the blue side is the backing layer and should face down) . If the paper is loaded incorrectly, the printout will be blank. Instructions for Use Power On: Press and hold the Power Bu tt on for 3 seconds to turn on. The screen will light up, indicating it is on. Ognee Create Account White side of thermal paper Manual Magic Box Ognee Please read the manual carefully before using the product. Please make sure the printer is turned o ff before performing any cleaning or maintenance.·If you encounter issues such as blank lines, blurry print, or missing characters, it may becaused by dirt on the Print Head. Please follow these steps:1. If you have just fi nished printing, wait for at least 30 minutes for the Print Ò Head to cool down completely. 2. Ò Use a co tt on swab dipped in alcohol or a print head cleaning pen to gently wipe the surface of the Print Head about 5 times to remove any dust and stains.3.Wait 5-10 minutes for the alcohol to evaporate completely. Thus, the cleaning is done, and you can continue using the printer. Warning: The print head is a HOT component! Touching it when hot can cause burns. Please wait for at least 30 minutes after turning o ff the power Cleaning and MaintenanceThermal print head(Please clean this area.) Helpful Tips Thermal printing uses a chemical reaction to create images and is not permanent.1. Do not expose the printed material to direct sunlight or high temperatures (e.g., inside a car in summer) for extended periods.2. Do not use standard transparent tape directly on the printed surface.3. For permanent storage, it is recommended to take a photo for digital backup or scan the print for archiving. 1. Do not charge or use the printer in places with high temperatures, sub-zero temperatures, high humidity, or excessive dust.2. After printing is complete, do not touch the print head directly to avoid burns from overheating.3. The paper tear-o ff blade is sharp. Please be careful not to touch it to prevent cuts.4. Please insert or unplug the charging cable gently to avoid damaging the port with excessive force.5. When charging is complete, it is recommended to unplug the charging cable. Improper charging may cause damage to the print head.6. Do not touch the print head with hard objects.7. Regularly clean the print head with an alcohol swab to prevent carbon buildup, which can lead to poor print quality. Safety and Precautions Warranty & Return PolicyOgnee provides a 12-month warranty from the delivery date against defects in material or workmanship under normal use. Defective products will be repaired/replaced free of charge if the issue arises from manufacturing fl aws. · Damage from misuse, improper installation, unauthorized repairs/modi fi cations.third-party components, or force majeure events. · Consumables (e.g., ba tt eries) unless defective. · Products without valid proof of purchase, serial numbers, or purchased from unauthorized sellers. · Non-Ognee branded accessories, samples, or"AS IS"items. · Consequential damages (e.g., data loss). · Transferred ownership. · Contact Ognee Support ([email protected]) or authorized centers for trouble shooting. · If unresolved, return the product to the provided address. · Ognee inspects the product; non-covered issues require paid repair. Eligible returns within 30 days of receipt. · Product mus t be unused, in original packaging with all accessories, and include proof of purchase/serial number. · Customer covers return shipping; no restocking fees. · Refunds processed to original payment method after inspection (shipping fees non-refundable).ExclusionsClaim Proce…

Text truncated - open the document above for the full version.

NingboSimshineIntelligentTechnologyCo.,Ltd 2026-04-01 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2A8WY-SC-AI19) [NingboSimshineIntelligentTechnologyCo.,Ltd](“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibited fromreceivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Wealsocertifythat,asofthedateofthefilingoftheapplication,theequipmentdoes notutilizecyber-securityoranti-virussoftwarefromKasperskyLab,Inc,oranyofits successorsandassignees,whichisalsoonthe“coveredlist”. Sincerely, QingqiZhang NingboSimshineIntelligentTechnologyCo.,Ltd 2026-04-01 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2A8WY-SC-AI19) [NingboSimshineIntelligentTechnologyCo.,Ltd](“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCovered Listasanentityproducing“covered”equipment. Sincerely, QingqiZhang

NingboSimshineIntelligentTechnologyCo.,Ltd AgentAuthorizationLetter 2026-04-01 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenMostTechnologyServiceCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuse Actof1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Name:QingqiZhang Position:PM CompanyName: NingboSimshineIntelligentTechnologyCo.,Ltd Address: Room601,NO.2-5QianyangzhixingPlaza,No.996,ChangxingRoad, JiangbeiDistrict,NingboCity,ZhejiangProvince,315021China Tel/Fax15014551158 E-Mail:[email protected]

NingboSimshineIntelligentTechnologyCo.,Ltd LongTermConfidentialityRequestLetter 2026-04-01 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR(FCCID:2A8WY-SC-AI19) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459of CFR47.Wehaverequestedthatthe -e.g.Blockdiagram -e.g.SCH -e.g.OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetinto thepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Name:QingqiZhang Position:PM CompanyName: NingboSimshineIntelligentTechnologyCo.,Ltd Address: Room601,NO.2-5QianyangzhixingPlaza,No.996,ChangxingRoad, JiangbeiDistrict,NingboCity,ZhejiangProvince,315021China Tel/Fax15014551158 E-Mail:[email protected]

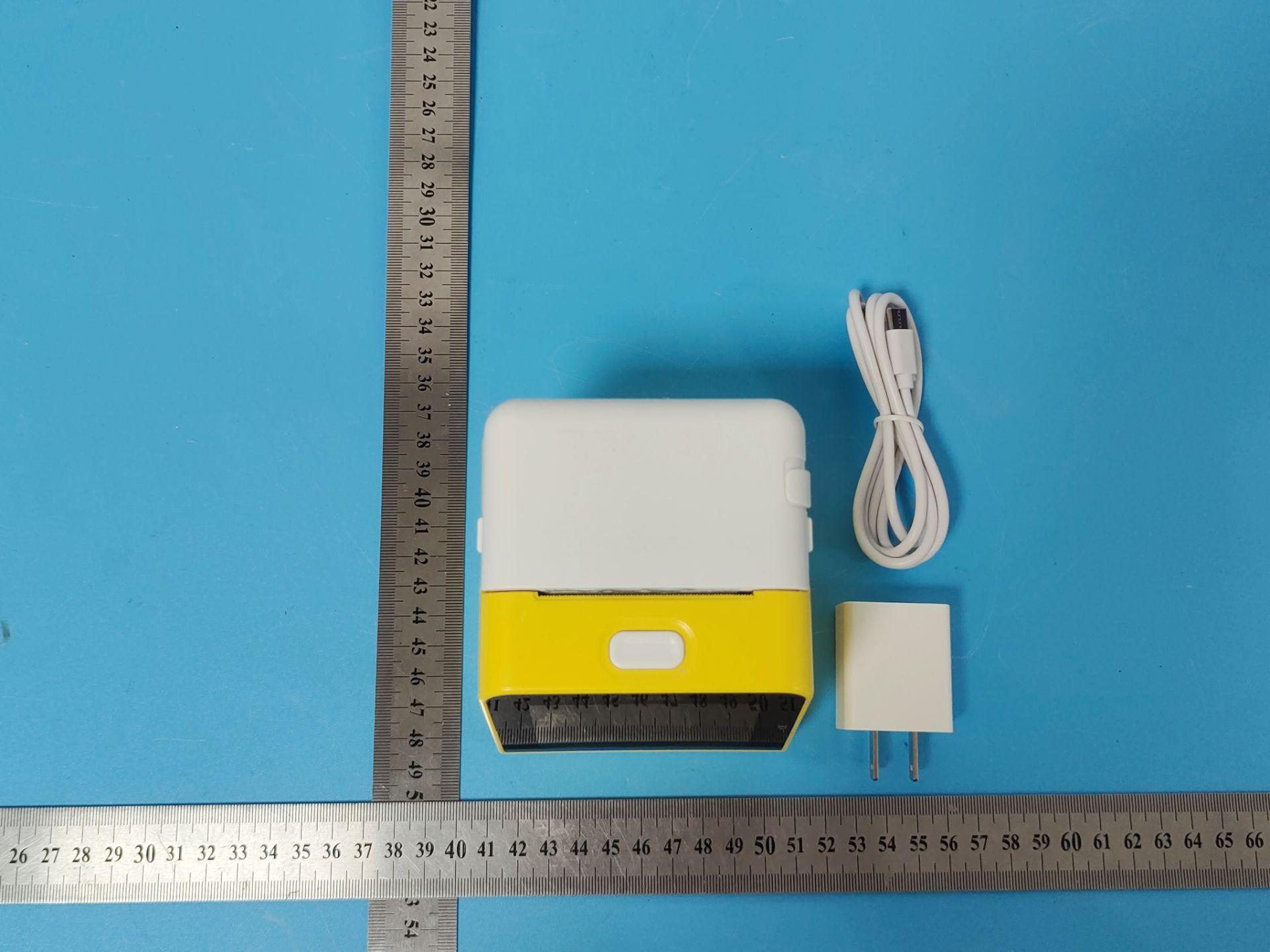

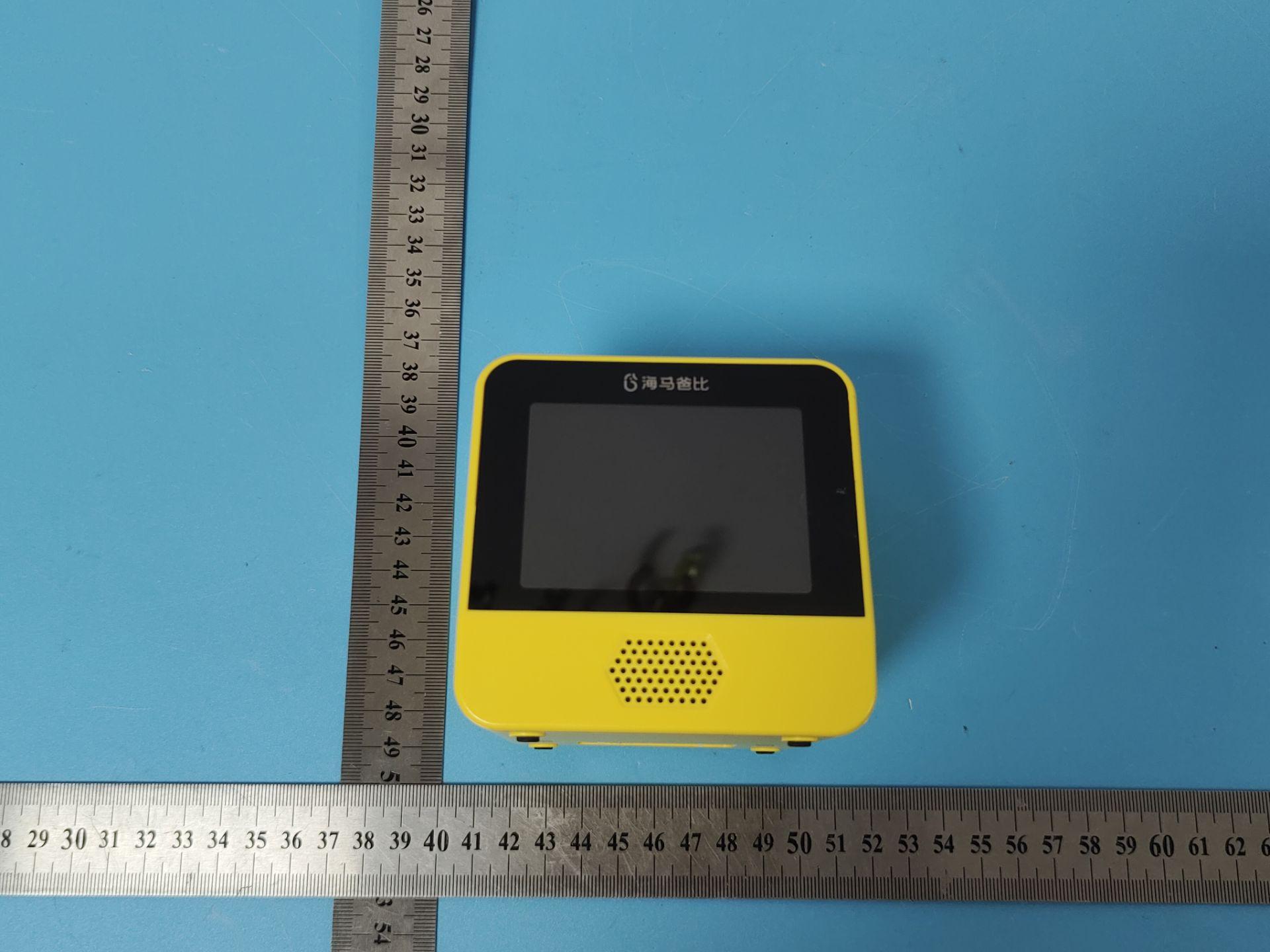

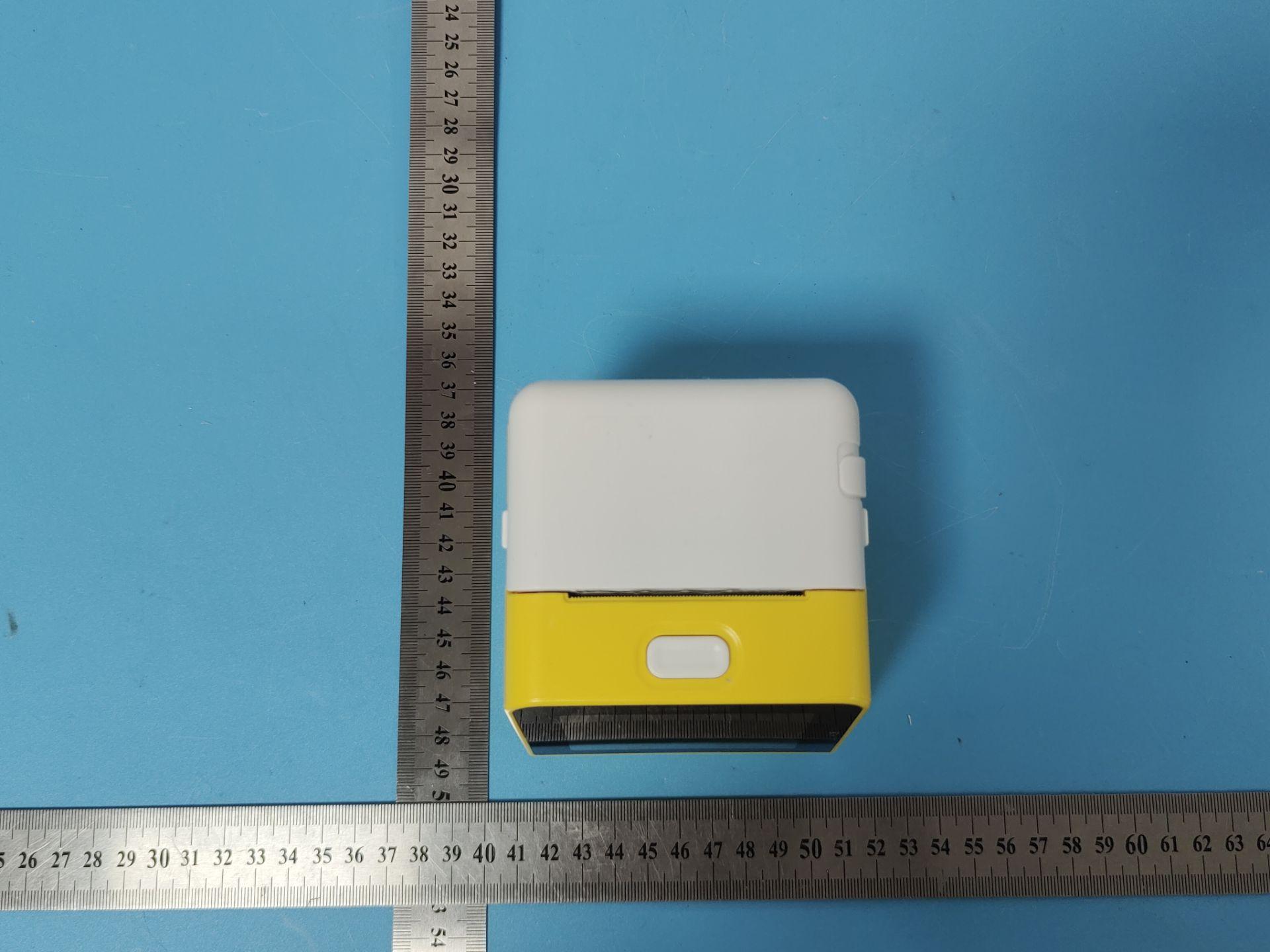

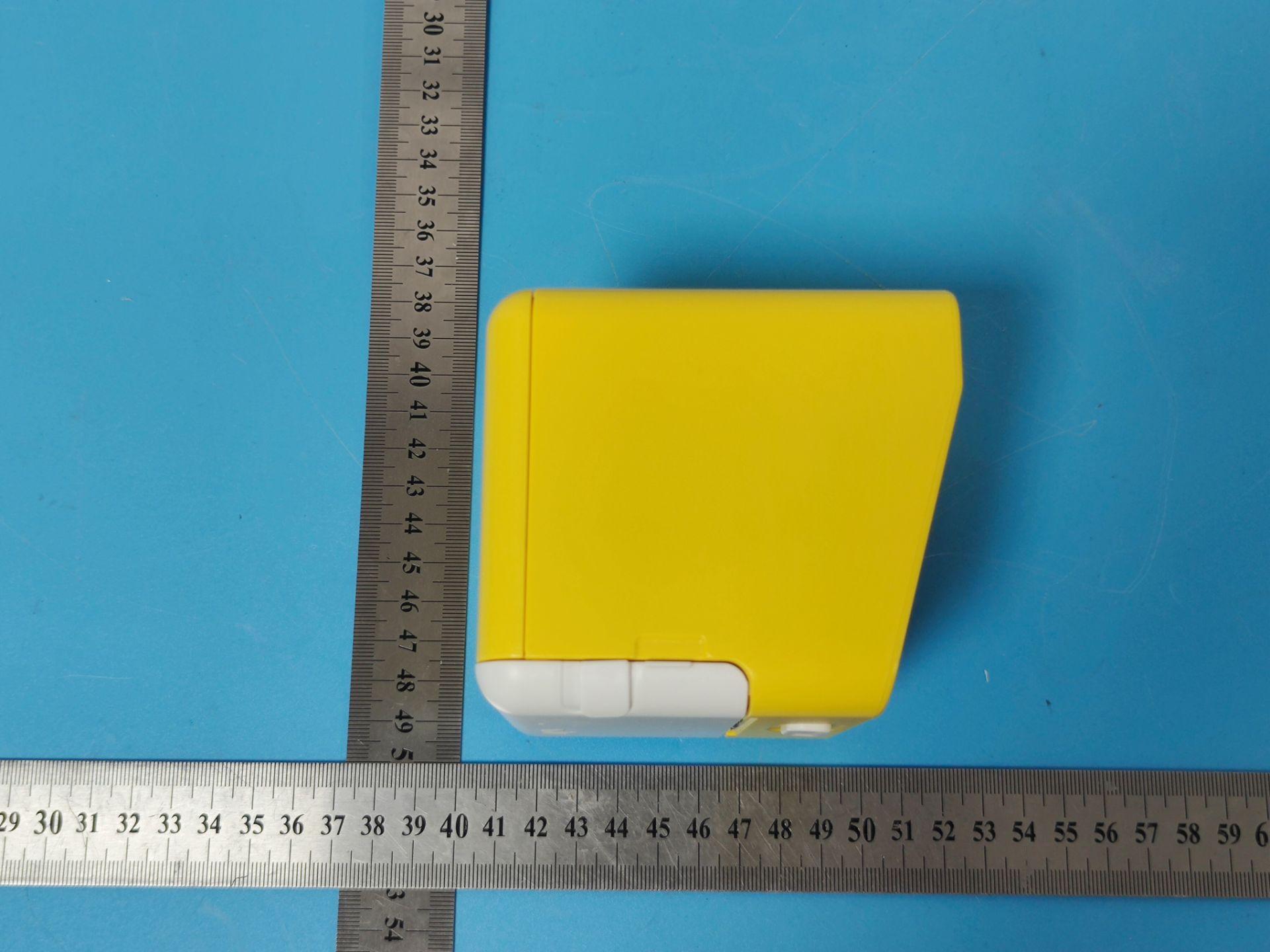

ModelNo.:SC-AI19 FRONTVIEWOFSAMPLE BACKVIEWOFSAMPLE ModelNo.:SC-AI19 LEFTVIEWOFSAMPLE RIGHTVIEWOFSAMPLE ModelNo.:SC-AI19 TOPVIEWOFSAMPLE BOTTOMVIEWOFSAMPLE ModelNo.:SC-AI19 PHOTOOFTHEENTIRESAMPLE ADAPTEROFTHESAMPLE
