Quick Start Guide Email：[email protected] For developers, please visit the following website to download the latest official SDK: http://developer.ximmerse.com @Ximmerse WeChat Official Account RHINO X PRO QUICK START GUIDE Operating System Android 10 Conectivity Wi-Fi 2.4G / 5G Bluetooth 5.1 Audio Dual channel microphone Dual speaker system Type-C port Processor Snapdragon XR2 Tracing System 6-DoF Headset Tracking 6-DoF Controller Tracking Battery Lithium Polymer Battery 3.8V/3680mAh Memory 8G RAM 128G/256G ROM Supports memory card expansion (up to 128GB) Camera Sensors 13MP RGB × 1 1MP VIO × 2 1MP IR × 1 Ports USB Type-C Micro USB Display 2.89” dual LCD 4K Resolution (2160*4320) Refresh Rate ≥ 60Hz Field of View Horizontal FOV 70° Vertical VOF 57° Proximity Sensor Wearable proximity sensor AR Headset Headset with optional top strap AR Lens The lens can be attached magnetically onto the AR headset before use. Charger and USB cable Controller and Battery The position and rotation of the controller can both be tracked. Use the controller to interact with the operating system and other applications Cleaning Cloth Use the cleaning cloth to clean the surface of the display and lens. Do not use alcohol or otherliquids that contain strong acid and alkali to clean the product. User Manual and Warranty Card Tracking Beacons Use the beacons to calibrate and synchronize the position of the ground with virtual. MR Beacon Use the MR beacon to synchronize the position on mobile device. 01 Specifications 02 What’s in the box Attach the lens magnetically to the headsetRemove the battery cover as shown before installing the batteries 03 Assembling the headset 04 Preparing controller Loosen the back part of the headset by turning the adjustment dial. Next, place the headset on your head and adjust the top and bottom of the headset until you see animage that is clear and without any obvious artifacts. If the headset dose not boot, please charge the headset to ensure there is sufficient battery in the headset. Once the headset has sufficient battery, the LED indicator on the back of the headset will light up in green. Long press the [ ] 05 Powering up the headset 06 Putting on the headset for 3 seconds to boot the headset NOTE Press the OK button on the front-right side of the headset to confirm any selection Click the Wi-Fi icon in the action center on the home screen Select the Wi-Fi network that you wish to connect to Key in password and click confirm 07 Action confirmation 08 Connecting to Wi-Fi 9:41 2022.02.29 SettingappAappBappC appEappD appIappH appFappG WiFiSetting Wi-Fi Bluetooth Opened System Version Accessory Manager System Info Language WiFi JD-5G JD-2.4G CloudXR Unity Xim-2 Xim-1 Password CancelConfirm Only when it’s the first time needs to go through this operation, after that, paired controller will connect the headset automatically. Click “Has any problems”button if you have any problem while paring controller. There are two methods of unpairing controller Click the controller icon in the action center on home screen Select add new deviceClick the Add-on management,unpair controller according to the instructions Select right controllerPress [Home]+[Trigger] to connect and pair your controller 09 Pairing controller 10 Unpairing controller 9:41 2022.02.29 SettingappAappBappC appEappD appIappH appFappG Go to pairing mode Setting Wi-Fi Bluetooth Opened System Version Accessory Manager System Info Language Accessory Manager Choose the accessory to connect Right controller Left controller LR DisconnectConnected Forget all Setting Wi-Fi Bluetooth Opened System Version Accessory Manager System Info Language Accessory Manager LR DisconnectConnected Forget all Has any problems? Press Home and Trigger at the same time Forget Press [Power]+[Trigger]+[A (X)]+[B (Y)] button at the same time for 4 seconds，paired status will be reset along with vibration , unpair successful. R IR-CON-R Device type: Right controller Mac address: 01:08:0B:08:18:88 SN: 00P22B080888 Connected Method 1 Method 2 9:412022.02.29 SettingappAappBappC appEappD appIappH appFappG 11 Miracast 12 Headset LED indicator description Click the Miracast icon in the action center on home screen Miracast will search for devices that are on the same Wi-fi When search is complete,click on the device you want to connect When the device shows “connected”, you can close and quit the interface Miracast Miracast device and headset should on the same WLAN Miracast JD-5G Mi-F35 Lobby TV office Miracast JD-5G Mi-F35 Lobby TVConnected office closeclose Green breathing： idle mdoe Red flashing： standby mode Green LED indicator description when in use: LED indicator status LED indicator description when in charging： Yellow Fully charged: Consistent green When charging: Breathing green 100%60%25% Red 13 Buttons and ports 14 Buttons and ports OK button Used to confirm selection Home/Power button Short press to return to the home screen, Long press for 3s to power on/off headset Micro USB Port USB2.0 port is used to connect external device, it does not support charging Volume down button Volume up button TFnenirt card slot USB Type-C port Supports charging and data transfer Please use the provided charger and USB cable in the box to charge the devices. When the headset is powered off, charging the device to 80% will take only 1 hour. Charging the device to 100% will take approximately 150 minutes. The device contains charging protective hardware. NOTE 15 Buttons and ports 16 Buttons and ports L Joystick L Trigger Confirm selection (When in Home screen) Y Button X Button L Grip button L Touch button R Trigger Confirm selection (When in Home screen) B Button A Button R Grip button R Touch button L Power/Menu Long press3S: ON Long press5S: OFF Press: Recenter (When in Home screen) L LED indicator L Battery cover Pairing：Blinking Blue Paired：Green Controller uses 2 AAA batteries R Joystick R Power/Menu Long press3S: ON Long press5S: OFF Press: Recenter (When in Hom…

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Rev1.1 Guangdong Virtual Reality Technology Co., Ltd FCC Software Configuration Control Declaration Date: December 08, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: Rhino X Pro Model Number: AG1A0001 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Adda Liao Date: December 08, 2022 Title: Manager Signature of applicant

Guangdong Virtual Reality Technology Co., Ltd Agent Authorization Company: Guangdong Virtual Reality Technology Co., Ltd Address: 201, 2F, Building 3, Hongtai Zhihui Valley, No. 15, Sicheng Road, Tianhe District, Guangzhou, China Product Name: Rhino X Pro Model Number(s): AG1A0001 Product Description: Rhino X Pro We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.11.17 Name: Adda Liao Title: Manager Company: Guangdong Virtual Reality Technology Co., Ltd

Guangdong Virtual Reality Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: November 17, 2022 Subject; Request for Confidentiality FCC ID: 2A8Y6-AG1A0001 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual FCC Software Security Requirements for UNII devices For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Adda Liao Title: Manager

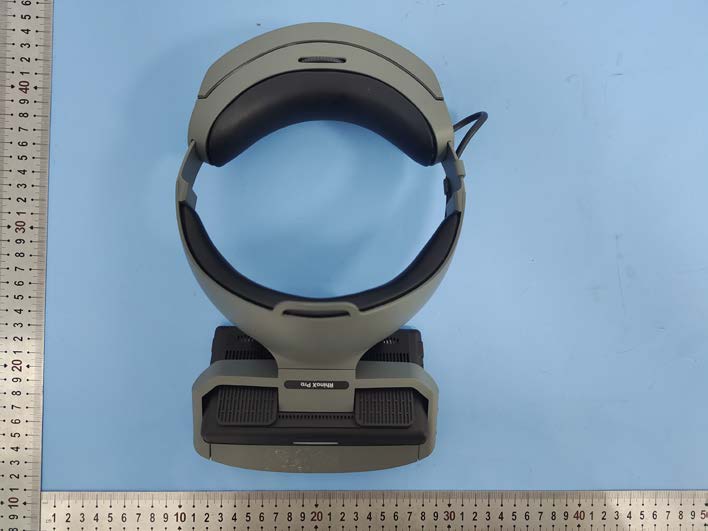

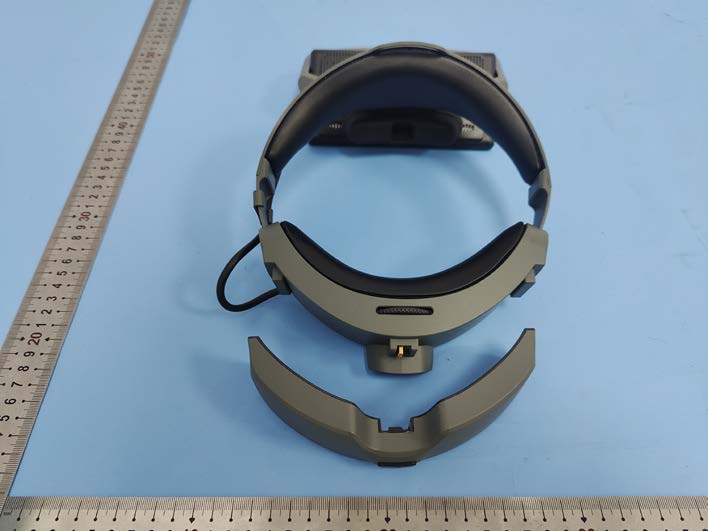

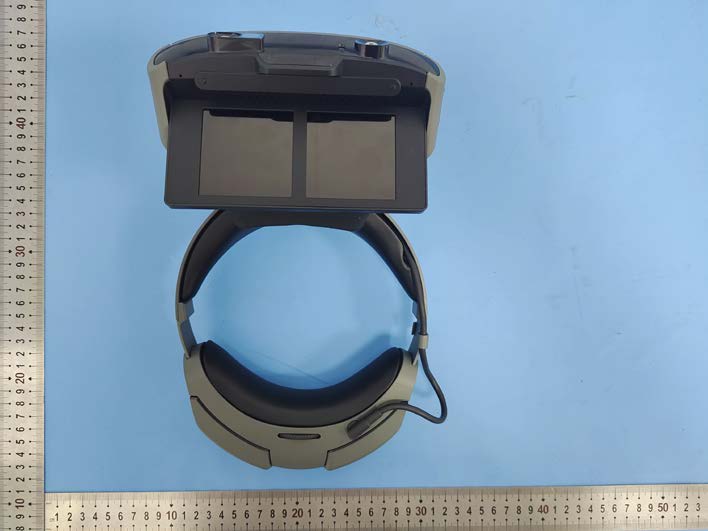

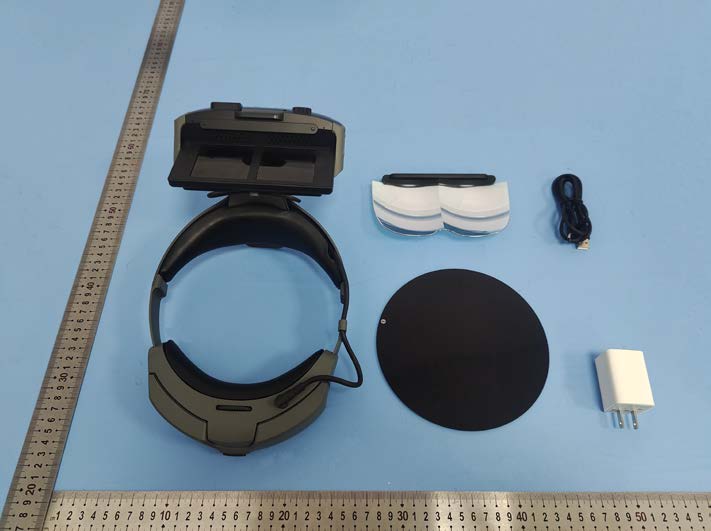

EUT PHOTO(External Photos) FCC ID: 2A8Y6-AG1A0001

FCC Test Report Page 1 of 1 Label and Information FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location ***** END OF REPORT *****

EUT PHOTO(Internal Photos) FCC ID: 2A8Y6-AG1A0001 2.4G WiFi+5G Wifi ANT.1 BT ANT 2.4G WiFi+5G Wifi ANT.0 ※※※※※ END OF REPORT ※※※※※

FCC ID: 2A8Y6-AG1A0001 RF Exposure Evaluation Report 1. Standalone SAR Test Exclusion Considerations According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition is satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For standalone SAR test exclusion, the result as below: Transmission Mode Max Conducted Power (dBm) Tune-up (dBm) Max Power (mW) Frequency (MHz) Distance (mm) Result Limit Bluetooth -4.73 -5 (±1) 0.398 2440 10 0.0622 3.0 2.4GHz WLAN_ANT0 8.64 8(±1) 7.943 2437 10 1.2400 3.0 2.4GHz WLAN_ANT1 8.73 8(±1) 7.943 2462 10 1.2463 3.0 5.2GHz WLAN_ANT0 5.38 5(±1) 3.981 5240 10 0.9113 3.0 5.2GHz WLAN_ANT1 5.25 5(±1) 3.981 5180 10 0.9061 3.0 5.8GHz WLAN_ANT0 4.47 4(±1) 3.162 5745 10 0.7579 3.0 5.8GHz WLAN_ANT1 4.31 4(±1) 3.162 5755 10 0.7586 3.0 So a SAR test is not required. 2. Simultaneous Transmission SAR Test Exclusion Considerations According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093, Simultaneous transmission SAR test exclusion is determined for each operating configuration and exposure condition according to the reported standalone SAR of each applicable simultaneously transmitting antenna. When the sum of 1-g or 10-g SAR of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit, SAR test exclusion applies to that simultaneous transmission configuration. When an antenna qualifies for the standalone SAR test exclusion of section 1 and also transmits simultaneously with other antennas, the standalone SAR value must be estimated according to the following to determine the simultaneous transmission SAR test exclusion criteria: 1) [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]·[√f(GHz)/x] W/kg, for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR and x = 18.75 for 10-g SAR. 2) 0.4 W/kg for 1-g SAR and 1.0 W/kg for 10-g SAR, when the test separation distance is > 50 mm. For simultaneous transmission analysis, Bluetooth and WLAN SAR is estimated as below: Transmission Mode Max. Power (mW) Frequency (MHz) Distance (mm) X SAR(1g) W/kg Bluetooth 0.398 2440 10 7.5 0.0083 2.4GHz WLAN_ANT0 7.943 2437 10 7.5 0.1653 2.4GHz WLAN_ANT1 7.943 2462 10 7.5 0.1662 5.2GHz WLAN_ANT0 3.981 5240 10 7.5 0.1215 5.2GHz WLAN_ANT1 3.981 5180 10 7.5 0.1208 5.8GHz WLAN_ANT0 3.162 5745 10 7.5 0.1011 5.8GHz WLAN_ANT1 3.162 5755 10 7.5 0.1011 The maximum SAR summation is calculated based on the simultaneous transmission configurations. No. Configurations Bluetooth SAR W/kg ANT 0 SAR W/kg ANT 1 SAR W/kg Sum SAR W/kg 1 Bluetooth+2.4GHz WLAN_ANT0+ 2.4GHz WLAN_ANT1 0.0083 0.1653 0.1662 0.3398 2 Bluetooth+5.2GHz WLAN_ANT0+ 5.2GHz WLAN_ANT1 0.0083 0.1215 0.1208 0.2506 3 Bluetooth+5.8GHz WLAN_ANT0+ 5.8GHz WLAN_ANT1 0.0083 0.1011 0.1011 0.2105 The sum of SAR is less than the limit of 0.4W/kg, So a simultaneous transmission SAR test is not required.
