2A8ZO-X11Bluetooth speaker

X11 X11 -X11 -X11-X11-X11-X11-X11 -X11-X11-X11-X11 1. Device to connect 1.1 Turn on the dcvice to default wireless mode. 1.2 Turn on wireless device, search model X11 and connect,play music after connection successfully. 2. Suitable for all kinds of mobile phones equipped with wireless.technology, wireless adapter, wireless players. 3. Voice prompt 3.1. there is a voice prompt when turn on/off. 3.2. Low-power voice prompt 3 times, shutdown after 15S. 3.3. there is voice prompt when the button to the maximum volume, no voice prompt at the minimum volume. 4. Mode switching 4.1. enter into wireless by default when starting-up, switching sequence is as follows: wireless mode -TF card mode -USB mode - AUX mode. 4.2. mode: post-insertion priority. 5. LED Lights Wireless search status: blue light does not flash, wireless pairing status: color light changes. Playback status : Color light blinks 1 time every 1.5 sec. Power on status: Blue light does not flash, red light is always on when charging, red light is off when fully charged. 6.volume the default volume of speaker is 70% when starting-up. 7. Charging to use The machine built overcharge protection circuit,canconnected to a computer orcharger for a long time, about four hours to fully charge. Every battery playback time will be different due to the use of different size of the volume. 8. No working status, automatic shutdown after 15 minutes. 1. Auto power off: the battery protection is automatically activated when the battery is low, please use it after charging for 4 hours. 2.Can not play music: the music file storage.path cannot. be recognized, save file and store in the root directory of the removable device. 3.Connect the computer no sound: computer interface. connection error, please select the correct audio output port. 4. No function or function keys wrong; try again after shutcown.
偽絁鵶䱹
雵䗴⸆腊倗挿絯乄
佅䭯6渹5'气"69乄佞垷䒭
ⰻ縨椚猌㶩歏寑
佅䭯.18"7갉⛙呔䒭鍒瀦
⢪欽넞⥂溫涸䪋㡮㐼 〄ⴀ㡮갉刿荈搬ㄤ絈艓
 霃㢊⚮鵶⸆腊
紩꣈宐կ 偽絁叻ⲥ


 ⠛鳕騄猌


碛 鳕ⴀ⸆桧


8 乄佞傞ꢂ


_㼭傞 乄佞갉ꆀ㣐㼭罜㹁 곸桧佪䎾


)[_,); 䪋㡮㐼

NN


Ē


8 鳕Ⰶ歏彂



7









" 剒㣐歏崨嶊署


" 歏寑碫㘗


〳⯎歏Ꝋ猌㶩歏寑
7
N"I 갉곸⥌〿鳕Ⰶ䱹〡



叻ⲥďNN羭劼䳃㶰 用⡤㡮 䪮助錞呔 暵挿 Wireless standard: 5.2 Transmission distance: 10 meters Output power: 20W Play time: 2~6H Frequency effect: 80Hz ~ 10KHz Speaker: 45mm 2,4ȍ 10W Input Power: 5V 1A Maximum current consum ption: 1A Battery type: 18650 Li-ion 3.7V 2400mAh Audio signalinput interface: standard ĭ3.5mm headphoneMack stereo 1.Wireless connection; 2.Memory function; 3.Support U disk/ TF card/ AUX play mode; 4.Built-in lithium battery; 5.Support MP3/WAVmusic format decoding; 6.Use high-fidelity speakers, make the sound more natural and delicate; 7.1+1 serial function; 8.Water resistance IPX6. 瀊䭽갉ꆀ⸈Ɤ䭽♴♧刼կ 兽⨢乄佞կ 瀊䭽ⴗ䰃⸆腊Ɤ䭽⚮翫倗䒓կ 抧⯕ⴗ䰃Ⱒկ Ɤ䭽䒓Ⱒ劼կ 瀊䭽갉ꆀⲸꟋ䭽♳♧刼կ 64#䱹〡䳃Ⰶ6渹傞랾雩⚹64#乄佞垷䒭կ "69䳃㶰կ 5'气䳃㶰5'气傞랾雩⚹5'气乄佞垷䒭կ 5ZQF$⯎歏絁䱹〡䳃Ⰶ5ZQF$⯎歏絁傞랾雩⚹霃㢊⯎歏կ 䭽ꝶ霹僈 偽絁ꂁ㼆


⢪欽偽絁ꂁ㼆⵸ 껷⯓䩧䒓갉곸歏彂 㸐䊺絑僽랾雩涸偽絁垷䒭կ


䩧䒓偽絁霃㢊䵂程9 鵶䱹ꂁ㼆 鵶䱹䧭⸆た 䒓㨤乄佞갉⛙⡤낉կ 鷓欽✵ぐ猫䩛劼ꂁ⟝偽絁䪮助 偽絁鷓ꂁ㐼 偽絁乄佞㐼կ 露갉䲿爙


䒓Ⱒ劼剣露갉䲿爙갉կ


⡛歏露갉䲿爙妃 4たⰢ劼կ


䭽ꝶⵌ剒㣐갉ꆀ剣露갉䲿爙 剒㼭갉ꆀ偽露갉䲿爙կ 垷䒭ⴗ䰃


䒓劼랾雩鵳Ⰶ偽絁垷䒭 垷䒭ⴗ䰃곡䎸










偽絁垷䒭5'气垷䒭64#垷䒭"69垷䒭


垷䒭た䳃⠏⯓կ -&%抧


偽絁䵂程朐䙖
覰抧♶꡸ 偽絁ꂁ㼆朐䙖䕙抧」⻊կ


乄佞朐䙖䕙抧䢨꡸紨猲妃


䒓劼朐䙖覰抧♶꡸䲿爙 ⯎歏朐䙖紤抧䌢❭忘歏紤抧抣կ
荈⸓Ⱒ劼歏寑歏ꆀ♶駈傞⠔荈⸓䒓゗歏寑⥂䫡 霼⯎歏㼭傞た⢪欽կ
偽岁乄佞⛙갉⛙俒⟝㶸⪰騟䖈♶腊鄄乄佞㐼霋ⵆ 갉⛙俒⟝霼㶸⪰㖈〳



獴⸓霃㢊涸呏湡䔶♴կ
鵶䱹歏腰偽㡮歏腰歲꬗鵶䱹ꝡ霴 霼鷥䭊姻烁涸갉곸鳕ⴀ畮〡կ
䭽ꝶ偽⿿䎾䧴⸆腊ꝡ✉Ⱒ劼たꅾ霚կ ⢪欽霹僈 佦ꥻ䱗ꤑ 갉ꆀ


䒓劼랾雩갉盲갉ꆀկ ⯎歏⢪欽


劥劼ⰻ縨鵂⯎⥂䫡歏騟 〳Ɤ傞ꢂ鵶䱹歏腰䧴⯎歏㐼 紨㔋㼭傞示〳㸤


Ⰼ⯎歏կ嫦⚡歏寑涸乄佞傞ꢂ⠔㔔⢪欽♶ず㣐㼭涸갉ꆀ罜剣䨾♶ずկ 偽䊨⡲朐䙖 ⴔꛦた荈⸓Ⱒ劼կ 1.Short press: volume up; long press: next song. 2.Pause/play. 3.Short press:switching function; long press:series connection/dis- connect. 4.Light switch/off. 5.Long press: Switch on/off. 6.Short press: volume down; long press: previous song. 7.USB interface, when inserting a USB drive, defaults to USBplayback mode. 8.AUX Mack. 9.When the TF card is inserted into the TF card Mack, it defaults tothe TF card playback mode. 10.Type-C charging cable interface.When inserting a Type-Ccharging cable, it defaults to device charging. TYPE-C USB AUX TF 12 3 4 5 6 7 8 9 10 TYPE-C USB AUX TF 12 3 4 5 6 7 8 9 10 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: ЬReorient or relocate the receiving antenna. ЬIncrease the separation between the equipment and receiver. ЬConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Shenzhen Xianlong Technology Co., Ltd. 4F Building 5, Lantian Science and Technology Park Sha'er Shajing Baoan District, Shenzhen, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-20 To whom it may concern: We, Shenzhen Xianlong Technology Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2A8ZO-X11) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Pan zhiming Manager Shenzhen Xianlong Technology Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Xianlong Technology Co.,Ltd. 4F Building 5, Lantian Science and Technology Park Sha'er, Shajing Baoan District, Shenzhen, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/05/27 U.S. Agent Designation Shenzhen Xianlong Technology Co.,Ltd.. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2A8ZO-X11): Name and company of U.S. agent: THREE STONES MEDIA LLC Physical U.S. address of agent: 1200 Broadway St. APT 329, Los Angeles, CA90015 FRN of U.S. agent: 0033401761 Email address of U.S. agent: [email protected] THREE STONES MEDIA LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Xianlong Technology Co.,Ltd... Shenzhen Xianlong Technology Co.,Ltd.. with the FRN [0032997975] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Pan zhiming Manager Shenzhen Xianlong Technology Co.,Ltd... Signature Sijie Zhang CEO THREE STONES MEDIA LLC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-7-20> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2A8ZO-X11 X11 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Pan zhiming/Manager Company: Shenzhen Xianlong Technology Co., Ltd. Address: 4F Building 5, Lantian Science and Technology Park Sha'er Shajing Baoan District, Shenzhen, Guangdong, China Phone: 18038015226 Fax: N/A E-Mail: [email protected]

Shenzhen Xianlong Technology Co., Ltd. 4F Building 5, Lantian Science and Technology Park Sha'er Shajing Baoan District, Shenzhen, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-20 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2A8ZO-X11 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Pan zhiming/Manager Company: Shenzhen Xianlong Technology Co., Ltd. Address: 4F Building 5, Lantian Science and Technology Park Sha'er Shajing Baoan District, Shenzhen, Guangdong, China Phone: 18038015226 Fax: N/A E-Mail: [email protected]

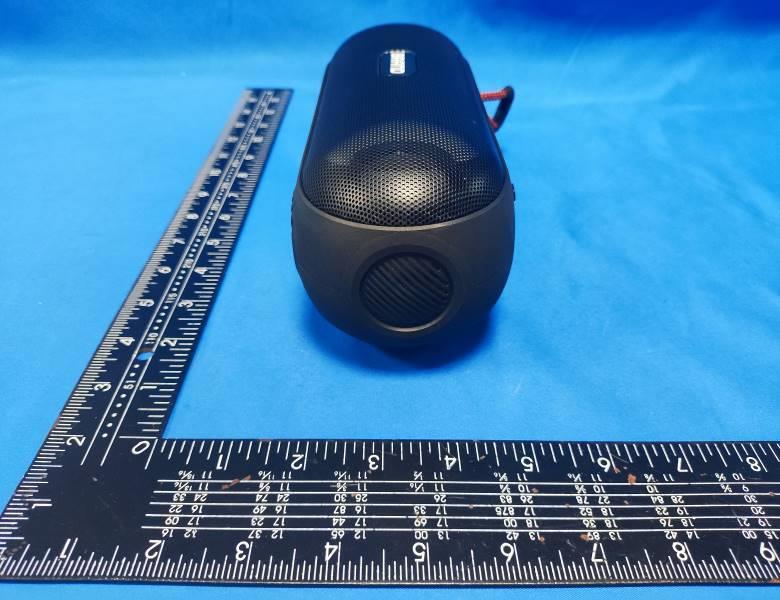

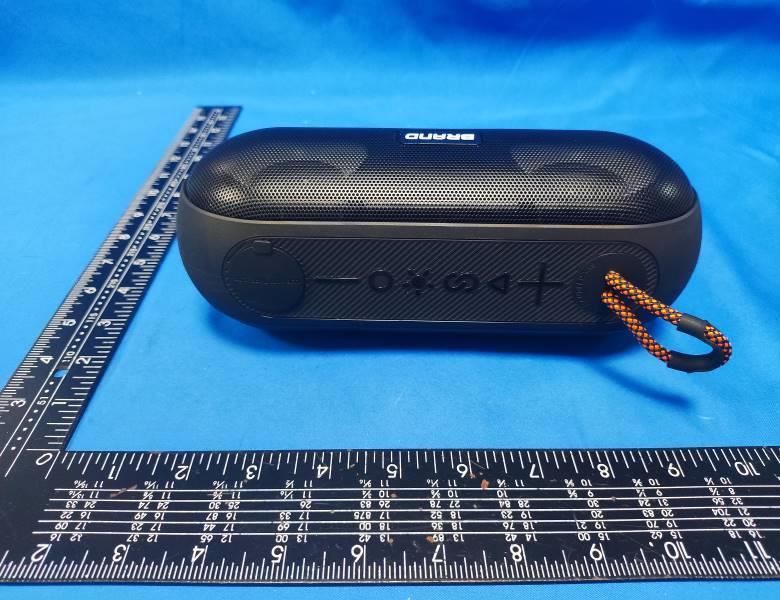

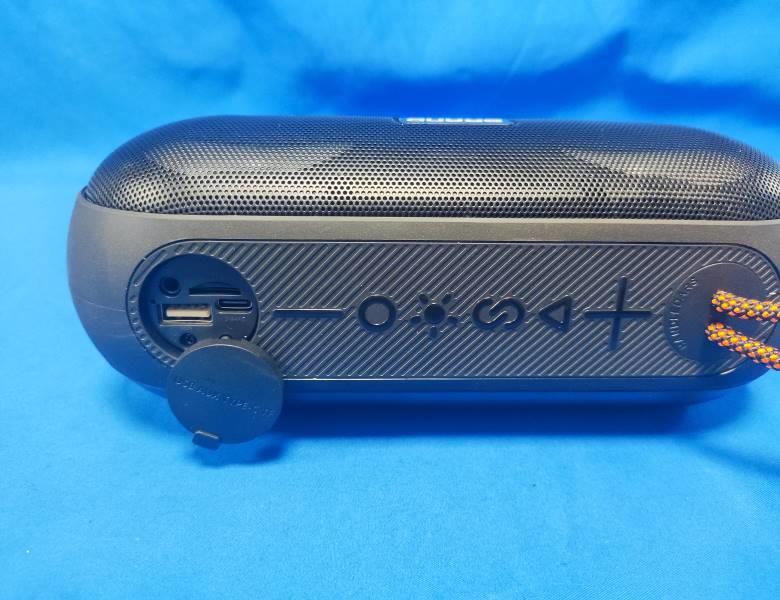

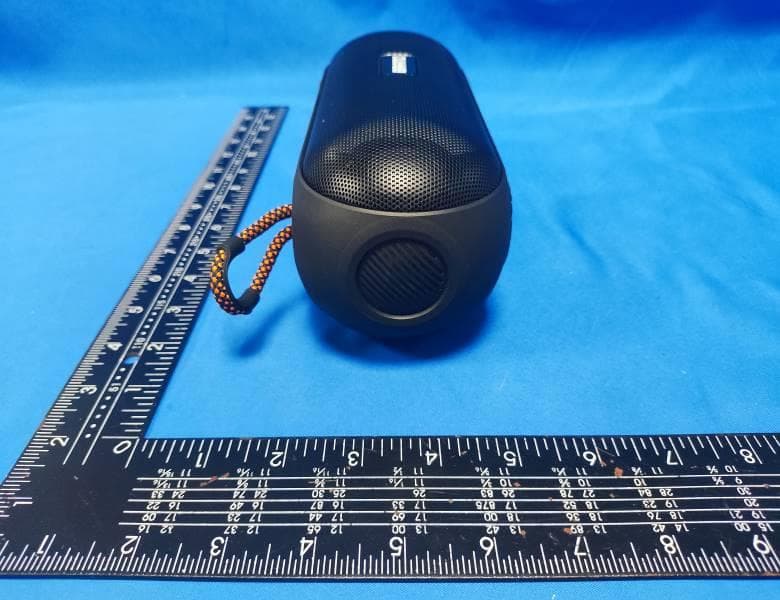

FCC ID: 2A8ZO-X11 External Photos of the EUT FCC ID: 2A8ZO-X11 FCC ID: 2A8ZO-X11

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2A8ZO-X11

FCC ID: 2A8ZO-X11 Internal Photos of the EUT FCC ID: 2A8ZO-X11 FCC ID: 2A8ZO-X11 FCC ID: 2A8ZO-X11 ANT

RF Exposure evaluation FCC ID: 2A8ZO-X11 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 1.0 1.2589 0.3941<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type PCB antenna Model GO15 Frequency range 2400-2500MHz Manufacturer Shenzhen Liangjiufang Network Technology Co., Ltd ANT Peak Gain 0.58 dBi 2. Antenna Photo: Length: 8.51mm Width: 0.79mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA24070800501 2A8ZO-X11 Compiled by ( position+printed name+signature) . : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) . : Project Engineer Xudong Zhang Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jul. 12, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Xianlong Technology Co.,Ltd. Address ............................................ : 4F Building 5, Lantian Science and Technology Park Sha'er, Shajing Baoan District, Shenzhen, Guangdong, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth speaker Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Xianlong Technology Co.,Ltd. Model/Type reference ...................... : X11 Listed Models .................................. : N/A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From Battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA24070800501 Page 2 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Bluetooth speaker Model /Type : X11 Listed Models : N/A Applicant : Shenzhen Xianlong Technology Co.,Ltd. Address : 4F Building 5, Lantian Science and Technology Park Sha'er, Shajing Baoan District, Shenzhen, Guangdong, China Manufacturer : Shenzhen Xianlong Technology Co.,Ltd. Address : 4F Building 5, Lantian Science and Technology Park Sha'er, Shajing Baoan District, Shenzhen, Guangdong, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24070800501 Page 3 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 5 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 11 4.1 AC Power Conducted Emission 11 4.2 Radiated Emission 14 4.3 Maximum Peak Output Power 20 4.4 20dB Bandwidth 21 4.5 Frequency Separation 25 4.6 Number of hopping frequency 27 4.7 Time of Occupancy (Dwell Time) 29 4.8 Out-of-band Emissions 33 4.9 Pseudorandom Frequency Hopping Sequence 42 4.10 Antenna Requirement 43 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 44 6 P H O T O S O F T H E E U T ........................................................... 45 Report No.: CTA24070800501 Page 4 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA24070800501 Page 5 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http:…

Text truncated - open the document above for the full version.

Report No.: CTA24070800501 Page 36 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK (CH39) π/4DQPSK (CH78) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24070800501 Page 37 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH00) 8DPSK (CH39) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA24070800501 Page 38 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK (CH78) reference 30MHz-1G 3G-25G Report No.: CTA24070800501 Page 39 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: GFSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24070800501 Page 40 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24070800501 Page 41 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 8DPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA24070800501 Page 42 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.9 Pseudorandom Frequency Hopping Sequence TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1) requirement: Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29-1=511 bits ● Longest sequence of zeros:8(non-inverted signal) An example of pseudorandom frequency hopping sequence as follows: Each frequency used equally one the average by each transmitter. The system receiver have input bandwidths that match the hopping channel bandwidths of their corresponding transmitter and shift frequencies in synchronization with the transmitted signals. Report No.: CTA24070800501 Page 43 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.10 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (c), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. Refer to statement below for compliance The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. Antenna Connected Construction The maximum gain of antenna was 0.58 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA24070800501 Page 44 of 51 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Repor…

Text truncated - open the document above for the full version.

FCC ID: 2A8ZO-X11 Test Setup Photos of the EUT
