(Shenzhen Futianda Electronics Co.,Ltd) (2025.09.01) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2A93Y-AC200) [Shenzhen Futianda Electronics Co.,Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Zhou shunqing (Shenzhen Futianda Electronics Co.,Ltd) (2025.09.01) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2A93Y-AC200) [Shenzhen Futianda Electronics Co.,Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Zhou shunqing

Shenzhen Futianda Electronics Co.,Ltd 2025.09.01 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Bluetooth Earphone Trademark: N/A MODEL : AC200, AC210, AC220, AC500, AC600, AC700, AC800, AC900, T26, T27, T28, T30, W41, W80, W90 FCC ID : 2A93Y-AC200 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Zhou shunqing/ Manager Contact information / address: Floor 3-4, Building 7A, Rongchang Industrial Park, No. 440, Guanhu street, Longhua District, Shenzhen, China 5180006

Shenzhen Futianda Electronics Co.,Ltd 2025.09.01 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Zhou shunqing/ Manager Contact information / address: Floor 3-4, Building 7A, Rongchang Industrial Park, No. 440, Guanhu street, Longhua District, Shenzhen, China 5180006

Shenzhen Futianda Electronics Co.,Ltd Model Difference 2025-09-01 EUT NAME: Bluetooth Earphone FCC ID: 2A93Y-AC200 MODEL : AC200, AC210, AC220, AC500, AC600, AC700, AC800, AC900, T26, T27, T28, T30, W41, W80, W90 All the model are the same circuit and RF module, except model names and appearance of the color. Regards Sincerely Client’s signature: Client’s name / title : Zhou shunqing/ Manager Contact information / address: Floor 3-4, Building 7A, Rongchang Industrial Park, No. 440, Guanhu street, Longhua District, Shenzhen, China 5180006

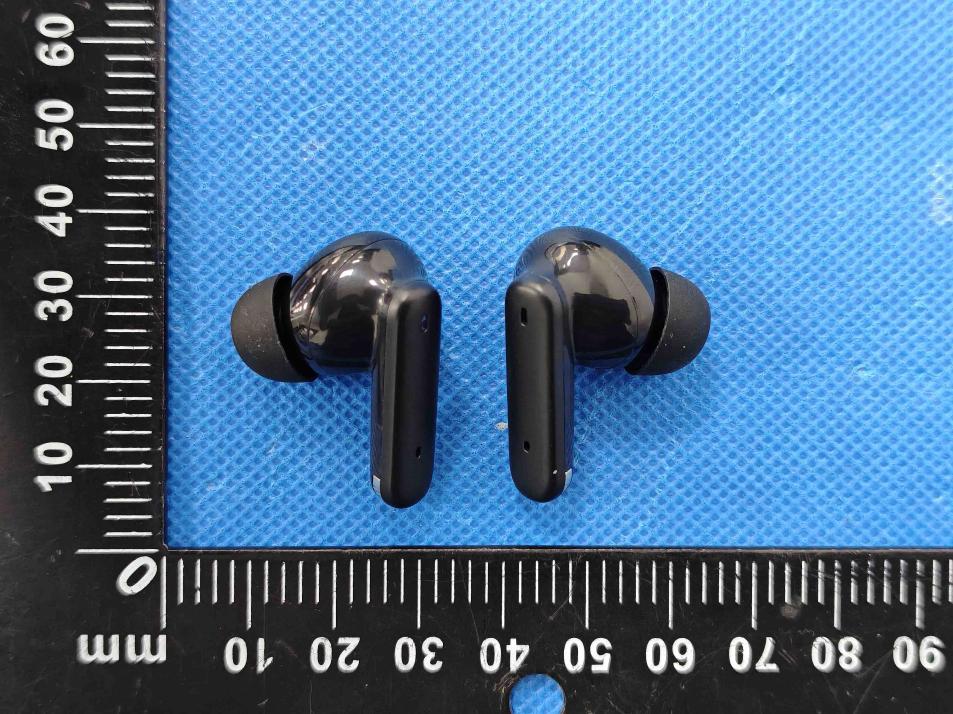

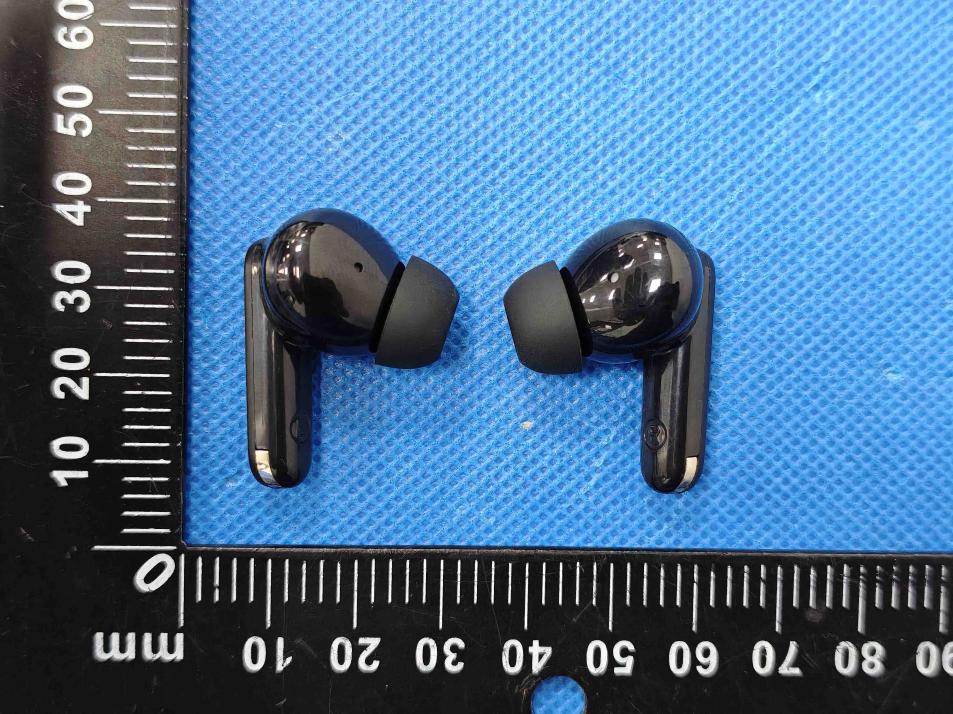

Report No.:BCTC2508422604E External Photos Report No.:BCTC2508422604E Report No.:BCTC2508422604E Report No.:BCTC2508422604E

Location: Due to the size of the headset is too small, so the label is placed in the user manual. The FCC ID is on page 1 of the user manual. FCC ID: 2A93Y-AC200

Report No.:BCTC2508422604E Internal Photos Antenna Report No.:BCTC2508422604E Report No.:BCTC2508422604E

RF EXPOSURE EVALUATION METHOD FCC ID: 2A93Y-AC200 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 0.09 21 Pass NVNT 1-DH1 2441 0.28 21 Pass NVNT 1-DH1 2480 -0.09 21 Pass NVNT 2-DH1 2402 0.61 21 Pass NVNT 2-DH1 2441 0.81 21 Pass NVNT 2-DH1 2480 0.37 21 Pass NVNT 3-DH1 2402 1.46 21 Pass NVNT 3-DH1 2441 1.61 21 Pass NVNT 3-DH1 2480 1.13 21 Pass max possible output power (PK,conducted)：1±1dBm 2dBm=1.58mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.58/5*√2.403=0.49≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.58/5*√2.441=0.494≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.58/5*√2.48=0.498≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT Center Frequency HorizontalVertical 2400MHz2450MHz2500MHz2400MHz2450MHz2500MHz - 1.26 -0.76-0.58 -5.25 -2.46- 1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Manufacturer Antenna Photo & Length (mm) Shenzhen Futianda Electronics Co.,Ltd Horizontal: 2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.26174 -30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582 -22.0315 -6.59127 Vertical: 2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dB) Max Min Avg 2400-5.2537 -22.1424-12.4294 2450 -2.4652-24.5837 -10.4702 2500 -1.86120 -29.5214-9.20432 ANTTestLabs：AttestationofGlobalComplianceCo.,Ltd.

No.：BCTC/RF-ICT-005 Page 1 of 85 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2508422604E Applicant: Shenzhen Futianda Electronics Co.,Ltd Product Name: Bluetooth Earphone Test Model: AC200 Tested Date: 2025-08-06 to 2025-08-21 Issued Date: 2025-08-21 Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 2 of 85 Edition：C.0 FCC ID: 2A93Y-AC200 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Bluetooth Earphone Trademark: N/A Model/Type Reference: AC200 AC210, AC220, AC500, AC600, AC700, AC800, AC900, T26, T27, T28, T30, W41, W80, W90 Prepared For: Shenzhen Futianda Electronics Co.,Ltd Address: Floor 3-4, Building 7A, Rongchang Industrial Park, No. 440, Guanhu street, Longhua District, Shenzhen, China 5180006 Manufacturer: Shenzhen Futianda Electronics Co.,Ltd Address: Floor 3-4, Building 7A, Rongchang Industrial Park, No. 440, Guanhu street,Longhua District, Shenzhen, China 5180006 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2025-08-06 Sample tested Date: 2025-08-06 to 2025-08-21 Issue Date: 2025-08-21 Report No.: BCTC2508422604E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 3 of 85 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Spurious RF Conducted Emissions ..................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure ..........................................................................................…

Text truncated - open the document above for the full version.

Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 64 of 85 Edition：C.0 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 65 of 85 Edition：C.0 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 66 of 85 Edition：C.0 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 67 of 85 Edition：C.0 CFS NVNT 3-DH1 2480MHz Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 68 of 85 Edition：C.0 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100 kHz. VBW = 300 kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 69 of 85 Edition：C.0 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 70 of 85 Edition：C.0 Hopping No. NVNT 3-DH1 2441MHz Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 71 of 85 Edition：C.0 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Frequency hopping systems may avoid or suppress transmissions on a particular hopping frequency provided that a minimum of 15 channels are used. 14.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set spectrum analyzer span = 0. Centred on a hopping channel; 3. Set RBW = 1MHz and VBW = 3MHz.Sweep = as necessary to capture the entire dwell time per hopping channel. Set the EUT for DH5, DH3 and DH1 packet transmitting. 4. Use the marker-delta function to determine the dwell time. If this value varies with different modes of operation (e.g.. data rate. modulation format. etc.). repeat this test for each variation. The limit is specified in one of the subparagraphs of this Section. Submit this plot(s). 14.4 Test Result Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH1 2441 0.402 127.434 317 31600 400 Pass NVNT 1-DH3 2441 1.656 269.928 163 31600 400 Pass NVNT 1-DH5 2441 2.907 322.677 111 31600 400 Pass NVNT 2-DH1 2441 0.413 131.334 318 31600 400 Pass NVNT 2-DH3 2441 1.665 253.08 152 31600 400 Pass NVNT 2-DH5 2441 2.913 329.169 113 31600 400 Pass NVNT 3-DH1 2441 0.414 132.066 319 31600 400 Pass NVNT 3-DH3 2441 1.661 279.048 168 31600 400 Pass NVNT 3-DH5 2441 2.916 358.668 123 31600 400 Pass Note: Total Dwell Time (ms) = Pulse Time (ms)*Burst Count Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 72 of 85 Edition：C.0 Test Graphs Dwell NVNT 1-DH1 2441MHz One Burst Dwell NVNT 1-DH1 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 73 of 85 Edition：C.0 Dwell NVNT 1-DH3 2441MHz One Burst Dwell NVNT 1-DH3 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 74 of 85 Edition：C.0 Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 75 of 85 Edition：C.0 Dwell NVNT 2-DH1 2441MHz One Burst Dwell NVNT 2-DH1 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 76 of 85 Edition：C.0 Dwell NVNT 2-DH3 2441MHz One Burst Dwell NVNT 2-DH3 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 77 of 85 Edition：C.0 Dwell NVNT 2-DH5 2441MHz One Burst Dwell NVNT 2-DH5 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 78 of 85 Edition：C.0 Dwell NVNT 3-DH1 2441MHz One Burst Dwell NVNT 3-DH1 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 79 of 85 Edition：C.0 Dwell NVNT 3-DH3 2441MHz One Burst Dwell NVNT 3-DH3 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 80 of 85 Edition：C.0 Dwell NVNT 3-DH5 2441MHz One Burst Dwell NVNT 3-DH5 2441MHz Accumulated Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 81 of 85 Edition：C.0 15. Antenna Requirement 15.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 15.2 Test Result The EUT antenna is PCB antenna, fulfill the requirement of this section. Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 82 of 85 Edition：C.0 16. EUT Photographs EUT Photo 1 EUT Photo 2 NOTE: Appendix-Photographs Of EUT Constructional Details. Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 83 of 85 Edition：C.0 17. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 84 of 85 Edition：C.0 Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 85 of 85 Edition：C.0 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and tes…

Text truncated - open the document above for the full version.

Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 83 of 85 Edition：C.0 17. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.:BCTC2508422604E No.：BCTC/RF-ICT-005 Page 84 of 85 Edition：C.0
