2A94B-13EA2A94BidME (Broadcase drone flight information)

Subsystems for the UAS intergration into the airspace E-identification idMEPro Data sheet & User manual 1 | E-identification idMEPro Datasheet Introduction idME Prois designed to meet requirements of remote drone identification and localization inASTM/ASD-STAN standard. Using the BLE broadcast and WiFi Nan, Beacon frames technology the device provides surveillance and drone operator identification capability based on anymodern mobile devices such as smartphone or tablet. It is equipped with a high quality multi-GNSS receiver and a barometric altitude sensor. For more information please contact:[email protected]. Main features • Capability to work with MAVLINK devices • WiFi Nan and Beacon frames • BLE broadcast technology compliant with ASTM and ASD-STAN • Interfaces: UART, USB • Supports Bluetooth 4.0 and 5.2 • Free Android application available on Google PlayOpenDroneID OSM • Integrated GNSS source and pressure sensor • Simple plug&play integration Date: 2023-03-31 Firmware version: 1.12.0 Document ref: 30e-v1.0.30 This document is subject to change without notice. For technical questions, contact:[email protected] 2 | E-identification idMEPro Datasheet Contents 1 Technical parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.1 Basic technical information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1.2 Electrical specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1.2.1 Basic electrical parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1.2.2 PIN definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.2.3 LED indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.3 Mechanical specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3.1 Mechanical parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3.2 Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.3.3 Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2 Principle of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1 States of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.1.1 BOOTLOADER state. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.1.2 RUN state. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.1.3 CONFIGURATION state. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2 Transitions between states. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2.1 BOOTLOADER to RUN transition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2.2 RUN to CONFIGURATION transition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.2.3 CONFIGURATION to RUN transition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.2.4 CONFIGURATION to BOOTLOADER transition. . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3 UART configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 4 Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 4.1 Write settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.2 Read settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.3 Settings description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.4 Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.5 Command endings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.6 Uppercase and lowercase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.7 Available settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.8 Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5 Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 5.1 Commands in BOOTLOADER and CONFIGURATION state. . . . . . . . . . . . . . . . . . . . . . . . 13 5.1.1 AT+LOCK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5.1.2 AT+BOOT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5.2 Commands in CONFIGURATION state. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5.2.1 AT+CONFIG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5.2.2 AT+SETTINGS?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5.2.3 AT+HELP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5.2.4 AT+SETTINGS_DEFAULT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5.2.5 AT+SERIAL_NUMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5.2.6 AT+FIRMWARE_VERSION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5.2.7 AT+REBOOT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5.2.8 AT+REBOOT_BOOTLOADER. . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Reasons_of_ Derivative_Model.md3/1/2023 1 / 2 Reasons for Derivative Model All derivatives of the product are based on customer needs, each variant differs depending on the place or need for application. Each of the derived models includes a BLE module, Wi-Fi and GNSS module depends on version Reasons_of_ Derivative_Model.md3/1/2023 2 / 2

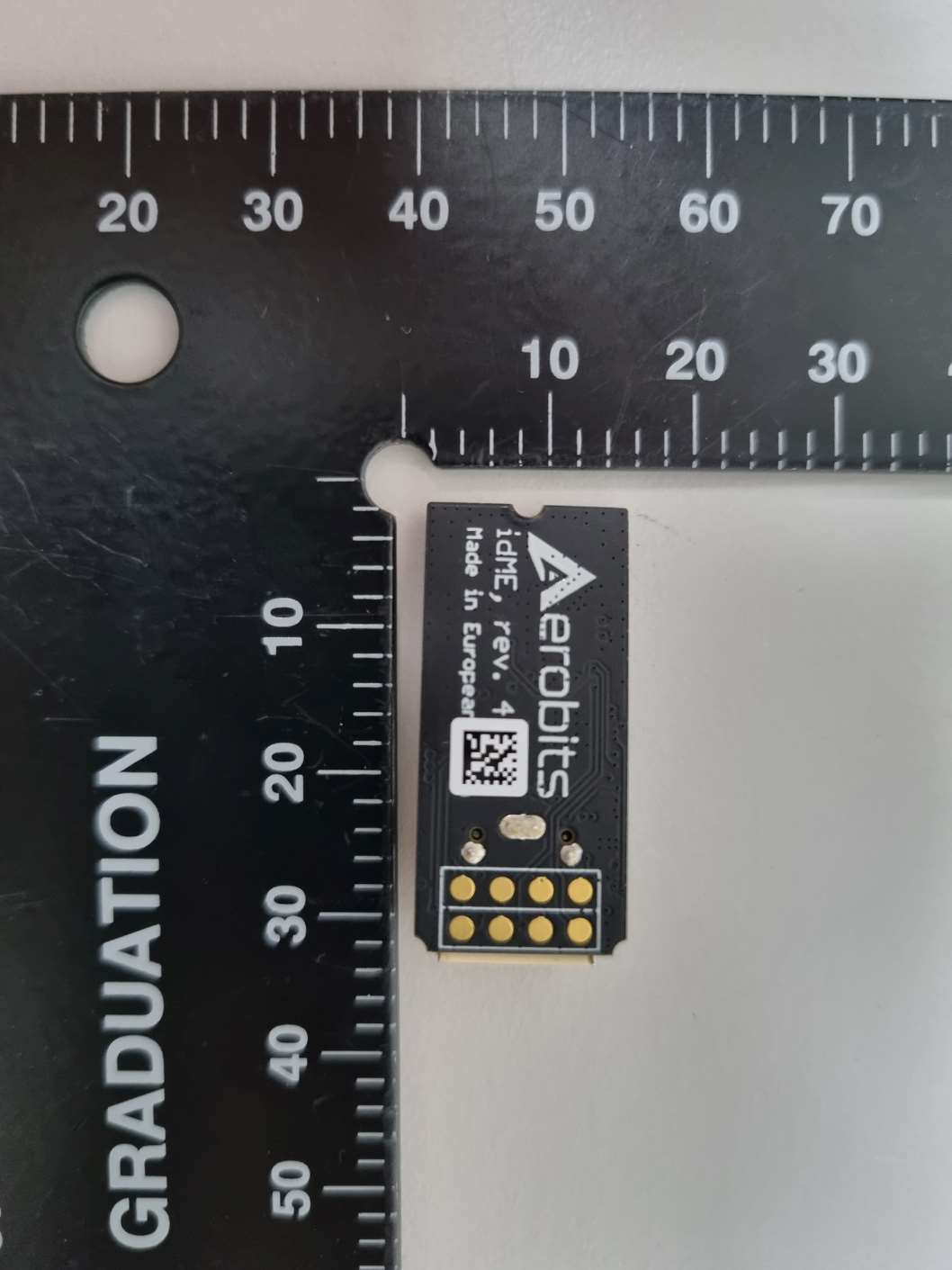

Label_sample_and_location.md2/28/2023 1 / 1 5. Label sample and location

Internal of sample Main Board(Front) Main Board (Rear)

페이지(page) : ( 2 )/( 총(Total) 7 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E231005-0A Contents 1. Applicant & Manufacturer & Test Laboratory Information .................................................................................. 4 1.1 Applicant information ........................................................................................................................................ 4 1.2 Manufacturer Information ................................................................................................................................. 4 1.3 Test Laboratory Information ............................................................................................................................ 4 2. Equipment under Test(EUT) Information ................................................................................................................. 5 2.1 General Information ........................................................................................................................................... 5 2.2 Additional Information ...................................................................................................................................... 5 2.3 Mode of operation during the test .................................................................................................................. 5 2.4 Modifications of EUT ......................................................................................................................................... 5 3. Maximum Permissible Exposure ............................................................................................................................... 6 3.1 RF Exposure calculation .................................................................................................................................. 6 3.2 Result ..................................................................................................................................................................... 7 페이지(page) : ( 3 )/( 총(Total) 7 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E231005-0A Revision History Issued Report No. Issued Date Revisions Effect Section ICRT-TR-E231005-0A 2023.05.04 Initial Issue All 페이지(page) : ( 4 )/( 총(Total) 7 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E231005-0A 1. Applicant & Manufacturer & Test Laboratory Information 1.1 Applicant information Applicant Aerobits Sp. z o.o. Address Przestrzenna 11, 70-800 Szczecin, poland Contact Person Rafał Osypiuk Telephone No. 0048 500 310 810 Fax No. - E-mail [email protected] 1.2 Manufacturer Information Manufacturer Aerobits Sp. z o.o. Address Przestrzenna 11, 70-800 Szczecin, poland 1.3 Test Laboratory Information Conducted tests were performed at Laboratory ICR Co., Ltd. Address 112, Hwanggeum 3-ro 7beon-gil, Hagun-ri, Yangchon-eup, Gimpo-si, Gyeonggi- do, Korea Telephone No. +82-2-6351-9002 Fax No. +82-2-6351-9007 RRA No. KR0165 KOLAS No. KT652 페이지(page) : ( 5 )/( 총(Total) 7 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E231005-0A 2. Equipment under Test(EUT) Information 2.1 General Information Product Name idME (remoteID) Brand Name - Model Name idME Pro, Additional Model Name idME+, idME FCC ID 2A94B-13EA2A94B Power Supply DC 5.0 V 2.2 Additional Information Equipment Class DTS-Digital Transmission System Device Type Stand-alone Operating Frequency 802.11b/g/n(HT20) 2 412 ㎒ ~ 2 462 ㎒ 802.11n(HT40) 2 422 ㎒ ~ 2 452 ㎒ Bluetooth LE (1M/2M/Coded 500k/Coded 125k) 2 402 ㎒ ~ 2 480 ㎒ RF Output Power 802.11b 11.45 ㏈m 802.11g 10.88 ㏈m 802.11n(HT20) 9.94 ㏈m 802.11n(HT40) 9.15 ㏈m Bluetooth LE 1Mbps 12.72 ㏈m Bluetooth LE 2Mbps 12.75 ㏈m Bluetooth LE Coded 500kbps 12.44 ㏈m Bluetooth LE Coded 125kbps 12.31 ㏈m Number of Channel 802.11b/g/n(HT20) 11 802.11n(HT40) 7 Bluetooth LE (1M/2M/Coded 500k/Coded 125k) 40 Modulation Type 802.11b/g/n BPSK, QPSK, QAM Bluetooth LE GFSK Antenna Type Wire Antenna Antenna Gain 2.0 ㏈i Antenna Operating Mode Single Antenna Equipment with only one antenna 2.3 Mode of operation during the test - The EUT is continuous transmission mode during the test with set at Low Channel, Middle Channel, and High Channel. To get a maximum radiated emission levels from the EUT, the EUT was moved throughout the XY, YZ, XZ planes. 2.4 Modifications of EUT - None 페이지(page) : ( 6 )/( 총(Total) 7 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E231005-0A 3. Maximum Permissible Exposure 3.1 RF Exposure calculation According to the FCC rule §1.1310 the limit for General Population/Uncontrolled exposure is 1 ㎽/㎠ for the device operating 1 500 ㎒ ~ 100 000 ㎒. The electric field generated for a 1 ㎽/㎝² exposure is calculated as follows: E = √ (30 * P * G) / D, and S = E² / Z = E² / 377, because 1 ㎽/㎝² = 10 W/m² S = Power density in ㎽/㎝², Z = Impedance of free space, 377 Ω P = Power input to the external antenna (Output power from the EUT antenna port (㏈m) – cable loss (㏈)), E = Electric filed strength in V/m, G = Numeric antenna gain, and D = distance in meter Combing equations and rearranging the terms to express the distance as a function of the remaining variable D = √ (30 * P * G) / (377 *10 S) Changing to units of ㎽ and cm, using P (㎽) = P (W) / 1 000, d (㎝) = 0.01 * d (m) D = 0.282 * √ (P * G) / S 페이지(page) : ( 7 )/( 총(Total) 7 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E231005-0A 3.2 Result According to above equation, the following result was obtained. Operating Mode Target Power W / tolerance Max tune up power Antenna Gain Safe Distance (㎝) Power Density (㎽/㎝²) @ 20 ㎝ Separation Limit (㎽/㎝²) (㏈m) (㎽) Log Linear BT LE 1Mbps 12.72 ± 1.0 13.72 23.55 2 1.58 1.72 0.0074 1.00 BT LE 2Mbps 12.75 ± 1.0 13.75 23.71 1.73 0.0075 BT LE coded 500kbps 12.44 ± 1.0 13.44 22.08 1.67 0.0070 BT LE coded 125kbps 12.31 ± 1.0 13.31 21.43 1.64 0.0068 802.11b 11.45 ± 1.0 12.45 17.58 1.49 0.0055 802.11g 10.88 ± 1.0 11.88 15.42 1.39 0.0049 802.11n20 9.94 ± 1.0 10.94 12.42 1.25 0.0039 802.11n40 9.15 ± 1.0 10.15 10.35 1.14 0.0033  Bluetooth and WIFI of this product u…

Text truncated - open the document above for the full version.

페이지(page) : ( 2 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Contents 1. Applicant & Manufacturer & Test Laboratory Information .................................................................................. 4 1.1 Applicant information ........................................................................................................................................ 4 1.2 Manufacturer Information ................................................................................................................................. 4 1.3 Test Laboratory Information ............................................................................................................................ 4 2. Equipment under Test(EUT) Information ................................................................................................................. 5 2.1 General Information ........................................................................................................................................... 5 2.2 Additional Information ...................................................................................................................................... 5 2.3 Mode of operation during the test .................................................................................................................. 6 2.4 Modifications of EUT ......................................................................................................................................... 6 3. Test Summary ................................................................................................................................................................. 7 3.1 Test standards and results .............................................................................................................................. 7 3.2 Purpose of the test ............................................................................................................................................. 7 3.3 Test Methodology ............................................................................................................................................... 7 3.4 Configuration of Test System ......................................................................................................................... 7 3.5 Antenna requirement ......................................................................................................................................... 8 4. Used equipment on test ............................................................................................................................................... 9 5. 6 ㏈ Bandwidth ............................................................................................................................................................ 10 5.1 Operating environment ................................................................................................................................... 10 5.2 Measurement method ...................................................................................................................................... 10 5.3 Test setup ........................................................................................................................................................... 10 5.4 Test data ............................................................................................................................................................. 10 6. Maximum Conducted Output Power ....................................................................................................................... 24 6.1 Operating environment ................................................................................................................................... 24 6.2 Measurement method ...................................................................................................................................... 24 6.3 Test setup ........................................................................................................................................................... 24 6.4 Test data ............................................................................................................................................................. 24 7. Power Spectral Density .............................................................................................................................................. 26 7.1 Operating environment ................................................................................................................................... 26 7.2 Measurement method ...................................................................................................................................... 26 7.3 Test setup ........................................................................................................................................................... 26 7.4 Test data ............................................................................................................................................................. 26 8. Conducted Spurious Emission ................................................................................................................................ 40 8.1 Operating environment ................................................................................................................................... 40 8.2 Measurement method ...................................................................................................................................... 40 8.3 Test setup ........................................................................................................................................................... 40 8.4 Test data ..............................................................................................................…

Text truncated - open the document above for the full version.

페이지(page) : ( 43 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.1 Reference Level Measured Graph for 802.11b Low CH Mid CH 페이지(page) : ( 44 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.2 Reference Level Measured Graph for 802.11g Low CH 페이지(page) : ( 45 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 46 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.3 Reference Level Measured Graph for 802.11n(HT20) Low CH Mid CH 페이지(page) : ( 47 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.4 Reference Level Measured Graph for 802.11n(HT40) Low CH 페이지(page) : ( 48 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 49 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.5 Reference Level Measured Graph for LE 1Mbps Low CH Mid CH 페이지(page) : ( 50 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.6 Reference Level Measured Graph for LE 2Mbps Low CH 페이지(page) : ( 51 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 52 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.7 Reference Level Measured Graph for LE Coded 500kbps Low CH Mid CH 페이지(page) : ( 53 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.8 Reference Level Measured Graph for LE Coded 125kbps Low CH 페이지(page) : ( 54 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 55 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.9 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for 802.11b Low CH Mid CH 페이지(page) : ( 56 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.10 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for 802.11g Low CH 페이지(page) : ( 57 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 58 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.11 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for 802.11n(HT20) Low CH Mid CH 페이지(page) : ( 59 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.12 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for 802.11n(HT40) Low CH 페이지(page) : ( 60 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 61 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.13 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for LE 1Mbps Low CH Mid CH 페이지(page) : ( 62 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.14 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for LE 2Mbps Low CH 페이지(page) : ( 63 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 64 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.15 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for LE Coded 500kbps Low CH Mid CH 페이지(page) : ( 65 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 8.4.1.16 Unwanted Emissions In Non-Restricted Frequency Bands Measured Graph for LE Coded 125kbps Low CH 페이지(page) : ( 66 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH High CH 페이지(page) : ( 67 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.17 Band Edge Measured Graph for 802.11b Low CH High CH 페이지(page) : ( 68 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.18 Band Edge Measured Graph for 802.11g Low CH High CH 페이지(page) : ( 69 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.19 Band Edge Measured Graph for 802.11n(HT20) Low CH High CH 페이지(page) : ( 70 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.20 Band Edge Measured Graph for 802.11n(HT40) Low CH High CH 페이지(page) : ( 71 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.21 Band Edge Measured Graph for LE 1Mbps Low CH High CH 페이지(page) : ( 72 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.22 Band Edge Measured Graph for LE 2Mbps Low CH High CH 페이지(page) : ( 73 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.23 Band Edge Measured Graph for LE Coded 500kbps Low CH High CH 페이지(page) : ( 74 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 8.4.1.24 Band Edge Measured Graph for LE Coded 125kbps Low CH High CH 페이지(page) : ( 75 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9. Radiated Spurious Emission 9.1 Operating environment Temperature : 24 °C Relative humidity : 48 % 9.2 Measurement method Standard : §15.247 (d), §15.209, §15.205 9.3 Test setup The radiated emissions measurements were performed on the 3 m, Semi-Anechoic Camber. The EUT was placed on a non-conductive turntable above the ground plane. The frequency spectrum from 9 ㎑ to 26.5 ㎓ was scanned and maximum emission levels at each frequency recorded. The system was rotated 360°, and the antenna was varied in the height between 1.0 m and 4.0 m in order to determine the maximum emission levels. This procedure was performed for horizontal and vertical polarization of the receiving antenna. 9.3.1 Below 30 ㎒ 페이지(page) : ( 76 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.3.2 30 ㎒ to 1 ㎓ 9.3.3 Above 1 ㎓ 페이지(page) : ( 77 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4 Test data Operating mode : Transmit mode Test Result : Pass 9.4.1 Measurement Result for 802.11b 9.4.1.1 Measurement Results for Restricted Band Frequency R…

Text truncated - open the document above for the full version.

페이지(page) : ( 85 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 페이지(page) : ( 86 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4.2.4 Measurement Results for Above 1 ㎓(802.11g) Frequency Reading Detector Ant. Pol. Corr. Factor Result Limit Margin (㎒) (㏈㎶) (H/V) (㏈) (㏈㎶/m) (㏈㎶/m) (㏈) Low CH 4 823.30 35.11 Peak V -3.80 38.91 73.98 35.07 20.82 Average V 24.62 53.98 29.36 7 237.30 41.26 Peak V 0.80 40.46 73.98 33.52 27.32 Average V 26.52 53.98 27.46 9 646.20 45.51 Peak V 3.70 41.81 73.98 32.17 31.92 Average V 28.22 53.98 25.76 Mid CH 4 876.00 35.12 Peak V -3.40 38.52 73.98 35.46 21.90 Average V 25.30 53.98 28.68 7 310.40 39.78 Peak V 0.70 39.08 73.98 34.90 259.56 Average V 258.86 53.98 -204.88 9 744.80 46.44 Peak V 3.90 42.54 73.98 31.44 33.10 Average V 29.20 53.98 24.78 High CH 4 923.60 36.01 Peak H -3.20 39.21 73.98 34.77 22.66 Average H 25.86 53.98 28.12 7 386.90 40.87 Peak H 0.90 39.97 73.98 34.01 27.62 Average H 26.72 53.98 27.26 9 846.80 45.37 Peak H 4.10 41.27 73.98 32.71 31.96 Average H 27.86 53.98 26.12 ※ Ant. Pol. : Antenna Polarization ※ Corr. Factor. : Antenna Factor + Cable Loss - Amplifier Gain ※ Result = Reading + Corr. Factor ※ Margin = Limit – Result 페이지(page) : ( 87 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4.3 Measurement Result for 802.11n(HT20) 9.4.3.1 Measurement Results for Restricted Band for 802.11n(HT20) Frequency Reading Detector Ant. Pol. Corr. Factor Result Limit Margin (㎒) (㏈㎶) (H/V) (㏈) (㏈㎶/m) (㏈㎶/m) (㏈) Low CH 2 388.24 51.31 Peak H -14.50 65.81 73.98 8.17 33.55 Average H 48.05 53.98 5.93 High CH 2 484.39 51.88 Peak H -14.10 65.98 73.98 8.00 36.26 Average H 50.36 53.98 3.62 ※ Ant. Pol. : Antenna Polarization ※ Corr. Factor. : Antenna Factor + Cable Loss - Amplifier Gain ※ Result = Reading + Corr. Factor ※ Margin = Limit - Result 9.4.3.2 Measurement Results for below 30 ㎒ Frequency Reading Detector Ant. Pol. Corr. Factor Result Limit Margin (㎒) (㏈㎶) (H/V) (㏈) (㏈㎶/m) (㏈㎶/m) (㏈) Low CH It was not found any emissions peaks found from the EUT. Mid CH It was not found any emissions peaks found from the EUT. High CH It was not found any emissions peaks found from the EUT. ※ Ant. Pol. : Antenna Polarization ※ Corr. Factor. : Antenna Factor + Cable Loss - Amplifier Gain ※ Result = Reading + Corr. Factor ※ Margin = Limit – Result 페이지(page) : ( 88 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4.3.3 Measurement Results for below 1 ㎓ Low CH 페이지(page) : ( 89 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH 페이지(page) : ( 90 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 페이지(page) : ( 91 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4.3.4 Measurement Results for Above 1 ㎓(802.11n(HT20)) Frequency Reading Detector Ant. Pol. Corr. Factor Result Limit Margin (㎒) (㏈㎶) (H/V) (㏈) (㏈㎶/m) (㏈㎶/m) (㏈) Low CH 4 823.30 34.45 Peak H -3.80 38.25 73.98 35.73 20.78 Average H 24.58 53.98 29.40 7 233.90 40.41 Peak H 0.80 39.61 73.98 34.37 26.95 Average H 26.15 53.98 27.83 9 641.10 45.87 Peak V 3.70 42.17 73.98 31.81 31.89 Average V 28.19 53.98 25.79 Mid CH 4 872.60 35.85 Peak H -3.50 39.35 73.98 34.63 22.31 Average H 25.81 53.98 28.17 7 320.60 39.77 Peak V 0.70 39.07 73.98 34.91 26.09 Average V 25.39 53.98 28.59 9 744.80 46.65 Peak H 3.90 42.75 73.98 31.23 33.10 Average H 29.20 53.98 24.78 High CH 4 927.00 35.94 Peak V -3.20 39.14 73.98 34.84 22.26 Average V 25.46 53.98 28.52 7 386.90 40.30 Peak V 0.90 39.40 73.98 34.58 27.33 Average V 26.43 53.98 27.55 9 845.10 45.47 Peak H 4.10 41.37 73.98 32.61 31.96 Average H 27.86 53.98 26.12 ※ Ant. Pol. : Antenna Polarization ※ Corr. Factor. : Antenna Factor + Cable Loss - Amplifier Gain ※ Result = Reading + Corr. Factor ※ Margin = Limit – Result 페이지(page) : ( 92 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4.4 Measurement Result for 802.11n(HT40) 9.4.4.1 Measurement Results for Restricted Band for 802.11n(HT40) Frequency Reading Detector Ant. Pol. Corr. Factor Result Limit Margin (㎒) (㏈㎶) (H/V) (㏈) (㏈㎶/m) (㏈㎶/m) (㏈) Low CH 2 389.32 55.20 Peak H -14.50 69.70 73.98 4.28 38.39 Average H 52.89 53.98 1.09 High CH 2 484.02 53.56 Peak H -14.10 67.66 73.98 6.32 38.35 Average H 52.45 53.98 1.53 ※ Ant. Pol. : Antenna Polarization ※ Corr. Factor. : Antenna Factor + Cable Loss - Amplifier Gain ※ Result = Reading + Corr. Factor ※ Margin = Limit - Result 9.4.4.2 Measurement Results for below 30 ㎒ Frequency Reading Detector Ant. Pol. Corr. Factor Result Limit Margin (㎒) (㏈㎶) (H/V) (㏈) (㏈㎶/m) (㏈㎶/m) (㏈) Low CH It was not found any emissions peaks found from the EUT. Mid CH It was not found any emissions peaks found from the EUT. High CH It was not found any emissions peaks found from the EUT. ※ Ant. Pol. : Antenna Polarization ※ Corr. Factor. : Antenna Factor + Cable Loss - Amplifier Gain ※ Result = Reading + Corr. Factor ※ Margin = Limit – Result 페이지(page) : ( 93 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4.4.3 Measurement Results for below 1 ㎓ Low CH 페이지(page) : ( 94 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A Mid CH 페이지(page) : ( 95 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A High CH 페이지(page) : ( 96 )/( 총(Total) 116 ) ICRT-QPA-17-03 Rev.2 Report No. ICRT-TR-E230988-0A 9.4.4.4 Measurement Results for Above 1 ㎓(802.11n(HT40)) Frequency Reading Detector Ant. Pol. Corr. Factor Result Limit Margin (㎒) (㏈㎶) (H/V) (㏈…

Text truncated - open the document above for the full version.
