2A94N-FLRE2301A433MHz remote control lighting

Model No. 23LE11018/23LE11087 SKU No. 1009011821/1009111965 INDOOR/OUTDOOR LED23 BATTERY INSTALLATION: 1. Carefully remove the remote from the packaging. 2. Remove the slide plate located on the back of the remote control. 3. Insert 1 x CR2025 battery by aligning the appropriate (+/-) markings accordingly. (Battery included) 4. Replace the slide plate on the back of the remote control. ASSEMBLY INSTRUCTIONS: No tools required. Retain carton for storage. 1. Carefully remove all parts from the carton. Your LED Floodlight should include the following (Fig 1): 1 Completely assembled Floodlight 1 Remote control Made in China Printed in China This is not a toy, for decorative use only. DISTRIBUTED BY HOME DEPOT U.S.A., INC. 2455 PACES FERRY RD., N.W. Atlanta, GA 30339 All rights reserved. Please follow the instructions below to properly assemble and store your LED Floodlight . LED FLOODLIGHT 3 INSTALLATION METHODS: Ceiling mount Bracket mountBase mount IMPORTANT SAFETY INSTRUCTIONS When using electric products, basic precautions should always be followed including the following: a) READ AND FOLLOW ALL SAFETY INSTRUCTIONS. b) WARNING: When using outdoor use portable luminaires, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following: c) Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appliance's plug. d) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on the circuit(s) or outlet(s) to be used for the wet location portable luminaire. Receptacles are available having built-in GFCI protection and are able to be used for this measure of safety. c) Use only with an extension cord for outdoor use, such as an extension cord of cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW, STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW, or SJTOOW. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment . NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help Responsible Party- U.S. Contact Information: Company: HOME DEPOT INC Address:2455 PACES FERRY ROAD ATLANTA, GA 30339 Customer service toll-free Number : For Home Accents Holiday call 1-855-HDHoliday (1-855-434-6543) Fig 1 Tempered Glass Reflector LED Panel Light Bracket 5ft . Remote Control 11.5” 2023 Home Depot LED Floodlight Instruction Sheet (English) Date: 2/2/2023 11.5” CAUTION: 1. Do not operate this product while it is still in the packaging. 2. Never mix old and new batteries (OR different types of batteries). 3. Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-MH, Ni-CD, etc.) batteries or equivalen. 4. Battery is to be inserted with the correct polarity. 5. Remote with 1 x CR2025 battery. 6. Exhausted battery is to be removed from the battery holder. 7. The supply terminals are not to be short circuited. 8. Do not throw battery into fire. 9. Battery should never be left in the product when not in use for long periods of time. 10. Never allow any plastic part to come in contact with a source of heat or flame. 11. This is not a toy. Keep out of the hands of small children. 12. Risk of injury is associated with the ingestion of battery. 13. Keep all new and used batteries out of the reach of children. 14. Seek immediate medical attention if battery is ingested. DISPOSAL AND RECYCLING: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. This is applies to the battery also. This product was pre-tested before shipment and date coded. In keeping with the National Electrical Code, this product is intended for seasonal (90 days max.) installation and use. HOME ACCENTS Holiday LED 3 year repair or replacement of any product that fails to light for 3 consecutive holiday seasons (90 days max. per season). This guarantee is void if the product is misused or damaged in any way. If product fails to light call Home Depot customer service toll-free at 1-855-HDHoliday (1-855-434-6543). This product was pre-tested before shipment and date coded. In keeping with the National Electric Code, this product is intended for seasonal (90 days max.) installation and use. For problems or questions on this product call Home Depot customer service toll-free at 1-855-HDHoliday (1-855-434-6543). FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interferen…

Text truncated - open the document above for the full version.

Guangde Ledup Enterprise,Inc. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2023.2.8 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Guangde Ledup Enterprise,Inc.hereby authorize Shenzhen LGT Test Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature Name: Liangfeng Ma Director of General Manager

Guangde Ledup Enterprise,Inc. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2023.2.8 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (FCC ID:2A94N-FLRE2301A) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Signature Name: Liangfeng Ma Director of General Manager

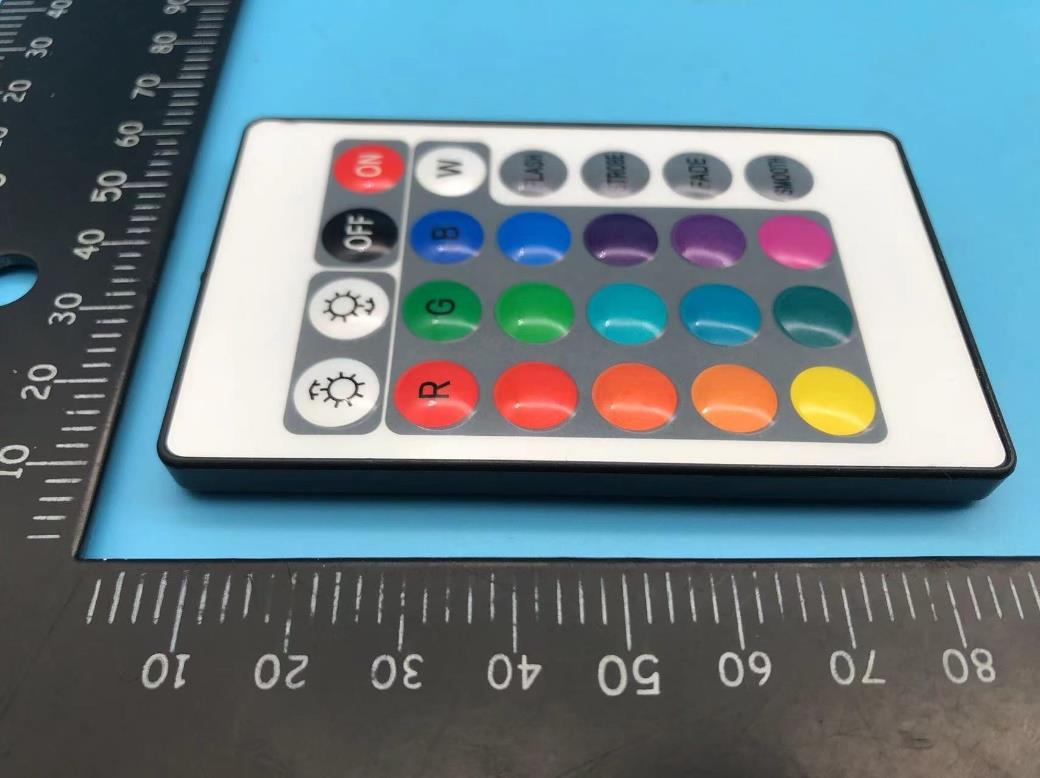

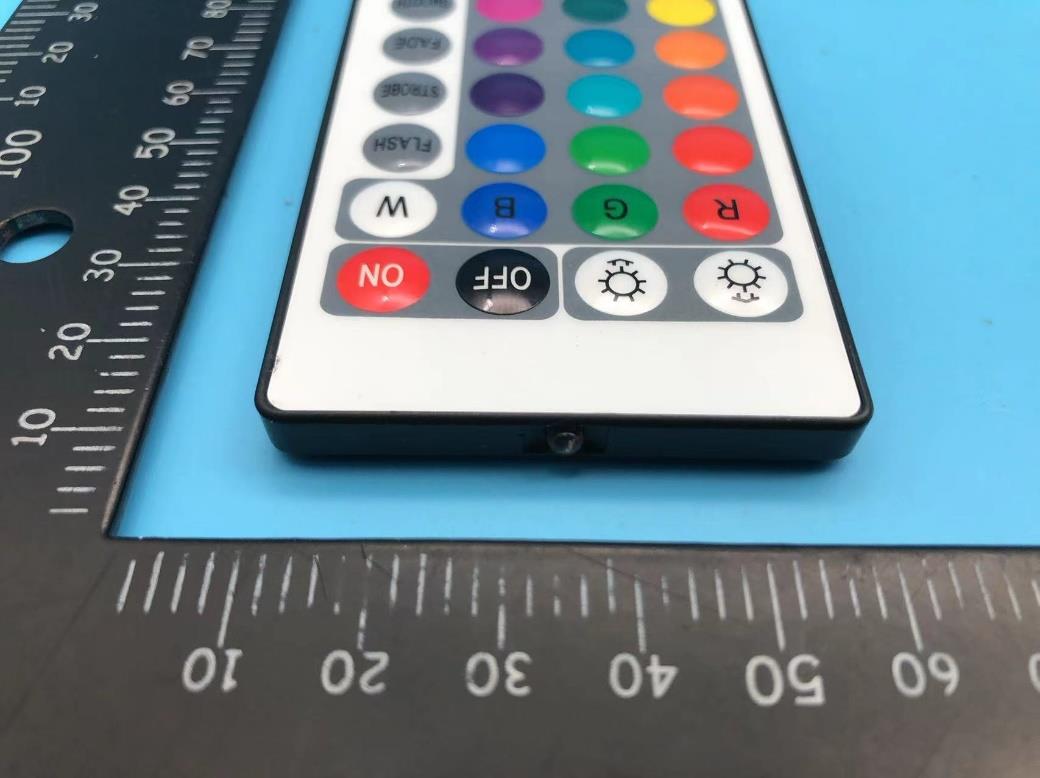

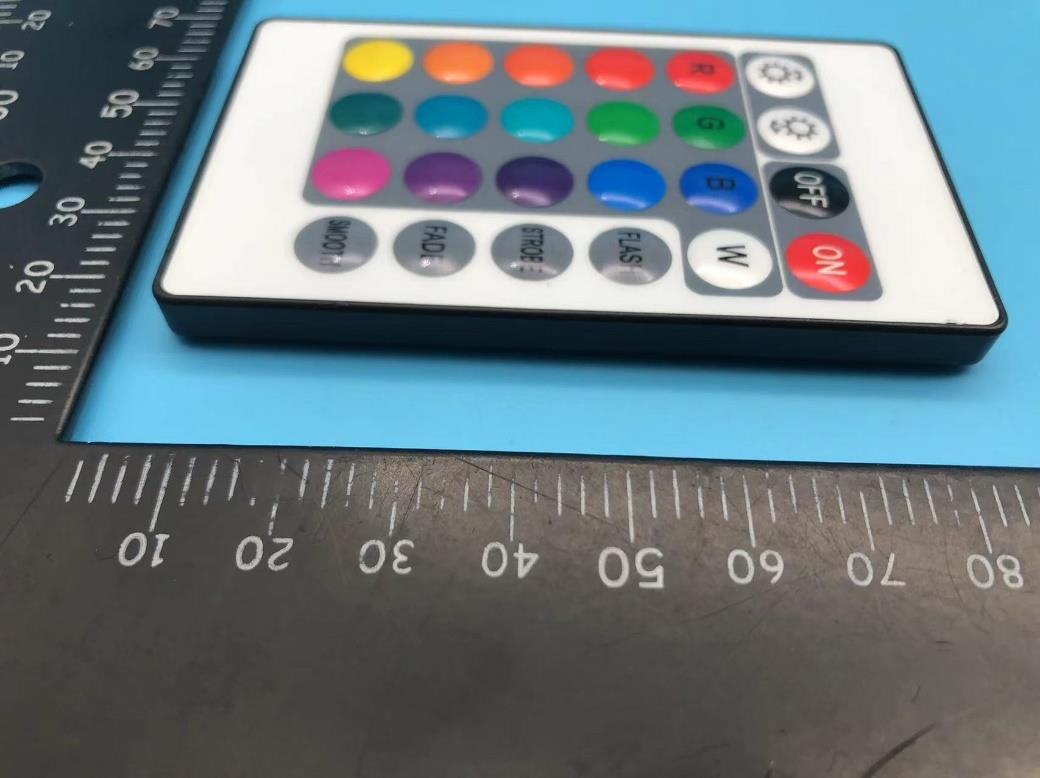

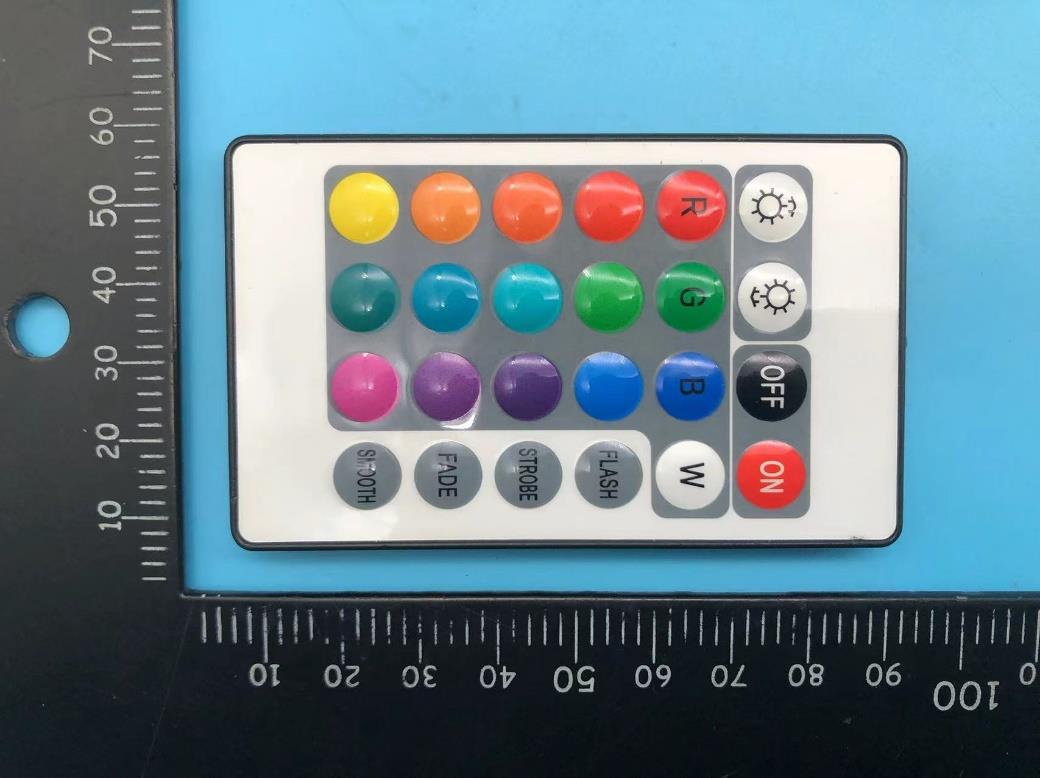

Page 1 of 3 Report No.: LGT22L050 Appendix - External Photographs of EUT Constructional Details FCC ID: 2A94N-FLRE2301A Model: WJ-50W-RGB Photo 1 Photo 2 Page 2 of 3 Report No.: LGT22L050 Photo 3 Photo 4 Page 3 of 3 Report No.: LGT22L050 Photo 5 Photo 6

FCC ID label for Remote FCC ID:2A94 N-FLRE2301A MODEL NO.:S ZG -BK01-50W-R

Page 1 of 2 Report No.: LGT22L050 Appendix - Internal Photographs of EUT Constructional Details FCC ID: 2A94N-FLRE2301A Model: WJ-50W-RGB Photo 1 Photo 2 ANT Page 2 of 2 Report No.: LGT22L050 Photo 3 Photo 4

FCC ID:2A94N-FLRE2301A RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID:2A94N-FLRE2301A The Worst Case Mode 433.889MHz Detector PEAK field strength 71.31dBuV/m(-23.89dBm) Remark: The worst case gain of the antenna is 1dBi. 1dBi logarithmic terms convert to numeric result is nearly 1.258 0.433889-23.89-23 0.005011870.0007 3 Limit Maximum Peak Conducted Output Power (dBm) frequency (GHz) Tune up Power (dBm) Tune up Power (mW) Result Threshold at which no SAR required is 0.0007≤ 3.0 for 1-g SAR, Separation distance is 5mm.

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Guangde Ledup Enterprise,Inc. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com NO566 Jingtang Road, Guangde Economic Development Zone, Guangde, Anhui, China RF TEST REPORT Product Name: 433MHz remote control lighting Model Name: SZG-BK01-50W-R FCC ID: 2A94N-FLRE2301A Issued For : Guangde Ledup Enterprise,Inc. No566 Jingtang Road, Guangde Economic Development Zone, Guangde, Anhui, China Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Report Number: LGT22L050RF01 Sample Received Date: Dec. 29, 2022 Date of Tested: Dec. 29, 2022 – Feb. 09, 2023 Date of Issue: Feb. 09, 2023 Report No.: LGT22L050RF01 Page 2 of 31 TEST REPORT CERTIFICATION Applicant Guangde Ledup Enterprise,Inc. Address No566 Jingtang Road, Guangde Economic Development Zone, Guangde, Anhui, China Manufacturer Guangde Ledup Enterprise,Inc. Address No566 Jingtang Road, Guangde Economic Development Zone, Guangde, Anhui, China Product Name 433MHz remote control lighting Trademark N/A Model Name SZG-BK01-50W-R Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.231, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT22L050RF01 Page 3 of 31 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 9 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9 2.4 EQUIPMENTS LIST 10 3. EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 12 3.4 TEST RESULTS 12 4. RADIATED EMISSION MEASUREMENT 13 4.1 RADIATED EMISSION LIMITS 13 4.2 TEST PROCEDURE 15 4.3 DEVIATION FROM TEST STANDARD 15 4.4 TEST SETUP 16 4.5 EUT OPERATING CONDITIONS 17 4.6 TEST RESULTS 17 4.7 FIELD STRENGTH CALCULATION 18 5. BANDWIDTH TEST 23 5.1 LIMIT 23 5.2 TEST REQUIREMENTS 23 5.3 TEST PROCEDURE 23 5.4 TEST SETUP 23 5.5 EUT OPERATION CONDITIONS 23 5.6 TEST RESULTS 24 6. DUTY CYCLE 25 6.1 TEST PROCEDURE 25 6.2 TEST SETUP 25 6.3 EUT OPERATION CONDITIONS 25 6.4 TEST RESULTS 26 Report No.: LGT22L050RF01 Page 4 of 31 TABLE OF CONTENTS Page 7. AUTOMATICALLY DEACTIVATE 28 7.1 STANDARD REQUIREMENT 28 7.2 TEST PROCEDURE 28 8. ANTENNA REQUIREMENT 30 8.1 STANDARD REQUIREMENT 30 8.2 EUT ANTENNA 30 APPENDIX I - PHOTOS OF TEST SETUP 31 Report No.: LGT22L050RF01 Page 5 of 31 Revision History Rev. Issue Date Contents 00 Feb. 09, 2023 Initial Issue Report No.: LGT22L050RF01 Page 6 of 31 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part 15.231,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.205(a)/15.209/ 15.231.(b) Radiated Spurious Emission PASS -- 15.231(a)(1)/ 15.231(b)(2) Transmission requirement PASS -- 15.231(C) 20 dB Bandwidth PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT22L050RF01 Page 7 of 31 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Chen Hsong Industrial Park, No.177 Renmin West Road, Jinsha Community, Kengzi Street, Pingshan New District, Shenzhen, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. Parameter Uncertainty RF Output Power, Conducted ±0.71dB Unwanted Emission, Conducted ±0.63dB Conducted emission ±2.80dB All Emissions, Radiated (0.009-30MHz) ±2.16dB All Emissions, Radiated (30MHz-1GHz) ±4.40dB All Emissions, Radiated (1GHz-18GHz) ±5.49dB Report No.: LGT22L050RF01 Page 8 of 31 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name 433MHz remote control lighting Trademark N/A Model Name SZG-BK01-50W-R Series Model N/A Model Difference N/A Frequency band 433.889MHz Power Rating DC 3V CR2025 battery Modulation Type OOK Hardware version number N/A Software version number N/A Connecting I/O Port(s) N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications orthe User Manual. 2. Table for filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Antenna N/A 1 Antenna Note: The antenna information refer the manufacturer provide report, applicable only to the tested sample identified in the report. Report No.: LGT22L050RF01 Page 9 of 31 2.2 DESCRIPTION OF THE TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX Mode For Radiated Emission Final Test Mode Description Mode 1 TX Mode 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Accessories Equipment Description Manufacturer Model S/N Rating Auxiliary Equipment Description Manufacturer Model S/N Rating Note: (1)For detachable type…

Text truncated - open the document above for the full version.

Antenna specification 1. Antenna describe: Antenna Model: N/A Antenna plate: PCB Antenna Frequency range:433MHz Antenna gain: 1dBi Connector type: direct 2. Radiation pattern@433MHz Total Peak Gain:0dBi Phi 0 45 90 135 180 235 270 315 Gain 0.1dBi 0.3 dBi 1 dBi 0.5 dBi 0.2 dBi 0.6 dBi 0.8 dBi 0.5 dBi

Page 1 of 1 Report No.: LGT22L050 Appendix - Test Setup photos FCC ID: 2A94N-FLRE2301A Model: WJ-50W-RGB Radiated Spurious Emission Test Setup Photo - Below 1GHz Radiated Spurious Emission Test Setup Photo - Above 1GHz
