FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device has evaluated to meet general RF exposure requirement. The device can be used be in portable exposure without restriction.

1/1 UAINTERNATIONALINC.LETTEROFATTESTATION TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USAgentforServiceofProcess: CompanyName:UAINTERNATIONALINC. FRN:0033510736 ContactName:JessicaZhong Address:5030BoardwalkDrSuite818ColoradoSprings,COLORADO80919,USA TelephoneNo:001-719-6787182 Email:[email protected] Applicant: Companyname:ShenzhenShengxingTechnologyCo.,LTD ProductDescription:lavaliermicrophone Granteecode:2A95L FCCID:2A95L-SX6 FRN：0033355868 ContactName:SHIJUNLI Address:3rdFloor,Building2,YongtaiIndustrialPark,Baoan,Shenzhen TelephoneNo:+8617722810891 Email:[email protected] [ShenzhenShengxingTechnologyCo.,LTD]certifiesthat,asofthedateof thisfilingoftheapplicationwiththeTCB,[UAINTERNATIONALINC.]isour designatedUSagentforserviceofprocessfortheabovereferencedFCCID. [ShenzhenShengxingTechnologyCo.,LTD]acceptstomaintainanagent fornolessthanoneyearafterthegranteehasterminatedallmarketingand importationortheconclusionofanycommissionrelatedproceedinginvolving equipment.[UAINTERNATIONALINC.]accepts,asofthedateofthefilingof theapplication,theobligationofthedesignatedUSagentforserviceofprocess fortheabovereferenceFCCID. UAINTERNATIONALINC.isawareofandagreestocomplywiththerequirementsoutlined intheFCCEquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. TheApplicantisawareofandagreestocomplywiththerequirementsoutlinedintheFCC EquipmentAuthorizationProgram,ReportandOrderFCC22-84,andclause§2.911. 1/1 Date:2023/11/03 Applicant’sName:SHIJUNLI USAgent’sName:JessicaZhong Title:GeneralManage Title:GeneralManager SignatureSignature

C5266091_X24_Ed.2 1/1 “AttestationStatements” TO: OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 TheCommissionadoptedrulesthatprohibitequipmentauthorizationfor“covered” telecommunicationsequipmentandvideosurveillanceequipmentproducedbyentitiesidentified ontheCommission’sCoveredList 1 ,whichisperiodicallyupdated.SeetheCoveredListformore details.ThisAttestationStatementistoconfirmthatwefollowtheSection2.911(d)(5)(i)-(ii) Applicant Companyname:ShenzhenShengxingTechnologyCo.,LTD Granteecode:2A95L FCCID:2A95L-SX6 ContactName:SHIJUNLI Address:3rdFloor,Building2,YongtaiIndustrialPark,Baoan,Shenzhen TelephoneNo:+8617722810891 FaxNo:+8617722810891 Email:[email protected] i.[ShenzhenShengxingTechnologyCo.,LTD](“theapplicant”)certifies thattheequipmentforwhichauthorizationissoughtisnot“covered” equipmentprohibitedfromreceivinganequipmentauthorizationpursuantto section2.903oftheFCCrules.Theapplicantmustsignthiscertification. ii.[ShenzhenShengxingTechnologyCo.,LTD](“theapplicant”)certifies that,asofthedateofthefilingoftheapplication,theapplicantisnot(asa specificallynamedentityoranyofitssubsidiariesoraffiliates)identifiedon theCoveredListasanentityproducing“covered”equipment.Theapplicant mustsignthiscertification. [ShenzhenShengxingTechnologyCo.,LTD](“theapplicant”)certifiesthat, asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList asanentityproducing“covered” equipment. Date:2023/11/03 Applicant’sName:SHIJUNLI Title:GeneralManage Signature 1 TheCommission’sCoveredListispublishedbythePublicSafetyandHomelandSecurityBureauandpostedonthe Commission’swebsite.ThisCoveredList,whichisperiodicallyupdated,identifiesparticularequipment,producedby particularentities,thatconstitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

ShenzhenShengxingTechnologyCo., LTD ProductSimilarityDeclaration Product name:lavalier microphone Model name: SX6, SX5, SX39, K13, J13, J11, SX63, SX11, SX12, SX13, SX15, SX16, SX18, SX19 FCC ID:2A95L-SX6 We (Shenzhen Shengxing Technology Co., LTD) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Signature: Name:SHI JUN LI Title: GeneralManage Place,dat e:Shenzhen,2023.11.03

C5266091_X8_Ed.1 1/1 LetterofAuthorization ShenzhenShengxingTechnologyCo.,LTD Company:ShenzhenShengxingTechnologyCo.,LTD Address:3rdFloor,Building2,YongtaiIndustrialPark,Baoan, Shenzhen ProductName:lavaliermicrophone ModelNumber:SX6,SX5,SX39,K13,J13,J11,SX63,SX11,SX12,SX13, SX15,SX16,SX18,SX19 FCCIdentifier:2A95L-SX6 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:SHIJUNLIDate:2023-11-03 Title:GeneralManage Signatureofapplicant:

C5266091_X10_Ed.2 1/1 ShenzhenShengxingTechnologyCo.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2023-11-03 Subject:RequestforConfidentiality FCCID:2A95L-SX6 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☒ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☒ InternalPhotos ☐ NOTE 1 ☒ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof___180___daysfromthedateof theGrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: SHIJUNLI Title: GeneralManage

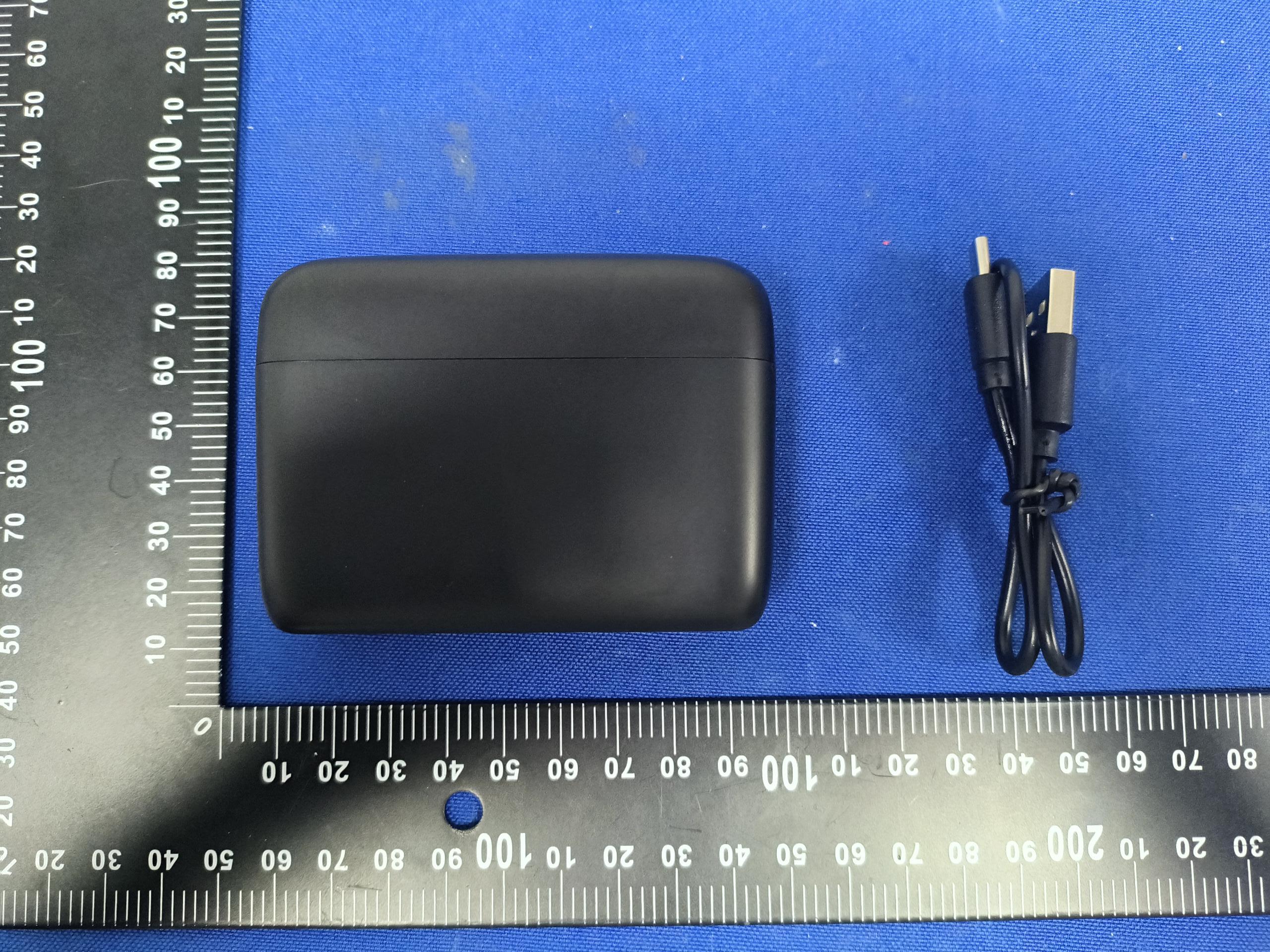

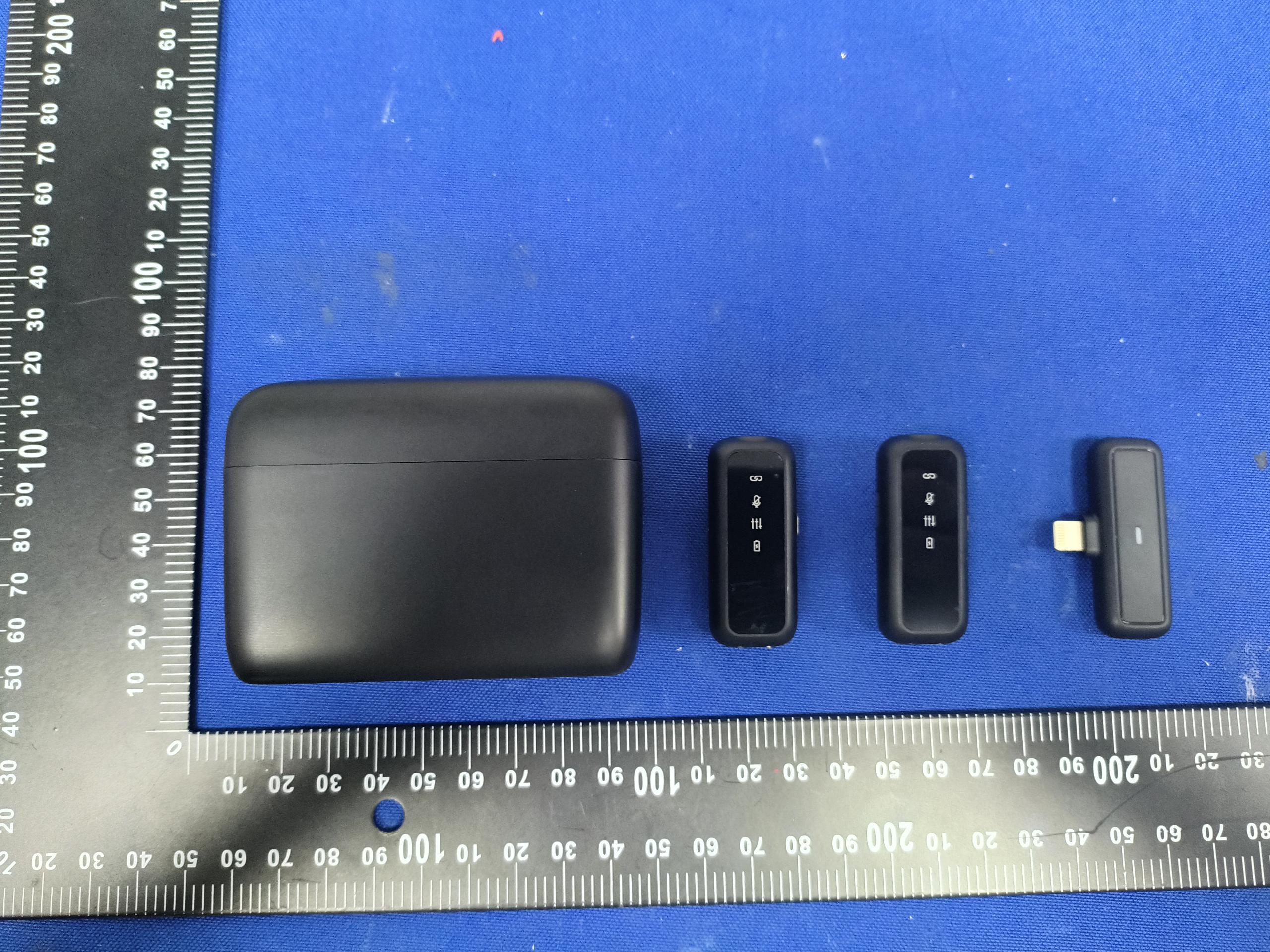

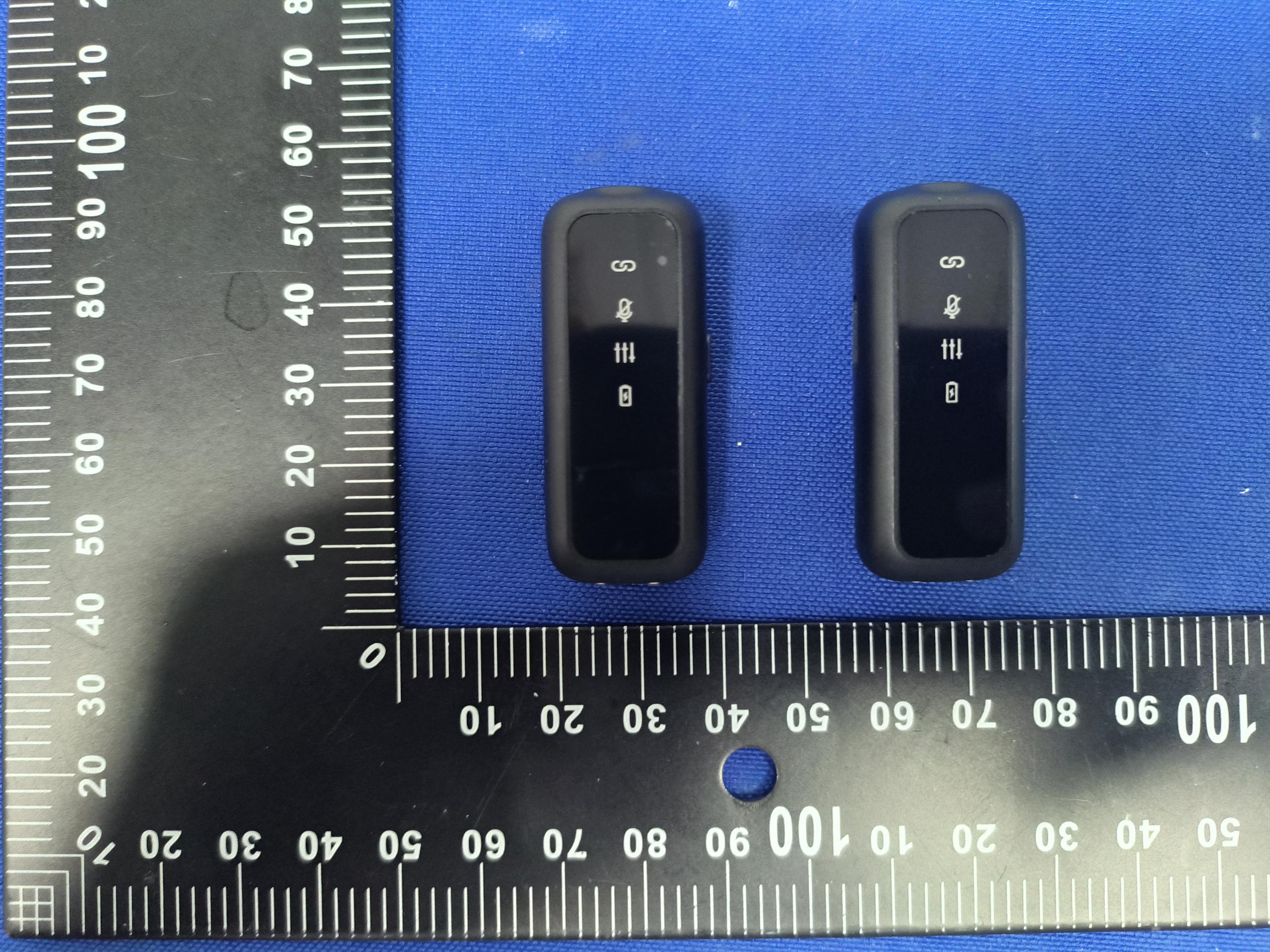

ExternalPhotos

Lable: FCCID:2A95L-SX6

FCCID:2A95L-SX6 RFExposureEvaluation AccordingtoKDB447498D01GeneralRFExposureGuidancev06andpart2.1093， UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone 1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposure conditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition(s),listedbelow,is(are)satisfied. For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-gSARtest exclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f (GHz) ]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f (GHz) istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison Here, SoaSARtestisnotrequired ModeFreque ncy (MHz) Max Power (dBm) Target power W/ tolerance (dBm) Maxtune uppower tolerance (dBm) Max Power (mW) Min. Distanc e (mm) Calc. threshol ds limit GFSK 24021.785 1±1 2 1.58495.000.4913 3.0 24411.695 1 ± 1 2 1.58495.000.4952 3.0 24801.954 1±1 2 1.58495.000.4992 3.0 Π/4-DQ PSK 24022.612 2 ± 1 3 1.99535.000.6185 3.0 24412.518 2±13 1.99535.000.6235 3.0 24802.765 2 ± 1 3 1.99535.000.6284 3.0 8DPSK 24021.387 1±1 2 1.58495.000.4913 3.0 24411.302 1 ± 1 2 1.58495.000.4952 3.0 24801.471 1±1 2 1.58495.000.4992 3.0

2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc... Features SMD, high reliability, ultra Impact, Omni-directional... Part number Information RANT3216F245C03 (A)(B)(C)(D)(E)(F) Electrical Specification The specification is defined on EVB. Dimension and Terminal Configuration No.Terminal Name 1Feeding/GNG 2GND/Feeding (A)Product TypeChip Antenna (B) Size Code 3.2x1.6mm( ± 0.2mm) (C) MaterialHigh K material (D) Frequency2.4 ~ 2.5GHz (E) Feeding modePIFA & Single Feeding (F) Antenna typeType=03 Working Frequency Range2400 ~2500 MHz Bandwidth20 MHz (Min.) Peak Gain1.24 dBi (Typ.) Impedance50 Ohm Return loss1 dB ( Min) PolarizationLinear Azimuth BeamwidthOmni-directional Operation Temperature(°C)-40 ~85°C Resistance to Soldering Heats 10sec. ( @ 280°C) TerminationNi / Au (Leadless) Dimension (mm) L 3.20±0.20 W 1.60±0.20 T 0.45±0.20 咏成國際科技有限公司電話: RAIN International Technology Co., Ltd.TEL: 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ 1 Evaluation BoardReference 长条板 PCB 推荐 Dimension 圆板 Antenna Layout Reference Unit :mm Electrical Characteristics Return Loss & Radiation Return Loss Frequency(MHz) S11 (dB) 2400-10.50 2450-30.62 2500-11.47 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Radiation 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% Peak Gain1.15 dBi1.24 dBi1.19 dBi X Y Z 2400MHz 2450MHz 2500MHz 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Taping Specifications Reel and Taping Specification Reel Specification TYPESIZEABCD 32167”5K/Reel 9.0±0.5 60±213.5±0.5178±2 Tapping Specification PackagingTypeABWEFGHTψDP Paper Type3216 1.90±0.2 0 3.50±0.2 0 8.0±0.2 0 1.75±0.1 0 3.5±0.054.0±0.102.0±0.050.75±0.1 0 1.50±0.1 0 4.0±0.1 2.4GHz 3216 Chip Antenna: RANT3216F245C03 _ Reliability Table Test ItemProcedure Requirements Ceramic Type Remark (Reference) Electrical Characterization Fulfill the electrical specification User Spec. Thermal Shock 1. Preconditioning: 50 ± 10°C/ 1 hr , then keep for 24 ± 1 hrs at room temp. 2. Initial measure: Spec: refer Initialspec. 3. Rapid change of temperature test: -30°Cto +85°C; 100 cycles; 15 minutes at Lower category temperature; 15 minutes at Upper category temperature. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 107 Temperature Cycling 1. Initial measure: Spec: refer Initialspec. 2. 100 Cycles (-30°Cto +85°C), Soak Mode=1 (2 Cycle/hours). 3. Measurement at 24 ± 2Hours after testcondition. No Visible Damage. Fulfill the electrical specification. JESD22 JA104 High Temperature Exposure 1. Initial measure: Spec: refer Initialspec. 2. Unpowered; 500hours @ T=+85°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Low Temperature Storage 1. Initial measure: Spec: refer Initialspec. 2. Unpowered: 500hours @ T=-30°C. 3. Measurement at 24 ± 2 hours aftertest. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Solderability (SMD Bottom Side) Dipping method: a. Temperature: 235 ±5°C b. Dipping time: 3 ±0.5s The solder should cover over 95% of the critical area of bottom side. IEC 60384-21/22 4.10 Soldering Heat Resistance (RSH) Preheating temperature: 150 ± 10°C. Preheating time: 1~2 min. Solder temperature: 260 ± 5°C. Dipping time: 5 ± 0.5s No Visible Damage.IEC 60384-21/22 4.10 Vibration5g's for 20 min., 12 cycles each of 3 orientations Note: Use 8"X5" PCB .031" thick 7 secure points on, one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10-2000 Hz. No Visible Damage.MIL-STD-202 Method 204 Mechanical Shock Three shocks in each direction shall be applied along the three mutually perpendicular axes of the test specimen (18 shocks) Peak value: 1,500g’s Duration: 0.5ms Velocity change: 15.4 ft/s Waveform: Half-sine No Visible Damage.MIL-STD-202 Method 213 Humidity Bias 1. Humidity: 85% R.H., Temperature:85 ± 2 °C. 2. Time: 500 ± 24hours. 3. Measurement at 24 ± 2hrs after testcondition. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 Method 106 2.4GHz 3216 Chip Antenna: RANT3216F245C01 _ Board Flex (SMD) 1. Mounting method: IR-Reflow. PCB Size (L:100 × W:40 × T:1.6mm) 2. Apply the load in direction of the arrow until bending reaches 2 mm. No Visible Damage.AEC-Q200 005 AdhesionForce of 1.8Kg for 60 seconds.No Visible Damage Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body terminals and body/terminal junction. AEC-Q200 006 Physical Dimension Any applicable method using x10 magnification, micrometers, calipers, gauges, contour projectors, or other measuring equipment, capable of determining the actual specimen dimensions. In accordance with specification. JESD22 JB100 Revision History RevisionDateContent 12019/03/01New Datasheet 22020/02/22Add 2D radiation characteristic

Page 1 of 68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn FCCTESTREPORT FCCID:2A95L-SX6 Product:lavaliermicrophone ModelName: SX6,SX5,SX39,K13,J13,J11,SX63,SX11, SX12,SX13,SX15,SX16,SX18,SX19 Brand:N/A ReportNo.:NCT23038156E Preparedfor ShenzhenShengxingTechnologyCo.,LTD 3rdFloor,Building2,YongtaiIndustrialPark,Baoan,Shenzhen Preparedby ShenzhenNCTTestingTechnologyCo.,Ltd. A101&2FB2,Fuqiao6thArea,XintianCommunity,FuhaiStreet,BaoanDistrict, Shenzhen,People’sRepublicofChina TEL:400-8868-419 FAX:86-755-27790922 ReportNo.:NCT20238156E Page 2 of 68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 1TESTRESULTCERTIFICATION Applicant’sname: ShenzhenShengxingTechnologyCo.,LTD Address: 3rdFloor,Building2,YongtaiIndustrialPark,Baoan,Shenzhen Manufacture'sname : ShenzhenShengxingTechnologyCo.,LTD Address : 3rdFloor,Building2,YongtaiIndustrialPark,Baoan,Shenzhen Productname :lavaliermicrophone Modelname :SX6 Additionalmodel : SX5,SX39,K13,J13,J11,SX63,SX11,SX12,SX13,SX15,SX16 SX18,SX19 Standards :FCCCFR47Part15Section15.247 Testprocedure :ANSIC63.10:2013 TestDate:Sep.27,2023toOct.08,2023 DateofIssue:Oct.08,2023 TestResult :Pass ThisdevicedescribedabovehasbeentestedbyNCT,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicable onlytothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofNCT,this documentmaybealteredorrevisedbyNCT,personalonly,andshallbenotedintherevision ofthedocument. TestEngineer: KevenWu/Engineer TechnicalManager: HenryWang/Manager ReportNo.:NCT20238156E Page 3 of 68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn Contents Page 1TESTRESULTCERTIFICATION...............................................................................................................................2 2TESTSUMMARY..........................................................................................................................................................5 3TESTFACILITY.............................................................................................................................................................6 4GENERALINFORMATION..........................................................................................................................................7 4.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................7 4.2CHANNELLIST.....................................................................................................................................................8 4.3TESTSETUPCONFIGURATION............................................................................................................................9 4.4TESTMODE.........................................................................................................................................................9 5EQUIPMENTDURINGTEST....................................................................................................................................10 5.1EQUIPMENTSLIST.............................................................................................................................................10 5.2MEASUREMENTUNCERTAINTY.........................................................................................................................12 5.3DESCRIPTIONOFSUPPORTUNITS...................................................................................................................12 6CONDUCTEDEMISSION..........................................................................................................................................13 6.1E.U.T.OPERATION............................................................................................................................................13 6.2EUTSETUP.......................................................................................................................................................13 6.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION).................................................................................14 6.4MEASUREMENTPROCEDURE:...........................................................................................................................14 6.5CONDUCTEDEMISSIONLIMIT...........................................................................................................................14 6.6MEASUREMENTDESCRIPTION..........................................................................................................................14 6.7CONDUCTEDEMISSIONTESTRESULT.............................................................................................................14 7RADIATEDSPURIOUSEMISSIONS......................................................................................................................17 7.1EUTOPERATION...............................................................................................................................................17 7.2TESTSETUP......................................................................................................................................................18 7.3SPECTRUMANALYZERSETUP..........................................................................................................................19 7.4TESTPROCEDURE.............................................................................................................................................20 7.5SUMMARYOFTESTRESULTS...........................................................................................................................21 8MAXIMUMPEAKOUTPUTPOWERTEST............................................................................................................30 8.1TESTSTANDARDANDLIMIT...................................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:NCT20238156E Page51of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 12DwellTimeTest 12.1TestStandardandLimit TestStandardFCCPart15CSection15.247(a)(1) TestLimit 0.4sec 12.2TestSetup 12.3TestProcedure TheEUTmusthaveitshoppingfunctionenabled.Usethefollowingspectrumanalyzersettings: 1.Span=zerospan,centeredonahoppingchannel 2.SettheRBW=1MHz. 3.SettheVBW=1MHz. 4.Sweeptime=asnecessarytocapturetheentiredwelltimeperhoppingchannel. 5.Detectorfunction=peak. 6.Tracemode=maxhold. 7.Allowtracetofullystabilize. ReportNo.:NCT20238156E Page52of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 12.4TestData Package Type Pulsewidth (ms) Timeslotlength(ms) Dwelltime (ms) Limit(s)Modulation DH10.384timeslotlength*1600/2/79*31.6122.880.4BDR DH31.641timeslotlength*1600/4/79*31.6262.560.4BDR DH52.889timeslotlength*1600/6/79*31.6308.160.4BDR Remark:TheEDRwastestedon(GFSK,π/4DQPSK,8DPSK)modes,onlytheworstdataof(GFSK)is attachedinthefollowingpages. TestPlots GFSKDH12441MHz ReportNo.:NCT20238156E Page53of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn GFSKDH32441MHz GFSKDH52441MHz ReportNo.:NCT20238156E Page54of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 13100kHzBandwidthofFrequencyBandEdgeRequirement 13.1TestStandardandLimit TestStandard FCCPart15CSection15.247(d) TestLimit inany100kHzbandwidthoutsidethefrequencybandsinwhichthe spreadspectrumintentionalradiatorinoperating,theradiofrequency powerthatisproducedbytheintentionalradiatorshallbeatleast20dB belowthatinthe100kHzbandwidthwithinthebandthatcontainsthe highestlevelofthedesiredpower,Inaddition,radiatedemissionswhich fallintherestrictedbands,asdefinedin§15.205(a),mustalsocomply withtheradiatedemissionlimitsspecifiedin15.209(a). 13.2TestSetup 13.3TestProcedure TheEUTmusthaveitshopping/Non-hoppingfunctionenabled.Usingthefollowingspectrum analyzersetting: 1.SettheRBW=100kHz. 2.SettheVBW=300kHz. 3.Sweeptime=autocouple. 4.Detectorfunction=peak. 5.Tracemode=maxhold. 6.Allowtracetofullystabilize. ReportNo.:NCT20238156E Page55of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 13.4TestData GFSKmode: Lowestchannel Middlechannel ReportNo.:NCT20238156E Page56of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn Highestchannel ReportNo.:NCT20238156E Page57of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn π/4-DQPSKmode: Lowestchannel Middlechannel ReportNo.:NCT20238156E Page58of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn Highestchannel ReportNo.:NCT20238156E Page59of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 8-DPSKmode: Lowestchannel Middlechannel ReportNo.:NCT20238156E Page60of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn Highestchannel ReportNo.:NCT20238156E Page61of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn GFSKNo-hoppingBandedge-leftside GFSKHoppingBandedge-leftside ReportNo.:NCT20238156E Page62of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn GFSKNo-hoppingBandedge-rightside GFSKHoppingBandedge-rightside ReportNo.:NCT20238156E Page63of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn π/4-DQPSKNo-hoppingBandedge-leftside π/4-DQPSKHoppingBandedge-leftside ReportNo.:NCT20238156E Page64of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn π/4-DQPSKNo-hoppingBandedge-rightside π/4-DQPSKHoppingBandedge-rightside ReportNo.:NCT20238156E Page65of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 8-DPSKNo-hoppingBandedge-leftside 8-DPSKHoppingBandedge-leftside ReportNo.:NCT20238156E Page66of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 8-DPSKNo-hoppingBandedge-rightside 8-DPSKHoppingBandedge-rightside ReportNo.:NCT20238156E Page67of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 14AntennaRequirement 14.1TestStandardandRequirement TestStandard FCCPart15Section15.203/247(c) Requirement 1)15.203requirement: Anintentionalradiatorshallbedesignedtoensurethatnoantennaotherthan thatfurnishedbytheresponsiblepartyshallbeusedwiththedevice.The useofapermanentlyattachedantennaorofanantennathatusesaunique couplingtotheintentionalradiator,themanufacturermaydesigntheunitso thatabrokenantennacanbereplacedbytheuser,buttheuseofastandard antennajackorelectricalconnectorisprohibited. 2)15.247(c)(1)(i)requirement: Systemsoperatinginthe2400-2483.5MHzbandthatisusedexclusivelyfor fixed.Point-to-pointoperationsmayemploytransmittingantennaswith directionalgaingreaterthan6dBiprovidedthemaximumconductedoutput poweroftheintentionalradiatorisreducedby1dBforevery3dBthatthe directionalgainoftheantennaexceeds6dBi. 14.2AntennaConnectedConstruction TheantennaisChipAntennawhichpermanentlyattached,andthebestcasegainoftheantenna is1.24dBi.Itcomplieswiththestandardrequirement. ReportNo.:NCT20238156E Page68of68 Hotline:400-8868-419Fax:86-755-27790922http://www.ncttesting.cn 15TESTSETUP&EUTPHOTOGRAPH Pleaseseetheattachmentfordetails. ----------------EndofReport---------------
