STANDARD 5.0T Data sheet Document information SEEKLANE or third parties may hold intellectual property rights in the products, names, logos and designs included in this document. Copying, reproduction, modification or disclosure to third parties of this document or any part thereof is only permitted with the express written permission of SEEKLANE The information contained herein is provided “as is” and SEEKLANE assumes no liability for its use. No warranty, either express or implied, is given, including but not limited to, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by SEEKLANE at any time without notice. For the most recent documents, visit www.seeklane.com. Copyright © GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD. Title STANDARD 5.0T Subtitle Wireless Locator Document type Data sheet Revision and date V1.0 20-Feb-2023 STANDARD 5.0T Data sheet specifications STANDARD 5.0T Data sheet V1.0 2 Directory 1 Product Overview ...................................................................................................................................................................... 3 2 Hardware parameters............................................................................................................................................................... 3 3 Order Type ................................................................................................................................................................................... 4 4 Contact us .................................................................................................................................................................................... 5 STANDARD 5.0T Data sheet specifications STANDARD 5.0T Data sheet V1.0 3 1 Product Overview STANDARD 5.0T is a Wireless Locator based on low power Bluetooth chip launched by GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD., which is powered by two ER14250 batteries and can be used for up to 5 years. STANDARD 5.0T can broadcast UUID, Major, Minor, RSSI, battery power, name, MAC address and other information, where UUID, Major, Minor, name can be set through the mobile phone APP. STANDARD 5.0T broadcast distance can reach 80 meters, using 3M glue can be easily installed and fixed. STANDARD 5.0T firmware is non-connect type. Non-connect type can only connect and change parameters within 30 seconds of Bluetooth beacon power on. STANDARD 5.0T default model without temperature and humidity sensor and acceleration sensor, if necessary, please contact our sales. Product Photos 2 Hardware parameters Hardware parameters Model STANDARD 5.0T Antenna PCB antenna Battery ER14250 of lithium batteries 2*1200 mAh STANDARD 5.0T Data sheet specifications STANDARD 5.0T Data sheet V1.0 4 Voltage 3.6 V Dimensions (D×H) 53.86*24.93 mm Wireless performance Wireless standards Bluetooth ®5.0 Frequency range 2400MHz---2483.5MHz Data rate 1Mbps Modulation mode GFSK Modulation Encryption AES HW Encryption Transmission power Tx Power -20to +4 dBm in 4dB Steps Receiving sensitivity 93 dBm at 1Mbps BLE Work model Peripheral Other Environment Working temperature :-40°C~85°C Storage temperature :-40°C~85°C Working humidity :10~90 Non-condensing per cent Storage humidity :5~90 Non-condensing Temperature and humidity indicators (for Bluetooth beacons with temperature and humidity sensors) Measurement accuracy of humidity ±1.5% RH Humidity measurement resolution 0.01% RH Temperature measurement accuracy ±0.1°C (in the range of 20-60°C) Temperature measurement resolution 0.015°C Temperature measurement range -40~125 °C 3 Order Type STANDARD 5.0TP STANDARD 5.0 STANDARD 5.0 STANDARD 5.0T Data sheet specifications STANDARD 5.0T Data sheet V1.0 5 4 Contact us GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD Address : Room 2206 ,Science Building,Nansha Information Technology Park, NO.2 Huanshi South Avenue,Nansha Distict,Guangzhou,Guangdong,China Tel :0086-020-36665463 Mailbox:[email protected] Website: https://www.seeklane.com/ STANDARD 5.0T Data sheet specifications STANDARD 5.0T Data sheet V1.0 6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction. 7 Version History Version Number Date Ch…

Text truncated - open the document above for the full version.

GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD Room 2206, Science Building, Nansha Information Technology Park, NO.2 Huanshi South Avenue, Nansha District, Guangzhou, Guangdong, China Date: 02/23/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A96A-STANDARD50T US Agent – Attestation Statement / Part 2.911(d)(7) GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD certifies, that as of 02/23/2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2A96A-STANDARD50T. GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD , accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD for FCC ID: 2A96A-STANDARD50T. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD Designated Agent: FCC US Agent, LLC Company Representative: Shuyi Feng Designated Agent Representative: Tim Payne Signature: Signature:

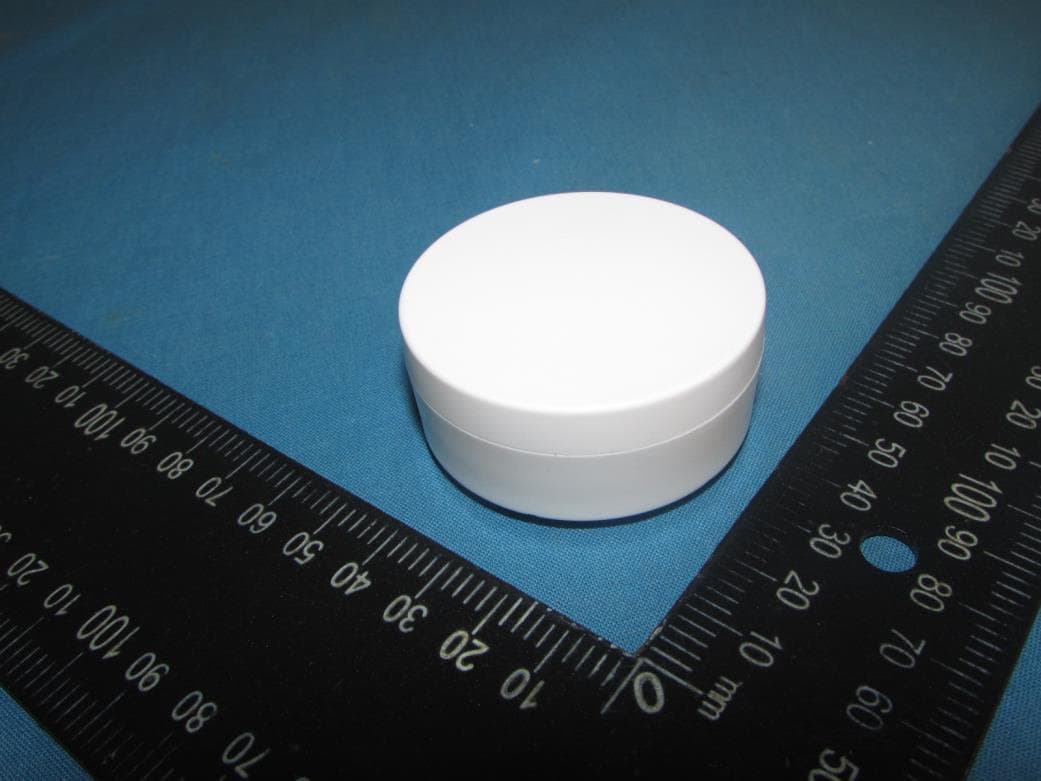

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 1 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2

Label Location: FCC ID: 2A96A-STANDARD50T

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 Fig.7 Fig.8 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 Fig.9

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is 0dBi (Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 3.21 19 2440 5.1 39 2480 2.57 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 3.0 5.0 2.5 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 4.0 4.0 2.51 10 2440 6.0 6.0 3.98 10 2480 3.5 3.5 2.24 10 The antenna gain of the EUT for BT is 0dBi (Max). The Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

天线规格书 Antenna Specific 制造商(Manufacturer) ： GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD 地址(address) ： Room 2206, Science Building, Nansha Information Technology Park, NO.2 Huanshi South Avenue, Nansha District, Guangzhou, Guangdong, China 产品种类：PCB Antenna Product Type: PCB Antenna 产品技术指标(Technical parameter) Electronic Parameter 频率范围(Frequency Range) 2400~2500MHz 输入阻抗(input impedance) 50Ω 驻波比(VSWR) ≤2 增益(Gain) Max 0.0dBi Physical Parameter 材料(Material) PCB/Cu 工作温度(operation temperature) -30°C~+80°C 储存温度(store temperature) -30°C~+80°C 产品规格图(Antenna Specification chart) Test Result: Frequency Gain.dBi Frequency Efficiency 2400MHz -0.31 2400MHz 28% 2450MHz 0.0 2450MHz 31% 2500MHz -0.71 2500MHz 36% Direction: Smith Chart: VSWR:

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: Wireless Locator Trade Mark: SEEKLANE Test Model: Standard5.0T FCC ID: 2A96A-STANDARD50T Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.668 2401.668 2402.336 0.5 PASS 2440 0.716 2439.640 2440.356 0.5 PASS 2480 0.664 2479.660 2480.324 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0372 2401.4892 2402.5264 --- --- 2440 1.0447 2439.4877 2440.5324 --- --- 2480 1.0468 2479.4831 2480.5299 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 3.21 ≤30 PASS 2440 5.1 ≤30 PASS 2480 2.57 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -11.72 ≤8.00 PASS 2440 -9.76 ≤8.00 PASS 2480 -12.52 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 2.62 -50.3 ≤-17.38 PASS High 2480 1.93 -49.99 ≤-18.07 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 2.22 2.22 --- PASS 30~1000 2.22 -62.58 ≤-17.78 PASS 1000~26500 2.22 -52 ≤-17.78 PASS 2440 Reference 4.48 4.48 --- PASS 30~1000 4.48 -61.95 ≤-15.52 PASS 1000~26500 4.48 -51.9 ≤-15.52 PASS 2480 Reference 1.70 1.70 --- PASS 30~1000 1.70 -61.59 ≤-18.3 PASS 1000~26500 1.70 -51.71 ≤-18.3 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.38 0.62 61.29 2.63 2440 0.38 0.63 60.32 2.63 2480 0.38 0.63 60.32 2.63 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 16 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -49.41 ≤-41.20 PASS AV 2372.555 -48.64 ≤-41.20 PASS AV 2390.000 -49.04 ≤-41.20 PASS Peak 2310.000 -42.8 ≤-21.20 PASS Peak 2325.410 -40.27 ≤-21.20 PASS Peak 2390.000 -44.17 ≤-21.20 PASS High 2480 AV 2483.500 -47.86 ≤-41.20 PASS AV 2483.520 -47.86 ≤-41.20 PASS AV 2500.000 -48.35 ≤-41.20 PASS Peak 2483.500 -42.33 ≤-21.20 PASS Peak 2498.320 -39.49 ≤-21.20 PASS Peak 2500.000 -41.62 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 18 of 19 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV BLE_1M_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T Report No.: TZ230204027-E Page 19 of 19

Report No.: TZ230204027-E Page 1 of 32 FCC TEST REPORT Test report On Behalf of GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD For Wireless Locator Model No.: Standard5.0T, Standard5.0, Standard5.0P, Standard5.0TP FCC ID: 2A96A-STANDARD50T Prepared for : GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD Room 2206, Science Building, Nansha Information Technology Park, NO.2 Huanshi South Avenue, Nansha District, Guangzhou, Guangdong, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/2/7~2023/2/14 Date of Report: 2023/2/15 Report Number: TZ230204027-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230204027-E Page 2 of 32 TEST RESULT CERTIFICATION Applicant’s name ................. : GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD Address .................................. : Room 2206, Science Building, Nansha Information Technology Park, NO.2 Huanshi South Avenue, Nansha District, Guangzhou, Guangdong, China Manufacture's Name ............ : GUANGZHOU MESH INFORMATION TECHNOLOGY CO.,LTD Address .................................. : Room 2206, Science Building, Nansha Information Technology Park, NO.2 Huanshi South Avenue, Nansha District, Guangzhou, Guangdong, China Product description Trade Mark: SEEKLANE Product name ........................... : Wireless Locator Model and/or type reference : Standard5.0T, Standard5.0, Standard5.0P, Standard5.0TP Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2023/2/7~ 2023/2/14 Date of Issue .......................................... : 2023/2/15 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230204027-E Page 3 of 32 Revision History Revision Issue Date Revisions Revised By 000 2023/2/15 Initial Issue Andy Zhang Report No.: TZ230204027-E Page 4 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ............................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A96A-STANDARD50T TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
