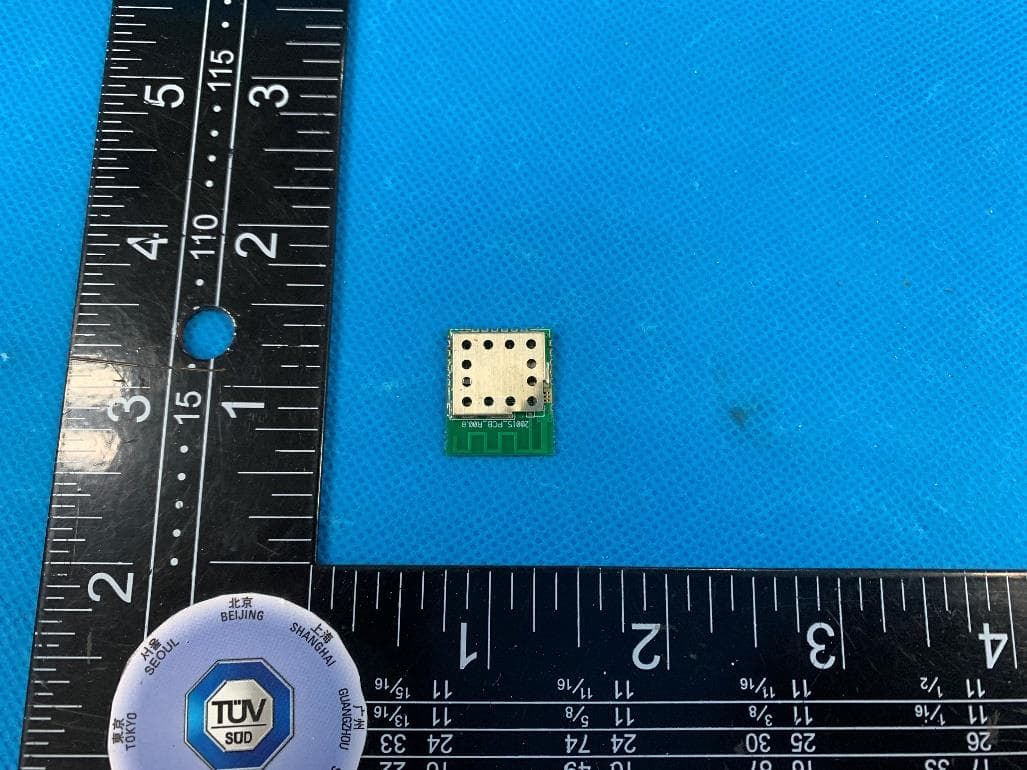

2A979GCC-BTM002SBluetooth module

USER MANUAL Rev: 00 Page 1 of 12 Product Bluetooth Module Model GCC-BTM002S Date of issue 2023-XX-XX Revision 00 Issued by Signature Date Reviewed by Signature Date Revision History Rev Date Change Description USER MANUAL Rev: 00 Page 2 of 12 Table of Contents 1. Introduction ................................................................................................................................................................ 3 1.1 Naming Declaration ............................................................................................................................................ 3 1.2 Block Diagram .................................................................................................................................................... 3 1.3 Features ............................................................................................................................................................. 5 1.4 Applications ........................................................................................................................................................ 5 2. General Specification ................................................................................................................................................. 5 3. Pin Configuration........................................................................................................................................................ 7 4. Pin Definition .............................................................................................................................................................. 8 5. Recommended Operating Conditions ........................................................................................................................ 11 6. Warning ................................................................................................................................................................... 12 USER MANUAL Rev: 00 Page 3 of 12 1. Introduction GCC-BTM002S is a Bluetooth low energy (BLE) module supporting BT5.0 (BLE only). This module makes it easy for customers to add Bluetooth low energy to their products. Customers can easily establish wireless connections with the module. It supports Bluetooth low energy (Bluetooth 5), ANT and 2.4GHz proprietary protocol stacks. 1.1 Naming Declaration New Naming Old Naming Description GCC-BTM002S No Module with antenna and shield. 1.2 Block Diagram Fig. 1. Module Block Diagram. USER MANUAL Rev: 00 Page 4 of 12 Fig. 2. Schematic Diagram. The GCC-BTM002S module integrates a 32-bit BLE MCU TLSR8251 , 24MHZ crystal, PCB antenna, Uart and some GPIOs. Fig. 3. TLSR8251 Block Diagram. USER MANUAL Rev: 00 Page 5 of 12 The TLSR8251 integrates a power-balanced 32-bit MCU, BLE/802.15.4/2.4GHz Radio, 32kB SRAM, 512kB internal Flash, 14bit ADC with PGA, analog and digital microphone input, stereo audio output, 6- channel PWM (1-channel IR/IR FIFO/IR DMA FIFO), one quadrature decoder (QDEC), abundant and flexible GPIO interfaces, and nearly all the peripherals needed for IoT (Internet of Things) and HID (Human Interface Devices) application development (e.g. Bluetooth Low Energy and IEEE 802.15.4). The TLSR8251 also includes multi-stage power management design allowing ultra-low power operation and making it the ideal candidate for wearable and power-constraint applications. With the high integration level of TLSR8251, few external components are needed to satisfy customers’ ultra- low cost requirements. 1.3 Features ● BT5. 0( BLE only) , up to 2Mbps ● -96dbm sensitivity, Tx power 10dBm ● Include ATT. GATT. SMP. L2CAP. GAP ● AES HW encryption with Easy DMa ● ANT, 2. 4GHz, ● 32bit mcu with 32KB RAM 512KB FLASH ● 14 bits Adc ● UART SPL2CQDEC. PDM ● SWD Debug interface ● Size 20mm x 16mm ● Operating temperature : -40°Cto+85°C 1.4 Applications Smart home: heating control and lighting control Health sensors: blood pressure, thermometer and glucose meters Sports and fitness sensors: heart rate, runner speed and cadence, cycle speed and cadence HID Devices: keyboards, mice, touchpads, remote controls 2. General Specification Bluetooth Specification Standard Bluetooth 5.0 (1Mbps only) Protocols Supported ATT. GATT. SMP. L2CAP. GAP. etc Frequency Band Antenna 2.402GHz~2.480GHz PCB antenna (1.87dbi) High System Clock 24MHZ Interface a UART PIO. SPAIO. 2S. PDM.ADC USER MANUAL Rev: 00 Page 6 of 12 Sensitivity -96dBm RF TX Power 10 dBm Power Power Supply Voltage 1.7~3.6VDC Deep Sleep current 0. 3uA in system off mode Operating Environment -40~85°C Temperature Dimension GCC-BTM002S 20mm×16mm Weight GCC-BTM002S 50g USER MANUAL Rev: 00 Page 7 of 12 3. TLSR8251 Pin Configuration Fig. 4. Pin Configuration. USER MANUAL Rev: 00 Page 8 of 12 4. TLSR8251 Pin Definition USER MANUAL Rev: 00 Page 9 of 12 USER MANUAL Rev: 00 Page 10 of 12 5. Module Placement Recommendations Fig. 5. Module Mounting Options USER MANUAL Rev: 00 Page 11 of 12 6. Effect of Metals Nearby Another significant source of issues for RF is the presence of metal near the antenna. Metal also produces an effect on the electric field and change the radiation pattern or create nulls where no signal is received. Any nearby metal may affect the antenna significantly and reduce the range. It’s therefore critical to keep any metal way at least 30mm from the module. Your design should place any metal as far away as possible Fig. 6. Keep Any Metal Away At Least 30mm From The Module 7. Recommended Operating Conditions The operating conditions are the physical parameters that the chip can operate within Symbol Parameter Min Nom Max Unit VDD Supply voltage independent of DCDC enable 1.7 3 3.6 V t(R_VDD) Supply rise time (ov to 1.7V) 60 ms TA Operating temperature -40 25 85 °C USER MANUAL Rev: 00 Page 12 of 12 8. Model Information 9. Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harm…
