2A97PT30Tablet PC

Shenzhen Atongmu Technology Co., Ltd All rights reserved. User Manual (Android) ZDK Tablet PC Made in China Bet on yourself Iphone-5G ZDK Amazon Stor e This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

Sincerely, Name/Title： QIANXI SHU/Operations Director Company: Shenzhen Atongmu Technology Co., LTD Address: Room 605,Office A Dong, Qiaohongsheng Wenhua Chuangyiyuan, Shenzhen Shi,Guangdong Phone: 18390045996 Fax: N/A E-Mail: [email protected]

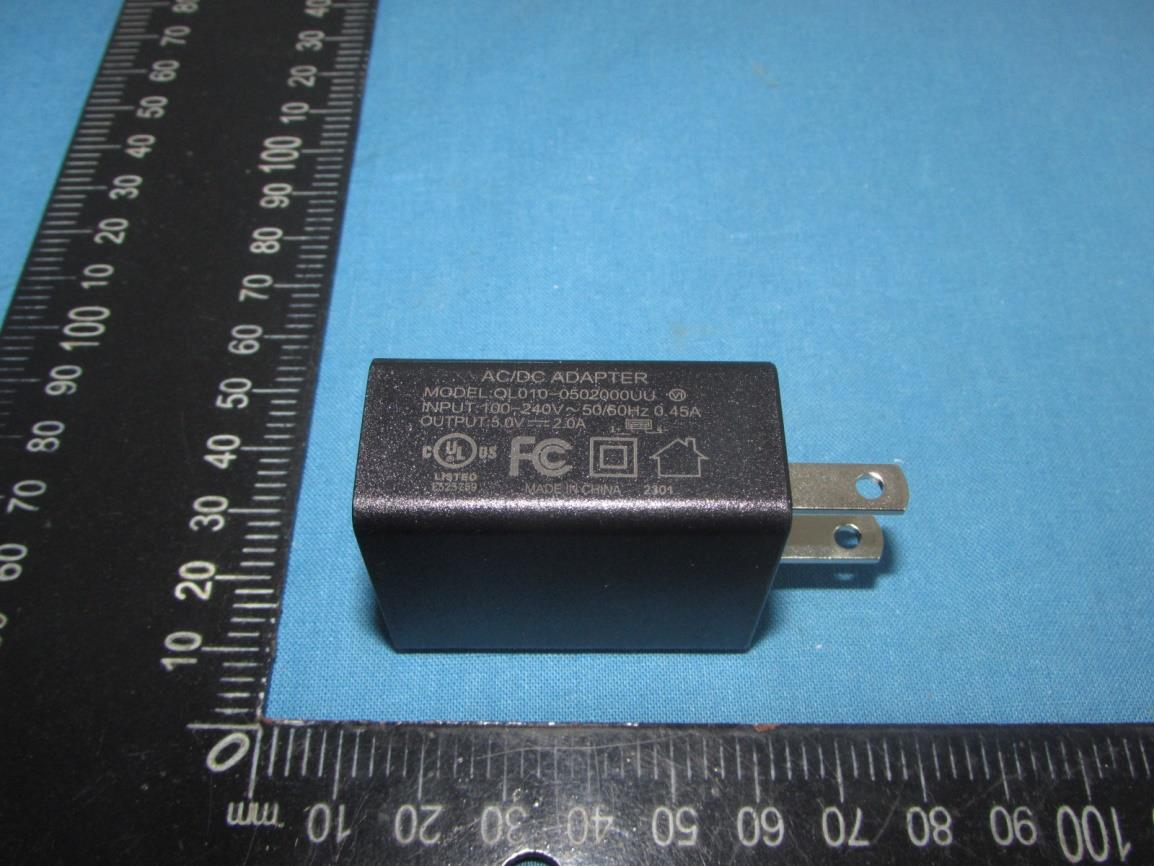

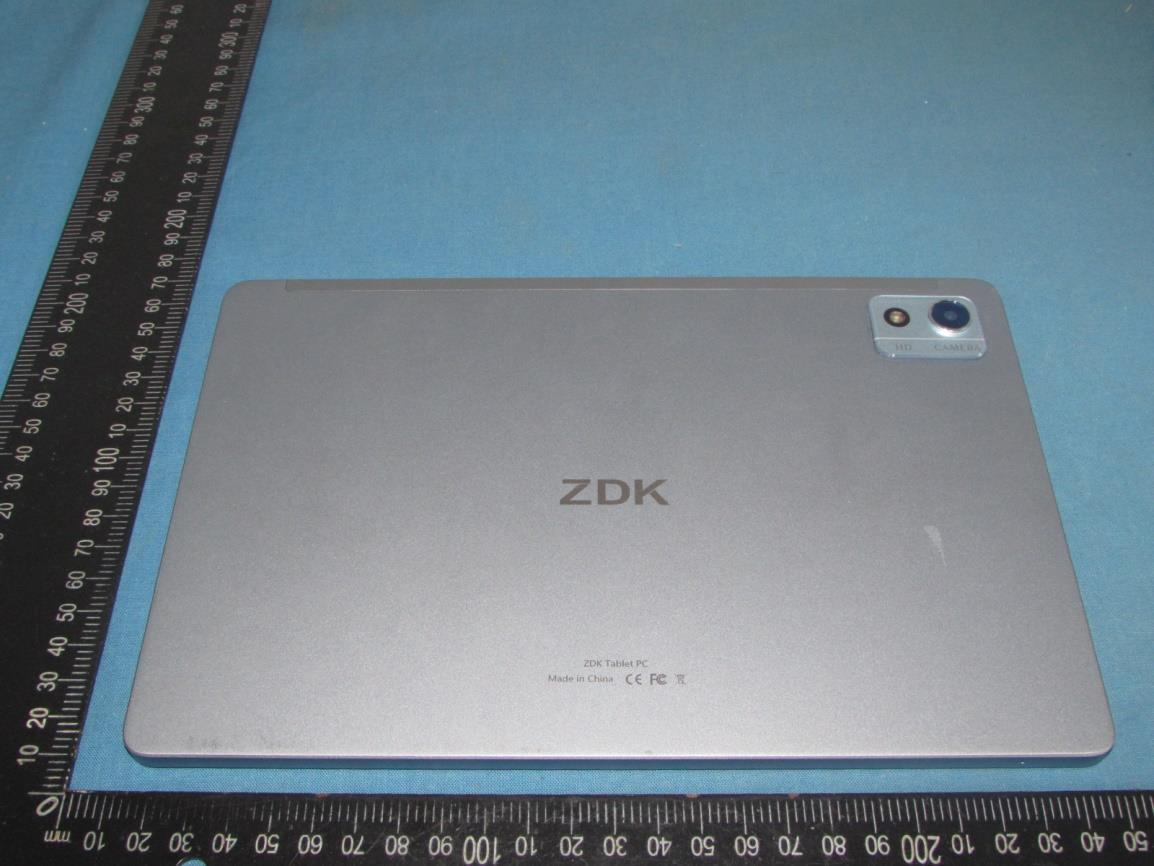

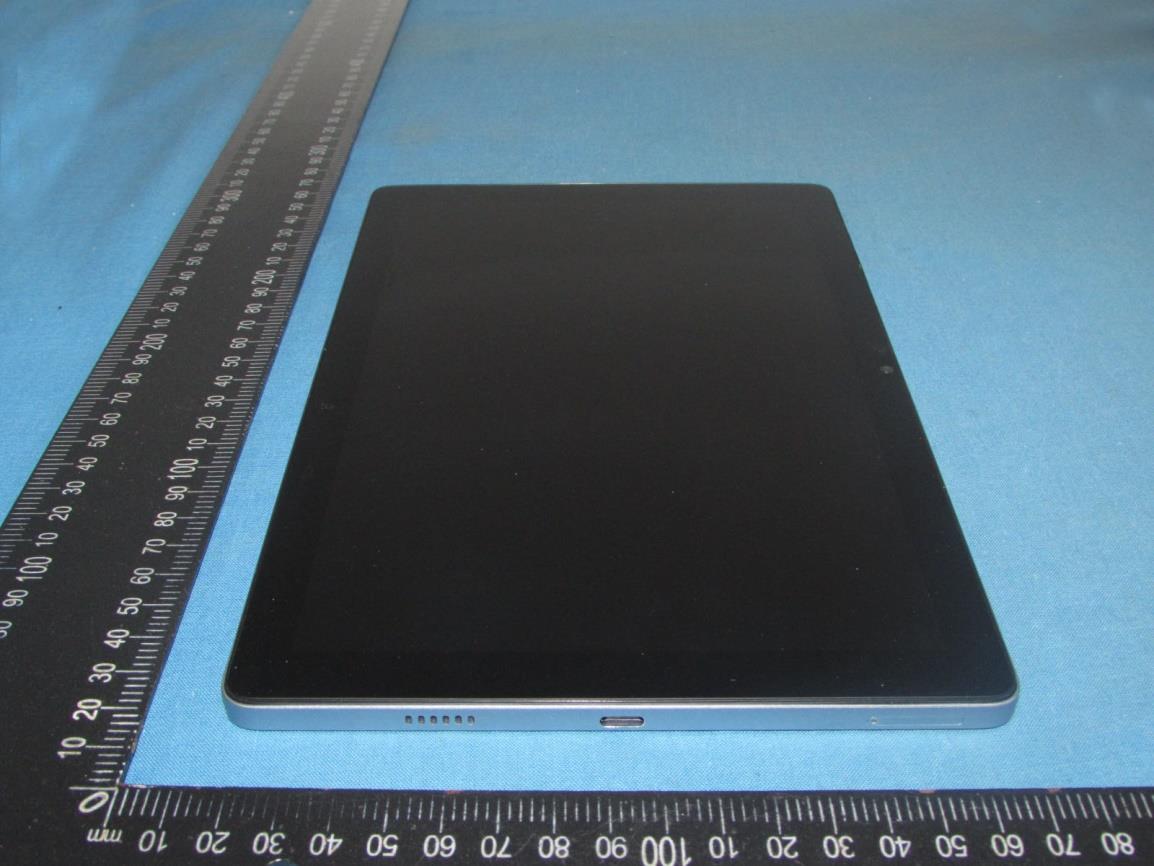

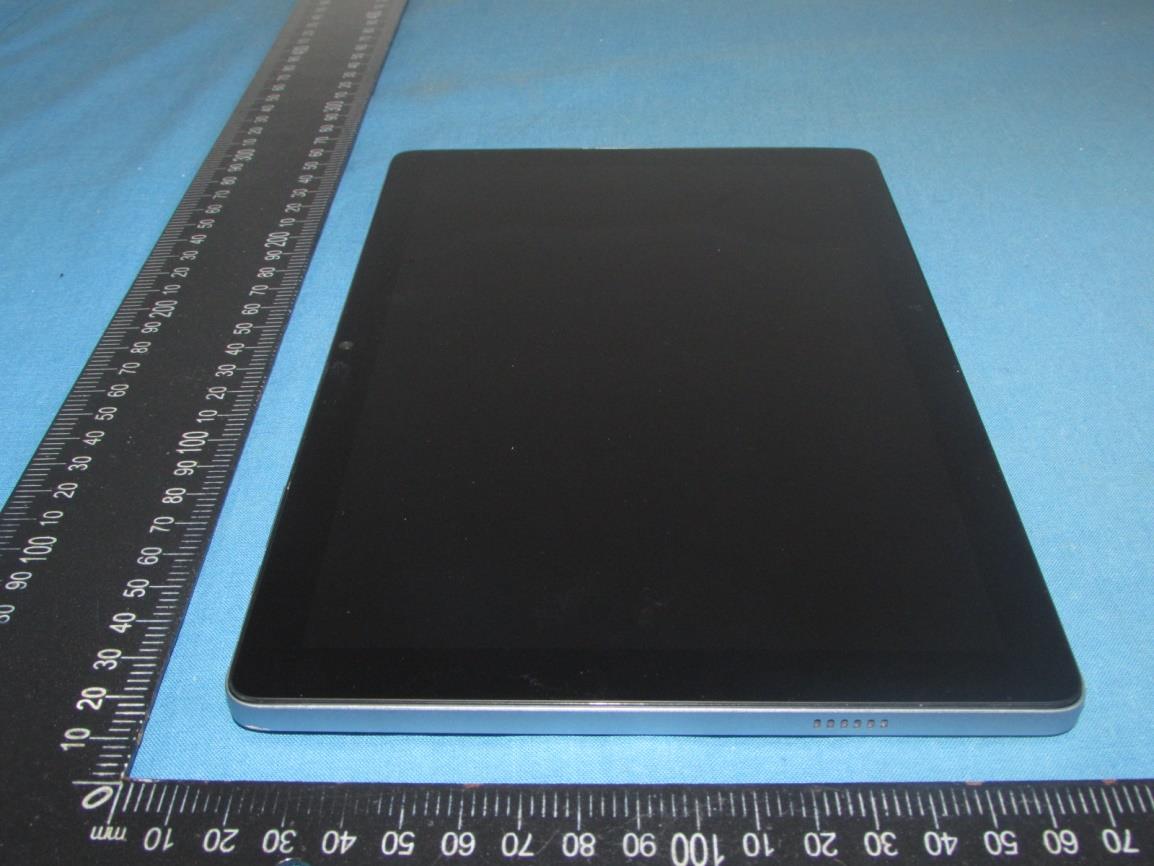

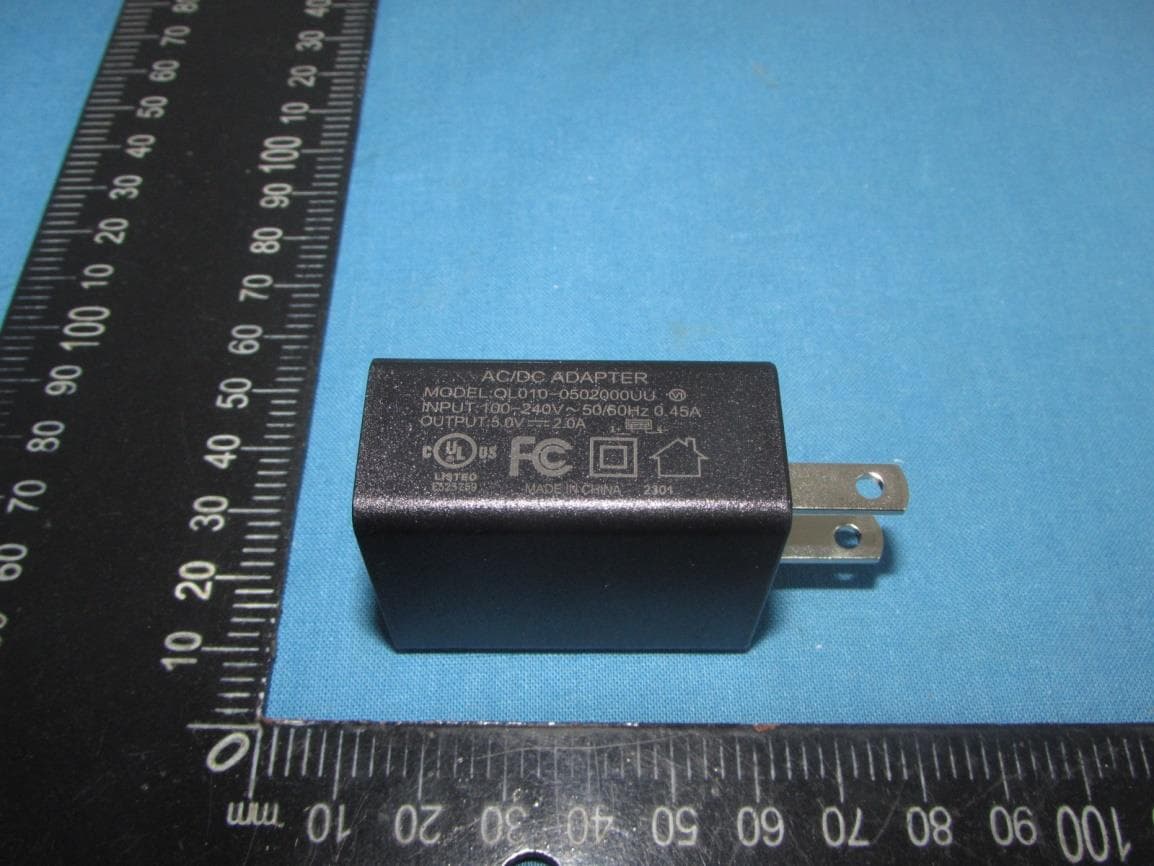

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 4 of 4

Label Location:

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Internal Photos WiFi & Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 8 Maximum Permissible Exposure Report Product Information EUT : Tablet PC Model Number : T30,T30A,T30B Model Declaration : All the same except for the model name Test Model : T30 Power Supply : DC 5V by adapter Hardware version : MT8183 Software version : Android 12 Sample ID : TZ230204035–2#&TZ230204035–4# Bluetooth Bluetooth Version : V5.0 Operation Frenquency : 2402- 2480 MHz Channel Number : 79 Channels for Bluetooth BR/EDR(DSS) 40 Channels for BLE (DTS) Modulation Technology : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth BR/EDR (DSS) GFSK for BLE (DTS) Data Rates : Bluetooth BR/EDR (DSS): 1/2/3Mbps BLE (DTS): 1Mbps Antenna Type And Gain : Internal Antenna 1: 2.16dBi WiFi WLAN : Supported IEEE 802.11a/b/g/n/ac WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz / 5180-5240MHz / 5745-5825MHz IEEE 802.11n HT40: 2422-2452MHz / 5190-5230MHz / 5755-5795MHz IEEE 802.11a: 5180-5240MHz / 5745-5825MHz IEEE 802.11ac VHT20: 5180-5240MHz / 5745-5825MHz IEEE 802.11ac VHT40: 5190-5230MHz / 5755-5795MHz IEEE 802.11ac VHT80: 5210MHz / 5775MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n HT20) 7 Channels for 2422-2452MHz(IEEE 802.11n HT40) 4 Channels for 5180-5240MHz (IEEE 802.11a/ac VHT20/n HT20) 2 Channels for 5190-5230MHz (IEEE 802.11ac VHT40/n HT40) 1 Channels for 5210MHz (IEEE 802.11ac VHT80) 5 Channels for 5745-5825MHz(IEEE 802.11a/ac VHT20/n HT20) 2 Channels for 5755-5795MHz(IEEE 802.11ac VHT40/n HT40) 1 Channels for 5775MHz(IEEE 802.11ac VHT80) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11a: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11ac: OFDM (256QAM, 64QAM, 16QAM, QPSK, BPSK) Antenna Type And Gain : 2.16dBi (Max.), for TX/RX (WLAN 2.4G Band) 2.1dBi (Max.), for TX/RX (WLAN 5.2G Band) 2.27dBi (Max.), for TX/RX (WLAN 5.8G Band) Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 8 Note 1: Antenna position refer to EUT Photos. Note 2: the above information was supplied by the applicant. 1. RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 8 Conducted Power 2.4G Band: Bluetooth(BDR+EDR) TestMode Antenna Channel Result[dBm] DH5 Ant1 2402 6.29 2441 6.98 2480 6.62 2DH5 Ant1 2402 5.94 2441 7.12 2480 6.16 3DH5 Ant1 2402 6.69 2441 6.62 2480 6.19 Bluetooth(BLE) TestMode Antenna Channel Result[dBm] BLE_1M Ant1 2402 3.21 2440 5.11 2480 2.52 WiFi 2.4GHz Band TestMode Antenna Channel Result[dBm] 11B Ant1 2412 6.86 2437 7.19 2462 6.83 11G Ant1 2412 6.26 2437 6.82 2462 6.52 11N20SISO Ant1 2412 6.13 2437 6.68 2462 6.50 11N40SISO Ant1 2422 6.90 2437 6.57 2452 6.09 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 8 5G Band UNII-1 Band TestMode Antenna Channel Result[dBm] 11A Ant1 5180 5.66 5200 5.55 5240 5.41 11N20SISO Ant1 5180 5.45 5200 5.44 5240 5.20 11N40SISO Ant1 5190 5.18 5230 5.57 11AC20SISO Ant1 5180 5.64 5200 5.44 5240 5.25 11AC40SISO Ant1 5190 5.22 5230 5.65 11AC80SISO Ant1 5210 5.51 UNII-3 Band TestMode Antenna Channel Result[dBm] 11A Ant1 5745 4.64 5785 4.76 5825 4.48 11N20SISO Ant1 5745 4.48 5785 4.65 5825 4.31 11N40SISO Ant1 5755 4.36 5795 3.87 11AC20SISO Ant1 5745 4.42 5785 4.65 5825 4.34 11AC40SISO Ant1 5755 4.33 5795 3.84 11AC80SISO Ant1 5775 4.28 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 8 Manufacturing Tolerance Bluetooth(BDR+EDR) GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 6.0 6.5 6.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4-DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 5.5 6.5 5.5 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 6.0 6.0 5.5 Tolerance ±(dB) 1.0 1.0 1.0 Bluetooth(BLE) GFSK(1Mbps) (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.5 4.5 2.0 Tolerance ±(dB) 1.0 1.0 1.0 WiFi 2.4GHz Band – Antenna 1 IEEE 802.11b(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 6.5 6.5 6.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 6.0 6.5 6.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Average) Channel Channel 1 Channel 6 Channel 11 T…

Text truncated - open the document above for the full version.

深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 公司 地址：深圳市宝安区福永镇重庆路新福工业园B5栋4 楼电话:0755-27211658传真:0755-29485750 承认书 SPECIFICATIONFOR APPROVAL 审批/ Approval客户批准/CustomerApproval 制作 PreparedBy 审核 CheckedBy 批准 ApprovalBy 审核 CheckedBy 批准 ApprovalBy 签章 Signature 李瑶娜符学荣陈华明 日期 Date 2023.02.012023.02.012023.02.01 修订履历/ChangeLog 版本 Version 修订内容 ChangeDescription 责任人 Personin Charge 核准 ApprovalBy 日期 Date 客户名称 CustomerName 普耐尔 客户项目名Customer ProjectName T30A 顺达成项目名 SDC ProjectName T30A 客户编码 CustomerP/N 顺达成料号 SDCP/N WG4174B-0814R-25 频段 Band WiFi2.4G/5G/GPS/BT 版本号 Version A0 设计人信息/DesignerInformation 射频工程师 RF Engineer 杨永辉 研发主管 R&D Diretor 符学荣 结构工程师 ME Engineer 李瑶娜 Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao'an District, Shenzhen Tel: 0755-27211658 Fax: 0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 公司 地址：深圳市宝安区福永镇重庆路新福工业园B5栋4 楼电话:0755-27211658传真:0755-29485750 目录/Catalogue 序号 No. 项目 Item 页码 PageNo. 1 图纸或实物图片 Drawingor ProductImage 4 2 尺寸测量报告 DimensionsTestReport 5 3 射频性能测试报告 RF PerformanceTestReport 6-9 4 可靠性测试报告 ReliabilityTestReport1 10 5 包装文件 PackageDocument 11 6 环境有害物质管控一览表 RoHSControllistfor Sample 12 7 安装事宜或其它 Install Wizard or Other 12 Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao'an District, Shenzhen Tel: 0755-27211658 Fax: 0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 公司 地址：深圳市宝安区福永镇重庆路新福工业园B5栋4 楼电话:0755-27211658传真:0755-29485750 产品图纸或实物图片 Drawingor ProductImage 李瑶娜 WG4174B-0814R-25 T30A X.X ±0.5 X.XX ±0.2 XXX. ±10.0 XX. ±5.0 X. ±2.0 1 SDC T30A WG 手撕位 32.57±0.2 20.16±0.2 2 5 ± 2     25 11 注： 60mm 以内的线材，若无客户要求 则默认端子头朝下 Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao'an District, Shenzhen Tel: 0755-27211658 Fax: 0755-29485750 深圳市顺达成科技有限公司 SHUNDACHENGTECHNOLOGYCO.,LTD 公司地址：深圳市宝安区福永镇重庆路新福工业园B5栋4楼电话:0755-27211658传真:0755-29485750 样品尺寸测量报告 SampleDimensionsTestReport 测试日期 TestDate 2023.02.01 样品数量 SampleQty. 3 测试人 Inspector 许燕芳 尺寸编号 DimensionNo. 标准 Standard 样品1 Sample1 样品2 Sample2 样品3 Sample3 Pass/NG ①长度32.57±0.2mm32.5732.6732.67 Pass ②宽度20.16±0.2mm20.1620.2620.16 Pass ③厚度0.1±0.05mm0.10.10.1 Pass ④线长25±2mm252626 Pass ⑤ ⑥ ⑦ 最终结论 Conclusion PASS 测试人&日期 Inspector&Date 许燕芳2023.02.01 批准&日期 Approval&Date 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 公司 地址：深圳市宝安区福永镇重庆路新福工业园B5栋4 楼电话:0755-27211658传真:0755-29485750 射频性能测量报告 RF PerformanceTestReport 天线测试设备简介 AntennaTestEquipmentIntroduction 测试天线输入特性使用AgilentE5071CandAgilent5062A矢量网络分析仪；辐射特性利 用广屏三维近场暗室进行测试，并分别使用8960E5515和 AgilentE4438C进行了分析。暗房的测 试坐标如下: Testof antennainputcharacteristicsusingAgilentE5071C and Agilent5062Avectornetwork analyzer;The radiationpatternof the antennaare testedusingthe guangping3D nearfieldAnechoicChamber, and the instrumentis usedto agilent8960E5515and AgilentE4438C. The testcoordinatesof the darkroom areas follows: 1.S11参数测量/S11Parameter-VSWR 使用一根50 Ω同轴电缆连接到天线，然后该电缆连接到网络分析仪测量S11 参数，被测量产品远离金属至少 20 厘米。 MeasuringMethodis a 50Ωcoaxialcableis connectedto theantenna. Thenthiscableis connectedto a networkanalyzer to measuretheS11parameter,Keepingthisfixtureawayfrommetalat least20cm. S11 Parameter-VSWR Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao'an District, Shenzhen Tel: 0755-27211658 Fax: 0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 公司 地址：深圳市宝安区福永镇重庆路新福工业园B5栋4 楼电话:0755-27211658传真:0755-29485750 2.天线匹配网络/ AntennaMatchingNetwork Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao'an District, Shenzhen Tel: 0755-27211658 Fax: 0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 公司 地址：深圳市宝安区福永镇重庆路新福工业园B5栋4 楼电话:0755-27211658传真:0755-29485750 3.Gain& Efficiency 4.WIFIOTAData Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao'an District, Shenzhen Tel: 0755-27211658 Fax: 0755-29485750 深圳市顺达成科技有限公司 SH UN DA CHENGTECHNOLOGYCO., LTD 公司 地址：深圳市宝安区福永镇重庆路新福工业园B5栋4 楼电话:0755-27211658传真:0755-29485750 5.GPS实测图 Address: 4th Floor, Building B5, Xinfu Industrial Park, Chongqing Road, Fuyong Town, Bao'an District, Shenzhen Tel: 0755-27211658 Fax: 0755-29485750 GPS RESULT

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: Tablet PC Trade Mark: Test Model: T30 FCC ID: 2A97PT30 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engneer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.672 2401.672 2402.344 0.5 PASS 2440 0.684 2439.660 2440.344 0.5 PASS 2480 0.712 2479.636 2480.348 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0435 2401.4865 2402.5300 --- --- 2440 1.0429 2439.4870 2440.5299 --- --- 2480 1.0494 2479.4821 2480.5315 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 3.21 ≤30 PASS 2440 5.11 ≤30 PASS 2480 2.52 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -11.78 ≤8.00 PASS 2440 -9.96 ≤8.00 PASS 2480 -12.39 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 2.58 -48.69 ≤-17.42 PASS High 2480 1.89 -50.33 ≤-18.11 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 2.54 2.54 --- PASS 30~1000 2.54 -62.4 ≤-17.46 PASS 1000~26500 2.54 -52.36 ≤-17.46 PASS 2440 Reference 4.43 4.43 --- PASS 30~1000 4.43 -61.99 ≤-15.57 PASS 1000~26500 4.43 -51.95 ≤-15.57 PASS 2480 Reference 1.71 1.71 --- PASS 30~1000 1.71 -61.9 ≤-18.29 PASS 1000~26500 1.71 -51.29 ≤-18.29 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.38 0.63 60.32 2.63 2440 0.38 0.62 61.29 2.63 2480 0.38 0.63 60.32 2.63 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 16 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -49.45 ≤-41.20 PASS AV 2387.990 -48.45 ≤-41.20 PASS AV 2390.000 -49.01 ≤-41.20 PASS Peak 2310.000 -43.52 ≤-21.20 PASS Peak 2339.900 -39.72 ≤-21.20 PASS Peak 2390.000 -43.26 ≤-21.20 PASS High 2480 AV 2483.500 -47.64 ≤-41.20 PASS AV 2483.520 -47.64 ≤-41.20 PASS AV 2500.000 -47.81 ≤-41.20 PASS Peak 2483.500 -42.45 ≤-21.20 PASS Peak 2498.480 -39.43 ≤-21.20 PASS Peak 2500.000 -41.2 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 18 of 19 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV BLE_1M_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E2 Page 19 of 19

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 1 of 38 Appendix Test Data for WLAN(2.4G) (Conducted Measurement) Product Name: Tablet PC Trade Mark: Test Model: T30 FCC ID: 2A97PT30 Environmental Conditions Temperature: #Temp. Relative Humidity: #Humidity ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.080 2407.960 2416.040 0.5 PASS 2437 8.080 2433.000 2441.080 0.5 PASS 2462 8.560 2457.960 2466.520 0.5 PASS 11G Ant1 2412 15.960 2403.840 2419.800 0.5 PASS 2437 15.440 2429.720 2445.160 0.5 PASS 2462 15.760 2454.440 2470.200 0.5 PASS 11N20SISO Ant1 2412 15.920 2403.640 2419.560 0.5 PASS 2437 15.840 2429.560 2445.400 0.5 PASS 2462 16.360 2454.480 2470.840 0.5 PASS 11N40SISO Ant1 2422 35.360 2404.480 2439.840 0.5 PASS 2437 27.600 2421.960 2449.560 0.5 PASS 2452 21.280 2434.480 2455.760 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 2 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 3 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 4 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 5 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 6 of 38 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.133 2405.3696 2418.5026 --- --- 2437 12.682 2430.8445 2443.5265 --- --- 2462 13.602 2455.4837 2469.0857 --- --- 11G Ant1 2412 17.034 2403.3873 2420.4213 --- --- 2437 16.599 2428.8111 2445.4101 --- --- 2462 17.292 2453.5619 2470.8539 --- --- 11N20SISO Ant1 2412 17.895 2403.0362 2420.9312 --- --- 2437 17.575 2428.3231 2445.8981 --- --- 2462 18.171 2453.1202 2471.2912 --- --- 11N40SISO Ant1 2422 36.611 2403.9115 2440.5225 --- --- 2437 35.275 2419.2982 2454.5732 --- --- 2452 36.445 2433.8477 2470.2927 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 7 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 8 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 9 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 10 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 11 of 38 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 6.86 ≤30.00 PASS 2437 7.19 ≤30.00 PASS 2462 6.83 ≤30.00 PASS 11G Ant1 2412 6.26 ≤30.00 PASS 2437 6.82 ≤30.00 PASS 2462 6.52 ≤30.00 PASS 11N20SISO Ant1 2412 6.13 ≤30.00 PASS 2437 6.68 ≤30.00 PASS 2462 6.50 ≤30.00 PASS 11N40SISO Ant1 2422 6.90 ≤30.00 PASS 2437 6.57 ≤30.00 PASS 2452 6.09 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 12 of 38 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -21.55 ≤8.00 PASS 2437 -21.17 ≤8.00 PASS 2462 -21.71 ≤8.00 PASS 11G Ant1 2412 -25.89 ≤8.00 PASS 2437 -23.83 ≤8.00 PASS 2462 -24.88 ≤8.00 PASS 11N20SISO Ant1 2412 -24.66 ≤8.00 PASS 2437 -24.17 ≤8.00 PASS 2462 -24.98 ≤8.00 PASS 11N40SISO Ant1 2422 -26.71 ≤8.00 PASS 2437 -25.85 ≤8.00 PASS 2452 -26.01 ≤8.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 13 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 14 of 38 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 15 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 16 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 17 of 38 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 -2.61 -49.7 ≤-32.61 PASS High 2462 -2.61 -49.87 ≤-32.61 PASS 11G Ant1 Low 2412 -3.88 -44.52 ≤-33.88 PASS High 2462 -4.04 -49.52 ≤-34.04 PASS 11N20SISO Ant1 Low 2412 -4.31 -44.6 ≤-34.31 PASS High 2462 -3.65 -49.89 ≤-33.65 PASS 11N40SISO Ant1 Low 2422 -6.58 -44.03 ≤-36.58 PASS High 2452 -5.22 -49.54 ≤-35.22 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 18 of 38 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 19 of 38 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 20 of 38 11N40SISO_Ant1_High_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2A97PT30 Report No.: TZ230204035-E3 Page 21 of 38 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -2.75 -2.75 --- PASS 30~1000 -2.75 -61.49 ≤-32.75 PASS 1000~26500 -2.75 -52…

Text truncated - open the document above for the full version.

Report No.: TZ230204035-E2 Page 1 of 34 FCC TEST REPORT Test report On Behalf of Shenzhen Atongmu Technology Co., LTD For Tablet PC Model No.: T30,T30A,T30B FCC ID: 2A97PT30 Prepared for : Shenzhen Atongmu Technology Co., LTD Room 605,Office A Dong,Qiaohongsheng Wenhua Chuangyiyuan,Yintian Gongyequ,Yantian Shequ,Xixiang Jiedao,Baoan Qu,Shenzhen Shi,Guangdong,China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: Feb.6, 2023~ Feb.20, 2023 Date of Report: Feb.21, 2023 Report Number: TZ230204035-E2 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230204035-E2 Page 2 of 34 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Atongmu Technology Co., LTD Address .................................. : Room 605,Office A Dong,Qiaohongsheng Wenhua Chuangyiyuan,Yintian Gongyequ,Yantian Shequ,Xixiang Jiedao,Baoan Qu,Shenzhen Shi,Guangdong,China Manufacture's Name ............ : Shenzhen Atongmu Technology Co., LTD Address .................................. : Room 605,Office A Dong,Qiaohongsheng Wenhua Chuangyiyuan,Yintian Gongyequ,Yantian Shequ,Xixiang Jiedao,Baoan Qu,Shenzhen Shi,Guangdong,China Product description Trade Mark: Product name ........................... : Tablet PC Model and/or type reference : T30,T30A,T30B Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : Feb.6, 2023~ Feb.20, 2023 Date of Issue .......................................... : Feb.21, 2023 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230204035-E2 Page 3 of 34 Revision History Revision Issue Date Revisions Revised By 000 Feb.21, 2023 Initial Issue Andy Zhang Report No.: TZ230204035-E2 Page 4 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2 EUT CONFIGURATION .......................................................................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.8. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...............…
