2A9A8-FB20221001Cell Phone Signal Booster

NEED HELP ? Fiber Optical Cell Signal Booster Installation Guide FOBOOST [email protected] 3-year manufacturer‘s warranty CATALOG Package Contents Master Unit and Remote Unit Placement STEP 1: Power Up The Booster & Optimize The System Safety Guidelines Specifications Warranty Mount Outside Antenna STEP 2: Preparation Route & Connect Outside Antenna To Master Unit STEP 3 : Route & Connect Inside Antenna To Remote Unit STEP 3 : STEP 4: Measuring Booster Performance 1 2 13 15 16 17 4 7 8 10 3 STEP 5: 12 Connect Master Unit To Remote Unit Package Contents 1 Master Unit (MU) Remote Unit (RU) 10ft Fiber Optic Jumper (×2) 100ft Fiber Optic Cable Power Supply (×2) Outside Omni Antenna Inside Panel Antenna 30ft LMR240 cable (×2) Lighting Surge Protector Protection box (×2) Pole Mount Bracket Wall Mount Bracket Preparation You Will Need (tools not included) Make sure the following materials are prepared and ready for your installation. NOTE: Please find the most optimal location for the Inside and Outside Antenna before permanently fixing it. 1 to 2 hours 2 people 2 pLadder pDrill (if routing cable through wall) p1”-3” diameter existing pole for mounting Outdoor Antenna (Pole Mount can be purchased separately if needed) pRecommended: Power Strip with surge protection Step 1: Master Unit and Remote Unit Placement Choose right position for the Master Unit and Remote Unit •1 feet away from any other metallic objects •3 feet away from any windows •The distance between the Master Unit and the Remote Unit should be bigger than 100 feet. Because the length of fiber optic cable is 100ft. Place the Master Unit and Remote Unit in your desired location. NOTE: Do not connect booster to power until the system is fully installed. NOTE: Please find the most optimal location for Master Unit and Remote Unit before permanently fixing it. Pole mounting and wall mounting are included. Attach the Mount to the Outside Antenna and use the Bracket Clamps to attach the Antenna to a pole or exhaust pipe. Make sure that the outside unit is mounted at least 3 feet away from any windows. Outdoor antenna must be installed over the roof line. NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch out for power lines. Step 2: Mount Outside Antenna ① ②③ 4 Install the outside antenna in the corner of the building and face it towards nearest cell phone tower. To find the nearest tower, use an app such as 'Open Signal'. This is the most critical step of the installation process because it will determine the overall performance of the booster system. 5 Keep enough distance between outside and inside antenna NOTE: The Outside Antenna must be at least 60 feet ( 18 meters) horizontal distance or 30 feet ( 9 meters) vertical distance from the Inside Antenna for best performance. The greater the separation between the Inside and Outside Antennas, the better performance you will get from the booster. 6 Step 3: Route & Connect Outside Antenna To Master Unit Connect the 30ft LMR240 cable to Outside Antenna and route cable into the home, secure the cable near the antenna. All connections should be finger tightened only. Route cable to the MU and connect to the port labeled 'OUTSIDE'. 7 Step 3: Route & Connect Inside Antenna To Remote Unit Connect the 30ft LMR240 cable to Inside Panel Antenna, and connect the other end of the cable to the 'INSIDE' port on the RU. 8 (STEP 3-A cont.) Fasten bracket to back of Inside Antenna Secure bracket to wall Drill holes Tap anchors in Mounting Inside Antenna on wall bracket sideview Wall Mounting Option Note: Choosing a location facing all over your home will help to maximize your coverage area. 9 Step 4: Connect Master Unit To Remote Unit Connect two 10ft Fiber Optic Jumpers to the ports labeled "FIBER OPTIC" on the MU and RU respectively. Insert the SC connector of the fiber optic jumper connecting the MU into the protective box. Snap the connector into one end of the protection box's SC-to-SC coupler. Insert the100ft fiber optic cable's SC connector into the opposite end of the protection box. Snap the connector into the other end of the SC-to-SC coupler. 10 Close the protection box, making sure both fiber-optic cables are threaded snuggly in the gaskets at the exit points. Repeat steps with the the fiber optic jumper connecting the RU. 11 Step 5: Power Up The Booster & Optimize The System Plug into the power supplys on MU and RU respectively, and connect them to the nearest power outlet. NOTE: We strongly recommend using a power strip with surge protection. 12 Measuring Booster Performance How To Get Signal Strength As A Number iPhone® Android™ iOS 11 and later no longer displays the decibel (dBm) reading in 'Field Test Mode'. Tip: Using the dot signal strength indicator on your cell phone can assist you in finding the strongest signal direction as well as placing calls in different locations. Settings > About Phone > Status or Network > Signal Strength or Network Type and Strength (exact options/wording depends on phone model). Android: download third part APP-LTE Discovery iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc. Dial *3001#12345#* then press Call. 1 Hold down power button until you see 'Slide to Power Off'. 2 Then release the power button. 3 Hold the Home button until your main screen appears. If you want to check 3G/1x but your iPhone is picking up 4G/ LTE signal, go to Settings>Cellular>Cellular Data Options>En_x0002_able .LTE>Select Off. After you system is set up, you can go back to the dots signal by once again dialing *3001#12345#* then pressing call. When the menu comes back up, tap “phone” in the top left corner of your phone. iPhone® iOS 11 - current 13 DID YOU KNOW a signal increase of just 3dB is 2 times the power and signal amplification! (MEASURING BOOSTER PERFORMANCE cont.) Signal strength at 6 feet from inside antenna Note here: Signal strength at 6 feet from outside antenna Note here: Compare Results If the si…

Text truncated - open the document above for the full version.

ShenzhenLangshengHengchiTradingCo.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2022-11-30 Subject;RequestforConfidentiality FCCID:2A9A8-FB20221001 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:HengZhang Title:R&Dmanager

ShenzhenLangshengHengchiTradingCo.,LTD AgentAuthorization Company:ShenzhenLangshengHengchiTradingCo.,LTD Address:205,No.3,Phase1YangbeiIndustrialZoneHuangtianCommunity, HangchengStreet,BaoAn,Shenzhen,518128China ProductName:CellPhoneSignalBooster ModelNumber(s):FB20221001,FB20221002,FB20221003 ProductDescription:CellPhoneSignalBooster WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2022-11-30 Name:HengZhang Title:R&Dmanager Company:ShenzhenLangshengHengchiTradingCo.,LTD

ShenzhenLangshengHengchiTradingCo.,LTD 205,No.3,Phase1YangbeiIndustrialZoneHuangtianCommunity,Hangcheng Street,BaoAn,Shenzhen,518128China Statement Product:CellPhoneSignalBooster Model:FB20221001 AdditionalModel:FB20221002,FB20221003 Trademark:Fddiboost,Foboost WeherebystatethatAllmodelsaboveareidenticalininteriorstructure,electricalcircuitsand components,andjustmodelnamesandtrademarksaredifferentforthemarketingrequirement. Yourassistanceonthismatterishighlyappreciated. Yourssincerely, Signature: Date:2022/11/30 Name:HengZhang CompanyName:ShenzhenLangshengHengchiTradingCo.,LTD Address:205,No.3,Phase1YangbeiIndustrialZoneHuangtianCommunity,HangchengStreet, BaoAn,Shenzhen,518128China Tel/Fax:+8613632532642 E-Mail:[email protected]

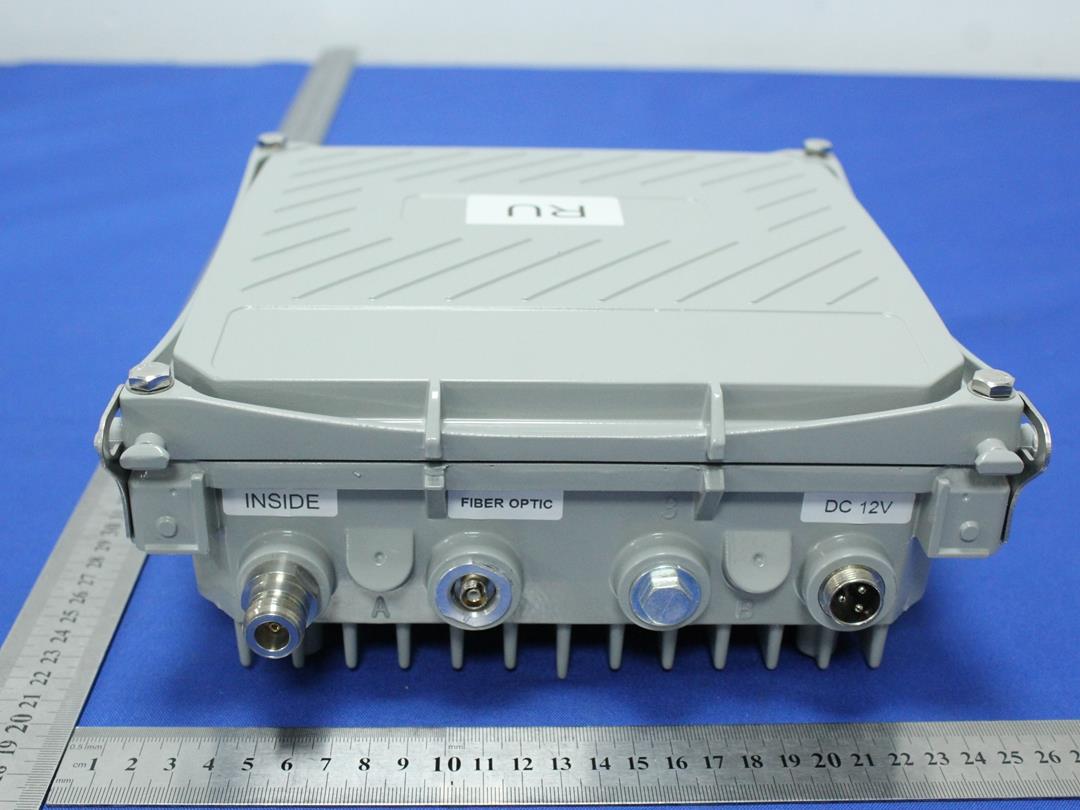

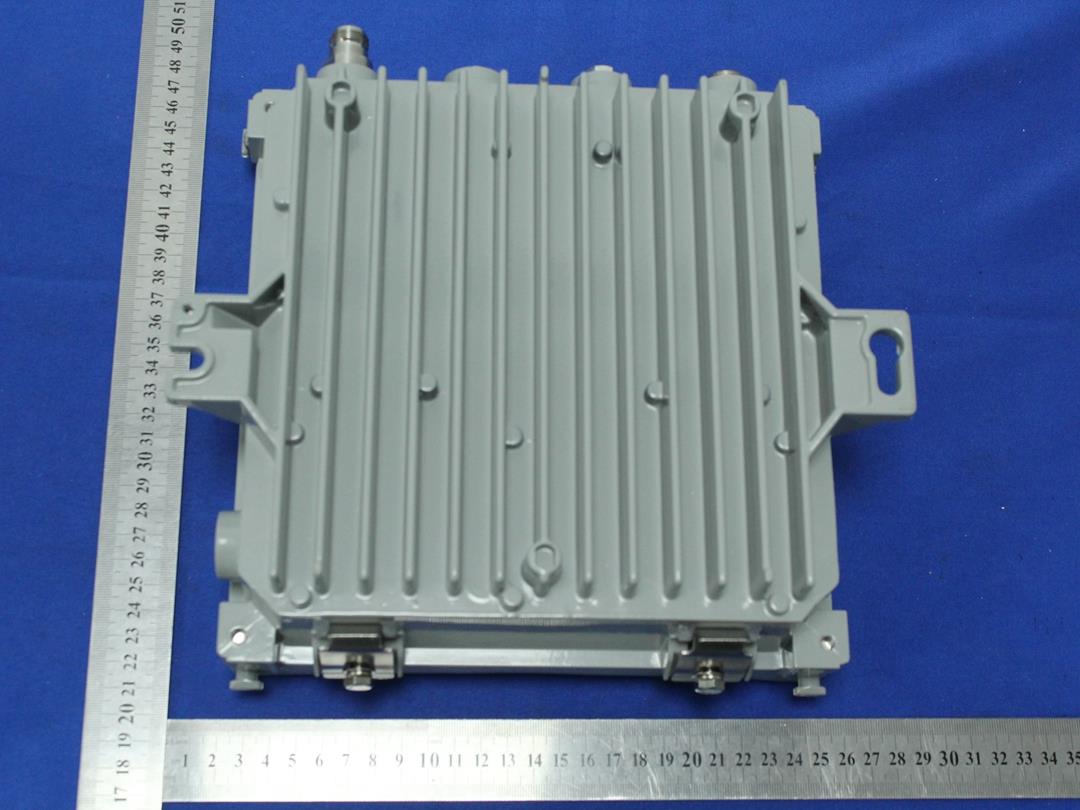

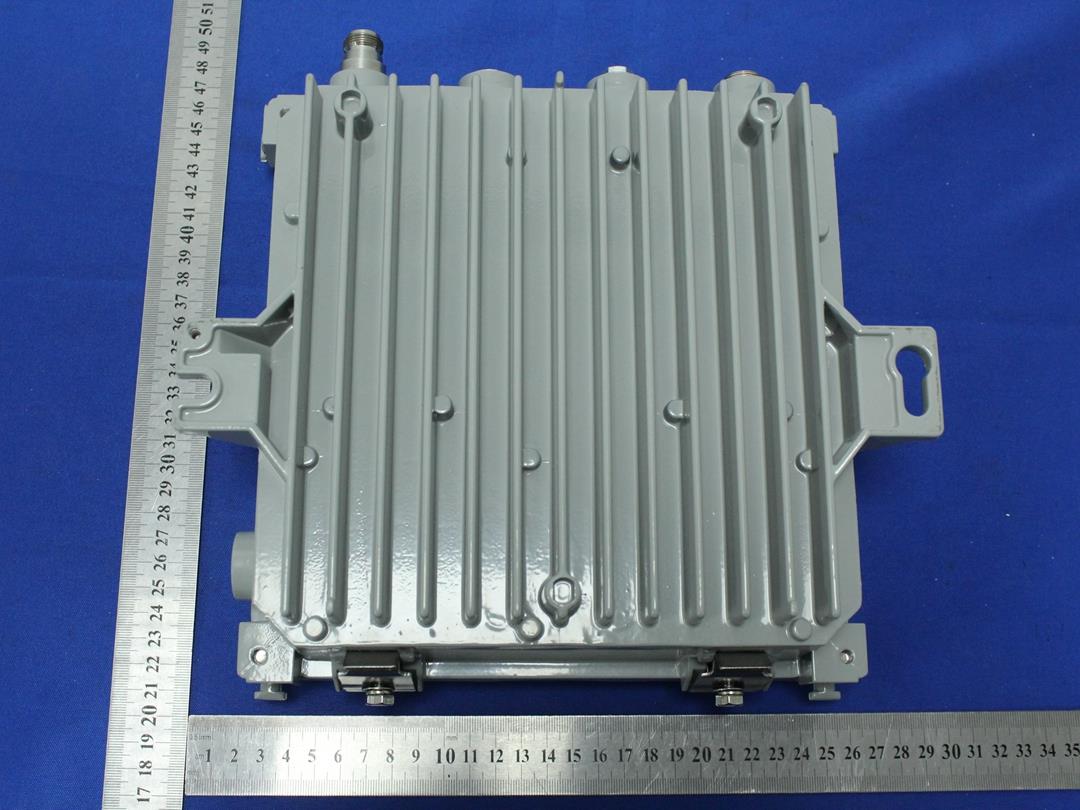

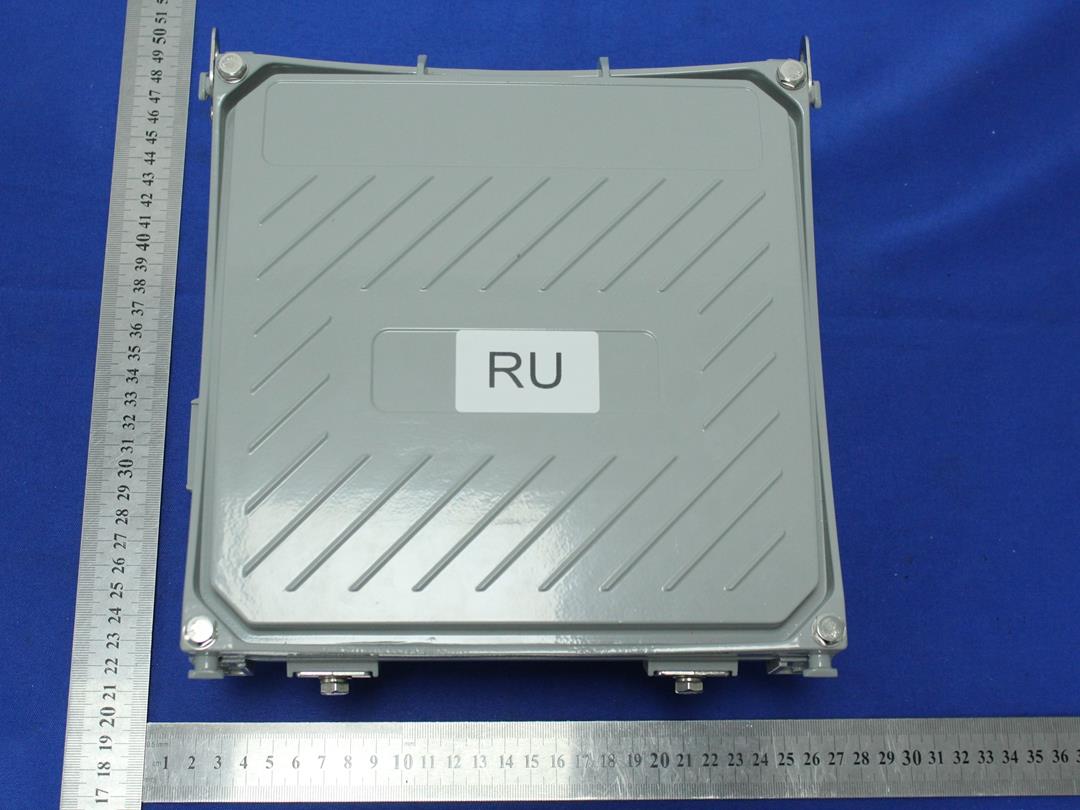

Page 1 of 8 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: FB20221001 External Photos Donor unit (MU) Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Sever unit (RU) Page 6 of 8 Page 7 of 8 Page 8 of 8

LabelArtworkandLocation Model:FB20221001,FB20221002,FB20221003 Label: Size:L*W=78*40mm Location

Page 1 of 10 Appendix B: Photographs of EUT Product: Cell Phone Signal Booster Model: FB20221001 Internal Photos Donor unit (MU) Page 2 of 10 Page 3 of 10 Page 4 of 10 Page 5 of 10 Page 6 of 10 Sever unit (RU) Page 7 of 10 Page 8 of 10 Page 9 of 10 Page 10 of 10

Maximum Permissible Exposure(MPE) Report 1. Applicable Standard FCC Part §1.1310 2. Requirements Limits For Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength(V/m) Magnetic field Strength(A/m) Power density (mw/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.0173 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 3. MPE Calculation Predication of MPE limit at a given distance S = Power density (In appropriate units, e.g., mW/cm 2 ) P = Power input to the antenna ( In appropriate units, e.g., mW) G = Power gain og the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, Is normally numeric gain R =Distance tp the center of radiation of the antenna(In appropriate units, e.g., cm 4. Test Result Results: PASS Operation Bands Frequency (MHz) Max. Output power(dBm) Cable loss (dB) Power to Antenna(mW) Antenna gain Isotropic Numeric UL1850-1915 1891.99 19.72 2.4 53.95 10 10.00 UL1710-1755 1738.98 20.89 2.2 73.96 10 10.00 UL824-869 831.78 21.04 1.7 85.90 9 7.94 UL698-716 711.75 19.85 1.5 68.39 9 7.94 UL776-787 781.18 20.84 1.6 83.95 9 7.94 DL1930-1995 1982.55 10.88 1.8 8.09 3.5 2.24 DL2110-2155 2123.01 10.56 1.9 7.35 3.5 2.24 DL869-894 881.65 5.87 1.35 2.83 3 2.00 DL728-746 735.43 11.91 1.3 11.51 3 2.00 DL746-757 748.50 7.42 1.3 4.09 3 2.00 Operation Bands Power (mW) Antenna gain(G) Measure Distance(cm) Power density (mW/cm 2) MPE limit (mW/cm 2) UL1850-1915 53.95 10.00 20 0.1073 1 UL1710-1755 73.96 10.00 20 0.1471 1 UL824-869 85.90 7.94 20 0.1357 0.55 UL698-716 68.39 7.94 20 0.1081 0.47 UL776-787 83.95 7.94 20 0.1327 0.52 DL1930-1995 8.09 2.24 20 0.0036 1 DL2110-2155 7.35 2.24 20 0.0033 1 DL869-894 2.83 2.00 20 0.0011 0.59 DL728-746 11.51 2.00 20 0.0046 0.49 DL746-757 4.09 2.00 20 0.0016 0.50

Antenna Kitting Information Component Type specification Gain/Loss Manufacturer LTE ‐ 707 LTE ‐ 781 800MHz 1900MHz 1700MHz\2100MHz Outside Cable RG6FF 30Feet 1.5dB 1.6dB 1.7dB 2.6dB 2.2dB\2.8dB Suirongcable Outside Cable SRLMR400 ‐ 75NN 1.7dB 1.7dB 1.8dB 2.4dB 2.3dB\2.6dB Suirongcable Outside Cable LMR240 30Feet 2dB 2.1dB 2.2dB 3.3dB 3.3\3.5 dB Suirongcable Inside Cable SRLMR400 ‐ 30NN 1.9dB 1.9dB 1.95dB 2.9dB 2.55dB\2.9dB Suirongcable Inside Cable RG6FF 45Feet 2.2dB 2.3dB 2.5 dB 3.8 dB 3.3 dB\4.2dB Suirongcable Inside Cable LMR240 30Feet 2dB 2.1dB 2.2dB 3.3dB 3.3\3.5 dB Suirongcable Inside Cable LMR240 90Feet 5.85dB 6.3 dB 6.75 dB 9.9 dB 9.9dB\10.35dB Suirongcable Inside Cable LMR240 60Feet 3.9dB 4.2dB 4.5dB 6.6dB 6.6 dB\6.9 dB Suirongcable Inside Cable LMR240 45Feet 2.9dB 3.15dB 3.38dB 4.87dB 4.87dB\5.2dB Suirongcable Inside Cable SRLMR400 ‐ 30NN 1.9dB 1.9dB 1.95dB 2.9dB 2.55dB\2.9dB Suirongcable Inside Cable SRG58 ‐ 30FN 30Feet 4.5dB 4.5dB 4.9dB 7.6dB 7.2dB\8dB Suirongcable Inside Cable SRLMR400 ‐ 20NN 1.3dB 1.3dB 1.35dB 1.8dB 1.8dB\1.9dB Suirongcable Inside Cable SRG58 ‐ 15FN 15Feet 2.35dB 2.4dB 2.56dB 3.9dB 3.7dB\ 4.1dB Suirongcable Inside Cable SRLMR400 ‐ 30NN 1.9dB 1.9dB 1.95dB 2.8dB 2.55dB\2.9dB Suirongcable Outside Antenna HYT050701 7dBi 7dBi 7dBi 10dBi 10dBi\10dBi Shenzhen Langsheng Hengchi Trading Co., LTD Outside Antenna HYT010901 9dBi 9dBi 9dBi 9dBi 9dBi Shenzhen Langsheng Hengchi Trading Co., LTD Outside Antenna HYT010701 9dBi 9dBi 9dBi 9dBi 9dBi Shenzhen Langsheng Hengchi Trading Co., LTD Outside Antenna HYT060302 3dBi 3dBi 3dBi 3.5dBi 3.5dBi\3.5dBi Shenzhen Langsheng Hengchi Trading Co., LTD Outside Antenna HYT030301 3dBi 3dBi 3dBi 3dBi 3dBi Shenzhen Langsheng Hengchi Trading Co., LTD Inside Antenna HYT060302 3dBi 3dBi 3dBi 3.5dBi 3.5dBi \ 3.5dBi Shenzhen Lan g shen g Hen g chi Tradin g Co. , LTD Inside Antenna HYT040301 3dBi 3dBi 3dBi 3dBi 3dBi Shenzhen Lan g shen g Hen g chi Tradin g Co., LTD Inside Antenna HYT080301 3dBi 3dBi 3dBi 3dBi 3dBi Shenzhen Langsheng Hengchi Trading Co., LTD Inside Antenna HYT080302 3dBi 3dBi 3dBi 3dBi 3dBi Shenzhen Langsheng Hengchi Trading Co., LTD Inside Antenna HYT080303 3dBi 3dBi 3dBi 3dBi 3dBi Shenzhen Langsheng Hengchi Trading Co., LTD Inside Antenna HYT060301 3dBi 3dBi 3dBi 3dBi 3dBi Shenzhen Langsheng Hengchi Trading Co., LTD Inside Antenna HYT060303 3dBi 3dBi 3dBi 3dBi 3dBi Shenzhen Langsheng Hengchi Trading Co., LTD Inside Antenna HYT070101 1dBi 1dBi 1dBi 1dBi 1dBi Shenzhen Langsheng Hengchi Trading Co., LTD Inside Antenna HYT21300100 3dBi 3dBi 3dBi 3.5dBi 3.5dBi\3.5dBi Shenzhen Lan g shen g Hen g chi Tradin g Co. , LTD Li g htnin g Protector ACC010101 0.1 dB 0.1 dB 0.1 dB 0.18dB 0.16dB \ 0.2dB Shenzhen Lan g shen g Hen g chi Tradin g Co. , LTD All equivalent antennas and cables are suitable for use with the Fddiboost or Foboost booster. Default combination: HYT050701 + LMR240 30Feet +FB20221001+ LMR240 30Feet+HYT080301 HYT050701 + LMR240 30Feet +FB20221002+ LMR240 30Feet+HYT080301 HYT050701 + LMR240 30Feet +FB20221003+ LMR240 30Feet+HYT080301

ShenzhenLangshengHengchiTradingCo.,LTD Nov.30,2022 Attestationforsignalbooster:FCCID: 2A9A8-FB20221001 EachSignalBoostercertificatedunderFCCID:2A9A8-FB20221001ismanufacturedand individuallytestedtoensureFCCcompliance: (1)LicenseeconsentforFixedconsumerboosterhasbeenobtained(consentbemadeavailable uponFCC/TCBrequest) (2)NPSandothercompliance/safeguardfeatureshavebeenimplemented (3)NPSandothercompliance/safeguardfeaturesaredefaultedto“ON”configuration(in operation) (4)NPSandothercompliance/safeguardfeaturescannotbefieldreconfigured,disabledor removed (5)ThisConsumerboosterisnotuserprogrammable,doesnotneedfinetuningoradjustment, doesnotrequireprofessionalinstallation. (6)Futuresoftwareupgradewillnotcausenon-compliance . Yourssincerely, HengZhang Signature:

ShenzhenLangshengHengchiTradingCo.,LTD Nov30,2022 Subject:TuningandAdjustmentofsignalbooster,FCCID:2A9A8-FB20221001 Therearenoexternaltuningadjustments,theamplifierisfactorysetnotexceedmaximumgains, powerlevels,anddownlinkdependentregion(RSSI)setpointsasprovidedinthetestresults. Yourssincerely, HengZhang Signature:

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2A9A8-FB20221001 Test Report No. ............... : TCT221028E001 Date of issue ................... : Nov. 29, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Shenzhen Langsheng Hengchi Trading Co., LTD Address ........................... : 205, No. 3, Phase 1 Yangbei Industrial Zone Huangtian Community, Hangcheng Street, BaoAn, Shenzhen, 518128 China Manufacturer's name ... : Shenzhen Langsheng Hengchi Trading Co., LTD Address ........................... : 205, No. 3, Phase 1 Yangbei Industrial Zone Huangtian Community, Hangcheng Street, BaoAn, Shenzhen, 518128 China Standard(s) ..................... : FCC CFR Title 47 Part 20.21 KDB935210 D03 Signal Booster Measurements v04r04 Product Name ................. : Cell Phone Signal Booster Trade Mark ...................... : Fddiboost, Foboost Model/Type reference..... : FB20221001, FB20221002, FB20221003 Rating(s).......................... : Adapter Information1/2: MODEL: AS024-1201500U INPUT: AC 100-240V, 50/60Hz, 0.8A OUTPUT: DC 12V, 1.5A Date of receipt of test item ......................................... : Oct. 28, 2022 Date (s) of performance of test ................................... : Oct. 28, 2022 ~ Nov. 29, 2022 Tested by (+signature) ... : Brews XU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT221028E001 Page 2 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test environment ................................................................................................... 5 3.2. Description of Support Units ................................................................................ 5 4. Facilities and Accreditations .................................................................. 6 4.1. Facilities ................................................................................................................. 6 4.2. Location ................................................................................................................. 6 4.3. Measurement Uncertainty ..................................................................................... 6 5. Test Results and Measurement Data ..................................................... 7 5.1. Authorized Frequency Band Verification ............................................................ 7 5.2. Maximum Power .................................................................................................. 15 5.3. Intermodulation Product ..................................................................................... 31 5.4. Out of Band Emission ......................................................................................... 43 5.5. Conducted Spurious Emission ........................................................................ 105 5.6. Noise Limits ....................................................................................................... 124 5.7. Uplink Inactivity ................................................................................................. 136 5.8. Variable Booster Gain ....................................................................................... 141 5.9. Occupied Bandwidth ......................................................................................... 148 5.10.Oscillation Detection and Mitigation ............................................................... 181 6. Radiation Spurious Emission ............................................................. 201 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT221028E001 Page 3 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Cell Phone Signal Booster Model/Type reference........... : FB20221001 Sample Number....................: TCT221028E001-0101 Operation Frequency ........... : PCS Uplink: 1850MHz - 1915MHz, Downlink: 1930MHz - 1995MHz AWS-1 Uplink: 1710MHz - 1755MHz, Downlink: 2110MHz - 2155MHz Cellular Uplink: 824MHz - 849MHz, Downlink: 869MHz - 894MHz Lower700MHz Uplink: 698MHz - 716MHz, Downlink: 728MHz - 746MHz Upper700MHz Uplink: 776MHz - 787MHz, Downlink: 746MHz - 757MHz Signal Booster Type ............. : Fixed Consumer Signal Booster Emission Designator ........... : F9W, G7D, G7W, GXW, W7D FCC Classification ............... : B2W/Wideband Consumer Booster(CMRS) Rating(s)................................ : Adapter Information1/2: MODEL: AS024-1201500U INPUT: AC 100-240V, 50/60Hz, 0.8A OUTPUT: DC 12V, 1.5A Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not r…

Text truncated - open the document above for the full version.

Report No.: TCT221028E001 Page 64 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com AWS-1 GSM DL Right Side Pre AGC AWS-1 GSM DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 65 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com AWS-1 CDMA DL Left Side Pre AGC AWS-1 CDMA DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 66 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com AWS-1 CDMA DL Right Side Pre AGC AWS-1 CDMA DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 67 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com AWS-1 LTE DL Left Side Pre AGC AWS-1 LTE DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 68 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com AWS-1 LTE DL Right Side Pre AGC AWS-1 LTE DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 69 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM UL Left Side Pre AGC Cellular GSM UL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 70 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM UL Right Side Pre AGC Cellular GSM UL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 71 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA UL Left Side Pre AGC Cellular CDMA UL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 72 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA UL Right Side Pre AGC Cellular CDMA UL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 73 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE UL Left Side Pre AGC Cellular LTE UL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 74 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE UL Right Side Pre AGC Cellular LTE UL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 75 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM DL Left Side Pre AGC Cellular GSM DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 76 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular GSM DL Right Side Pre AGC Cellular GSM DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 77 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA DL Left Side Pre AGC Cellular CDMA DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 78 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular CDMA DL Right Side Pre AGC Cellular CDMA DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 79 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE DL Left Side Pre AGC Cellular LTE DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 80 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Cellular LTE DL Right Side Pre AGC Cellular LTE DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 81 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM UL Left Side Pre AGC Lower700MHz GSM UL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 82 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM UL Right Side Pre AGC Lower700MHz GSM UL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 83 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA UL Left Side Pre AGC Lower700MHz CDMA UL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 84 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA UL Right Side Pre AGC Lower700MHz CDMA UL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 85 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE UL Left Side Pre AGC Lower700MHz LTE UL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 86 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE UL Right Side Pre AGC Lower700MHz LTE UL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 87 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM DL Left Side Pre AGC Lower700MHz GSM DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 88 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz GSM DL Right Side Pre AGC Lower700MHz GSM DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 89 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA DL Left Side Pre AGC Lower700MHz CDMA DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 90 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz CDMA DL Right Side Pre AGC Lower700MHz CDMA DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 91 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE DL Left Side Pre AGC Lower700MHz LTE DL Left Side Pre AGC+10dB Report No.: TCT221028E001 Page 92 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz LTE DL Right Side Pre AGC Lower700MHz LTE DL Right Side Pre AGC+10dB Report No.: TCT221028E001 Page 93 of 209 Hotline: 400-6611-140 Tel: 86-755-2767…

Text truncated - open the document above for the full version.

Report No.: TCT221028E001 Page 115 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221028E001 Page 116 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz Uplink Test Plots Report No.: TCT221028E001 Page 117 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Lower700MHz Downlink Report No.: TCT221028E001 Page 118 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221028E001 Page 119 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Upper700MHz Uplink Test Plots Report No.: TCT221028E001 Page 120 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 763～775MHz Report No.: TCT221028E001 Page 121 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 793～806MHz Upper700MHz Downlink Report No.: TCT221028E001 Page 122 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT221028E001 Page 123 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 763～775MHz 793～806MHz Report No.: TCT221028E001 Page 124 of 209 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5.6. Noise Limits 5.6.1. Test Specification Test Requirement: FCC Part20 Section 20.21(e)(8)(i)(A); 20.21(e)(8)(i)(H) Test Method: KDB935210 D03 Signal Booster Measurements v04r04 Limit: not exceed −103 dBm/MHz—RSSI. not exceed −102.5 dBm/MHz + 20 log (F), where Frequency is the uplink mid-band frequency of the supported spectrum bands in MHz. Test Setup: Test Procedure: a) Connect the EUT to the test equipment as shown in Figure 3. Begin with the uplink output (donor) port connected to the spectrum analyzer. When measuring downlink noise, connect the downlink output (server) port to the spectrum analyzer. b) Set the spectrum analyzer RBW to 1 MHz with the VBW ≥ 3 . RBW. c) Select the power averaging (rms) detector and trace average over at least 100 traces. d) Set the center frequency of the spectrum analyzer to the center of the CMRS band under test with the span ≥ 2 . the CMRS band. e) Measure the maximum transmitter noise power level. f) Save the spectrum analyzer Test Plots as necessary for inclusion in the final test report. g) Repeat 7.7b) to 7.7f) for all operational uplink and downlink bands. h) Connect the EUT to the test equipment as shown in Figure 4 for uplink noise power measurement in the presence a downlink signal. Affirm the coupled path of the RF coupler is connected to the spectrum analyzer. i) C…

Text truncated - open the document above for the full version.
