2A9AC810-00006Scanner, Pan and Tilt

Pan and Tilt Laser Scanner Warning: Warning content...... Product Name: Scanner, Pan and Tilt Trademark: BrightAI Apply for business name: BrightAI model : 810-00006 1. Overview Thank you for choosing our products! Please carefully read this product User Guide to ensure the quick to install and use this product. The Laser Scanner is a semi-automated device to accurately measure and digitally model swimming pools. This product is a custom, purpose-built opto-mechanical system that’s controlled by Latham Measure APP. 2. Components ①iPad ②Laser Scanner ③ AR Tags X 2 ④ Battery ⑤ USB-C cable ⑥ USB-C charger ⑦ Mount plate ⑧ Tripod ⑨ Screw mounting kit 3. Input DC15V ～3A 4. Wireless Wi-Fi: 5. Installation a) Level the Tripod b) Mount the Mount Plate on the Johnny5 Adjust the position of the Mount Plate until the four screw holes of the Mount Plate are aligned with the screw holes on theScanner, and then use the Screw mounting kit to attach it. c) Attach the Scanner with Mount Plate to the Tripod 2412-2462MHz 5180-5240MHz 5745-5825MHz Adjust the position of the scanner with Mount Plate until the center hole of the Mount Plate is aligned with the center hole of the Tripod. Insert the mounting screw of the tripod into the center hole of the scanner and tighten. d) Connect Scanner to the USB-C Cable e) Device Power There are two methods to power the Scanner:: using a 15V PD capable Battery or using a 15V PD capable USB-C Power Supply.. f) Follow the instructions in the Latham Measure app to control the Scanner. This device complies with Industry Canada RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique re?u, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems l'appareil destiné à fonctionner dans la bande 5150–5250 MHz est destiné uniquement à une utilisation en intérieur afin de réduire les risques de brouillage préjudiciable des systèmes mobiles par satellite à co-canal The distance between user and products should be no less than 20cm La distance entre l'utilisateur et les produits ne doit pas être inférieure à 20 cm Per FCC 15.407(c) and RSS-247 issue 2 clause 6.4a, the device will automatically discontinue transmission in case of either absence of information to transmit or operational failure.

BrightAI UNII Declaration Letter 2022-11-30 We have declared below featured for FCC equipment authorization, device FCC ID: 2A9AC810-00006 (1) Active / Passive Scanning, ad-hoc mode, access point capability: FrequencyBand (MHz) ActiveScanning (the devicecan transmita probe (beacon)) passivescanning (wherethe device is can listen only with no probes) Ad-HocMode capability Accesspoint capability 5180-5240Yes,NoYes,NoYes,NoYes,No 5745-5825Yes,NoYes,NoYes,NoYes,No If you have any questions,pleasefeel free to contactme at the addressshownbelow. Yourssincerely, Company:BrightAI Signature Full Name:Eric Feng

BrightAI LetterofAgency Date：Nov.14,2022 ElementMaterialsTechnology 100FrobisherBusinessPark Malvern Worcestershire WR141BX UK ToWhomItMayConcern: Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludesFCCbenefits, pursuanttoSection5301oftheAnti-DrugAbuseACTof1988,U.S.C.862.Further,noparty,as definedin47CFR1.2002(b),totheapplication,issubjecttodenialoffederalbenefits,that includesFCCbenefits. Thankyouforyourattentiontothismatter. Yoursfaithfully Signature EricFeng/Manager TypednameandTitle

BrightAI Date:Nov.14,2022 FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2A9AC810-00006 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName Schematics BlockDiagram OperationalDescription FCCSWSECURITYDESCRIPTIONletter Schematics.pdf BlockDiagram.pdf OperationalDescription.pdf FCCSWSECURITYDESCRIPTIONletter.pdf Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely, Signature EricFeng/Manager TypednameandTitle

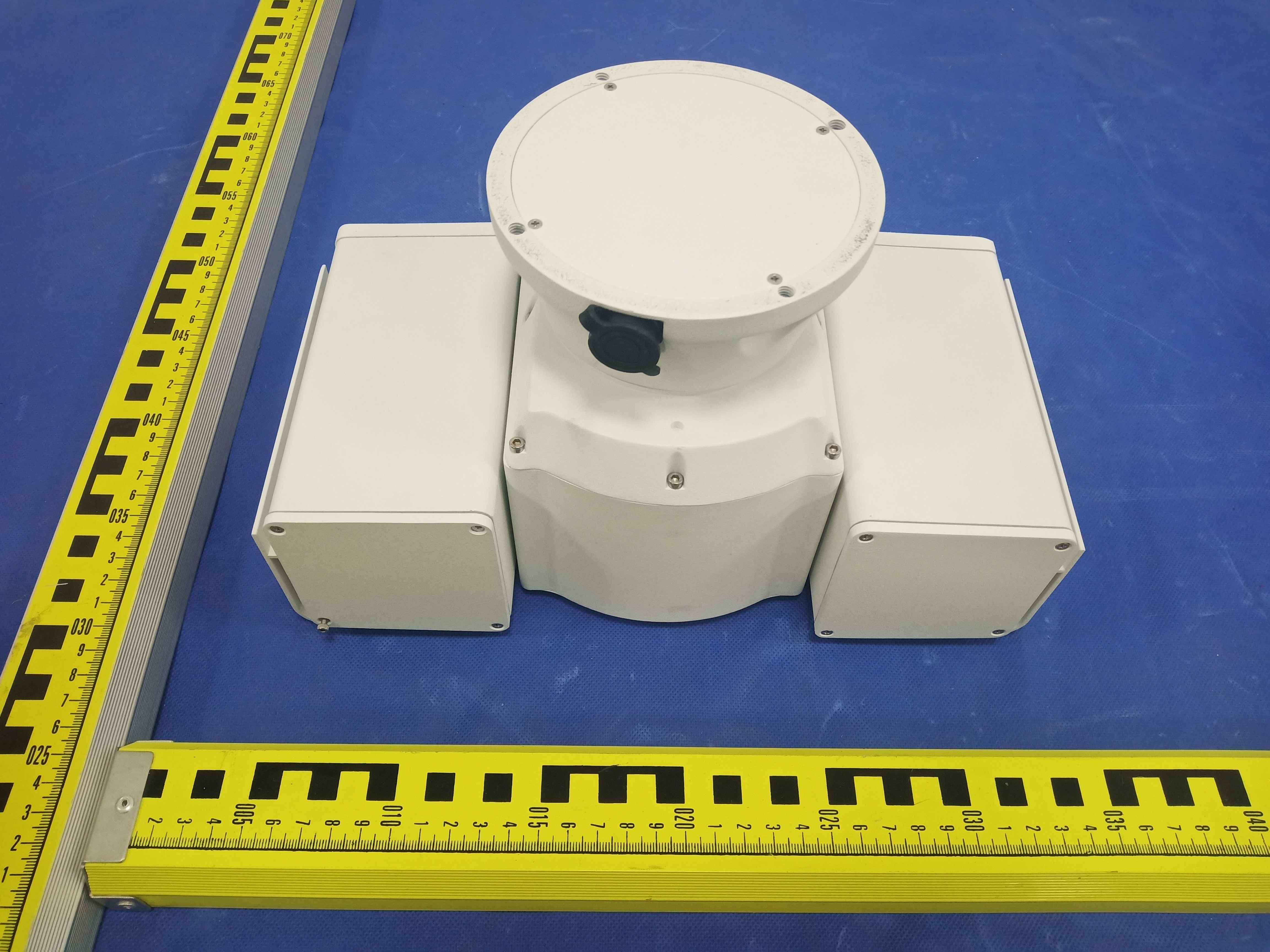

EUTPHOTO(ExternalPhotos)

Productname：Scanner,PanandTilt Models：810-00006 IC：29672-81000006 HVIN：810-00006 FCCID:2A9AC810-00006 Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)thisdevicemay notcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,includinginterference thatmaycauseundesiredoperation.

EUT PHOTO(Internal Photos) WIFI ANT 0 WIFI ANT 1 ※※※※※END OF REPORT※※※※※

R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] 深圳市天联凌科技有限公司 ShenzhenSKYLinkTechnologyCo.,Ltd 编号：SLSOA20221025CS01 客户名称：豪昇 项目名称： 产品描述： 客户料号： 我司料号：WF75B.C113.300B.4 板本：V1.0（第一次发行） 日期：2022-8-5 客户 工程采购承认 天联凌 研发工程审核 此承认书严禁修改 Antenna Product Specification FPC antenna welding wire diameter is 1.13MM black coaxial line, wire length is 300MM, fourth generation terminal, FPC black background white characters R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] SpecificationSummary A.ElectricalCharacteristics Frequency2400MHz~2500MHz 5150MHz~5850MHz VSWR<2.0 Efficiency>40% PeakGain2dbi Impedance50Ohm PolarizationLine B.Material&MechanicalCharacteristics MaterialofRadiatorCu CableType1.13MMBlack ConnectorType4 DimensionAtAttachment Heat-durability 280±5 ̊C，10sec. C.EnvironmentalCharacteristics OperationTemperature-20 ̊C~+80 ̊C StorageTemperature-30 ̊C~+85 ̊C R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] TestEquipment&Conditions 1．NetworkAnalyzers: Agilent8753D5071B CommunicationsTestSet: AgilentE5515CCMW500 2．3DChamberTestSystem A 0.03 0.02 0.04 0～10 ±0.05 10～18 ±0.10 18～30 ±0.12 ∅ 0.02 30～40 ±0.15 Remark Rev Date Third Angle New drawing Description 40～ ±0.20 1234 Approved by D C B 5678 A 12345678 Part No. Date Designed by Checked by Scale Rev mm Location Project Material Part Name Unit RF MD A Angle ±0.5° 1:1 D C B A 深 圳 天 联 凌 科 技 有 限 公 司 SHEN ZHEN SKYLink CO.,LTD RoHS P G Compliant DWG No. 2022-08-05 WIFI天线 WF75B.C113.300B.4 Remark Colour Material PartName No. 1 FPC 2 注： 1."*"为重点尺寸 ; 2.未标注尺寸请依图纸； 3.Pb、Hg、Cr+6、PBBs、PBDEs各项小于1000PPM，Cd小于100PPM。 WF75B 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 由 Autodesk 教育版产品制作 由 A u t o d e s k 教 育 版 产 品 制 作 Coaxial line Silver plated copper wire antenna black black R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] 匹配电路（matchingcircuit） L1/ L2/ L3/ L4/ 原主板匹配电路不变 模块端 天线端 L1 L2 L3 L4 R&DCenter：RoomD5 th FloorBuildingL,BlockE,71BaochengDistrict,BaoanDistrict,Shenzhen Factory：6Floor,GangHuaXingIndustrialPark,RongshuRoad2 nd ,Fuyong,Baoan,shenzhen Email:[email protected] ReliabilityTest TestItemTestconditionEquipmentSpecificationResult 1 LowTemp.Storage Test Temperature:-30°C，Time:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-down thetemp.to-30°Cinonehour,storeantennafor 44hours;step-uptempto25°C,testantennaafter 2hours. Temp.&Humi. Tester Nomaterial deformationis allowed. ElectronicPerformance isok. PASS 2 HighTemp./High Humid StorageTest Temperature:85°CHumidity:85%RHTime:48hrs Testcondition:PlacingantennainaLow/High TemperatureChamber,keepthetempis25°C andhumidityis65%foronehour,thenstep-upthe temp.to80°Candthehumidityupto85%inone hour,storeantennafor44hours;step-downtemp to25°C,testantennaafter2hours. Temp.&Humi. Tester Nomaterial deformationis allowed. ElectronicPerformance isok. PASS 3Salt-Spray6prayTest PlacingantennaintheSalt-SprayTester,setthe testcondition，Temp:35±2°CHumidity:85% NaClsaltspray:5±1%.PHvalue:6.5~7.2Test time:24hours Salt-SprayTester Nocolorchange Noappearrusting PASS

FCCID:2A9AC810-00006 RFExposureEvaluation Limits Thecriterialistedinthefollowingtableshallbeusedtoevaluatetheenvironmentimpactofhumanexposure toradiofrequency(RF)radiationasspecifiedin1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3–3.06141.63*(100)6 3.0–301842/f4.89/f*(900/f 2 )6 30–30061.40.1631.06 300–1500f/3006 1500–100,00056 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f 2 )30 30–30027.50.0730.230 300–1500f/150030 1500–100,0001.030 f=frequencyinMHz Friistransmissionformula:Pd=(Pout*G)/(4*pi*r 2 ) Where Pd=powerdensityinmW/cm 2 ,Pout=outputpowertoantennainmW; G=gainofantennainlinearscale,Pi=3.1416; R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainoftheantennaandthetotalpowerinputto theantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. TestResultofRFExposureEvaluation 2.4GWIFImode Channel Antenna Gain (dBi) Antenna Gain (numeric) Maximum Tune-Up output power (dBm) Outputpower toantenna (mW) PowerDensity atR=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11n(HT40) Low 5.013.17017.2052.480.0330921PASS 5GWIFImode Channel Antenna Gain (dBi) Antenna Gain (numeric) Maximum Tune-Up output power (dBm) Output powerto antenna (mW) PowerDensity atR=20cm (mW/cm2) Limit (mW/cm2) Result U-NII-3 802.11n(HT20) Middle 5.013.17014.2026.300.0165851PASS Remark:Directionalgain=5.01dBi 2.4GWIFIand5GWIFIcannotSimultaneoustransmit

Project No.: ZKT-221101L8115E Page 1 of 78 TEST REPORT FCC ID:2A9AC810-00006 IC:29672-81000006 Report Number...................................:ZKT-221101L8115E Date of Test ....................................................... :Oct. 26, 2022 to Nov. 03, 2022 Date of issue ......................................... :Nov. 03, 2022 Total number of pages..........................78 Test Result............................................: PASS Testing Laboratory. ........................... : Shenzhen ZKT Technology Co., Ltd. Address ............................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name.............................: BrightAI Address...............................................: 2021 Fillmore St., PMB2005, San Francisco, California, United Stat es Manufacturer's name......................: BrightAI Address...............................................: 2021 Fillmore St., PMB2005, San Francisco, California, United Stat es Test specification: Standard................................................: FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 RSS-Gen Issue 5, February 2021 RSS-247 Issue 2, February 2017 Test procedure ..................................... : / Non-standard test method................:N/A Test Report Form No........................: TRF-EL-110_V0 Test Report Form(s) Originator.....: ZKT Testing Master TRF ........................................ : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name.....................................:Scanner, Pan and Tilt Trademark...........................................: BrightAI Model/Type reference.........................: 810-00006 Project No.: ZKT-221101L8115E Page 2 of 78 Testing procedure and testing location: Testing Laboratory.......................................:Shenzhen ZKT Technology Co., Ltd. Address............................................................:1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature).......................: Joe Liu Reviewer (name + signature) ....................... : Lake Xie Approved (name + signature) ....................... : ProjectNo.: ZKT-221101L8115E Page 3 of 78 Table of Contents Page 1. VERSION.....................................................................................................................5 2. SUMMARYOF TEST RESULTS..................................................................................6 2.1 TEST FACILITY....................................................................................................................7 2.2 MEASUREMENTUNCERTAINTY.......................................................................................7 3. GENERALINFORMATION..........................................................................................8 3.1 GENERALDESCRIPTIONOF EUT ....................................................................................8 3.2 DESCRIPTIONOF TEST MODES......................................................................................9 3.3 BLOCKDIGRAMSHOWINGTHE CONFIGURATIONOF SYSTEMTESTED.................9 3.4 DESCRIPTIONOF SUPPORTUNITS..............................................................................10 3.5 EQUIPMENTSLIST FOR ALL TEST ITEMS.....................................................................11 4. EMC EMISSIONTEST ...............................................................................................13 4.1 CONDUCTEDEMISSIONMEASUREMENT....................................................................13 4.1.1 POWERLINE CONDUCTEDEMISSIONLimits.....................................................13 4.1.2 TEST PROCEDURE..................................................................................................13 4.1.3 DEVIATIONFROMTEST STANDARD.....................................................................13 4.1.4 TEST SETUP.............................................................................................................14 4.1.5 EUT OPERATINGCONDITIONS..............................................................................14 4.1.6 TEST RESULT （ Worstcase 802.11b2412MHz ） .................................................15 4.2 RADIATEDEMISSIONMEASUREMENT.........................................................................17 4.2.1 RADIATEDEMISSIONLIMITS.................................................................................17 4.2.2 TEST PROCEDURE..................................................................................................17 4.2.3 DEVIATIONFROMTEST STANDARD.....................................................................18 4.2.4 TEST SETUP.............................................................................................................18 4.2.5 EUT OPERATINGCONDITIONS..............................................................................19 4.2.6 TEST RESULTS.........................................................................................................19 5. RADIATEDBANDEMISSIONMEASUREMENT........................................................30 5.1 TEST REQUIREMENT:......................................................................................................30 5.2 TEST PROCEDURE..........................................................................................................30 5.3 DEVIATIONFROMTEST STANDARD......................…

Text truncated - open the document above for the full version.

ProjectNo.: ZKT-221101L8116E Page 1 of 67 FCC TEST REPORT FCC ID: 2A9AC810-00006 IC:29672-81000006 ReportNumber.....................................:ZKT-221101L8116E Dateof Test.......................................................:Oct. 26, 2022to Dec . 13, 2022 Dateof issue.........................................:Dec . 13, 2022 Totalnumberof pages .......................... 67 Test Result..........................................: PASS TestingLaboratory...............................: ShenzhenZKT TechnologyCo., Ltd. Address ............................................... : 1/F, No. 101, BuildingB, No. 6, TangweiCommunityIndustrial Avenue,FuhaiStreet,Bao'anDistrict,Shenzhen,China Applicant'sname................................: BrightAI Address...............................................: 2021FillmoreSt., PMB2005,San Francisco,California,UnitedStat es Manufacturer's name ......................... : BrightAI Address ............................................... : 2021FillmoreSt., PMB2005,San Francisco,California,UnitedStat es Test specification: Standard ................................................ : FCCCFR Title 47 Part 15 SubpartE Section15.407 ANSIC63.10:2013 RSS-GenIssue5, February20 21 RSS-247Issue2, February2017 Test procedure.....................................: / Non-standardtest method ................ :N/A Test ReportForm No. ....................... : TRF-EL-113_V0 Test ReportForm(s)Originator ..... : ZKT Testing MasterTRF ........................................ : Dated:2020-01-06 This devicedescribedabovehas beentestedby ZKT,and the test resultsshowthat the equipmentunder test (EUT)is in compliancewith the FCCrequirements.And it is applicableonly to the testedsample identifiedin the report. This reportshallnot be reproducedexceptin full, withoutthe writtenapprovalof ZKT,this documentmay be alteredor revisedby ZKT,personalonly, and shallbe notedin the revisionof the document. Productname ....................................... :Scanner,Pan and Tilt Trademark...........................................: BrightAI Model/Typereference.........................:810-00006 ProjectNo.: ZKT-221101L8116E Page 2 of 67 Testingprocedureand testinglocation: TestingLaboratory..........................................:ShenzhenZKT TechnologyCo., Ltd. Address............................................................:1/F, No. 101, BuildingB, No. 6, TangweiCommunity IndustrialAvenue,FuhaiStreet,Bao'anDistrict, Shenzhen,China Alen HeTestedby (name+ signature) ....................... : Joe LiuReviewer(name+ signature).......................: LakeXie Approved(name+ signature).......................: ProjectNo.: ZKT-221101L8116E Page 3 of 67 Table of ContentsPage 1. VERSION...................................................................................................................5 2. SUMMARYOF TEST RESULTS................................................................................6 2.1 TEST FACILITY.................................................................................................................7 2.2 MEASUREMENTUNCERTAINTY....................................................................................7 3. GENERALINFORMATION........................................................................................8 3.1 GENERALDESCRIPTIONOF EUT .................................................................................8 3.3 BLOCKDIGRAMSHOWINGTHE CONFIGURATIONOF SYSTEMTESTED............10 3.4 DESCRIPTIONOF SUPPORTUNITS............................................................................10 3.5 EQUIPMENTSLIST FOR ALL TEST ITEMS.................................................................11 4. EMC EMISSIONTEST ..............................................................................................13 4.1 CONDUCTEDEMISSIONMEASUREMENT..................................................................13 4.1.1 POWERLINE CONDUCTEDEMISSIONLimits...................................................13 4.1.2 TEST PROCEDURE...............................................................................................13 4.1.3 DEVIATIONFROMTEST STANDARD..................................................................13 4.1.4 TEST SETUP...........................................................................................................14 4.1.5 EUT OPERATINGCONDITIONS...........................................................................14 4.1.6 TEST RESULT （ Worstcase 802.11a5180MHz ） ...............................................15 4.2 RADIATEDEMISSIONMEASUREMENT......................................................................17 4.2.1 APPLICABLESTANDARD.....................................................................................17 4.2.2 CONFORMANCELIMIT .........................................................................................17 4.2.3 MEASURINGINSTRUMENTS...............................................................................18 4.2.4 TEST CONFIGURATION........................................................................................18 4.2.5 TEST PROCEDURE...............................................................................................19 4.2.6 TEST RESULT........................................................................................................20 5. POWERSPECTRALDENSITYTEST ......................................................................31 5.1 APPLIEDPROCEDURES/ LIMIT .............................................................................31 5.2 TEST PROCEDURE..................................................................................................33 5.3 DEVIATIONFROMSTANDARD...............................................................................33 5. 4 TEST METHOD..........................................................................................................33 5. 5 TEST SETUP..........................................................................…

Text truncated - open the document above for the full version.

EUTTESTPHOTO
