2A9AG-PPPBQIWireless portable charger

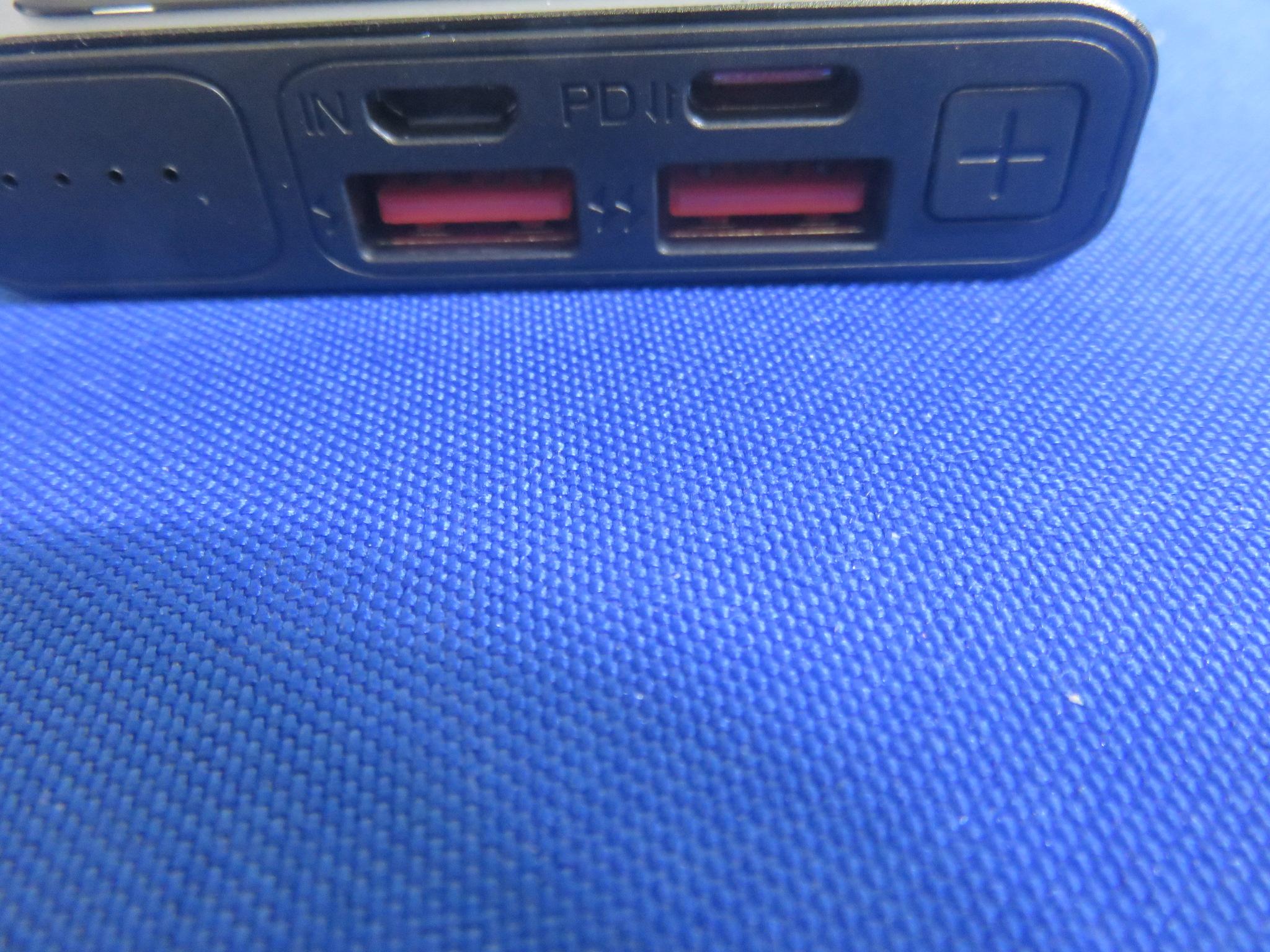

Code:AB-RF-05-b ExternalPhotograph Code:AB-RF-05-b Code:AB-RF-05-b Code:AB-RF-05-b

Product Name: Wireless portable charger Model No.:PP-PBQI10K-BK FCC ID:2A9AG-PPPBQI This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Code:AB-RF-05-b InternalPhotograph ANT Code:AB-RF-05-b Code:AB-RF-05-b

深圳市瑞通千业科技有限公司/ShenzhenRuitong QianyeTechnologyCo.,LTD 客户/Ciient特科瑞/Tecrui 名称/TYPEA11-6.3UH超薄无线充发射线圈/A11-6.3UHultra-thinwirelesschargingandtransmittingcoil 产品型号 ModelNO单线圈G49.5*1.2总厚双槽有孔45长背胶/SinglecoilG49.5*1.2,totalthickness,doublegroove,45long adhesivebackingwithholes 产品编号 Partnunberingsystey/零件编号系统 日期 /Date2022 年 2 月 14 日 编制 /Prepared 审核 /Checked 认可 /Approved 万纪美万纪美刘成昭 深圳市瑞通千业科技有限公司/ShenzhenRuitong QianyeTechnologyCo.,LTD 一、线圈工艺/WindingProcese: NO 绕组线规匝数绕线方向备注 1N12UEW-B-0.3*4P10TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈/Aseparatecoil）=3.8uH±10% 1.12L0A(线圈+磁片/Coil+magneticplate)=6.8uH±5% 1.2Q值/Qvalue=50MIN 1.3直流电阻（DCR）：60mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers N O 项目 /project 材料/material 1WIRE￠0.3*4p2UEW-Sincetheglueline 2FERRITE 49.5*5.3*0.55LTypetwo-grooveferritehardmagneticfrontblackfilm backdouble-sidedtape 3GLUEWhitegluewater 4SOLDERHQ-996/JS-996 5TinThousandpuretin 6 High temperature adhesive 8MMHightemperatureadhesivetape 7 深圳市瑞通千业科技有限公司/ShenzhenRuitong QianyeTechnologyCo.,LTD 3.材料清单/Billofmaterials 三．电路图/CIRCUITDIAGRAM 单位： MM 四．外形图/OUTSIDEDIAGRA 注：线圈出线位置缠绕 5MM （ ref ）高温胶纸，磁片正面黑膜背面贴双面背胶。 Note:Wrap5MM(ref)high-temperatureadhesivepaperaroundtheexitpositionofthecoil,and attachdouble-sidedadhesiveonthebackoftheblackfilmonthefrontofthemagneticsheet. stan dard ABCDEFG STD 49.5±145±0120.5±0.55.3±0.545±23±11.2±1 unit：MM 8 深圳市瑞通千业科技有限公司/ShenzhenRuitong QianyeTechnologyCo.,LTD 五．包装/PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特殊要求可定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. 深圳市瑞通千业科技有限公司/ShenzhenRuitong QianyeTechnologyCo.,LTD 六、贮存和使用条件StorageandUsecondition 6.1贮存条件Storagecondition 6.1.1建议贮存条件：温度-25°C~85°C，湿度70%(Max.) Recommendedkeepingconditions:-25°C ~ 85°C,70%RH(Max.) 6.1.2贮存期限：自生产之日起六个月内 Storagelife:Withinthelimitsofsixmonthsfrombeing produced. 6.2使用条件Usecondition 使用条件限制：温度=-25°C~85°C,湿度≤90% Useconditionlimit:T=-25°C~85°C,RH≤90%.

version01 DongguanDongjuElectronicTechnologyCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:PP-PBQl10K-BK FCCID:2A9AG-PPPBQI fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:SinglecoilG49.5*1.2,totalthickness,doublegroove,45longadhesive backingwithholes Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:DongguanDongjuElectronicTechnologyCo.,Ltd. Address:Room201,No.18,XinyuanSecondRoad,SongbailangVillage,Dalang Town,DongguanCity,GuangdongProvince,518000,China City:Dongguan ZIP/Postalcode:/ Country:China Place:DongguanDate:12/12/2022 Signature:

ReportNo.:18220WC20257102FCCID:2A9AG-PPPBQIPage1of13 Code:AB-RF-05-b FCCTestReport ClientName: DongguanDongjuElectronicTechnologyCo., Ltd. ClientAddress: Room201,No.18,XinyuanSecondRoad, SongbailangVillage,DalangTown,Dongguan City,GuangdongProvince,518000,China ProductName:Wirelessportablecharger ReportDate:Nov.18,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20257102FCCID:2A9AG-PPPBQIPage2of13 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................4 1.1.ClientInformation....................................................................................................................................4 1.2.DescriptionofDevice(EUT)..................................................................................................................4 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................5 1.4.TestEquipmentList.................................................................................................................................5 1.5.MeasurementUncertainty......................................................................................................................5 1.6.DescriptionofTestFacility.....................................................................................................................5 2.MeasurementandResult..................................................................................................................................6 2.1.Requirements...........................................................................................................................................6 2.2.TestSetup.................................................................................................................................................7 2.3.TestProcedure.........................................................................................................................................7 2.4.TestResult................................................................................................................................................7 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................13 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................13 APPENDIXIII--INTERNALPHOTOGRAPH...................................................................................................13 ReportNo.:18220WC20257102FCCID:2A9AG-PPPBQIPage3of13 Code:AB-RF-05-b TESTREPORT Applicant:DongguanDongjuElectronicTechnologyCo.,Ltd. Manufacturer:DongguanDongjuElectronicTechnologyCo.,Ltd. ProductName:Wirelessportablecharger ModelNo.:PP-PBQl10K-BK TradeMark: N.A. Rating(s): Capacity(Mah):10000 PDPower(W):20W WirelessOutput:15W MicroInput:5V/2A,9V/2A,12V/1.5A Type-CPDInput:5V/3A,9V/2A,12V/1.5A Type-CPDOutput:5V/3A,9V/2.22A,12V/1.67A USBOutput1:5V/4.5A,4.5V/5A,9V/2A,12V/1.5A USBOutput2:5V/3A,9V/2A,12V/1.5A TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03r01; October2021TCBWorkshop; Part18andWirelessPowerTransferUpdates-April2022TCBWorkshop ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Nov.03,2022 DateofTest Nov.03~Nov.11,2022 PreparedBy (TuTuHong) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20257102FCCID:2A9AG-PPPBQIPage4of13 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:DongguanDongjuElectronicTechnologyCo.,Ltd. Address: Room201,No.18,XinyuanSecondRoad,SongbailangVillage,Dalang Town,DongguanCity,GuangdongProvince,518000,China Manufacturer:DongguanDongjuElectronicTechnologyCo.,Ltd. Address: Room201,No.18,XinyuanSecondRoad,SongbailangVillage,Dalang Town,DongguanCity,GuangdongProvince,518000,China Factory:DongguanDongjuElectronicTechnologyCo.,Ltd. Address: Room201,No.18,XinyuanSecondRoad,SongbailangVillage,Dalang Town,DongguanCity,GuangdongProvince,518000,China 1.2.DescriptionofDevice(EUT) ProductName: Wirelessportablecharger ModelNo.:PP-PBQl10K-BK TradeMark:N.A. TestPowerSupply:DC3.7Vbatteryinside TestSampleNo.: 1-2-1(NormalSample),1-2-2(EngineeringSample) Adapter:N/A RFSpecification Operation Frequency :110.1-205KHz ModulationType :ASK AntennaType:InductiveloopcoilAntenna Antenna Gain(Peak) :0dBi(Providedbycustomer) Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC20257102FCCID:2A9AG-PPPBQIPage5of13 Code:AB-RF-05-b 1.3.AuxiliaryEquipmentUsedDuringTest DescriptionRating(s) MobilePhoneXiaomi11 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1 Electricand Magneticfield Analyzer NARDAEHP-200A180ZX10202Nov.12,20221Year 1.5.MeasurementUncertainty MagneticFieldReading(A/m):+/-0.04282(A/m) ElectricFieldReading(V/m):+/-0.03679(V/m) 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: FCC-RegistrationNo.:184111 ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththe(FCC)FederalCommunicationsCommission.Theacceptanceletter fromtheFCCismaintainedinourfiles.RegistrationNo.184111. ISED-Registrat…

Text truncated - open the document above for the full version.

ReportNo.:18220WC20257101FCCID:2A9AG-PPPBQIPage1of21 Code:AB-RF-05-b FCCTestReport ClientName: DongguanDongjuElectronicTechnologyCo., Ltd. ClientAddress: Room201,No.18,XinyuanSecondRoad, SongbailangVillage,DalangTown,Dongguan City,GuangdongProvince,518000,China ProductName:Wirelessportablecharger ReportDate:Nov.18,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20257101FCCID:2A9AG-PPPBQIPage2of21 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................5 1.1.ClientInformation....................................................................................................................................5 1.2.DescriptionofDevice(EUT)..................................................................................................................5 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................6 1.4.DescriptionofTestModes......................................................................................................................6 1.5.DescriptionOfTestSetup......................................................................................................................7 1.6.TestEquipmentList.................................................................................................................................8 1.7.MeasurementUncertainty......................................................................................................................9 1.8.DescriptionofTestFacility.....................................................................................................................9 2.SummaryofTestResults.................................................................................................................................10 3.ConductedEmissionTest................................................................................................................................11 3.1.TestStandardandLimit........................................................................................................................11 3.2.TestSetup...............................................................................................................................................11 3.3.TestProcedure.......................................................................................................................................11 3.4.TestData.................................................................................................................................................11 4.RadiationSpuriousEmission..........................................................................................................................14 4.1.TestStandardandLimit........................................................................................................................14 4.2.TestSetup...............................................................................................................................................14 4.3.TestProcedure.......................................................................................................................................15 4.4.TestData.................................................................................................................................................15 5.AntennaRequirement......................................................................................................................................20 5.1.TestStandardandRequirement.........................................................................................................20 5.2.AntennaConnectedConstruction.......................................................................................................20 APPENDIXI--TESTSETUPPHOTOGRAPH................................................................................................21 APPENDIXII--EXTERNALPHOTOGRAPH..................................................................................................21 APPENDIXIII--INTERNALPHOTOGRAPH...................................................................................................21 ReportNo.:18220WC20257101FCCID:2A9AG-PPPBQIPage3of21 Code:AB-RF-05-b TESTREPORT Applicant:DongguanDongjuElectronicTechnologyCo.,Ltd. Manufacturer:DongguanDongjuElectronicTechnologyCo.,Ltd. ProductName:Wirelessportablecharger ModelNo.:PP-PBQl10K-BK TradeMark:N.A. Rating(s): Capacity(Mah):10000 PDPower(W):20W WirelessOutput:15W MicroInput:5V/2A,9V/2A,12V/1.5A Type-CPDInput:5V/3A,9V/2A,12V/1.5A Type-CPDOutput:5V/3A,9V/2.22A,12V/1.67A USBOutput1:5V/4.5A,4.5V/5A,9V/2A,12V/1.5A USBOutput2:5V/3A,9V/2A,12V/1.5A TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2020 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Nov.03,2022 DateofTest Nov.03~Nov.11,2022 PreparedBy (TuTuHong) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20257101FCCID:2A9AG-PPPBQIPage4of21 Code:AB-RF-05-b RevisionHistory ReportVersionDescriptionIssuedDate R00OriginalIssue.Nov.18,2022 ReportNo.:18220WC20257101FCCID:2A9AG-PPPBQIPage5of21 Code:AB-RF-05-b 1.GeneralInformation 1.1.ClientInformation Applicant:DongguanDongjuElectronicTechnologyCo.,Ltd. Address: Room201,No.18,XinyuanSecondRoad,Songbailan…

Text truncated - open the document above for the full version.

Code:AB-RF-05-b TestSetupPhotograph 0cm Code:AB-RF-05-b PhotoofMPEMeasurementat2cm Code:AB-RF-05-b PhotoofMPEMeasurementat4cm Code:AB-RF-05-b PhotoofMPEMeasurementat6cm Code:AB-RF-05-b PhotoofMPEMeasurementat8cm Code:AB-RF-05-b PhotoofMPEMeasurementat10cm Code:AB-RF-05-b PhotoofMPEMeasurementat12cm Code:AB-RF-05-b PhotoofMPEMeasurementat14cm Code:AB-RF-05-b PhotoofMPEMeasurementat16cm Code:AB-RF-05-b PhotoofMPEMeasurementat18cm Code:AB-RF-05-b PhotoofMPEMeasurementat20cm

Code:AB-RF-05-b TestSetupPhotograph PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest Code:AB-RF-05-b
