2A9AR-OLA08Oladance OWS S1

OWS SPORTS Instruction Manual Welcome to Oladance OWS Sports Air Conduction Bluetooth Earphones Prior to use, please take the time to familiarize yourself with the basic functions of the earphones. How to wear the earphones Using both hands, gently pull the earphones apart. Position them backwards along the earlobes, then adjust to a comfortable fit. 21 Main functional components Power button/Volume + Volume - Multi- function button LED indicator Magnetic charging contact When used for the first time, the earphones will automatically enter the Bluetooth pairing mode; The LED indicator will flash alternately in red and blue. Enable Bluetooth on your mobile device, find devices and select 'OWS Sports' from the list. Choose Connect. Once connected, the LED indicator will illuminate blue, and then turn off about 30 seconds later. First time Bluetooth pairing SettingsBluetooth Bluetooth SettingsBluetooth Bluetooth OWS SPORTS Other Devices 打开手机蓝牙 设置蓝牙 蓝牙 OWS SPORTS Other Devices BootupShutdown Press and hold the Power button for 0.5 seconds; the LED indicator will illuminate, indicating that the device is powering up. Press and hold the Power button for 1.5 seconds; the LED indicator will extinguish, indicating that the device has shut down. How to boot up/shut down the earphones Press Volume +: to increase volume Volume - : to reduce volume Volume adjustment Single Press Double Press In music mode to Play/Pause In call mode to Answer a phone call In music mode to Proceed to Next Track In call mode to Hang up/Reject call In music mode to Navigate to Previous Track Call muting Triple Press Press and hold for 0.5 seconds to wake up your voice assistant. Connect to the App to enter intercom mode; press and hold to start the intercom, and release to end. Intercom mode Wake up your voice assistant Note: This feature is not available during calls or when connected to the App. More functions During a call, if you receive a second incoming call, press once to hold the current call and answer the second call. In multi-call mode, press once to switch between calls in a circular rotation. During a call, if you receive a second incoming call, press twice to hang up the current call and answer the second call. Single PressDouble Press Note: Supports up to three-way calling. LED indicator status description Flashing alternately between blue and red: Indicates the Bluetooth pairing state Fast flashing blue: Indicates the earphones are connected to the device Blue remains on then turns off: Indicates a successful bluetooth connection Steady red light: Indicates the earphones are in the charging state. Slow flashing red: Indicates low battery level (< 5%) Red remains on for 0.5s then turns off: Indicates the earphones are shut down Multi-point connection OWS Sports supports connection of two devices with seamless switching. You may enable multi-point connection with either one of the following methods: Method 1: Disconnect the Bluetooth connection of the first device to re-enter the pairing mode. Method 2: Shut down the earphones by long-pressing the Volume+ button for 1.5 seconds, then long-press the Volume+ button for 5 seconds to enter forced pairing state. After successfully connecting the second device, you may manually re-connect the first device. The next time you power up the earphones, they will automatically connect to both devices simultaneously. Device 1Device 2 After that, the earphones will automatically enter the pairing mode. Bluetooth pairing mode Make sure the earphones are powered up. Long-press the Function and Volume- buttons simultaneously for 1.5 seconds to restore the earphones to factory settings and clear the Bluetooth pairing history. Clear Bluetooth pairing history Connect the earphones' magnetic charging contact to the magnetic charging wire; the magnets will accurately align and optimize charging for the most efficient and stable position. Charging When charging is complete, the red indicator will turn off automatically. Indulge in the Oladance Experience! Download the oladance App to discover more customization features and functions. Contents Earphones × 1 Instruction manual × 1Brand Card × 1 Storage bag × 1Magnetic charging wire × 1 Disposal and Recycling Information This symbol (with or without a solid bar) on the device, batteries (included), and / or the packaging, indicates that the device and its electrical accessories (for example, a headset, adapter or cable) and batteries should not be disposed of as household garbage. Battery warning The built-in lithium battery of the product is forbidden to be disassembled, impacted, extruded or put into fire. The battery under the very low air pressure may result in explosion or flammable liquid or gas leakage. Avoid the battery in a high-temperature environment or being exposed to strong sunlight to avert explosion. Don't use the battery continuously in case of serious ballooning. The battery shall be handled pursuant to the local regulations and shall not be disposed as household garbage. Don't try to repair, remove or refit the battery. The explosion may happen if the battery is replaced by the one subject to incorrect model. Don't compress or puncture the battery with hard object. The battery leakage, overheating or outbreak of a fire may occur if the battery is destroyed. Declaration of Conformity: Hereby, Shenzhen Dancing Future Technology Ltd., declares that this device is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available at the following internet address: http://oladance.com SAR: RF exposure information: The EIRP power of the device at maximal case is below the exempt condition, 20mW specified in EN 62479: 2010. RF exposure assessment has been performed to prove that this unit will not generate the harmful EM emission above the reference level as specified in EC Council Recommendation (1999/519/EC). FCC Statement This device complies with part 15 of the FCC Rules. Operatio…

Text truncated - open the document above for the full version.

Rev1/26/2023 (ShenzhenDancingFutureTechnologyLtd.) FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:11-1-2023 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2A9AR-OLA08 [ShenzhenDancingFutureTechnologyLtd.]certifiesthattheequipmentforwhichauthorizationis soughtisnotequipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules. Sincerely, (Applicantsignature) (TomDeng) Rev 1/26/2023 (Shenzhen Dancing Future Technology Ltd.) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-1-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID:2A9AR-OLA08 [Shenzhen Dancing Future Technology Ltd.] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as (as specifically named entity or any of its subsidiaries or affiliates) an entity producing equipment. Sincerely, (Applicant signature) (Tom Deng)

[Shenzhen Dancing Future Technology Ltd.] [2106 Qiaocheng No.1 Square Main Building, Shenyun Road, Gaofa Community, Shahe Street, Nanshan District] [Shenzhen, Guangdong] [China] Date: November 02, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2A9AR-OLA08 US Agent – Attestation Statement / Part 2.911(d)(7) [Shenzhen Dancing Future Technology Ltd.] certifies, that as of November 02, 2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2A9AR-OLA08. [Shenzhen Dancing Future Technology Ltd.], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [Shenzhen Dancing Future Technology Ltd.] for FCC ID: 2A9AR-OLA08. Designated Agent Information: Shenzhen Dancing Future Technology Ltd.: FCC US Agent, LLC Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: [Shenzhen Dancing Future Technology Ltd.] Designated Agent: FCC US Agent, LLC Company Representative: [Tom Deng] Designated Agent Representative: Tim Payne Signature: Signature: FRN: 0033068040

Date:1November2023 ShenzhenDancingFutureTechnologyLtd. To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 ToWhomItMayConcern: TheShenzhenDancingFutureTechnologyLtd.theundersigned,herebyauthorizesMr.Wu XuewenfromShenzhenBALUNTechnologyCo.,Ltd.,toactonthebehalfoftheShenzhen DancingFutureTechnologyLtd.solelyinmattersrelatingtotheapplicationforanFCC equipmentauthorizationforFCCID:2A9AR-OLA08includingthesigningofdocumentsin connectionwiththisApplication.NecessaryactscarriedoutbyShenzhenBALUNTechnology Co.,Ltd.inconnectionwiththeApplicationshallhavethesameeffectasactsoftheShenzhen DancingFutureTechnologyLtd. TheShenzhenDancingFutureTechnologyLtd.alsoherebycertifythatnopartytothis applicationissubjecttoadenialofbenefits,includingFCCbenefits,pursuanttoSection5301of theAnti-DrugAbuseActof1988,21U.S.C.Section862. YoursSincerely, TomDeng

Date:1November2023 ShenzhenDancingFutureTechnologyLtd. To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 Re:ShenzhenDancingFutureTechnologyLtd. FCCID:2A9AR-OLA08 FCCCertificationConfidentialityRequest Gentlemen: Thisletteristocomplywith47CFR0.457and0.459pertainingtoconfidentiality material.ShenzhenDancingFutureTechnologyLtd.requeststhatthefollowing documentsregardingthissubmissionforFCCID:2A9AR-OLA08bekept confidential: ExhibitTypeFileName BlockDiagramBlockDiagram.pdf SchematicsSchematics.pdf OperationalDescriptionOperationalDescription.pdf Tune-upTune-up.pdf Andbelowexhibitkeptshort-termconfidential(180days): ExternalphotosExternalphotos.pdf Testsetupphotostestphoto.pdf InternalphotosInternalphotos.pdf UsermanualUsermanual.pdf Thosedocumentscontaindetailedsystemandequipmentdescriptionandrelated informationabouttheproductwhichShenzhenDancingFutureTechnology Ltd. considerstobeconfidentialproprietary,acustomdesignand,otherwise,not releasabletothegeneralpublic.Sincethisdesignisabasisformwhichfuture technologicalproductswillevolve,ShenzhenDancingFutureTechnologyLtd. considersthisinformationwouldbeofbenefittoitscompetitors,andthatthe disclosureoftheinformationinthesedocumentswouldgivecompetitorsanunfair advantageinthemarket. YoursSincerely, TomDeng

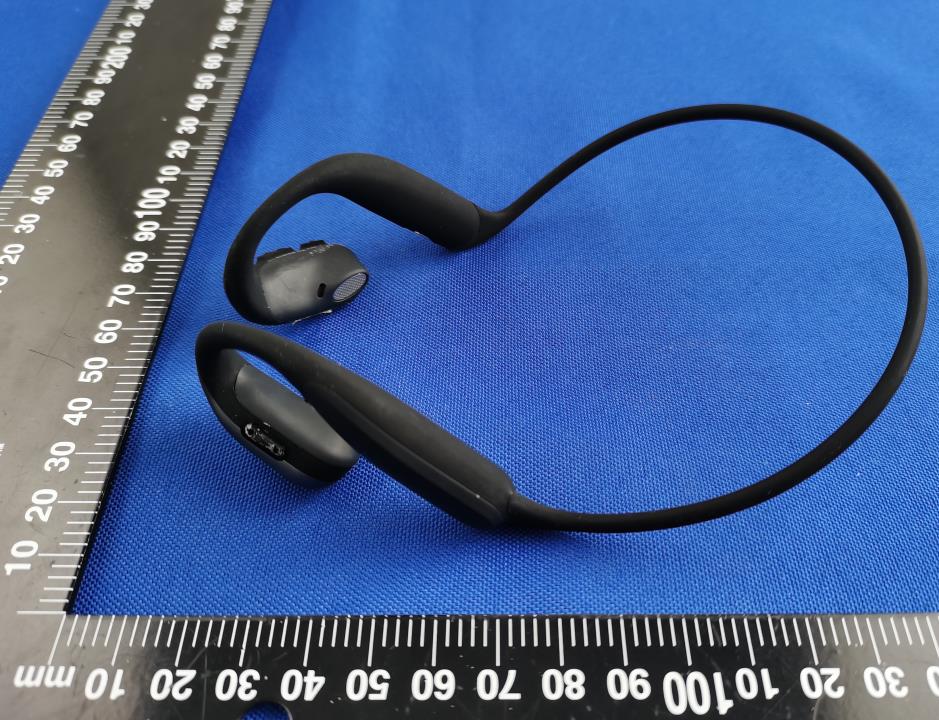

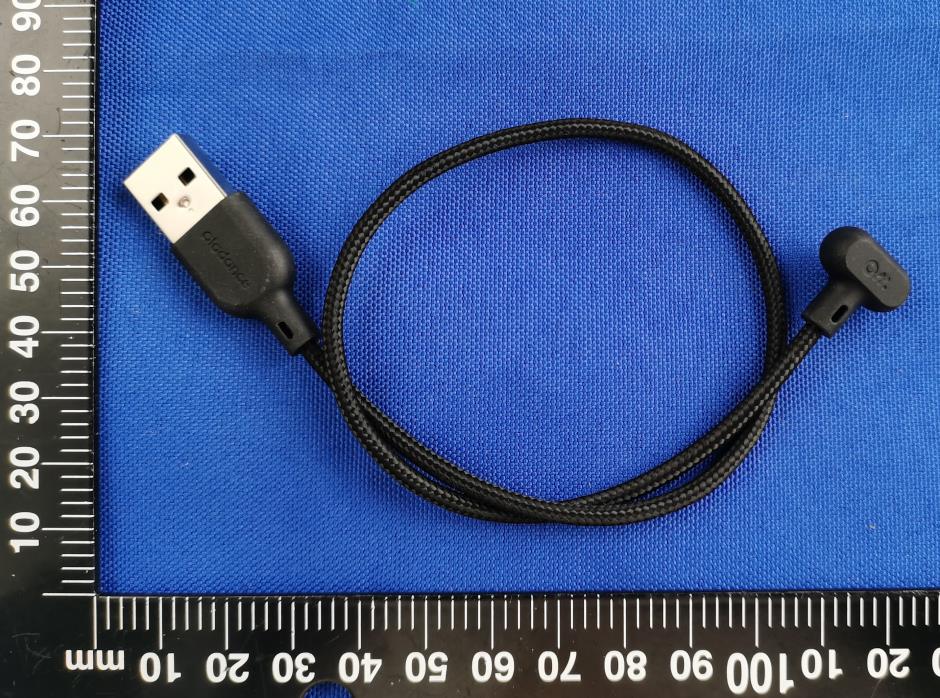

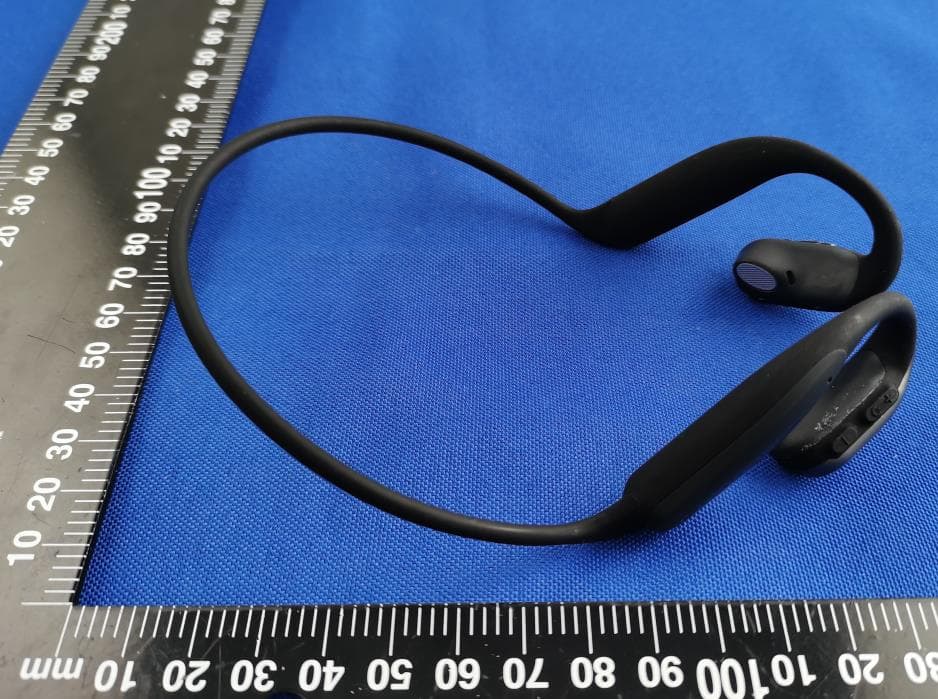

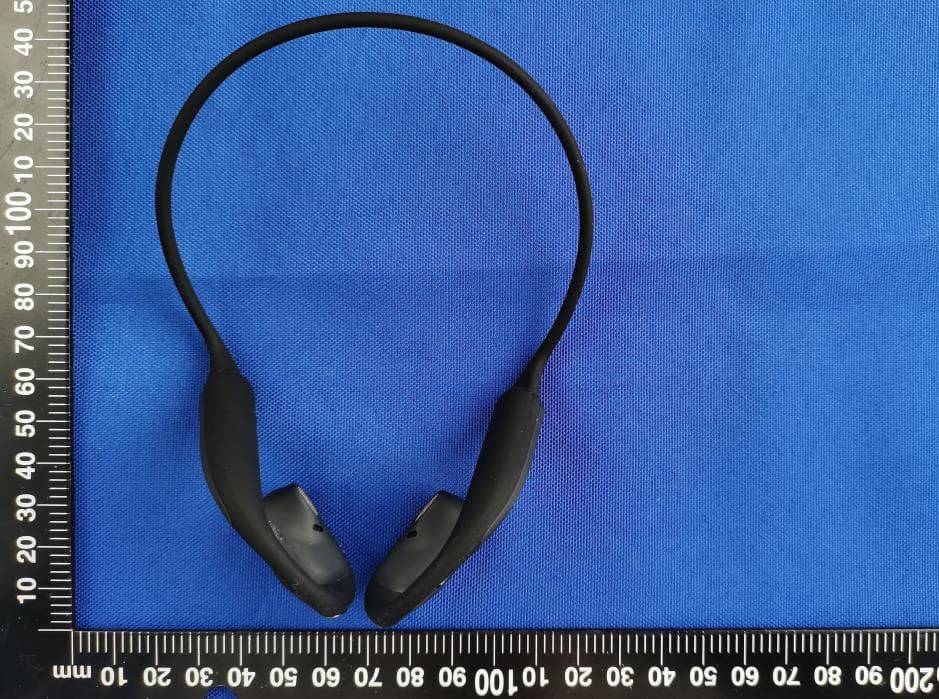

Report No.: BL-SZ2380254-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2380254-AW 2 / 4 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2380254-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2380254-AW 4 / 4 Accessory-USB Cable --BLANK BELOW--

认证信息面-正 认证信息面-反 41mm20mm 8mm 1.4mm 背胶区 虚线 粘合区域 无胶、正反印 15mm 4.8mm 颜色： P antone 375 C 表面覆透明哑光膜 表面覆透明哑光膜 颜色：白色 颜色： P antone 376 C

Report No.: BL-SZ2380254-AI 1 / 3 EUT INTERNAL PHOTOS EUT UNCOVER VIEW 1 EUT UNCOVER VIEW 2 LDS Antenna RF Chip Report No.: BL-SZ2380254-AI 2 / 3 MAIN BOARD TOP VIEW MAIN BOARD REAR VIEW Report No.: BL-SZ2380254-AI 3 / 3 BATTERY (FRONT) BATTERY (REAR) --BLANK BELOW--

Report No.: BL-SZ2380254-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 37 Web: www.titcgroup.com Template No.: TRP-FCC DASY-BodyI-1 (2023-01-30) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Dancing Future Technology Ltd. Address: 2106 Qiaocheng No.1 Square Main Building, Shenyun Road, Gaofa Community, Shahe Street, Nanshan District, Shenzhen Equipment Type: Oladance OWS S1 Model Name: OLA08 Brand Name: Oladance FCC ID: 2A9AR-OLA08 Test Standard: FCC 47 CFR Part 2.1093 (refer to section 3.1) Maximum SAR: Body 2.4GHz(1 g@0mm): 0.08 W/kg Sample Arrival Date: Aug. 07, 2023 Test Date: Oct. 24, 2023 Date of Issue: Nov. 01, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Zhang Jiwei Checked by: Xu Rui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2380254-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 37 Web: www.titcgroup.com Template No.: TRP-FCC DASY-BodyI-1 (2023-01-30) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Nov. 01, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Test Laboratory .............................................................................................................. 4 1.2 Test Location .................................................................................................................. 4 1.3 Test Environment Condition ........................................................................................... 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 General Description for Equipment under Test (EUT) ................................................... 5 2.4 Ancillary Equipment ........................................................................................................ 5 2.5 Technical Information ..................................................................................................... 6 3 SUMMARY OF TEST RESULT ................................................................................................... 7 3.1 Test Standards ............................................................................................................... 7 3.2 Device Category and SAR Limit ..................................................................................... 8 3.3 Test Result Summary ..................................................................................................... 9 3.4 Test Uncertainty ........................................................................................................... 10 4 MEASUREMENT SYSTEM ....................................................................................................... 11 4.1 Specific Absorption Rate (SAR) Definition ................................................................... 11 4.2 DASY SAR System ...................................................................................................... 12 5 SYSTEM VERIFICATION .......................................................................................................... 19 5.1 Purpose of System Check ............................................................................................ 19 5.2 System Check Setup .................................................................................................... 19 6 TEST POSITION CONFIGURATIONS ...................................................................................... 20 6.1 Body-worn Position Conditions .................................................................................... 20 7 MEASUREMENT PROCEDURE ............................................................................................... 21 Report No.: BL-SZ2380254-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 37 Web: www.titcgroup.com Template No.: TRP-FCC DASY-BodyI-1 (2023-01-30) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 7.1 Measurement Process Diagram ................................................................................... 21 7.2 SAR Scan General Requirement ................................................................................. 22 7.3 Measurement Procedure .............................................................................................. 23 7.4 Area & Zoom Scan Procedure ..................................................................................... 23 8 CONDUCTED RF OUPUT POWER .......................................................................................... 24 8.1 Bluetooth ...................................................................................................................... 24 9 TEST EXCLUSION CONSIDERATION ..................................................................................... 25 9.1 Antenna location sketch ............................................................................................... 25 9.2 SAR Test Consideration Table ..................................................................................... 26 10 TEST RESULT .......................................................................................................................... 28 10.1 Bluetooth ............................................................…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2380254-AC 1 / 23 CALIBRATION REPORT F.1 E-Field Probe(EX3DV4 -SN:7510) Report No.: BL-SZ2380254-AC 2 / 23 Report No.: BL-SZ2380254-AC 3 / 23 Report No.: BL-SZ2380254-AC 4 / 23 Report No.: BL-SZ2380254-AC 5 / 23 Report No.: BL-SZ2380254-AC 6 / 23 Report No.: BL-SZ2380254-AC 7 / 23 Report No.: BL-SZ2380254-AC 8 / 23 Report No.: BL-SZ2380254-AC 9 / 23 Report No.: BL-SZ2380254-AC 10 / 23 F.2 Data Acquisition Electronics (DAE4 - SN:1454) Report No.: BL-SZ2380254-AC 11 / 23 Report No.: BL-SZ2380254-AC 12 / 23 Report No.: BL-SZ2380254-AC 13 / 23 Report No.: BL-SZ2380254-AC 14 / 23 Report No.: BL-SZ2380254-AC 15 / 23 F.3 2450 MHz Dipole Report No.: BL-SZ2380254-AC 16 / 23 Report No.: BL-SZ2380254-AC 17 / 23 Report No.: BL-SZ2380254-AC 18 / 23 Report No.: BL-SZ2380254-AC 19 / 23 Report No.: BL-SZ2380254-AC 20 / 23 Report No.: BL-SZ2380254-AC 21 / 23 Report No.: BL-SZ2380254-AC 22 / 23 Report No.: BL-SZ2380254-AC 23 / 23 D2450V2 Dipole impedance and return loss Validation Meas. Results Current Meas. Previous Meas. Max. Deviation Meas. Data 2023.05.17 2022.05.18 / Return Loss(dB) -26.656 -26.401 0.97% Impedance 54.73 Ω -1.149 jΩ 54.102 Ω +2.830 jΩ -3.979Ω (Imaginary part) Return Loss for Head TSL Impedance for Head TSL --END OF REPORT--

Report No.: BL-SZ2380254-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 70 Web: www.titcgroup.com Template No.: TRP-FCC&ISED 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Shenzhen Dancing Future Technology Ltd. Address: 2106 Qiaocheng No.1 Square Main Building, Shenyun Road, Gaofa Community, Shahe Street, Nanshan District, Shenzhen Equipment Type: Oladance OWS S1 Model Name: OLA08 Brand Name: Oladance FCC ID: 2A9AR-OLA08 ISED Number: 29727-OLA08 Test Standard: 47 CFR Part 15 Subpart C RSS-Gen Issue 5 RSS-247 Issue 3 (refer to section 3.1) Sample Arrival Date: Aug. 03, 2023 Test Date: Aug. 09, 2023 - Oct. 17, 2023 Date of Issue: Nov. 01, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Si Xiao Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2380254-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 70 Web: www.titcgroup.com Template No.: TRP-FCC&ISED 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Nov. 01, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Test Laboratory .............................................................................................................. 4 1.2 Test Location .................................................................................................................. 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 General Description for Equipment under Test (EUT) ................................................... 5 2.4 Technical Information ..................................................................................................... 6 3 SUMMARY OF TEST RESULTS ................................................................................................. 7 3.1 Test Standards ............................................................................................................... 7 3.2 Test Verdict .................................................................................................................... 7 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 8 4.1 Test Environments ......................................................................................................... 8 4.2 Test Equipment List ........................................................................................................ 8 4.3 Test Software List ........................................................................................................... 9 4.4 Measurement Uncertainty ............................................................................................ 10 4.5 Description of Test Setup ............................................................................................. 10 4.6 Measurement Results Explanation Example ................................................................ 13 5 TEST ITEMS .............................................................................................................................. 14 5.1 Antenna Requirements ................................................................................................. 14 5.2 Output Power ............................................................................................................... 15 5.3 Occupied Bandwidth .................................................................................................... 17 5.4 Conducted Spurious Emission ..................................................................................... 18 5.5 Band Edge (Authorized-band band-edge) .................................................................... 20 Report No.: BL-SZ2380254-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 70 Web: www.titcgroup.com Template No.: TRP-FCC&ISED 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.6 Conducted Emission .................................................................................................... 22 5.7 Radiated Spurious Emission ........................................................................................ 23 5.8 Band Edge (Restricted-band band-edge) ..................................................................... 28 5.9 Power Spectral density (PSD) ...................................................................................... 29 ANNEX A TEST RESULT ............................................................................................................. 30 A.1 Output Power, E.I.R.P, Duty Cycle ............................................................................... 30 A.2 Occupied Bandwidth .................................................................................................... 34 A.3 Conducted Spurious Emissions ................................................................................... 38 A.4 Band Edge (Authorized-band band-edge) .................................................................... 43 A.5 Conducted Emissions ................................................................................................... 46 A.6 Radiated Spurious Emission ...................…

Text truncated - open the document above for the full version.

1 Antenna Part Specification Project name˖ Runner Material category˖ BT antenna Version˖ V2.0 Date˖ 2023.10.27 $33529$/'ROO\/L &+(&.7RP&KHQ '(6,*1.HYLQ/LX 2 Contents I: The report of passive data ...................................................................................................... 3 II˖3DActive test report of antenna ...................................................................................... 6 III˖Matching circuit ................................................................................................................ 6 IV˖Environmental treatment ................................................................................................... 7 V˖Structure file˖ ................................................................................................................... 8 Change record Compile / change date Reason for change Changed content Version 3 I: The report of passive data Angilent E5071C VSWR parameter˖ 4 Efficiency˖ Frequency ˄MHz˅ Gain (dBi) Efficiency (dB ) Efficiency 2400 2.1 -3.9 44.7% 2410 2.3 -3.8 45.3% 2420 2.4 -3.7 45.6% 2430 2.3 -3.6 47.0% 2440 2.4 -3.4 46.3% 2450 2.3 -3.5 45.7% 2460 2.1 -3.7 44.8% 2470 2.1 -3.8 43.9% 2480 2.1 -3.8 43.1% Average value 2.2 -3.7 45.2% Antenna radiation 3D pattern: 5 Antenna radiation 2D pattern: Theta=90.00deg Phi=90.00deg Phi=0.00deg 6 II˖3DActive test report of antenna free space Channel TRP˄dBm˅ TIS˄dBm˅ BT CH 0 4.7 -90.3 CH 39 5.0 -90.9 CH 78 4.7 -90.4 OTA Standard Chamber III˖Matching circuit PA Antenna E3 E2 E1 7 IV˖Environmental treatment 8 V˖Structure file˖

Report No.: BL-SZ2380254-AS 1 / 3 TEST SETUP PHOTOS Front Side (0mm) Back Side (0mm) Report No.: BL-SZ2380254-AS 2 / 3 Left Edge (0mm) Right Edge (0mm) Report No.: BL-SZ2380254-AS 3 / 3 Top Edge (0mm) Bottom Edge (0mm) --BLANK BELOW--
