2A9AU-A29MINI SMARTPHONE

SD 中文说明书 迷你智能手机 English Manual MINI SMARTPHONE 1.Q:如何插SIM卡和内存卡？ A:由于三选二卡槽设计，所以只能同时 支持2张nano SIM卡或者1张nano SIM 卡和1张内存卡（如图）且内存卡最大 支持64GB。 此款机器不论先插卡后开机还是先开机 后插卡，都能正常识别SIM卡和内存卡。 2.Q:如何开机和关机？ A:长按电源键3秒钟即可开 机；长按电源键2秒钟即 刻弹出“关机”、“重新 启动”等对话框，点“关 机”即可关机 3.Q:是否2张SIM卡都显示3G 网络？ A:默认SIM1卡为3G网络， SIM2卡为2G网络；当手机 里只有1张SIM卡时，即使 放在SIM2卡里，SIM2卡立 即切换为3G网络 4.Q:运行内存和机身内存分别多大？ A:RAM是2GB和ROM是32GB由于安卓系统 和预装APP会占用一些机身内存，所以 机身内存小于32GB 5.Q:如何截图？ A:开机状态下，同时长按（2秒种左右） 开机键和音量- 。 6.Q:如何更新系统？ A:机器自带安卓8.1版本系统，但不支持 在线升级到更高版本的安卓系统；我 们会推送基于安卓8.1系统的优化版本， 客户通过在线升级到最新版本的系统。 7.Q:如何解决系统死机？ A:用卡针戳一下复位孔，从新开机，就 可以解决系统死机问题 8.Q:如何解决手机不充电？ A:用工具把充电接口处的杂物清理干净； 由于充电口较深，请使用原装或者长 头充电线充电。 B:同时按电源键和音量-，长按10秒以上， 再插充电线。 C:用取卡针捅一下复位孔，再插充电线。 SD 1 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 Specific Absorption Rate (SAR) certification information Your device conforms to U.S. Federal Communications Commission (FCC) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or SAR) of 1.6W/kg. SAR information on this and other model devices can be accessed online on the FCC’s website through transition.fcc.gov/oet/rfsafety/sar.html. In normal use, the actual SAR is likely to be much lower, as the device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. SAR test distance， Head:0mm, Body-Worn:10mm By automatically emitting lower levels when possible, your device reduces your overall exposure to RF energy. The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guidelines. This device has a FCC ID number : 2A9AU-A29 [Model Number : i14 and the specific SAR levels for this device can be found at the following FCC website : www.fcc.gov/oet/ea/.

Shenzhen Qiyue Intelligent Co., LTD Agent Authorization Company: Shenzhen Qiyue Intelligent Co., LTD Address: Room 2202, COFCO Ziyun Building, Area 22, Lingzhi Community, Xin 'an Street, Bao 'an District, Shenzhen, China Product Name: MINI SMARTPHONE Model Number(s): i14, 14PRO MAX, i15, i17, i18, i19, i88, i98 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 11-21-2022 Name: Xinrun Lin Title: Manager Company: Shenzhen Qiyue Intelligent Co., LTD

Shenzhen Qiyue Intelligent Co., LTD Room 2202, COFCO Ziyun Building, Area 22, Lingzhi Community, Xin 'an Street, Bao 'an District, Shenzhen, China Tel: 15112684264 E-Mail: [email protected] Date: 2022-11-21 Dear Sir/Madam, We, Shenzhen Qiyue Intelligent Co., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number and colour are different for these model: FCC ID: 2A9AU-A29 Product name: MINI SMARTPHONE Model no.: i14, 14PRO MAX, i15, i17, i18, i19, i88, i98 Sincerely, Signature: Name: Xinrun Lin Title: Manager

Shenzhen Qiyue Intelligent Co., LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 11-21-2022 Subject; Request for Confidentiality FCC ID: 2A9AU-A29 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xinrun Lin Title: Manager

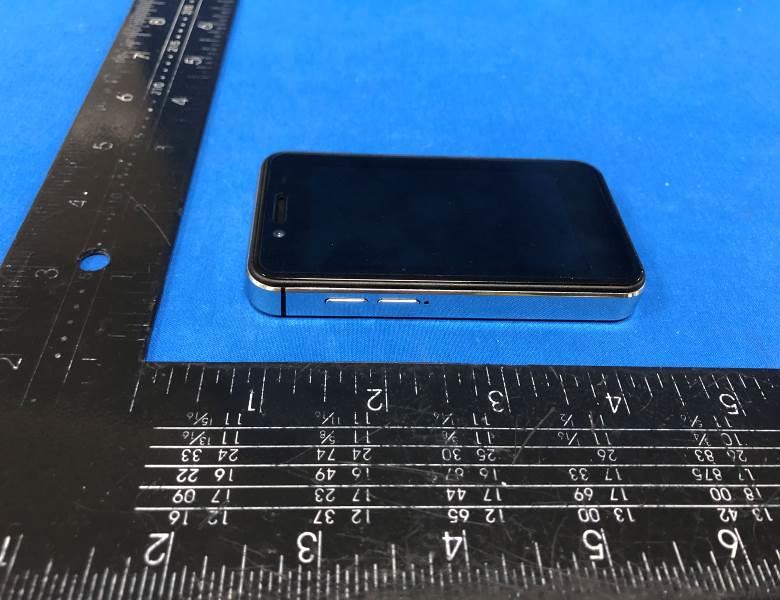

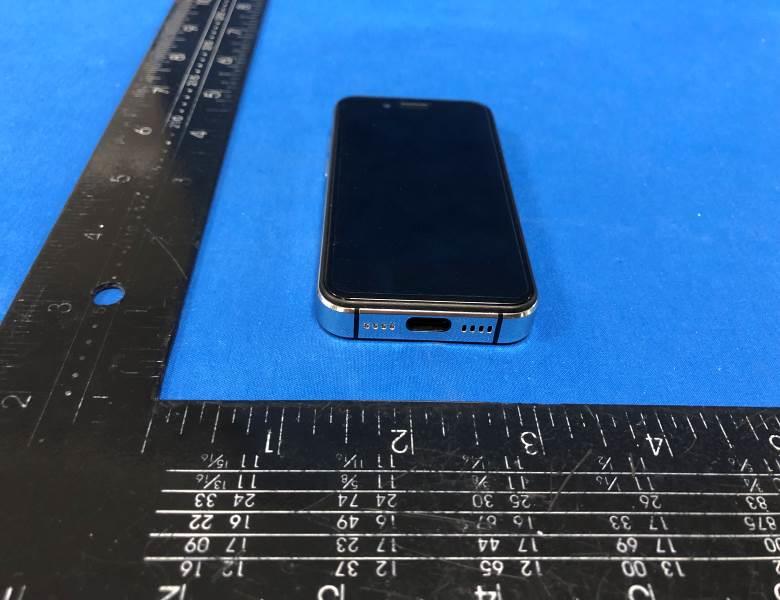

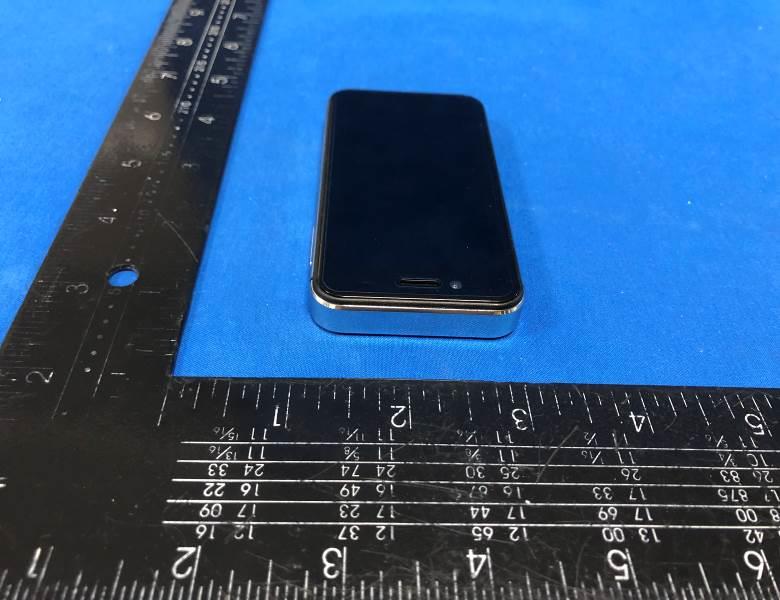

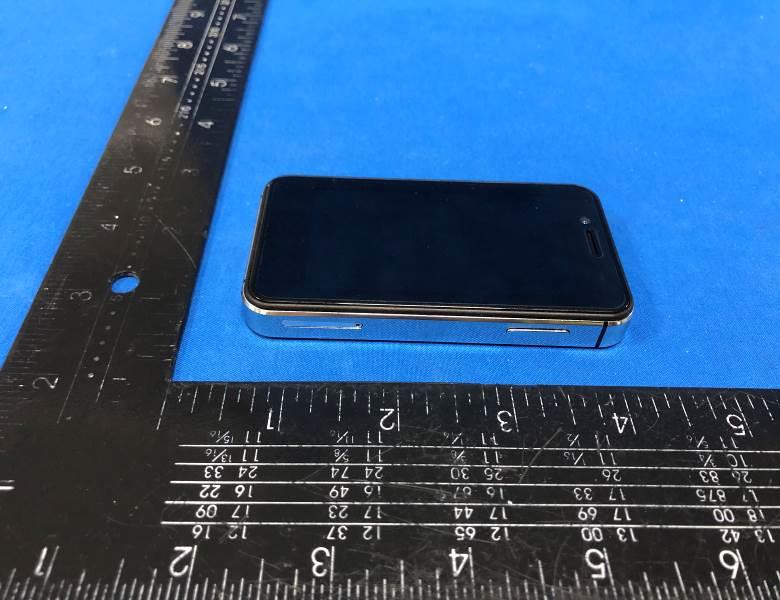

FCC ID: 2A9AU-A29 i14 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2A9AU-A29 Photo 4 Photo 5 Photo 6 FCC ID: 2A9AU-A29 Photo 7 Photo 8

FCC ID: 2A9AU-A29 Label and Location Label and Location MINI SMARTPHONE Model No.: i14 FCC ID : 2A9AU-A29

FCC ID: 2A9AU-A29 i14 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 GSM,W CDMA antenna BT,WIFI antenna FCC ID: 2A9AU-A29 Photo 4 Photo 5 Photo 6 FCC ID: 2A9AU-A29 Photo 7 Photo 8 Photo 9 FCC ID: 2A9AU-A29 Photo 10 Photo 11

Report No.:18220WC20259501 FCC ID: 2A9AU-A29 Page 1 of 118 Code:AB-RF-05-b FCC SAR Test Report Client Name : Shenzhen Qiyue Intelligent Co., LTD Client Address : Room 2202, COFCO Ziyun Building, Area 22, Lingzhi Community, Xin 'an Street, Bao 'an District, Shenzhen, China Product Name : MINI SMARTPHONE Report Date : Nov. 23, 2022 Shenzhen Anbotek Compliance Laboratory Limited Report No.:18220WC20259501 FCC ID: 2A9AU-A29 Page 2 of 118 Code:AB-RF-05-b Contents 1. Statement of Compliance ............................................................................................... 6 2. General Information ........................................................................................................ 7 2.1. Client Information ............................................................................................................................................. 7 2.2. Description of EquipmentUnder Test (EUT) ...................................................................................................... 7 2.3. Device Category and SAR Limits ..................................................................................................................... 8 2.4. Applied Standard .............................................................................................................................................. 8 2.5. Environment of Test Site ................................................................................................................................... 8 2.6. Test Configuration ............................................................................................................................................. 8 3. Specific Absorption Rate (SAR) ..................................................................................... 9 3.1. Introduction ....................................................................................................................................................... 9 3.2. SAR Definition .................................................................................................................................................. 9 4. SAR Measurement System .......................................................................................... 10 4.1. E-Field Probe ................................................................................................................................................... 11 4.2. Data Acquisition Electronics (DAE) .................................................................................................................. 11 4.3. Robot .............................................................................................................................................................. 12 4.4. Measurement Server ...................................................................................................................................... 13 4.5. Phantom ......................................................................................................................................................... 13 4.6. Device Holder ................................................................................................................................................. 14 4.7. Data Storage and Evaluation .......................................................................................................................... 15 5. Test Equipment List ...................................................................................................... 18 6. Tissue Simulating Liquids ............................................................................................. 19 7. System Verification Procedures ................................................................................... 21 8. EUT Testing Position .................................................................................................... 23 8.1. Head Position ................................................................................................................................................. 23 8.2. Body Position .................................................................................................................................................. 24 8.3. Hotspot Mode Exposure conditions ................................................................................................................ 25 9. Measurement Procedures ............................................................................................ 26 9.1. Spatial Peak SAR Evaluation ......................................................................................................................... 26 9.2. Power Reference Measurement ..................................................................................................................... 27 9.3. Area Scan Procedures ................................................................................................................................... 27 9.4. Zoom Scan Procedures .................................................................................................................................. 28 9.5. Volume Scan Procedures ............................................................................................................................... 29 9.6. Power Drift Monitoring .................................................................................................................................... 29 10. Conducted Power ......................................................................................................... 30 11. Antenna Location ......................................................................................................... 36 12. SAR Test Results Summary ......................................................................................... 37 12.1. Head SAR Results ........................................................................................…
