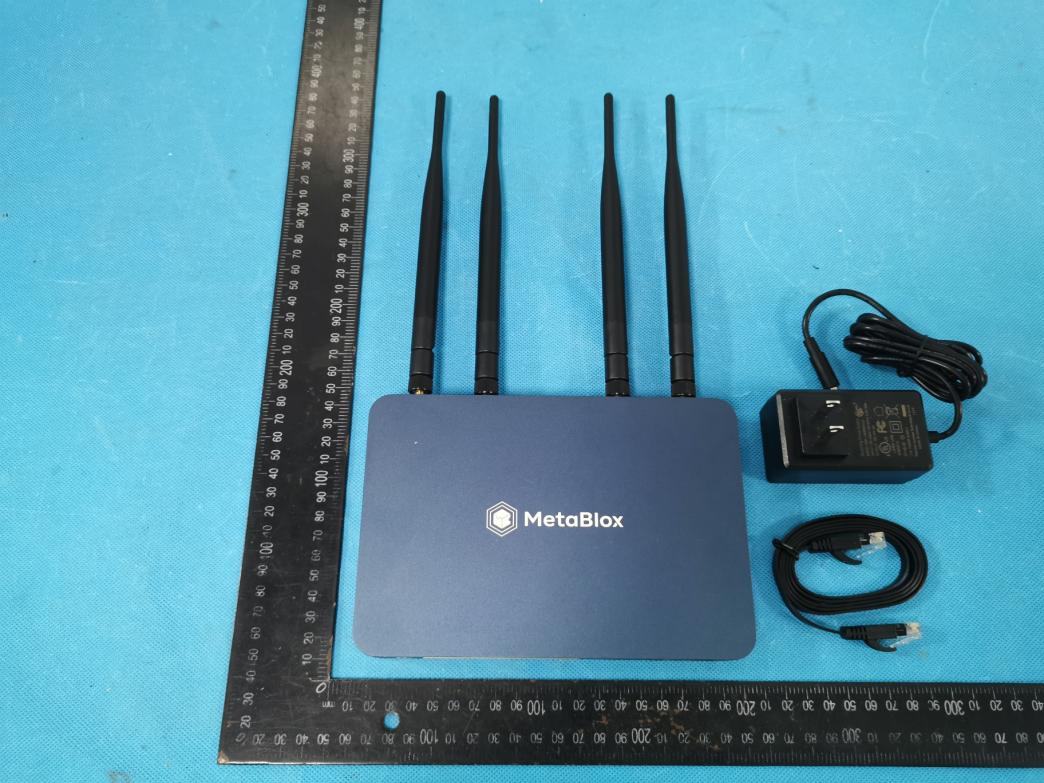

MBWF-P100 Metablox WiFi Router Package Contents a. b. c. d. Router x 1 Antennas x 4 Ethernet Cable x 1 Power Adapter x 1 Connect the Hardware a. Install the antennas and position them upwards. b. Connect the Internet modem/ router to the Internet port on your router with an Ethernet cable. c. Connect the power adapter to turn on the power. Set up Router Visit http://192.168.1.1 in your browser to set up your router; start by set up your password. Quick Start Guide WARNING: The frequency band 5150MHz--5250MHz is restricted for use indoors. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digita l device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipm ent does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- -- -- -- Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a cir cuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the rad iator your body: Use only the supplied antenna. This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) (2) this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2A9B7-MBWFP100

METABLOX TECHNOLOGIES INC. 5831 LINSCOTT RD.,RICHMOND BC V7C 2X2,Canada Date: 11/29/2022 FCC ID: 2A9B7-MBWFP100 Model Number:MBWF-P100 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We,METABLOX TECHNOLOGIES INC.declare that this EUT (FCC ID: 2A9B7-MBWFP100)will conduct FCC compliance testing, the sDOC part recognized test lab(ShenzhenNTEK Testing Technology Co., Ltd.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Please contact me if you have any question. Sincerely, (Signed) Name / Title:Michael Zhou/ Manager Company: METABLOX TECHNOLOGIES INC. Address:5831 LINSCOTT RD., RICHMOND BC V7C 2X2, Canada Phone:+1 6047716456 Fax:+1 6047716456 Email:[email protected]

METABLOX TECHNOLOGIES INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-11-29 Subject; Request for Confidentiality FCC ID:2A9B7-MBWFP100 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Michael Zhou Title:Manager

METABLOX TECHNOLOGIES INC. Agent Authorization Company:METABLOX TECHNOLOGIES INC. Address:5831 LINSCOTT RD.，RICHMOND BC V7C 2X2, Canada Product Name: Metablox WiFi Router Model Number(s):MBWF-P100 Product Description: Metablox WiFi Router We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.11.21 Name: Michael Zhou Title: Manager Company: METABLOX TECHNOLOGIES INC.

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

@J MetaBlox TECHNOLOGIES INC WiFi Router Model: MBWF-PlOO Power: DC12V=2A Address: 192.168.1.1 Username: root Password: <<null >> SN: WFP1002211xxxxx MAC: 7083D5100004 FCC ID: 2A987-MBWFP100 回 _ CE O 范 / 、\ 。。 』 5 .＇ F .＇ 。 W 。 1 x p x4F ＞ 欢 00 BW 1 X文 00 A1> o, 1 2叫mlooM otn p-i68 f V 1 V 22 Bl ” a g w1292e v 005987 et g MB oc 3 品 OBl lA F7 W C ID sa0 d”“nw M欢 @MOdPOWAddumpmsNMAFCC ／ ＾ 。。 '- 夕// Width:30mm Length:25mm

Photo 1 Photo 2 WIFI 2.4G ANT 1 WIFI 5G ANT 1 WIFI 5G ANT 2 WIFI 2.4G ANT 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

FCC ID: 2A9B7-MBWFP100 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result 2.4G/5G WIFI: Operation Frequency: WIFI 802.11b/g/n HT20: 2412-2462MHz, WIFI 802.11n HT40:2422-2452MHz Power density limited: 1mW/ cm 2 Operation Frequency: WIFI 802.11a/ac/n(HT20): 5180-5240MHz; 5745-5825MHz; WIFI 802.11ac/n(HT40): 5190-5230MHz; 5755-5795MHz; WIFI 802.11ac80:5210-5210MHz; 5775-5775MHz Power density limited: 1mW/cm Antenna Type: External antenna 2.4G WIFI antenna1/2 gain: 5 dBi 5G WIFI antenna1/2 gain: 5 dBi R=20cm mW=10^(dBm/10) WLAN2.4G SISO MODE Band Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm 2 ) MPE Limit (mW/cm 2 ) Conclusion n20 Ant 1 12.29 5 17.29 53.58 20 0.0107 1 Pass n20 Ant 2 13.06 5 18.06 63.97 20 0.0127 1 WLAN5.2G SISO MODE Band Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm 2 ) MPE Limit (mW/cm 2 ) Conclusion ac40 Ant 1 9.78 5 14.78 30.06 20 0.0060 1 Pass ac40 Ant 2 8.79 5 13.79 23.93 20 0.0048 1 WLAN5.8G SISO MODE Band Antenna Tune- up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm2) MPE Limit (mW/cm2) Conclusion HT20 Ant 1 9.16 5 14.16 26.06 20 0.0052 1 Pass HT20 Ant 2 8.57 5 13.57 22.75 20 0.0045 1 SIMULTANEOUS TRANSMISSIONS When a number of sources at different frequencies, and/or broadband sources, contribute to the total exposure, it becomes necessary to weigh each contribution relative to the MPE. To comply with the MPE, the fraction of the MPE in terms of E 2 , H 2 (or power density) incurred within each frequency interval should be determined and the sum of all such fractions should not exceed unity. In order to ensure compliance with the MPE for a controlled environment, the sum of the ratios of the power density to the corresponding MPE should not exceed unity. That is Max. SIMULTANEOUS TRANSMISSIONS for 2.4G Module + 5G Module Band Tune-up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm 2 ) MPE Limit (mW/cm2) Calculation result Conclusion WIFI 2.4G 12.29 5 17.29 53.58 20 0.0107 1 0.034 Pass 13.06 5 18.06 63.97 20 0.0127 1 WIFI 5G 9.78 5 14.78 30.06 20 0.0060 1 8.79 5 13.79 23.93 20 0.0048 1 Band Tune-up limit (dBm) Gain (dBi) EIRP (dBm) EIRP (mW) R(cm) S (mW/cm 2 ) MPE Limit (mW/cm2) Calculation result Conclusion WIFI 2.4G 15.7 8.01 23.71 234.96 20 0.0467 1 0.068 Pass WIFI 5G 12.32 8.01 20.33 107.89 20 0.0215 1 Conclusion: The conclusion for MIMO mode should be 0.068＜1 for Max Power Density, Compliance the Signature: Date: 2022-11-29 NAME AND TITLE (Please print or type): Alex/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.
