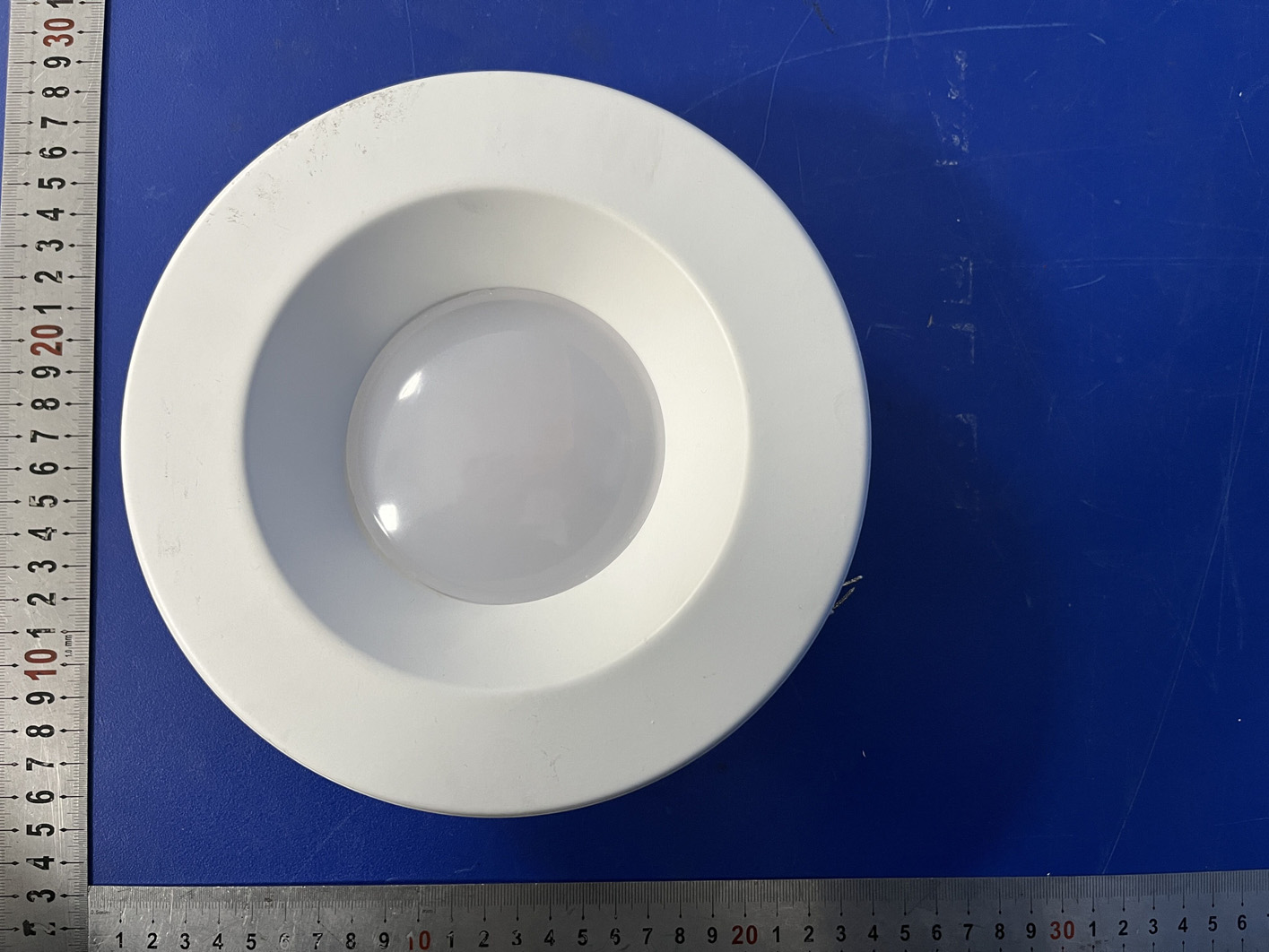

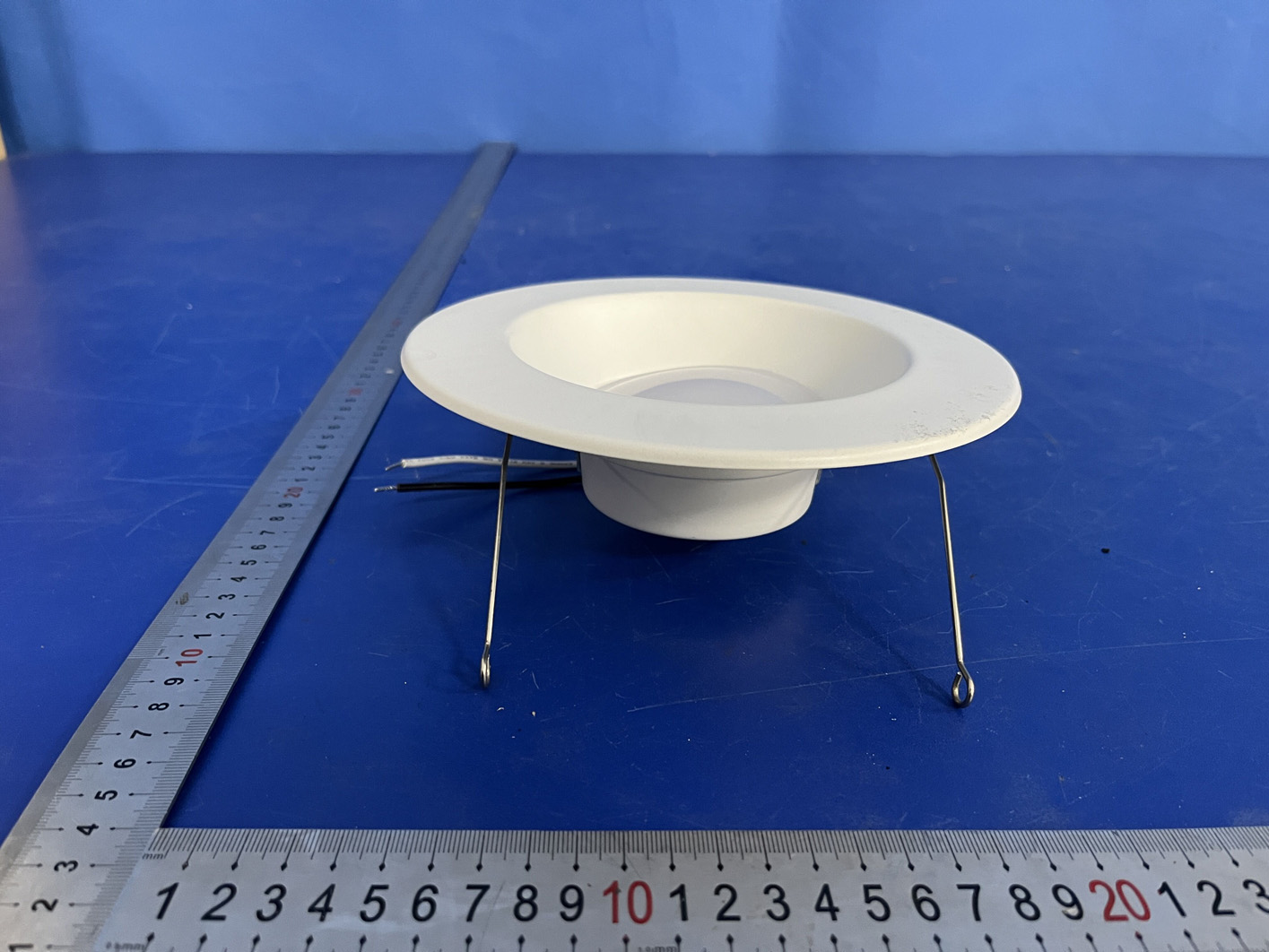

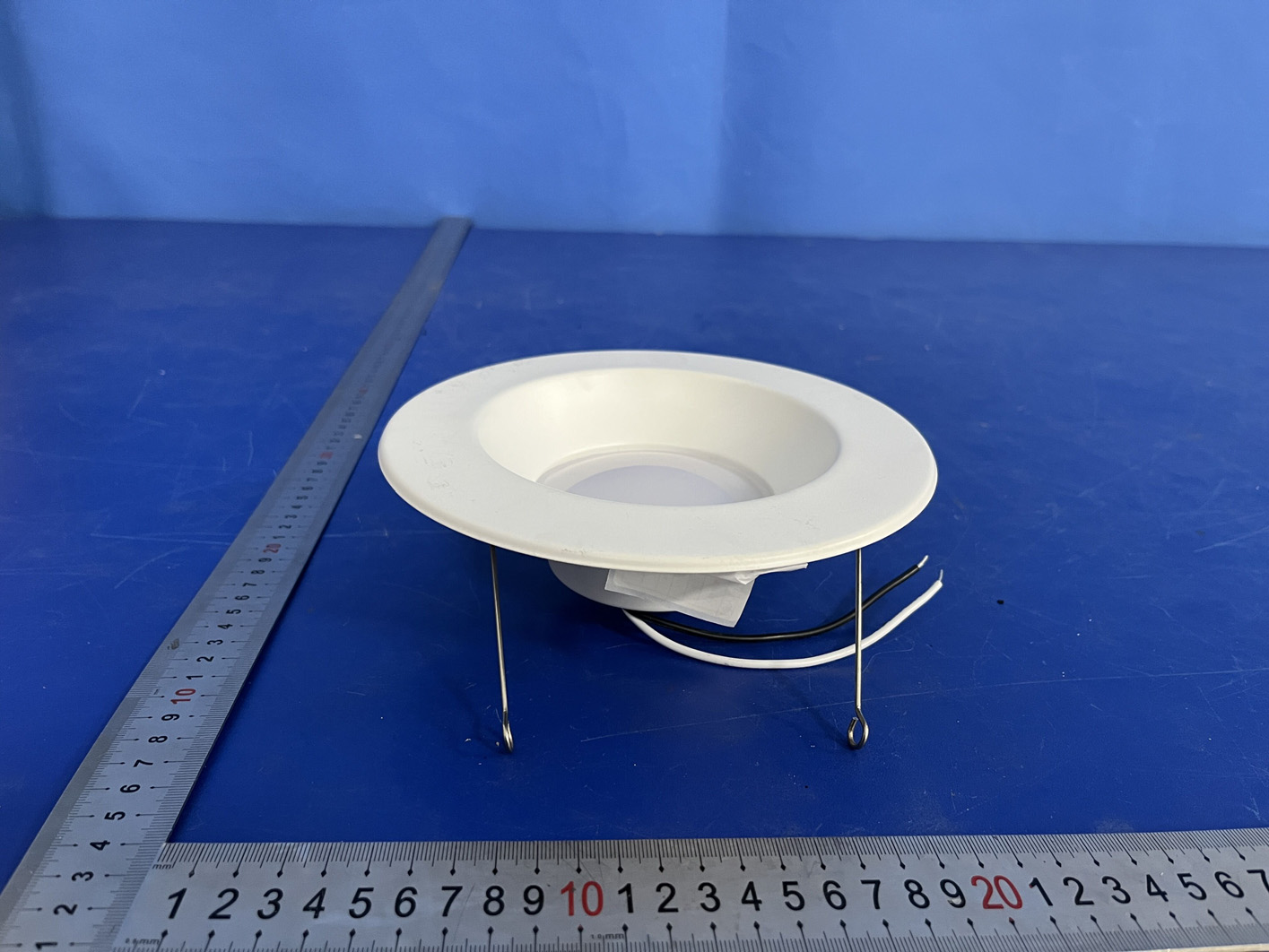

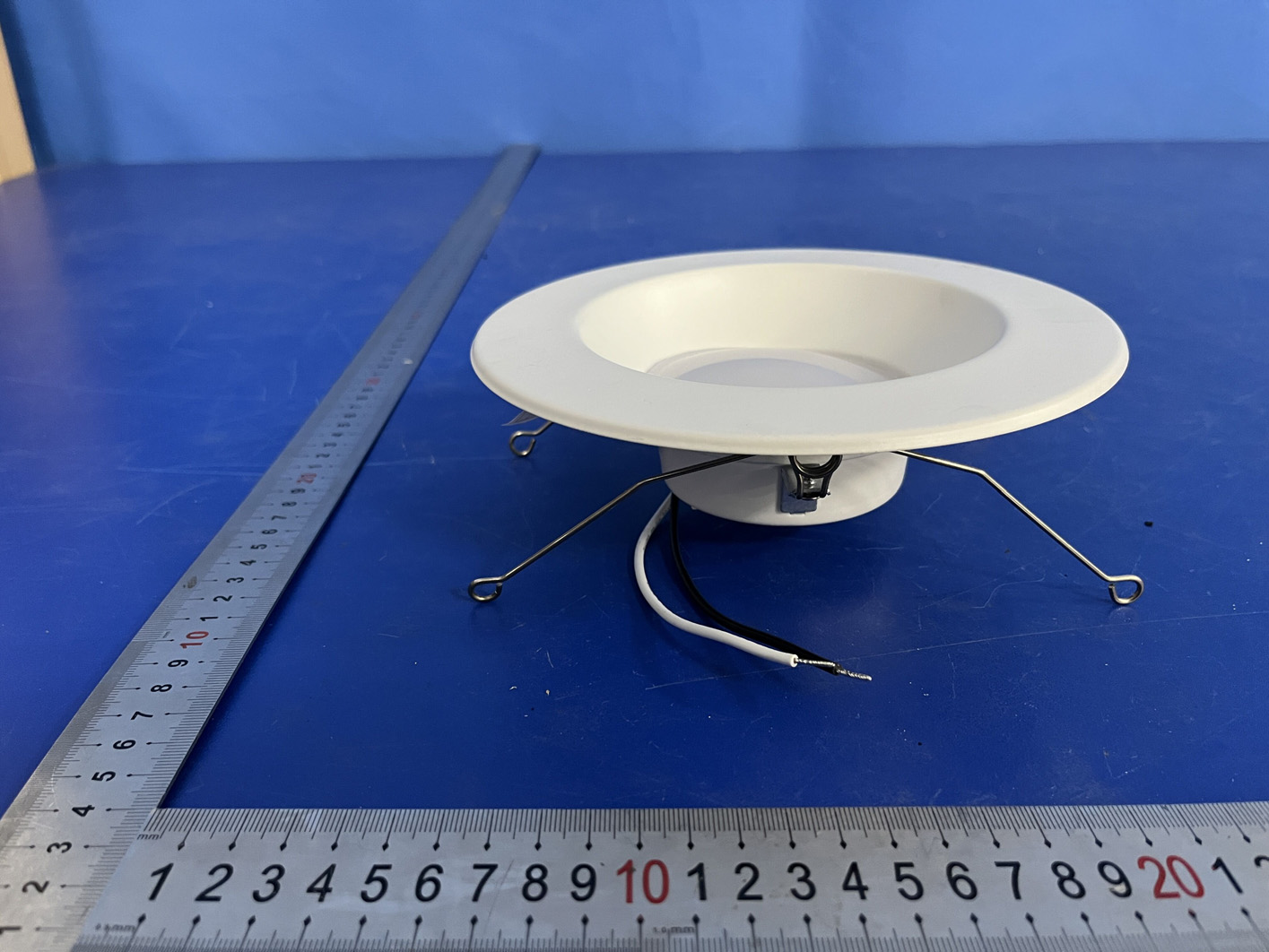

External photos: ---The End---

Label Location

Internal photos: ---The End--- Antenna

FCC ID: 2A9CS-DE12XXWE1 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE,1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. mW = 10^( dBm/10) 11.2 Measurement Result Operation Frequency: 2412 MHz-2462 MHz; Antenna gain: 2.21 dBi; R=20cm WIFI Channel Freq. (MHz) modulation Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2) Power density Limits (mW/cm2 ) 2412 802.11b 17.05 17±1 18 1.66 0.020831912 1 2437 17.22 17±1 18 1.66 0.020831912 1 2462 17.73 17±1 18 1.66 0.020831912 1 2412 802.11g 17.30 17±1 18 1.66 0.020831912 1 2437 17.60 17±1 18 1.66 0.020831912 1 2462 17.90 17±1 18 1.66 0.020831912 1 2412 802.11n20 17.40 17±1 18 1.66 0.020831912 1 2437 17.57 17±1 18 1.66 0.020831912 1 2462 18.57 18±1 19 1.66 0.026225823 1 *** End of Report ***

Report No.EDG2210140016E00201R Page 1 of 54 Ver.1.0 TEST REPORT $二维码$ Product Name : LED Down light Model Number : DE1204WE1WH-09, DE12XXWE1XX-09, DE1206WE1WH-14, DE12XXWE1XX-14,LS-4-RGB, MRL-40955DW, IB-005-1-9W-WH, LS-6-RGB, MRL-61455DW, IB-XXX-X-14W-WH FCC ID : 2A9CS-DE12XXWE1 Prepared for : Xiamen Renzhengge Technology Ltd Address : 4/F No.79, Meixi Road, Siming Zone, Tongan District, Xiamen, Fujian, China Prepared by : EMTEK (DONGGUAN) CO., LTD. Address : -1&2F., Building 2, Zone A, Zhongda Marine Biotechnology Research and Development Base, No. 9, Xincheng Avenue, Songshanhu High-technology Industrial Development Zone, Dongguan, Guangdong, China Tel : +86-0769-22807078 Fax: +86-0769-22807079 Report Number : EDG2210140016E00201R Date(s) of Tests : October 14, 2022 to November 03, 2022 Date of Issue : November 05, 2022 Report No.EDG2210140016E00201R Page 2 of 54 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ........................................................................................................... 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................................. 6 4.2 MEASUREMENT EQUIPMENT USED ............................................................................................ 6 4.3 DESCRIPTION OF TEST MODES ................................................................................................... 7 4.4 TEST SOFTWARE ........................................................................................................................... 7 5 FACILITIES AND ACCREDITATIONS ..................................................................................................... 8 5.1 FACILITIES ...................................................................................................................................... 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ....................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP 1 ........................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP 2 ........................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP ........................................................................................ 11 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ........................................................... 12 7.5 SUPPORT EQUIPMENT ................................................................................................................ 12 8 TEST REQUIREMENTS ......................................................................................................................... 13 8.1 DTS (6DB) BANDWIDTH ............................................................................................................... 13 8.2 MAXIMUM CONDUCTED(AVERAGE) OUTPUT POWER ............................................................ 19 8.3 MAXIMUM POWER SPECTRAL DENSITY ................................................................................... 27 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ................................... 33 8.5 RADIATED SPURIOUS EMISSION ............................................................................................... 38 8.6 CONDUCTED EMISSIONS TEST ................................................................................................. 50 8.7 ANTENNA APPLICATION .............................................................................................................. 53 Report No.EDG2210140016E00201R Page 3 of 54 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Xiamen Renzhengge Technology Ltd Address : 4/F No.79, Meixi Road, Siming Zone, Tongan District, Xiamen, Fujian, China Manufacturer : Xiamen Yiyuanyuan Technology Ltd. Address : 3/F No.78, Meixi Road Siming Zone, Tongan District, Xiamen, Fujian, China EUT : LED Down light Model Name : DE1204WE1WH-09, DE12XXWE1XX-09, DE1206WE1WH-14, DE12XXWE1XX-14,LS-4-RGB, MRL-40955DW, IB-005-1-9W-WH, LS-6-RGB, MRL-61455DW, IB-XXX-X-14W-WH Trademark : Renzhengge, Yiyuanyuan, Lighting spot26, Luvoni, Maxxima, Infibrite Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (DONGGUAN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report. Date of Test : October 14, 2022 to November 03, 2022 Prepared by : Warren deng /Engineer Reviewer : Tim Dong /Supervisor Approved & Authorized Signer : Sam Lv /Manager Report No.EDG2210140016E00201R Page 4 of 54 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Note: for more details, please refer to the User’s manual of the EUT. Characteristics Description Product LED Down light Model Number DE1204WE1WH-09, DE12XXWE1XX-09, DE1206WE1WH-14, DE12XXWE1XX-14,LS-4-RGB, MRL-40955DW, IB-005-1-9W-WH, LS-6-RGB, MR…

Text truncated - open the document above for the full version.

Report No.EDG2210140016E00201R Page 39 of 55 Ver.1.0 8.5 RADIATED SPURIOUS EMISSION 8.5.1 Applicable Standard According to FCC Part 15.247(d) and 15.209 and KDB 558074 D01 15.247 Meas Guidance v05r02 8.5.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 According to FCC Part15.205,the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz) Field Strength ( μV/m) Field Strength (dB μV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 8.5.3 Test Configuration Test according to clause 7.2 radio frequency test setup 2 8.5.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz for f  1 GHz(1GHz to 25GHz), 100 kHz for f < 1 GHz(30MHz to 1GHz), 200Hz for f<150KHz(9KHz to 150KHz), 9KHz for f<30MHz(150KHz to 30KHz) VBW  RBW Sweep = auto Report No.EDG2210140016E00201R Page 40 of 55 Ver.1.0 Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10-2013 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b). Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the 15.209 limit. Submit this data. Repeat above procedures until all frequency measured was complete. 8.5.5 Test Results Temperature: 22.5 C Relative Humidity: 45 ATM Pressure: 1011 mbar  Spurious Emission below 30MHz(9KHz to 30MHz) Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV -- -- -- -- -- -- -- -- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the permissible limit has no need to be reported. Distance extrapolation factor =40log(Specific distance/ test distance)( dB); Limit line=Specific limits(dBuV) + distance extrapolation factor Report No.EDG2210140016E00201R Page 41 of 55 Ver.1.0  Spurious Emission Above 1GHz(1GHz to 25GHz)  All modes 2.4G 802.11b/g/n have been tested, and the worst result 802.11g recorded was report as below: Test mode: 802.11 g Frequency: Channel 1: 2412MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV 4823.682 V 52.54 38.64 74.00 54.00 -21.46 -15.36 11082.00 V 57.07 43.66 74.00 54.00 -16.93 -10.34 14699.97 V 62.27 49.37 74.00 54.00 -11.73 -4.63 4823.682 H 59.01 46.55 74.00 54.00 -14.99 -7.45 11133.01 H 57.33 42.97 74.00 54.00 -16.67 -11.03 16021.00 H 62.17 49.66 74.00 54.00 -11.83 -4.34 Test mode: 802.11 g Frequency: Channel 6: 2437MHz Freq. (MHz) Ant.Po l. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV 4874.687 V 54.65 40.37 74.00 54.00 -19.35 -13.63 11490.04 V 56.93 42.57 74.00 54.00 -17.07 -11.43 15798.28 V 62.89 49.36 74.00 54.00 -11.11 -4.64 4874.687 H 56.56 41.67 74.00 54.00 -17.44 -12.33 11078.60 H 56.89 42.33 74.00 54.00 -17.11 -11.67 13936.59 H 60.34 46.06 74.00 54.00 -13.66 -7.94 Test mode: 802.11 g Frequency: Channel 11: 2462MHz Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV 4923.992 V 57.38 42.67 74.00 54.00 -16.62 -11.33 11085.40 V 57.33 43.07 74.00 54.00 -16.67 -10.93 15813.58 V 61.57 46.77 74.00 54.00 -12.43 -7.23 4923.992 H 55.58 40.37 74.00 54.00 -18.42 -13.63 13465.64 H 60.11 45.67 74.00 54.00 -13.89 -8.33 15927.49 H 61.43 47.33 74.00 54.00 -12.57 -6.67  Note: (1) All Readings are Peak Value (VBW=3MHz) and Average Value (VBW=10Hz). (2) Emission Level= Reading Level+Correct Factor. (3) Correct Factor= Ant_F + Cab_L - Preamp (4) The reading of emissions are attenuated more than 20dB below the permissible limits or the field strength is too smal…

Text truncated - open the document above for the full version.

CBU Antenna test report Manufacturer: Xiamen Yiyuanyuan Technology Ltd. Address: 3/F No.78, Meixi Road Siming Zone, Tongan District, Xiamen, Fujian, China Model Name CBU Antenna Type: PCB antenna Writer: Yinhua Zhang Maximum Gain：2.21dBi Efficiency:32.96% Global Intelligent Platform CBU Antenna specification book Version 1.0.0 Dat e：2020-11-24 NO：0000000001 CBU Antenna test report Content 1. General Description .............................................................................. 3 2. Technical Information ........................................................................... 3 3. Test Standards ........................................................................................ 3 4. Test Item ................................................................................................ 4 5. Test Photo .............................................................................................. 4 Appendix A S11/VSWR .................................................................................. 5 Appendix B Gain and Efficiency ................................................................ 6 Appendix C Radiation Pattern(1D and 3D) ................................................ 7 Appendix D Test Setup Photo ..................................................................... 9 CBU Antenna test report 1. General Description EUT Name CBU Antenna Wireless type WIFI Antenna Type PCB antenna Dimensions Appendix A 2. Technical Information Frequency Range 2402MHz~2480MHz Test Frequency 2400,2410......2500MHz 3. Test Standards Identity Document Title IEEE 149-1979 IEEE Standard Test Procedures for Antennas CBU Antenna test report 4. Test Item Report Section Description Appendix B S11/VSWR Appendix C Gain and Efficiency Appendix D Radiation Pattern（1D and 3D） 5. Test Photo Report Section Description Appendix E Test Setup Photo CBU Antenna test report VSWR 2.16 1.71 1.77 Appendix C Gain and Efficiency Frequency (MHz) Efficiency(%) Gain（dBi） 2400 32.36% 2.11 2410 32.3% 2.18 2420 32.1% 2.21 2430 32.4% 2.06 2440 32.9% 2.07 2450 30.9% 1.91 2460 30.8% 2.04 2470 30.7% 2.09 2480 31.6% 1.98 2490 30.6% 1.91 2500 30.5% 1.03
