2A9CX-REC1Space Recorder

Safety Information Please read the following carefully before using the Nomono Sound Capsule: ● Magnets - The Stellar Mic, Charging Case and Accessory Clip Magnets contain strong magnets ○ Keep the Accessory Clip Magnets away from children. Swallowing magnets can cause serious harm. ○ Keep Stellar Mic at a safe distance if you use a Pacemaker, and do not attach them using the accessory magnet if you use a pacemaker or a similar device. ○ Keep hard drives, credit cards and RFID - devices at a distance from the magnets ● Batteries - The Stellar Mic, Space Recorder and Charging Case are all powered with Lithium batteries ○ Fire - put out with sand/water/fire extinguisher? ○ Do not disassemble/open the product, this will lead to a loss of warranty, and risk of fire if the battery is pierced ○ Put product in “Shipping Mode” before going on an aeroplane, familiarise yourself with the airline’s guidelines for handling products with batteries ○ Should you notice that theProduct swells, or leaks battery fluids, discontinue its use, and contact Nomono AS. ○ Do not leave the products fully discharged for a long ● Water/Liquids - The Space Recorder, and Stellar Mics are splash resistant, however, they are not intended for use in heavy rain. ○ Do not let the Charging Case stand without the lid on in the rain. ○ Do not dock the Stellar Mic or Space Recorder if they are wet, do not plug in the Charging Case if it is wet. ○ Do not submerge the products. ○ Do not use chemicals to clean the products. ● Operating temperature is -10°C - +45°C ○ Do not store or charge the products near heat sources, or in a car on a hot day ○ Do not put the products in a pressurised containers or microwave ● Carrying the Charging Case ○ Close the lid clamps before carrying the Charging Case ○ The carrying strap is intended for walking, not excessive shaking due to running, and not to be attached to a bag etc. Note ● Do not leave the Charging case, Space Recorder or the Stellar Mics fully discharged over long periods, as this might permanently reduce battery life. It is recommended to charge the battery every 6 months to ensure battery longevity. ● Requirements for charger: 5V - 12V DC, 2A Warranty The standard warranty for Nomono products purchased and shipped from 1st April 2023 is 1 year from shipment date. For units purchased before this date, there is no warranty due to prototype/BETA product phase For partners, the signed warranty agreement applies. If you purchased your Nomono kit from a reseller or distributor, please contact them directly for questions regarding the warranty. North America FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Wireless notice This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. IC notice This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)L’appareil ne doit pas produire de brouillage; (2)L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.The portable device is designed to meet the requirements for exposure to radio waves established by the ISED. Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. L’utilisateur final doit suivre les instructions spécifiques pour satisfaire les normes. Cet émetteur ne doit pas être co-implanté ou fonctionner en conjonction avec toute autre antenne ou transmetteur. Le dispositif portatif est conçu pour répondre aux exigences d’exposition aux ondes radio établie par le développement énergétique DURABLE. EU Nomono AS declares that the Sound …

Text truncated - open the document above for the full version.

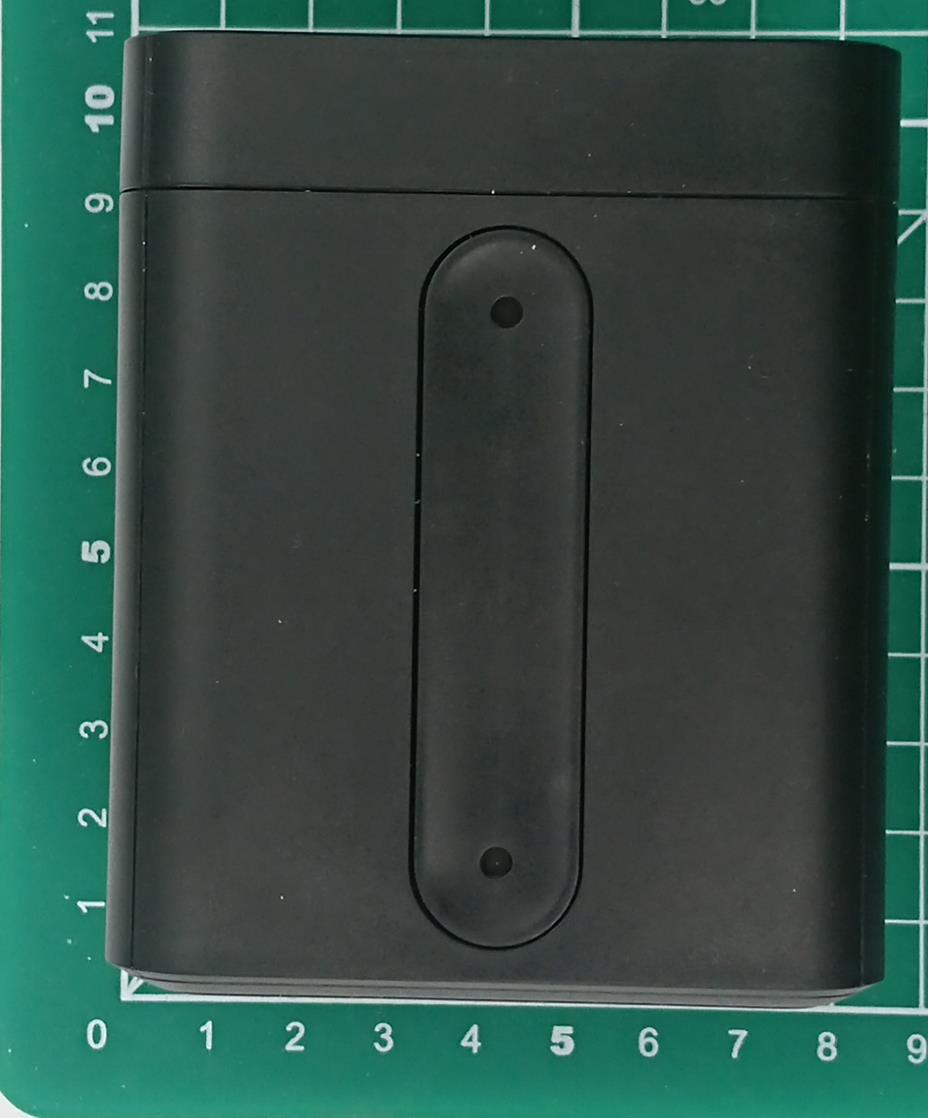

External photos 29748-REC1 (Space Recorder) Space Recorder Top Space Recorder Bottom Space Recorder Side 1 Space Recorder Side 2

Internal photos 2A9CX-REC1 (Space Recorder) Space Recorder Main PCBA top side. Space Recorder Main PCBA bottom side. Space Recorder Main top side detail 1 Space Recorder Main top side detail 2 Space Recorder Main top side detail 3 Space Recorder Main top side detail 4 Space Recorder Pogo PCBA top side. Space Recorder Pogo PCBA bottom side. Space Recorder Mic PCBA top side. Space Recorder Mic PCBA bottom side.

Nomono AS, Registered in Norway No. 922172676 Strandveien 43, 7042 Trondheim Antenna pattern Antenna: Molex 201932-0001 Frequency range: 900 – 924 MHz, 2.4 – 2.5 GHz, 5.15 – 5.85 MHz Peak gain @ 900 MHz: 0.7 dBi Peak gain @ 2.4 GHz: 4.2 dBi Peak gain @ 5 GHz: 4.5 dBi Polarization: Linear 912 MHz (not used in our product): Nomono AS, Registered in Norway No. 922172676 Strandveien 43, 7042 Trondheim 2450 MHz: Nomono AS, Registered in Norway No. 922172676 Strandveien 43, 7042 Trondheim 5450 MHz: Nomono AS, Registered in Norway No. 922172676 Strandveien 43, 7042 Trondheim PCB antennas Antenna #0 Frequency range: 2.4 – 2.5 GHz Calculated antenna gain: 2.05 dBi Nomono AS, Registered in Norway No. 922172676 Strandveien 43, 7042 Trondheim Antenna #1 Frequency range: 2.4 – 2.5 GHz Calculated antenna gain: 1.99 dBi Nomono AS, Registered in Norway No. 922172676 Strandveien 43, 7042 Trondheim Antenna #2 Frequency range: 2.4 – 2.5 GHz Calculated antenna gain: 2.58 dBi Nomono AS, Registered in Norway No. 922172676 Strandveien 43, 7042 Trondheim Antenna #3 Frequency range: 2.4 – 2.5 GHz Calculated antenna gain: 1.16 dBi

Prüfbericht - Produkte Test Report – Products Prüfbericht-Nr.: Test report no.: SE23D05H-003 Auftrags-Nr.: Order no.: 0290100214 Seite 1 von 10 Page 1 of 10 Kunden-Referenz-Nr.: Client reference no.: 2458172 Auftragsdatum: Order date: 2022.09.29 Auftraggeber: Client: Nomono AS Prüfgegenstand: Test item: Central hub of recording device Bezeichnung / Typ-Nr.: Identification / Type no.: Space Recorder / FCC ID: 2A9CX-REC1 Auftrags-Inhalt: Order content: RF Exposure Evaluation Prüfgrundlage: Test specification: FCC 47 CFR 2.1091 Wareneingangsdatum: Date of sample receipt: N/A Prüfmuster-Nr.: Test sample no: N/A Prüfzeitraum: Testing period: N/A - Ort der Prüfung: Place of testing: Lund, Sweden Prüflaboratorium: Testing laboratory: TÜV Rheinland Sweden Prüfergebnis*: Test result*: Pass überprüft von: reviewed by: X Signed by: Niall Forrester genehmigt von: authorized by: X Signed by: Hakan Ahlberg Datum: 2023.05.17 Date: Datum: 2023.05.17 Date: Stellung / Position: Senior Technical Expert Stellung / Position: Lab Manager Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23D05H-003 Seite 2 von 10 Page 2 of 10 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Revision History Revision Date Remarks Author 001 2023.04.21 First release Niall Forrester 002 2023.04.21 Corrected error in wireless frequencies Niall Forrester 003 2023.05.17 Updated module text Niall Forrester Note: Latest revision report will replace all previous reports This report based on RF Exposure FCC 47CR 2-1091 IEEE C95 Template version 1.1 Statement of Compliance Evaluation was performed based on FCC 47 CFR 2.1091 for mobile devices. The calculations below show that the Space Recorder / FCC ID: 2A9CX-REC1 device is compliant with these requirements at a distance of 20cm for all supported combinations of wireless transmitter technologies. Table of Contents 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 Test Site ........................................................................................................................................................ 3 1.2 Client Information .......................................................................................................................................... 3 2. PRODUCT INFORMATION................................................................................................................................... 4 2.1 General Description ...................................................................................................................................... 4 2.2 Device Usage and Evaluation Distance ....................................................................................................... 4 2.3 Wireless Technologies and Bands Supported by the EUT .......................................................................... 4 2.4 Simultaneous Transmission Configurations ................................................................................................. 5 2.5 Conducted Power and Antenna Gain ........................................................................................................... 5 3. TEST METHODS .................................................................................................................................................. 6 3.1 Test Standards .............................................................................................................................................. 6 3.2 Additional references .................................................................................................................................... 6 3.3 Limits ............................................................................................................................................................. 7 4. EVALUATION DETAILS ........................................................................................................................................ 9 4.1 Power Density (S) at 20cm Distance for Each Band and Technology ......................................................... 9 4.2 Simultaneous Transmission Calculations ................................................................................................... 10 Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23D05H-003 Seite 3 von 10 Page 3 of 10 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com 1. GENERAL INFORMATION 1.1 Test Site Test Facility: TÜV Rheinland Sweden AB Address: Mobilvägen 10 223 62 Lund Sweden Swedac Registration Number: FCC Test Firm Registration Number: ISED Test Site Registration Number: 10325 51745…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report – Products Prüfbericht-Nr.: Test report no.: SE23IRVV-003 Auftrags-Nr.: Order no.: 0290100214 Seite 1 von 64 Page 1 of 64 Kunden-Referenz-Nr.: Client reference no.: 2458172 Auftragsdatum: Order date: 2022.09.29 Auftraggeber: Client: Nomono AS Prüfgegenstand: Test item: Central hub of recording device Bezeichnung / Typ-Nr.: Identification / Type no.: Space Recorder / IC ID: 29748-REC1 Auftrags-Inhalt: Order content: Accredited Testing Prüfgrundlage: Test specification: RSS-247 issue 2, RSS-GEN Issue 5 ANSI C63.10: 2013 Wareneingangsdatum: Date of sample receipt: 2022.11.09 Prüfmuster-Nr.: Test sample no: See section 2.3 Prüfzeitraum: Testing period: 2023.02.21 - 2023.05.03 Ort der Prüfung: Place of testing: Lund, Sweden Prüflaboratorium: Testing laboratory: TÜV Rheinland Sweden Prüfergebnis*: Test result*: Pass überprüft von: reviewed by: X Signed by: Niall Forrester genehmigt von: authorized by: X Signed by: Hakan Ahlberg Datum: 2023.05.17 Date: Datum: 2023.05.17 Date: Stellung / Position: Senior Technical Expert Stellung / Position: Lab Manager Sonstiges / Other: The device contains multiple radio transmitters. Please see section 2.1 for details and section 3.7 for notes about the configurations tested. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23IRVV-003 Seite 2 von 64 Page 2 of 64 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Revision History REVISION DATE REMARKS AUTHOR 001 2023.04.24 First release Niall Forrester 002 2023.05.03 Added 99% Bandwidth results Niall Forrester 003 2023.05.17 Updated module text Niall Forrester Note: Latest revision report will replace all previous reports This report based on RSS-247 Template version 1.1 Summary of Test Results ISED Rule Part Test Description Applicability Report Section RESULT REMARKS RSS-GEN 8.8 AC Power Line Conducted Emissions (Radio Apparatus) YES 4.1 PASS RSS-GEN 8.9 Radiated Emissions (Radio Apparatus) YES 4.2 PASS* RSS-247 5.5 Antenna Conducted Emissions NO 4.3 N/A Radiated testing performed RSS-247 5.5 Band Edge Compliance (Authorized Band) YES 4.4 PASS RSS-247 5.5 RSS-GEN 8.10 Band Edge Compliance (Restricted Band) YES 4.5 N.P. Only “Auth Band” part tested RSS-247 5.1 (a) RSS-GEN 6.7 20dB Bandwidth 99% Emission Bandwidth NO 4.6 N/A WLAN is non- hopping RSS-247 5.1 (b) Carrier (Hopping Channel) Separation NO 4.7 N/A WLAN is non- hopping RSS-247 5.1 (d) Number of Hopping Channels NO 4.8 N/A WLAN is non- hopping RSS-247 5.1 (d) Time of Occupancy (Dwell Time) NO 4.9 N/A WLAN is non- hopping RSS-247 5.2 (a) RSS-GEN 6.7 6dB Bandwidth 99% Emission Bandwidth YES 4.10 PASS RSS-247 5.4 Peak Conducted Output Power YES 4.11 PASS RSS-247 5.2 (b) Power Spectral Density YES 4.12 PASS RSS-GEN 6.11 Transmitter Frequency Stability NO 4.13 N/A N/A for WLAN - Maximum Power & e.r.p. Summary - 4.13 - For Information Only Possible test case verdicts: - Test case does not apply to the test object: N/A - Test object complies with the requirement: PASS or COMPLIANT - Test object does not meet the requirement: FAIL or NOT COMPLIANT - Test case not performed on the test object: N.P. Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23IRVV-003 Seite 3 von 64 Page 3 of 64 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Table of Contents 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 Test Site ............................................................................................................................................................................................ 4 1.2 Client Information .............................................................................................................................................................................. 4 2. PRODUCT INFORMATION................................................................................................................................... 5 2.1 General Description........................................................................................................................................................................... 5 2.2 Device Characteristics ....................................................................................................................................................................... 5 2.3 Test Samples .................................................................................................................................................................................... 6 2.4 Wireless Technologies and Bands Supported by the EUT ...................................................................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report – Products Prüfbericht-Nr.: Test report no.: SE23N0FX-004 Auftrags-Nr.: Order no.: 0290100214 Seite 1 von 18 Page 1 of 18 Kunden-Referenz-Nr.: Client reference no.: 2458172 Auftragsdatum: Order date: 2022.09.29 Auftraggeber: Client: Nomono AS Prüfgegenstand: Test item: Central hub of recording device Bezeichnung / Typ-Nr.: Identification / Type no.: Space Recorder / FCC ID: 2A9CX-REC1 Auftrags-Inhalt: Order content: Accredited Testing Prüfgrundlage: Test specification: FCC 47 CFR Part 15.407 with KDB 905462 D02 v02 ANSI C63.10: 2013 Wareneingangsdatum: Date of sample receipt: 2022.11.09 Prüfmuster-Nr.: Test sample no: See section 2.3 Prüfzeitraum: Testing period: 2023.04.10 - 2023.04.27 Ort der Prüfung: Place of testing: Lund, Sweden Prüflaboratorium: Testing laboratory: TÜV Rheinland Sweden Prüfergebnis*: Test result*: Pass überprüft von: reviewed by: X Signed by: Niall Forrester genehmigt von: authorized by: X Signed by: Hakan Ahlberg Datum: 2023.05.17 Date: Datum: 2023.05.17 Date: Stellung / Position: Senior Technical Expert Stellung / Position: Lab Manager Sonstiges / Other: The device contains multiple radio transmitters. Please see section 2.1 for details and section 3.7 for notes about the configurations tested. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23N0FX-004 Seite 2 von 18 Page 2 of 18 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Revision History REVISION DATE REMARKS AUTHOR 001 2023.04.20 First release Niall Forrester 002 2023.04.21 Corrected error in wireless frequencies Niall Forrester 003 2023.04.27 Added “non-occupancy” results Niall Forrester 004 2023.05.17 Updated module text Niall Forrester Note: Latest revision report will replace all previous reports This report based on FCC Part 15.407 DFS Template version 1.0 Summary of Test Results FCC 47 CFR (KDB 905462 D02) Rule Part Test Description Applicability Report Section RESULT REMARKS 15.407 h(2) (7.8.1) U-NII Detection Bandwidth (Prior to use of a channel) NO 4.1 N/A Client without radar detection 15.407 h(2) (7.8.1) U-NII Detection Bandwidth (During normal Operation) NO N/A Client without radar detection 15.407 h(2) (7.8.2) Channel Availability Check Time (Prior to use of a channel) NO 4.2 N/A Client without radar detection 15.407 h(2)(iv) (7.8.3) “Operational Requirements” Non-Occupancy Period (Prior to use of a channel) YES 4.3 PASS 15.407 h(2) (7.8.3) “Operational Requirements” DFS Detection Threshold (Prior to use of a channel) NO N/A Client without radar detection 15.407 h(2) (7.8.3) “Operational Requirements” DFS Detection Threshold (During normal Operation) NO N/A Client without radar detection 15.407 h(2)(ii) (7.8.3) “Operational Requirements” Channel Move Time (During normal Operation) YES PASS 15.407 h(2)(iii) (7.8.3) “Operational Requirements” Channel Closing Trans. Time (During normal Operation) YES PASS 15.407 h(2)(ii) (7.8.3) “Operational Requirements” Channel Move Time: Aggregate (During normal Operation) YES PASS 15.407 h(2) (7.8.4) Statistical Performance Check NO 4.4 N/A Client without radar detection Possible test case verdicts: - Test case does not apply to the test object: N/A - Test object complies with the requirement: PASS or COMPLIANT - Test object does not meet the requirement: FAIL or NOT COMPLIANT - Test case not performed on the test object: N.P. Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23N0FX-004 Seite 3 von 18 Page 3 of 18 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Table of Contents 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 Test Site ............................................................................................................................................................................................ 4 1.2 Client Information .............................................................................................................................................................................. 4 2. PRODUCT INFORMATION................................................................................................................................... 5 2.1 General Description........................................................................................................................................................................... 5 2.2 Device Characteristics ....................................................................................................................................................................... 5 2.3 Test Samples .....................................................................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report – Products Prüfbericht-Nr.: Test report no.: SE23ZOJM-003 Auftrags-Nr.: Order no.: 0290100214 Seite 1 von 27 Page 1 of 27 Kunden-Referenz-Nr.: Client reference no.: 2458172 Auftragsdatum: Order date: 2022.09.29 Auftraggeber: Client: Nomono AS Prüfgegenstand: Test item: Central hub of recording device Bezeichnung / Typ-Nr.: Identification / Type no.: Space Recorder / FCC ID: 2A9CX-REC1 Auftrags-Inhalt: Order content: Accredited Testing Prüfgrundlage: Test specification: FCC 47 CFR Part 15B with parts 15.107 & 15.109 ANSI C63.4: 2014 Wareneingangsdatum: Date of sample receipt: 2022.11.09 Prüfmuster-Nr.: Test sample no: See section 2.3 Prüfzeitraum: Testing period: 2023.02.27 – 2023.03.02 Ort der Prüfung: Place of testing: Lund, Sweden Prüflaboratorium: Testing laboratory: TÜV Rheinland Sweden Prüfergebnis*: Test result*: Pass überprüft von: reviewed by: X Signed by: Niall Forrester genehmigt von: authorized by: X Signed by: Hakan Ahlberg Datum: 2023.05.17 Date: Datum: 2023.05.17 Date: Stellung / Position: Senior Technical Expert Stellung / Position: Lab Manager Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23ZOJM-003 Seite 2 von 27 Page 2 of 27 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Revision History REVISION DATE REMARKS AUTHOR 001 2023.04.14 First release Niall Forrester 002 2023.04.21 Corrected error in wireless frequencies Niall Forrester 003 2023.05.17 Updated module text Niall Forrester Note: Latest revision report will replace all previous reports This report based on FCC Part 15B no JBP Template version 1.3 Summary of Test Results FCC 47 CFR Rule Part Test Description Applicability Report Section RESULT REMARKS 15.107 AC Power Line Conducted Emissions (Unintentional Radiators) YES 4.1 PASS 15.109 Radiated Emissions (Unintentional Radiators) YES 4.2 PASS Possible test case verdicts: - Test case does not apply to the test object: N/A - Test object complies with the requirement: PASS or COMPLIANT - Test object does not meet the requirement: FAIL or NOT COMPLIANT - Test case not performed on the test object: N.P. Prüfbericht – Produkte Prüfbericht-Nr.: / Test Report No.: Test Report – Products SE23ZOJM-003 Seite 3 von 27 Page 3 of 27 TÜV Rheinland Sweden AB. Mobilvägen 10, 223 62 Lund, Sweden  Phone.: +46 46 272 57 46 Mail: [email protected]  Web: www.tuv.com Table of Contents 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 Test Site ............................................................................................................................................................................................ 4 1.2 Client Information .............................................................................................................................................................................. 4 2. PRODUCT INFORMATION................................................................................................................................... 5 2.1 General Description...............................…

Text truncated - open the document above for the full version.
